Saddle Clamp For PE/PVC Pipe 002 Short Type Installation Instruction
We have clearly marked the applicable outer diameter of the main pipeline and the outlet size on each saddle clamp(as below figure). Before installation, please carefully check these markings to confirm they match the outer diameter of the main pipe and the required outlet size. Additionally, inspect all parts of the saddle clamp to ensure they are intact, especially the threaded parts. If necessary, please indicate whether you need thread protection caps when placing your order to prevent damage to the threads.
Step 1
Disassemble all bolts and washers( as below figure)
Step 2

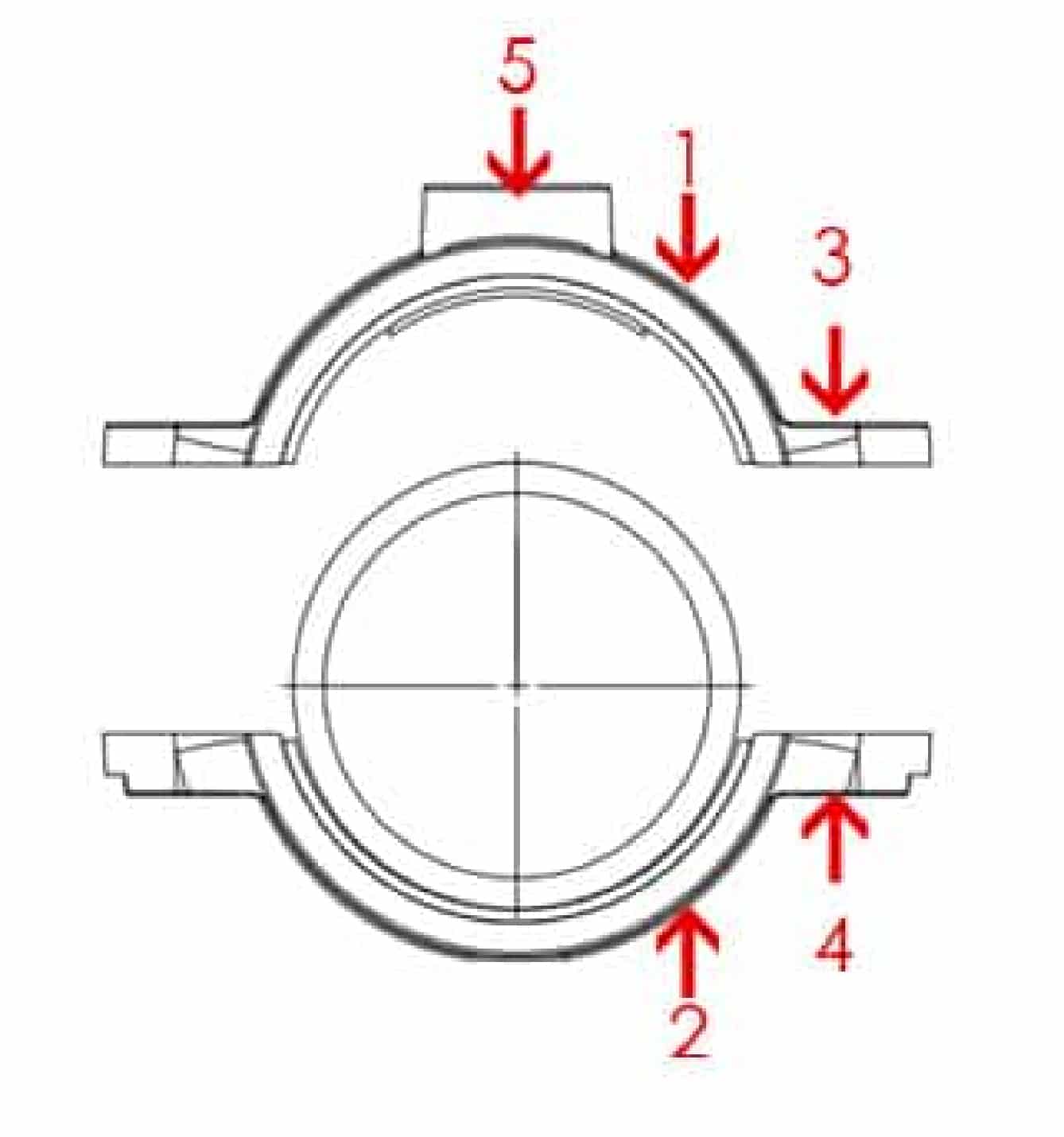

Let the upper part(as below figure 1) and lower part (as below figure 2)of the saddle clamp body around the pipe, and align the centers of the two bolt holes on the upper and lower parts of the saddle clamp body (as below Figure 3 and 4). Please note that if the position of the threaded outlet on the saddle clamp is fixed strictly , firstly you need mark the position on the pipes, then align the center of threaded outlet( as below Figure 5) on the upper part of the saddle clamp body with the outlet center on the pipe. Then, determine the position of the lower part of the saddle clamp body according to the bolt hole center of the upper part. Ensure that the centers of the bolt holes on both the upper and lower parts of the saddle clamp body are perfectly aligned.
Step 3

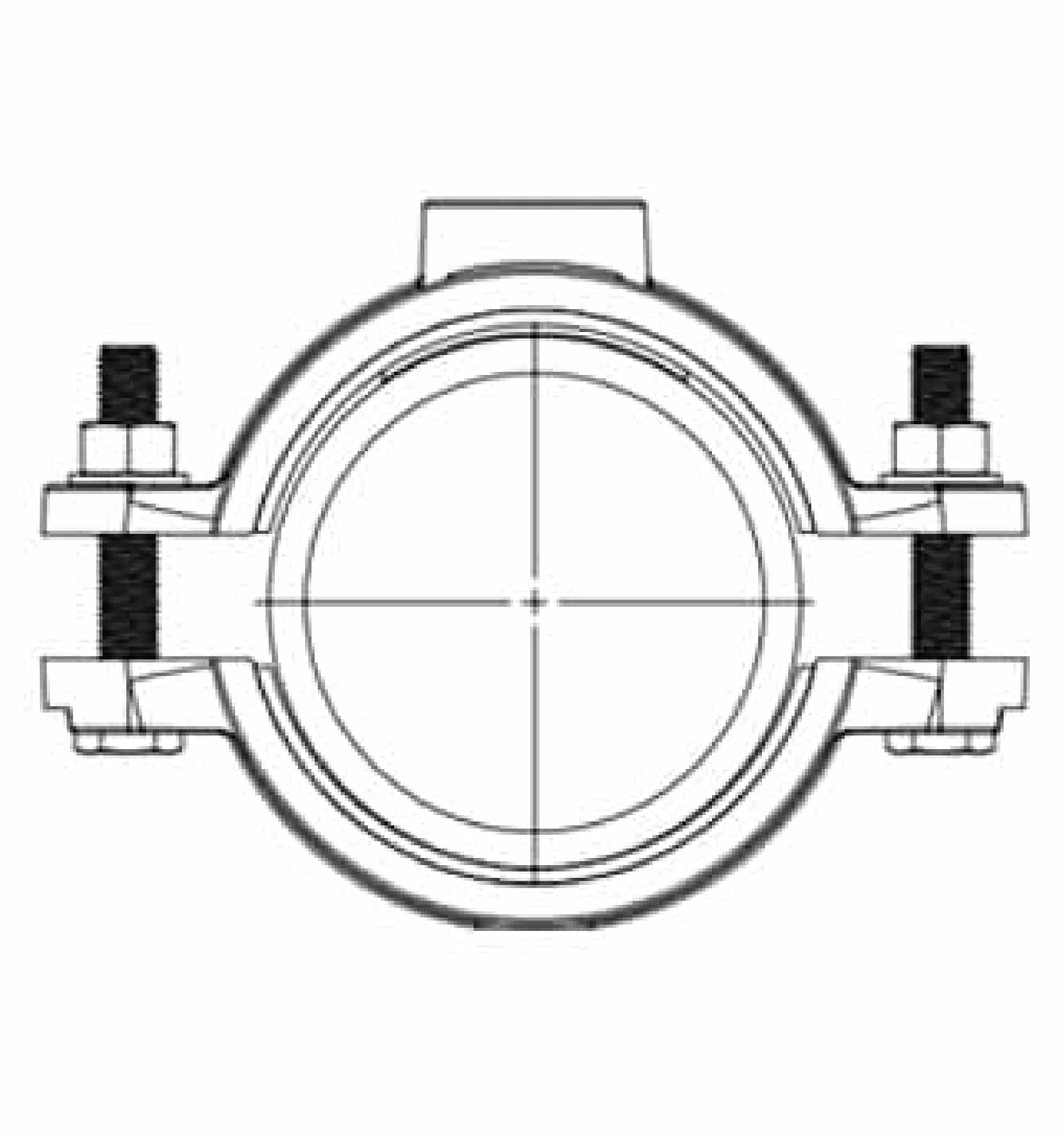

Insert one bolt from the lower part to the upper part and assemble washer and nuts as below figure, then assemble another bolt, washer and nut in the same way.Please ensure the two bolts are tighten with same force. Then using a wrench to gradually and evenly tighten them to the specified torque. Please ensure that the torque applied to both bolts is the same during each step and that the torque increases gradually from small to large in multiple steps.
Step 4

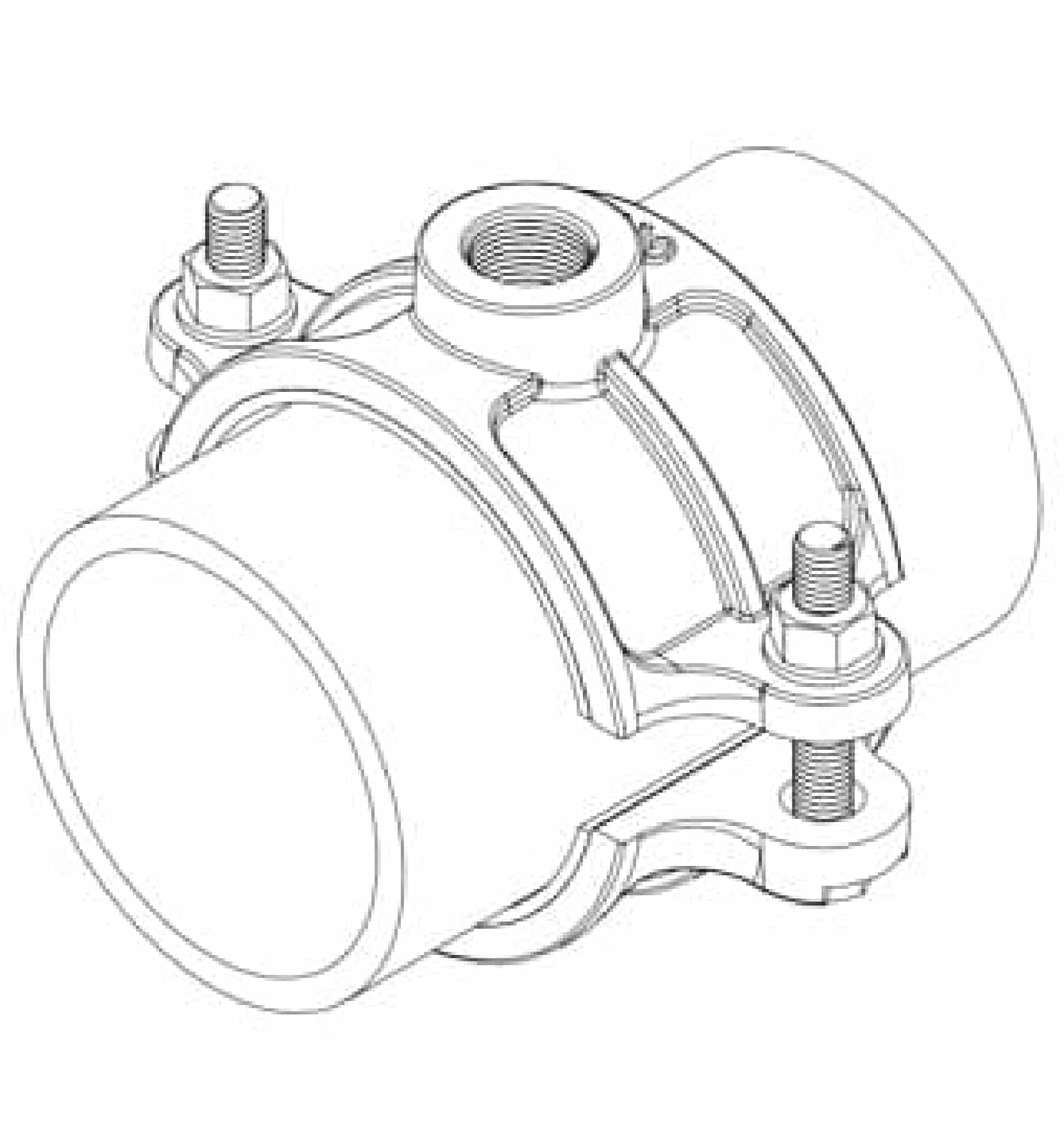

Assembling is finished as below photo.
