Surface box
Judberd is a specialist manufacturer of surface boxes and valve boxes. Our surface boxes can be manufactured according to DIN4055, DIN4056, DN4057 or to customer designs. Below you will find a list of the surface boxes and valve boxes we are currently producing. If you have any questions or would like more information, please do not hesitate to contact us.

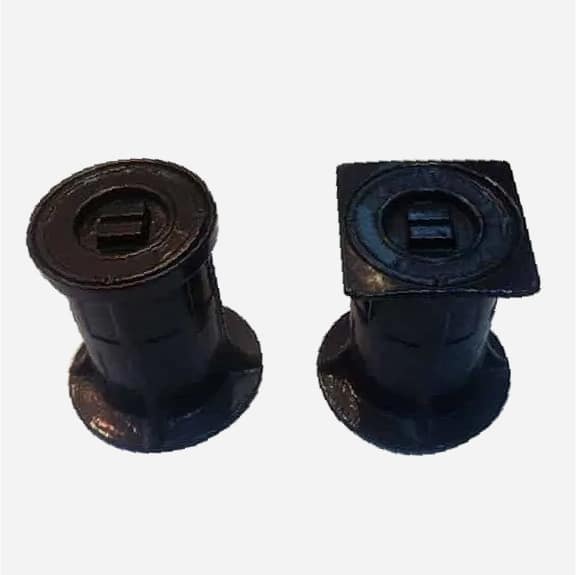

Customized Surface box
Surface Box DIN4055/DIN4056
/DIN4057

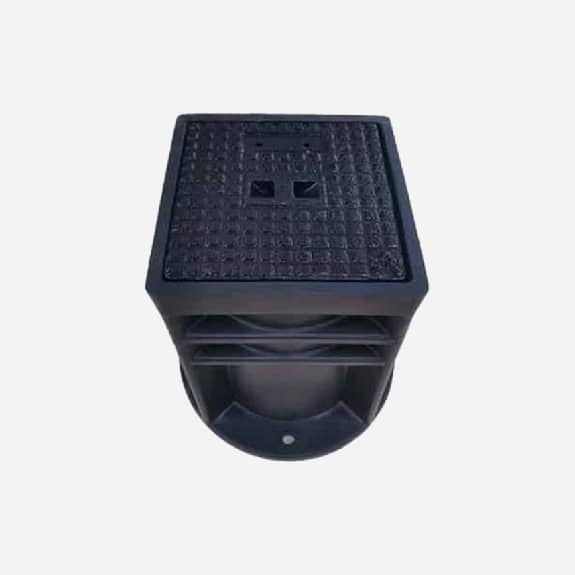

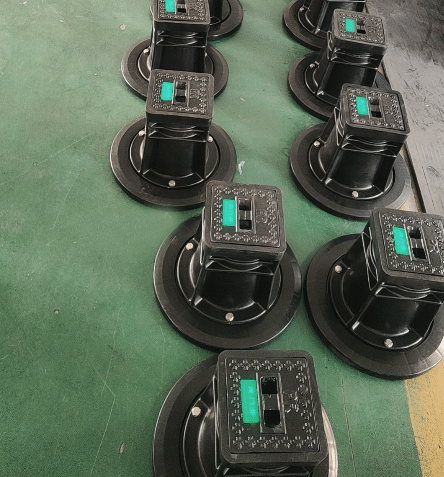

Surface box HDPE + 30% fibreglass body and ductile iron lids

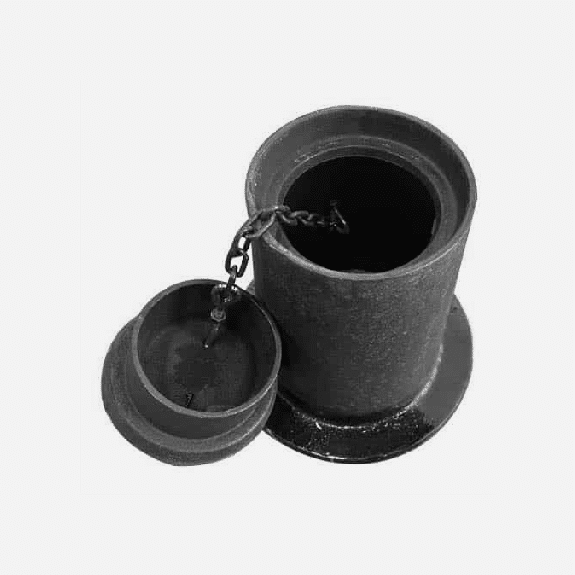

Anti-theft surface box
What Is Surface Box?

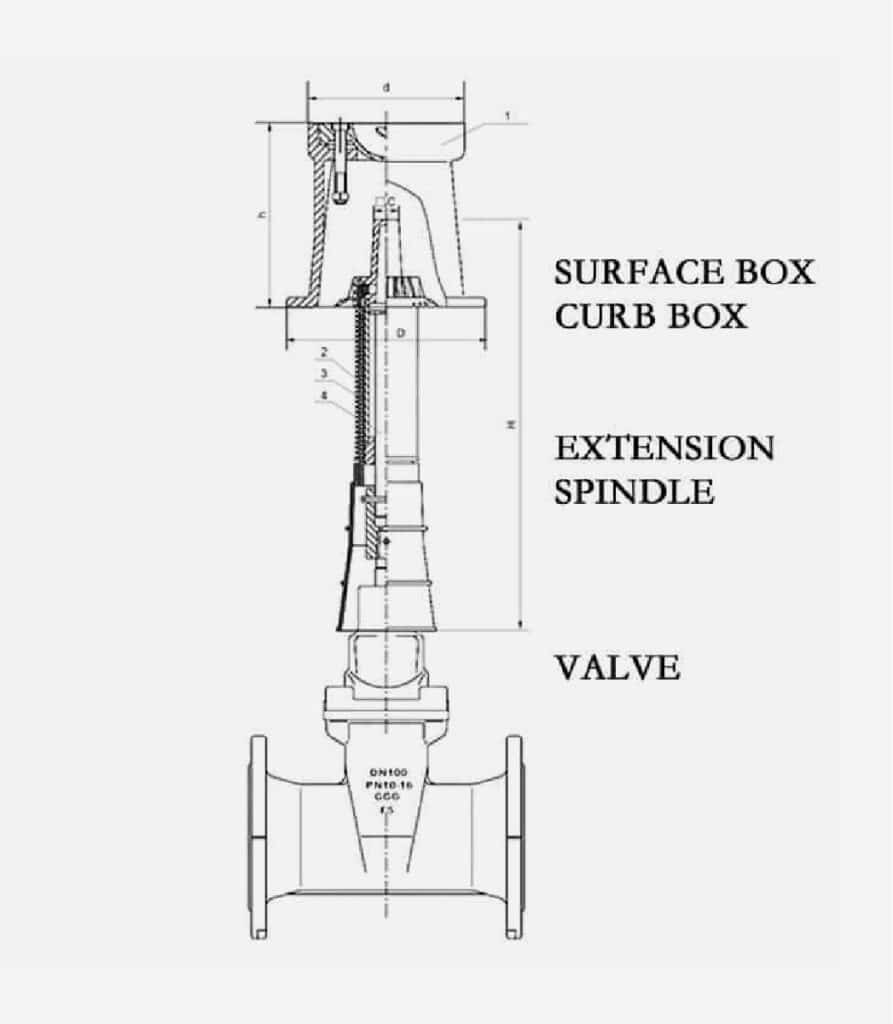

The main function of the surface box is to install it on the ground to protect the switch of the valve. In general, the upper surface of the surface box should be flush with the ground, so as not to affect the normal driving of pedestrians and vehicles on the road, by opening the buried box we can operate the valve switch and thus switch the valve on and off. The operation of the water flow is switched on and off. Generally the surface box is located in the middle of a public pipe and a building, the upstream part is the public utility maintenance part and the downstream part is the building part, which is the private maintenance part. The surface box is generally made of cast iron or ductile iron. now HDPE and Fibreglass Body, Ductile Iron Lids type is also popular.The surface body is composed of a base and a cover. There are internal holes in the base and the body, which are used to install internal parts such as valves, spools, etc.
Surface Boxes Dimension. Size In Mm
| Product Code | Class | External dimensions | Weight | ||
|---|---|---|---|---|---|
| Top | Base | H | kg | ||
| DIN4055-U DVGW | 200 KN | 367/262 | 420/315 | 310 | 31.0 |
| DIN4055-U NW100 | 456/356 | 540/440 | 310 | 48.0 | |
| DIN4055 1938x | 367/262 | 420/315 | 310 | 25.0 | |
| DIN4056-1 DVGW | 200 KN | Φ190 | Φ270 | 270 | 14.0 |
| DIN4056 1938x | Φ190 | Φ270 | 270 | 11.0 | |
| CBD220AL* | D400 | Φ190 | Φ220 | 270 | 16.0 |
| DIN4057-A DVGW | 200 KN | Φ145 | Φ200 | 250 | 8.5 |
| DIN4057 1938x | Φ120 | Φ170 | 250 | 5.5 | |
| CBC214TB | C250 | Φ160 | Φ214 | 180 | 7.6 |
| AGUA** | B125 | Φ160 | Φ215 | 190 | 6.1 |
| NAF2009 | D400 | Φ130 | Φ210 | 170 | 6.0 |
| G20 | □107 | Φ147 | 97 | 3.0 | |
| 30x30 CyⅡ *** | □300 | Φ305 | 60 | 11.0 | |
| DIN4058 1938x | □190 | Φ270 | 270 | 15.0 | |
| DIN4059 1938x | □120 | Φ170 | 250 | 7.0 | |
| Hegler LW300 | C250 | Φ362 | Φ400 | 110 | 32.0 |
| DIN3581 1990 | 200 KN | □190 | Φ270 | 270 | 15.5 |
| DIN3581 1953 | □190 | Φ270 | 270 | 14.0 | |
| DIN3582 1990 | 200 KN | □288 | □360 | 270 | 36.0 |
| DIN3582 1953 | □288 | □360 | 270 | 32.0 | |
| DIN3583 1990 | 200 KN | □420 | □480 | 270 | 63.0 |
| DIN3583 1953 | □420 | □480 | 270 | 59.0 | |
| DIN3584 1990 | 200 KN | □480 | □530 | 320 | 97.0 |
| DIN3584 1953 | 460 x 327 | 505/372 | 300 | 58.5 | |
| DIN3585 1990 | 200 KN | 481x301 | 540x360 | 300 | 60.0 |
| DIN3585 1953 | 481x301 | 540x360 | 300 | 57.0 |
* Ductile iron product
** Ductile iron cover, grey iron body
*** Ductile iron top, plastic tube body

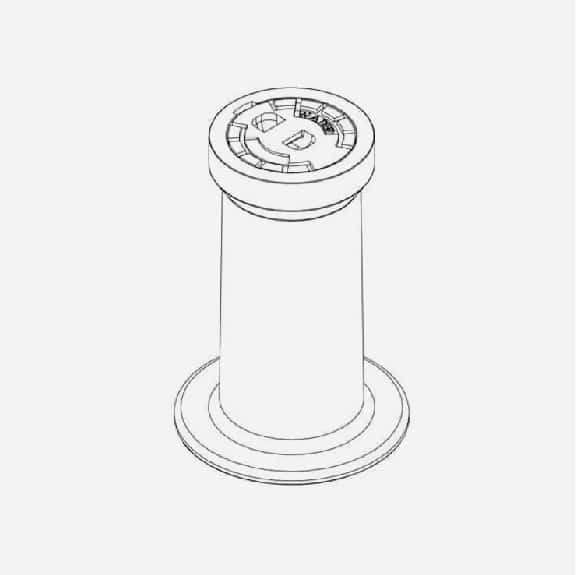

DIN – EN 4057 is designed for water pipe;Surface-box for valves of boring fittings
DIN – EN 4056 is designed for Water pipe; surface boxes for on/off valves(gate valve,ball valve,globe valve etc).

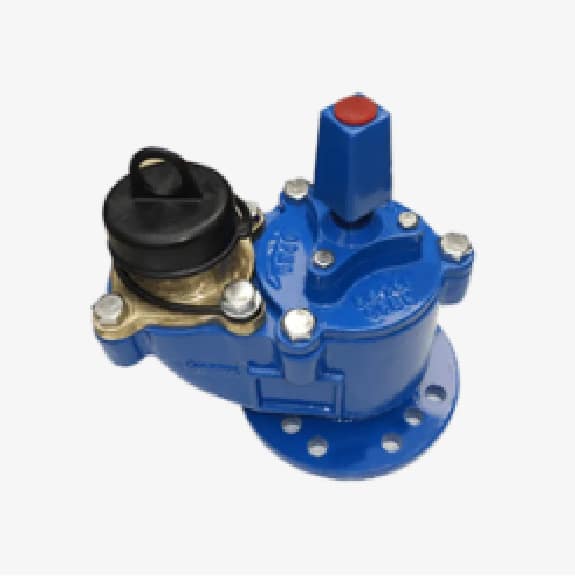

DIN – EN 4055 is designed for Water pipe; surface box for underground fire hydrants.
Surface box installation,commissioning and maintenance
Installation
Install the manhole flush with the road surface to avoid depressions where possible.
Ensure that the concrete and gravel base is stable to prevent the manhole cover from moving or sinking and appearing unopenable or unusable.
Commissioning
Try opening the cover of the buried box to ensure that the cover opens smoothly.
Ensure that the internal valves can be opened and closed easily and that there is no debris inside the lid when it is installed.
Maintenance
Grease the lever on the lid with a suitable lubricant and clean the slot in the lid, where the cotter hook for the operating key is inserted, free of debris.
In cases where the manhole is subject to vehicular traffic, check that the cover is still level with the road surface and that the frame is not damaged.
If you find any damage, please report it to your local authority.
