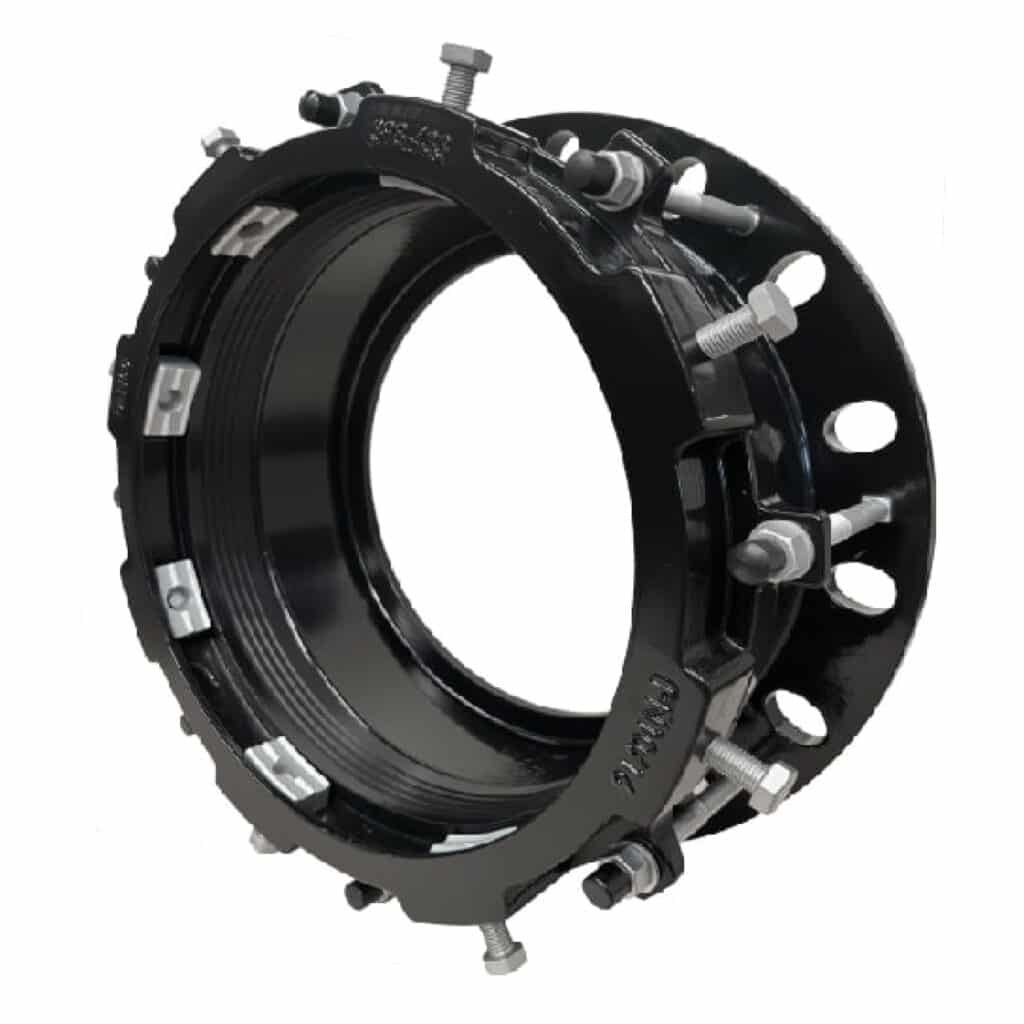

Ultragrip Heavy Duty Restrained Wide Range Flange Adaptor Data Sheet
1. Equipped with metal toothed gripping segments, forming a high-strength mechanical restraint system capable of withstanding PN25 working pressure (hydrostatic test at 1.5× PN).
The restraint force can be further increased by adjusting the number of gripping segments and upgrading the bolt strength.

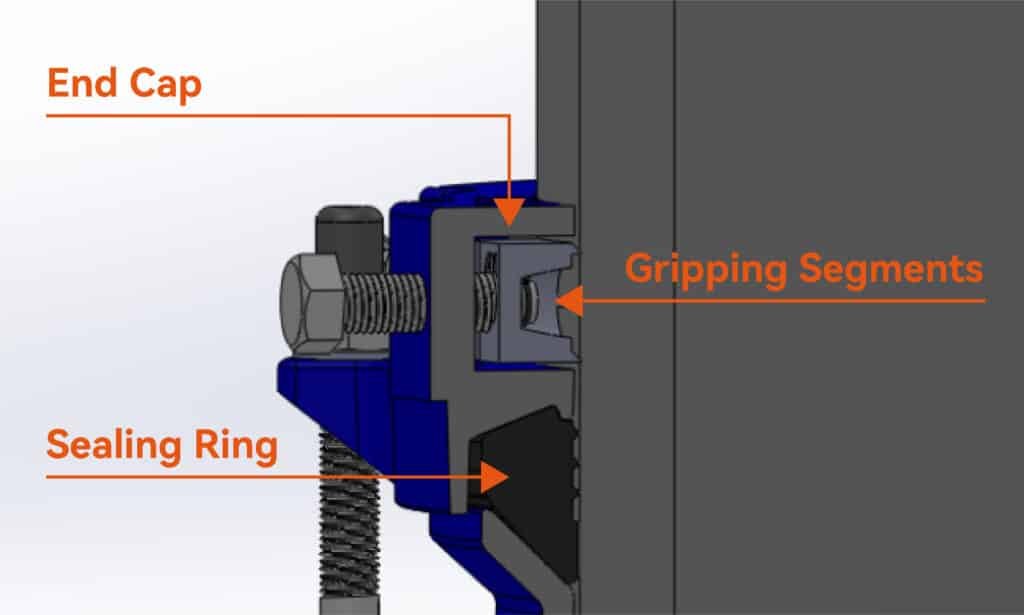

2. The end cap is designed with a locking stop feature, preventing the gripping segments from overturning under high pressure, which could otherwise lead to bolt breakage and restraint failure.
GENERAL DATA
● Design Standard: EN 545
● Coating Standard: EN 14901
● Medium: Water,Oil,Gas
● Size: DN50-DN3000
● Pressure: PN10/16/25
● Temperature: -40°~120°
TECHNICAL DATA
● Compatible pipe types: Ductile iron, Grey cast iron, steel, PVC, AC ,GRP pipes
● Maximum angular deflection: ±3°
● Test Pressure: 1.5 × PN
● Coating Type: Fusion Bonded Epoxy/Nylon 11/Epoxy paint for C5-M environment
● Coating Thickness: According to project and standard requirement
NORMAL COATING SPECIFICATION
| PARAMETER | SPECIFICATION |
|---|---|
| Standard | EN 14901 |
| Coating Type | Fusion Bonded Epoxy |
| Thickness | ≥ 250 μm |
| Holiday Test | ≥ 3000 V |
| Adhesion Test | ISO 4624 |
MATERIAL SPECIFICATION

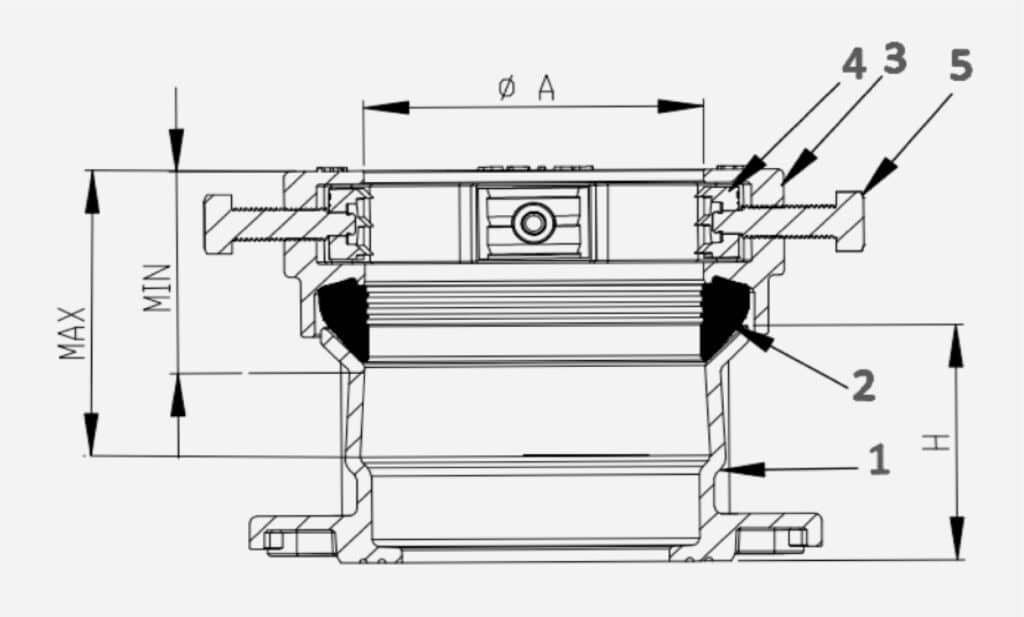

| ITEM NO. | PARTS | MATERIAL |
|---|---|---|
| 1 | Flange Body | Ductile Iron EN GJS450-10 according to EN1563 |
| 2 | Gasket | EPDM Compound Grade E to BS EN 681-1 /Nitrile Compound to Grade G BS EN 682, Type G |
| 3 | End Ring | Ductile Iron EN GJS450-10 according to EN1563 |
| 4 | Grip Wedges | Ductile Iron with Dacromet Coating no less than 8um, Carbon Steel and Brass material are also available |
| 5 | Grip Tie Rods | Carbon steel grade 10.9 with dacromet coating no less than 8um |
| 6 | Bolts | Grade 8.8 carbon steel with dacromet coating no less than 8um or Stainless Steel |
| 7 | Coating | Rilsan Nylon 11 or FBE coating(Adhesion is not less than 12 N/mm2) |
DIMENSION

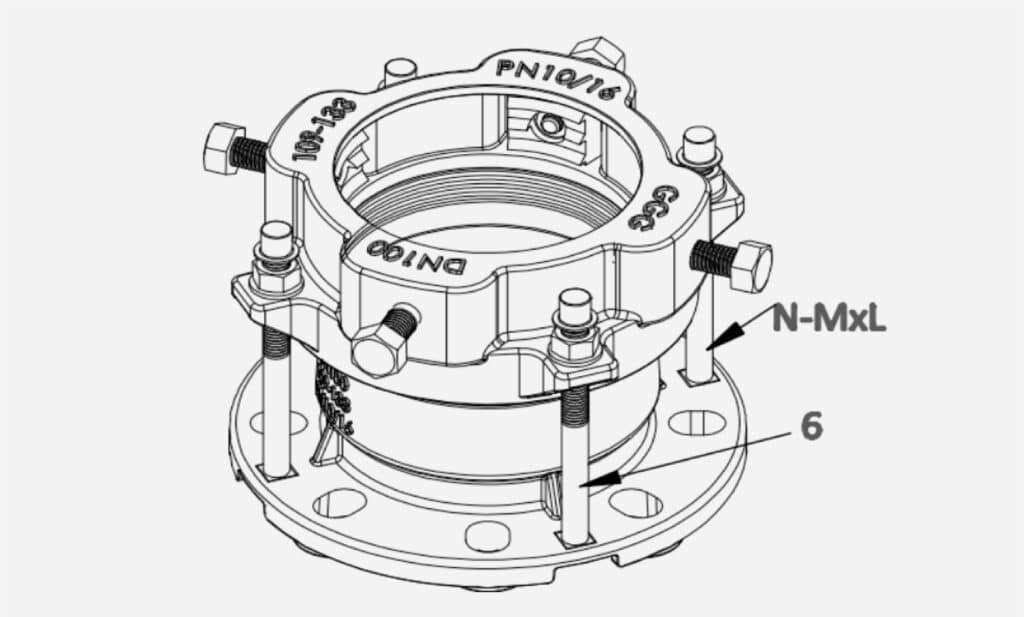

| DN | PIPE OD RANGE | PN | NUMBER OF GRIPPER SEGMENTS | φA | H | MIN. PIPE INSERTION DEPTH | MAX. PIPE INSERTION DEPTH | N-MxL |
|---|---|---|---|---|---|---|---|---|
| DN50 | 58-74 | PN10/16 | 4 | 77 | 100 | 85 | 115 | 4-M12x140 |
| DN65 | 68-85 | PN10/16 | 4 | 88 | 100 | 85 | 115 | 4-M12x140 |
| DN80 | 84-106 | PN10/16 | 4 | 109 | 100 | 85 | 115 | 4-M12x140 |
| DN100 | 99-118 | PN10/16 | 4 | 121 | 100 | 85 | 140 | 4-M12x140 |
| DN100 | 109-133 | PN10/16 | 4 | 136 | 100 | 85 | 115 | 4-M12x140 |
| DN125 | 129-159 | PN10/16 | 4 | 162 | 100 | 90 | 140 | 4-M12x150 |
| DN150 | 157-182 | PN10/16 | 4 | 185 | 110 | 85 | 125 | 4-M12x150 |
| DN200 | 177-207 | PN10/16 | 4 | 210 | 120 | 90 | 160 | 4-M12x160 |
| DN200 | 194-225 | PN10/16 | 4 | 228 | 120 | 90 | 160 | 4-M12x160 |
| DN200 | 218-242 | PN10/16 | 4 | 245 | 120 | 85 | 130 | 4-M12x160 |
| DN250 | 244-276 | PN10/16 | 6 | 279 | 100 | 90 | 140 | 6-M12x150 |
| DN250 | 266-291 | PN10/16 | 6 | 294 | 120 | 90 | 130 | 6-M12x160 |
| DN250 | 280-305 | PN10/16 | 6 | 308 | 120 | 90 | 120 | 6-M12x160 |
| DN300 | 302-327 | PN10/16 | 6 | 330 | 120 | 90 | 130 | 6-M12x160 |
| DN300 | 314-356 | PN10/16 | 6 | 359 | 130 | 105 | 160 | 6-M12x180 |
| DN350 | 342-372 | PN10/16 | 8 | 375 | 130 | 105 | 180 | 8-M14x180 |
| DN350 | 362-392 | PN10/16 | 8 | 395 | 130 | 105 | 180 | 8-M14x180 |
| DN350 | 370-400 | PN10/16 | 8 | 403 | 140 | 105 | 160 | 8-M14x190 |
| DN350 | 386-410 | PN10/16 | 8 | 413 | 140 | 105 | 160 | 8-M14x200 |
| DN400 | 380-415 | PN10/16 | 8 | 418 | 135 | 105 | 190 | 8-M16x190 |
| DN400 | 390-425 | PN10/16 | 8 | 428 | 135 | 105 | 190 | 8-M16x190 |
| DN400 | 398-433 | PN10/16 | 8 | 436 | 135 | 105 | 190 | 8-M16x190 |
| DN400 | 420-455 | PN10/16 | 8 | 458 | 150 | 105 | 160 | 8-M16x200 |
| DN450 | 440-475 | PN10/16 | 10 | 478 | 135 | 105 | 190 | 10-M16x190 |
| DN450 | 470-505 | PN10/16 | 10 | 508 | 150 | 105 | 160 | 10-M16x200 |
| DN500 | 485-520 | PN10/16 | 10 | 523 | 145 | 105 | 200 | 10-M16x190 |
| DN500 | 499-534 | PN10/16 | 10 | 537 | 145 | 105 | 200 | 10-M16x190 |
| DN500 | 520-555 | PN10/16 | 10 | 558 | 155 | 105 | 160 | 10-M16x200 |
| DN600 | 600-635 | PN10/16 | 10 | 638 | 145 | 105 | 200 | 10-M16x190 |
| DN600 | 615-650 | PN10/16 | 10 | 653 | 145 | 105 | 200 | 10-M16x190 |
