Metal Saddle Clamp for Water Line

● BACK TO ALL SADDLE CLAMP

Metal saddle clamp for water line is metal material saddle clamp which is used on water line to spilt water from main pipe to branch pipe, metal material can be grey cast iron ,ductile iron, brass or stainless steel.outlet can be thread or flange connection.

Specification

● Saddle For AC Pipe With Metric Thread

● Saddle Standard:Comply With EN545

● Coating Standard:EN30677

● Test Standard: EN12266-1

● Working Pressure And Temperature

● Size DN60 To DN300, Working Pressure PN10/PN16

● Temperature From -10℃ To 120℃ For EPDM Gasket

● Temperature From -10℃ To 82℃ For NBR Gasket

● Connection For AC Pipe

● With Metric Thread M40 And M55 Outlet

● Suitable For Potable Water, Neutral Liquids And Sewage

● WRAS , ACS, DVGW , NSF Approved

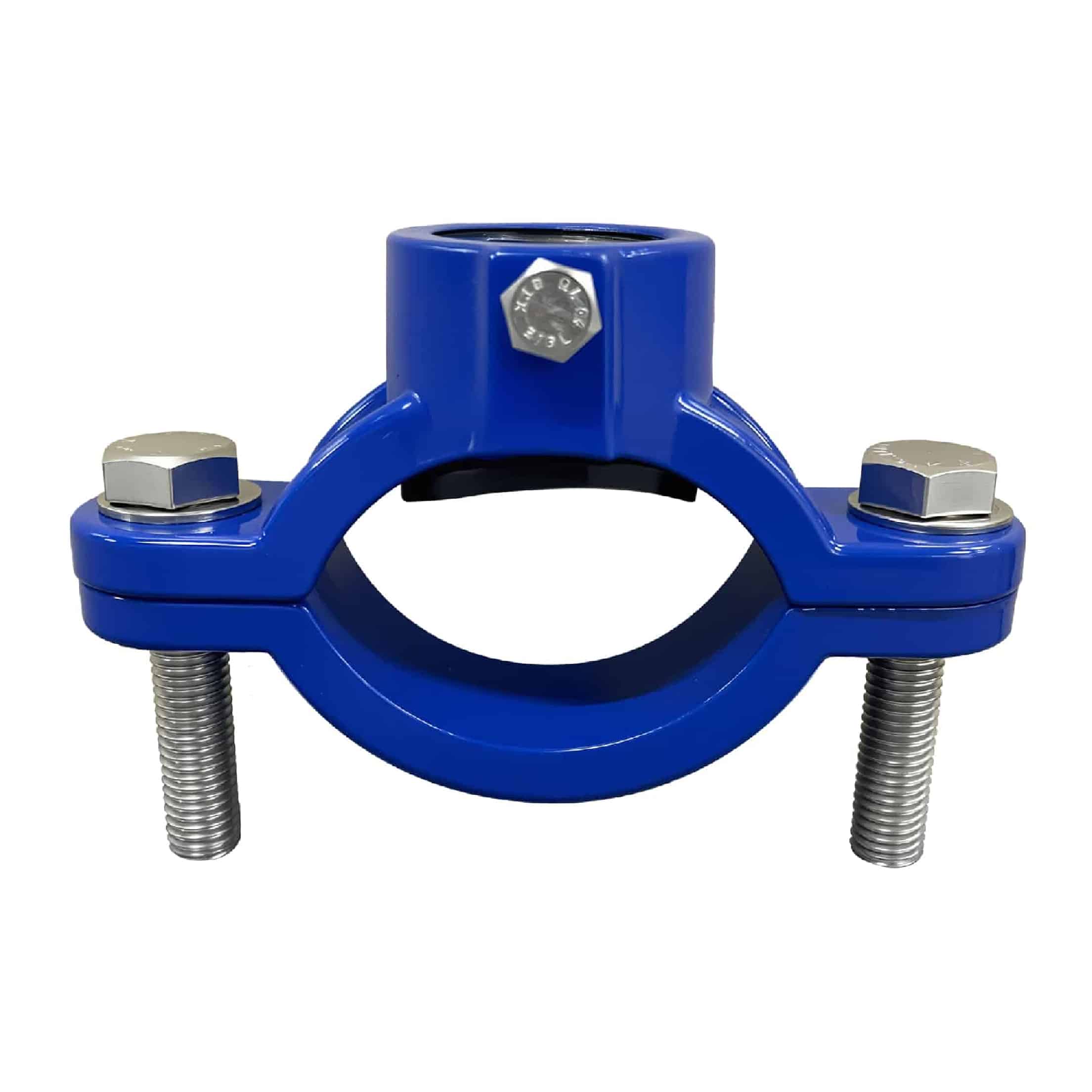

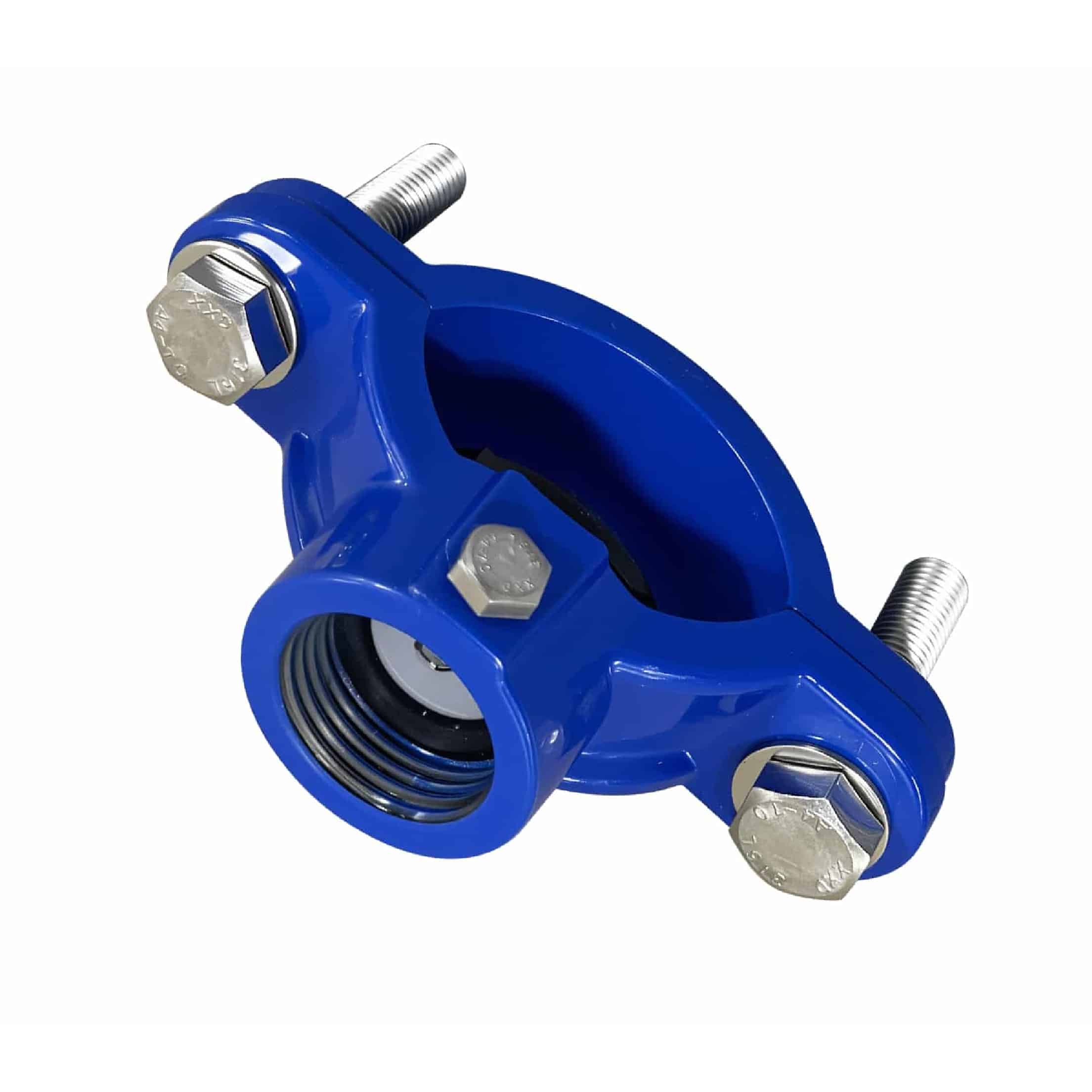

Water Pipe Saddle Clamp for AC pipe with Metric Thread 1
Water Pipe Saddle Clamp for AC pipe with Metric Thread 2
Water Pipe Saddle Clamp for AC pipe with Metric Thread 3
