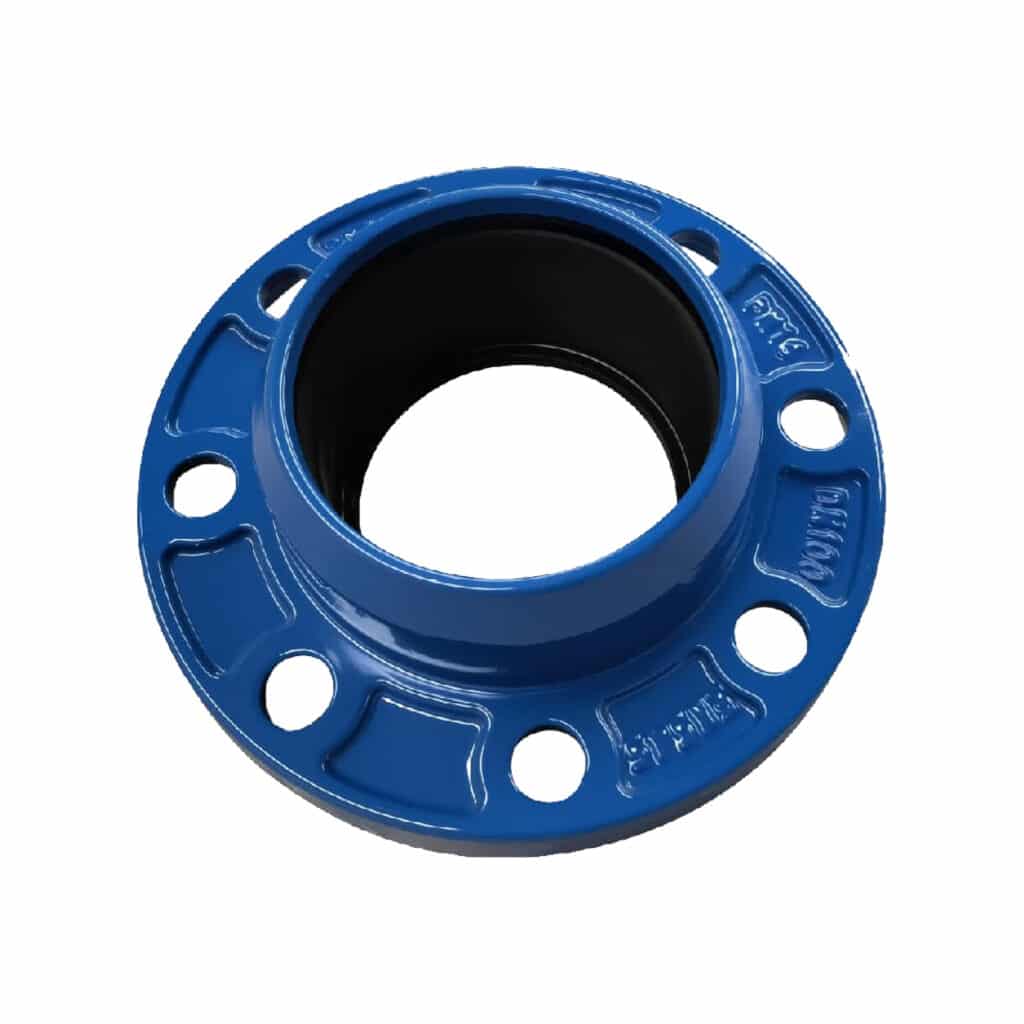

Quick flange adaptor is one type flange adaptor which is used to connect PVC pipes to flanges of other pipeline parts.It is simple design and can be installed quickly compare to other type flange adaptor for PVC pipe.So it is called quick flange adaptor for PVC pipe.
Quick flange adaptor for PVC pipe
Specification
● Quick flange adaptor standard:comply with EN545
● Coating standard:EN30677
● Test standard: EN12266-1
● Working pressure and Temperature
● Size DN40 to DN400,Working pressure PN10/PN16
● Temperature from -10℃ to 120℃ for EPDM gasket
● Temperature from -10℃ to 82℃ for NBR gasket
● Connection for PVC pipe
● Suitable for potable water,neutral liquids and sewage
● WRAS,ACS,DVGW approved

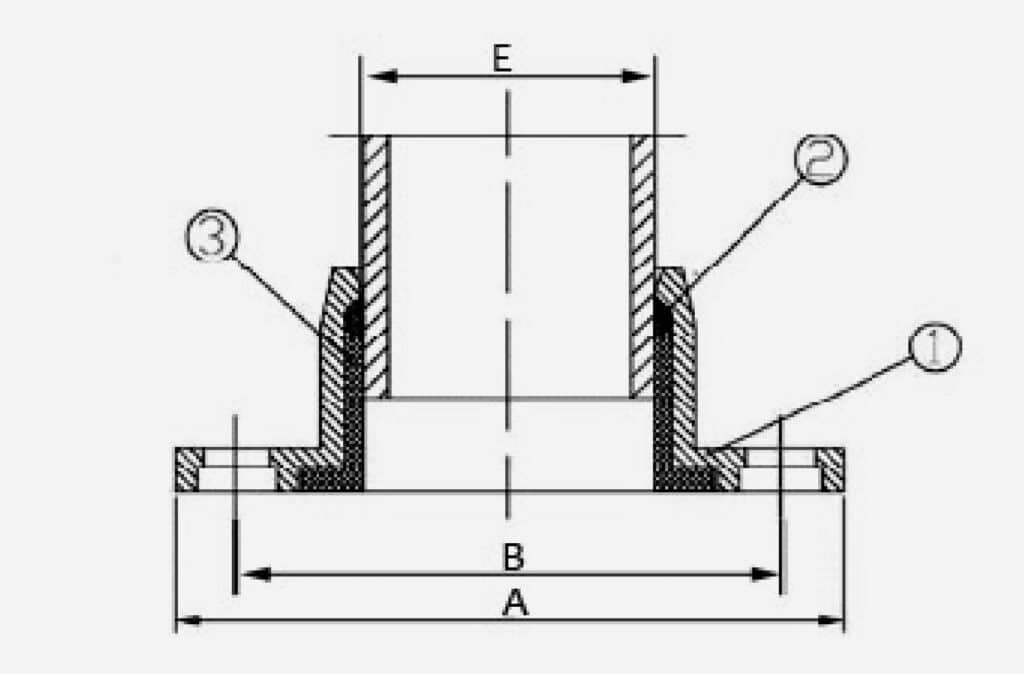

Drawing
Material specification
| Sr.No. | Name | Material |
|---|---|---|
| 1 | Flange body | ductile iron |
| 3 | Gasket | EPDM |
Options: FBE coating and Nylon 11 coating is available
Dimension (unit:mm)
| SIZE | Pipe OD | A | B | E |
|---|---|---|---|---|
| DN40 | 50 | 166 | 118 | 55 |
| DN50/65 | 63 | 184 | 156 | 68 |
| DN60/65 | 63 | 184 | 156 | 68 |
| DN60/DN65 | 75 | 185 | 139 | 80 |
| DN80 | 75 | 201 | 161 | 80 |
| DN80 | 90 | 196 | 151 | 96 |
| DN100 | 110 | 220 | 181 | 113 |
| DN125 | 125 | 254 | 211 | 131 |
| DN125 | 140 | 254 | 212 | 140 |
| DN150 | 160 | 283 | 244 | 165 |
| DN200 | 200 | 338 | 297 | 206 |
| DN200 | 225 | 338 | 299 | 231 |
| DN250 | 250 | 402 | 360 | 257 |
| DN300 | 315 | 454 | 412 | 321 |
| DN400 | 400 | 570 | 529 | 410 |
