Ductile iron pipe, also called DI pipe, is a type of pipe made from ductile cast iron, known for its high strength, flexibility, and durability. It is widely used for transporting water, sewage, and other fluids under pressure. Its key features include resistance to corrosion, high tensile strength, and the ability to withstand external loads and internal pressure. Commonly lined with cement or coated with epoxy, ductile iron pipes are ideal for long-term infrastructure projects in both urban and rural settings.

Ductile Iron Pipe Joints

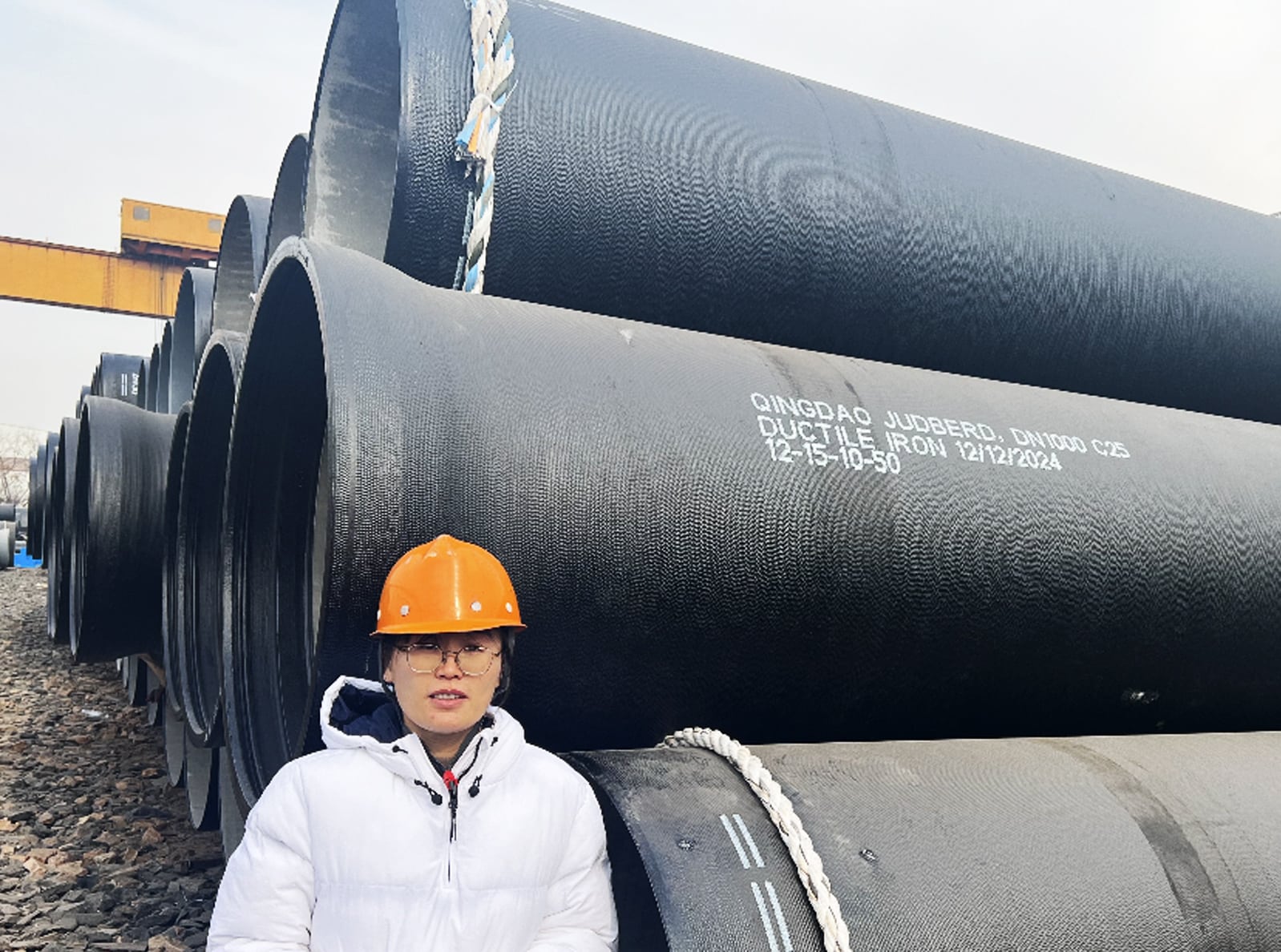

Slip-On Joint (Push-On Joint or tyton joint pipe)：Simplest joint type where the spigot (male end) is inserted into the bell (female end) with a rubber gasket to seal the connection.Widely used for water distribution and buried pipelines.

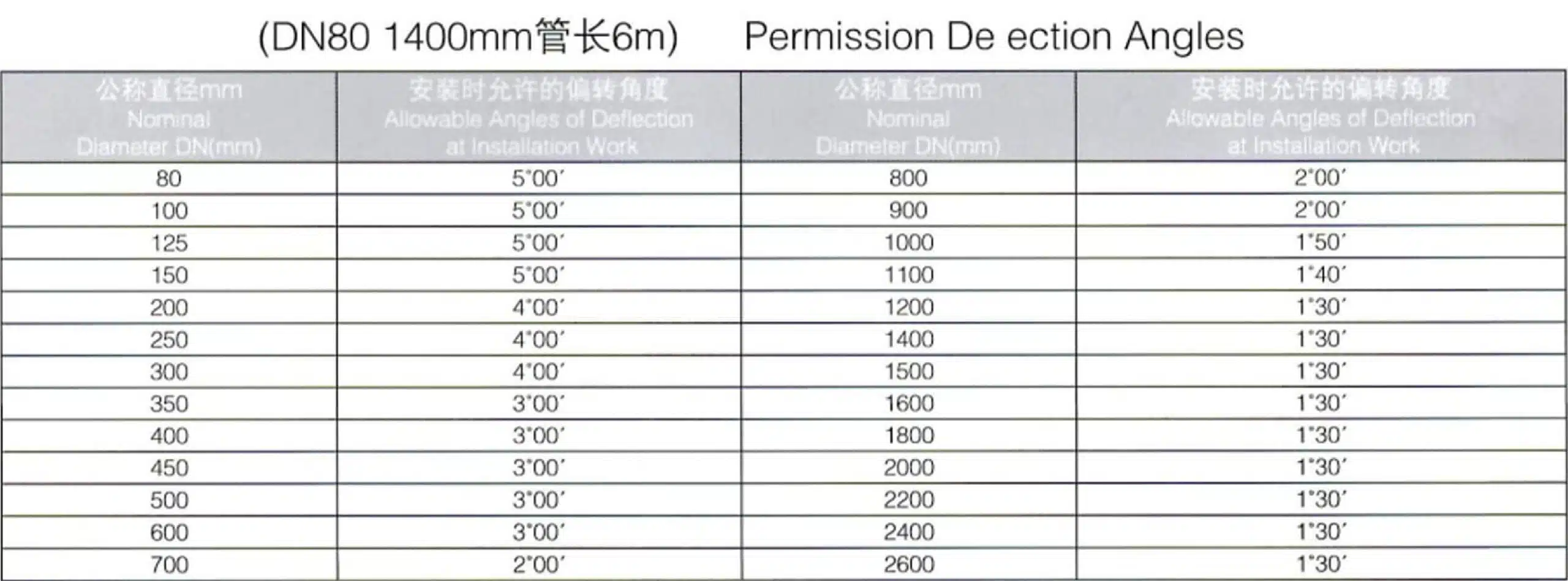

Advantages:Ease of Installation: Quick and requires minimal tools.Cost-Effective: Low labor and material costs.Flexibility: Allows for minor angular deflection, accommodating ground movement or alignment adjustments.

Disadvantages:Limited Resistance to Axial Forces: Requires external thrust blocks or restraints to prevent joint separation under high pressure.Not Suitable for High-Stress Applications: Less reliable in areas with significant axial or thrust forces.

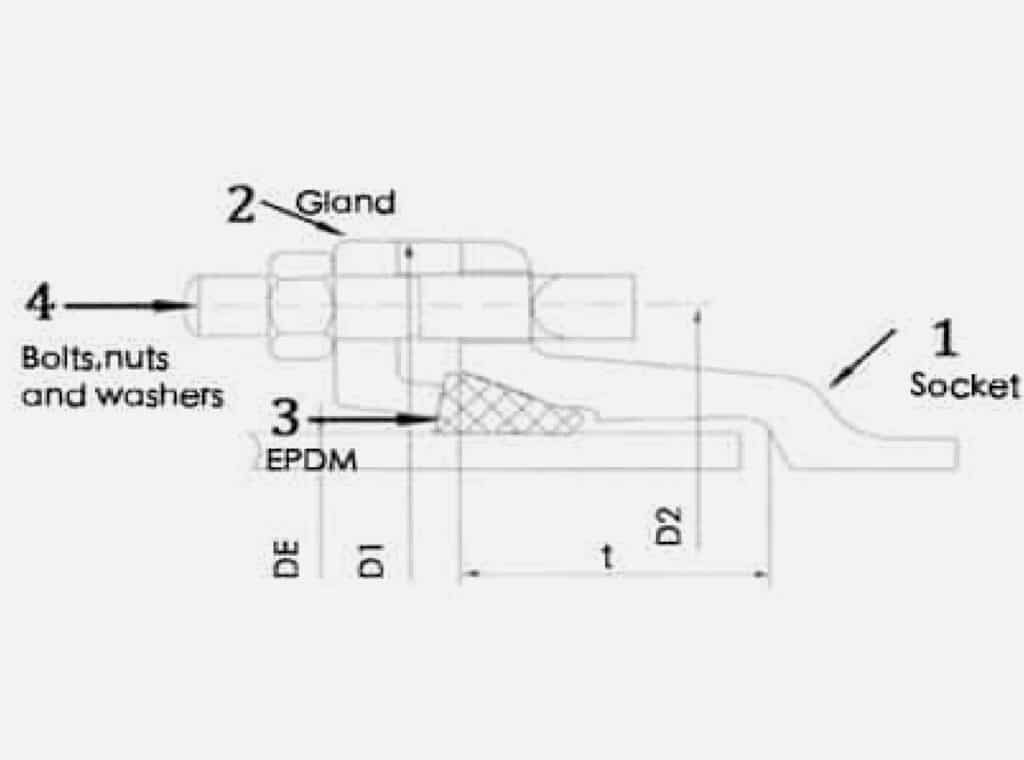

Mechanical Joint：Uses a gland ring, gasket, and bolts to secure the spigot into the bell, ensuring a tight seal.Commonly used for water and sewer pipelines, especially at fittings and connections requiring maintenance.

Advantages:Strong Sealing: Reliable and secure connection.Easy Maintenance: Can be disassembled for repairs or modifications.Flexibility: Accommodates minor deflection.

Disadvantages:Labor-Intensive: Installation requires tightening multiple bolts, increasing labor time.Heavier Components: Increases transportation and handling effort.Higher Cost: More expensive than slip-on joints due to additional components.

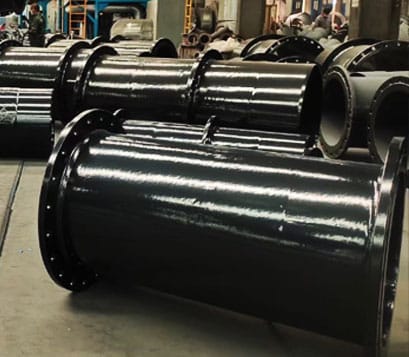

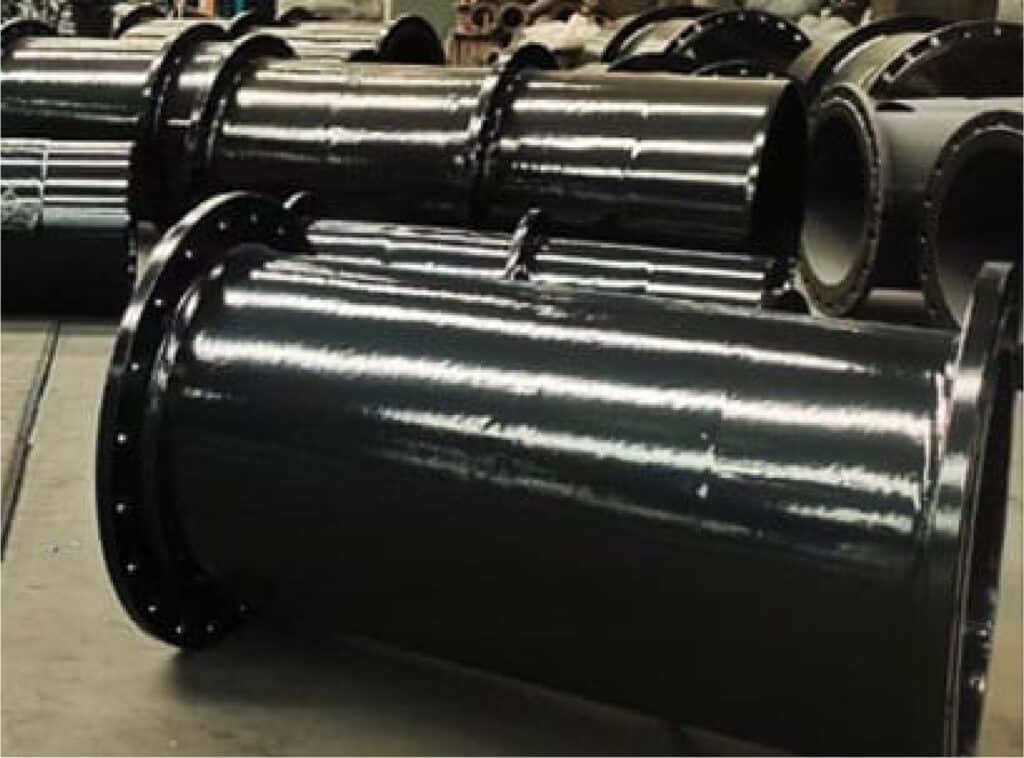

Flanged Joint：Pipe ends have flanges that are bolted together with a gasket in between for sealing.Common in above-ground installations such as pump stations, water treatment plants, and valve connections.

Advantages:Rigid Connection: Strong and stable, ideal for high-pressure systems.Easy Disassembly: Convenient for maintenance and adjustments.Durable: Suitable for exposed or above-ground pipelines.

Disadvantages:Not Suitable for Underground Use: Bolts are prone to corrosion in buried conditions.Costly: Higher material and labor costs.Lacks Flexibility: Cannot accommodate ground movement or deflection.

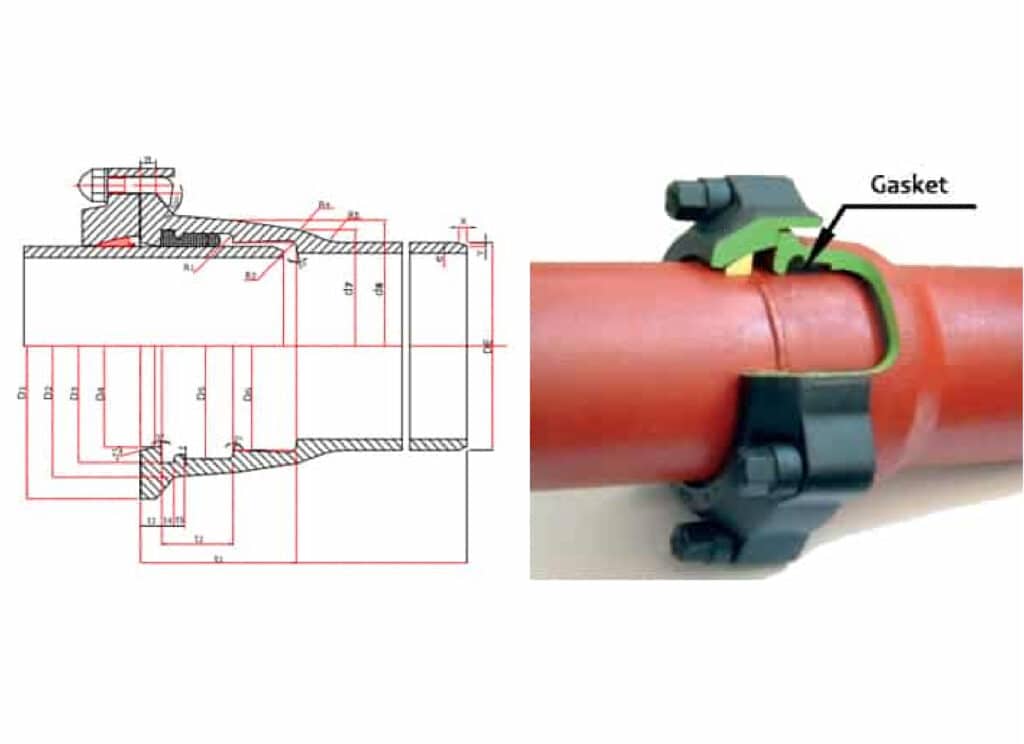

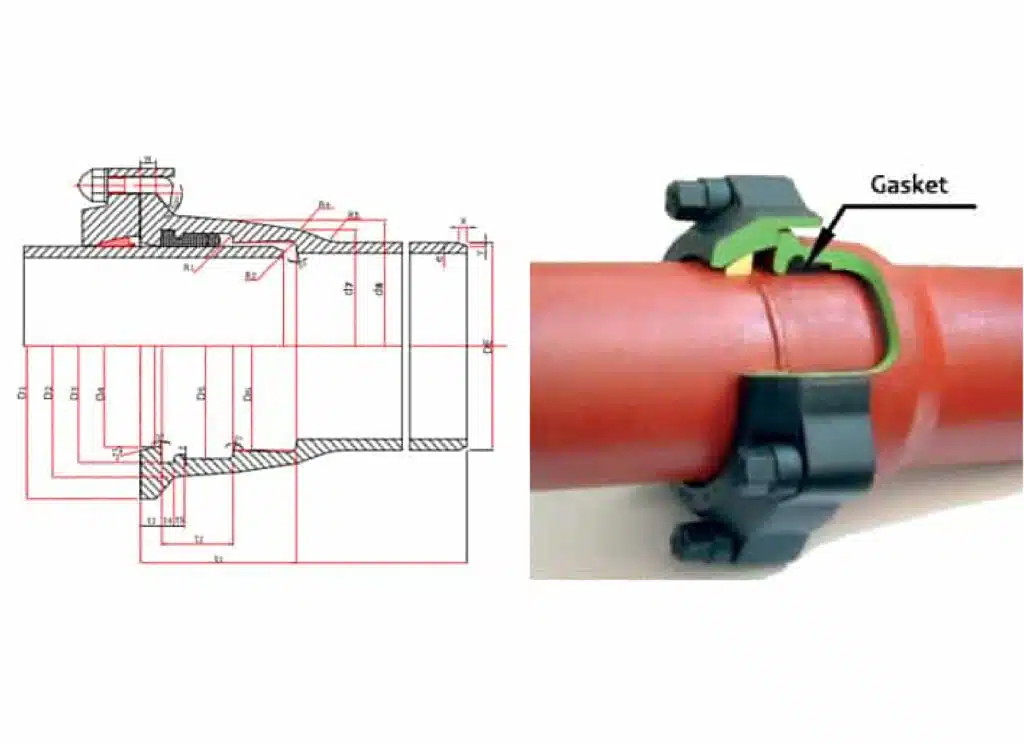

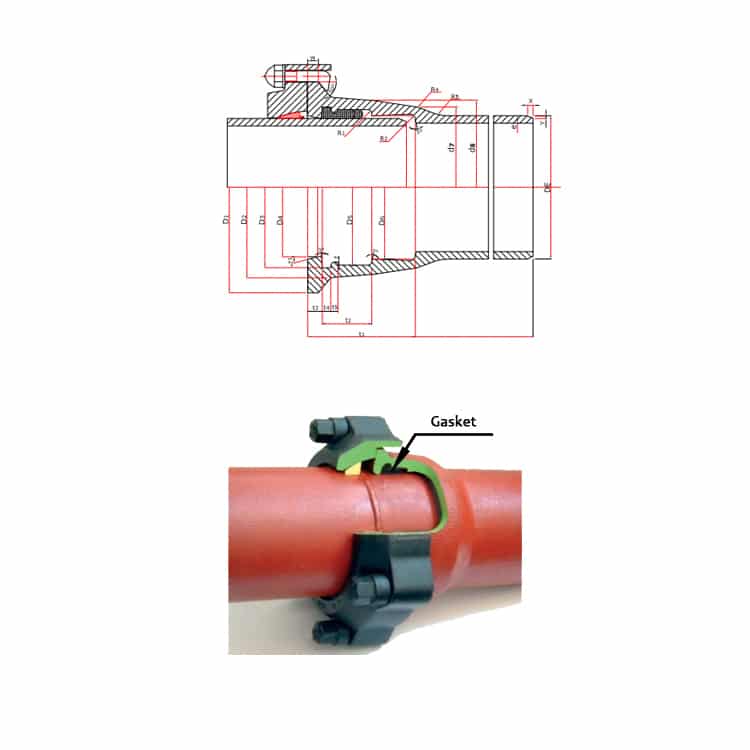

Restrained Joint:Enhances slip-on or mechanical joints by adding locking mechanisms (e.g., locking gaskets or welded rings) to prevent separation.Used in high-pressure systems or areas with thrust forces (e.g., near bends or valves).

Advantages:Prevents Joint Separation: No need for external thrust blocks.High Pressure Tolerance: Reliable under axial forces.Flexible Design: Can handle some angular deflection.

Disadvantages:Expensive: Higher cost due to specialized components.Complex Installation: Requires precise alignment and skilled labor.

Ball-and-Socket Joint:Flexible joint that allows for angular deflection, commonly used in underwater pipelines or areas with dynamic movement.
Advantages:High Flexibility: Can handle significant angular deflection.Specialized Use: Ideal for underwater or seismic areas.

Disadvantages:High Cost: Expensive due to specialized design.Skilled Installation Required: Complex installation process.

Spigot-and-Socket Joint:Similar to slip-on joint but designed for spigot (male end) and socket (female end) assembly with a rubber gasket for sealing.

Advantages:Simple Design: Cost-effective and easy to install.Minor Deflection Capability: Suitable for areas with slight misalignment.

Disadvantages:Limited Flexibility: Cannot handle significant ground movement.Requires Alignment: Precise positioning is necessary during installation.

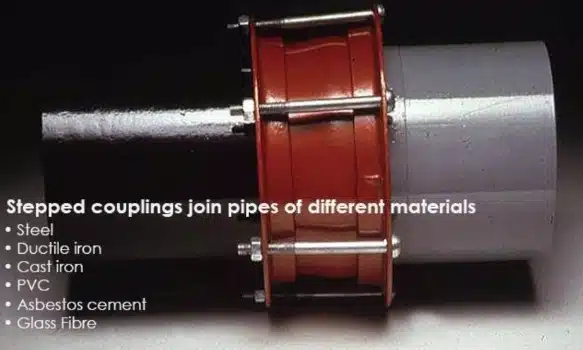

Pipe Coupling Joint:Flexible joint that allows for angular deflection.

Advantages:Simple and Quick Installation:Pipe couplings are easy to install without requiring specialized tools, reducing labor time and costs.Flexibility:Allows for slight angular deflection and can accommodate minor pipe misalignments.Versatility:Can be used to connect pipes of different materials or diameters.Repair-Friendly:Ideal for repairs or retrofitting, as damaged sections can be replaced without dismantling the entire system.No Welding or Bolting Required:Eliminates the need for complex processes, making it suitable for temporary or permanent connections.

Disadvantages:Limited Pressure Tolerance:Not as strong as flanged or restrained joints, making it less suitable for high-pressure applications.Less Secure Connection:Couplings rely on compression, which may loosen under excessive axial forces or vibrations.Potential for Leaks:Improper installation or wear on gaskets can lead to leaks over time.Shorter Lifespan:Typically less durable than other joint types, especially in corrosive or high-stress environments.

Conclusion
The choice of joint type depends on the application, environmental conditions, and budget. For buried pipelines, Slip-On and Mechanical Joints are common due to cost-effectiveness and reliability. Flanged Joints are ideal for above-ground systems, while Restrained Joints are preferred in high-pressure or thrust-prone areas. Ball-and-Socket Joints and Spigot-and-Socket Joints are specialized options for unique environments.

Ductile iron pipe manufacturing process

Take Push-On Joint type as example

Raw Material Preparation
Iron Melting: High-quality pig iron, scrap steel, and other additives (e.g., magnesium) are melted in a furnace.
Nodulizing Treatment: Magnesium is added to the molten iron to create spheroidal (nodular) graphite, which gives the pipe its ductility.
Pipe Casting

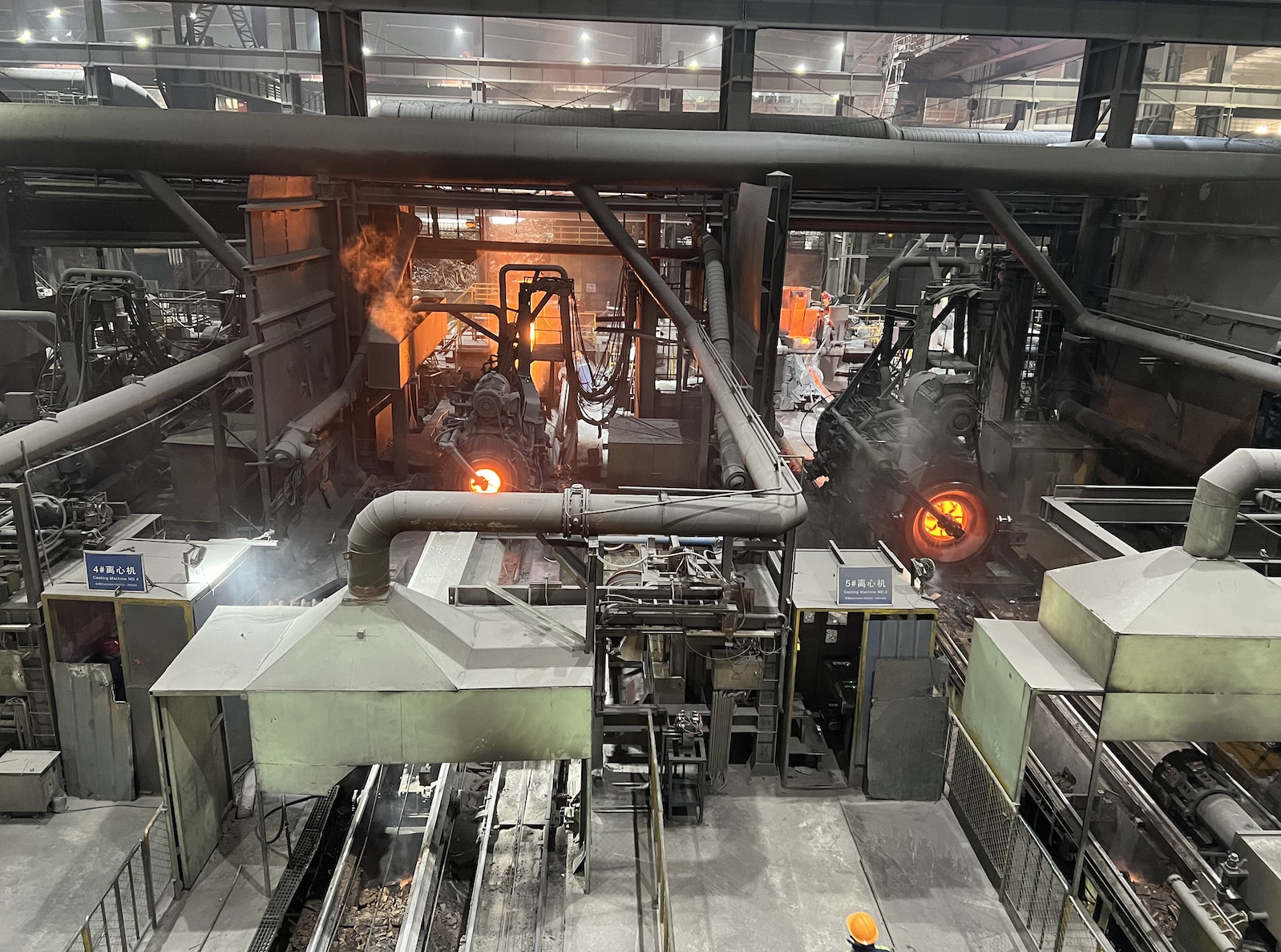

Centrifugal Casting:
Molten ductile iron is poured into a high-speed rotating mold to form the pipe body.
The centrifugal force ensures uniform wall thickness and a smooth inner surface.

Centrifugal Casting

Centrifugal Casting Video

Cooling: The cast pipe is cooled in controlled conditions to prevent stress and deformation.

3,Annealing

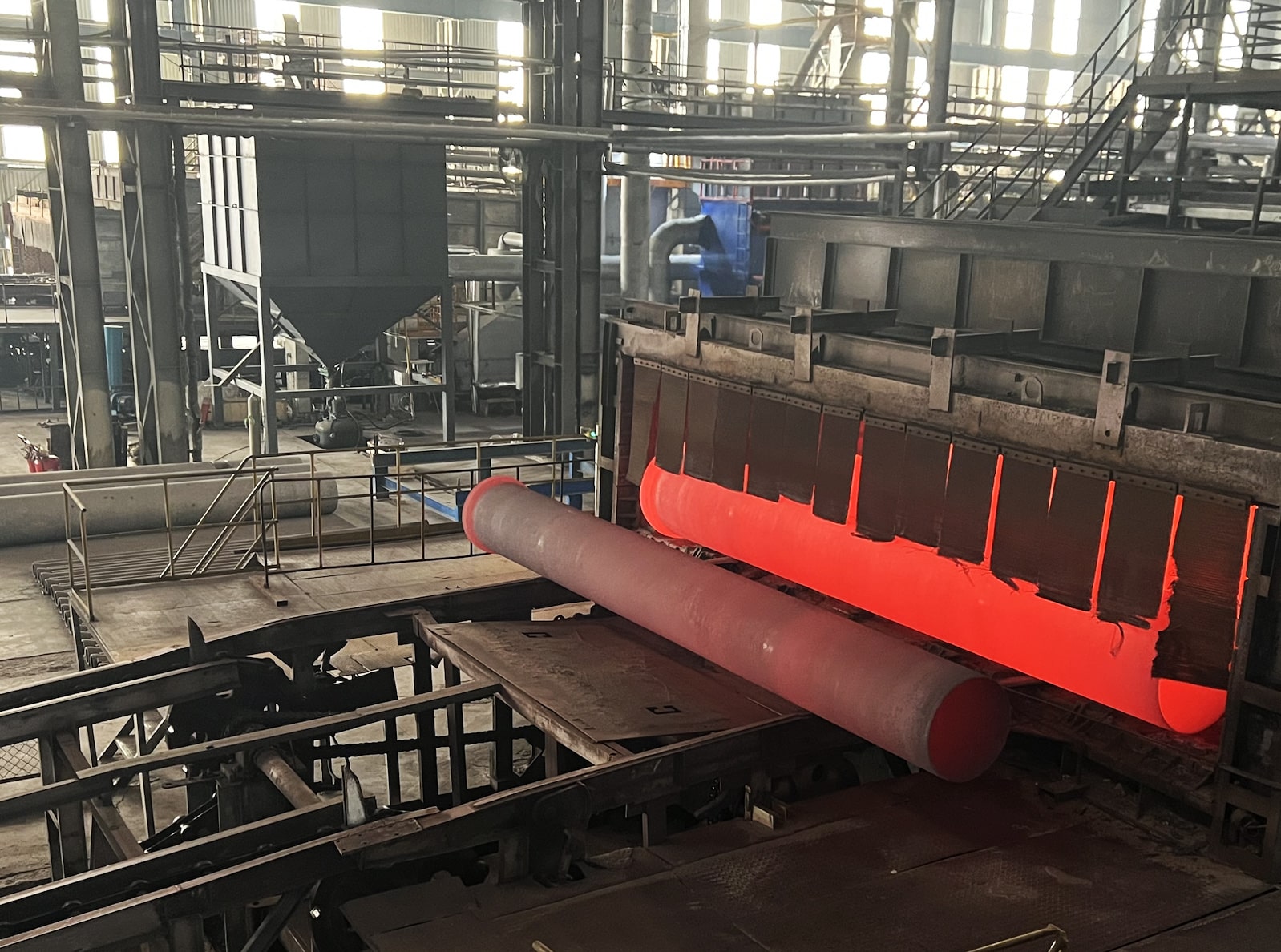

The pipes are heated in an annealing furnace to relieve internal stress, improve ductility, and ensure consistent mechanical properties.

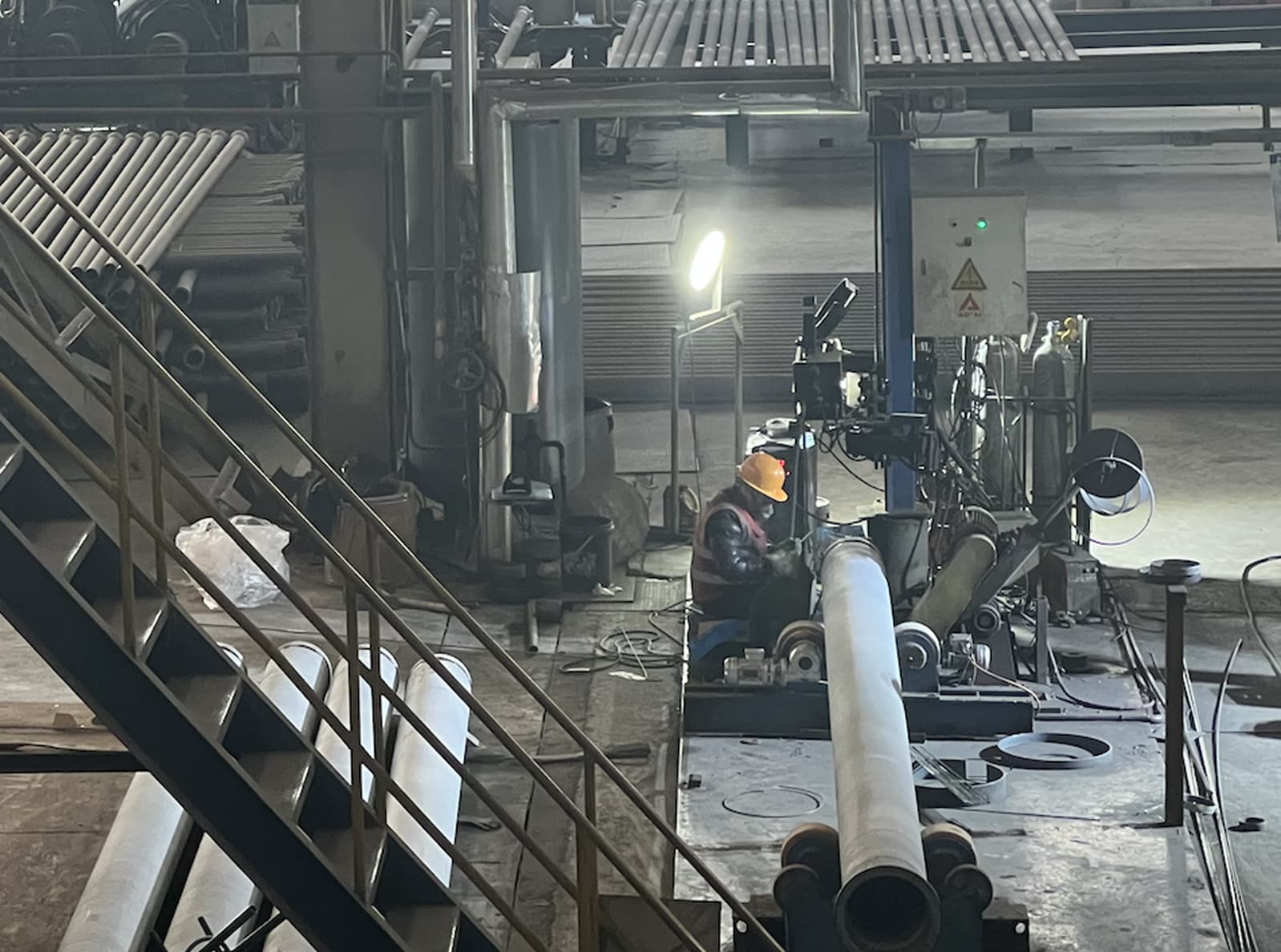

4,Machining

Socket Formation:
The bell (socket) end is machined to form the push-on joint shape, ensuring precise dimensions for a perfect seal.
Spigot Preparation:
The spigot end is tapered and smoothed for easy insertion into the socket.

5,Internal and External Coating

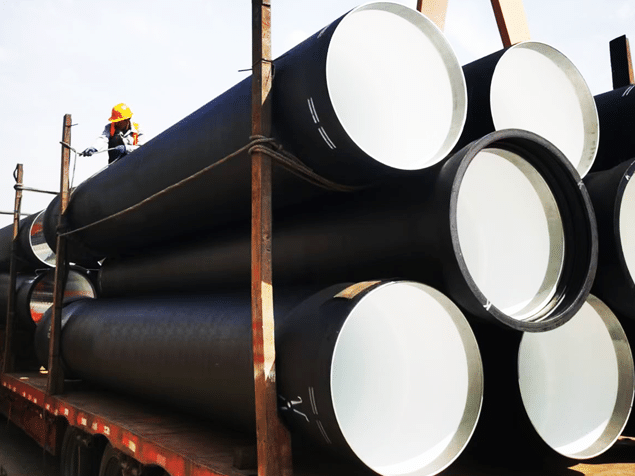

Internal Lining:

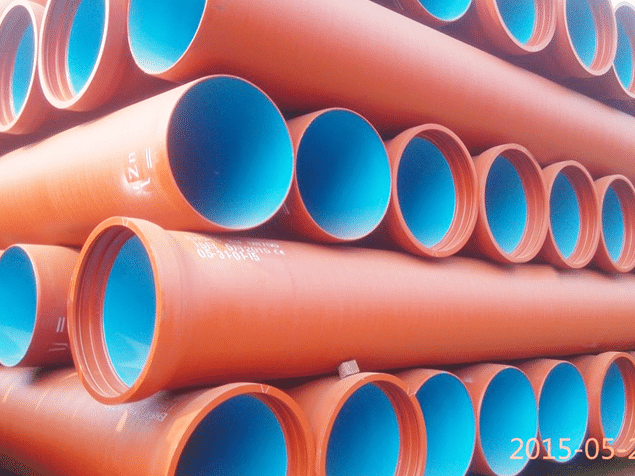

Cement mortar or epoxy is applied to protect the pipe from corrosion and improve flow efficiency.

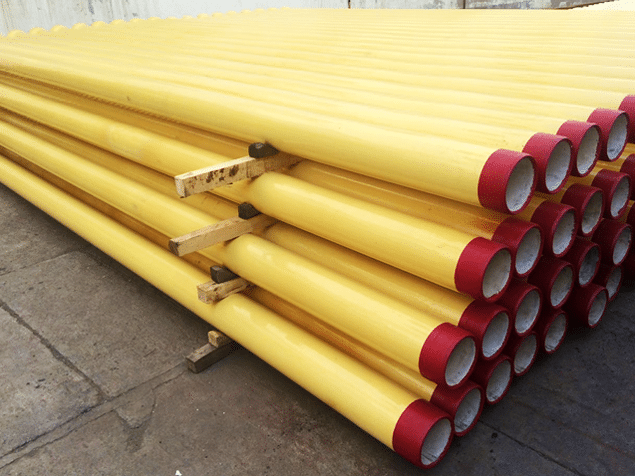

External Coating:
Zinc or bitumen coating is applied to prevent external corrosion and extend service life.

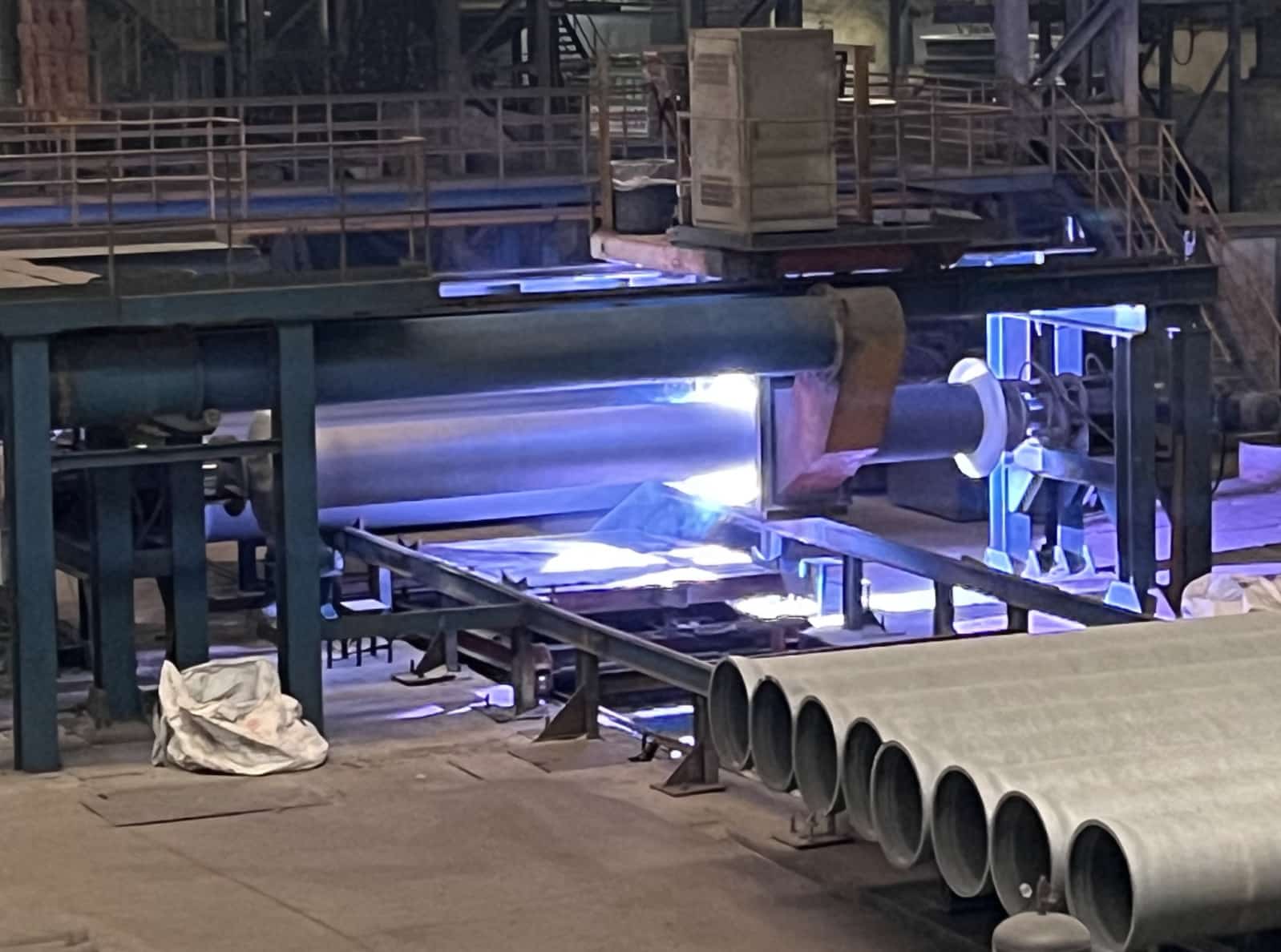

Zinc Coating

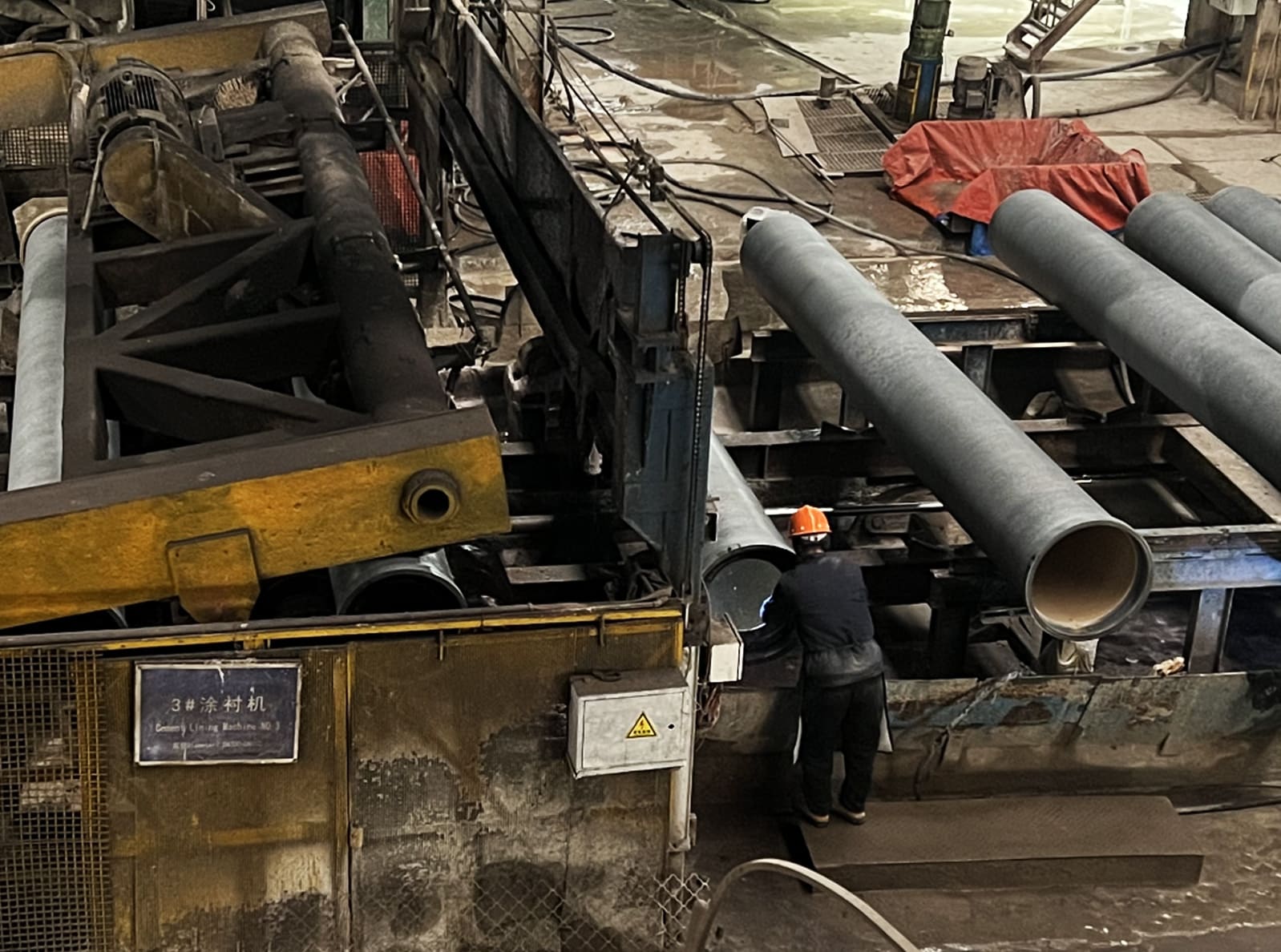

Cement Lining

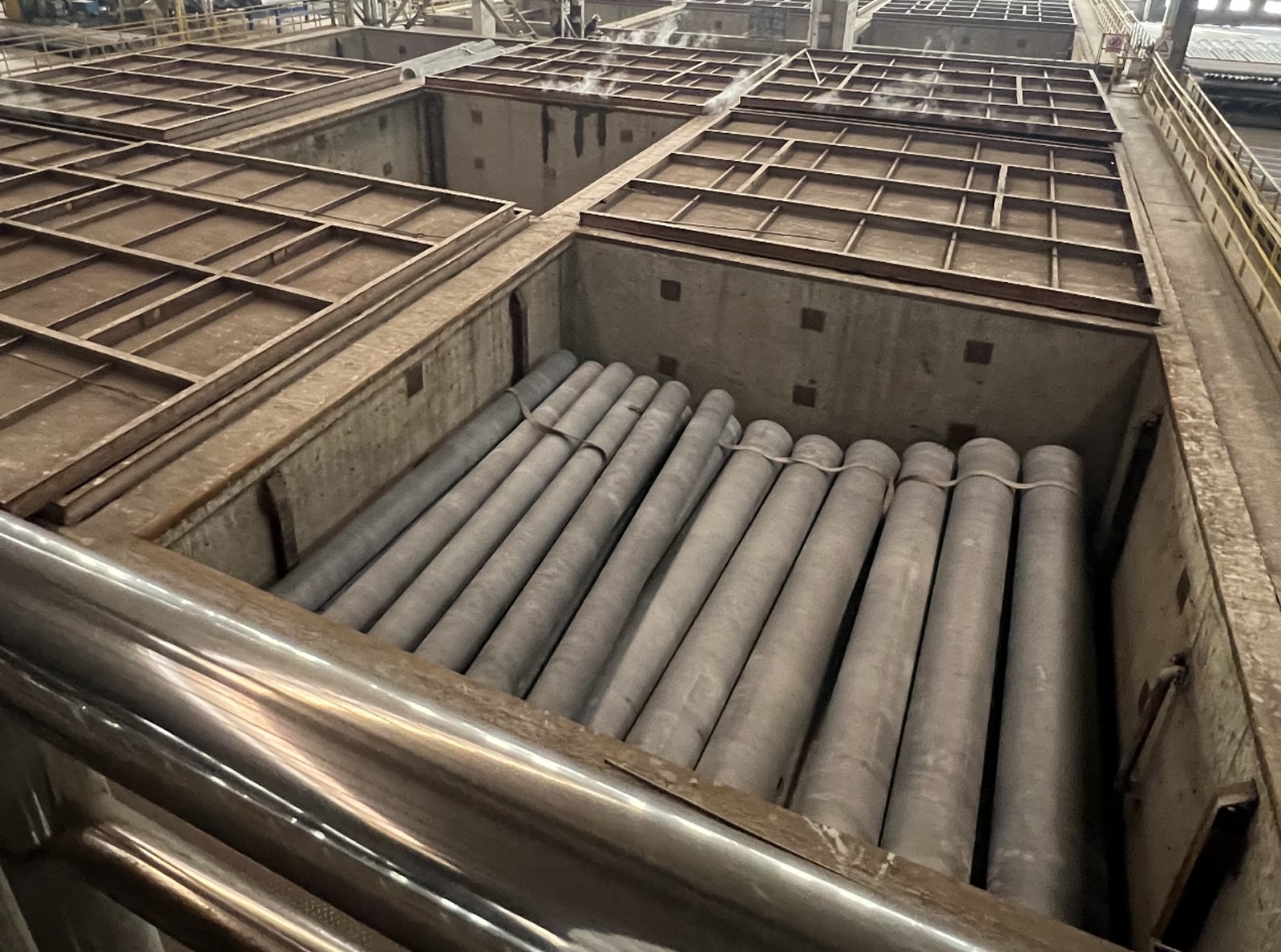

6,Cement Solidification

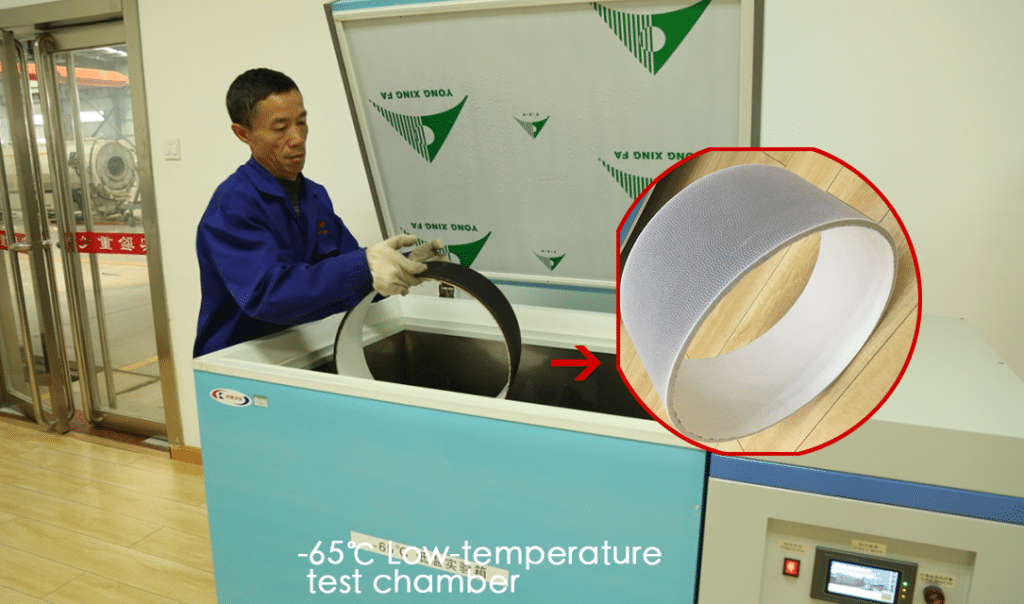

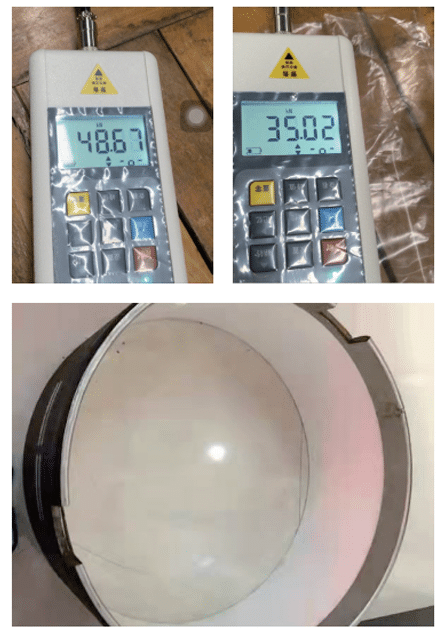

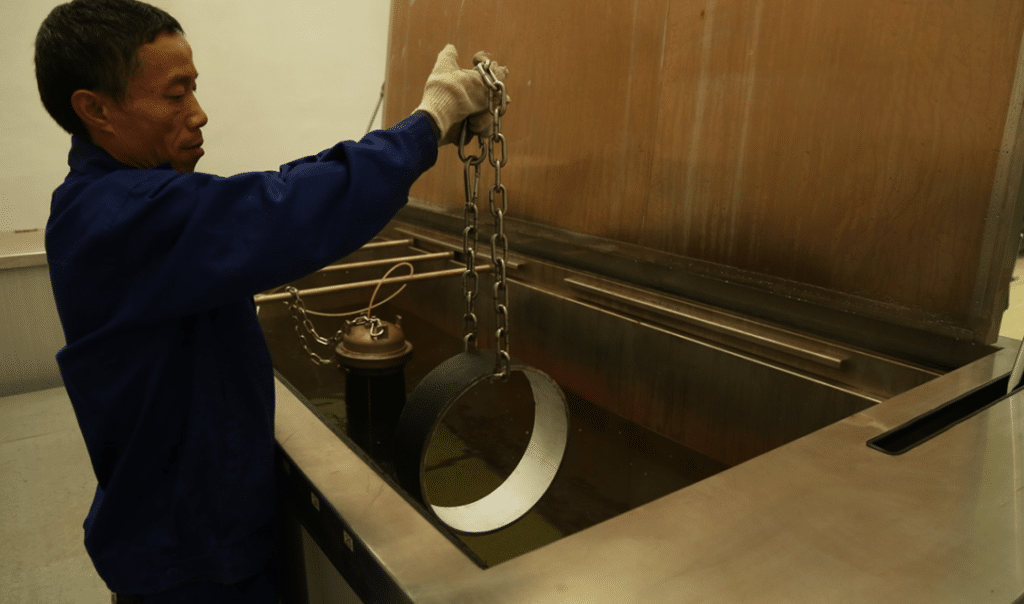

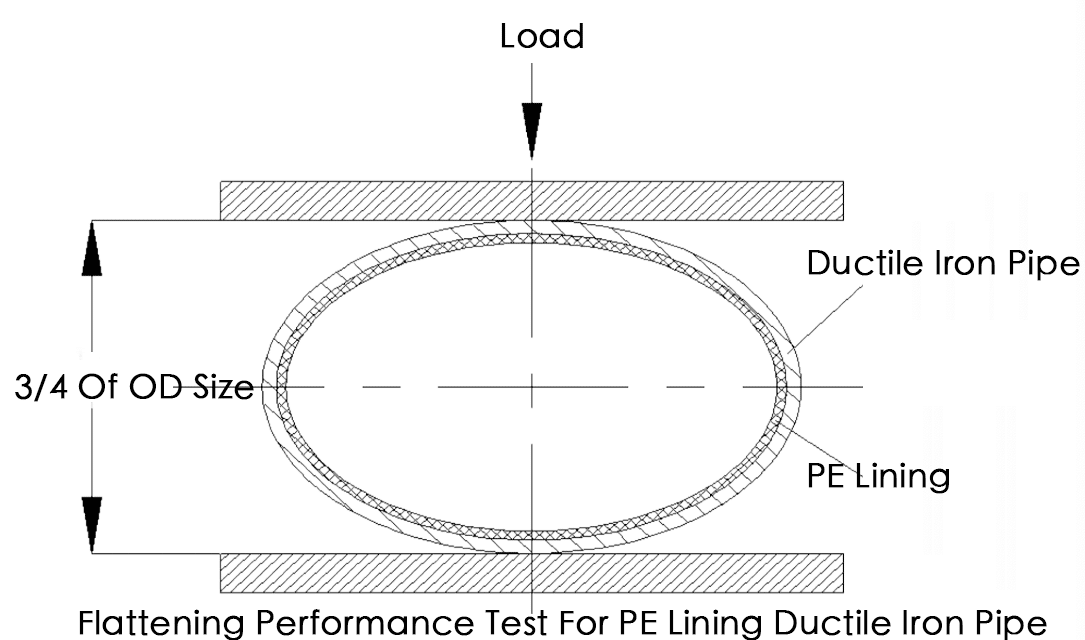

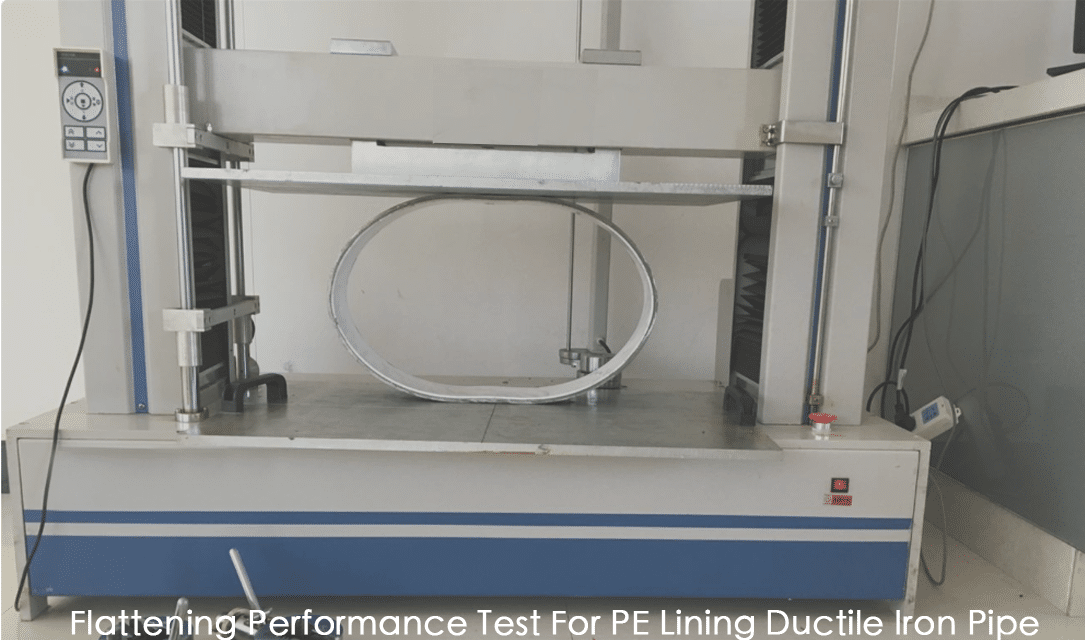

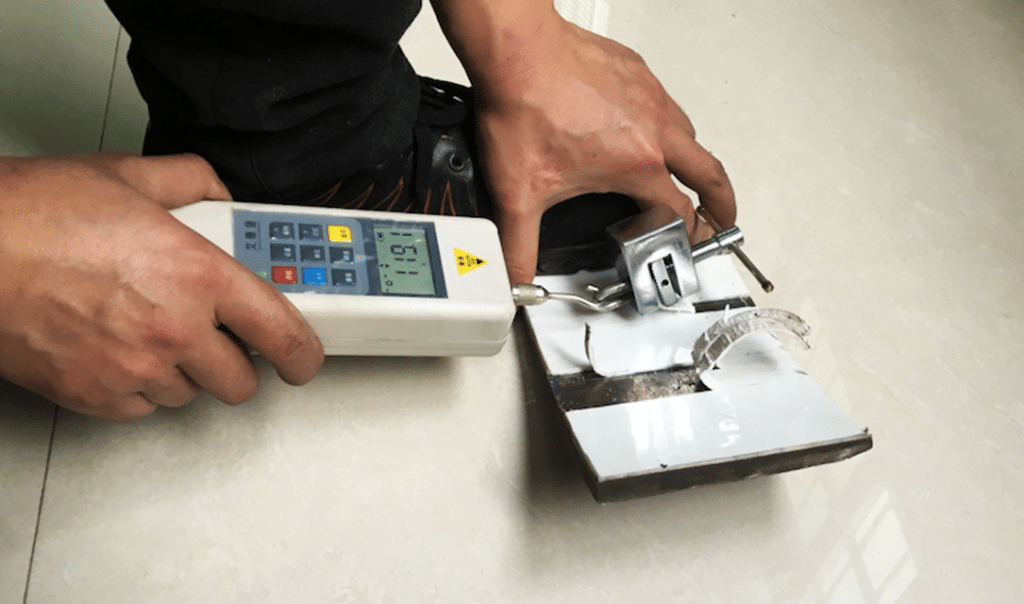

7,Quality Inspection

Dimensional Check: Ensures that the pipe dimensions meet standards.

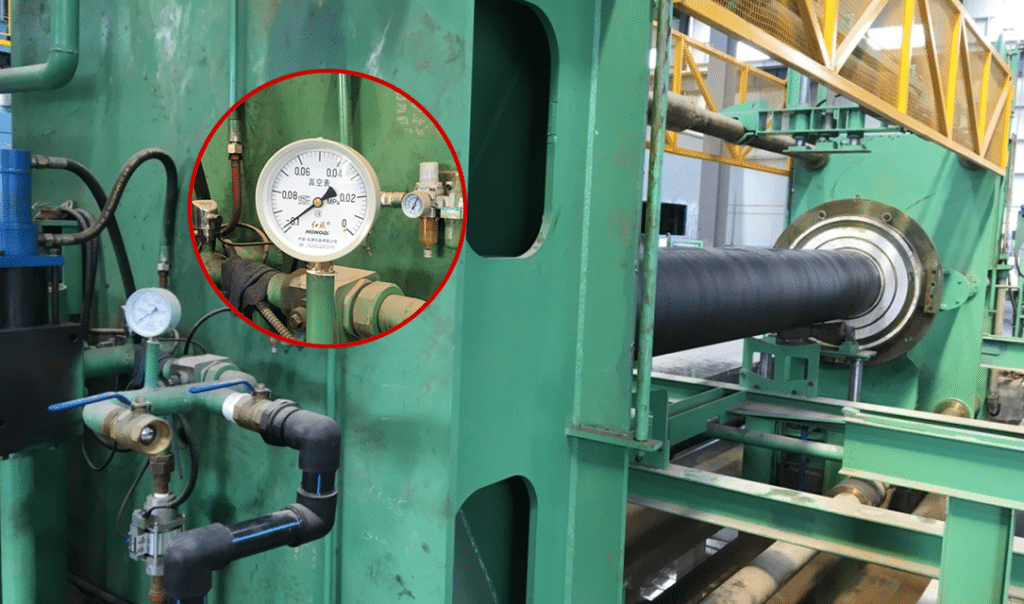

Hydrostatic Testing: Each pipe is tested under high water pressure to verify its strength and leakage resistance.
Visual Inspection: Examines the surface for cracks, defects, or coating irregularities.

8,Rubber Gasket Installation
A rubber gasket is placed in the socket groove, which will provide a watertight seal during installation.

9,Packing and Shipping
The pipes are bundled, marked, and prepared for transportation, with care to prevent damage during transit.

Summary

This process ensures that the ductile iron pipes are strong, durable, and corrosion-resistant, meeting the high standards required for push-on joint applications in water supply and sewage systems.

Ductile Iron Pipe VS Cast Iron Pipe

Higher Strength:Ductile iron pipe has superior tensile and impact strength compared to cast iron pipe, making it more durable under high-pressure systems and external loads.

Improved Flexibility:Unlike cast iron, which is brittle and prone to cracking, ductile iron pipe is more flexible and can withstand ground movement, vibration, and external stresses without fracturing.

Better Corrosion Resistance:While both require coatings for optimal performance, ductile iron has an improved metallurgical structure that provides better resistance to corrosion, especially when combined with modern protective linings and coatings.

Higher Pressure Tolerance:Ductile iron pipes can handle higher internal pressures, making them suitable for demanding water and sewage systems where cast iron may fail.

Longer Lifespan:The durability and resistance to cracking give ductile iron a longer service life compared to cast iron in similar environments.

Lighter Weight:Ductile iron pipe is thinner-walled yet stronger, resulting in a lighter product that is easier to transport and install compared to cast iron.

Ease of Installation:Ductile iron pipes use modern jointing systems, such as push-on or mechanical joints, which are faster and easier to assemble than the lead-sealed joints often used for cast iron pipes.

Versatility in Applications:Ductile iron pipes can be customized with coatings, linings, and fittings to suit a wide range of environments, such as corrosive soils or high-pressure systems, offering more versatility than cast iron.

Conclusion
Ductile iron pipe outperforms cast iron pipe in almost all technical aspects, including strength, flexibility, and adaptability. These advantages make it a more reliable and durable choice for modern infrastructure projects.

Ductile Iron Pipe VS Steel Pipe

Advantages of Ductile Iron Pipe

Corrosion Resistance:Ductile iron pipes have a natural resistance to corrosion, especially when paired with linings (e.g., cement mortar) and coatings.Steel pipes require additional anti-corrosion measures, such as epoxy coatings or cathodic protection, which increase costs.

Durability and Longevity:DIP has a longer lifespan due to its resistance to environmental degradation and mechanical wear, often lasting 50-100 years.Steel pipes are more prone to corrosion, especially in aggressive soils or water environments.

Higher Structural Strength:Ductile iron has excellent compressive and tensile strength, making it more resistant to external loads, such as soil pressure or traffic.Steel pipes are more flexible but may deform under heavy external pressure.

Ease of Installation:DIP joints (e.g., slip-on, mechanical joints) are generally easier and faster to install compared to the welding required for steel pipes.

Cost Efficiency in Maintenance:Lower maintenance requirements due to its durability and resistance to leaks or corrosion.

Disadvantages of Ductile Iron Pipe
Weight:Ductile iron pipes are heavier than steel pipes, making transportation and handling more challenging and expensive.

Lower Flexibility:Steel pipes are more flexible, allowing them to handle vibrations, dynamic loads, and bending better than DIP.

This makes steel pipes preferable in seismic zones or for long-distance pipelines requiring frequent adjustments.
Limited Length Options:DIP is usually manufactured in shorter lengths (commonly 6-7 meters), resulting in more joints during installation.Steel pipes are available in longer lengths, reducing the number of joints and installation time.

Pressure Tolerance:While DIP is strong, steel pipes generally have higher pressure ratings, making them better suited for extremely high-pressure systems.

Susceptibility to Internal Corrosion:DIP may suffer from internal corrosion if not properly lined, especially in aggressive water environments.Steel pipes, with proper lining, can offer better resistance to certain internal corrosive mediums.

Conclusion
Ductile iron pipes are an excellent choice for water distribution and buried pipelines due to their corrosion resistance, durability, and structural strength. However, steel pipes are more suitable for high-pressure, long-distance, or dynamic applications requiring flexibility and higher pressure ratings. The choice depends on the specific requirements of the project.

Ductile Iron Pipe Design Standards

Ductile iron pipes are governed by various design standards worldwide to ensure safety, performance, and durability in diverse applications such as water, wastewater, and gas pipelines. These standards provide guidelines for wall thickness, pressure ratings, joint design, material properties, and coatings/linings. Below are the most widely used international design standards:

1,ISO Standards (International Organization for Standardization)

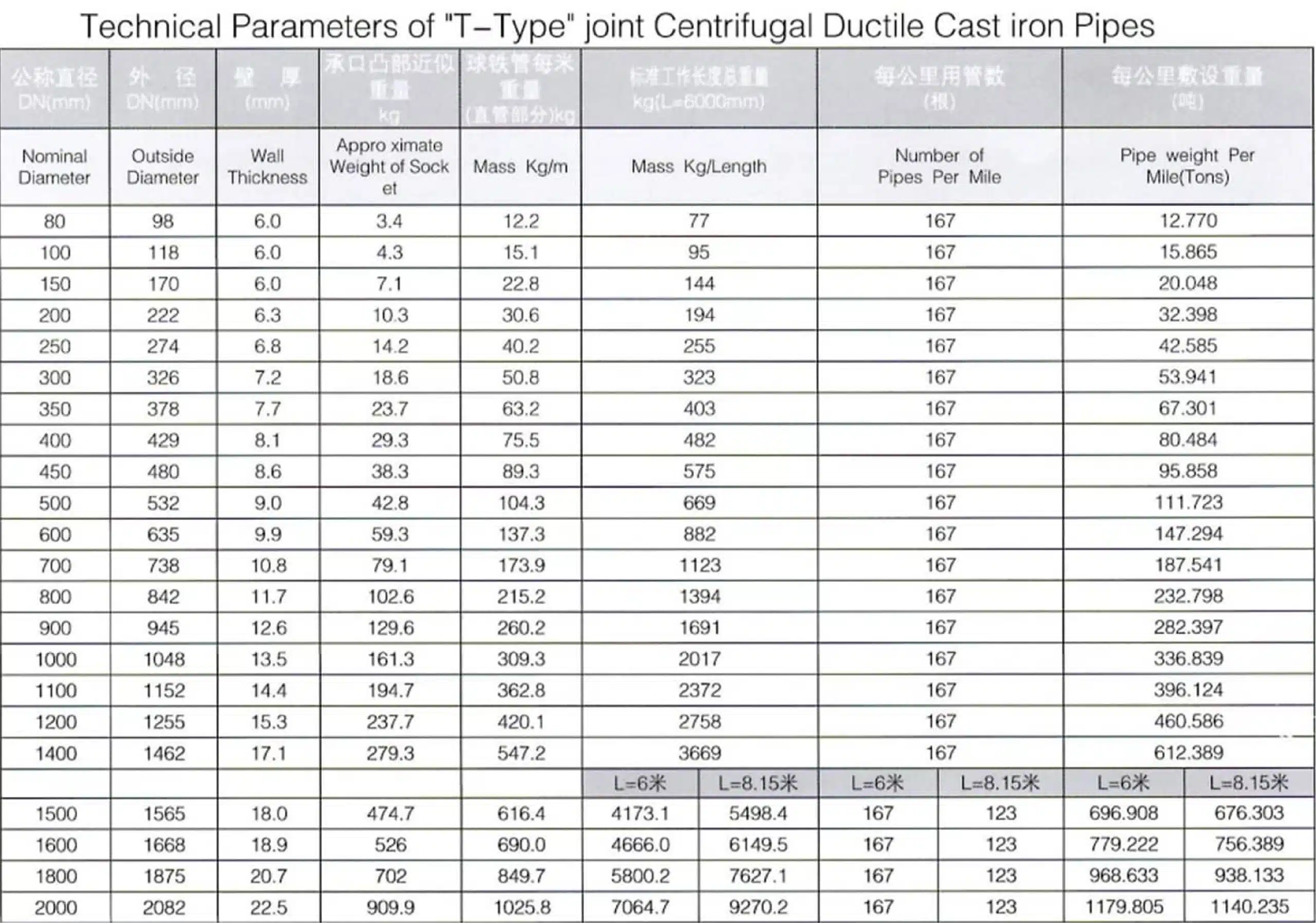

ISO 2531:2019:Covers the design and manufacture of ductile iron pipes, fittings, and joints for water applications.Specifies pressure classes, wall thickness, joint strength, and hydraulic testing.Widely used globally, especially in Europe, Asia, and Africa.

ISO 7186:Provides performance requirements and design guidelines for ductile iron pressure pipes used in pipelines.

ISO 16631:Specifies the requirements for buried flexible pipelines using ductile iron pipes.

2. EN Standards (European Norms)
EN 545:2020：Focuses on ductile iron pipes, fittings, and joints for water pipelines.Includes design requirements for wall thickness, pipe lengths, and pressure classifications.

EN 598:2020：Design standard for ductile iron pipes used in sewerage systems or aggressive environments.Incorporates guidelines for external coatings and internal linings for corrosion protection.

3. AWWA Standards (American Water Works Association)
AWWA C150 / ANSI A21.50:Thickness Design of Ductile Iron Pipe.Provides the methodology to calculate the required wall thickness of DIP based on internal pressure, external loads, and depth of cover.Includes guidelines for both buried and above-ground installations.

AWWA C151 / ANSI A21.51:Ductile Iron Pipe, Centrifugally Cast.Specifies dimensional and material requirements for ductile iron pipes.

AWWA M41:Manual for the Design of Ductile Iron Pipe.A comprehensive manual providing practical design calculations for pressure rating, surge allowance, and external loads.

4. AS/NZS Standards (Australia and New Zealand)
AS/NZS 2280:2020：Ductile Iron Pipes and Fittings.Combines both design and performance requirements, focusing on durability, pressure classes, and corrosion resistance.Suitable for Australian and New Zealand-specific conditions, such as high UV exposure and corrosive soils.
5. JIS Standards (Japanese Industrial Standards)
JIS G 5527:Governs the design of ductile cast iron pipes in Japan.Includes pressure classes, wall thickness, and testing requirements.
6. Indian Standards (IS)

IS 8329:2000：Specifies the design and performance requirements for ductile iron pipes for water and sewage applications in India.
7. Chinese Standards (GB/T)
GB/T 13295-2013：Ductile Iron Pipes, Fittings, and Accessories for Water Applications.Includes design parameters, pressure classifications, and testing for DIP.Aligns closely with ISO and EN standards.

GB/T 17457-1998：Design standard for the lining of ductile iron pipes, with specifications for corrosion resistance.

8. South African Standards (SANS)
SANS 552：Covers the design and performance requirements of ductile iron pipes in South Africa.Adapts EN 545 and ISO 2531 for local environmental conditions.
Key Design Factors Covered in These Standards

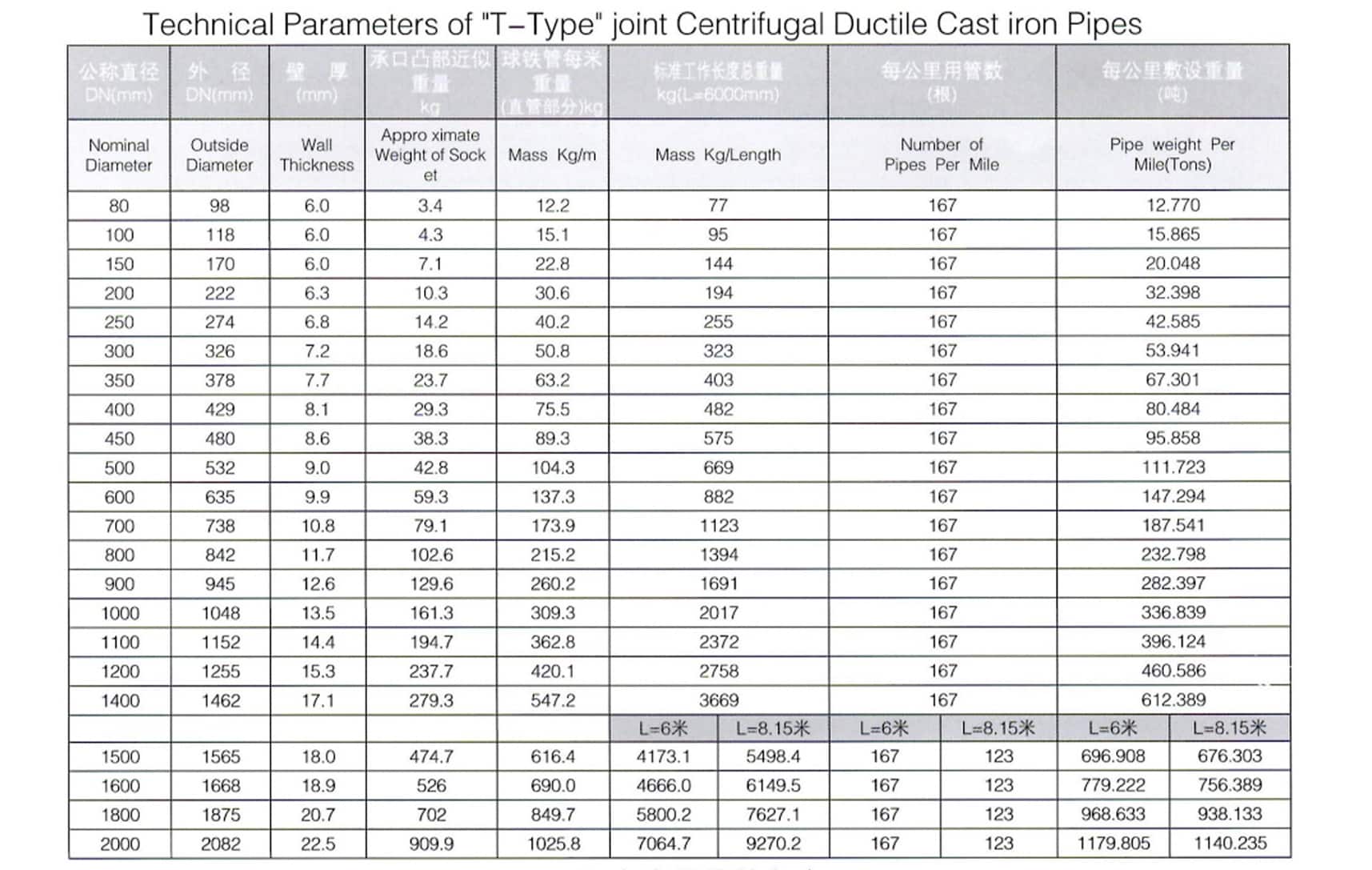

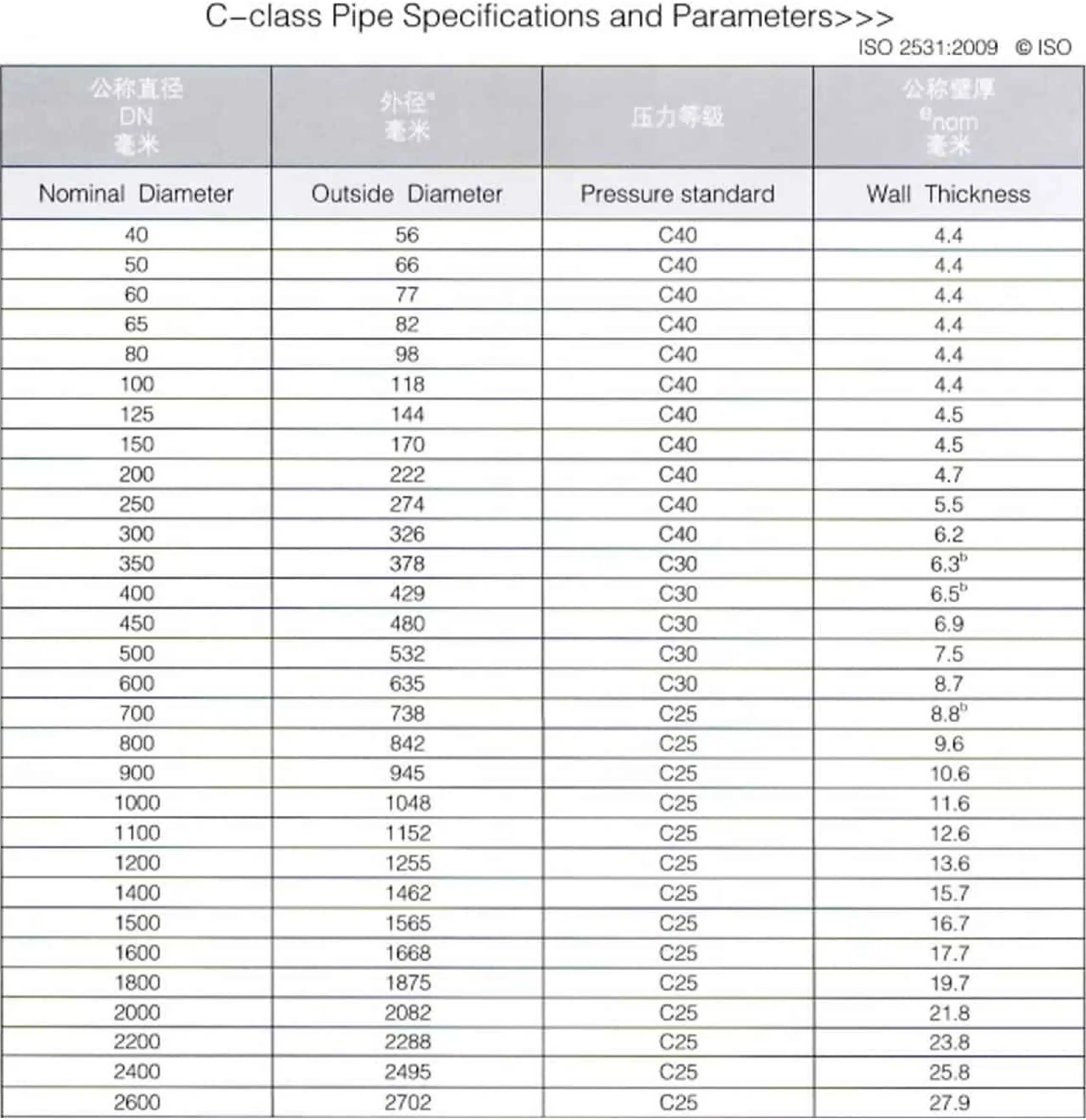

Wall Thickness Calculation:Based on internal pressure, external loads, soil type, and depth of burial.

Defined in standards like AWWA C150 and ISO 2531.

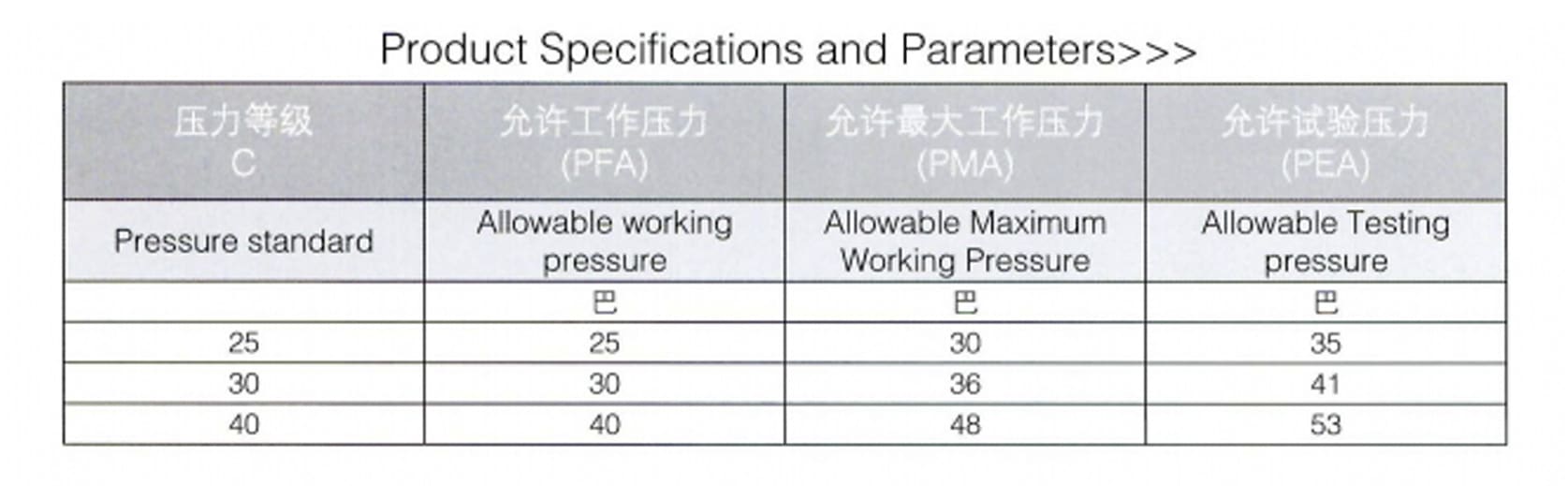

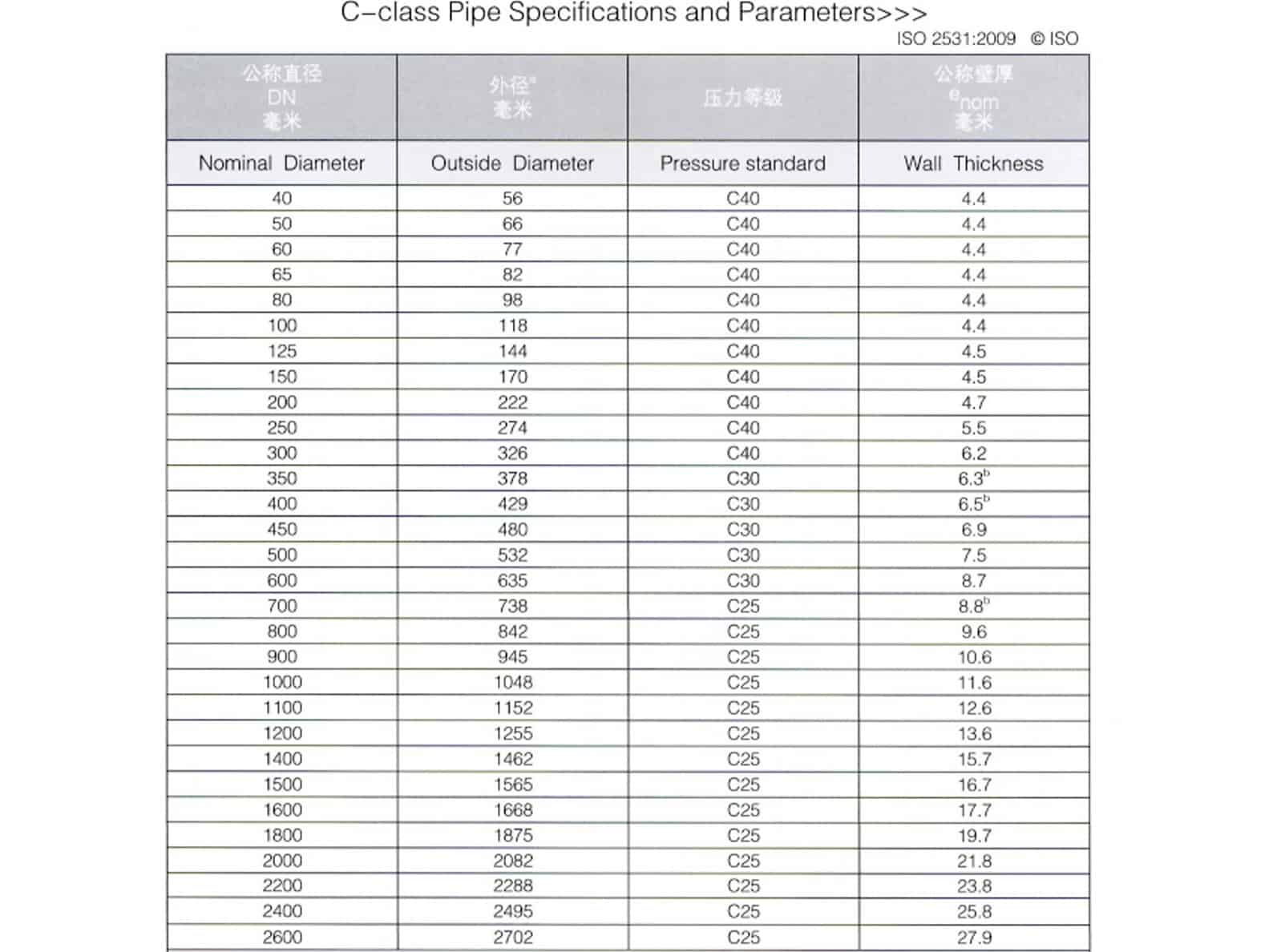

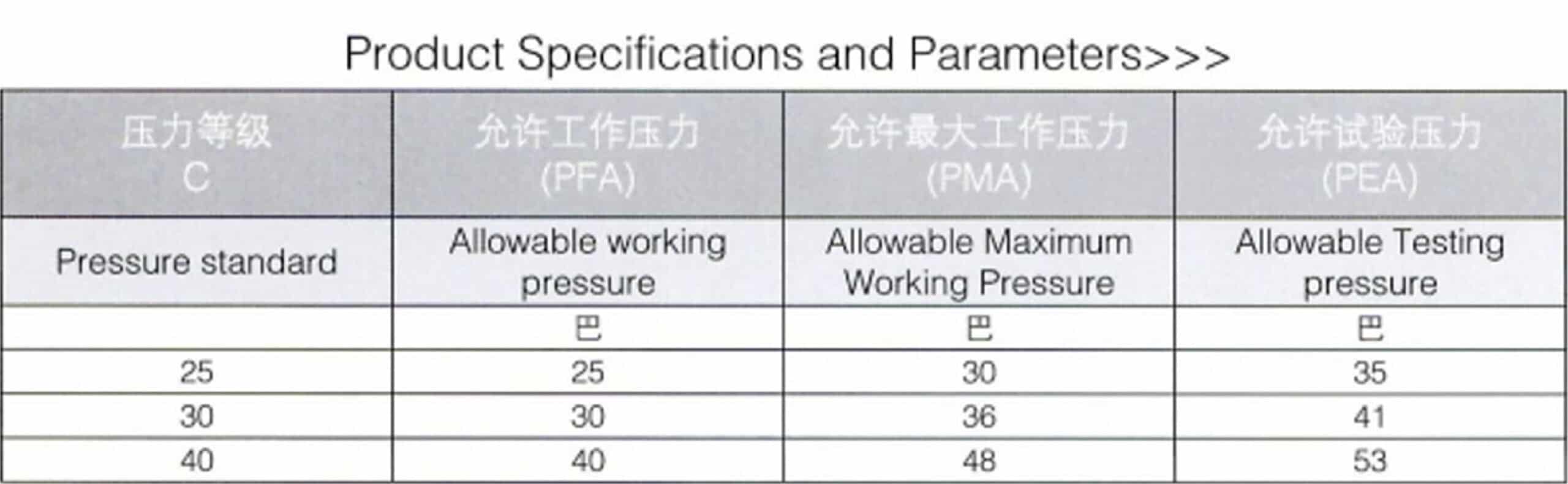

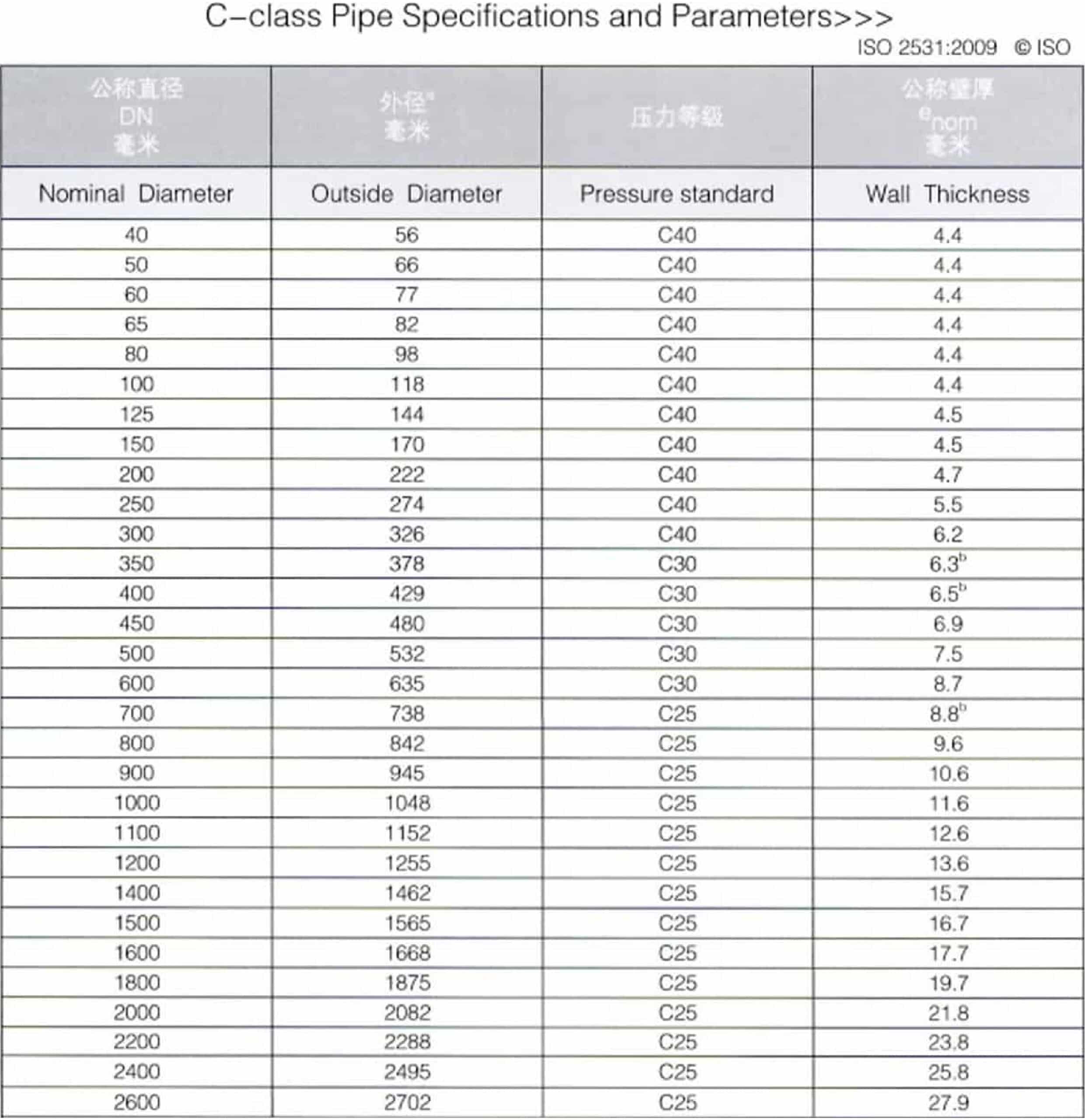

Pressure Ratings:Pipes are categorized into pressure classes (e.g., PN 10, PN 16, PN 25), which define their suitability for various applications.

External Load Requirements:Includes resistance to traffic loads, soil pressure, and overburden.

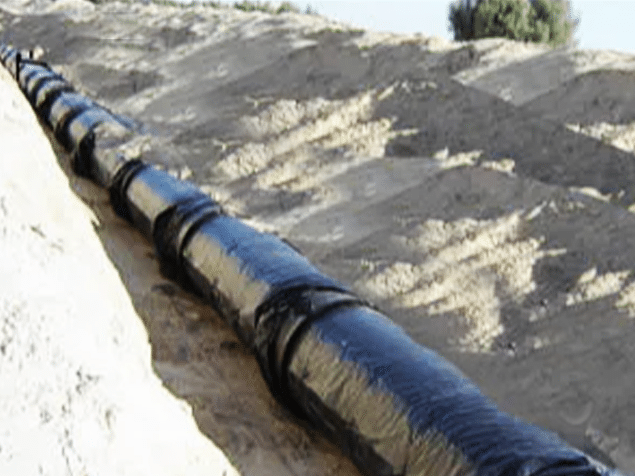

Corrosion Protection:Standards define coatings (e.g., zinc, polyethylene) and linings (e.g., cement mortar, epoxy) for external and internal surfaces.

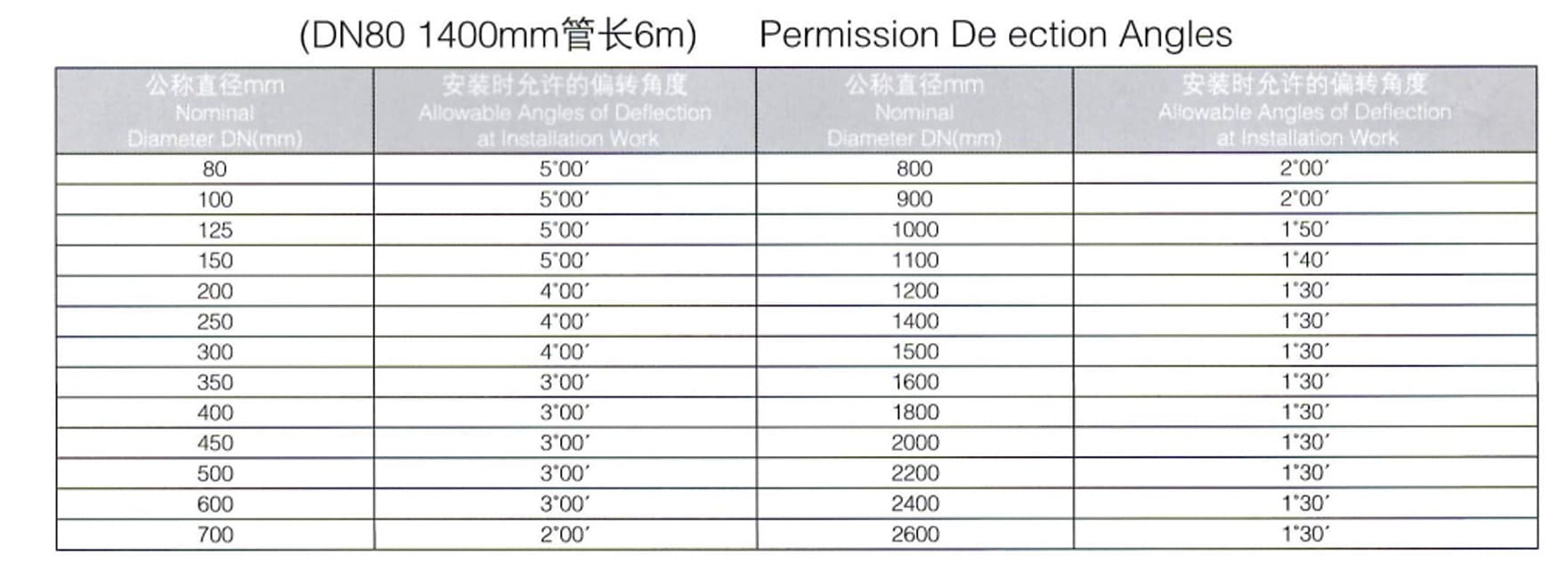

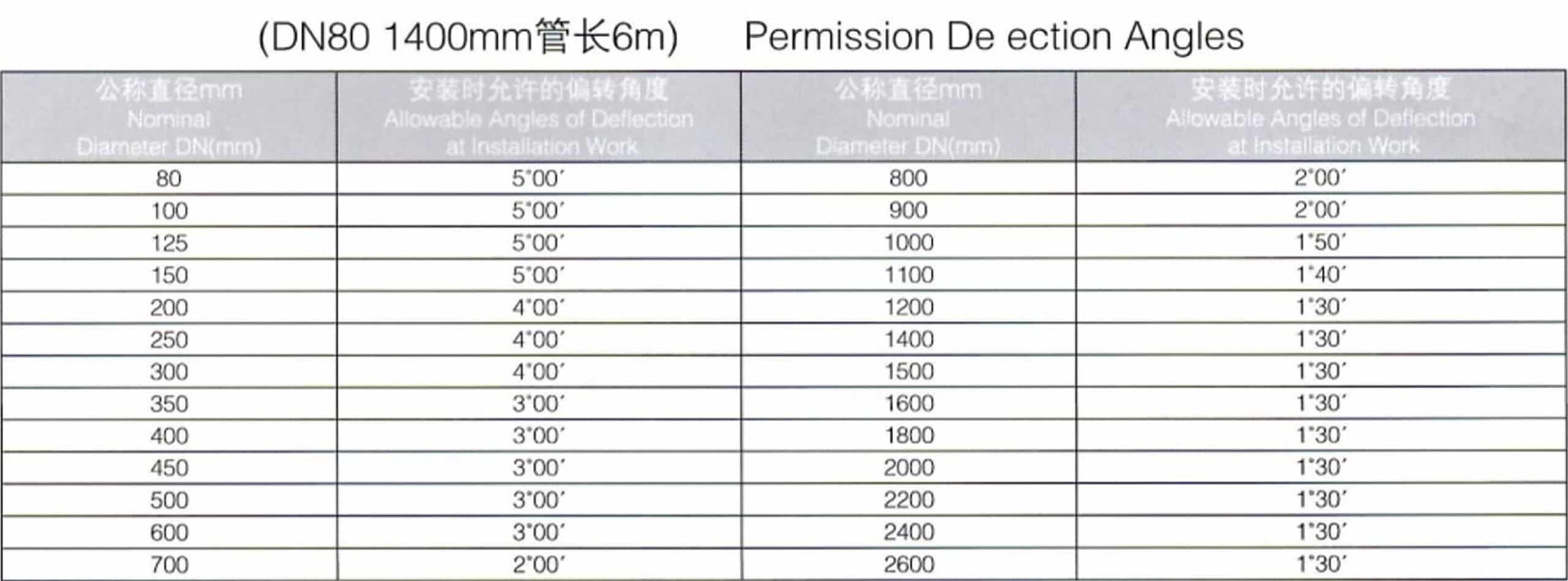

Joint Design:Guidelines for slip-on, mechanical, flanged, restrained, and ball-and-socket joints.

Testing Requirements:Hydraulic pressure tests, tensile tests, and dimensional inspections to ensure compliance with standards.

Conclusion
The most widely used international design standards for ductile iron pipes include ISO 2531, EN 545, and AWWA C150/C151. These standards ensure the structural integrity, pressure resistance, and durability of DIP in different environmental and operational conditions. The choice of standard depends on the project’s region and application, with ISO and EN standards dominating Europe, Africa, and Asia, while AWWA standards are prominent in North America.
