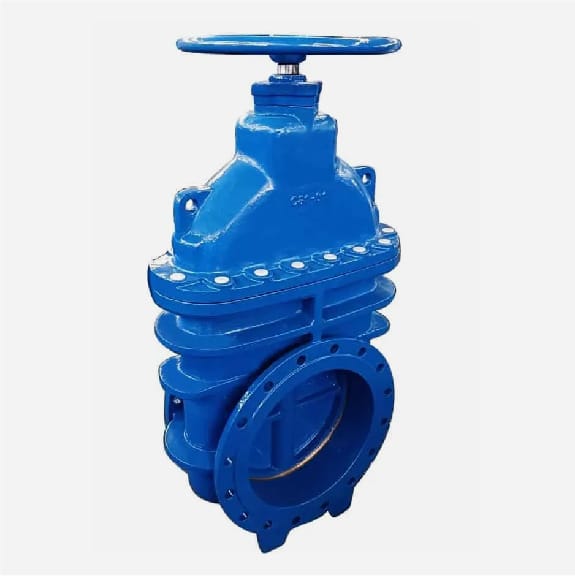

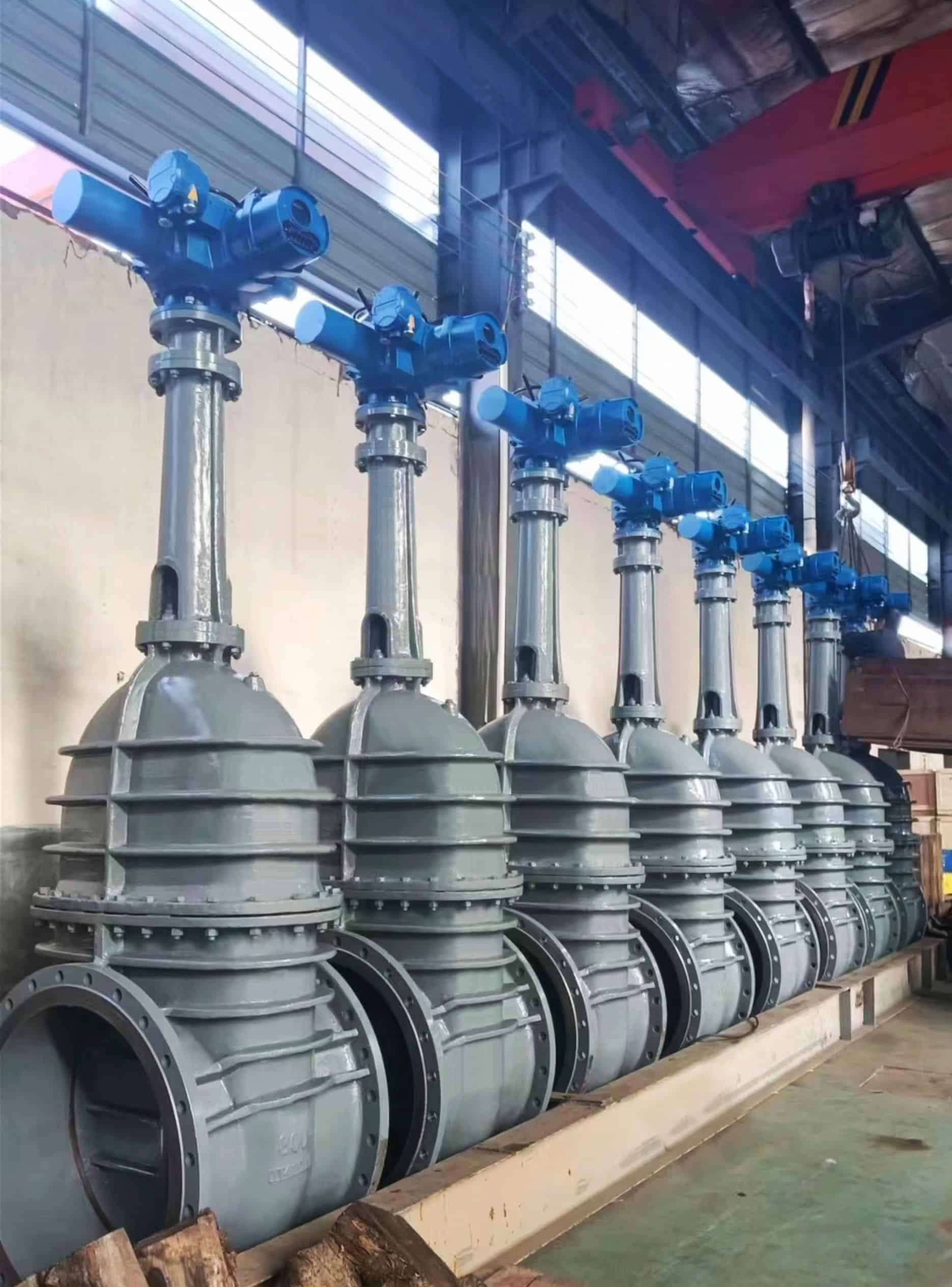

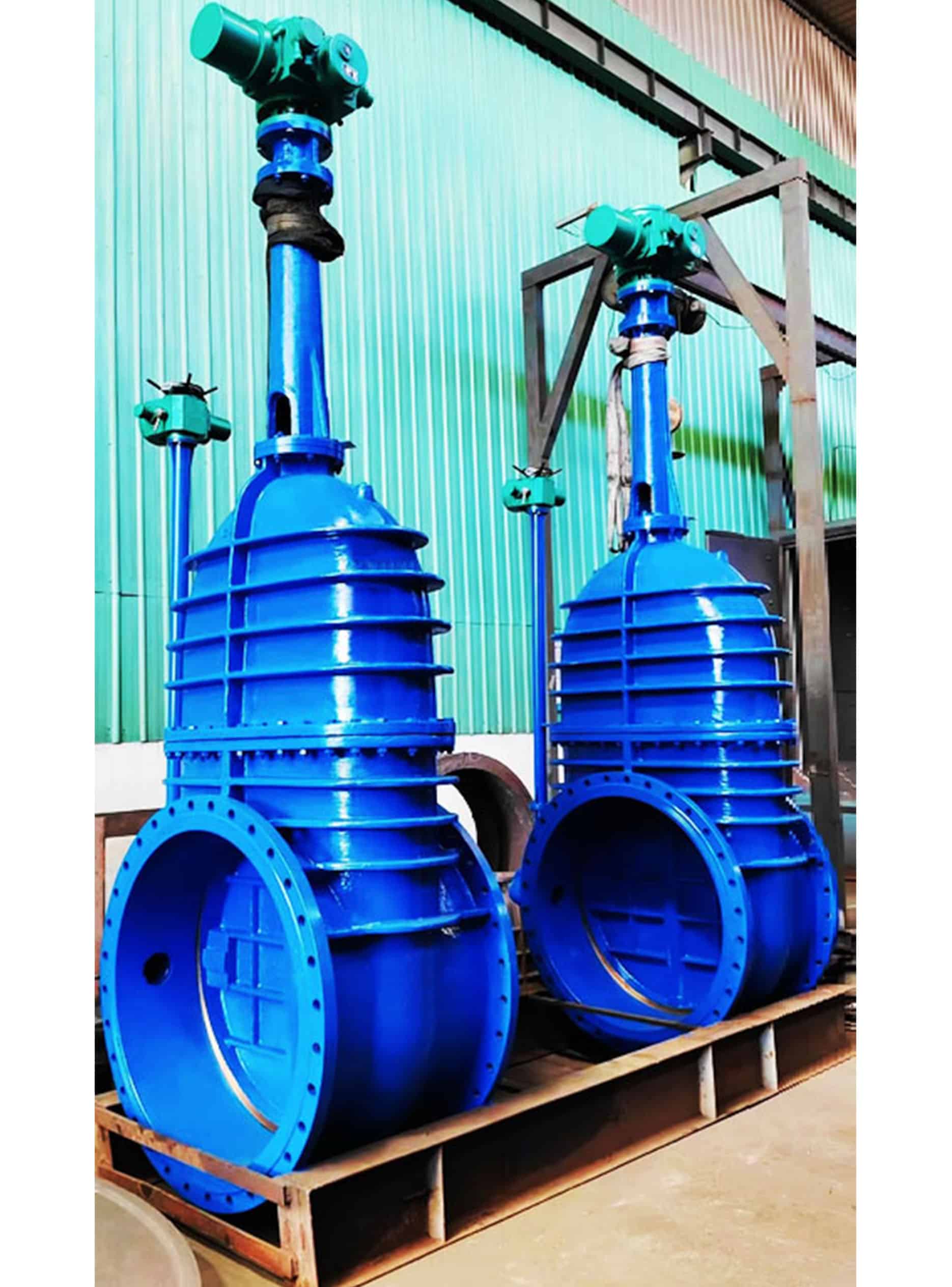

Metal Seated Gate Valve
Feature
When the wedge is fully opened, the valve bonnet and wedge will seal to avoid
fluid going outside(marked 1), then the o type sealing ring (marked 2) can be
changed without stopping the fluid in the pipeline.
Trapezoidal rubber ring, when the greater the water pressure, the greater the
deformation of the rubber ring, the tighter the seal
Stem blunt pressure integrated molding, to prevent the failure with the wear
and tear of the clamping ring
Metal sealing rings can be stainless steel, brass or Or other materials with equivalent properties
Specification
Metal Seated Gate Valve
O leakage
FLANGED ENDS
From DN50 to DN1600
ANSI/NSF 61 approved for AWWAC515 Design
WRAS/ACS/DVGW approved for EN1074-2 Design
FBE coating or other coating according to client requirement
Hand wheel – counterclockwise to open
FBE Coating according to EN 14901:2006 for EN1074 design
FBE coating according to WWWA C550 for AWWAC515 design
Flanged according to Class 125 or Class250 for AWWA C515
Flanged according to ENN092-2 for EN074-2
OPTIONS
Other material bolts and nuts
Brass or Bronze Stem
Brass or Stainless Steel sealing rings
Class 125 or Class 250 drilling for AWWA C515
or PN10/PN16 drilling for EN1074-2
Drawing
Our max size is DN1600,if you need drawings for bigger size,please contact us as below
Test video
sealing Pressure Test for DN1200 PN10 nrs Metal Seated Gate Valve Zero Leakage
sealing Pressure Test for DN900 PN16 nrs Metal Seated Gate Valve Zero Leakage
shell Pressure Test for DN200 pN16 os&y Metal Seated Gate Valve no Leakage

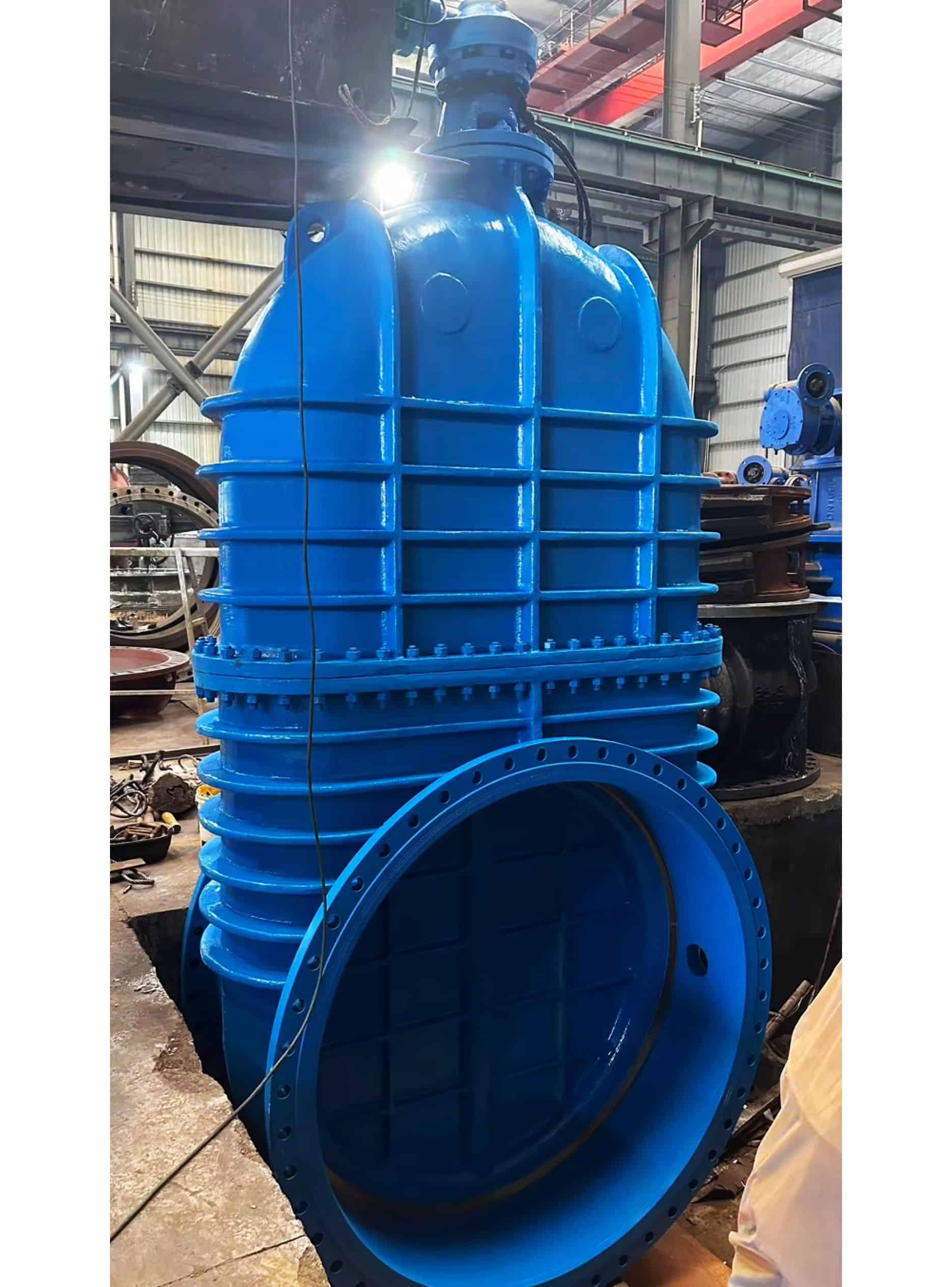

What is metal seated gate valve?
The gate valve which is sealed by metal sealing surface, we call it metal seated gate valve. Commonly used metal sealing material are stainless steel and brass.
Compared with the common brass seal, stainless steel seal is used less, but stainless steel seal is harder than brass seal and has a longer service life. However,
because of the high hardness of stainless steel, the grinding of the seal is more complicated, and the price of stainless steel is higher than the price of brass, so the
price of the metal seated gate valve with stainless steel seal is higher than the price of the metal seated gate valve with brass seal.
What is metal seated gate valve types？
Application
water, sewage, chemical, food, medicine, ships, metallurgy, energy systems and other pipelines as Cut-off fluid device
Note
Metal seated gate valve Must Be Full On Or Full Off,Incomplete Opening Or Closing Can Cause Serious Damage To The Valve Wedge
metal seated gate valves can‘t be used for fluids with hard particles, because there are grooves on the valve seat, hard impurities will be retained in the grooves of the valve seat, and when the valve wedge is closed, the hard particles will cause damage to the sealing ring of the valve plate, thus making the valve plate lose its sealing function.

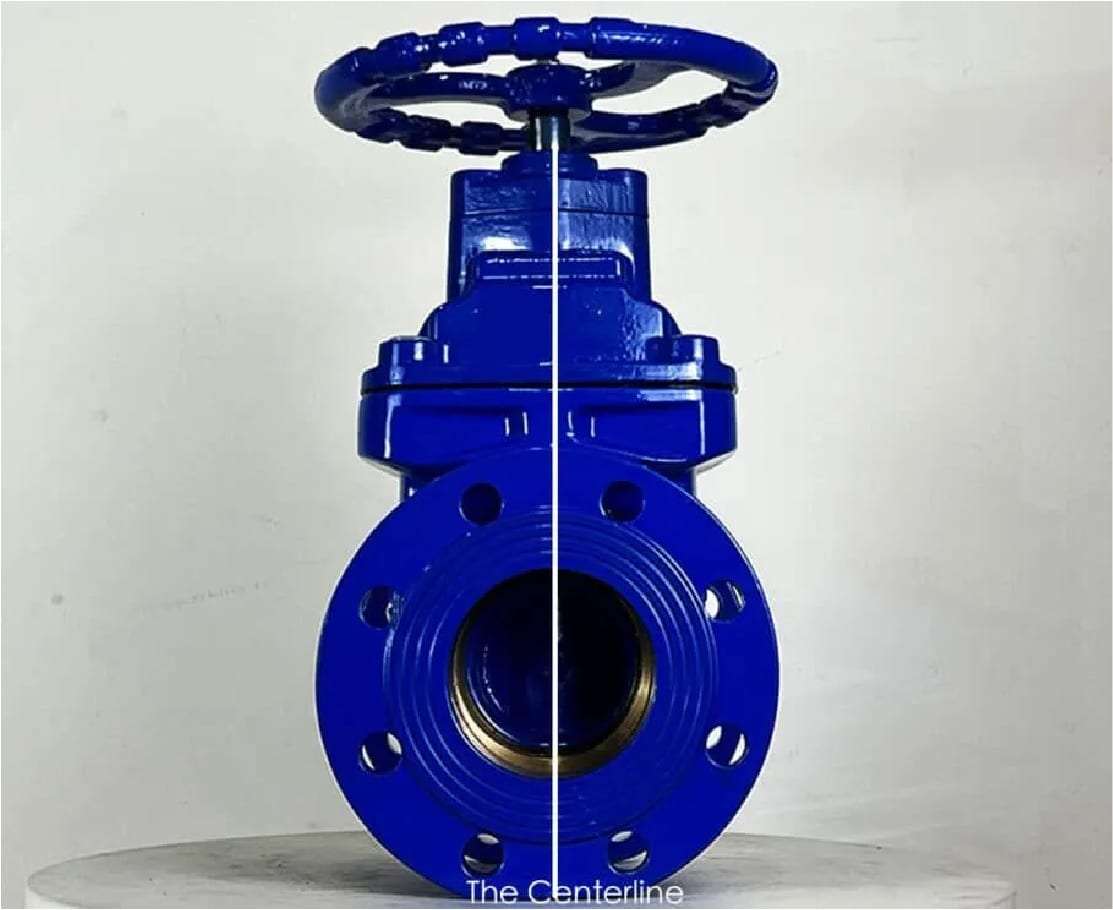

A good metal seated gate valve should ensure that the centerline of the seal ring, the centerline of the valve wedge and the centerline of the valve bore should coincide,as show in the figure below
Advantage
Long service life
Can be used for high temperature and other conditions for which rubber capsuled gates are not suitable
harmless for human healthy
