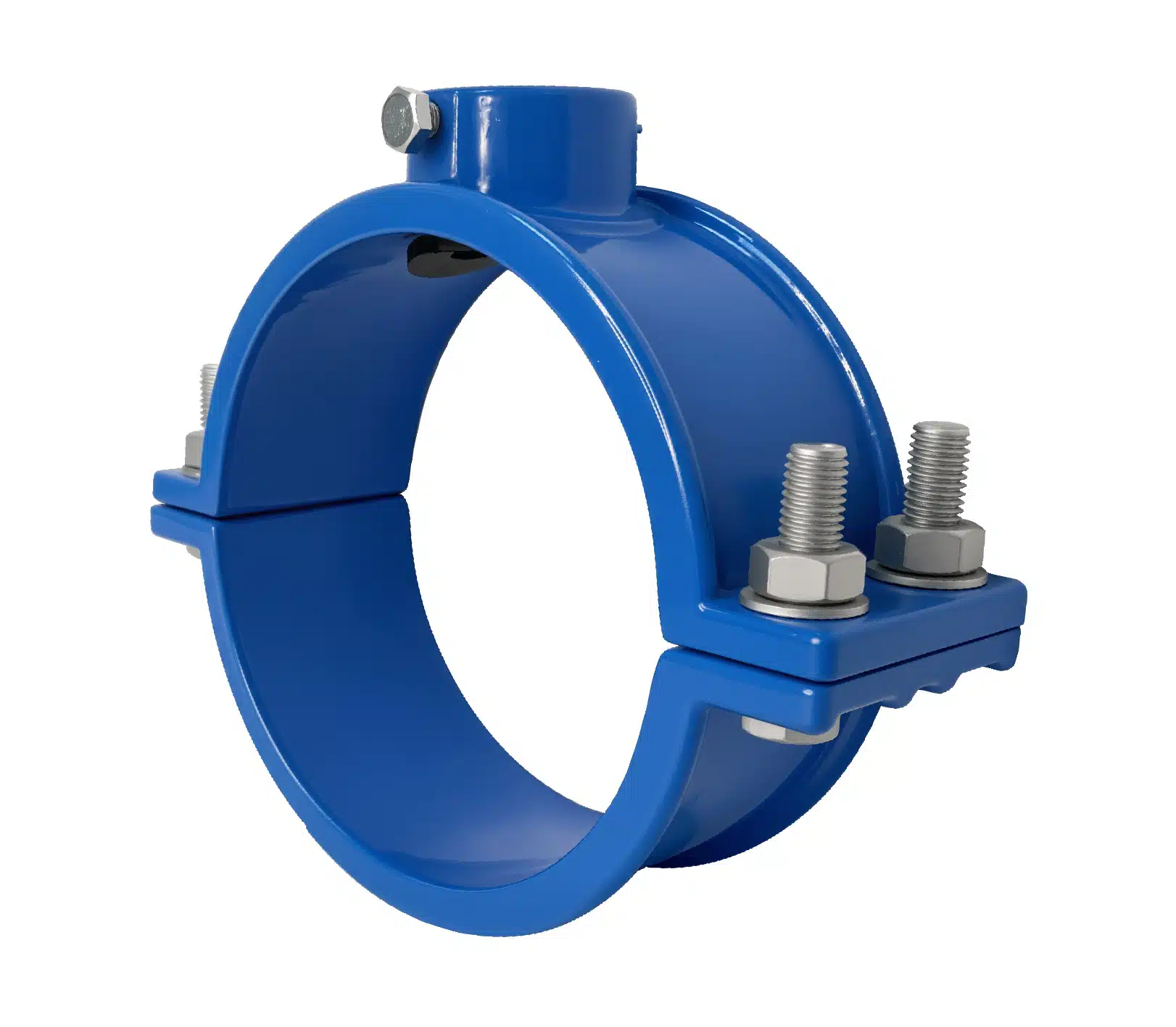

Saddle Clamp for PVC and HDPE pipe, with Metric Thread Outlet
This saddle clamp is specifically designed for HDPE and PVC pipes, featuring a metric thread outlet. It needs to be connected to an isolation valve with the same metric thread outlet to control the on/off function of the branch.
Feature
Design standard is according to EN545.
Coating is according to EN14901.
Test is according to EN545.
Working pressure PN10/PN16.
Working temperature from -10℃ to 120℃ for EPDM gasket.
Connection for PVC and HDPE pipe.
Suitable for potable water, neutral liquids and sewage.

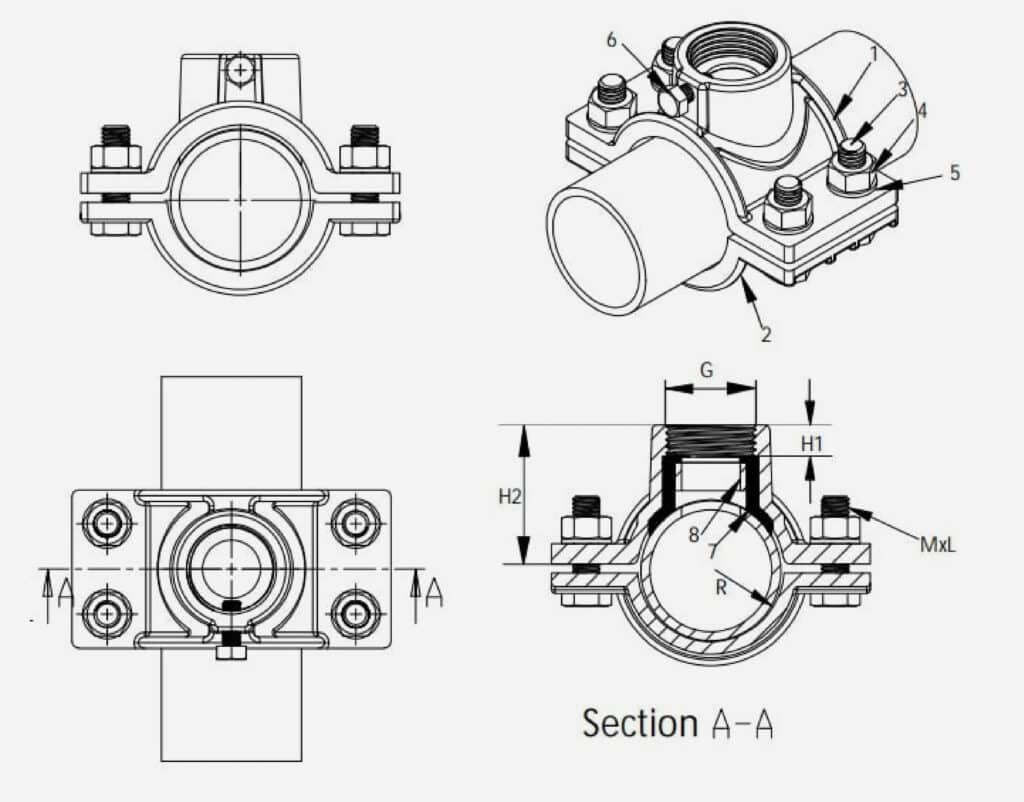

Drawing
Material
| Item No. | Name | Material |
|---|---|---|
| 1&2 | Body | Ductile iron EN GJS450-10 |
| 3&6 | Bolts | Grade 4.8 dacromet coated carbon steel |
| 4 | Nut | Grade 4.9 dacromet coated carbon steel |
| 5 | Washer | Grade 4.10 dacromet coated carbon steel |
| 7 | Gasket | EPDM |
| 8 | Support | PTFE |
Dimension
| size | G | H1 | H2 | R | MxL |
|---|---|---|---|---|---|
| 50 | M40x3 | 14 | 55 | 26 | M12x50 |
| 63 | M40x3 | 14 | 61.5 | 32.5 | M12x50 |
| M55x3 | 19 | 66.5 | 32.5 | M12x50 | |
| 75 | M40x3 | 14 | 67.5 | 38.5 | M12x50 |
| M55x3 | 19 | 72.5 | 38.5 | M12x50 | |
| 90 | M40x3 | 14 | 75 | 46 | M12x50 |
| M55x3 | 19 | 80 | 46 | M12x50 | |
| 110 | M40x3 | 14 | 85 | 56 | M12x50 |
| M55x3 | 19 | 90 | 56 | M12x50 | |
| 125 | M40x3 | 14 | 92.5 | 63.5 | M12x50 |
| M55x3 | 19 | 97.5 | 63.5 | M12x50 | |
| 140 | M40x3 | 14 | 100 | 71 | M12x50 |
| M55x3 | 19 | 105 | 71 | M12x50 | |
| 160 | M40x3 | 14 | 110 | 81 | M12x50 |
| M55x3 | 19 | 115 | 81 | M12x50 | |
| 200 | M40x3 | 14 | 130 | 101 | M12x50 |
| M55x3 | 19 | 135 | 101 | M12x50 | |
| 225 | M40x3 | 14 | 142 | 114 | M12x60 |
| M55x3 | 19 | 147 | 114 | M12x60 | |
| 250 | M40x3 | 14 | 154.5 | 126.5 | M12x60 |
| M55x3 | 19 | 159.5 | 126.5 | M12x60 | |
| 315 | M40x3 | 14 | 187 | 159 | M12x60 |
| M55x3 | 19 | 192 | 159 | M12x60 | |
| 400 | M40x3 | 14 | 229.5 | 201.5 | M12x60 |
| M55x3 | 19 | 234.5 | 201.5 | M12x60 |
