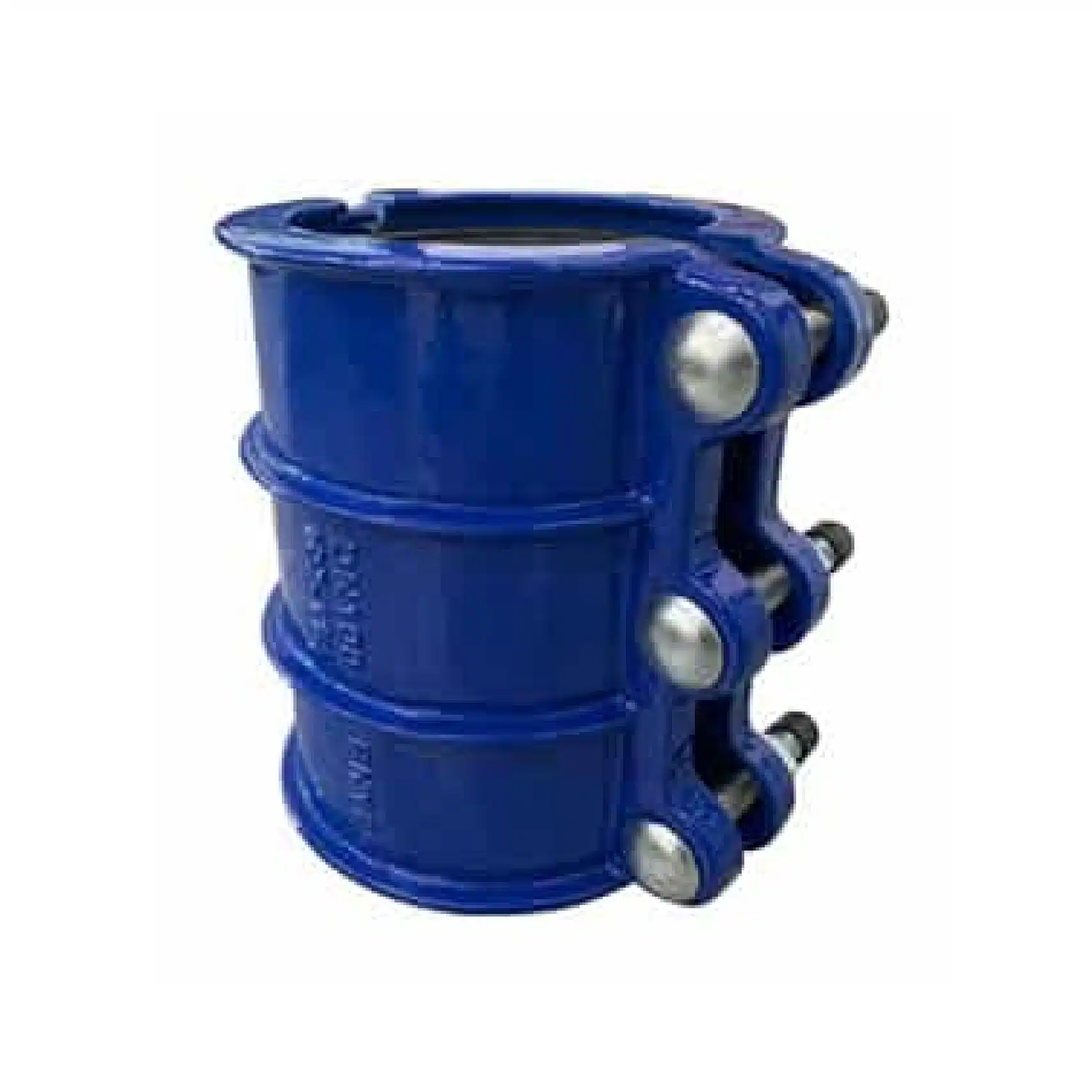

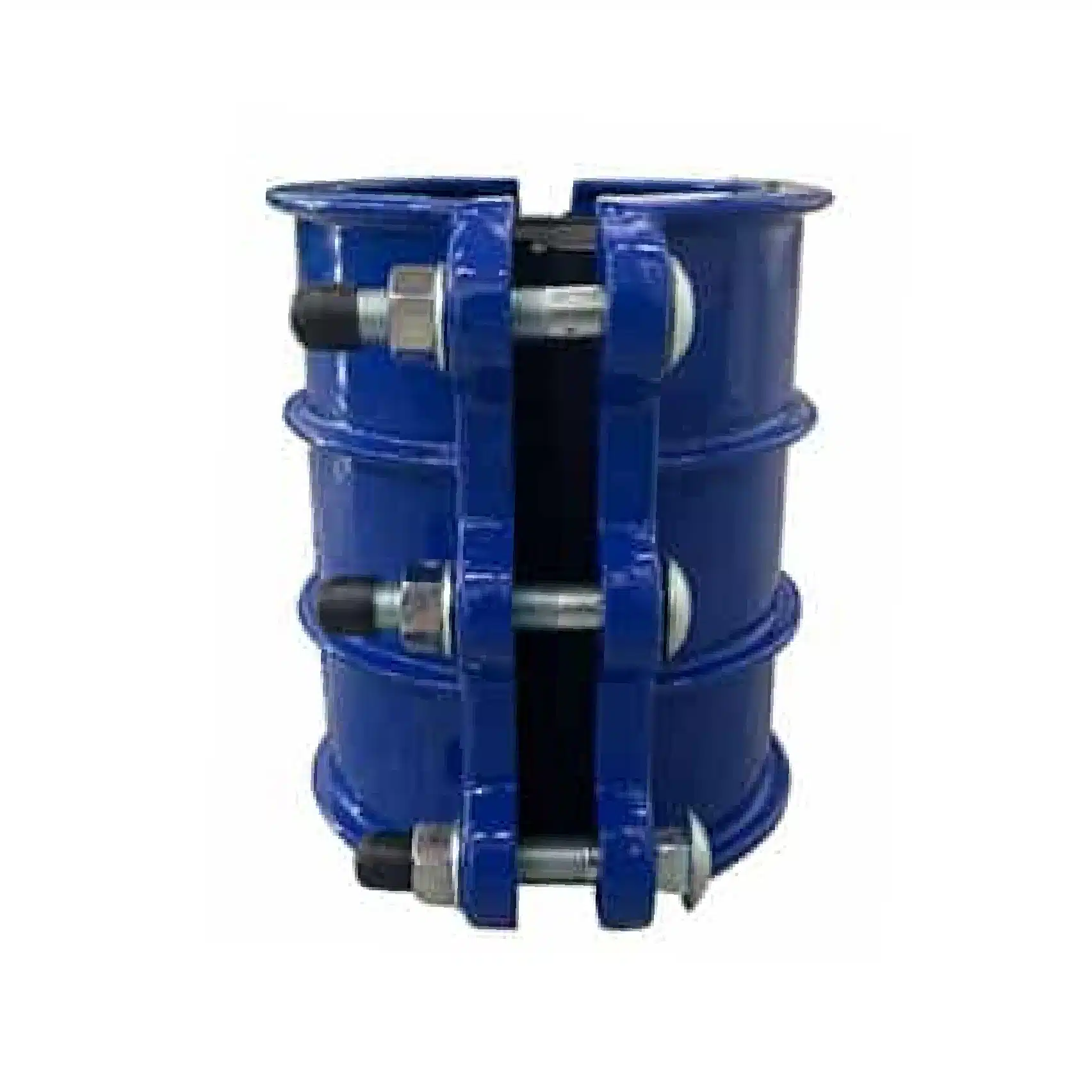

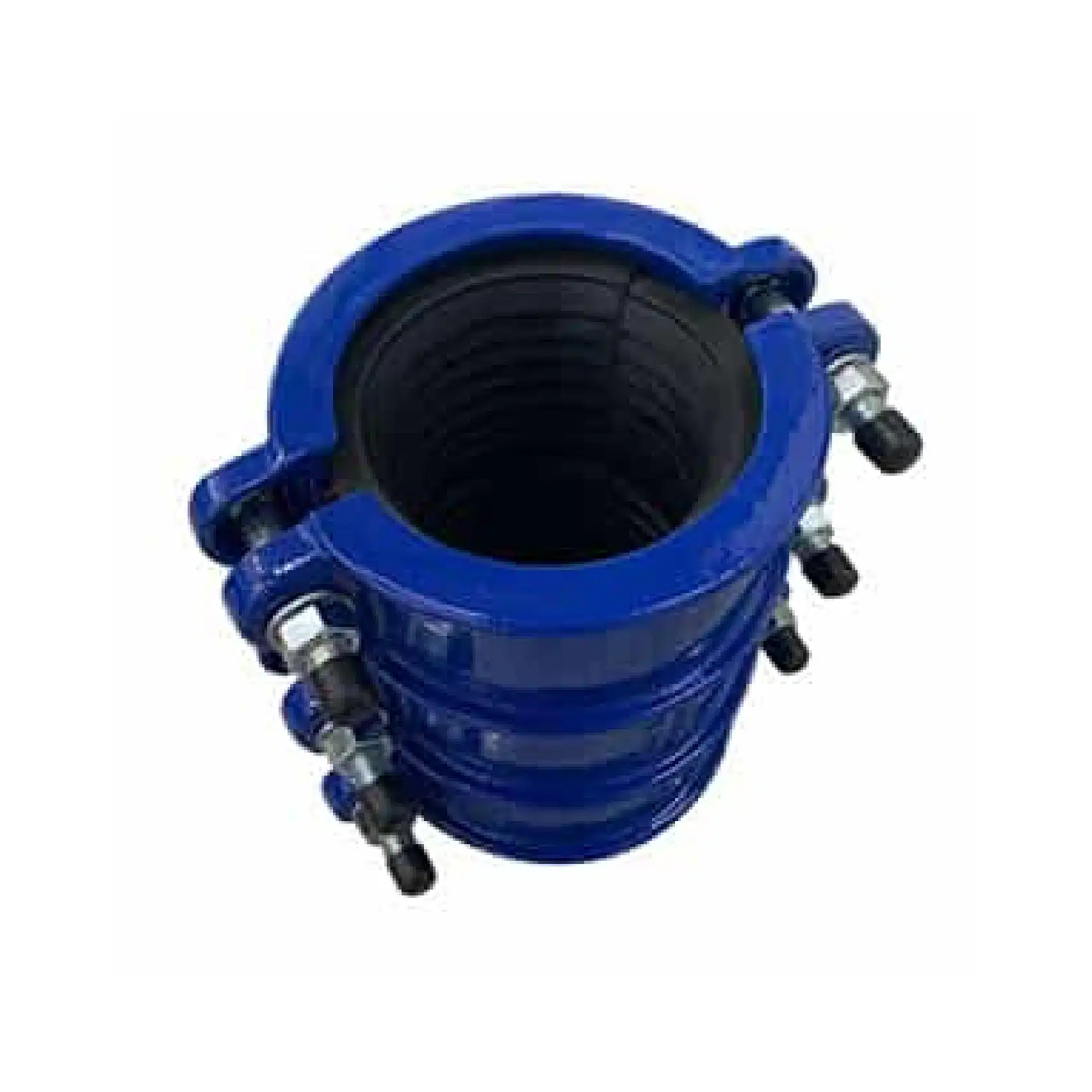

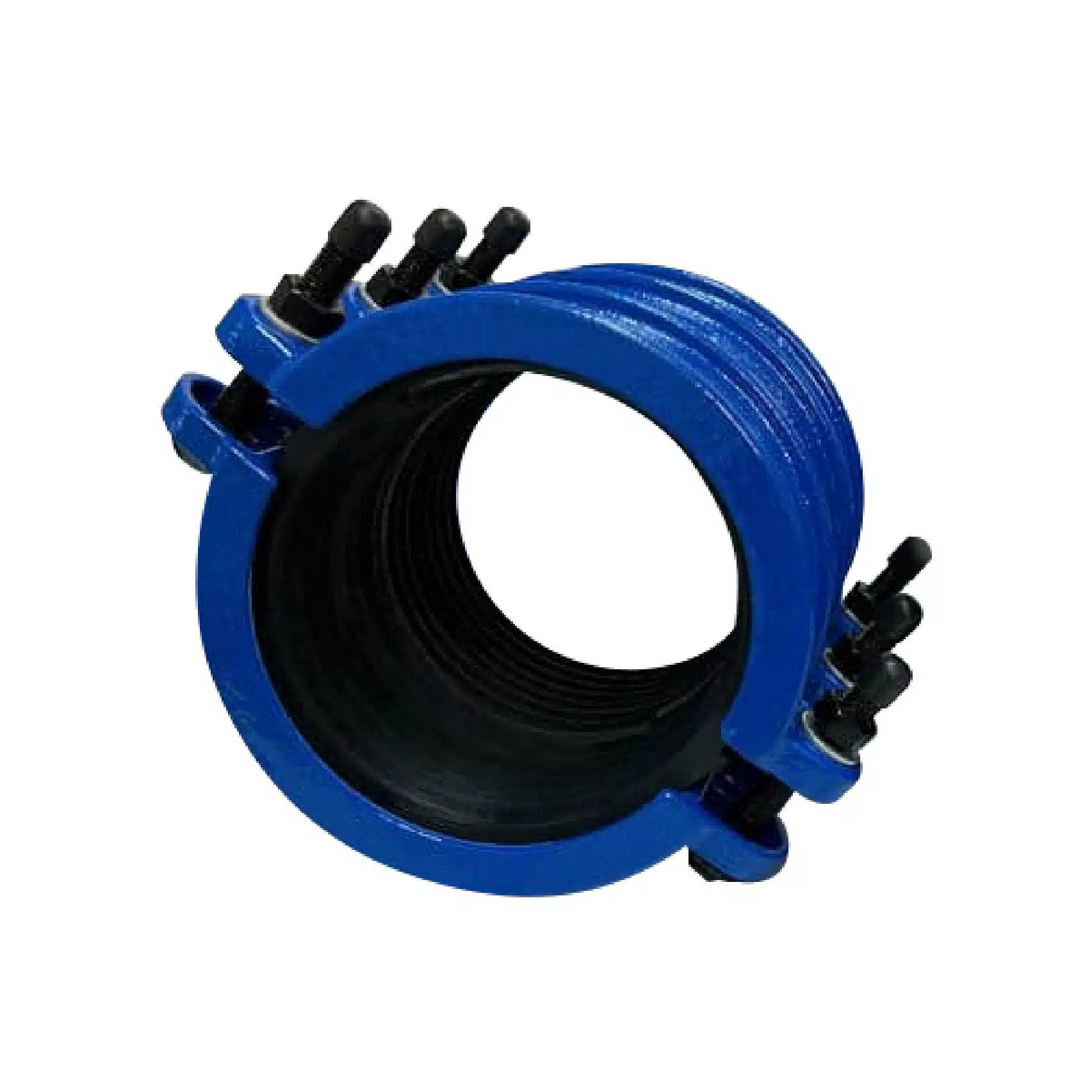

Cast Iron Pipe Repair Sleeve
Cast Iron Pipe Repair Sleeve Is Cast Iron Material Repair Clamp For Pipes.
Previous image
Next image
Specification
1,Long Service Life Than Steel Repair Clamp
2,Can Afford Higher Pressure
3,Produced By Moulds,So It Is More Stable Quality And More Accurate In Dimension
4,With Range Range For Many Different Pipe Which Pipe OD Is In Designed Range
5,3 Bolts In Each Size To Assure Long Sleeve For Big Break

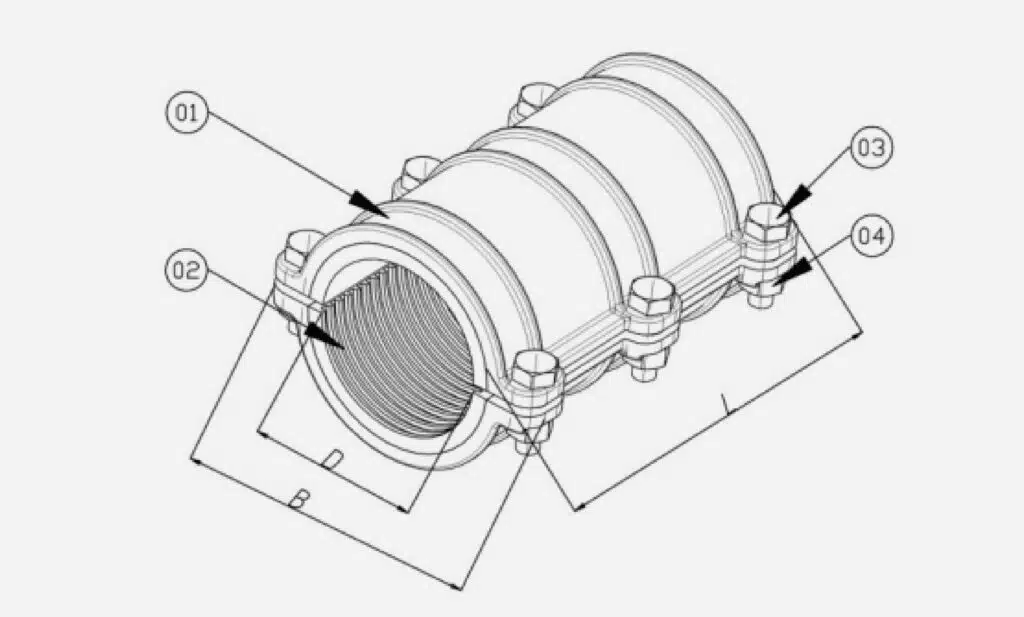

Drawing
Material
| No. | Parts Name | Material |
|---|---|---|
| 1 | Body | Ductile iron |
| 2 | Gasket | EPDM |
| 3 | Bolts | Gal.carbon steel |
| 4 | Nuts | Gal.carbon steel |
Dimension
| DN | D | L | B |
|---|---|---|---|
| 80 | 88-99 | 225 | 219 |
| 100 | 107-119 | 225 | 246 |
| 150 | 157-171 | 225 | 291 |
| 200 | 219-226 | 310 | 352 |
| 250 | 270-276 | 310 | 420 |
| 300 | 320-328 | 310 | 471 |
