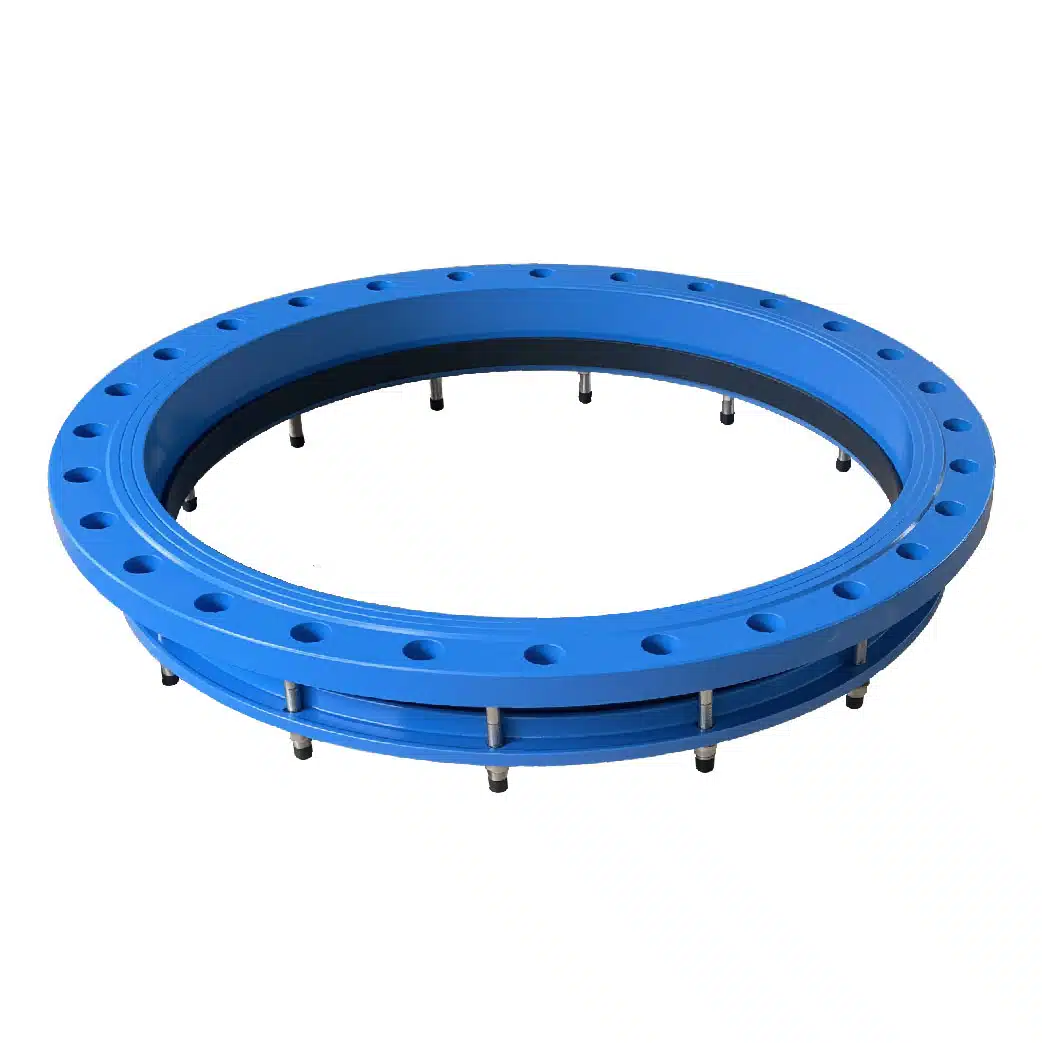

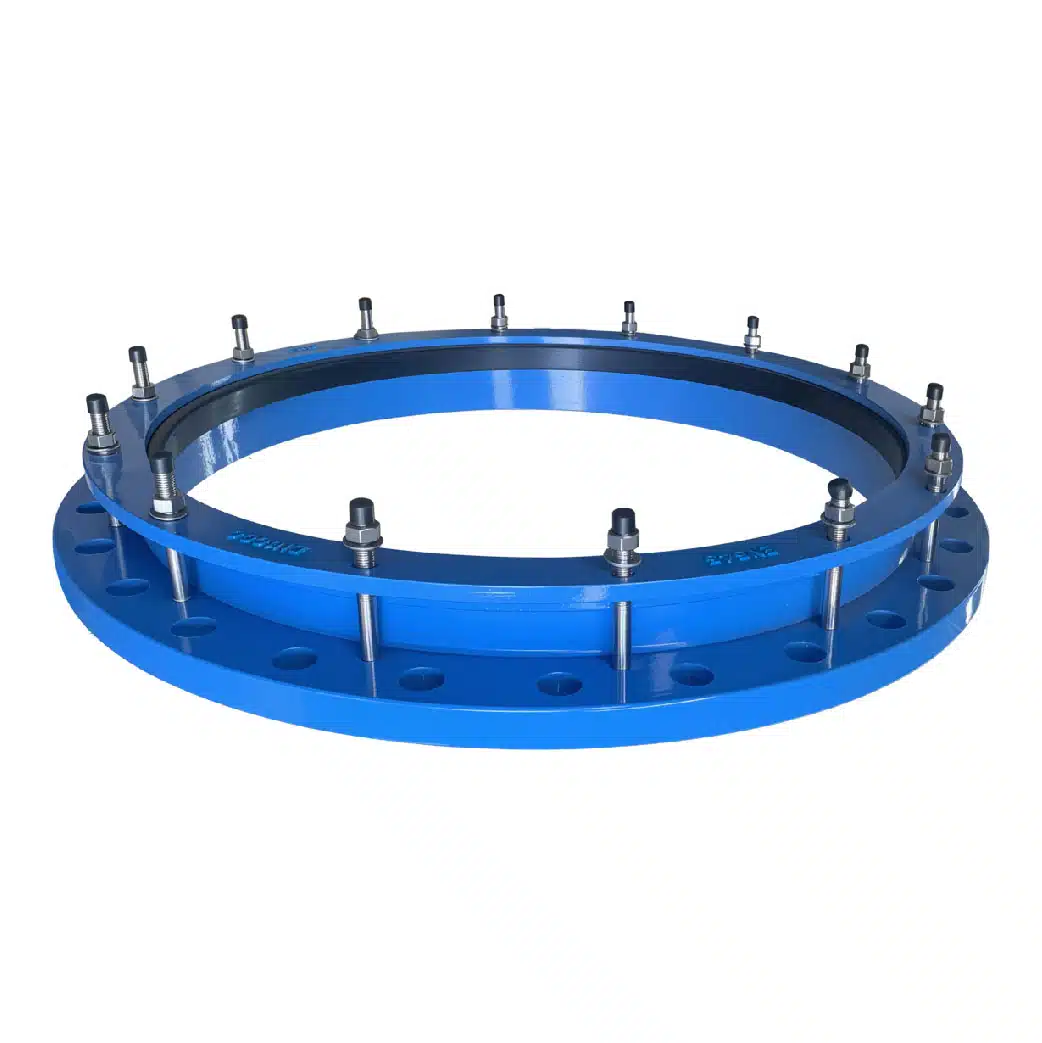

Flange adaptor for PVC or Ductile Iron or Steel or GRP etc pipe
Dedicated flange adaptor is flange adaptor that is designed for a specific pipe , for example, flange adapter for pvc pipe is designed for the OD of PVC pipe, so it fits PVC pipe very accurately, and it only takes a small amount of torque to tighten it up to a very good sealing condition. The same with flange adapter for cast iron pipe that is designed for the OD of cast iron pipe, flange adapter for ductile iron pipe that is designed for the OD of ductile iron pipe.
Specification
Dedicated flange adaptor PN10/PN16
Dedicated flange adaptor standard:comply with EN545/AWWA C219/AS/NZS2280
Flange standard EN1092-2,BS4504,ISO7005,
ANSIB16.5,ANSIB16.47,AS4087
Coating standard:EN30677
Test standard: EN12266-1
Working pressure and Temperature
size DN40 to DN2000,Working pressure PN10/PN16
Temperature from -10℃ to 120℃ for EPDM gasket
Temperature from -10℃ to 82℃ for NBR gasket
Usage
Connection for EN545/ISO2531 ductile iron pipe
Dedicated flange adaptor for PVC,Steel,GRP etc pipe is also available upon request
Angular deflection smaller and equal to DN600 is ±4℃,DN700-DN800 is ±3°,DN900-DN1200 is ±2°
Suitalbe for potable water,neutral liquids and sewage
WRAS,ACS,DVGW,NSF approved
VIDEO

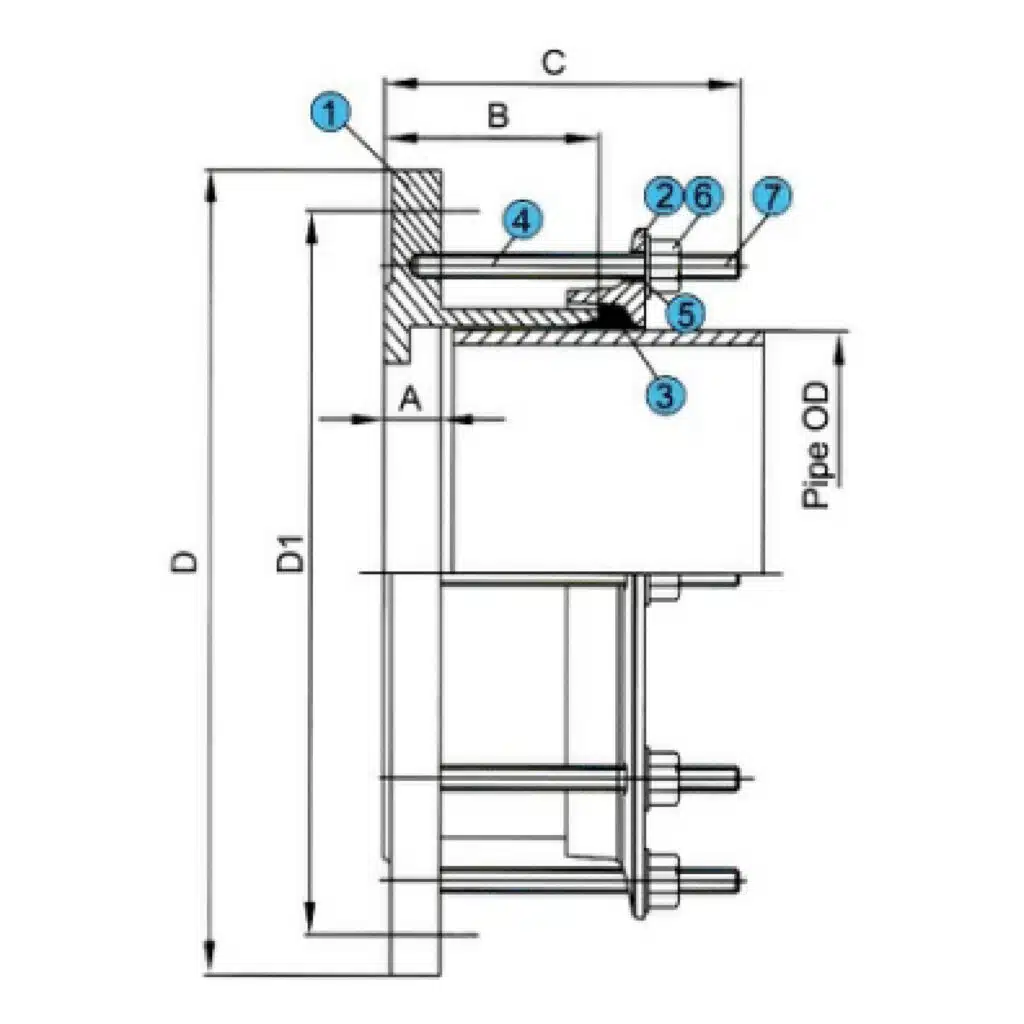

Drawing
Material specification
| Sr.No. | Name | Material |
|---|---|---|
| 1 | Body | Ductile Iron |
| 2 | End ring | Ductile iron |
| 3 | Gasket | EPDM |
| 4 | Bolt | Gal.steel |
| 5 | Washer | Gal.steel |
| 6 | Nut | Gal.steel |
| 7 | Cap | Plastic |
Options:Grade 4.8/6.8/8.8 carbon steel bolts with galvanization/dacromet/teflon etc
Stainless steel SS304/SS316/SS316L/A2/A4 etc bolts
FBE coating and Nylon 11 coating is available
Dimension
| Size | Pipe OD | B | C | A | PN10 Flange Drilling | PN16 Flange Drilling | Bolts No. | Bolts Size(MxL) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | D1 | N-Фd | D | D1 | N-Фd | |||||||
| DN40 | 56 | 73 | 105 | 19 | 150 | 110 | 4-19 | 150 | 110 | 4-19 | 4 | M12X100 |
| DN50 | 66 | 73 | 105 | 19 | 165 | 125 | 4-19 | 165 | 125 | 4-19 | 4 | M12X100 |
| DN60 | 77 | 73 | 105 | 19 | 175 | 135 | 4-19 | 175 | 135 | 4-19 | 4 | M12X100 |
| DN65 | 82 | 73 | 105 | 19 | 185 | 145 | 4-19 | 185 | 145 | 4-19 | 4 | M12X100 |
| DN80 | 98 | 73 | 105 | 19 | 200 | 160 | 8-19 | 200 | 160 | 8-19 | 4 | M12X100 |
| DN100 | 118 | 73 | 105 | 19 | 220 | 180 | 8-19 | 220 | 180 | 8-19 | 4 | M12X100 |
| DN125 | 144 | 76 | 115 | 19 | 250 | 210 | 8-19 | 250 | 210 | 8-19 | 4 | M12X100 |
| DN150 | 170 | 76 | 115 | 19 | 285 | 240 | 8-23 | 285 | 240 | 8-23 | 4 | M12X110 |
| DN200 | 222 | 76 | 115 | 20 | 340 | 295 | 8-23 | 340 | 395 | 12-23 | 4 | M12X110 |
| DN250 | 274 | 90 | 130 | 22 | 400 | 350 | 12-23 | 400 | 355 | 12-28 | 6 | M12X120 |
| DN300 | 326 | 90 | 130 | 24.5 | 455 | 400 | 12-23 | 455 | 410 | 12-28 | 6 | M12X120 |
| DN350 | 378 | 110 | 180 | 24.5 | 505 | 460 | 16-23 | 520 | 470 | 16-28 | 8 | M16X170 |
| DN400 | 429 | 110 | 180 | 24.5 | 565 | 515 | 16-28 | 580 | 525 | 16-31 | 8 | M16X170 |
| DN450 | 480 | 110 | 190 | 24.5 | 615 | 565 | 20-28 | 640 | 585 | 20-31 | 10 | M16X170 |
| DN500 | 532 | 115 | 190 | 26.5 | 670 | 620 | 20-28 | 715 | 650 | 20-34 | 10 | M16X180 |
| DN600 | 635 | 115 | 190 | 30 | 780 | 725 | 20-31 | 840 | 770 | 20-37 | 10 | M16X180 |
| DN700 | 738 | 115 | 190 | 32.5 | 895 | 840 | 24-31 | 910 | 840 | 24-37 | 12 | M16X180 |
| DN800 | 842 | 115 | 190 | 35 | 1015 | 950 | 24-34 | 1025 | 950 | 24-40 | 12 | M16X180 |
| DN900 | 942 | 120 | 190 | 37.5 | 1115 | 1050 | 28-34 | 1125 | 1050 | 28-40 | 14 | M16X180 |
| DN1000 | 1048 | 120 | 190 | 40 | 1230 | 1160 | 28-37 | 1255 | 1170 | 28-43 | 14 | M16X180 |
| DN1200 | 1255 | 130 | 190 | 45 | 1455 | 1380 | 32-40 | 1485 | 1390 | 32-49 | 16 | M16X180 |
| DN1400 | 1462 | 130 | 190 | 46 | 1675 | 1590 | 36-43 | 1685 | 1590 | 36-49 | 18 | M20x200 |
| DN1600 | 1668 | 190 | 275 | 49 | 1915 | 1820 | 40-49 | 1930 | 1820 | 40-56 | 20 | M20x240 |
| DN1800 | 1875 | 190 | 275 | 52 | 2115 | 2020 | 44-49 | 2130 | 2020 | 44-56 | 22 | M20x240 |
| DN2000 | 2082 | 190 | 275 | 55 | 2325 | 2230 | 48-49 | 2345 | 2230 | 48-62 | 24 | M20x240 |
