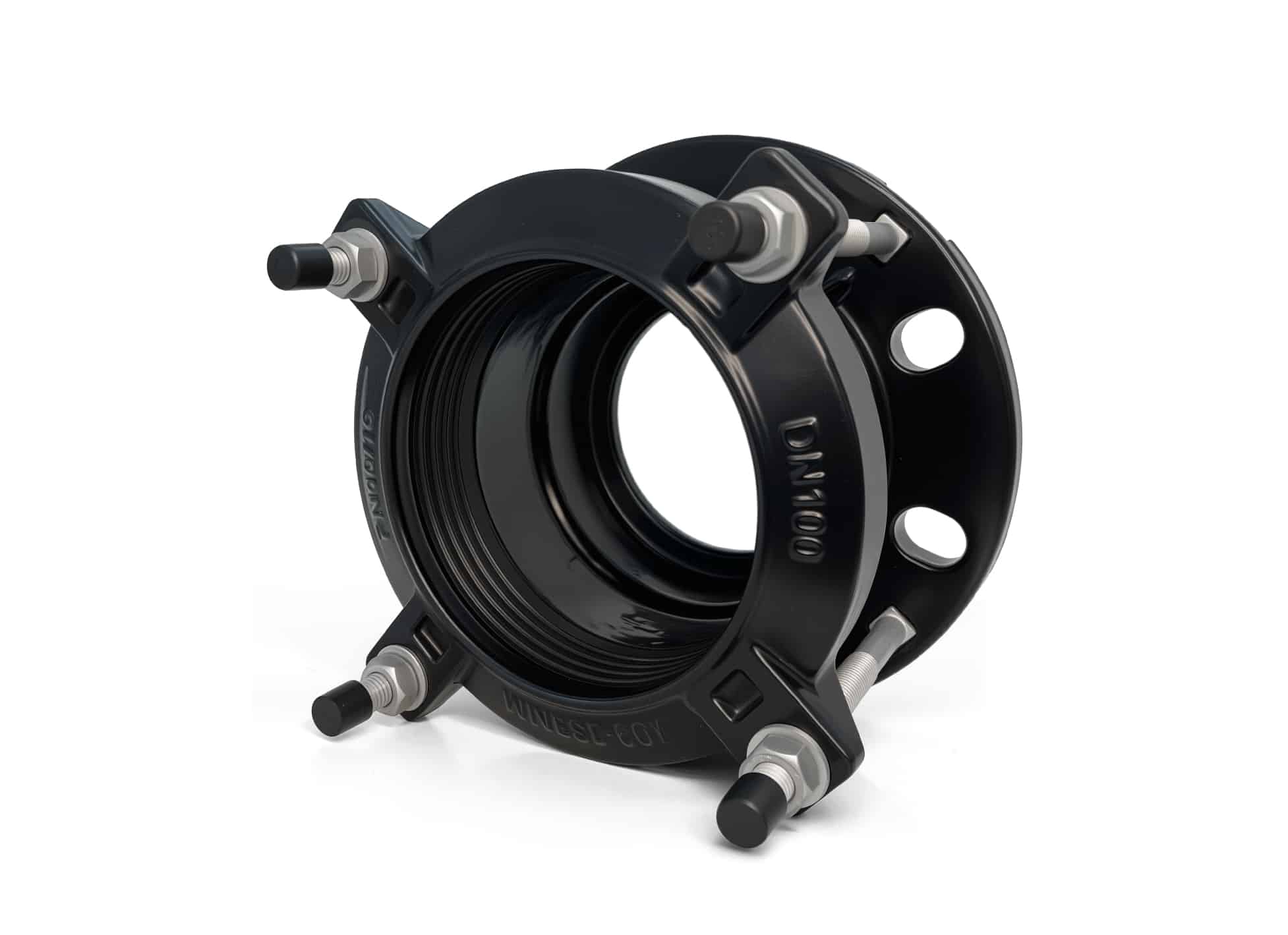

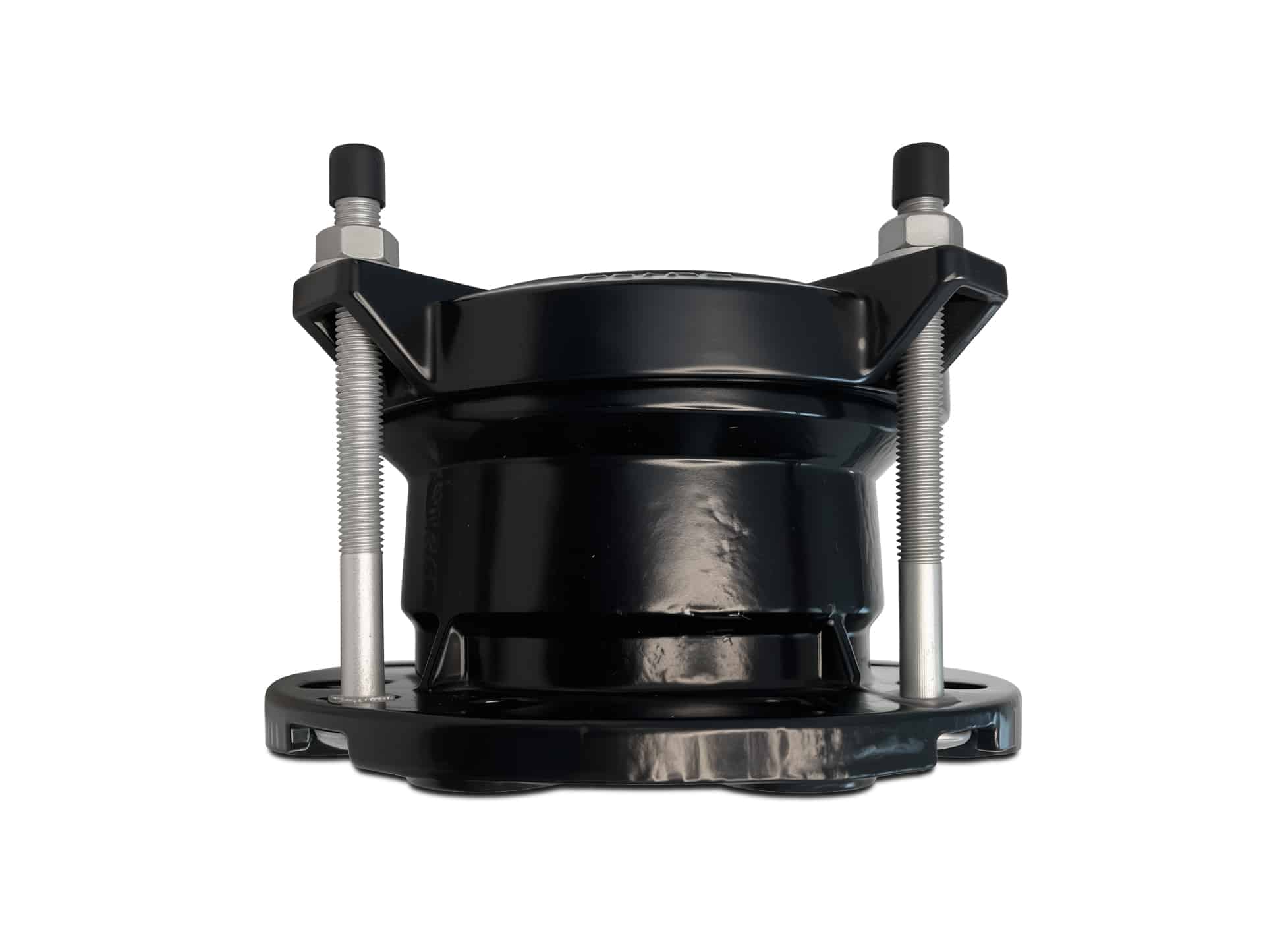

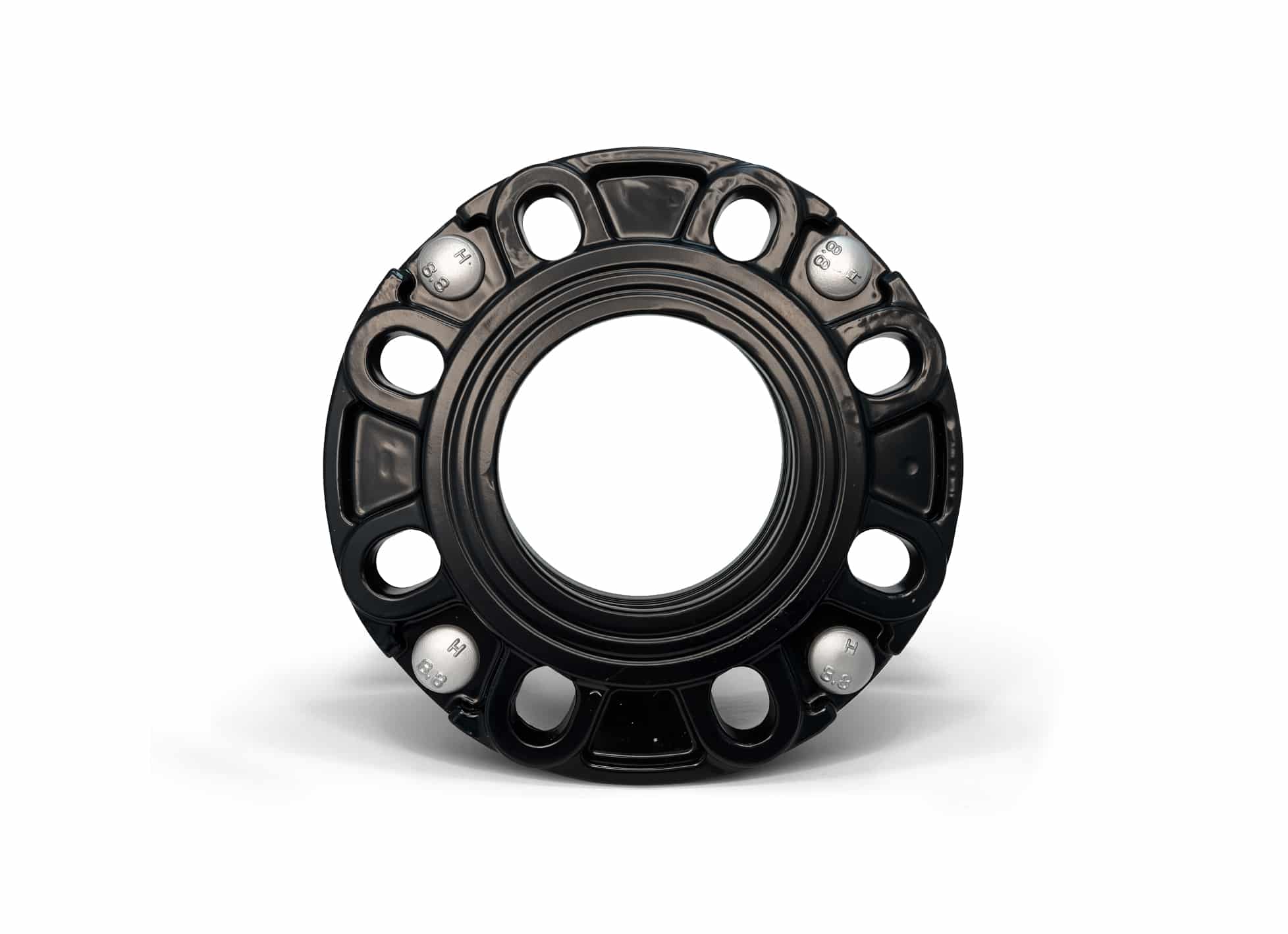

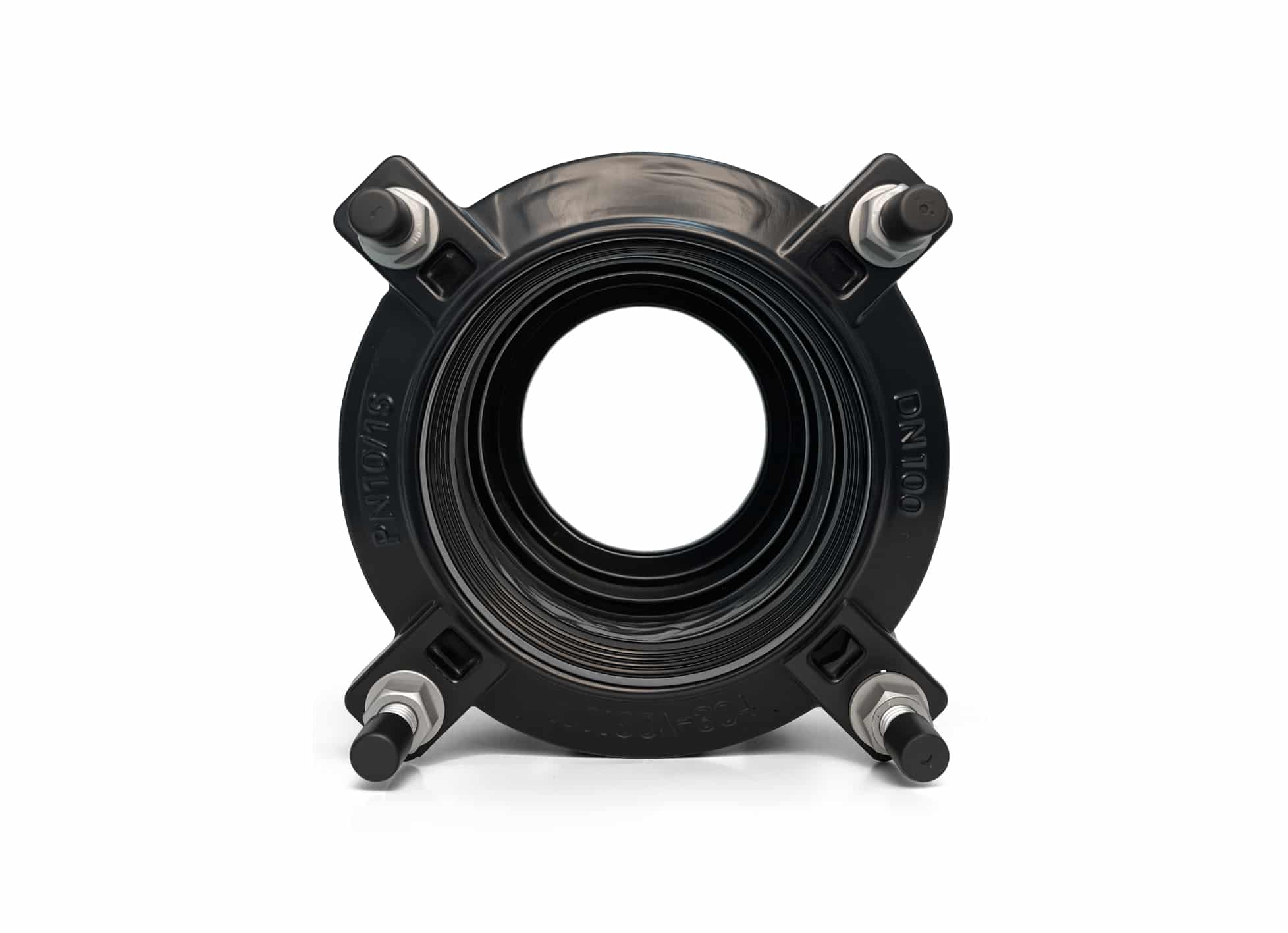

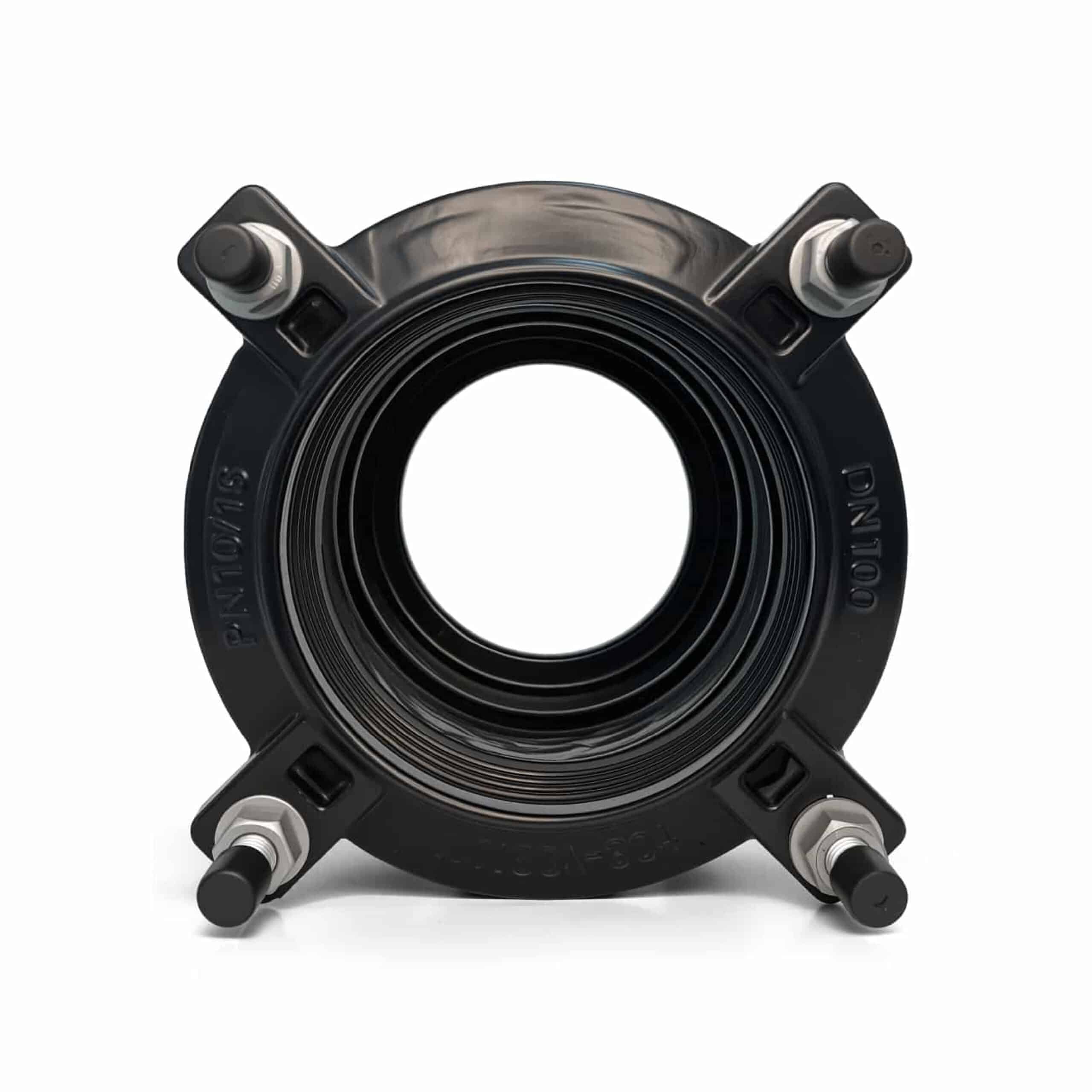

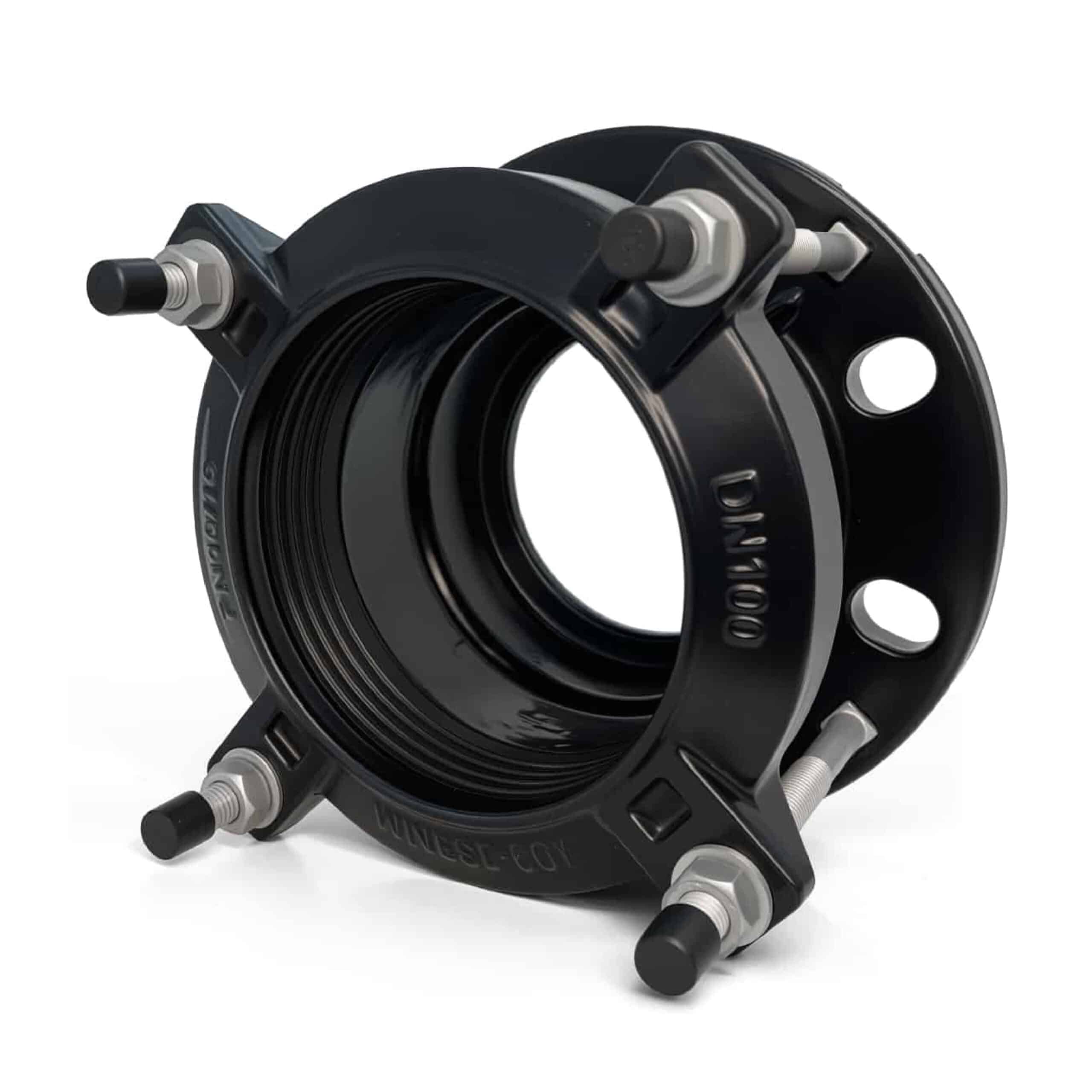

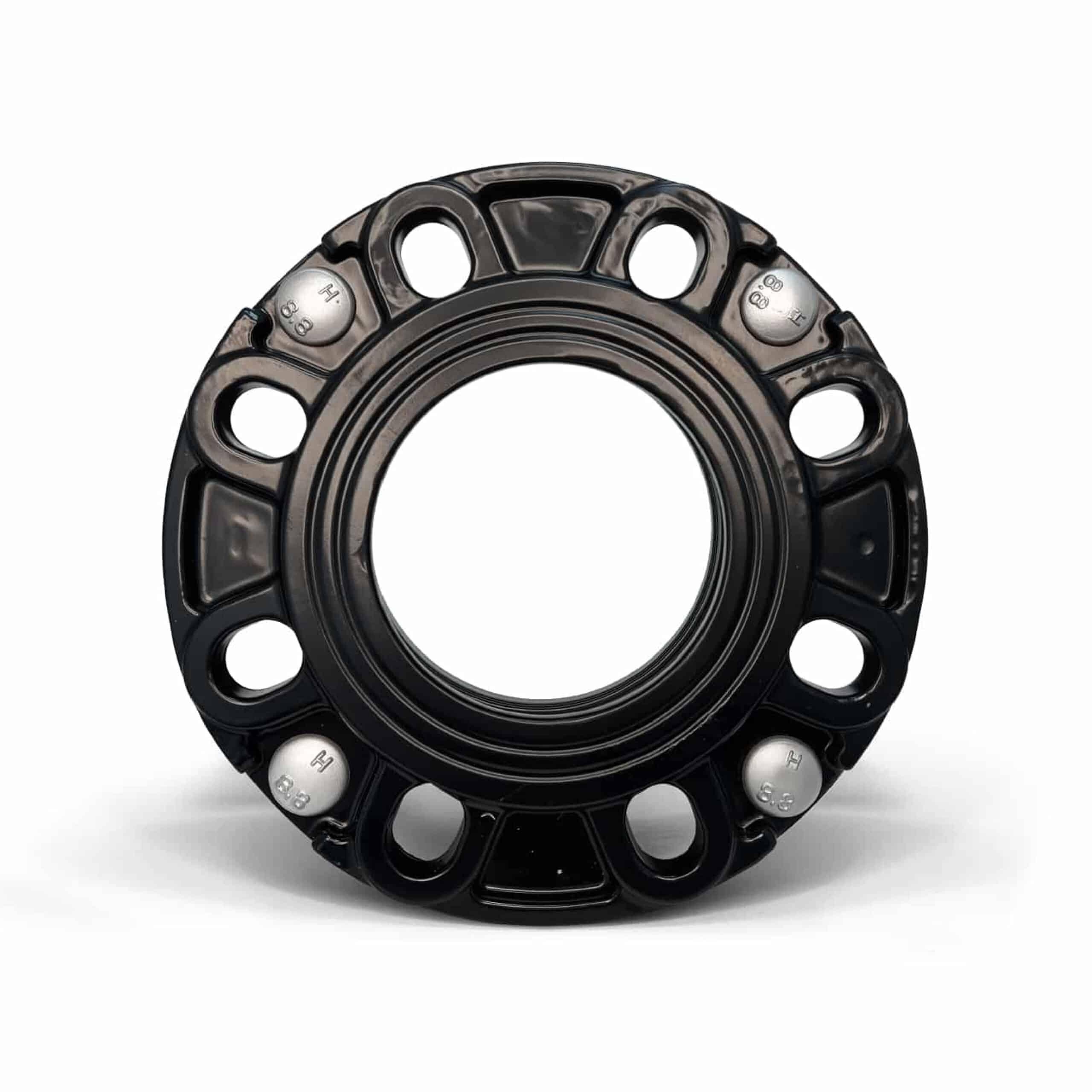

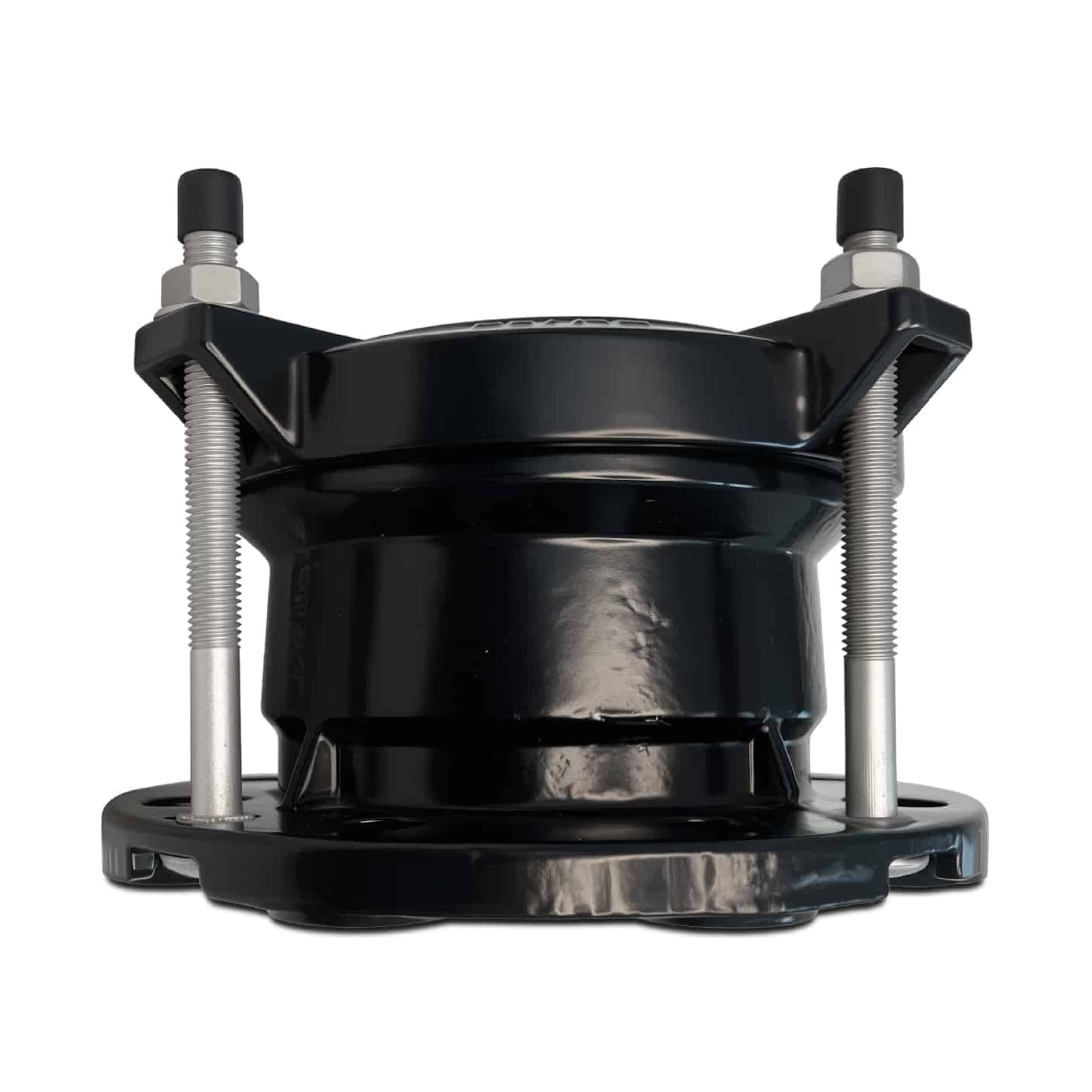

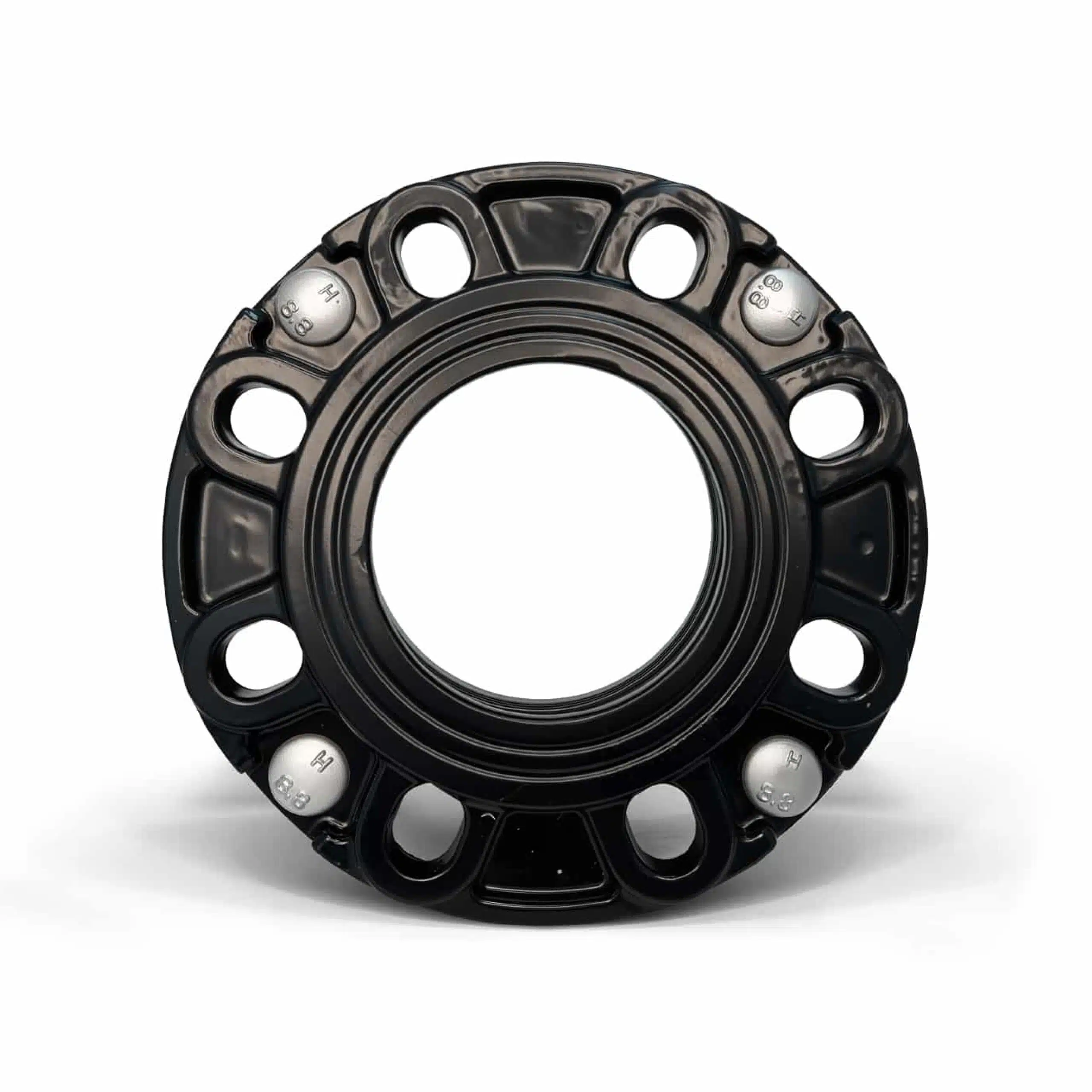

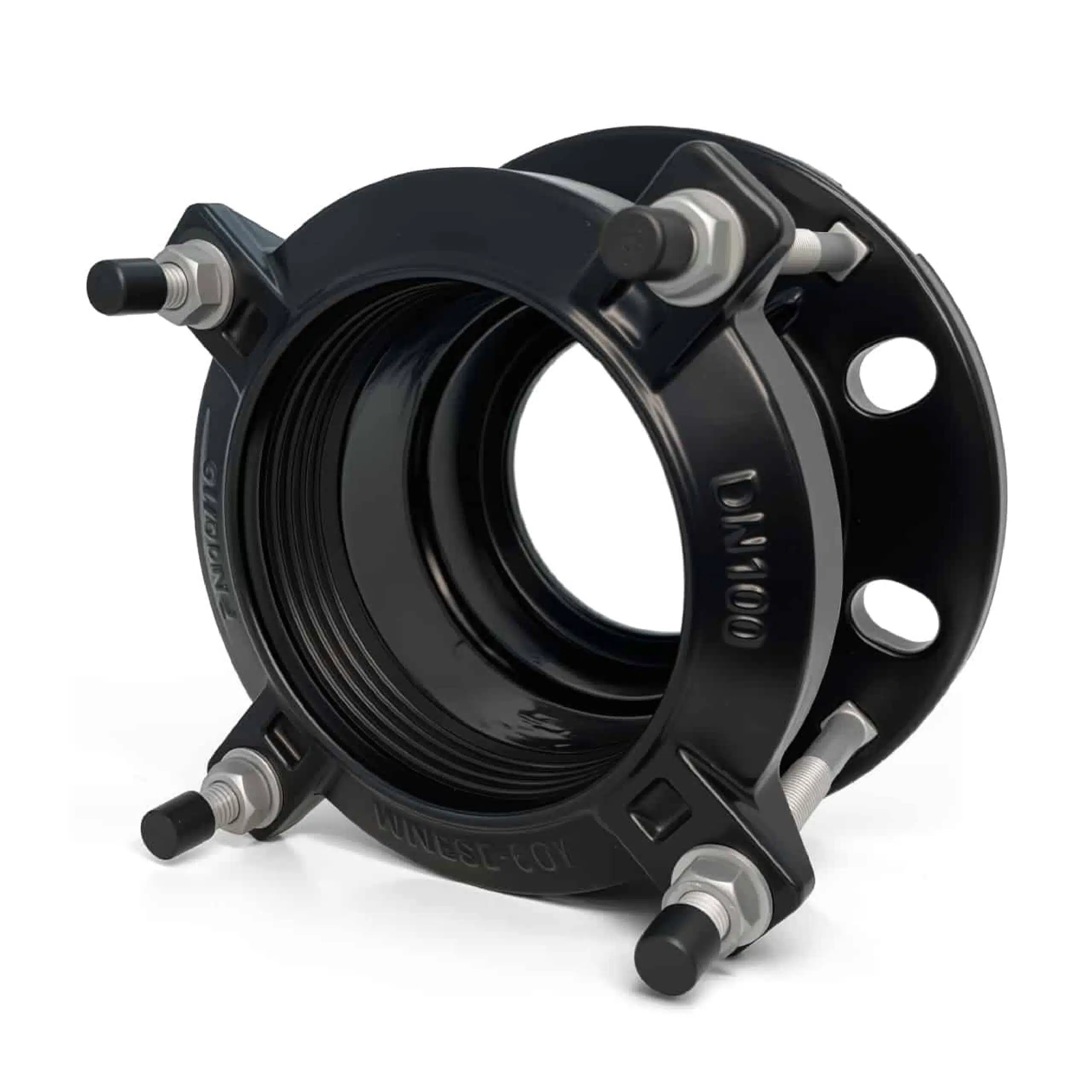

Ductile Iron Flange Adapter
The ductile iron flange adapter is a joint made of ductile iron with flange end connected to the flange of valves, water meters ,pipe fittings etc and the socket end connected to the spigot end of pipes such as PVC pipes, ductile iron pipes, steel pipes, and GRP pipes etc. It is commonly used to connect pipes to flanges ends of our pipeline parts.
The commonly used ductile iron material is EN GJS400-18, EN GJS450-10, ENGJS500-7 or ASTM 65-45-12. Working pressure can be PN10/PN16 or PN25.ductile iron flange adapter can’t afford higher pressure than PN25.
DI flange adaptor specification
Ductile iron flange adaptor with EN1092-2 flange,ANSI B16.47/ANSI B16.5 flange or AS4087 flange
Universal flange adaptor standard:comply with EN545/AWWA C219/AS/NZS2280
Coating standard:EN30677
Test standard: EN12266-1
Working pressure and Temperature
size DN50 to DN400,Working pressure PN10/PN16/class125&150/Table D/Talbe E
Temperature from -10℃ to 120℃ for EPDM gasket
Temperature from -10℃ to 82℃ for NBR gasket
Usage
Connection for pipes in material ductile iron,steel,PVC,AC etc which pipe OD is in our our range
Angular deflection ±3°
Suitalbe for potable water,neutral liquids and sewage
WRAS,ACS,DVGW,NSF approved
Video

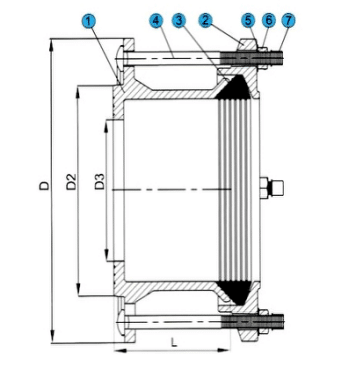

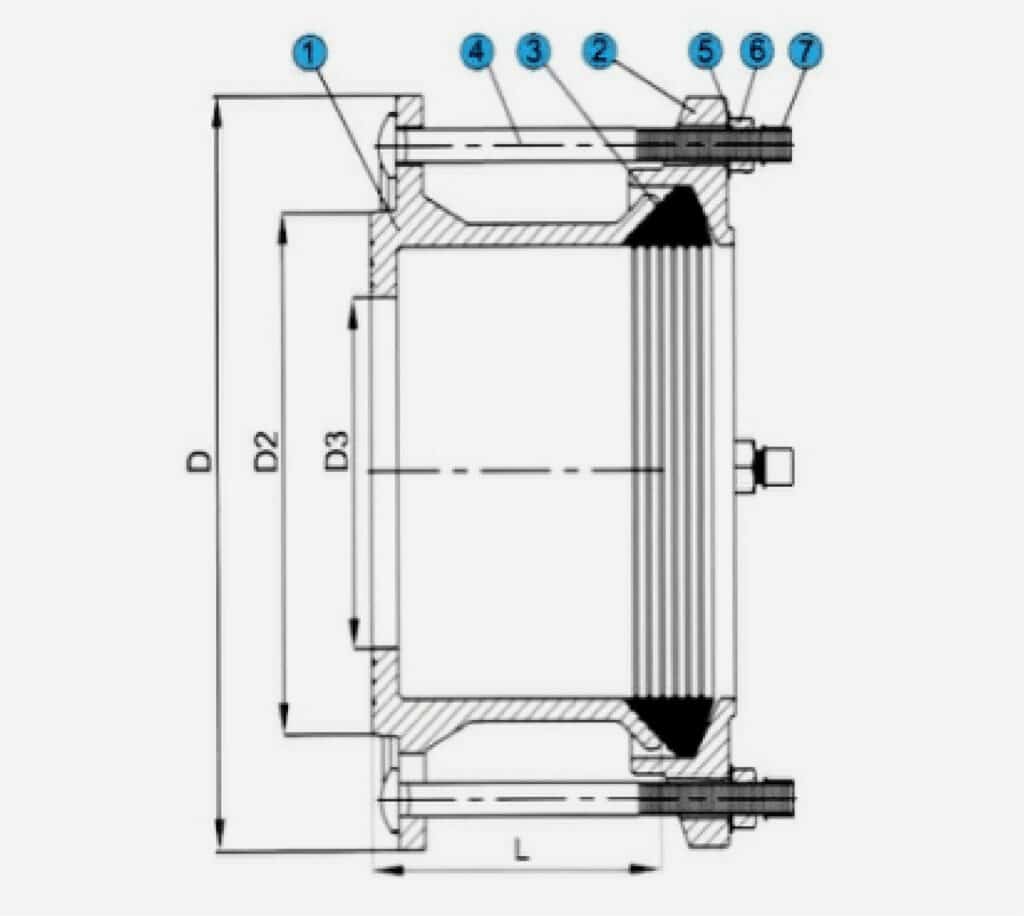

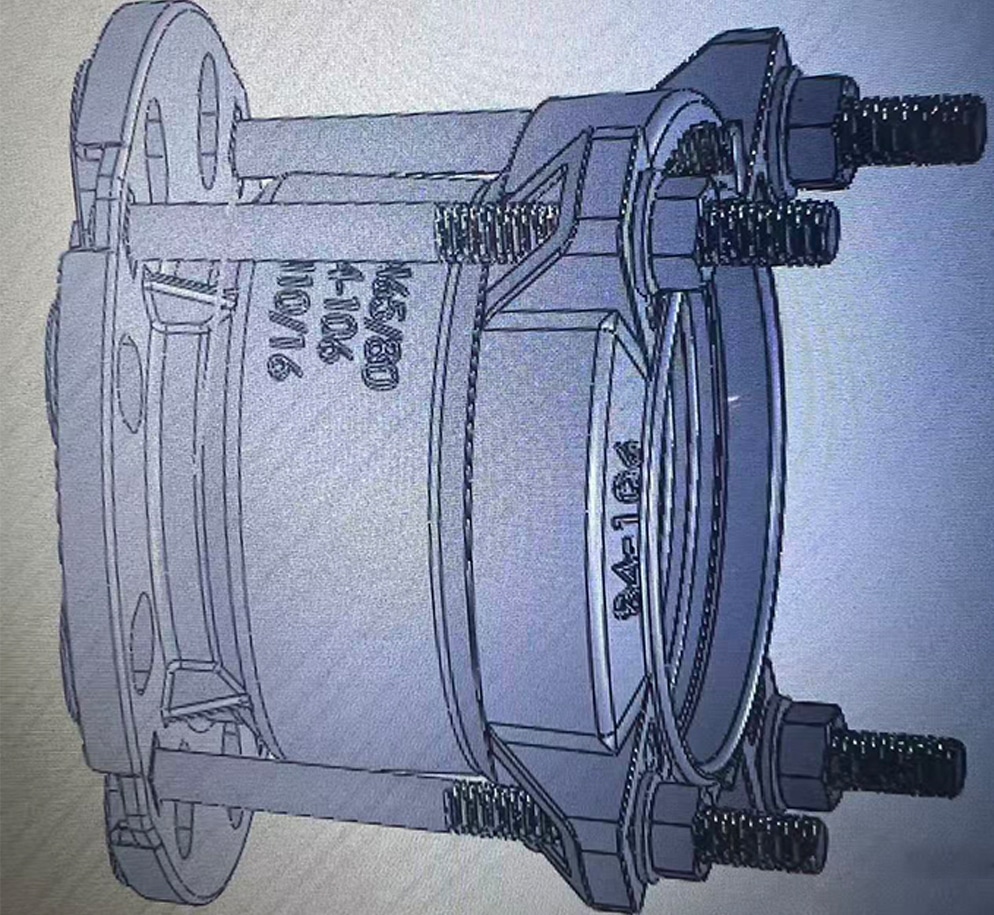

Drawing
Material specification
| Sr.No. | Name | Material |
|---|---|---|
| 1 | Body | Ductile Iron |
| 2 | End ring | Ductile iron |
| 3 | Gasket | EPDM |
| 4 | Bolt | Dacromet coated steel |
| 5 | Washer | Dacromet coated steel |
| 6 | Nut | Dacromet coated steel |
| 7 | Cap | Plastic |
Options:Grade 4.8/6.8/8.8 carbon steel bolts with galvanization/dacromet/teflon etc
Stainless steel SS304/SS316/SS316L/A2/A4 etc bolts
FBE coating and Nylon 11 coating is available
Dimension
| Flange Designation | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SIZE | Pipe OD(mm) | D | D2 | D3 | L | MxL1 | Bolt NO. | Weight (kg) | PN10/16 | ANSI 125/150 | Talbe D | Talbe E |
| DN50 | 58-74 | 166 | 110 | 50 | 100 | M12x150 | 4 | 4.2 | √ | √ | √ | √ |
| DN60 | 68-85 | 187 | 125 | 65 | 100 | M12x150 | 4 | 5 | √ | √ | √ | √ |
| DN80 | 84-106 | 200 | 140 | 80 | 100 | M12x150 | 4 | 6.3 | √ | √ | √ | √ |
| DN100 | 99-118 | 235 | 155 | 100 | 100 | M12x150 | 4 | 6.8 | √ | √ | √ | √ |
| DN100 | 108-133 | 235 | 155 | 100 | 105 | M12x150 | 4 | 7.8 | √ | √ | √ | √ |
| DN125 | 133-157 | 285 | 185 | 133 | 110 | M12x170 | 4 | 11 | √ | √ | √ | √ |
| DN150 | 157-182 | 285 | 215 | 150 | 110 | M12x170 | 4 | 12.5 | √ | √ | √ | |
| DN200 | 194-215 | 345 | 265 | 200 | 120 | M12x170 | 4 | 15.5 | √ | √ | √ | |
| DN200 | 218-242 | 345 | 265 | 200 | 120 | M12x170 | 4 | 17.5 | √ | √ | √ | |
| DN250 | 242-268 | 410 | 320 | 245 | 120 | M12x170 | 6 | 20.5 | √ | √ | ||
| DN250 | 266-291 | 410 | 320 | 250 | 120 | M12x170 | 6 | 21 | √ | √ | ||
| DN250 | 280-305 | 410 | 320 | 250 | 120 | M12x170 | 6 | 25.5 | √ | √ | ||
| DN300 | 302-327 | 490 | 370 | 300 | 120 | M12x170 | 6 | 27 | √ | √ | √ | |
| DN300 | 324-350 | 455 | 410 | 310 | 140 | M12x190 | 6 | 24 | √ | |||
| DN350 | 352-378 | 520 | 470 | 350 | 120 | M14x170 | 8 | 25.4 | √ | |||
| DN350 | 384-410 | 520 | 470 | 360 | 140 | M14x190 | 8 | 29.2 | √ | |||
| DN400 | 384-410 | 580 | 525 | 400 | 160 | M14x210 | 8 | 29.2 | √ | |||
| DN400 | 410-436 | 580 | 525 | 400 | 160 | M14x210 | 8 | 34.5 | √ | |||
| DN400 | 436-462 | 580 | 525 | 410 | 160 | M14x210 | 8 | 36.8 | √ |
