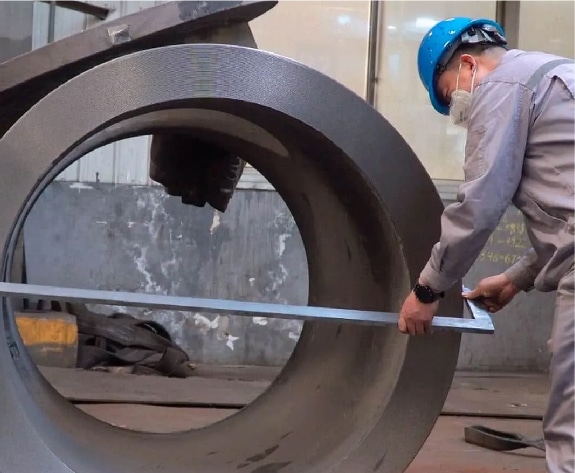

EN545/ISO2531 DI Pipe Fittings

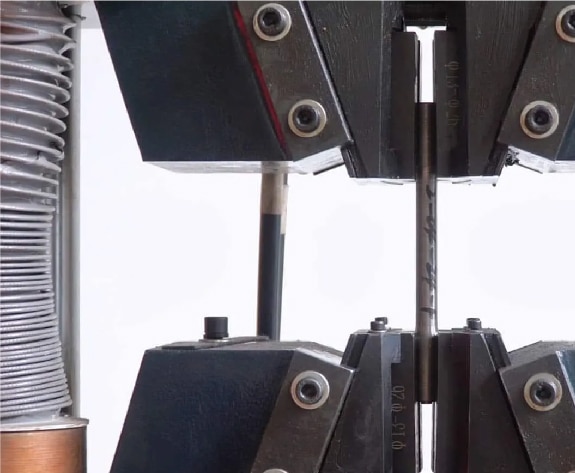

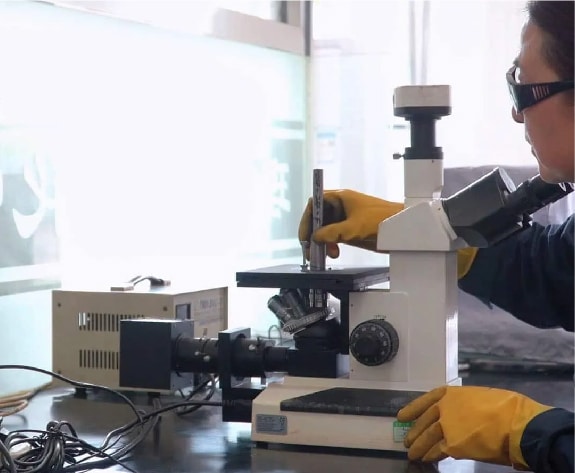

DI pipe fittings, or Ductile Iron pipe fittings, are components used in piping systems to connect sections of ductile iron pipes, allowing for changes in direction, branching, or size adjustment. These fittings are made from ductile iron, a type of cast iron known for its improved mechanical properties such as high strength, flexibility, and impact resistance. Ductile iron achieves its superior qualities due to the spherical shape of the graphite nodules within the iron, as opposed to the flake-like structure found in grey cast iron.
EN545/ISO2531 Di Pipe Fittings is designed according to EN545/ISO2531,Material is ductile iron, used for Water ,also called water ductile iron pipe fittings, flanged ductile iron fittings must with EN1092-2 flange which can be connected with ductile iron EN1092-2 Flange or Steel EN1092-1 flange. Judberd Manufacture Below DI pipe fittings According To EN545/ISO2531 Standard.

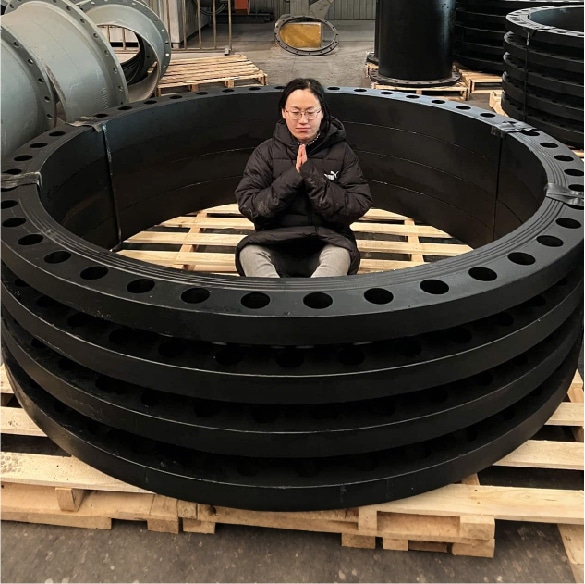

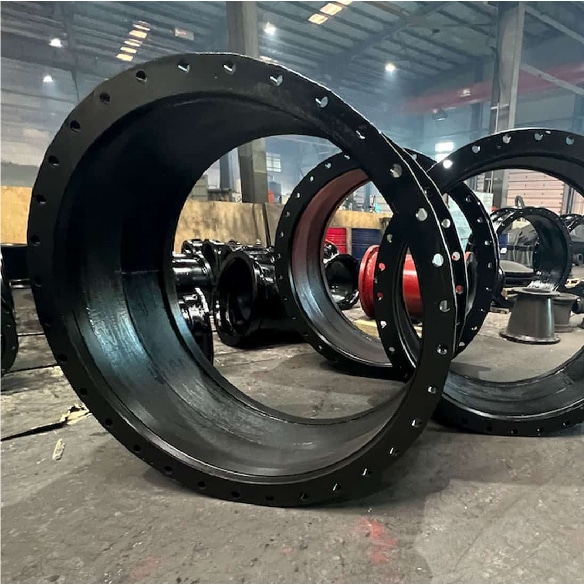

Flanged Pipe

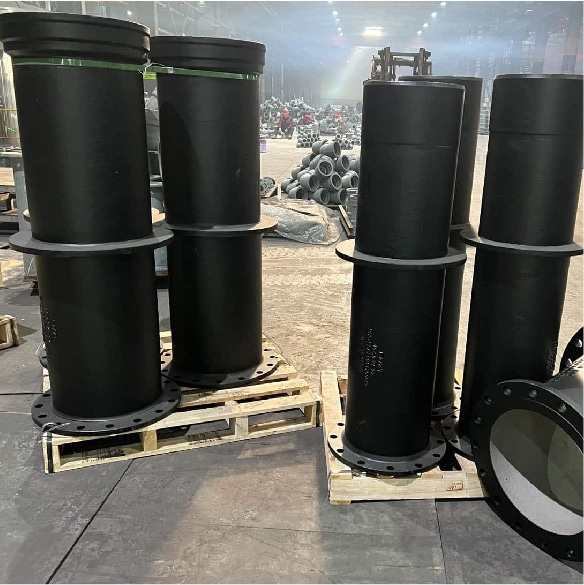

Flanged pipes are pipes with flanges at both ends or one end, and those that need to go through walls can have puddle flange, being called flanged pipes with puddle flange. Flanged pipes are connected each other with bolts, thus forming a rigid connection, and this connection is suitable for smooth and solid ground, because it is a rigid connection, and if it is installed on ground that is prone to settlement or other activities, it will produce a great force on the pipes, thus damaging the pipeline.
Flanged Spigot

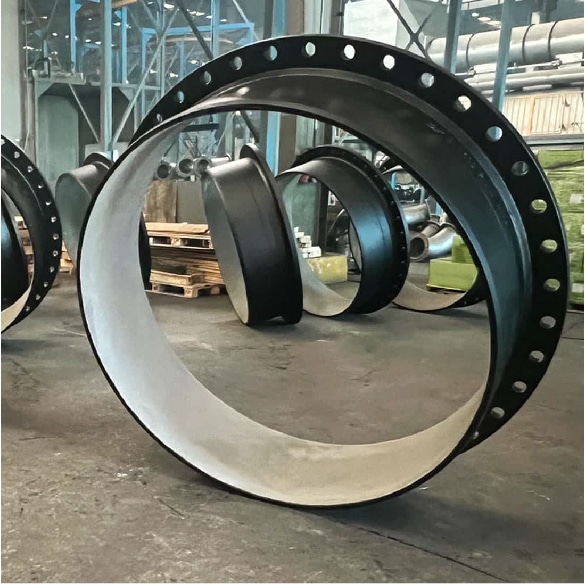

Flanged spigot is a pipe fitting with one end flange, another end spigot. flange ends can connect with flange by bolts, spigot ends can be inserted into the socket end of di pipe fittings. The spigot ends and the socket ends can be connected by means of tyton gasket or mechanically with the Mechanical Joint Fittings by means of gland ,bolts and gasket.

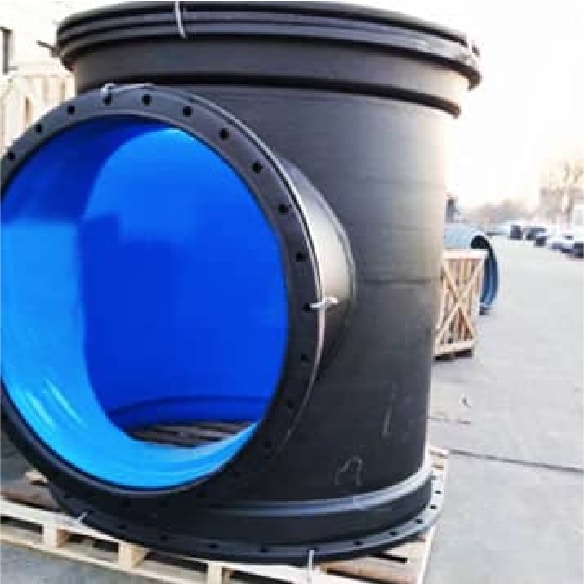

Flanged Tees
Flanged tees are t type or Y type fitting for water line,if the branch size is same as the main pipeline,it is called equal tee,if the branch is smaller than main pipeline,it is called reduce tee,the main function of flanged tee is to change the fluid direction

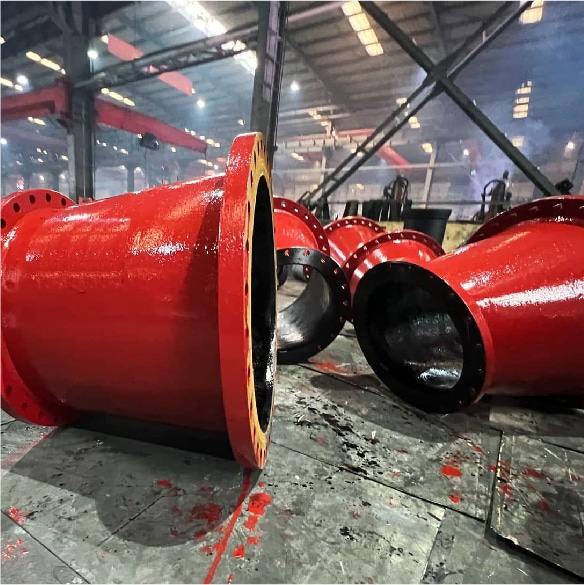

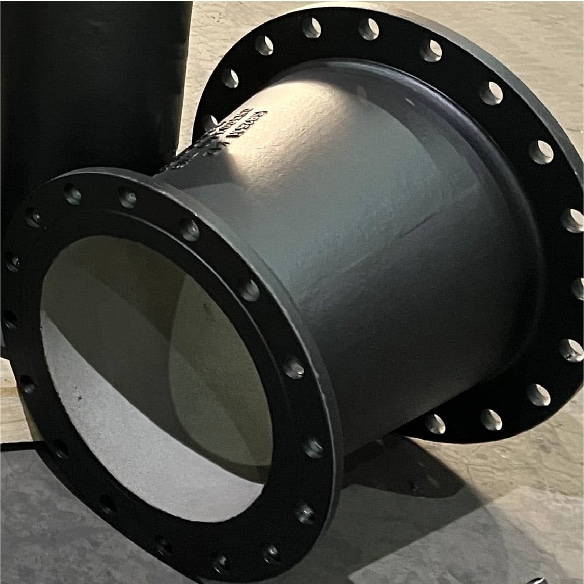

flanged reducer

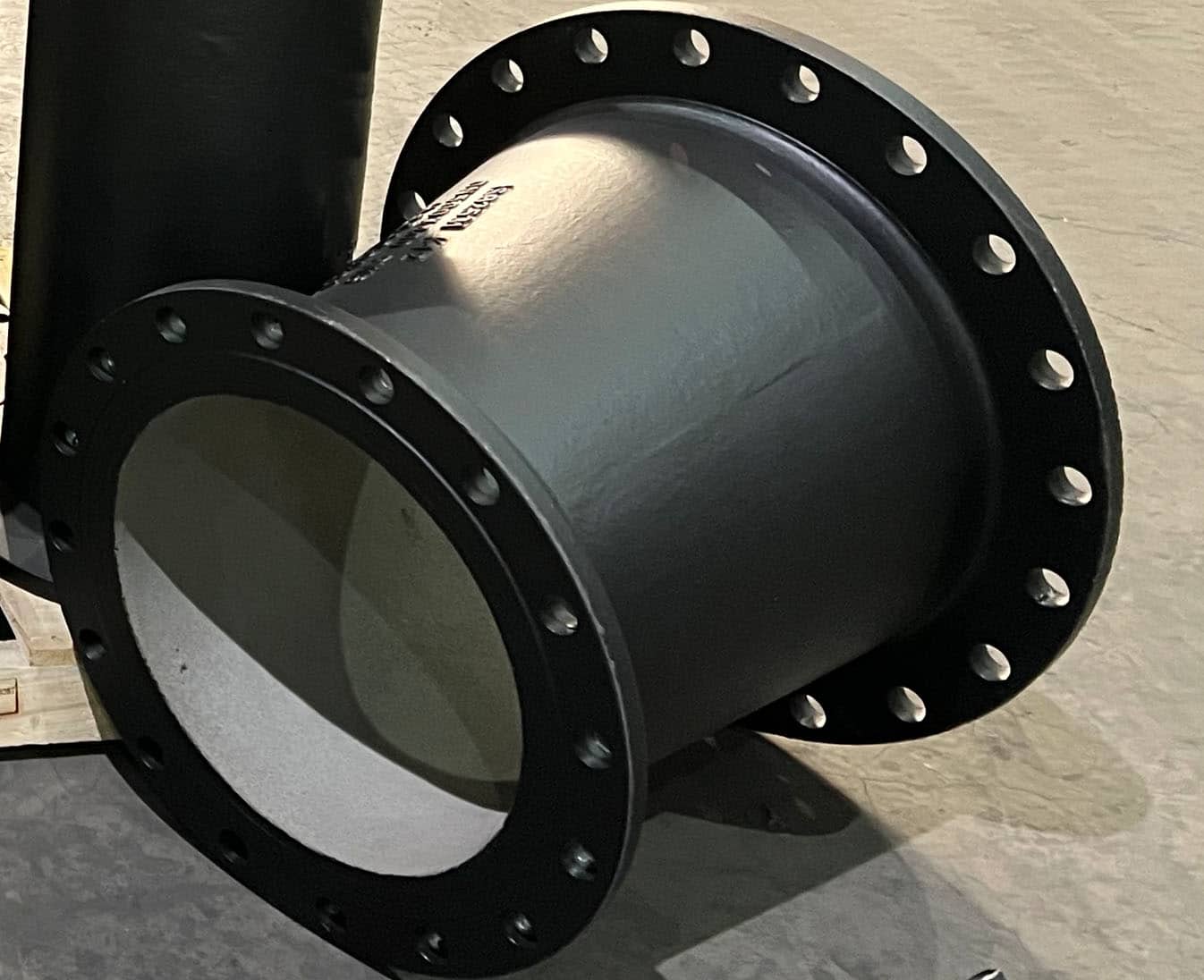

Flanged reducer is flanged ends reducing pipe,the two ends flanges can be concentric which is called concentric reducer,or can be eccentric which is called eccentric reducer
scour tee

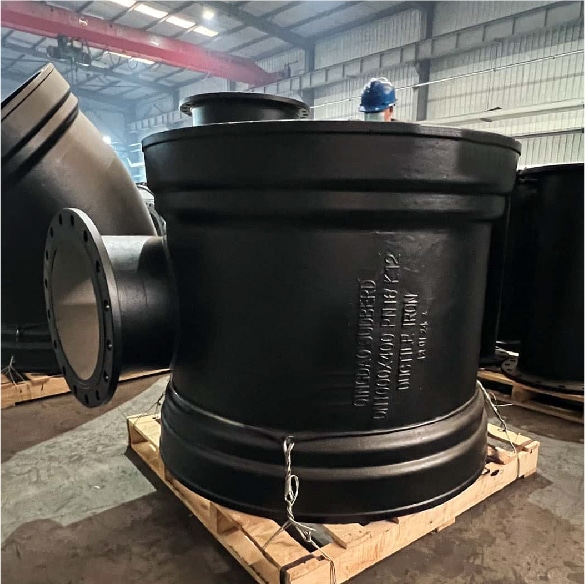

Scour tee also called level invert tee,the branch size should be much smaller than main pipeline size, it is located at the low point of the pipe and it is an offset tee, thus facilitating the emptying of the water from the pipe, thus repairing the pipe and flushing the pipe to remove debris
mechanical joint fittings
Mechanical Joint Fittings is di pipe fittings with mechanical joint ends,judberd Mechanical Joint Fittings include Mechanical Joint collar,mechnical joint bend,mechnical joint tee etc
Read our catalogue for EN545/ISO2531 DI pipe fittings as below, to know more about DI pipe fittings

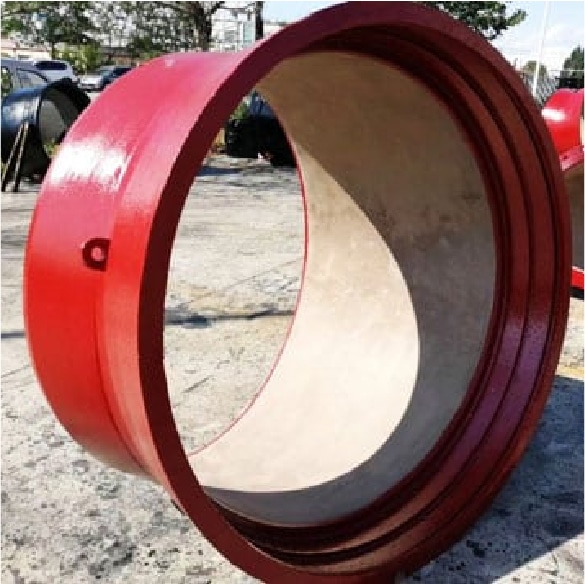

Types of DI Pipe Fittings

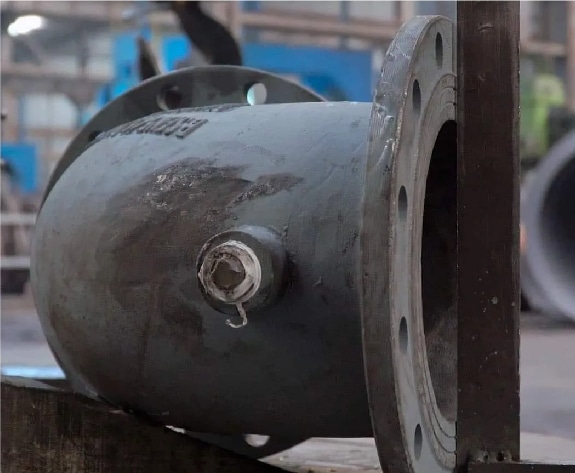

Elbows: Allow for changes in the direction of the piping system.
Tees: Enable branching of the pipe into multiple directions.
Reducers: Connect pipes of different diameters.
Flanges: Provide a method to connect pipes, valves, pumps, and other equipment.
Caps and Plugs: Close off the ends of pipes.
Adapters: Connect different types of pipes or fittings together.

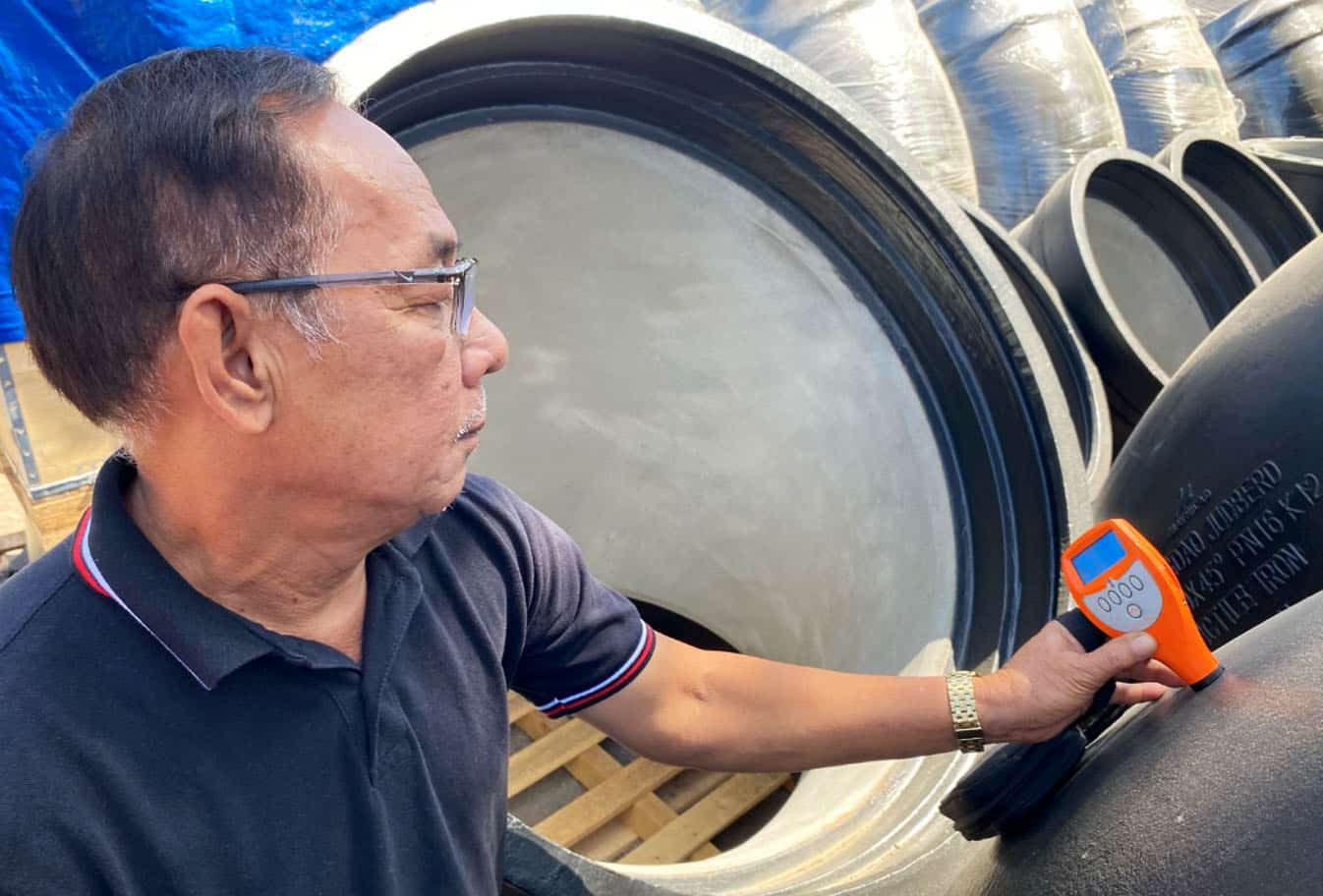

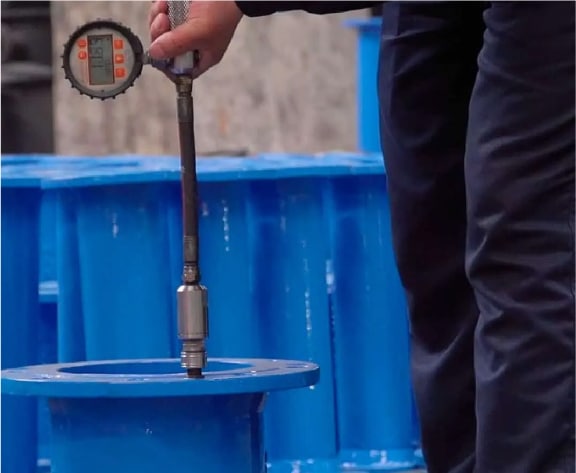

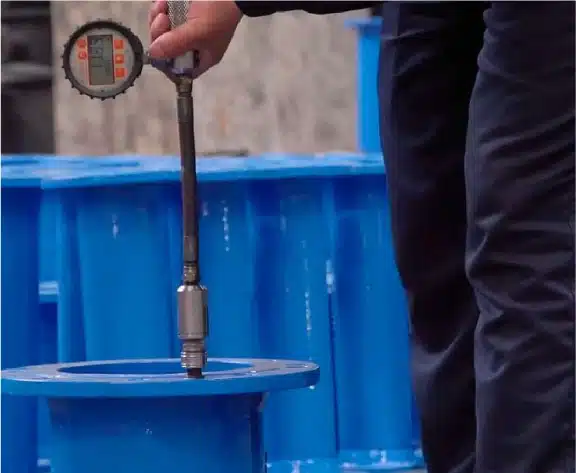

Coating For EN545/ISO2531 DI Pipe fittings And Accessories
1.1 General External coatings:
• zinc coating with bitumen
• polyethylene sleeving (as a supplement to the bituminous paint or to the zinc coating with finishing layer)

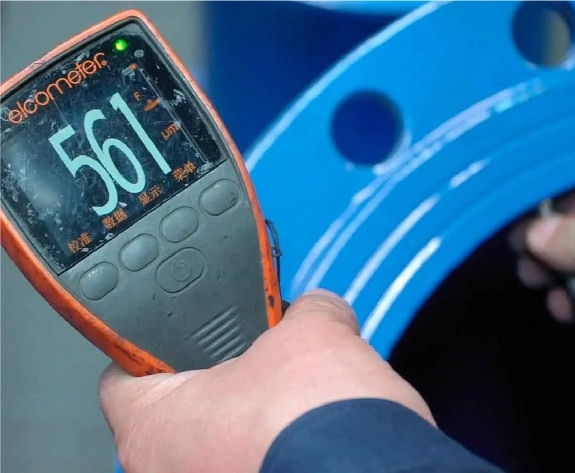

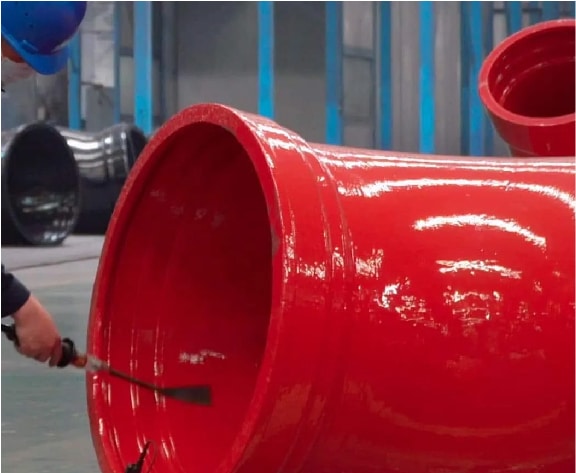

• FBE coating no less than 250um.
1.2 Internal coatings (linings)
• thicker cement mortar lining
• cement mortar lining with seal coat
•FBE Coating no less than 250um
These external and internal coatings shall comply with the corresponding EN standards, or where no EN standard exist, they shall comply with ISO standards or with national standards, or with an agreed technical specification. The nominal thickness of the cement mortar lining and its tolerance shall be as given in table as below
| DN | Thickness(mm) | Maximum crack width and radial displacement | |
|---|---|---|---|
| Nominal value | Tolerance | ||
| 40 to 300 | 3.5 | -1.5 | 0.8 |
| 350 to 600 | 5 | -2 | 1 |
| 700 to 1200 | 6 | -2.5 | 1.2 |
| 1400 to 2000 | 9 | -3 | 1.5 |
Ductile Iron Fittings Price List
| EN545/ISO2531 Di Pipe Fittings | ||
|---|---|---|
| size | USD$/KG | USD$/KG |
| Cement inside,zinc &bitumen outside | FBE cast | |
| DN50 -DN125 | 2.08 | 2.30 |
| DN150-DN800 | 1.86 | 2.10 |
| DN900-DN1200 | 2.00 | 2.22 |
| DN1200-DN2000 | 2.30 | 2.50 |

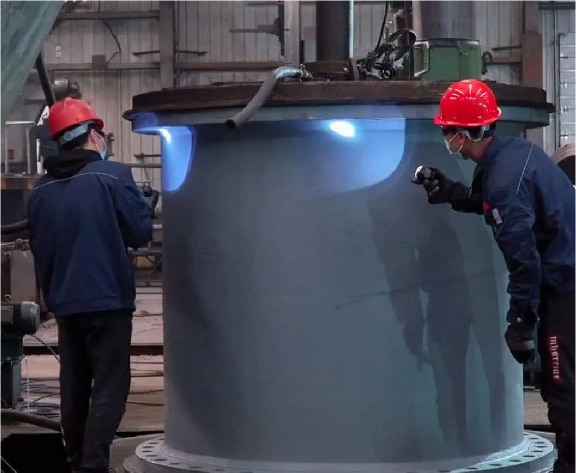

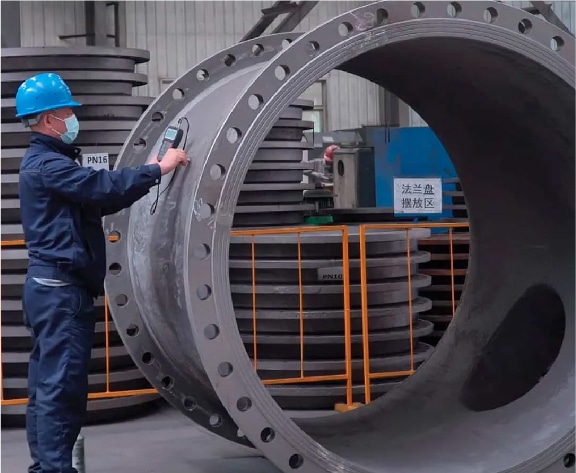

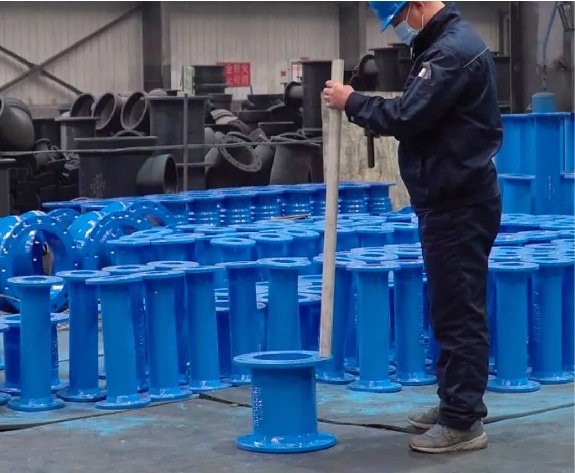

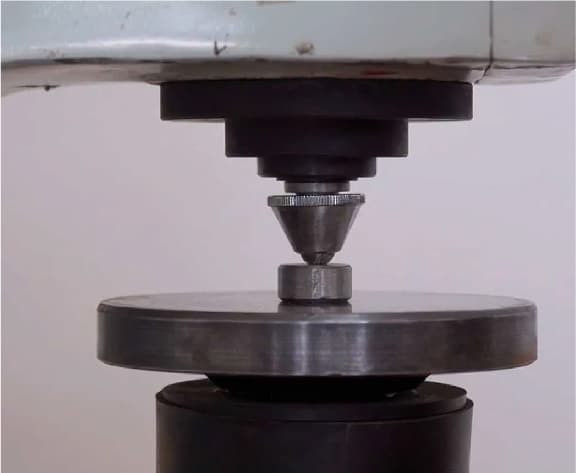

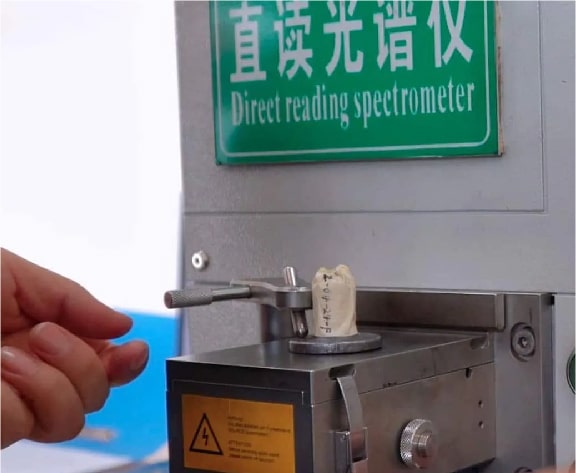

More information for EN545/ISO2531 ductile iron pipe fitting, please read our ductile iron pipe fitting description as below
DI Pipe Fittings Application

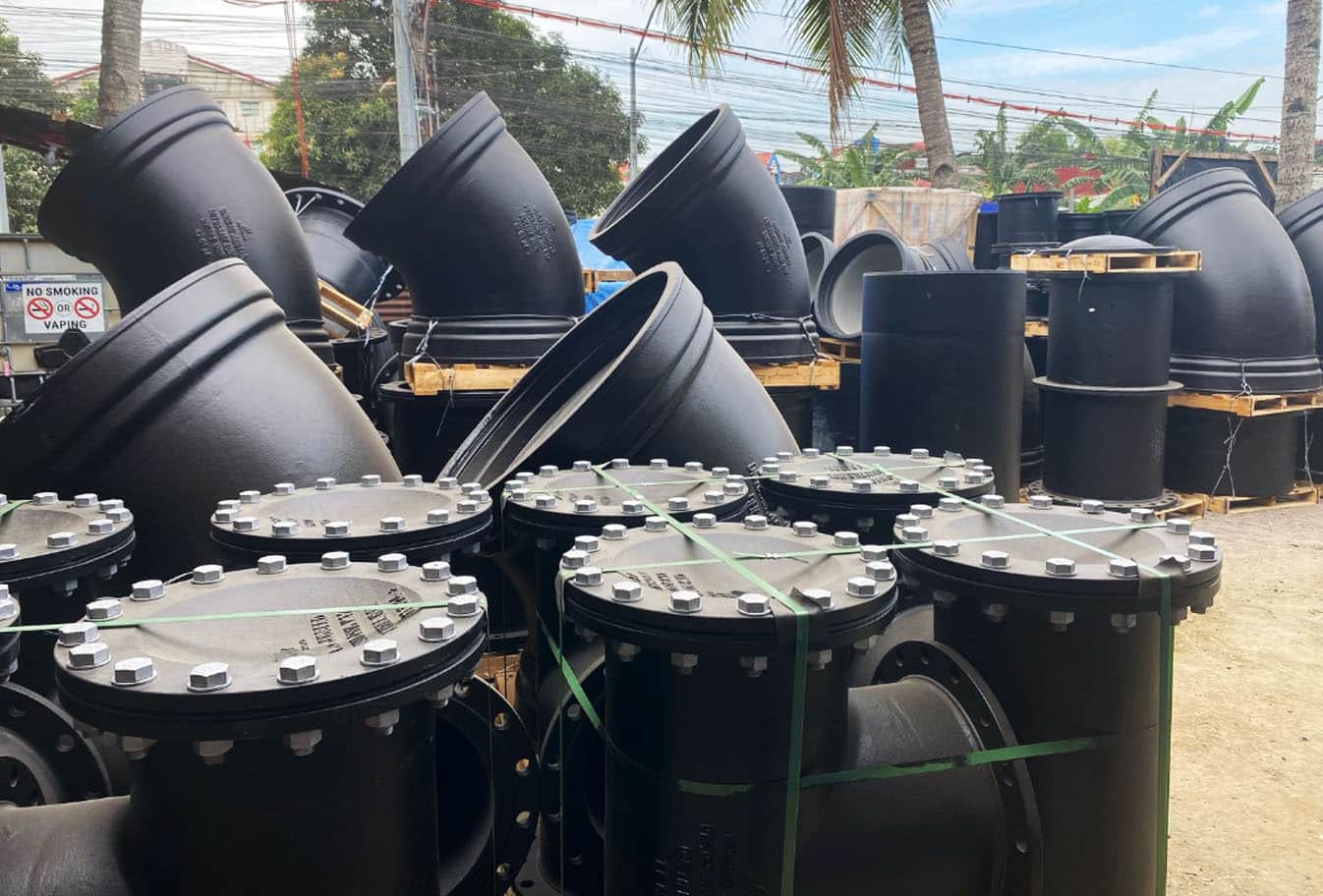

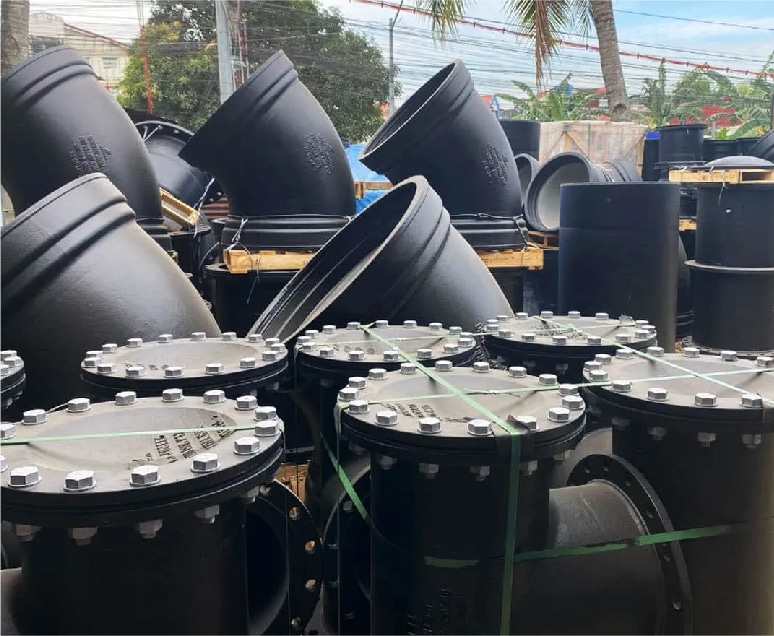

Water Supply Systems:
Transporting potable water from treatment plants to distribution networks.
Sewage and Wastewater Systems:
Conveying sewage and wastewater from residential, commercial, and industrial sites to treatment facilities.
Industrial Piping Systems:
Handling various industrial fluids, chemicals, and slurries in manufacturing and processing plants.
