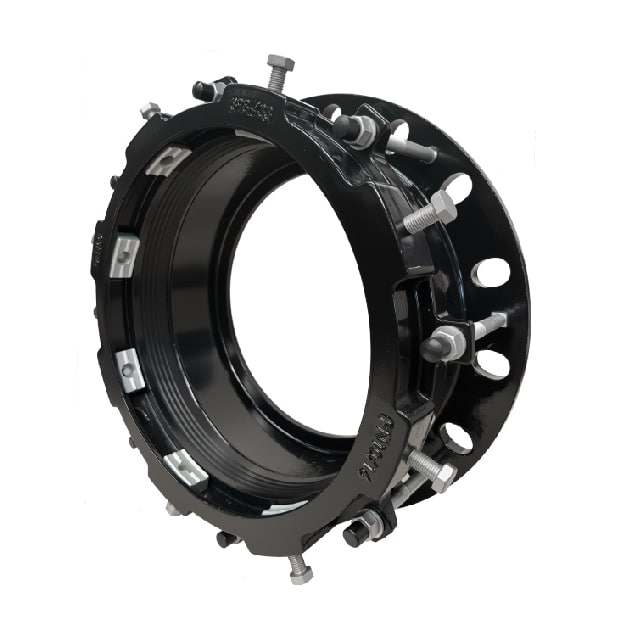

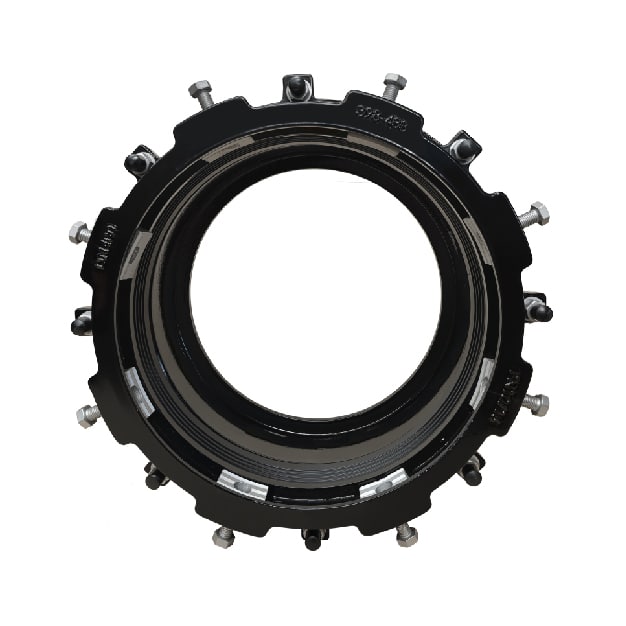

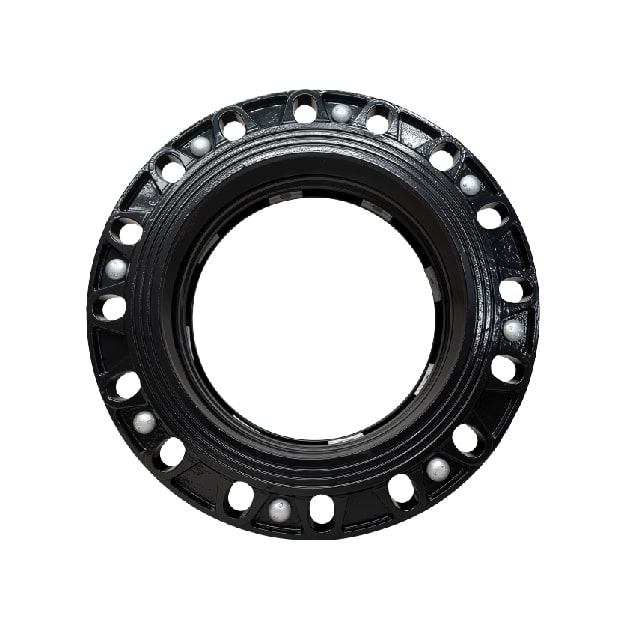

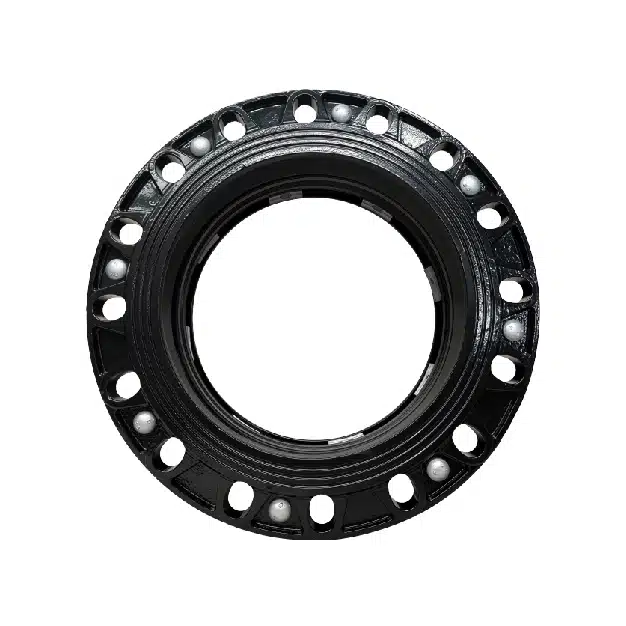

Flange Adaptor Coupling with Restraint

Flange Adaptor Coupling with Restraint is based on a standard flexible flange adaptor but includes an additional grip block design. When the pipe shifts due to ground settlement, movement, or other factors, the backward-facing teeth on the grip block can bite into the pipe surface, preventing displacement and ensuring that the sealing of the flange adaptor remains effective.

SPECIFICATION

Suitable for: Steel, Concrete, AC, HDPE, PVC, Ductile Iron, Grey Cast Iron, GRP pipes which pipe outside diameter is in our range

● Working Pressure PN10/PN16

● For water pipeline system

● Flange drilled according to EN1092-2

● Surface Coating FBE or Rilsan Nylon 11

● Angular deflection  +/- 4 deg
