Flanged Reducer

flanged reducer is a type of pipe fitting used in piping systems to connect two pipes of different diameters. It features flanged ends for secure attachment to other flanged pipes or equipment.It include two design, one is concentric reducer ,another is eccentric reducer.

Concentric Reducer: The centerlines of the larger and smaller diameter pipes are aligned, creating a symmetrical transition.

Eccentric Reducer: The centerline of the smaller diameter pipe is offset, often used in applications where maintaining the same top or bottom level of the pipe is essential.

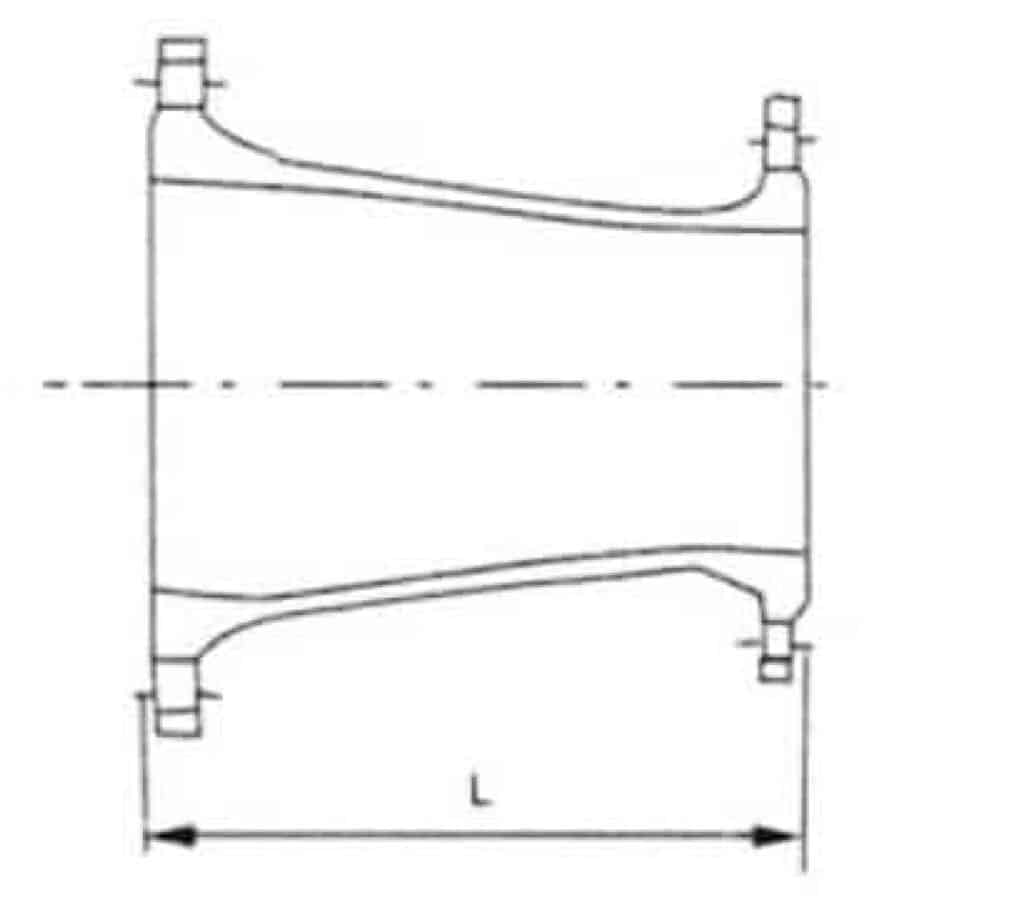

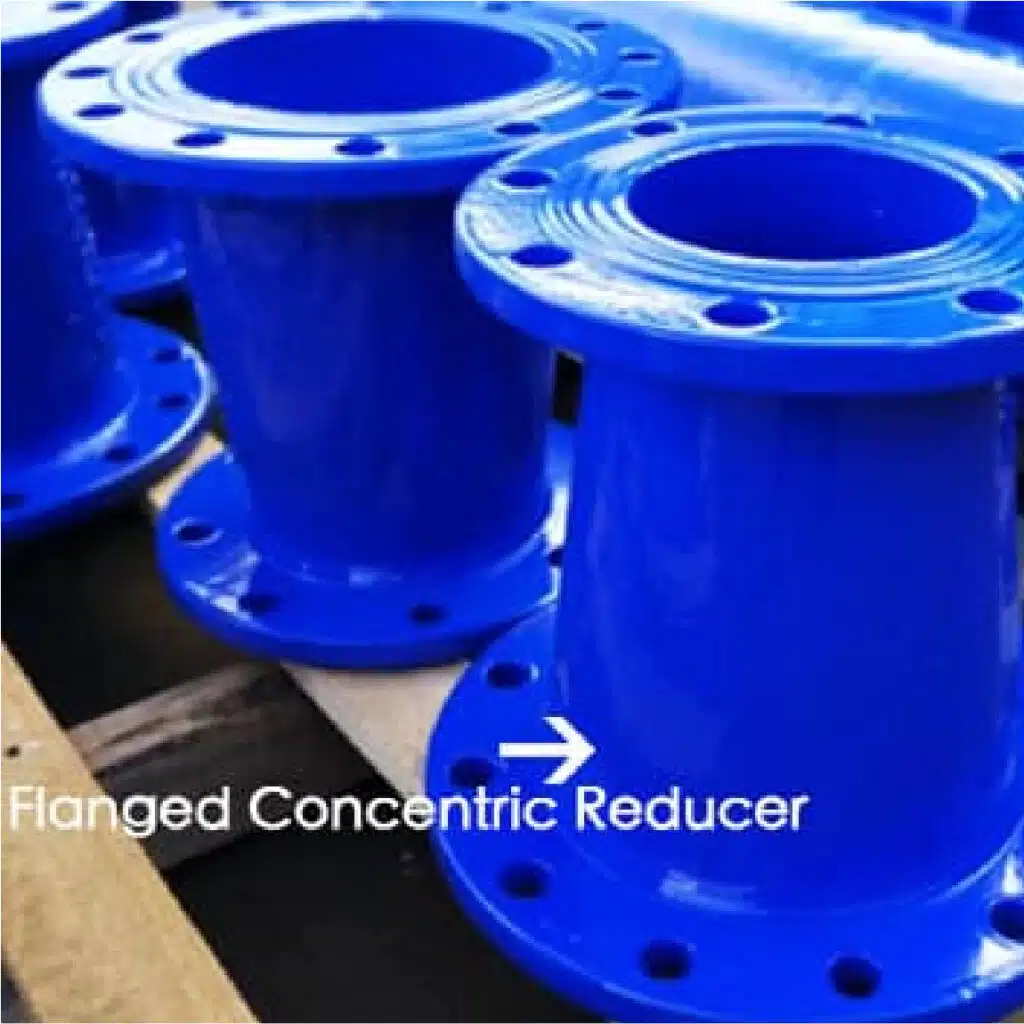

Flanged Concentric Reducer

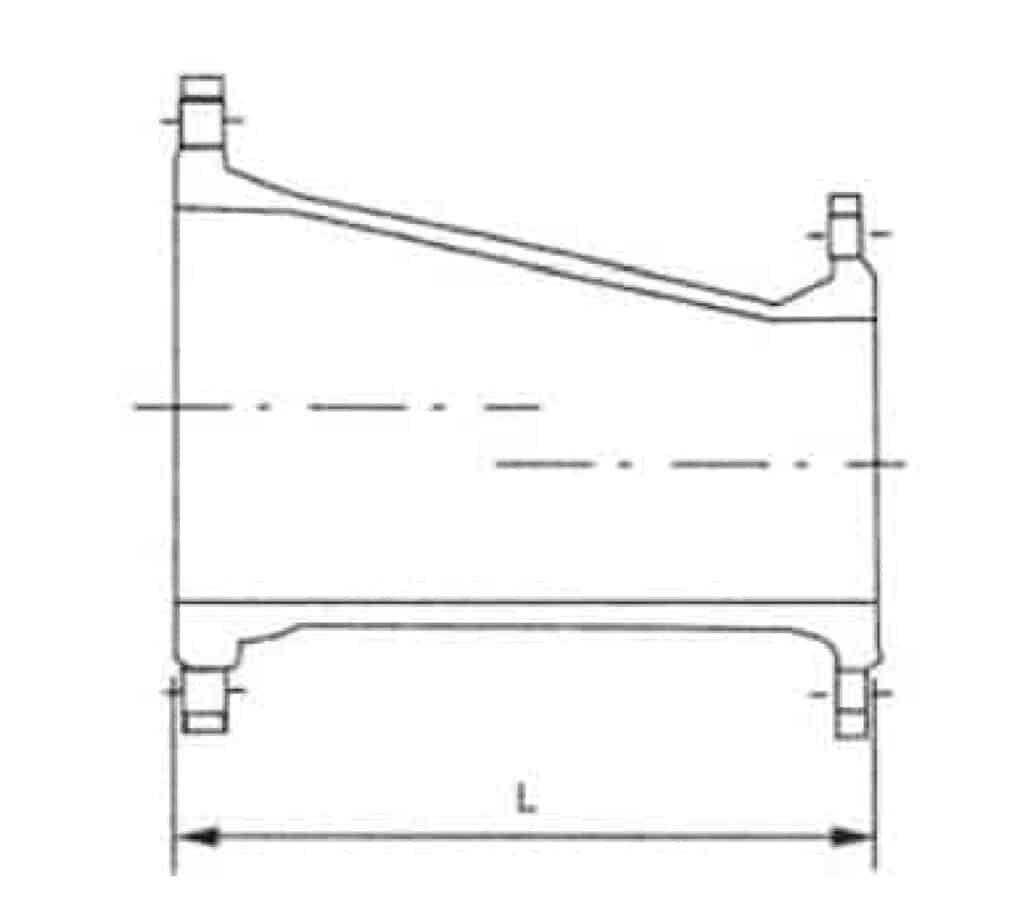

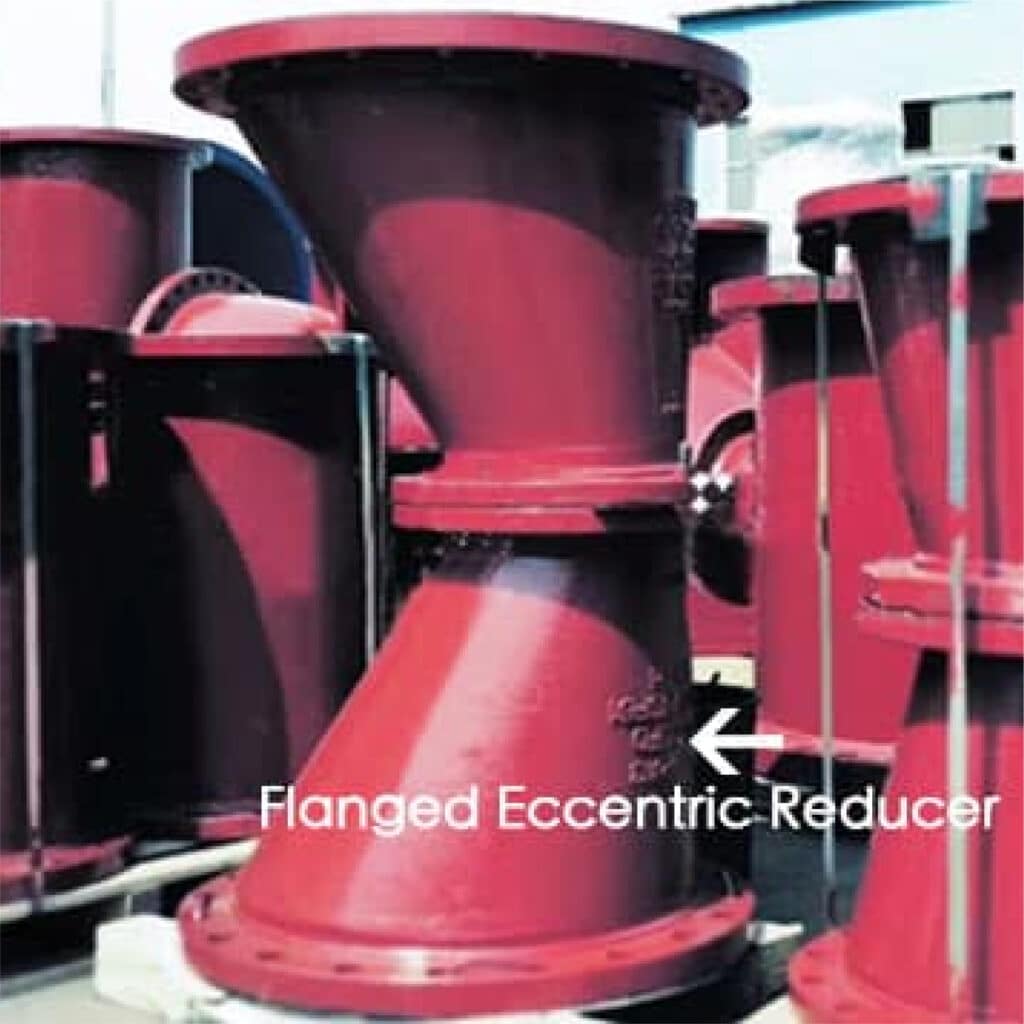

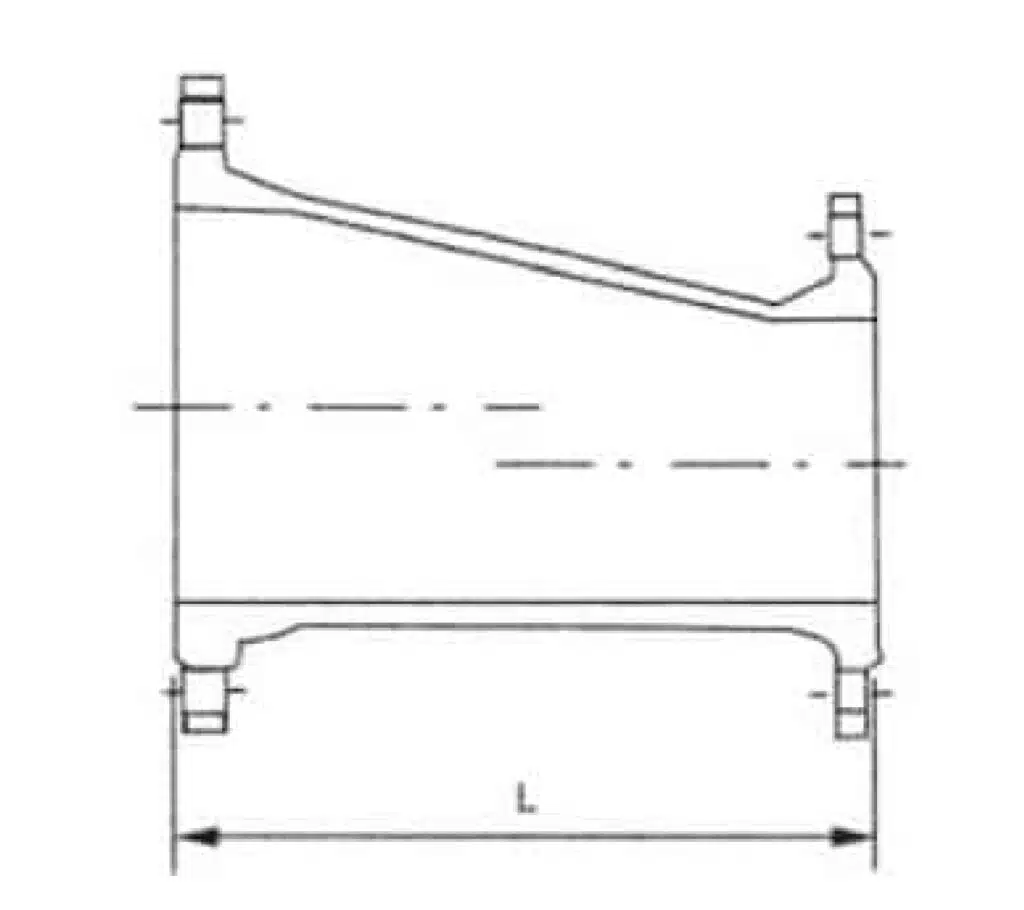

Flanged Eccentric Reducer

Flanged Reducer Application

1.Ductile Iron Flanged Reducer:
Applications:

Municipal Water Supply Pipelines: for city water supply systems and underground water supply networks.
Wastewater Treatment: for sewage and wastewater treatment systems.
Fire Protection Pipelines: for water transport in fire protection systems.
Features:

High strength with a certain degree of ductility.
Good corrosion resistance, particularly excellent in buried pipelines.
Able to withstand high pressure.

2.Carbon Steel Flanged Reducer:

Applications:

Oil and Gas Pipelines: for high-pressure liquids or gases such as crude oil and natural gas.
Industrial Pipelines: for general industrial applications like steam, air, and high-pressure water.
Power Plant Pipelines: for high-temperature and high-pressure steam and water.
Features:

High strength and pressure-bearing capacity.
Good wear resistance and impact resistance.
Suitable for high-temperature and high-pressure environments.
3.Stainless Steel Flanged Reducer:
Applications:

Food and Beverage Industry: for food-grade liquids such as milk and juice.
Chemical Pipelines: for corrosive chemicals and high-purity liquids.
Pharmaceutical Industry: for cleanrooms and pharmaceutical production lines.
Features:

Excellent corrosion resistance.
Easy to clean and sterilize, suitable for sanitary environments.
Maintains good performance at extreme temperatures.

4. PVC Flanged Reducer:
Applications:

Low-Pressure Water Pipes: for potable water transport in residential and commercial buildings.
Agricultural Irrigation: for water transport in agricultural irrigation systems.
Drainage and Sewer Pipes: for drainage and sewer systems.
Features:

Lightweight, easy to install and transport.
Excellent corrosion resistance, with good resistance to most acids, alkalis, and salts.
Suitable for low-pressure and medium-low-temperature environments.
Each material has its specific applications and advantages, choosing the right material can ensure the safety, durability, and efficiency of a pipeline system.
