Flanged Reducing Expansion Joints
Flanged reducing expansion joint is specially designed for connecting different sizes of pipes, and is divided into concentric (pipe centerline overlap) and eccentric reducer (pipe centerline do not overlap) according to whether the centerline of the tubes overlap or not.
FEATURE
● Material is same as normal flange rubber expansion joint, the only difference is that the reducing expansion joint is with different size ends.
● Add control tie rods/limit tie rods is also available upon requirement.
● With full face flange gasket to be high pressure expansion joint is available upon requirement.
● It is also possible to add reinforcing rings to withstand high or negative pressures

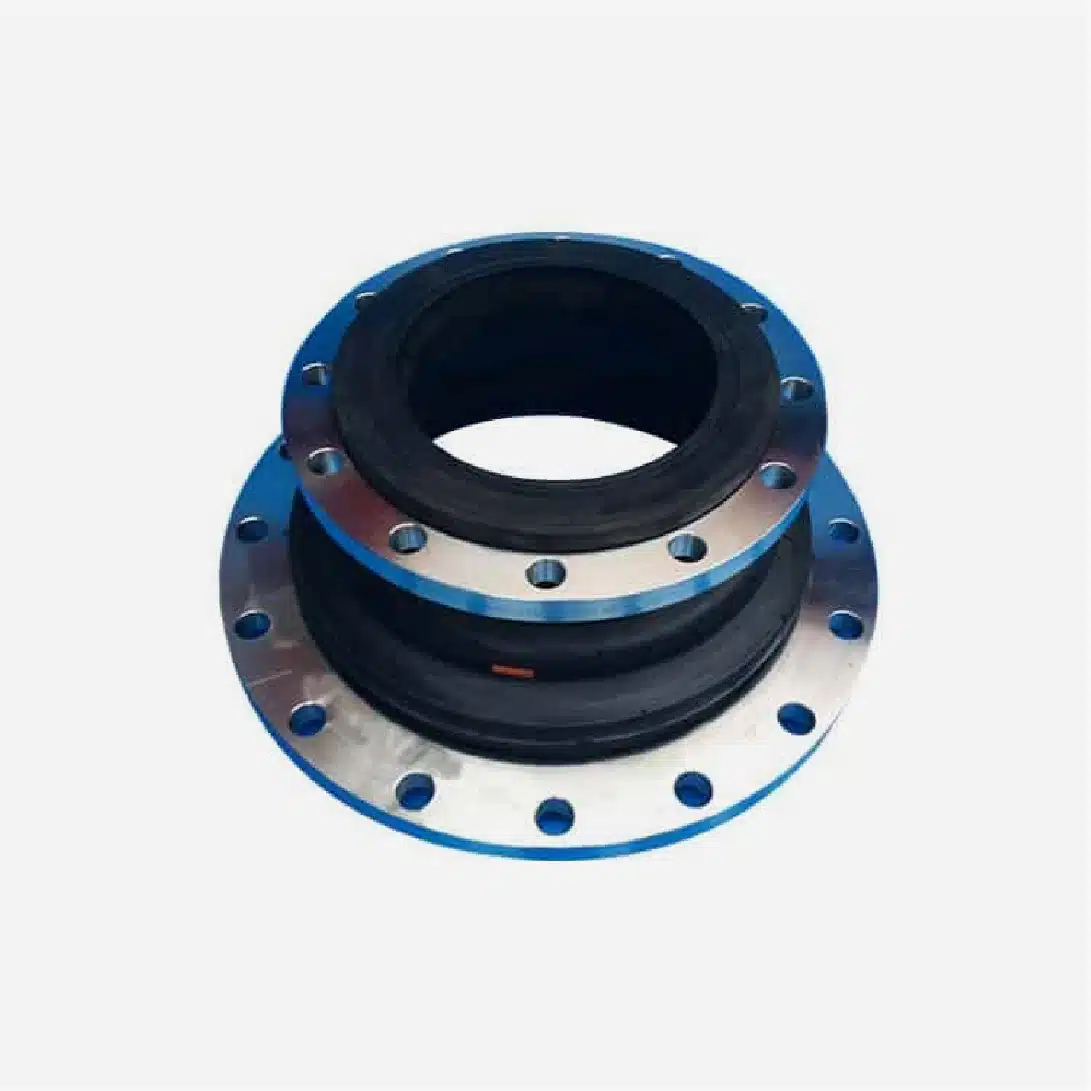

Concentric rubber expansion joint

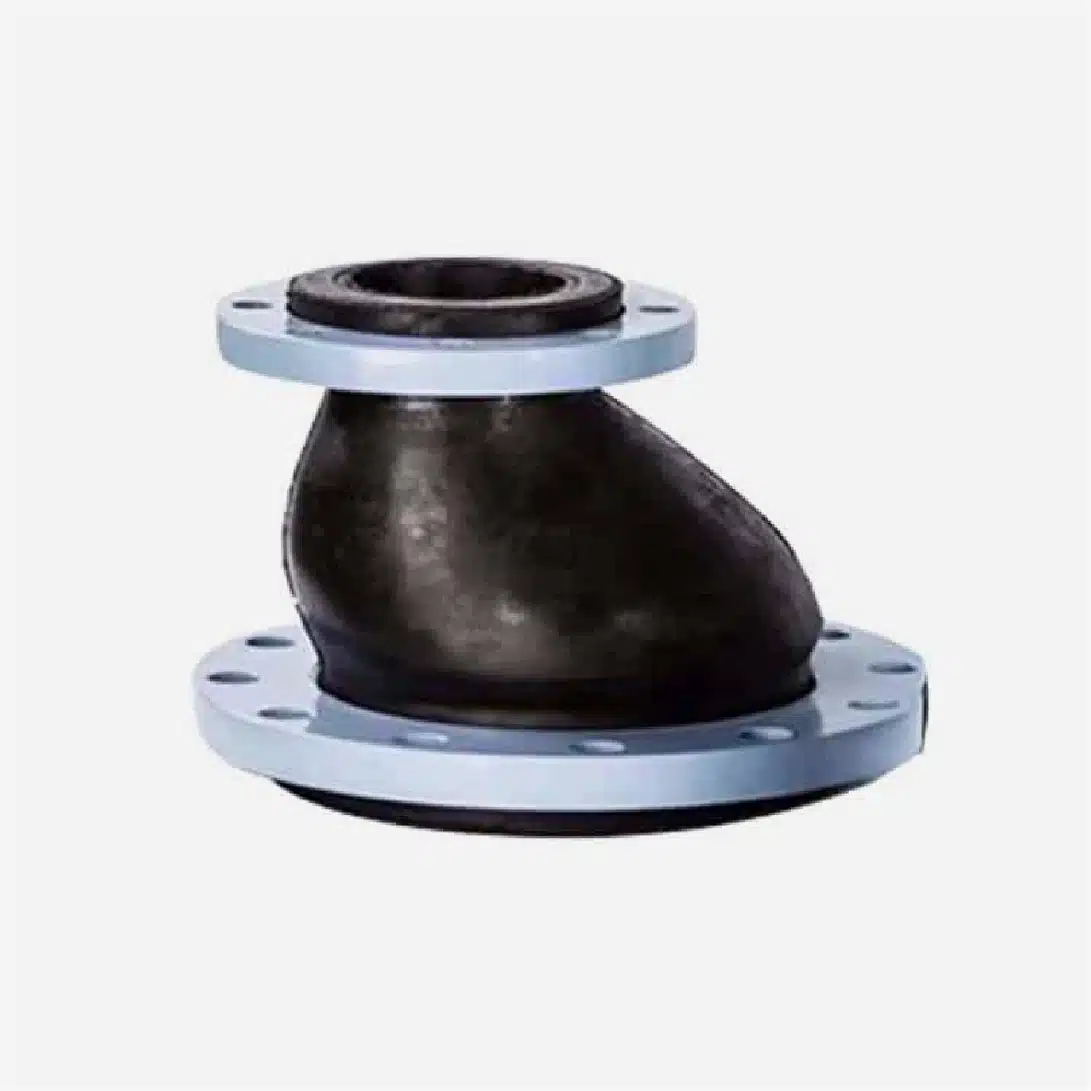

Eccentric rubber expansion joint
Drawing

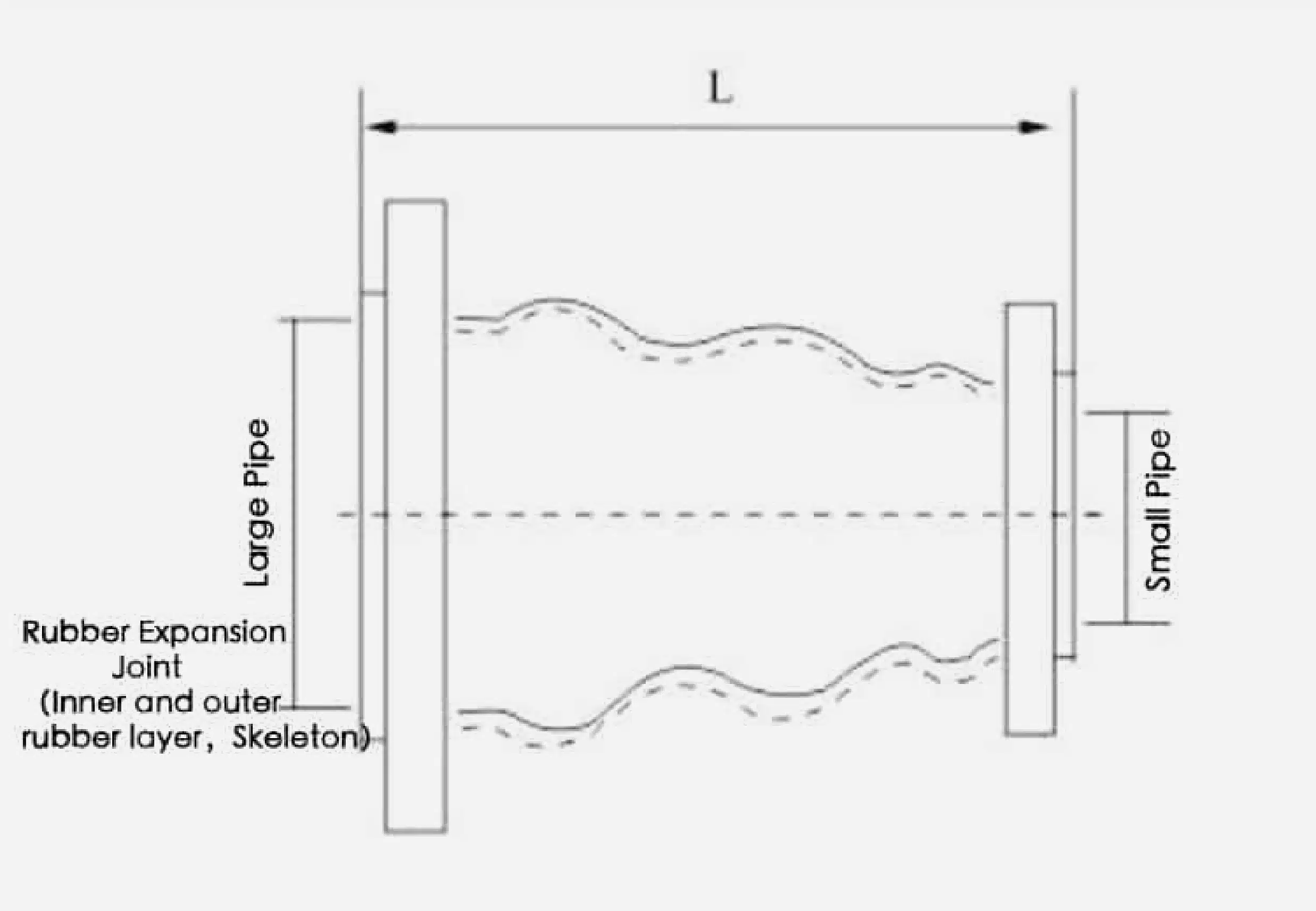

Flanged Concentric Reducing Expansion Joints Drawing

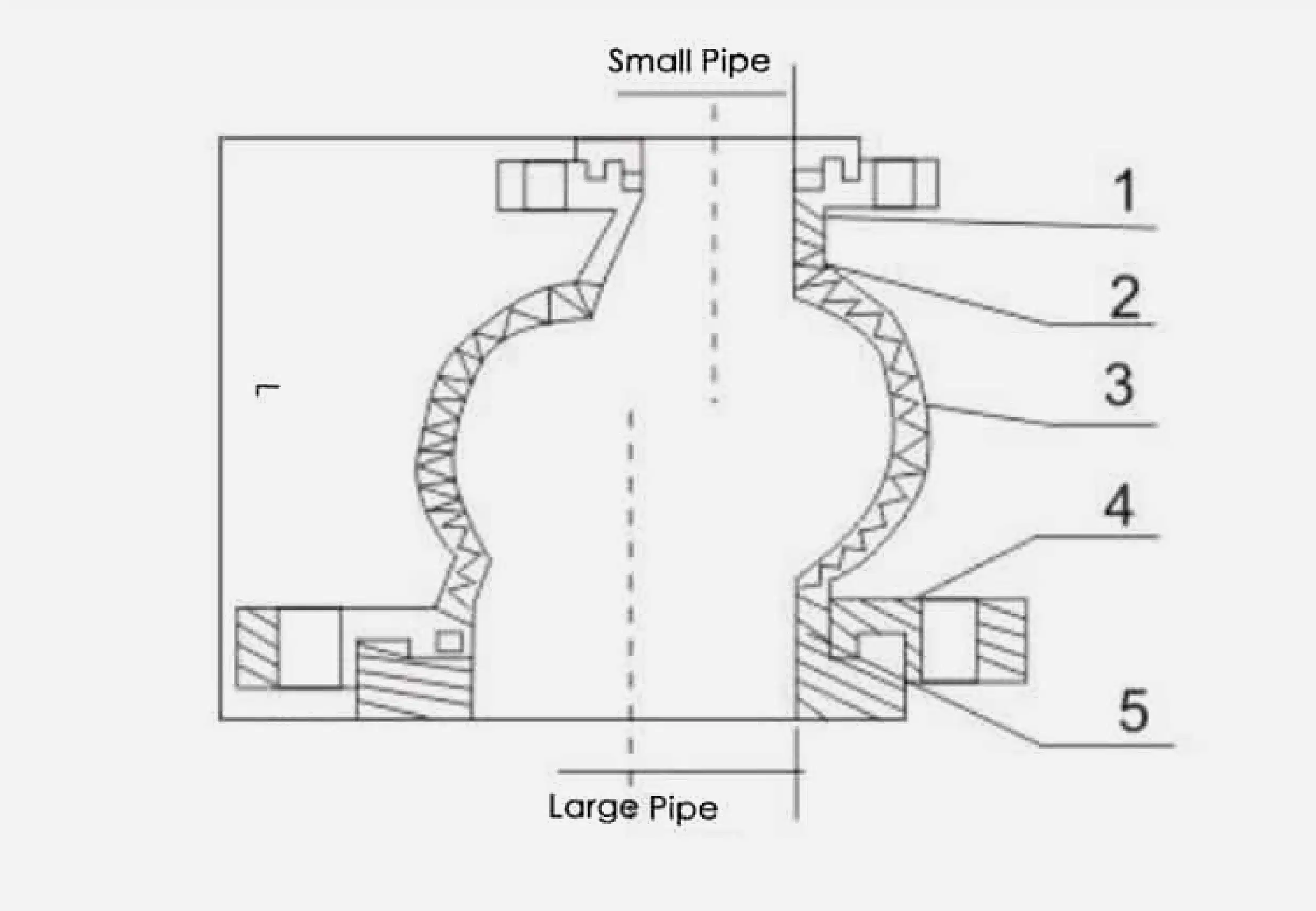

Flanged Eccentric Reducing Expansion Joints Drawing
Dimension

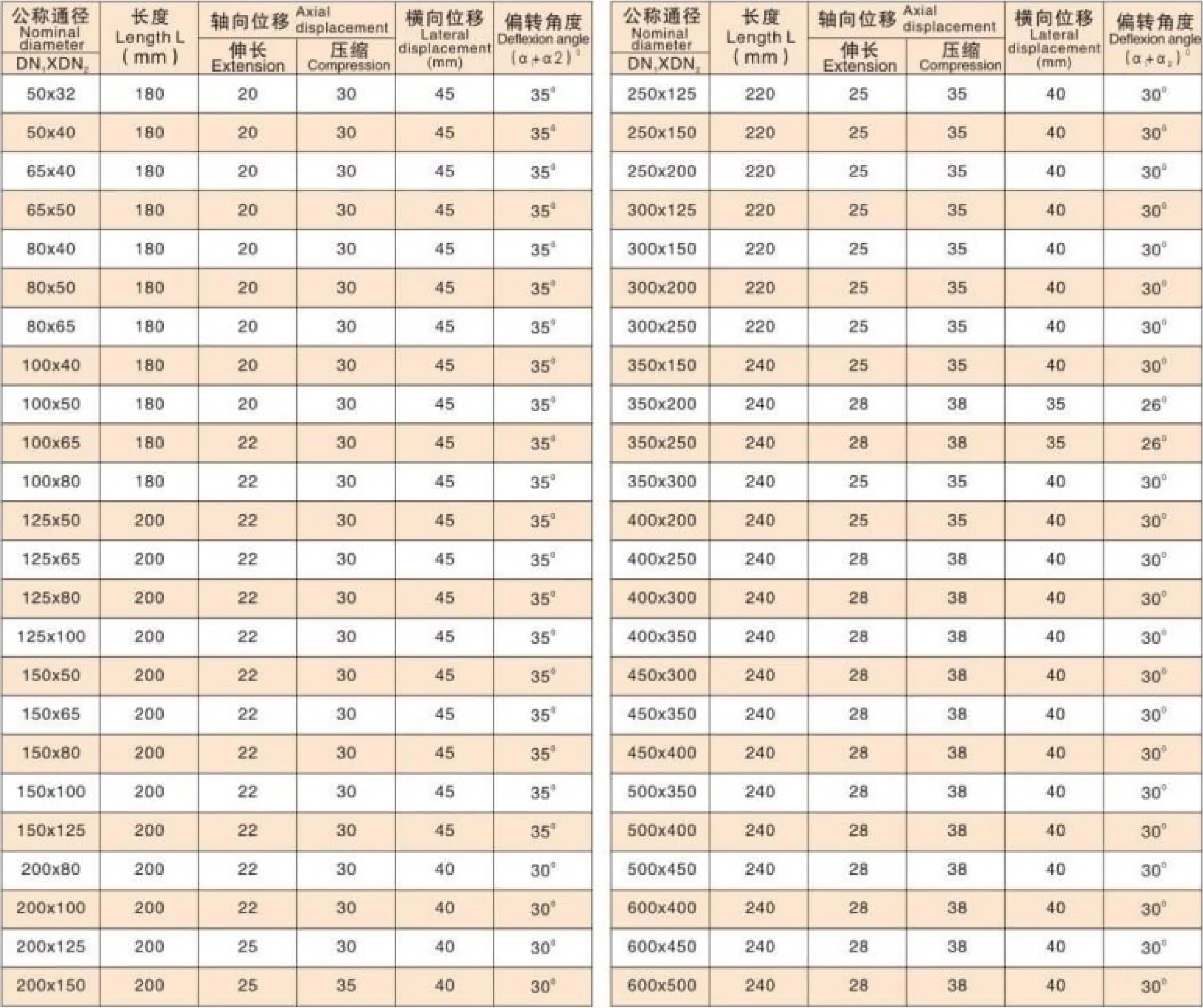

Flanged Concentric Reducing Expansion Joints Dimension

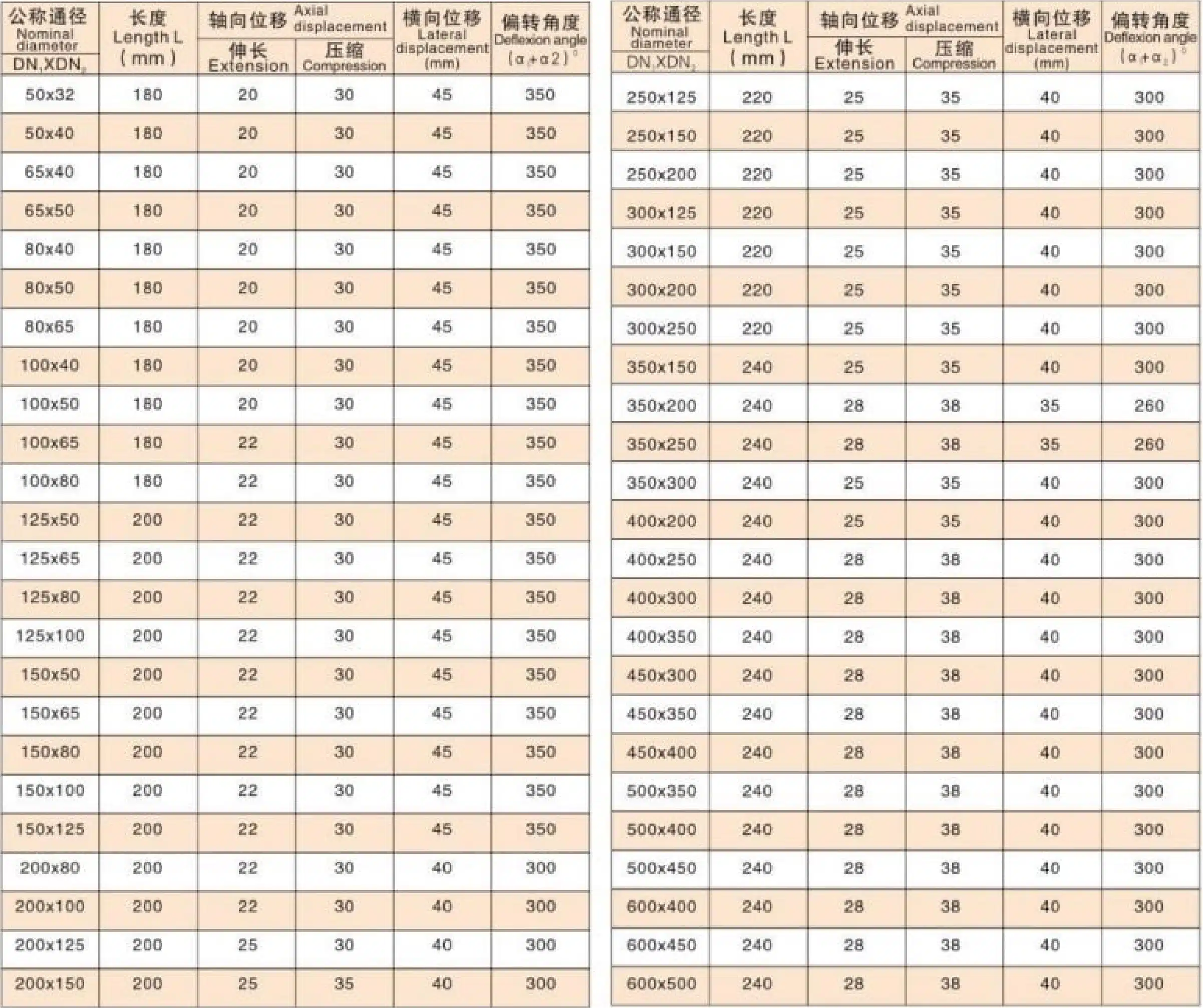

Flanged Eccentric Reducing Expansion Joints Dimension
