flanged spigot

Flanged spigot is a pipe fitting with a flange at one end and a spigot at the other end. The flange end is connected to other flanges of pipes, Pipe FittingsValves or water meters in the pipeline, the two flanges are connected by bolts. It is a rigid connection, and the spigot end is connected to socket ends from other pipes ,pipe fittings, valves etc in the pipeline . The socket end is connected by tyton gasket, providing flexible joint, the rigid connection at the flange end does not allow angular deflection, and the flexible connection at the spigot end allows angular deflection from 5° (DN80) to 1°30′ (DN2600). The larger the diameter of the pipe, the smaller the allowable deflection angle. The connection between the spigot end and other pipe parts is carried out through the Tyton gasket which is with self-sealing function. It only needs to simply insert the spigot end of flange spigot into the socket ends.

di flange spigot

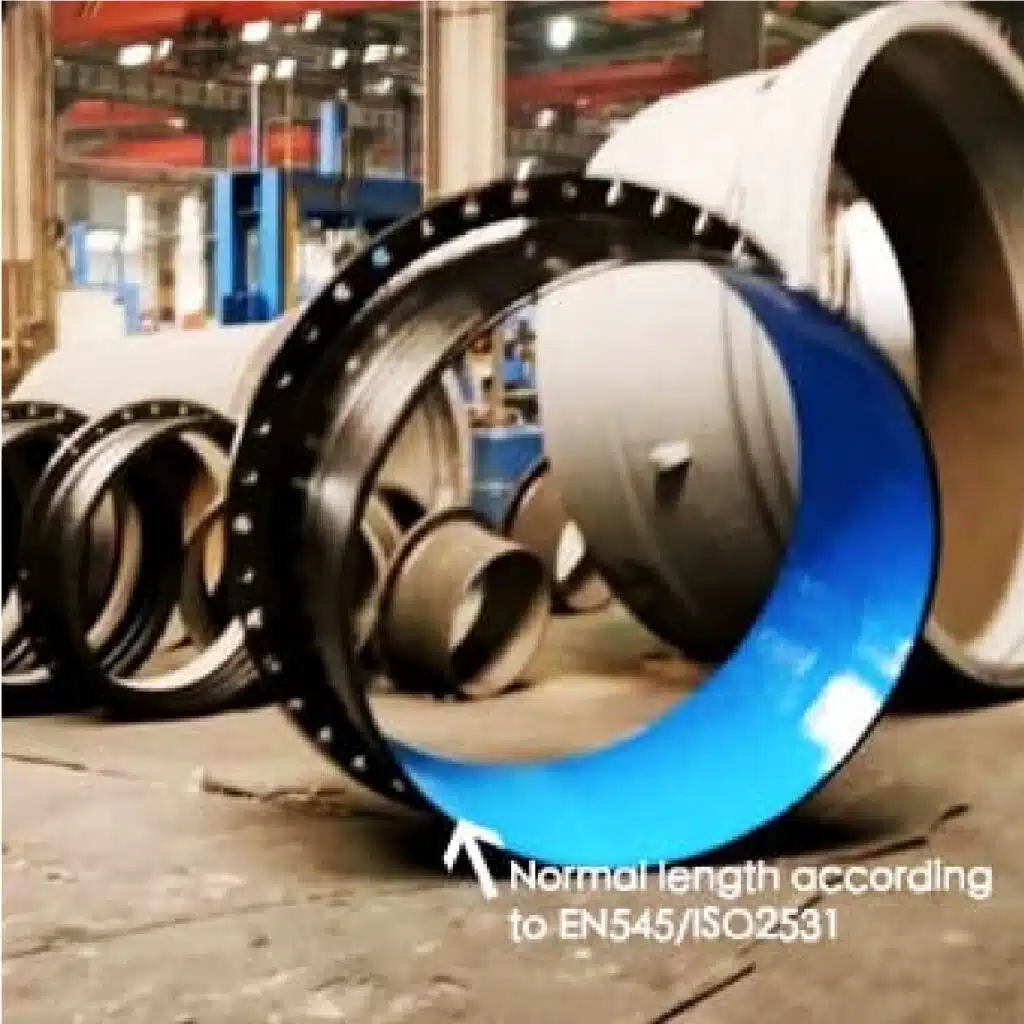

Normal flange spigot length according to EN545/ISO2531 or AS/NZS2280

100mm flanged spigot

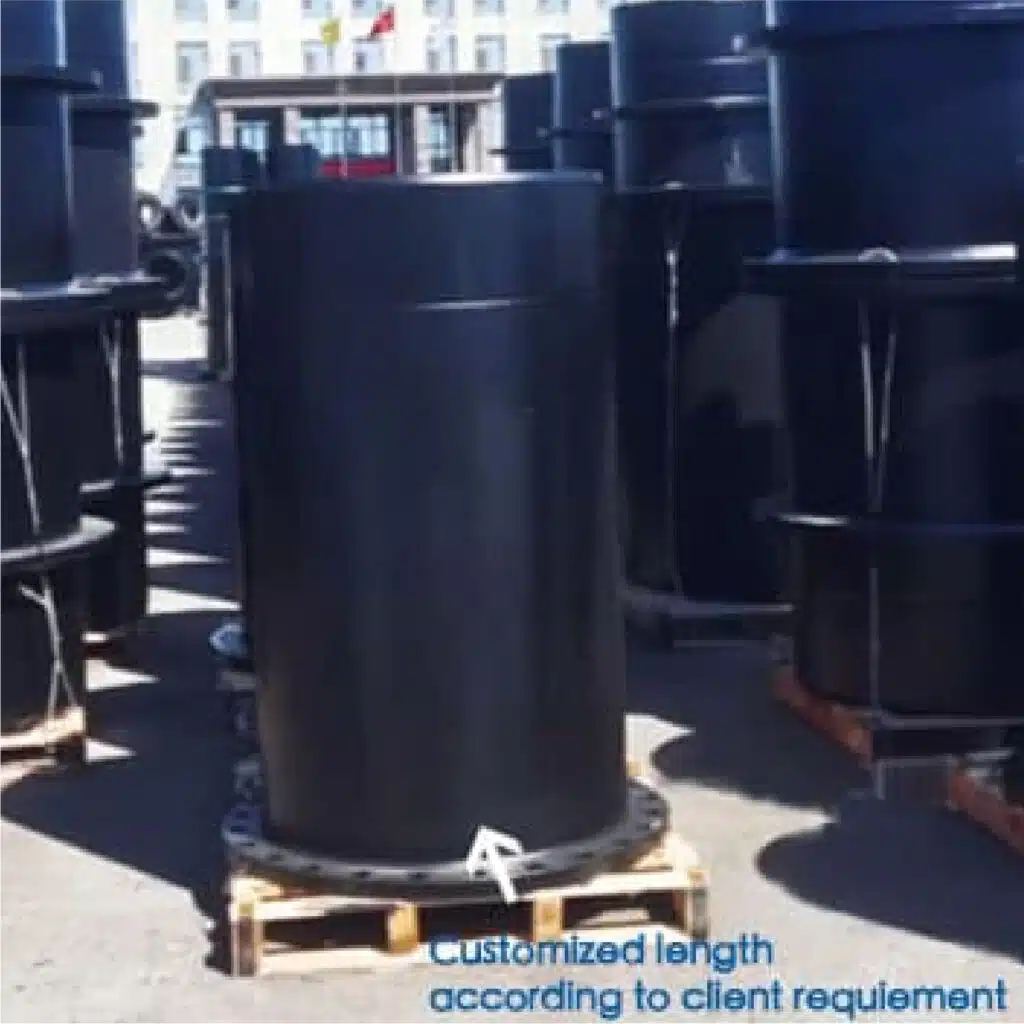

Customized flange spigot length

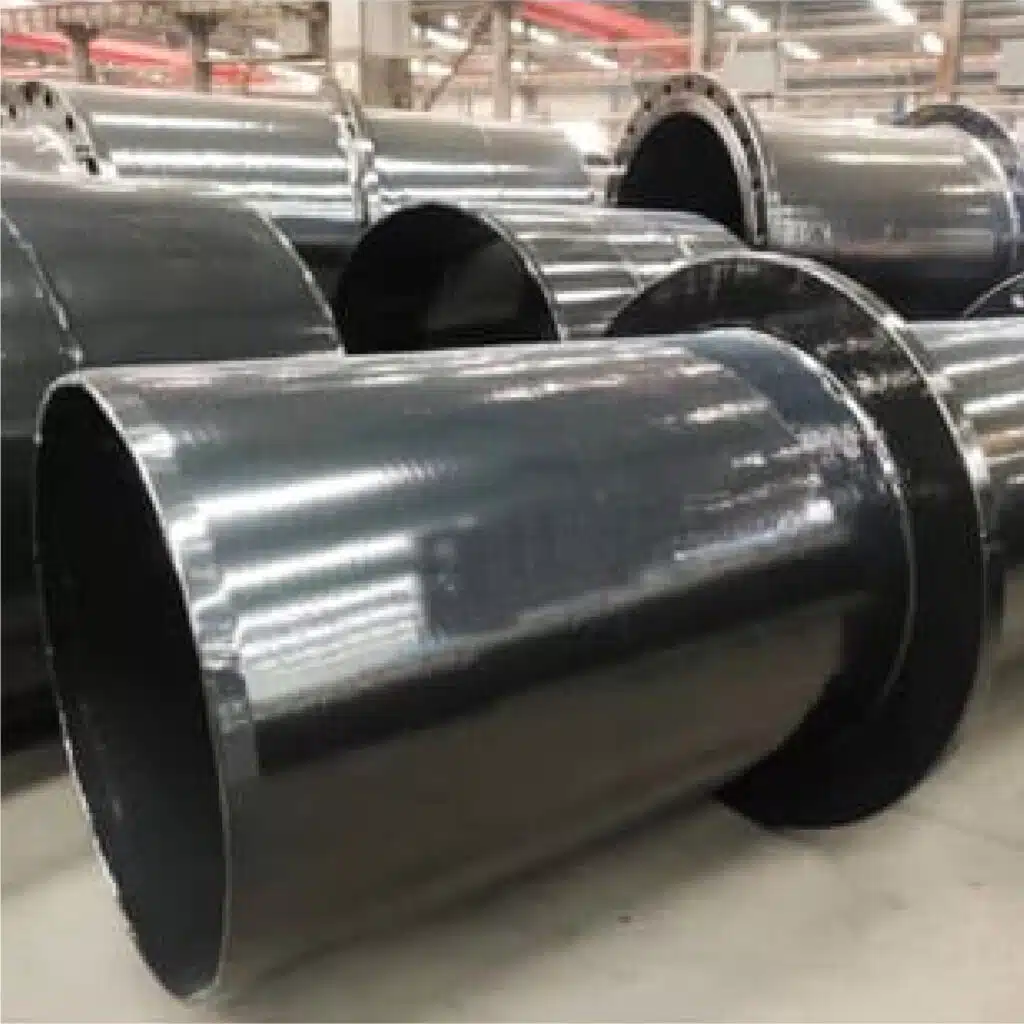

flange spigot with puddle

Flange spigot with puddle



Flanged Spigot Drawing

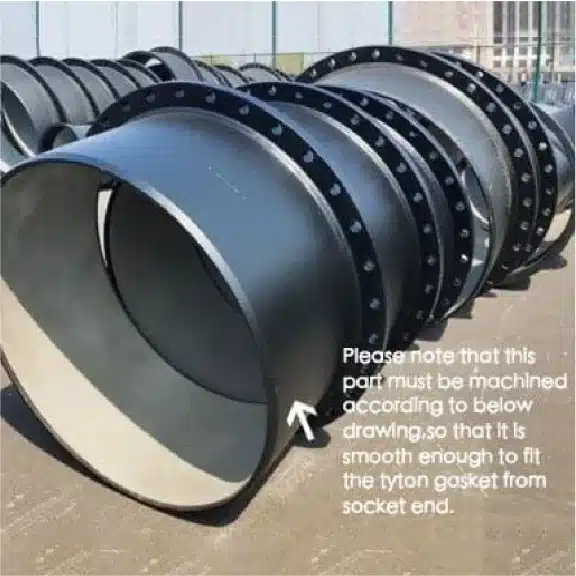

flanged spigot
flanged spigot drawing

Flanged Spigot Drawing

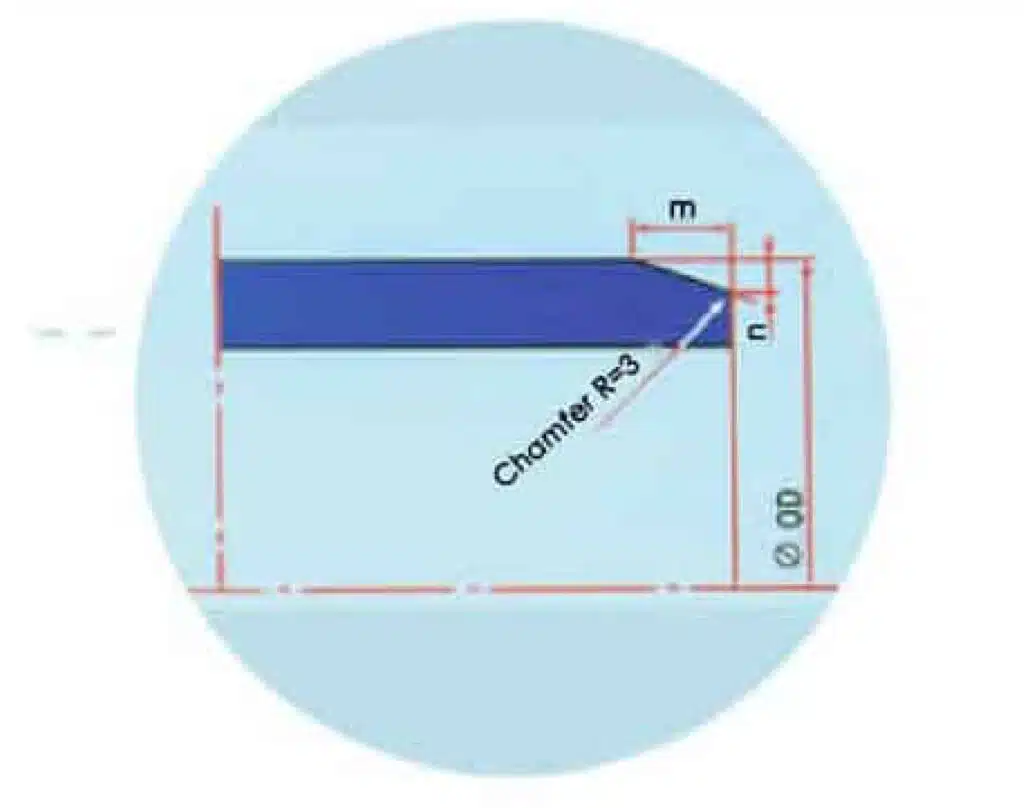

flanged spigot machined part details drawing

Flange Spigot Machined Part Detailed drawing

Nominal Diameter DN L mm ODmm m mm n mm
80 350 98 9 3
100 360 118 9 3
150 380 170 9 3
200 400 222 9 3
250 420 274 9 3
300 440 326 9 3
350 460 378 9 3
400 480 429 9 3
450 500 532 9 3
500 520 635 9 3
600 560 738 15 5
700 600 842 15 5

Please note the flanged spigot length(L mm as above) is fixed according to EN545/ISO 2531 or AS/NZS2280, but client also can customized the flanged spigot length to suit project requirement.



Technical information

Flange spigot is one of ductile iron pipe fitting, you can read our ductile iron pipe fittings technical information on our ductile iron pipe fitting page as below

Ductile Iron Pipe Fitting Technical Information



Application

water supply, sewage, irrigation water, oil, industry fluid etc
