Flanged Tee Fitting

Flanged tee is a type of pipe fitting used to create a branch in a pipeline. It is characterized by having three outlets in the shape of a “T,” with flanges on each outlet. The flanges allow for easy connection to other flanged pipes or fittings.

Judberd flanged tee fittings are for your reference , we produce many different flanged tee fitting and we can produce as per client requirements.

flanged tee fitting

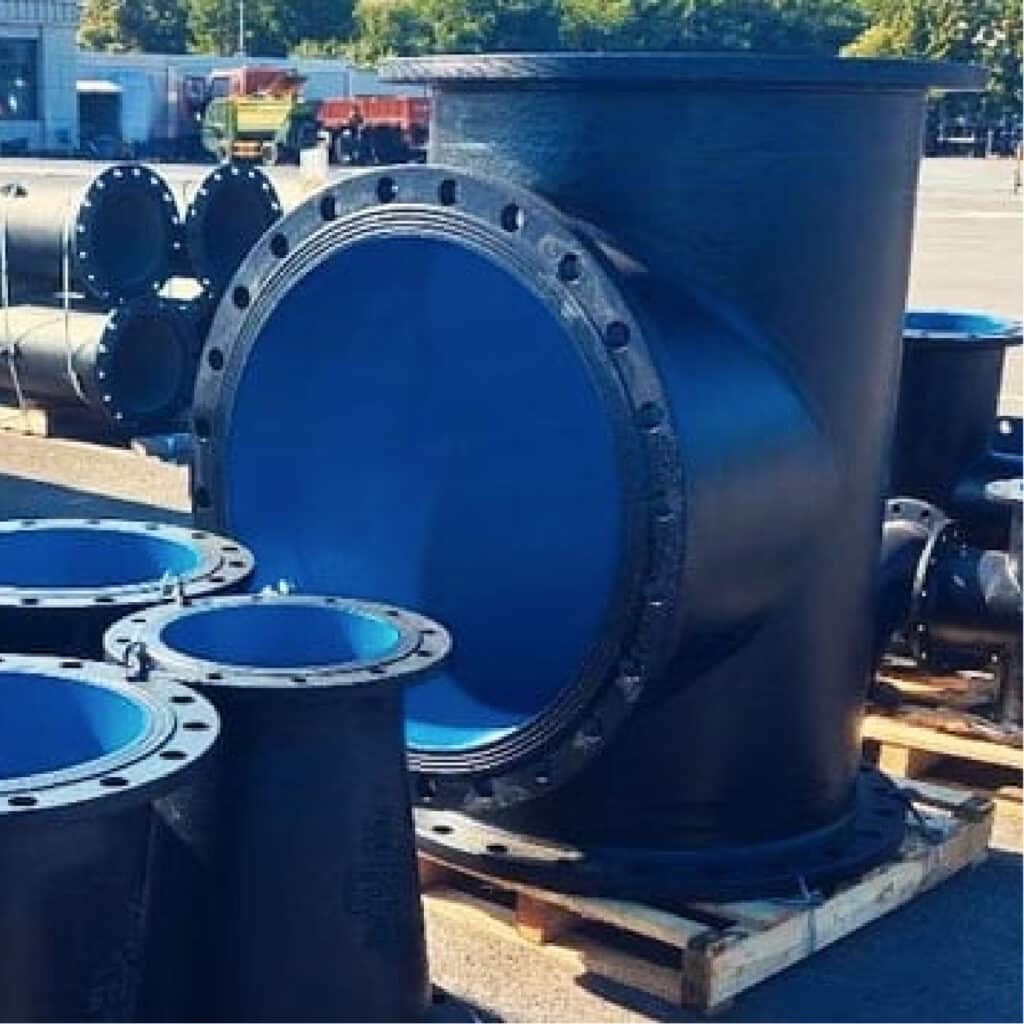

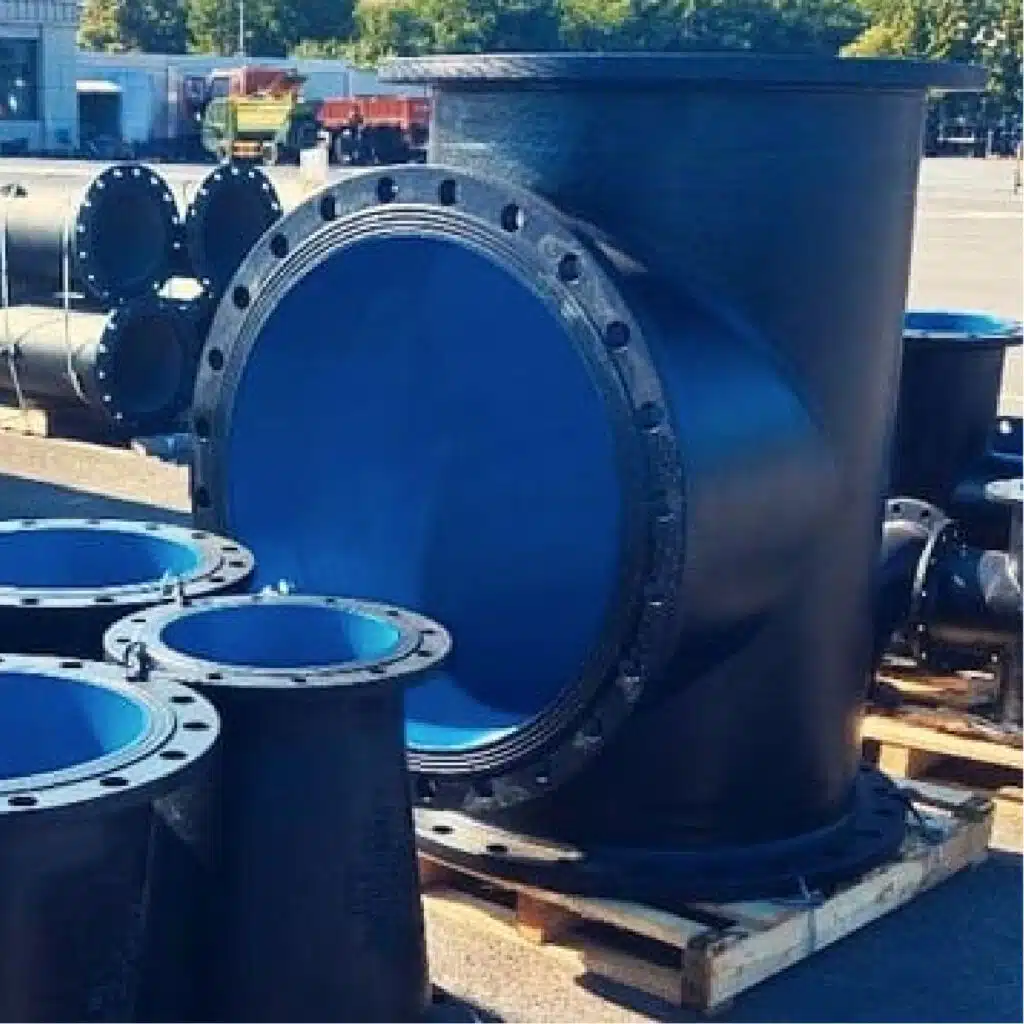

Flanged Equal Tee

flanged reducing tee

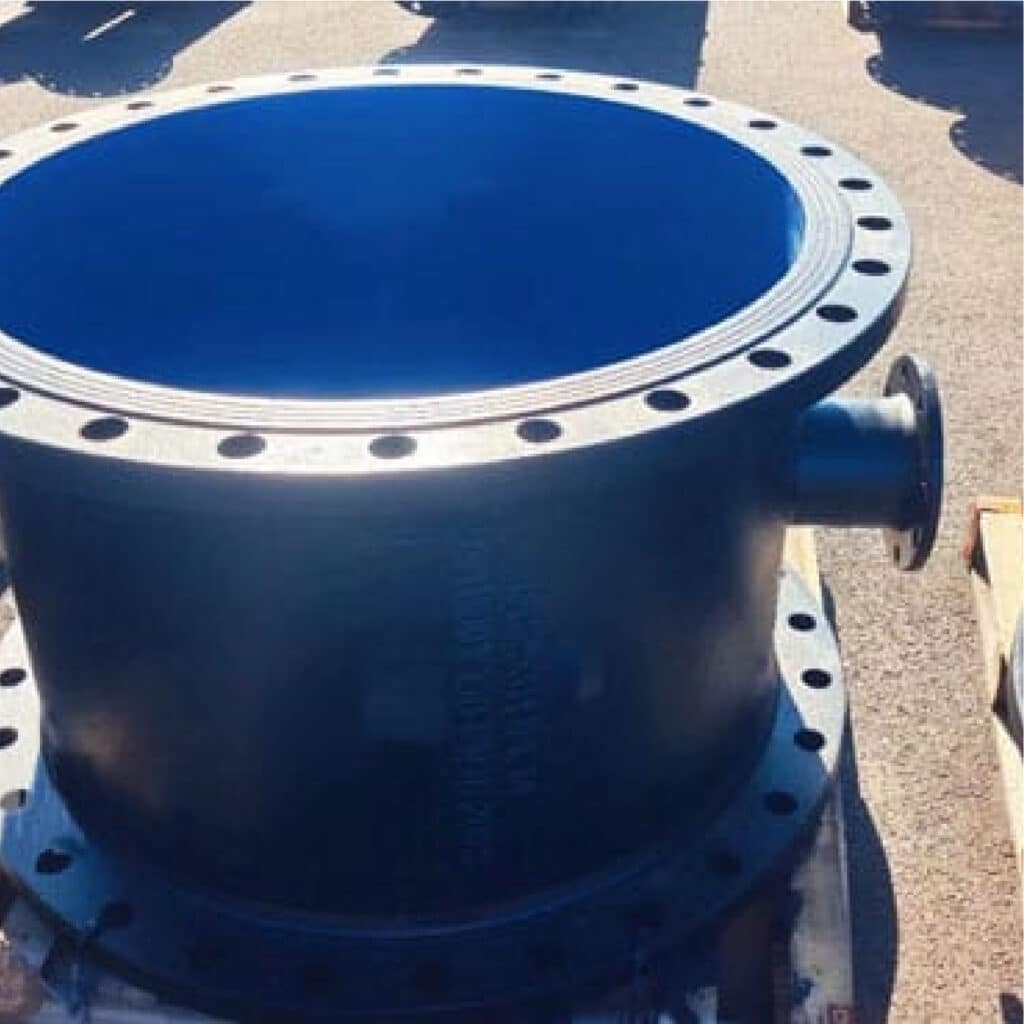

Flanged Reducing Tee

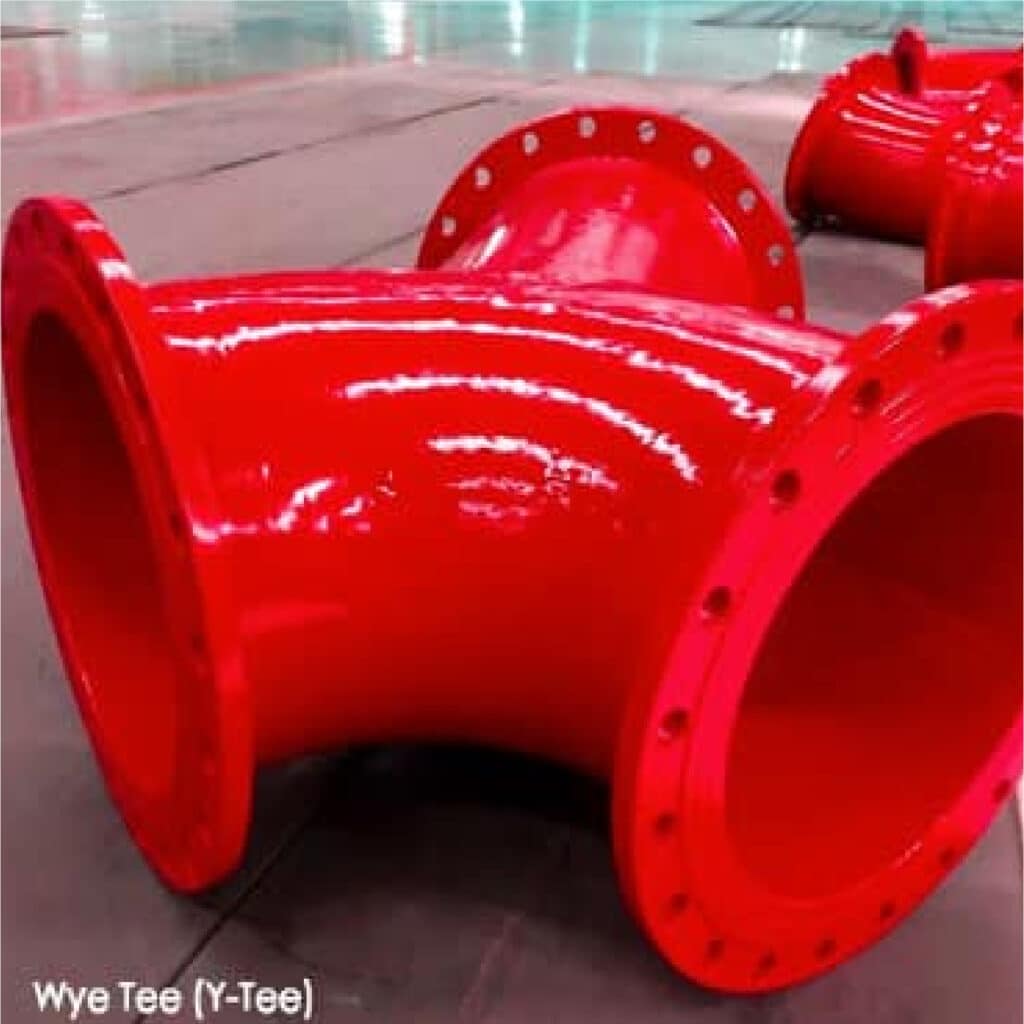

Wye Tee (Y-Tee)

Wye Tee (Y-Tee)

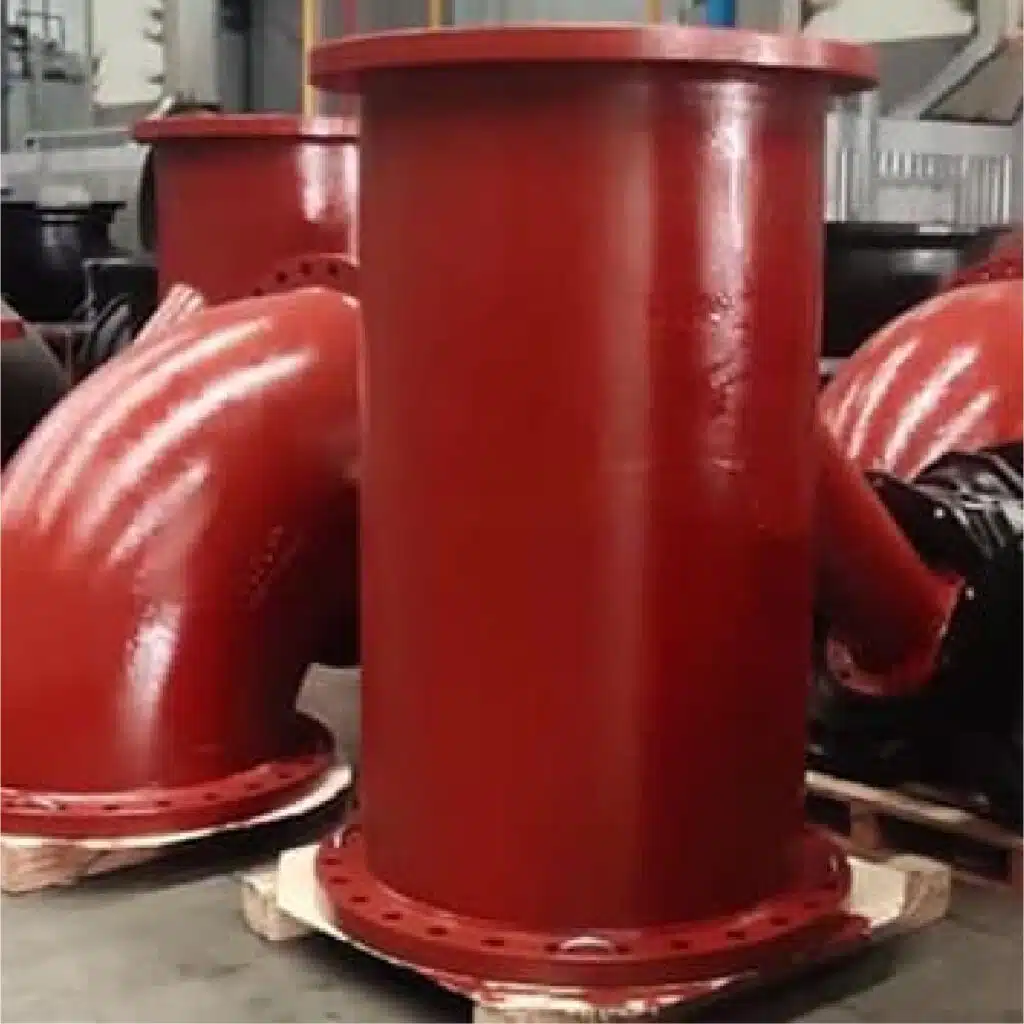

Lateral Tee

Lateral Tee

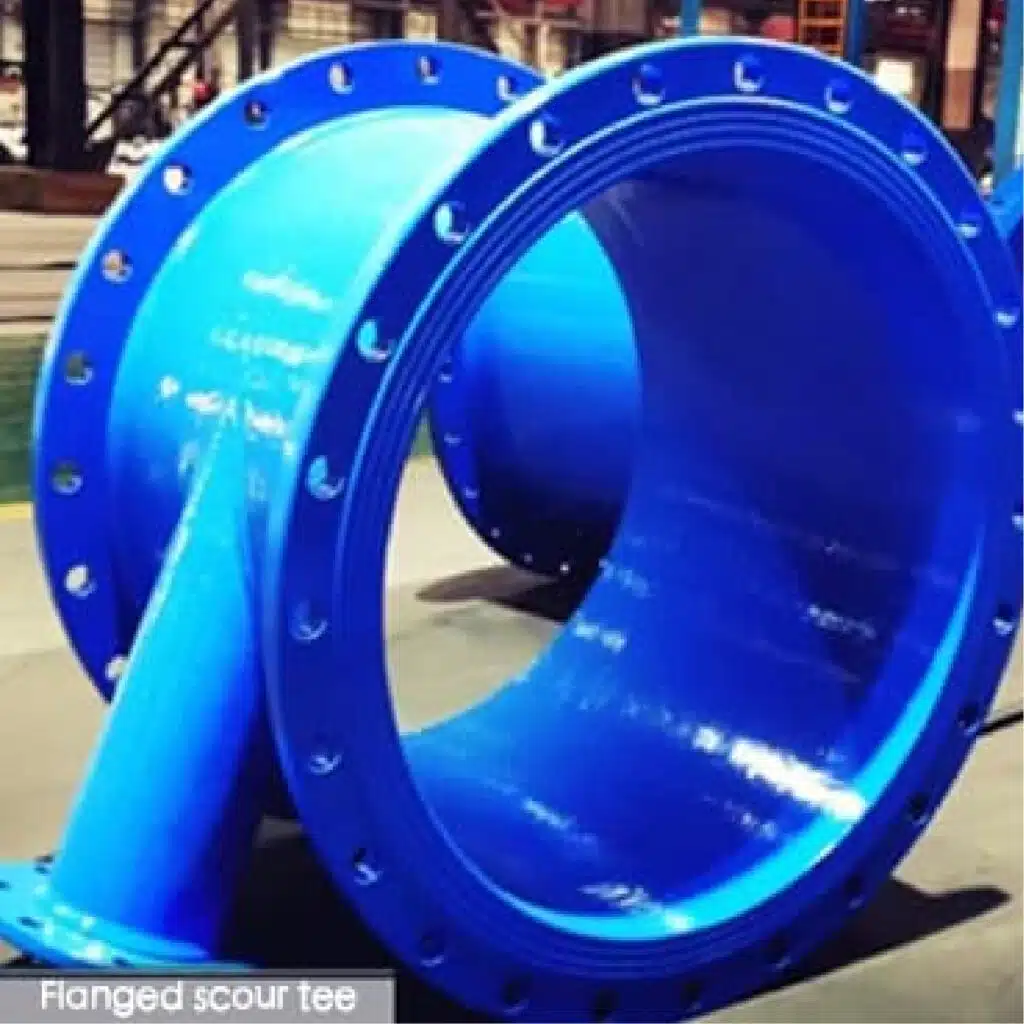

Flanged scour tee

Flanged scour tee



Flanged Tee Fitting Types

Flanged tee fittings are commonly used in piping systems to join three sections of pipe, allowing fluid flow to be split or combined. There are several types of flanged tee fittings, each serving different purposes:

  1. Equal Tee: This type of tee fitting has all three outlets of the same diameter. It’s used when all three connections need to be of the same size.

  2. Reducing Tee: In a reducing tee, the branch outlet is smaller in diameter than the main pipe outlets. This is used when the flow needs to be reduced to a smaller size.

  3. Straight Tee: This tee fitting has a straight design and is used for straight-line branching.

  4. Wye Tee (Y-Tee): This type of tee fitting has a Y-shaped design, allowing for a smoother flow transition with less turbulence.

  5. Barred Tee: A barred tee includes a bar across the branch opening to prevent solid particles or debris from entering the branch line. It’s often used in pipelines carrying particulate matter.

  6. Sweep Tee: This type has a curved design to allow for smoother fluid flow, reducing the risk of turbulence and pressure loss.

  7. Lateral Tee: A lateral tee has a 45-degree branch off the main pipe, used in situations where a 90-degree branch is not suitable.

  8. Double Branch Tee: This fitting has two branches coming off the main pipe, allowing for multiple connections in a compact space.

  9. Flanged scour tee:It is designed with a “tee” shape and includes flanges at the ends for easy connection to other pipes or equipment. The primary purpose of a flanged scour tee is to facilitate the cleaning, flushing, or draining of pipelines.

Each type of flanged tee fitting is designed to meet specific requirements in piping systems, ensuring efficient and reliable flow control.

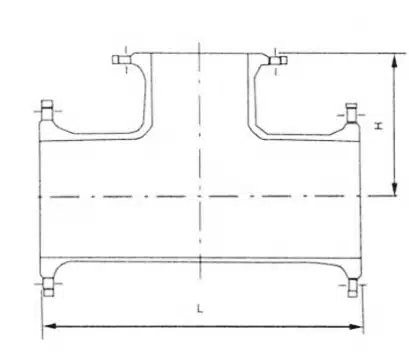

Flanged Tee Fitting Drawing
Take 90-degree branch tee as example, if you need other flanged tee fitting drawings, consult judberd for free.

Flanged Tee Fitting Drawing



Flanged Tee Dimensions

K=14
Nominal Diameter DN Nominal Diameter dn L H Mass (kg) PN10 Mass (kg) PN16 Mass (kg) PN25
80 80 330 165 15.8 15.8 15.8
100 80 360 175 18.4 18.4 19.6
100 100 360 180 19.5 19.5 21
150 80 440 205 29 29 31
150 100 440 210 30 30 32.5
150 150 440 220 32.5 32.5 36.5
200 80 520 235 42 41.5 46
200 100 520 240 43 42 47.5
200 150 520 250 46 45.5 51
200 200 520 260 49.5 49 56
250 100 700 275 68 67 75
250 150 700 300 68 67 74.8
250 200 700 325 76 75 85
250 250 700 350 82 81 93
300 100 800 300 94 93 105
300 150 800 325 97 96 109
300 200 800 350 102 101 114
300 300 800 400 116 115 131
350 100 850 325 116 122 139
350 150 850 325 118 125 143
350 200 850 325 121 128 146
350 300 850 425 138 147 170
350 350 850 425 142 151 176
400 100 900 350 143 154 177
400 150 900 350 148 157 181
400 200 900 350 148 159 184
400 300 900 450 167 176 204
400 400 900 450 174 191 225
450 100 950 375 177 193 216
450 150 950 375 180 196 220
450 200 950 375 183 199 224
450 300 950 475 199 215 244
450 400 950 475 210 230 264
450 450 950 475 216 240 275
500 100 1000 400 210 241 265
500 150 1000 400 215 244 268
500 200 1000 400 242 245 271
500 300 1000 500 235 263 292
500 400 1000 500 242 276 311
500 500 1000 500 252 297 332
600 150 1100 450 307 356 386
600 200 1100 450 305 358 388
600 300 1100 550 326 375 410
600 400 1100 550 329 387 427
600 600 1100 550 355 434 477

Larger size is also available upon requirement.



Flanged Tee Application

Flanged tees come in various designs and materials, each suited for specific systems and applications. Here are some examples:

  1. Carbon Steel Flanged Tees:

    • Applications: Oil and gas pipelines, water distribution systems, and industrial processes.
    • Systems: High-pressure pipelines, steam systems, and petrochemical plants.
    • Characteristics: High strength, durability, and resistance to high pressures and temperatures.
  2. Stainless Steel Flanged Tees:

    • Applications: Food and beverage processing, pharmaceutical production, and chemical processing.
    • Systems: Sanitary piping systems, corrosive environments, and clean water systems.
    • Characteristics: Corrosion resistance, easy to clean, and suitable for hygienic applications.
  3. Ductile Iron Flanged Tees:

    • Applications: Municipal water supply, wastewater treatment, and fire protection systems.
    • Systems: Potable water systems, sewage systems, and fire sprinkler systems.
    • Characteristics: Good strength and ductility, resistance to corrosion and wear.
  4. PVC (Polyvinyl Chloride) Flanged Tees:

    • Applications: Low-pressure water systems, irrigation, and certain chemical applications.
    • Systems: Agricultural irrigation, residential plumbing, and drainage systems.
    • Characteristics: Lightweight, corrosion-resistant, and easy to install.
  5. Copper Flanged Tees:

    • Applications: HVAC systems, potable water systems, and refrigeration.
    • Systems: Air conditioning, hot and cold water distribution, and medical gas systems.
    • Characteristics: Good thermal conductivity, corrosion resistance, and easy to work with.

Each type of flanged tee is chosen based on the specific requirements of the system, such as pressure, temperature, and the nature of the fluid being transported.



RFQ


Fire Hydrant Tee

fire hydrant tee is a specialized type of pipe fitting used in fire protection systems. It is designed to connect a fire hydrant to the main water supply line, allowing for an efficient and reliable flow of water in case of a fire emergency. Here are some key characteristics and applications of a fire hydrant tee:

Characteristics:

  1. Configuration:

    • Typically, a fire hydrant tee has one end that connects to the main water supply line and another end that branches off to the fire hydrant.
    • The third end usually connects to a continuation of the main water supply line or another branch.
  2. Material:

    • Made from durable materials such as ductile iron, cast iron, or steel to withstand high pressures and harsh environmental conditions.
  3. Flanged Connections:

    • Often features flanged connections for secure and leak-proof assembly.
    • Allows for easy installation and maintenance.
  4. Standards Compliance:

    • Designed to comply with fire safety standards and regulations to ensure reliability during emergencies.

Applications:

  1. Municipal Fire Protection Systems:

    • Used in urban and suburban areas to connect fire hydrants to the main water supply network.
    • Ensures a steady and high-pressure water supply for firefighting purposes.
  2. Industrial Facilities:

    • Installed in industrial sites to provide fire hydrants for on-site fire protection.
    • Essential in areas with high fire risk due to the presence of flammable materials.
  3. Commercial Complexes:

    • Employed in large commercial buildings and complexes to ensure adequate fire protection coverage.
    • Facilitates quick access to water for firefighting crews.
  4. Residential Areas:

    • Used in residential neighborhoods to connect fire hydrants, ensuring safety for homes and properties.
    • Critical for suburban fire safety infrastructure.

Benefits:

  • Reliable Water Supply: Ensures a dependable and robust water supply for firefighting.
  • Ease of Maintenance: Flanged connections allow for easy access and maintenance of the hydrant and piping system.
  • Durability: Made from strong materials designed to last and function effectively under high pressure.

In summary, a fire hydrant tee is a crucial component in fire protection systems, providing a connection point between the main water supply line and fire hydrants to ensure quick and reliable access to water during emergencies.

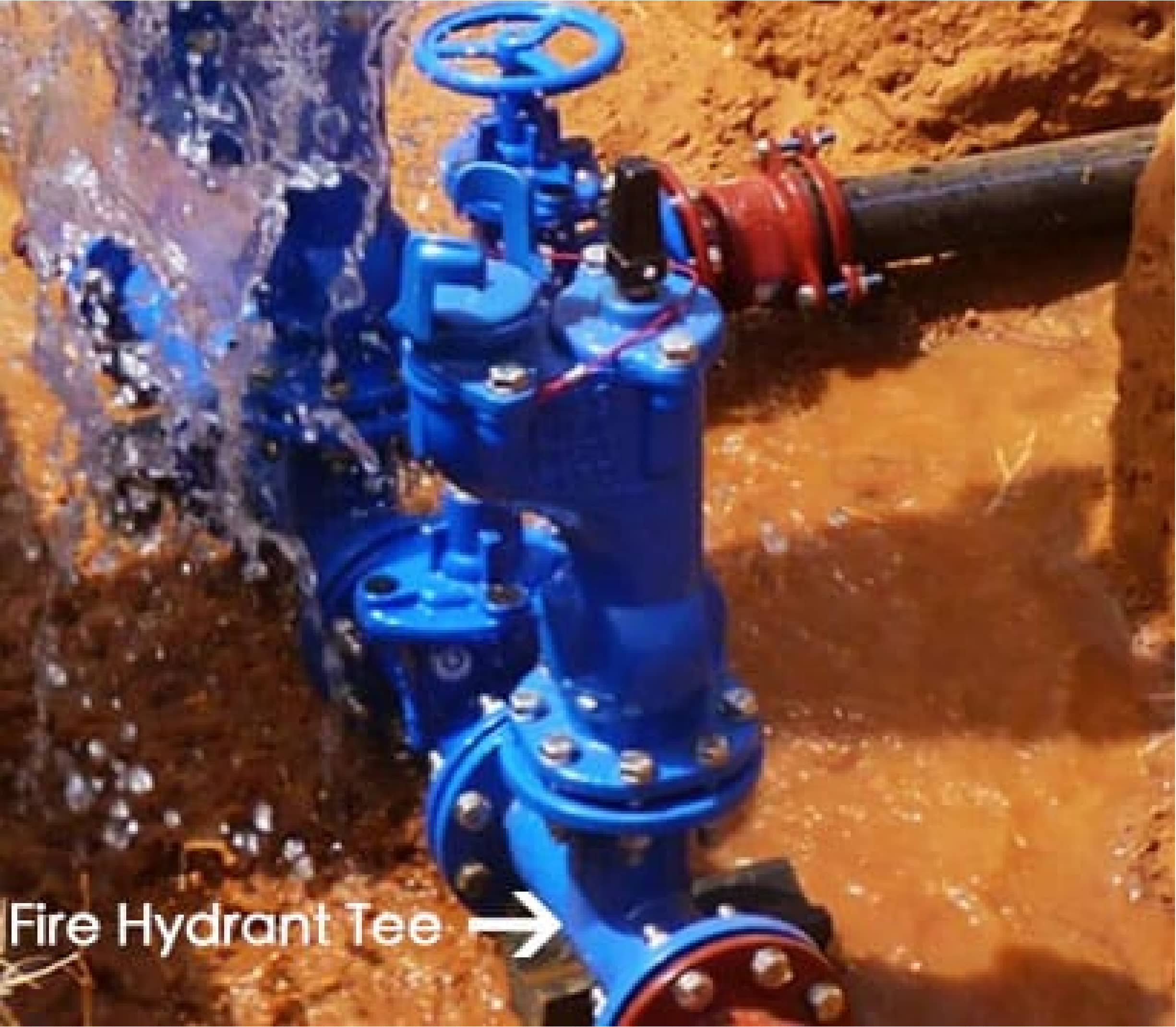

fire hydrant tee



NOTE

Flanged tees offer rigid connection, the connection is stable and It can transmit axial forces well  , but is not suitable for ground surfaces that are prone to instability and settlement. In the event of ground subsidence or movement, damage can easily be caused to the flange tees and the accessories which are used for flange connection.
