Gibault Joint

Gibault joint is a type of pipe fitting used to connect two pipes of the same or different diameters. It is especially useful for repairing or joining pipes without the need for welding or threading. The joint consists of a central body with glands on either side and is secured using bolts and gaskets to ensure a watertight seal. Gibault joints are commonly used in water supply systems, irrigation, and sewage pipelines due to their ease of installation and ability to accommodate pipe misalignment.

Judberd design several Gibault joints which is used for PVC pipe and PE pipe only,Normally it is used to connect PVC pipe plain ends.The long body type also can be used for low pressure HDPE pipe,As  Gibault Joint manufacturer in china, we can offer several type gibault joint as below

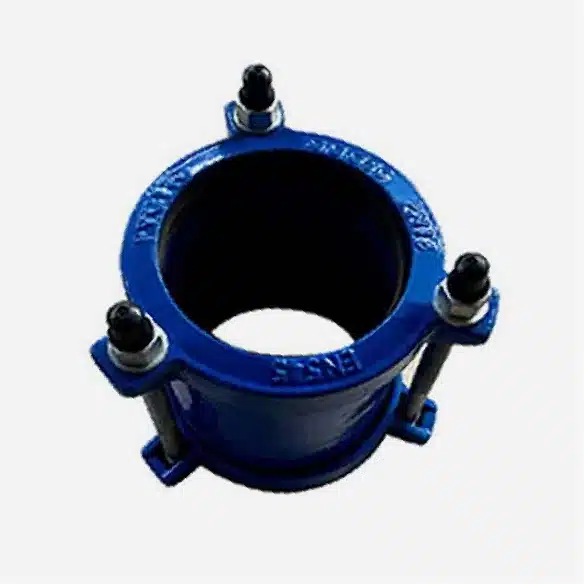

gibault joint with trapezoidal rubber rings

Gibault joint with trapezoidal rubber rings

Sr No GJ001

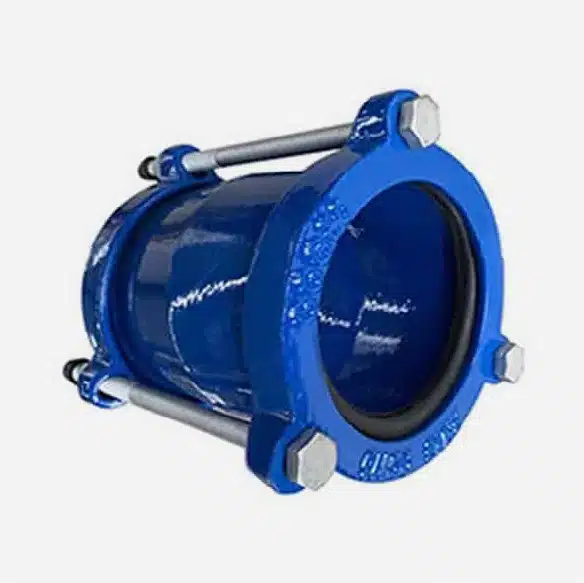

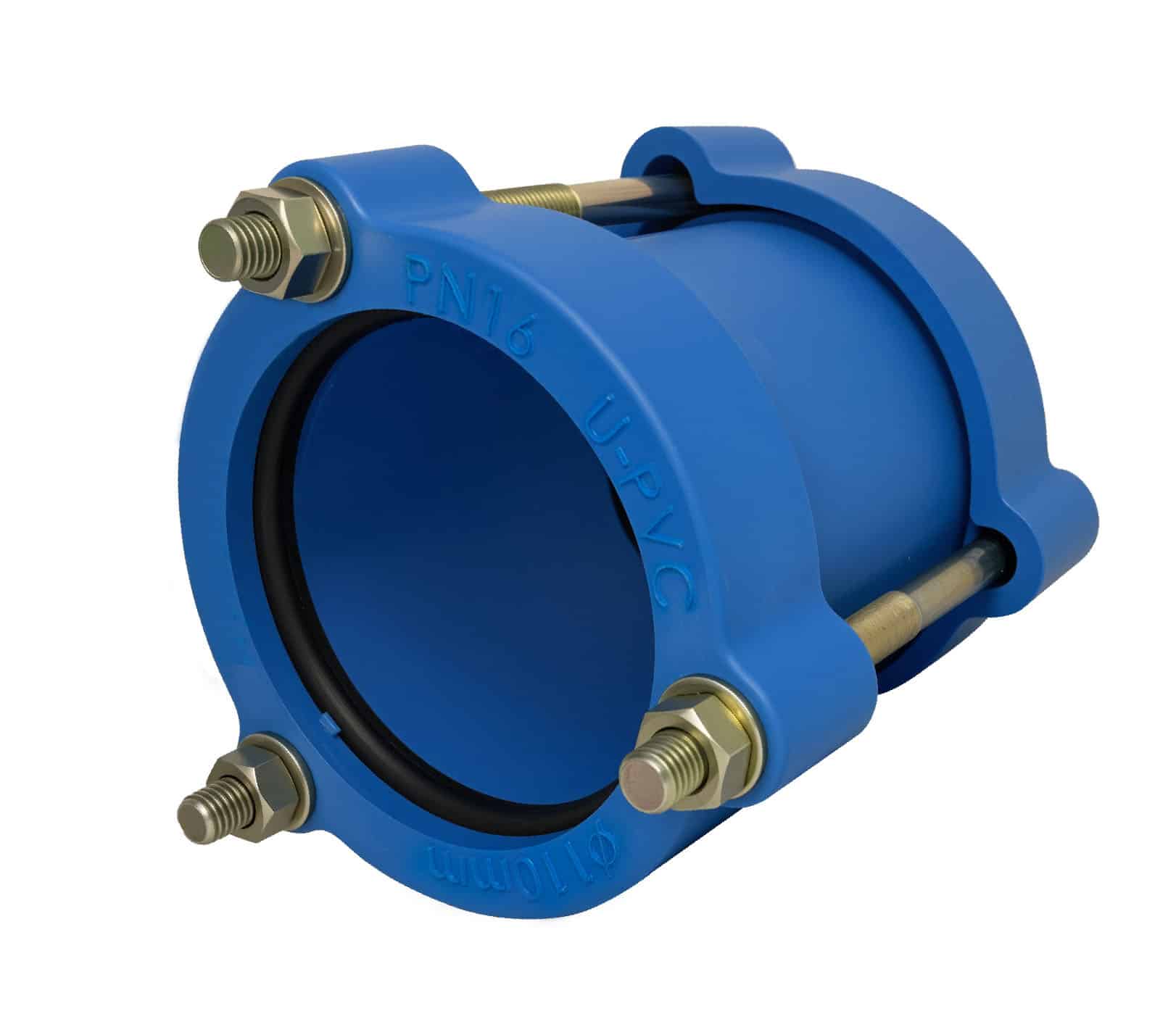

gibault joint with o shape rubber rings short body

Gibault joint with O shape rubber rings

Sr No GJ002

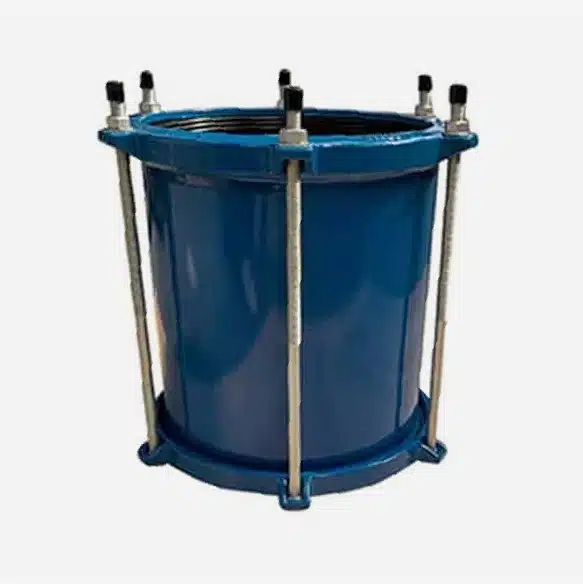

Gibault joint with rapezoidal rubber rings long body for hdpe pipe

Gibault joint with long body for HDPE pipe

Sr No GJ003

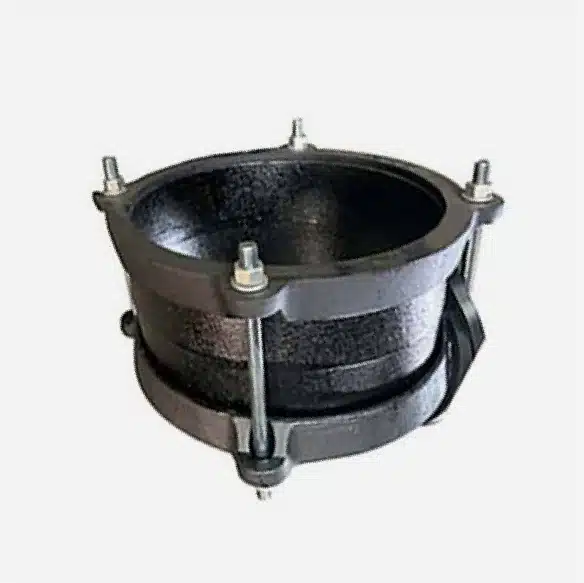

gibault joint with square rubber rings with cement paint for irrigation

Gibault joint with  cement paint for irrigation

Sr No GJ004

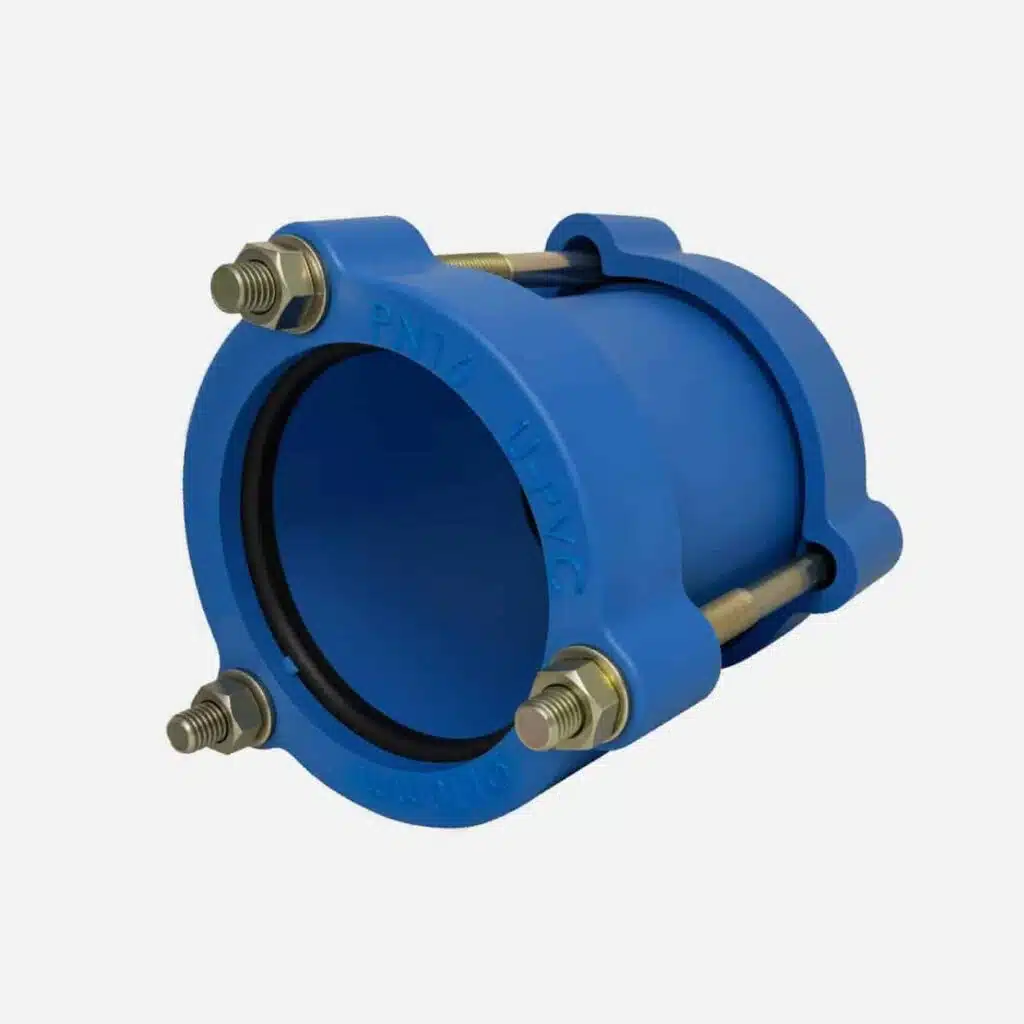

gibault joint with o shape rubber rings

Gibault joint with O shape rubber rings

Sr No GJ005


VIDEO


What is gibault joint?

Judberd Gibault joint is designed specifically for the plain end of PVC pipe and HDPE pipe. For other pipes, we normally call them coupling which is used to connect pipe plain ends .Compared to the universal coupling, the gibault joint is designed specifically for the outer diameter of one pipe, so its dimension fits the outer diameter of the pipe accurately, making tightening very quick and easy. The sealing performance is very good. The gibault joint can withstand higher pressures than a Wide Range Coupling of the same size.
The gibault joint is also much cheaper than a wide range coupling of the same size because it is designed for one type of pipe, the rubber ring is lighter and the design of the gland and middle sleeve is simpler. Also for HDPE pipes, if the customer does not want a brass grip ring, a long Gibault joint can be designed for the connection. The cost is lower and the connection is quicker than restrained coupling for HDPE pipe.

If you just want to connect the two spigot ends of PVC pipes, the gibault joint is the best choice, both in terms of performance and price, gibault joints have a great advantage over pipe couplings. But Pipe Couplings also has its own great advantages according to different designs ,for example Maxifit Coupling can be connected to many different pipes to reduce stock if different pipes are popular, Mechanical Joint Coupling has a locking function, Step Coupling can transit between different pipes. So the customer has to choose according to his needs.


gibault joint application

Gibault joint can be used for drinking water, irrigation water, neutral water, sewage, etc.
Maximum pipe pressure PN16


gibault joint design

Design standard EN545/ISO2531/AWWAC219
Material: ductile iron for high pressures, grey iron for low pressures
Rubber ring EPDM, NBR or other
Bolts Carbon steel or stainless steel
Surface treatment FBE coating or bitumen


gibault joint Material

Body ductile iron for high pressures, grey iron for low pressures
Rubber ring EPDM, NBR or other
Bolts Carbon steel or stainless steel
Surface treatment FBE coating or bitumen

How to install gibault joint?

You can follow the video as right to assemble gibault joint step by step


What determines if a gibault joint is good?

As a manufacturer who produce gibault joint for 32 years, we always meet some client who are worry if our bolts No. and gasket shape is not same as the ones which is popular in local market.So client worry if we should change according to the popular one in the local market.The answer is no need.Our professional designers have taken very thorough consideration to ensure that our gibault joints can work very well.
It is only because there is no uniform standard for gibault joints so the style is different in each country.
