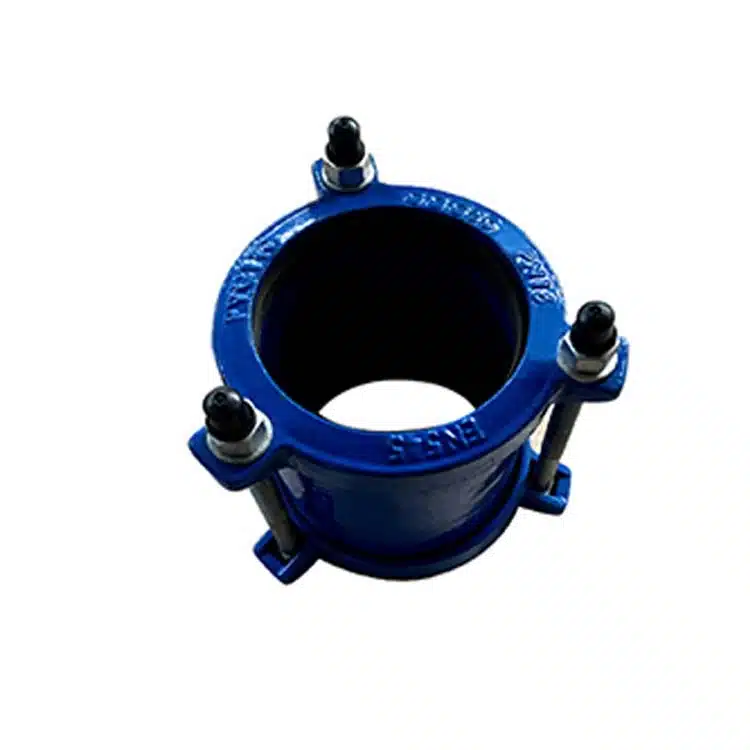

Gibault joint for PVC pipe
Specification
Gibault joint standard:comply with EN545
Coating standard:EN30677
Test standard: EN12266-1
Working pressure and Temperature
size OD40 to OD315,Working pressure PN10/PN16
Temperature from -10℃ to 120℃ for EPDM gasket
Temperature from -10℃ to 82℃ for NBR gasket
Use
Suitable for potable water,neutral liquids and sewage
WRAS approved is available upon request

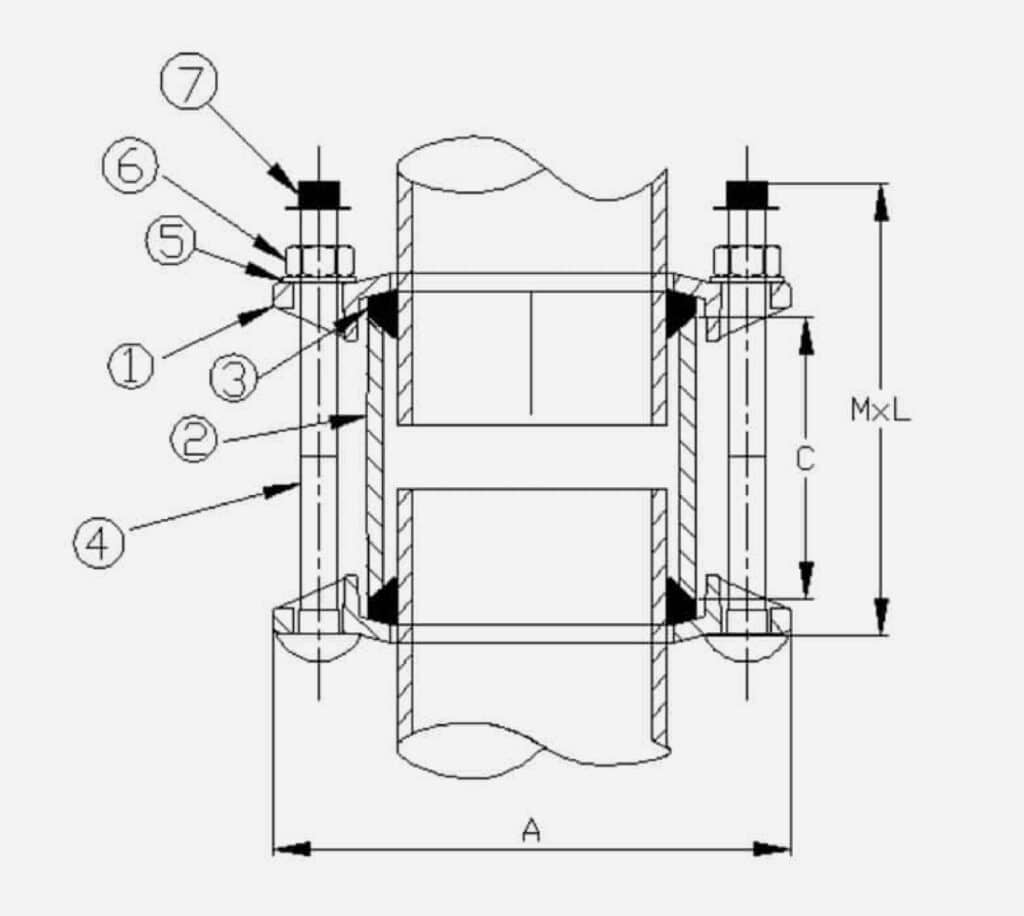

Drawing
Material specification
| Sr.No. | Name | Material |
|---|---|---|
| 1 | End ring | Ductile iron |
| 2 | Center Sleeve | Ductile iron |
| 3 | Gasket | EPDM/NBR |
| 4 | Bolt | Gal. steel/Dacromet coated steel/SS |
| 5 | Washer | Gal. steel/Dacromet coated steel/SS |
| 6 | Nut | Gal. steel/Dacromet coated steel/SS |
| 7 | Cap | Plastic |
Options:Grade 4.8/6.8/8.8 carbon steel bolts with galvanization/dacromet/teflon etc
Stainless steel SS304/SS316/SS316L/A2/A4 etc bolts
FBE coating and Nylon 11 coating is available
Dimension
| PVC pipe OD | A(mm) | C(mm) | Bolts No. | MxL | Weight (kg) |
|---|---|---|---|---|---|
| 63 | 142 | 80 | 2 | M12x140 | 2.0 |
| 75 | 154.4 | 100 | 2 | M12x160 | 2.5 |
| 90 | 169.4 | 100 | 2 | M12x160 | 3.0 |
| 110 | 192.4 | 100 | 3 | M12x160 | 3.8 |
| 125 | 207.4 | 100 | 3 | M12x160 | 4.2 |
| 140 | 222.4 | 100 | 3 | M12x160 | 5.0 |
| 160 | 246.4 | 130 | 4 | M12x190 | 7.0 |
| 200 | 287 | 130 | 4 | M12x190 | 9.1 |
| 250 | 338 | 140 | 6 | M12x200 | 12.0 |
| 315 | 403 | 140 | 6 | M12x200 | 14.6 |
