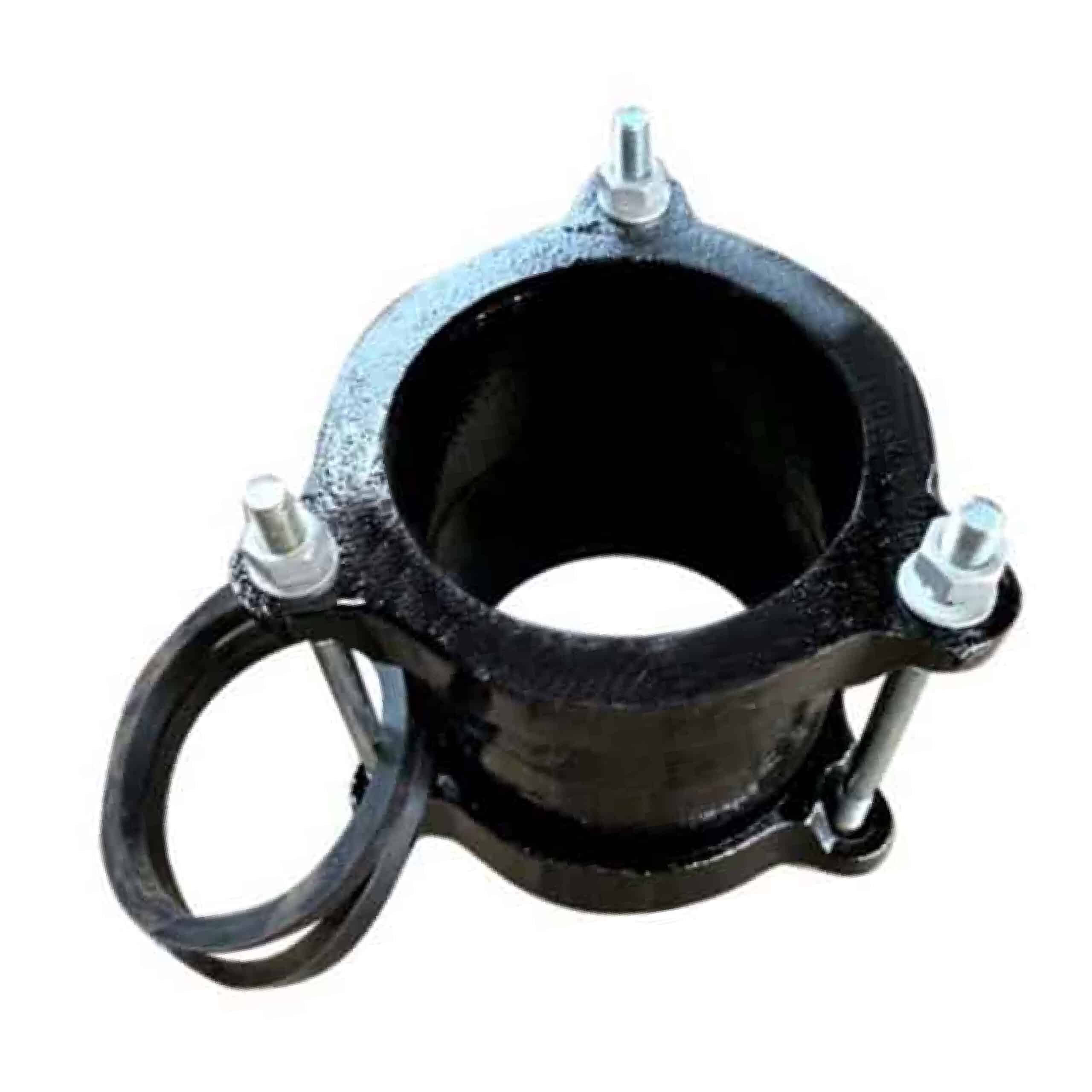

Gibault Joint With Cement Paint For Irrigation
Specification
● Gibault joint standard:comply with EN545
● Coating standard:EN30677
● Test standard: EN12266-1
● Working pressure and Temperature
● Size OD50 to OD500,Working pressure PN10/PN16
● Temperature from -10℃ to 120℃ for EPDM gasket
● Temperature from -10℃ to 82℃ for NBR gasket
Use
● Suitalbe for irrigation system

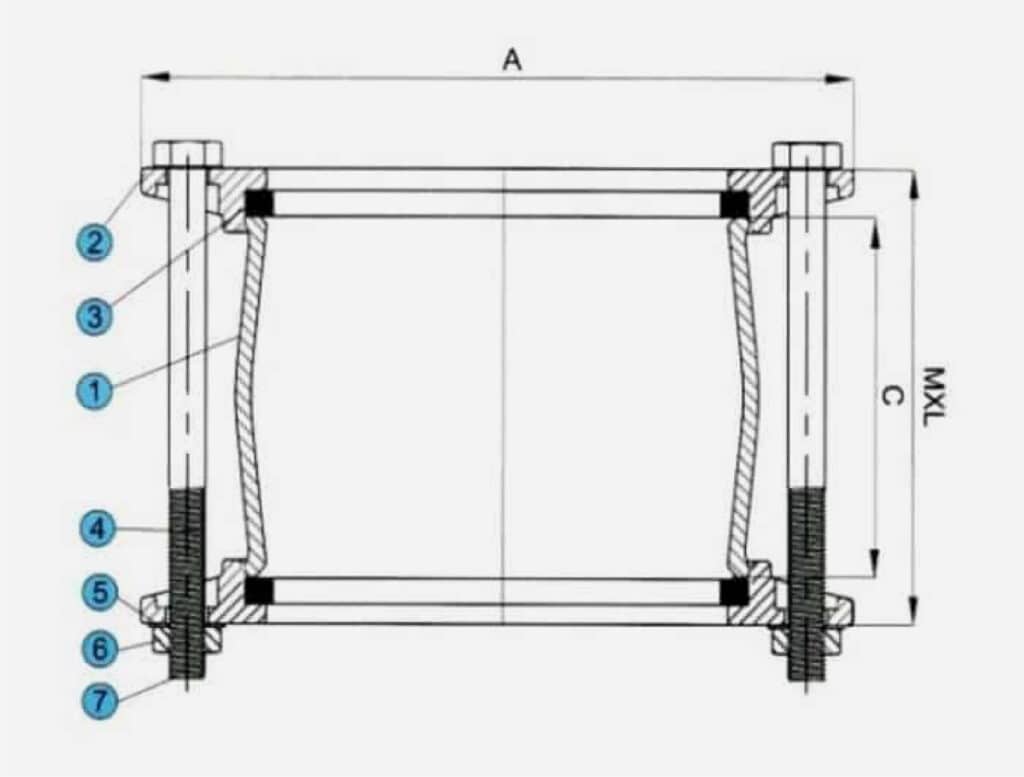

Drawing
Material specification
| Sr.No. | Name | Material |
|---|---|---|
| 1 | Center Sleeve | Grey cast iron/Ductile iron |
| 2 | End ring | Grey cast iron/Ductile iron |
| 3 | Gasket | EPDM/NBR |
| 4 | Bolt | Gal. steel |
| 5 | Washer | Gal. steel |
| 6 | Nut | Gal. steel |
| 7 | Cap | Plastic |
Options:Grade 4.8/6.8/8.8 carbon steel bolts with galvanization/dacromet/teflon etc
Stainless steel SS304/SS316/SS316L/A2/A4 etc bolts
Dimension (mm)
| PVC pipe OD | A(mm) | C(mm) | Bolts No. | MxL | Weight (kg) |
|---|---|---|---|---|---|
| 50 | 130 | 80 | 2 | M10x160 | 2.2 |
| 63 | 137 | 100 | 2 | M10x160 | 2.2 |
| 75 | 149 | 100 | 2 | M10x160 | 2.7 |
| 90 | 164 | 120 | 2 | M10x180 | 3 |
| 110 | 184 | 120 | 3 | M10x180 | 4.5 |
| 125 | 199 | 120 | 3 | M12x190 | 6.5 |
| 140 | 214 | 120 | 3 | M12x190 | 7 |
| 160 | 234 | 140 | 3 | M12x210 | 8 |
| 180 | 254 | 140 | 3 | M12x210 | 10 |
| 200 | 274 | 140 | 3 | M12x210 | 12 |
| 250 | 341 | 160 | 4 | M14x240 | 19 |
| 315 | 406 | 160 | 4 | M14x240 | 25 |
| 400 | 495 | 160 | 6 | M14x240 | 30 |
| 500 | 600 | 160 | 6 | M14x240 | 40 |
