Metal Saddle Clamp for AC pipe for Water Line installation instruction

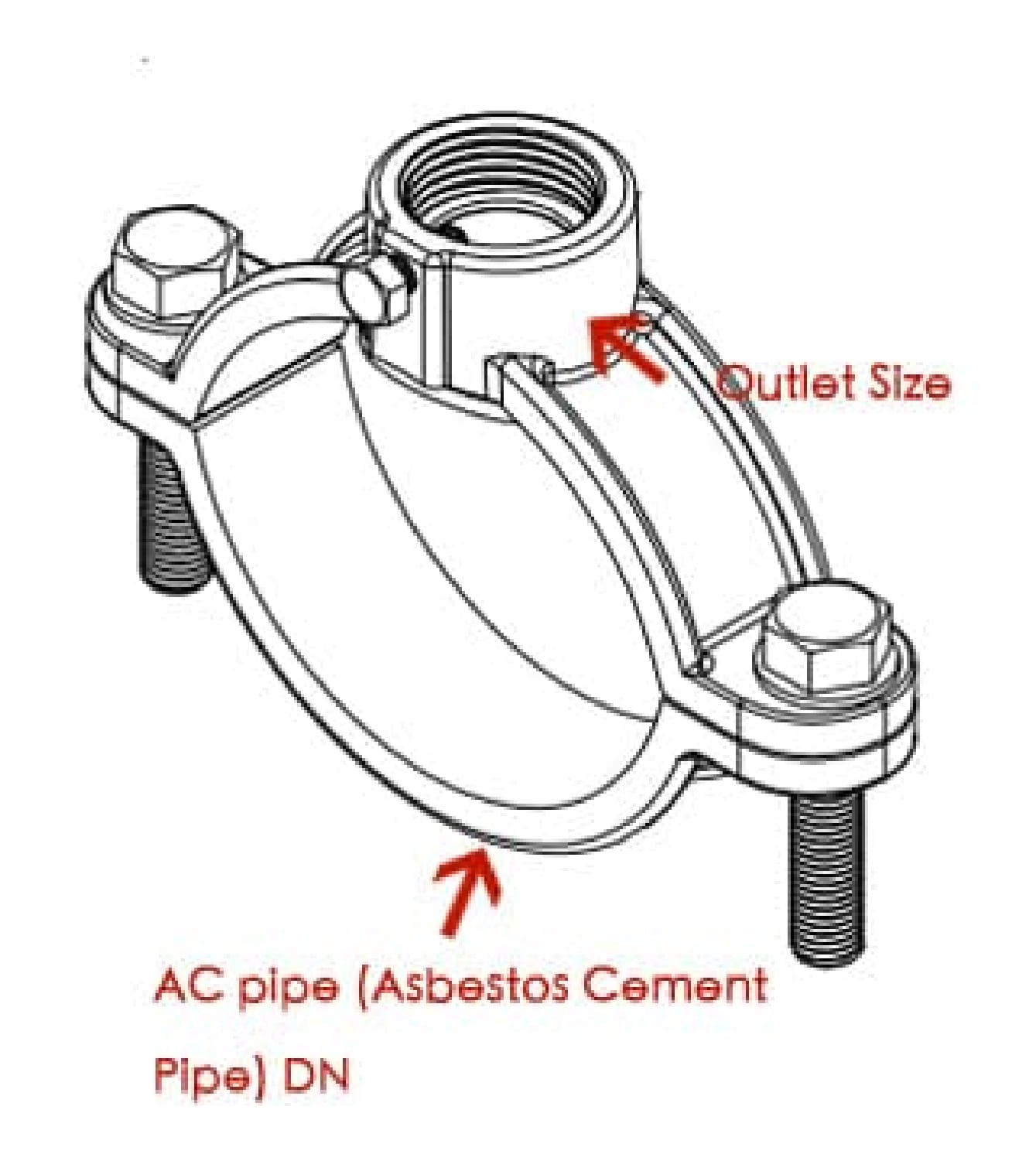

We have clearly marked the applicable nominal diameter of the AC(Asbestos Cement Pipe) pipe and the outlet size on each saddle clamp. Before installation, please carefully check these markings to confirm they match the nominal diameter of the AC(Asbestos Cement Pipe) pipe and the required outlet size. Additionally, inspect all parts of the saddle clamp to ensure they are intact, especially the threaded parts. If necessary, please indicate whether you need thread protection caps when placing your order to prevent damage to the threads.
STEP 1

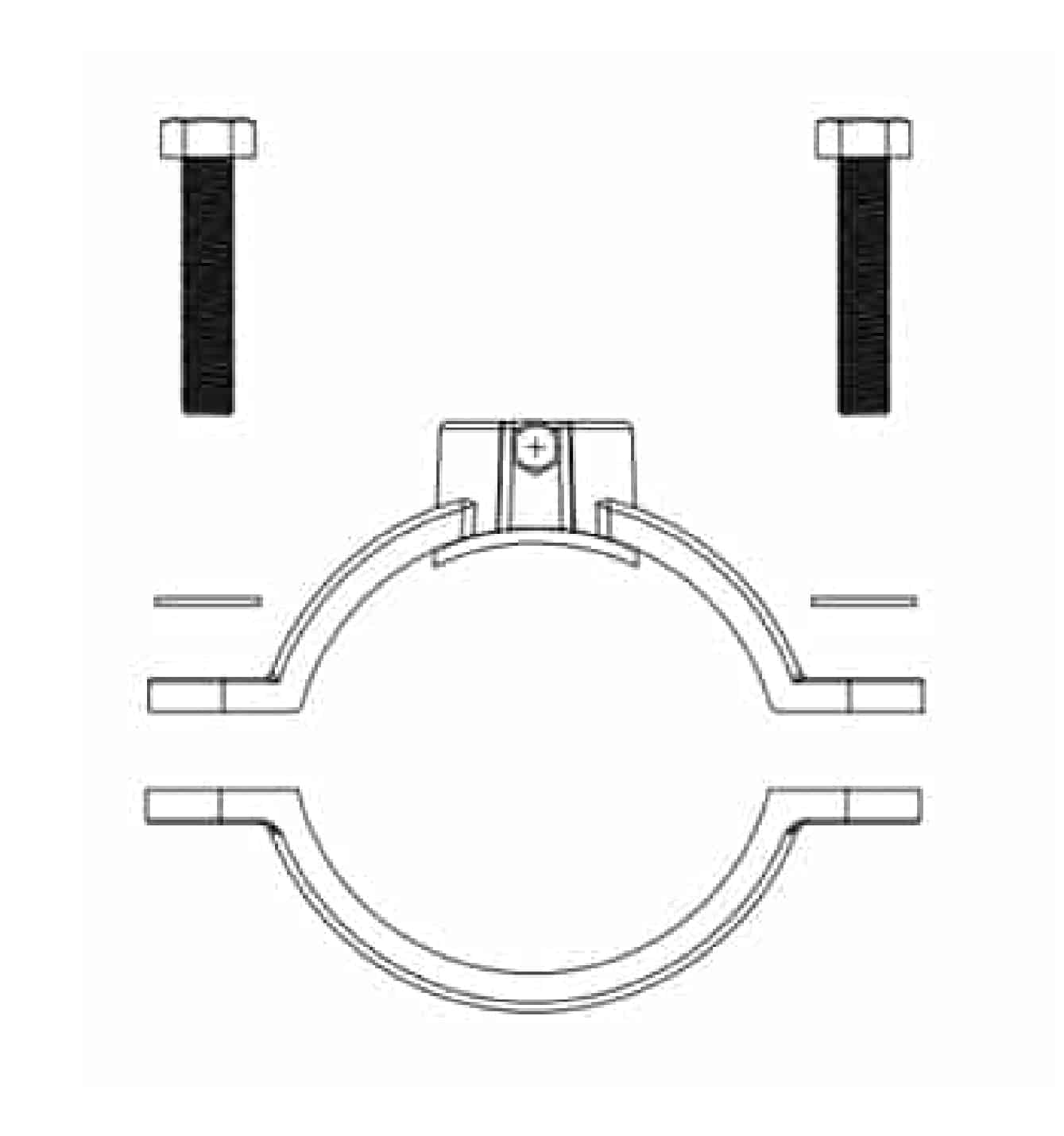

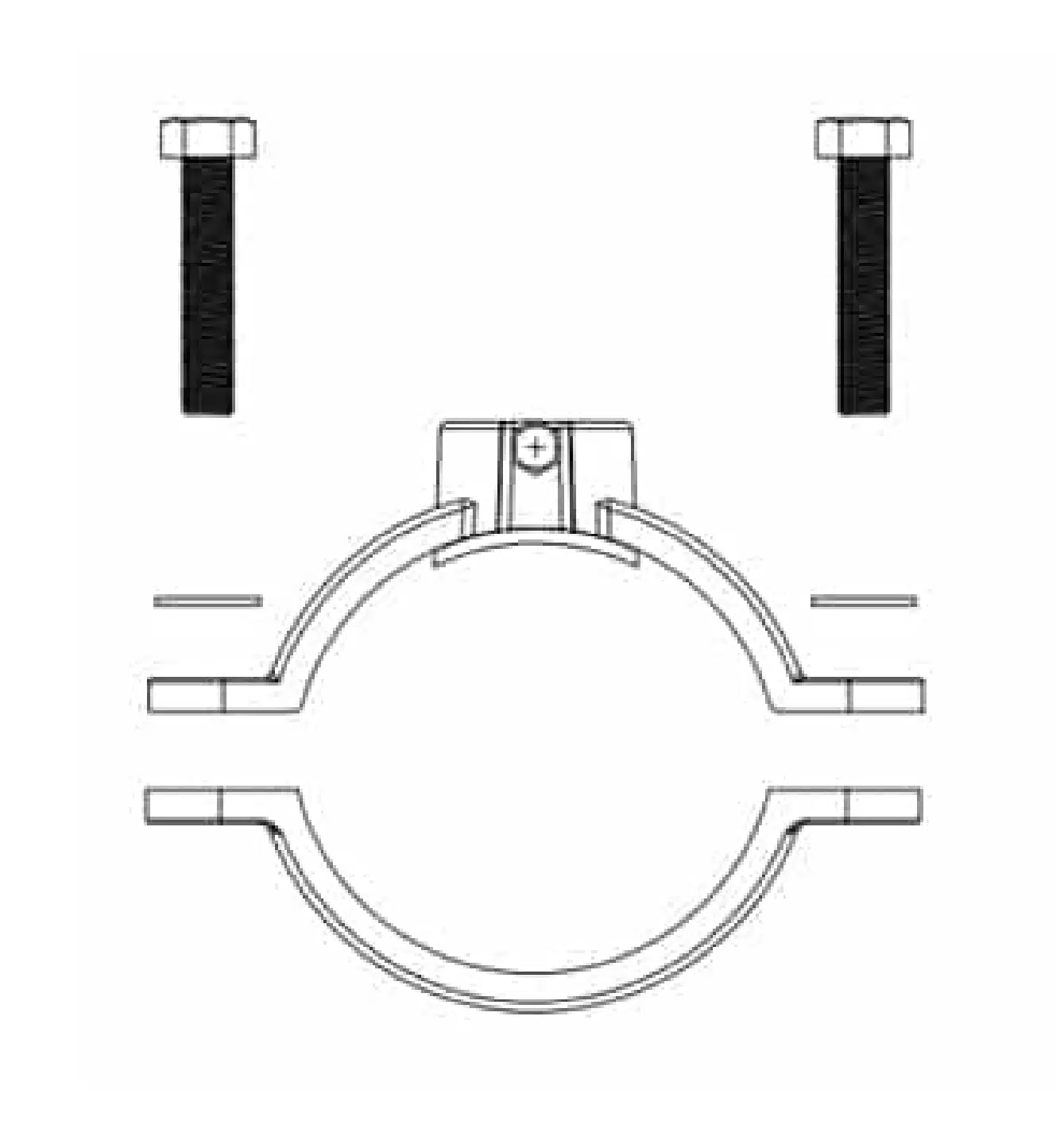

Disassemble all bolts as below figure
STEP 2

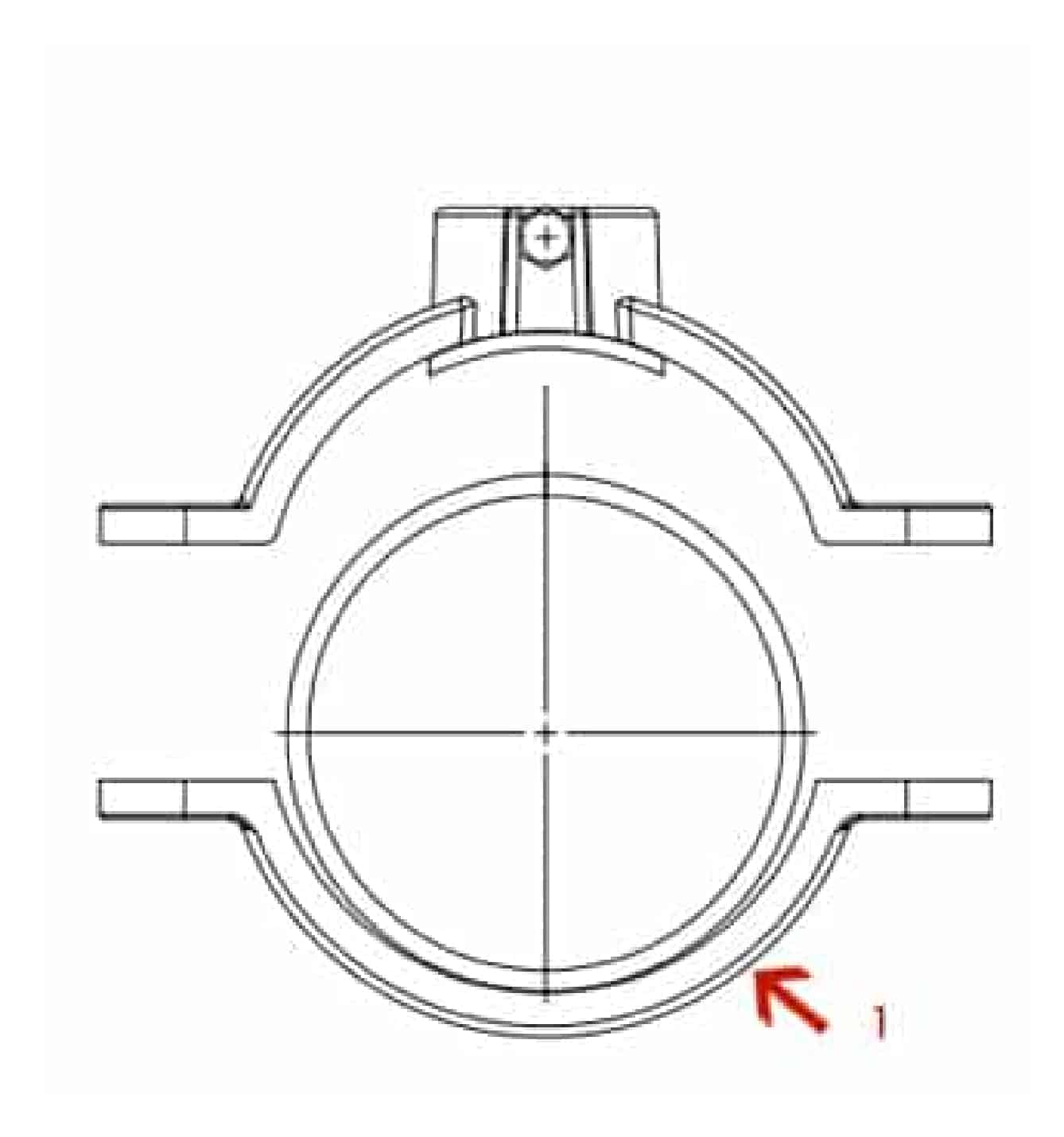

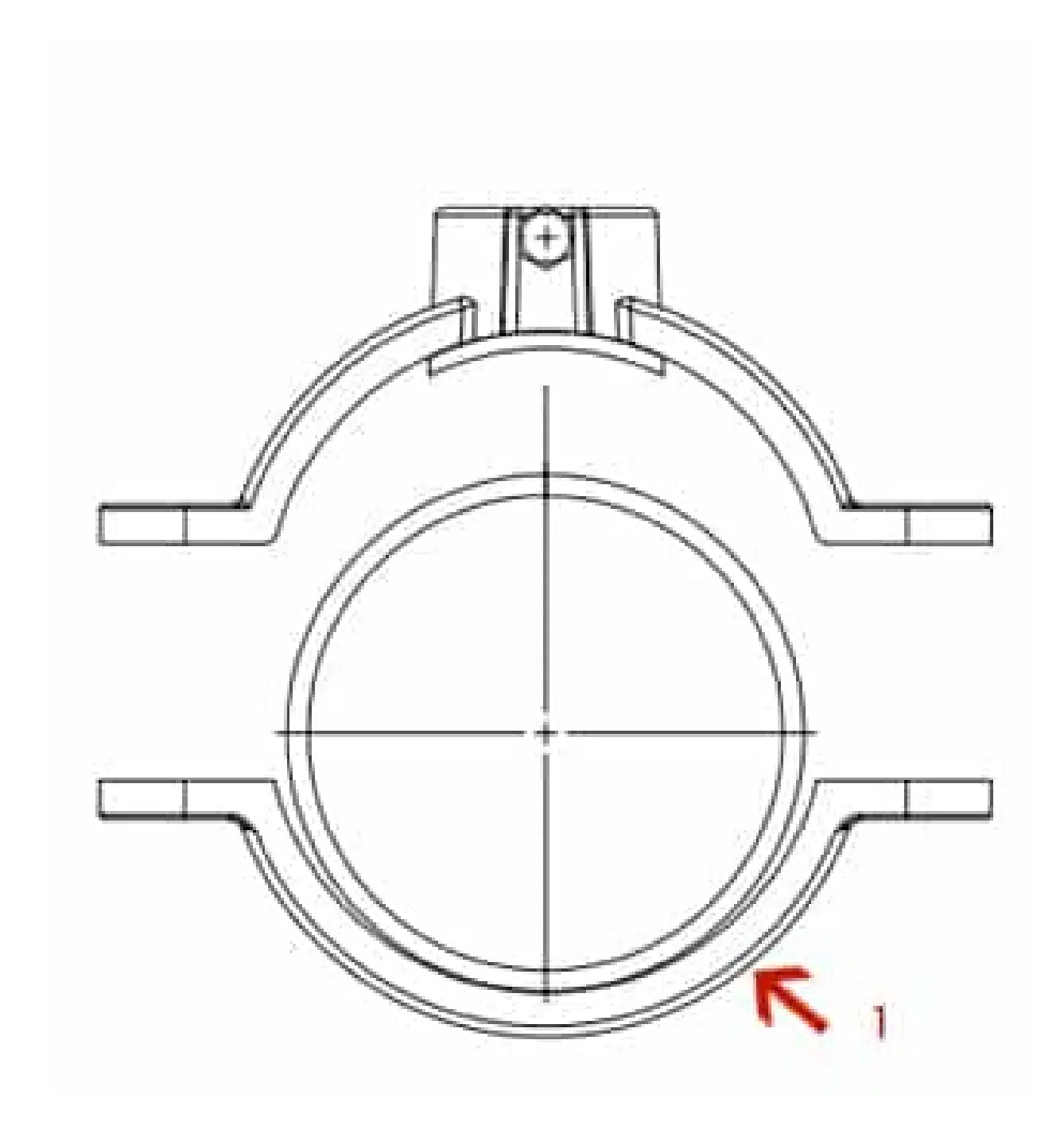

Place the lower piece of the saddle clamp body( as below figure 1) onto the main pipe. If there are strict requirements for the position of the outlet, first align the threaded outlet of the upper piece of the body with the outlet on the pipe. Use the position of the bolt holes as a reference to determine the correct placement of the lower piece of the body.
STEP 3

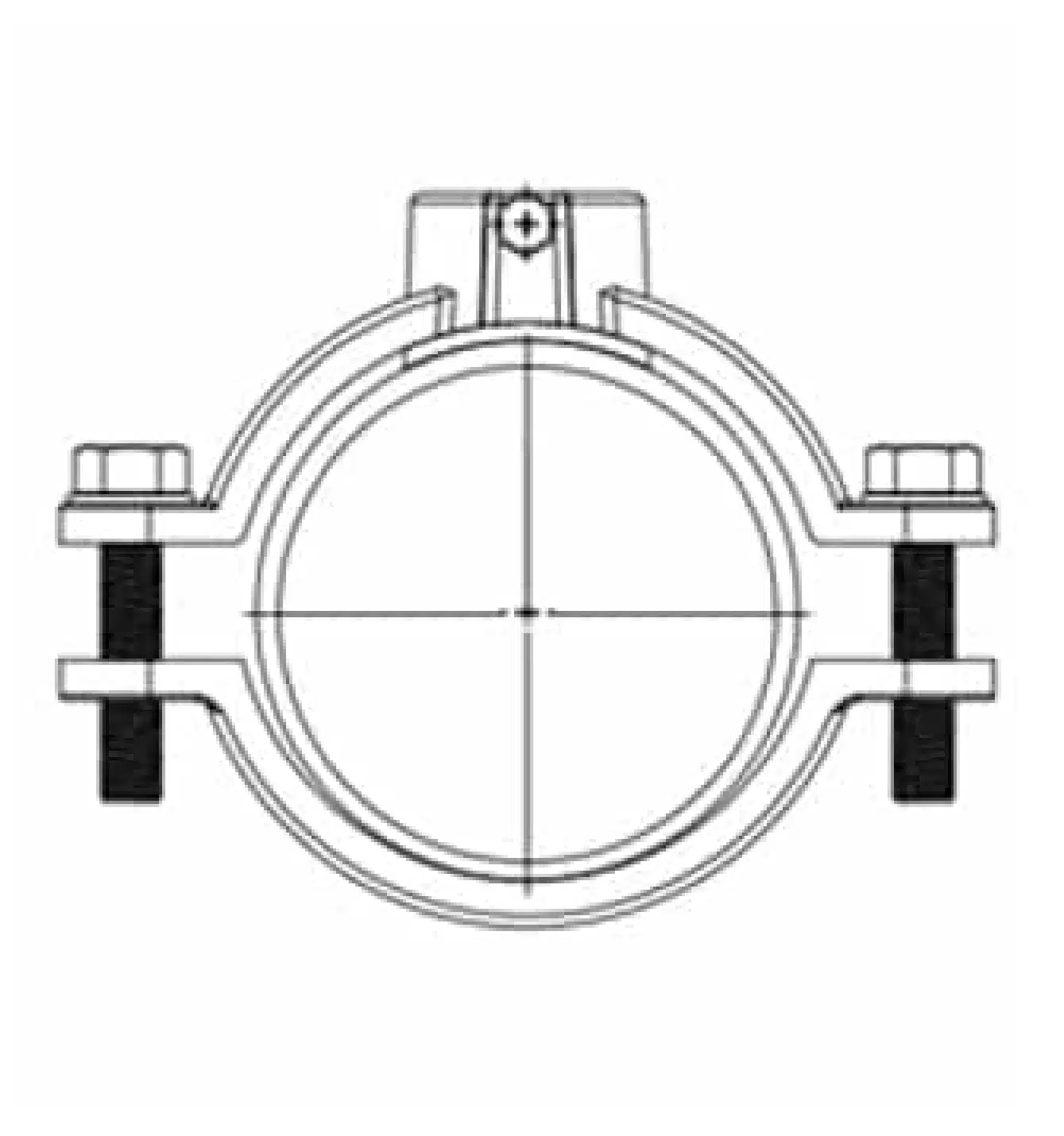

Install the washers and bolts as shown in the figure below. Tighten the two bolts alternately in multiple steps, starting with a small torque and gradually increasing it to complete the installation. Please ensure that the tightening torque on both sides is the same each time.
STEP 4

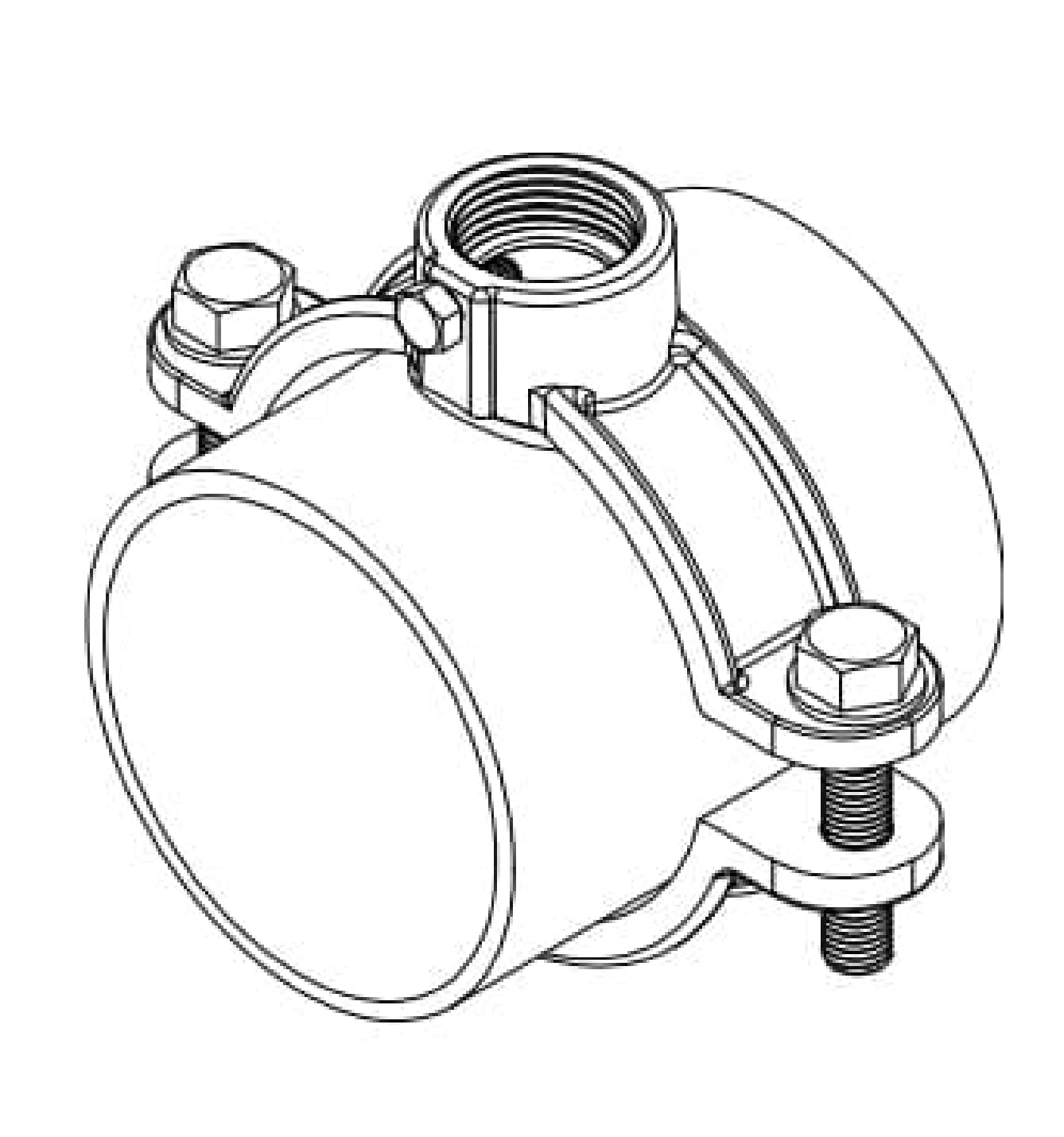

Finish assembling as below photo.
