No Axial Restraint Stainless Steel Pipe Coupling

The multi-functional pipeline stainless steel pipe coupling has the advantage of no axial restraint, ensuring that the sealing of coupling is not affected during pipe expansion or contraction.

Feature

● No axial force—when the pipe moves due to expansion or contraction, the seal is not affected.

● suitable for shipbuilding, water supply, sewage treatment plants, and industrial piping.

● Whether it is a suction line or a pressure line, you can install it safely and quickly.

● It is for pipe outer diameters from 26.9mm to 2032mm.

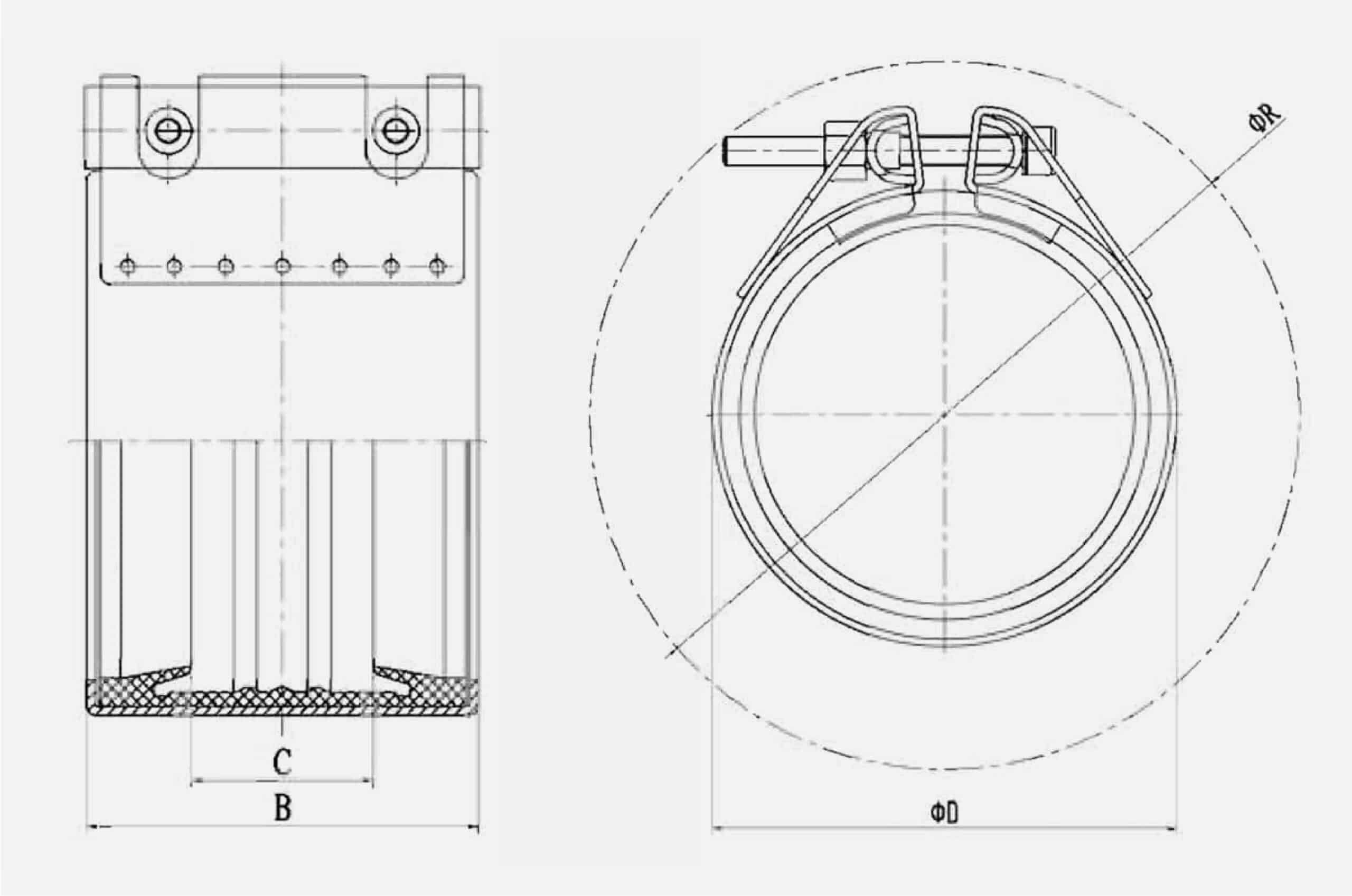

DRAWING

Material

Item	Part Name	Material
1	Housing	AISI 304, AISI 316L, AISI 316Ti
2	Sealing Gasket	EPDM， NBR， MVQ， FPM/FKM
3	Bolts	AISI 304, AISI 316L
4	Pins	AISI 304, AISI 316L
5	Steel Clips (Optional)	AISI 301

Dimension

Pipe Outer Diameter		Applicable Pipe Outer Diameter Range	Working Pressure		Coupling Outside Diameter	Coupling Width	Distance Between Sealing Lips	Pipe End Gap		Torque	Bolts
O.D.		Min-Max	Static Sealing Pressure	Dynamic Sealing Pressure	¢D	B	C	Without Steel Clips	With Steel Clips
(mm)	(In.)	(mm)	(bar)	(bar)	(mm)	(mm)	(mm)	(mm)	Max(mm)	(Nm)	M
26.9	1.059	26-28	25	40	38.9	61	26	5-8	10	5	M6×2
30	1.181	29-31	25	40	42	61	26	5-8	10	5
33.7	1.327	32-35	25	40	45.7	61	26	5-8	10	5
38	1.496	37-39	25	40	52	61	26	5-8	10	7.5	M8×2
42.4	1.669	41-43	25	40	56.4	61	26	5-8	10	7.5
44.5	1.752	44-46	25	40	58.5	61	26	5-8	10	7.5
48.3	1.902	47-50	25	40	62.3	61	26	5-8	10	7.5
54	2.126	52-56	20	35	70	76	37	5-10	15	10
57	2.244	55-59	20	35	73	76	37	5-10	15	10
60.3	2.374	59-62	20	35	76.3	76	37	5-10	15	10
66.6	2.622	64-68	20	40	82.6	95	37	5-10	25	20
70	2.756	68-71	20	40	86	95	41	5-10	25	20
73	2.874	71-75	20	40	89	95	41	5-10	25	20
76.1	2.996	74-78	20	40	92.1	95	41	5-10	25	20
79.5	3.13	78-80	20	40	95.5	95	41	5-10	25	20
84	3.307	82-86	20	40	100	95	41	5-10	25	20
88.9	3.5	87-91	20	40	104.9	95	41	5-10	25	20
100.6	3.961	99-103	18	35	118.6	95	41	5-10	25	20
101.6	4	100-104	18	35	119.6	95	41	5-10	25	20
104	4.094	102-106	18	35	122	95	41	5-10	25	20
108	4.252	106-110	18	35	126	95	41	5-10	25	20
114.3	4.5	113-116	18	35	132.3	95	41	5-10	25	20
127	5	126-128	18	40	149	110	54	5-10	35	25	M10×2
129	5.079	128-130	18	40	151	110	54	5-10	35	25
130.2	5.126	129-132	18	40	152.2	110	54	5-10	35	25
133	5.236	131-135	18	40	155	110	54	5-10	35	25
139.7	5.5	138-142	18	40	161.7	110	54	5-10	35	25
141.3	5.563	140-143	18	40	163.3	110	54	5-10	35	25
154	6.063	153-156	18	35	176	110	54	5-10	35	25
159	6.26	158-161	18	35	181	110	54	5-10	35	25
168.3	6.626	167-170	18	35	190.3	110	54	5-10	35	25
180	7.087	166-171	16	30	202	142	75	10-25	40	50	M12×2
200	7.874	198-202	16	30	222	142	75	10-25	40	50
219.1	8.626	216-222	16	30	249.1	142	75	10-25	40	60
250	9.843	247-253	16	25	280	142	75	10-25	40	60
267	10.512	264-270	16	25	297	142	75	10-25	40	60
273	10.748	270-276	16	25	303	142	75	10-25	40	60
304	11.969	301-307	10	20	334	142	75	10-25	40	80
323.9	12.752	321-327	10	20	353.9	142	75	10-25	40	80
355.6	14	353-358	8.5	16	385.6	142	75	10-25	40	80
377	14.843	375-379	8.5	16	407	142	75	10-25	40	80
406.4	16	404-409	7.5	16	436	142	75	10-25	40	80
457.2	18	454-460	6.5	12	487	142	75	10-25	40	80
508	20	505-511	6	10	538	142	75	10-25	40	120	M16×2
558.8	22	556-562	5.5	10	588.8	142	75	10-25	40	160
609.6	24	606-613	5	10	639.6	142	75	10-25	40	160
711.2	28	708-715	4	5	741.2	142	75	10-25	40	160
762	30	758-766	4	5	792	142	75	10-25	40	160
812.8	32	809-817	4	5	842.8	142	75	10-25	40	200
914.4	36	910-918	4	5	944.4	142	75	10-25	40	200
1016	40	1012-1020	4	5	1046	142	75	10-25	40	200
1117.6	44	1114-1122	3.5	5	1147.6	142	75	10-25	40	200
1219.2	48	1215-1224	3.5	5	1249.2	142	75	10-25	40	200
1320.8	52	1316-1325	3	5	1350.8	142	75	10-25	40	240
1422.4	56	1418-1427	3	5	1452.4	142	75	10-25	40	240
1524	60	1519-1529	2.5	5	1554	142	75	10-25	40	240
1600	62.992	1595-1605	2.5	5	1630	142	75	10-25	40	240
1625.6	64	1621-1631	2.5	5	1655.6	142	75	10-25	40	240
1727.2	68	1722-1732	2.5	5	1757.2	142	75	10-25	40	240
1828.8	72	1824-1834	2	5	1858.8	142	75	10-25	40	240
1930.4	76	1925-1936	2	5	1960.4	142	75	10-25	40	240
2032	80	2027-2037	2	5	2062	142	75	10-25	40	240
