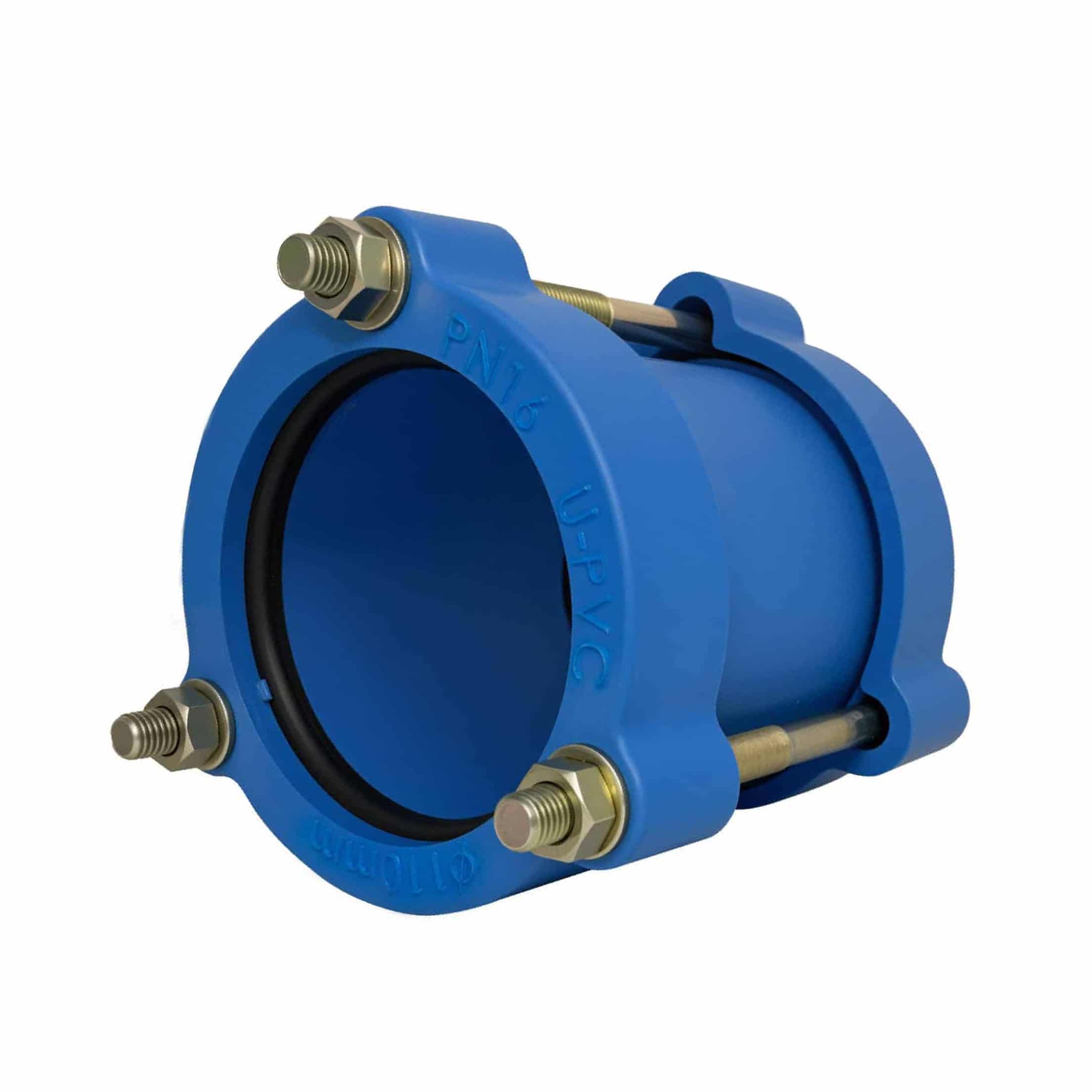

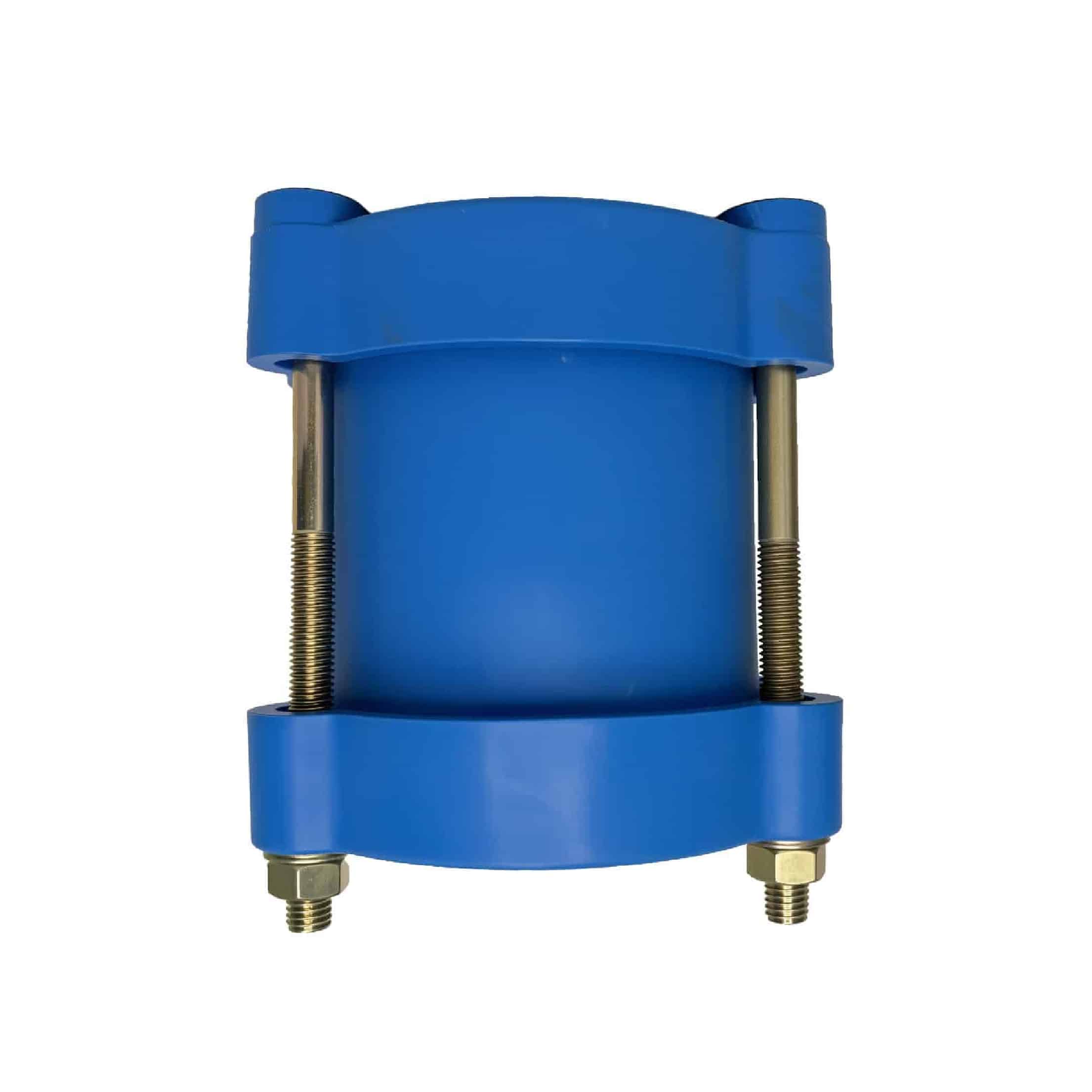

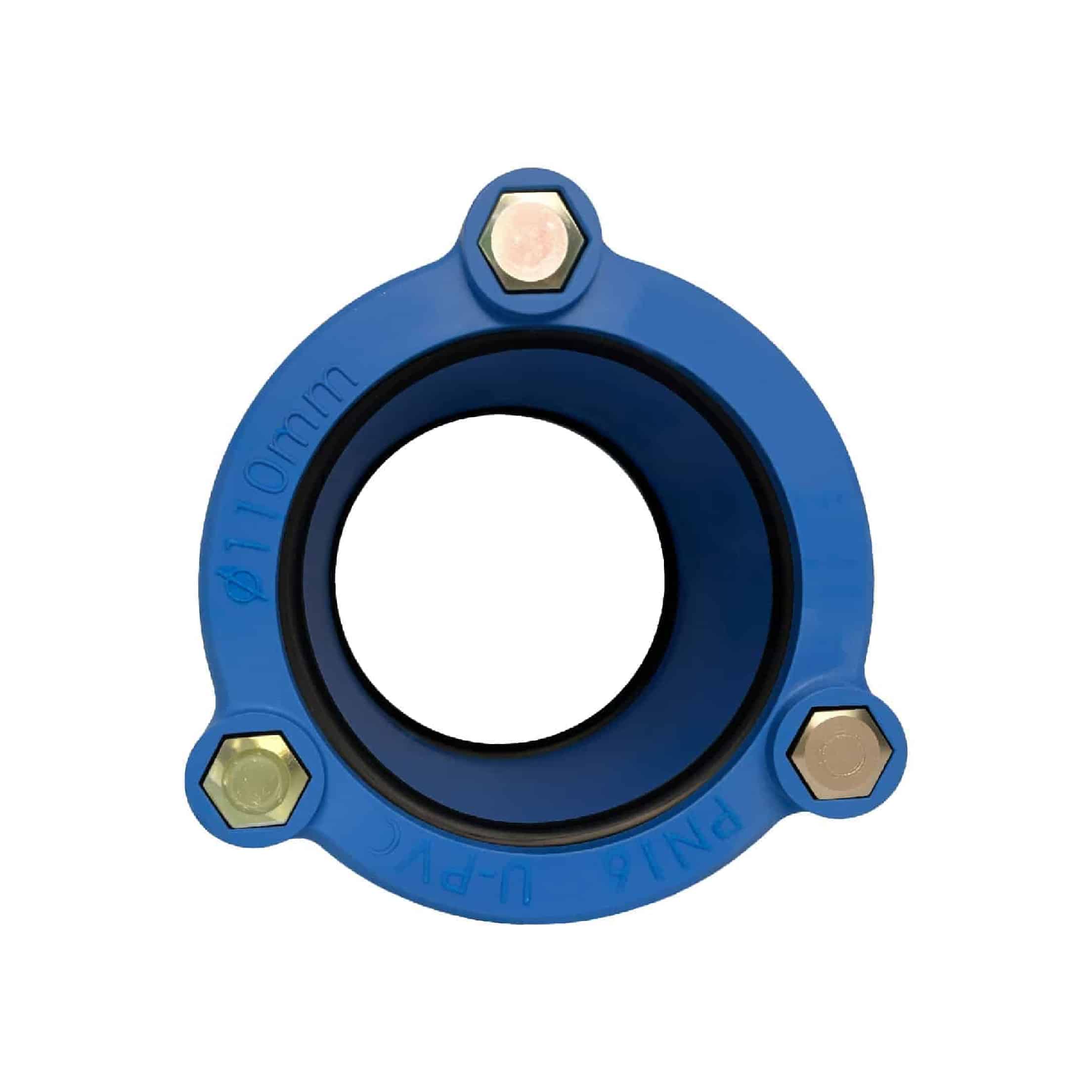

Nylon Coupling for PVC Pipe
To connect PVC pipes, our professional R&D team has designed this nylon material coupling, which, based on our testing, can withstand pressures of up to 18 bar.
Feature
● Plastic coupling to connect PVC pipes
● Max. affordable pressure is 18 bar
● Compare ductile iron coupling, it have less
● Compared to ductile iron couplings, its strength is lower
Previous image
Next image

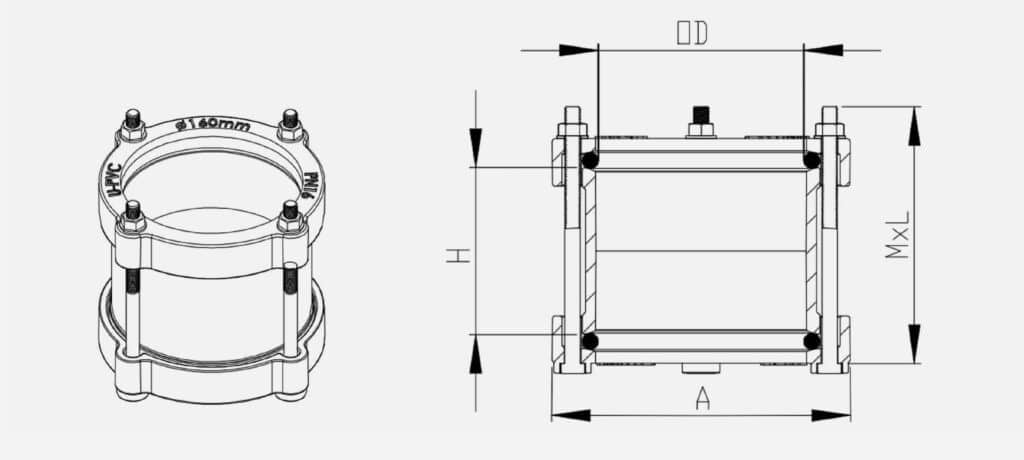

DRAWING
Dimension
| PVC Pipe Outside Diameter | A | H | MXL | Bolts Number |
|---|---|---|---|---|
| 110 | 174 | 120 | M12X180 | 3 |
| 160 | 232 | 130 | M12X200 | 4 |
| 225 | 282 | 180 | M12X255 | 6 |
