Flanged Gate Valves have significant differences in advantages, disadvantages, and use cases compared to other Gate Valve connection types, such as Threaded Ends Gate Valves and Socket Ends Gate Valves. Here is a detailed comparison and analysis:

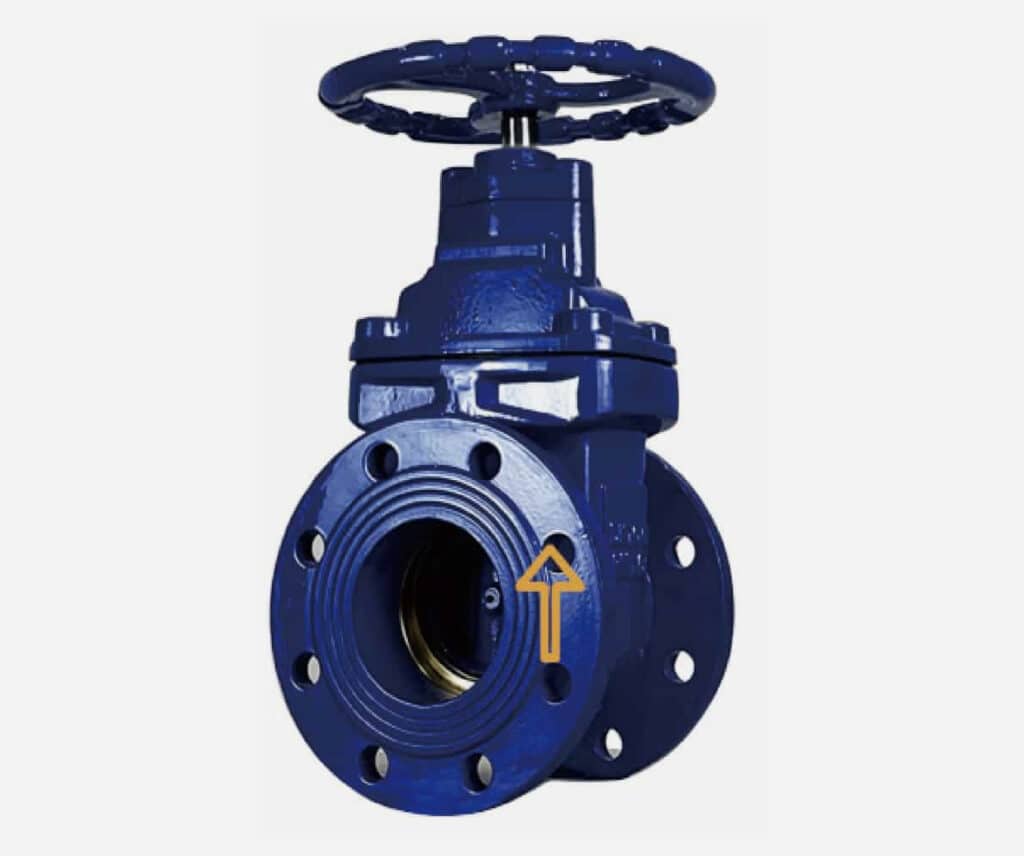

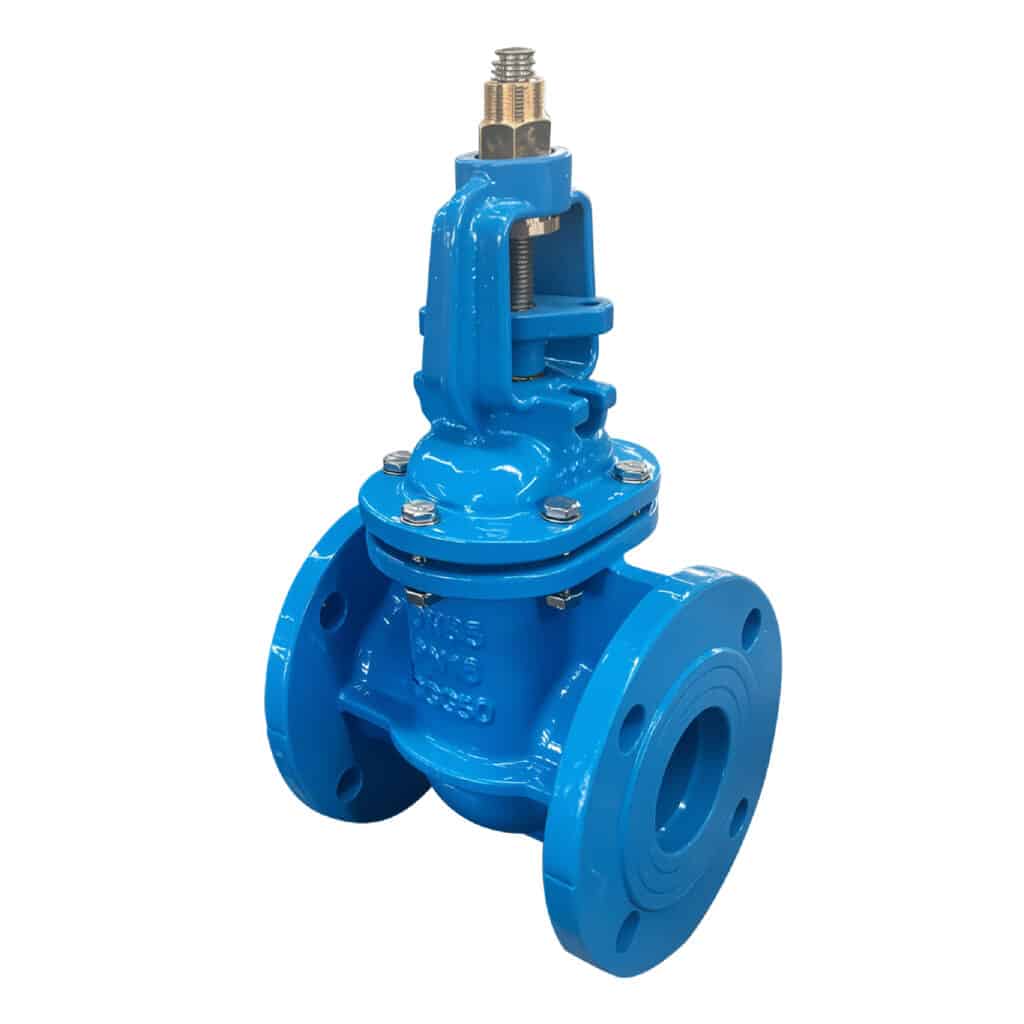

Flanged Gate Valve

Advantages:Easy to install and uninstall: The valve is easy to install and uninstall due to the flanged connection, making it easy to maintain and replace.

High strength: The flanged connection provides higher strength and pressure resistance, suitable for high-pressure and high-temperature environments.

Good sealing performance: The flanged connection can achieve good sealing, reducing the risk of leaks.

Suitable for large-diameter pipes: Suitable for large-diameter pipe systems, providing a more stable connection.

Disadvantages:Large footprint: The flanged connection requires more installation space and is not suitable for limited space installations.

High cost: The cost of flanges and bolts is high, and installation requires more time and labor.

Use Cases:

High-pressure and high-temperature environments: High-pressure piping systems in industries such as petroleum, natural gas, and chemicals.

Large-diameter pipes: Municipal water supply, sewage treatment, and other applications that require large-diameter pipes.

Systems that require frequent maintenance: Industrial pipe systems that require regular maintenance and replacement.

Threaded Ends Gate Valve

Advantages:

Simple installation: Threaded connections do not require special tools and are easy to install.

Low cost: Valves with threaded connections are inexpensive and suitable for small pipe systems.

Small footprint: Requires less installation space and is suitable for installations in limited spaces.

Disadvantages:

Limited pressure and temperature applications: The sealing performance of threaded connections is weak and is suitable for medium and low-pressure and room temperature environments.

Inconvenient disassembly: Threaded connections are prone to wear after multiple assemblies and disassemblies, affecting sealing performance.

Size limitations: Typically only suitable for small-diameter pipes.

Use Cases:

Home and commercial water supply systems: Water supply pipes for residential buildings and commercial structures.

Medium and low-pressure industrial pipes: Low-pressure gas transport and room temperature liquid transport systems.

Temporary pipe systems: Temporary pipe connections that require frequent changes.

Welded Ends Gate Valve

Advantages:

Welded connections: Provides a strong welded connection suitable for high-pressure piping systems.

Small footprint: Compact welded connections require less space and are suitable for installations in limited spaces.

Leak-free: Welded connections eliminate leak points and are suitable for systems that require high sealing.

Disadvantages:

Complex installation and disassembly: Requires professional welding techniques, making installation and disassembly complex.

Non-reusable: Once welded, disassembly and reuse are difficult and require cutting for disassembly.

Difficult maintenance: Welded connections are not easy to maintain and replace.

Use Cases:

High-pressure and high-sealing systems: High-pressure piping systems in industries such as nuclear power and chemicals that require high sealing.

Underground pipes: Underground pipe systems for city water supplies and natural gas transport that require leak-free installations.

Permanent pipe connections: Permanent pipe systems that do not require frequent disassembly and replacement.

Summary

Flanged Gate Valves perform well in high-pressure, high-temperature, and large-diameter pipe systems, providing high strength, good sealing, and ease of maintenance, but have a large footprint and are expensive. Threaded Ends Gate Valves are suitable for medium and low-pressure, small-diameter, and space-limited applications, easy to install, but with weak sealing. Socket Ends Gate Valves are suitable for high-pressure and high-sealing permanent connections, providing strong welded connections, but with complex installation and maintenance.

By selecting the appropriate connection type and valve based on specific use cases and requirements, you can ensure the reliability and operating efficiency of your system.
