Pipe Coupler Clamp

The Pipe Coupler Clamp Is A Pipe Fitting That Can Both Connect And Repair Pipes.

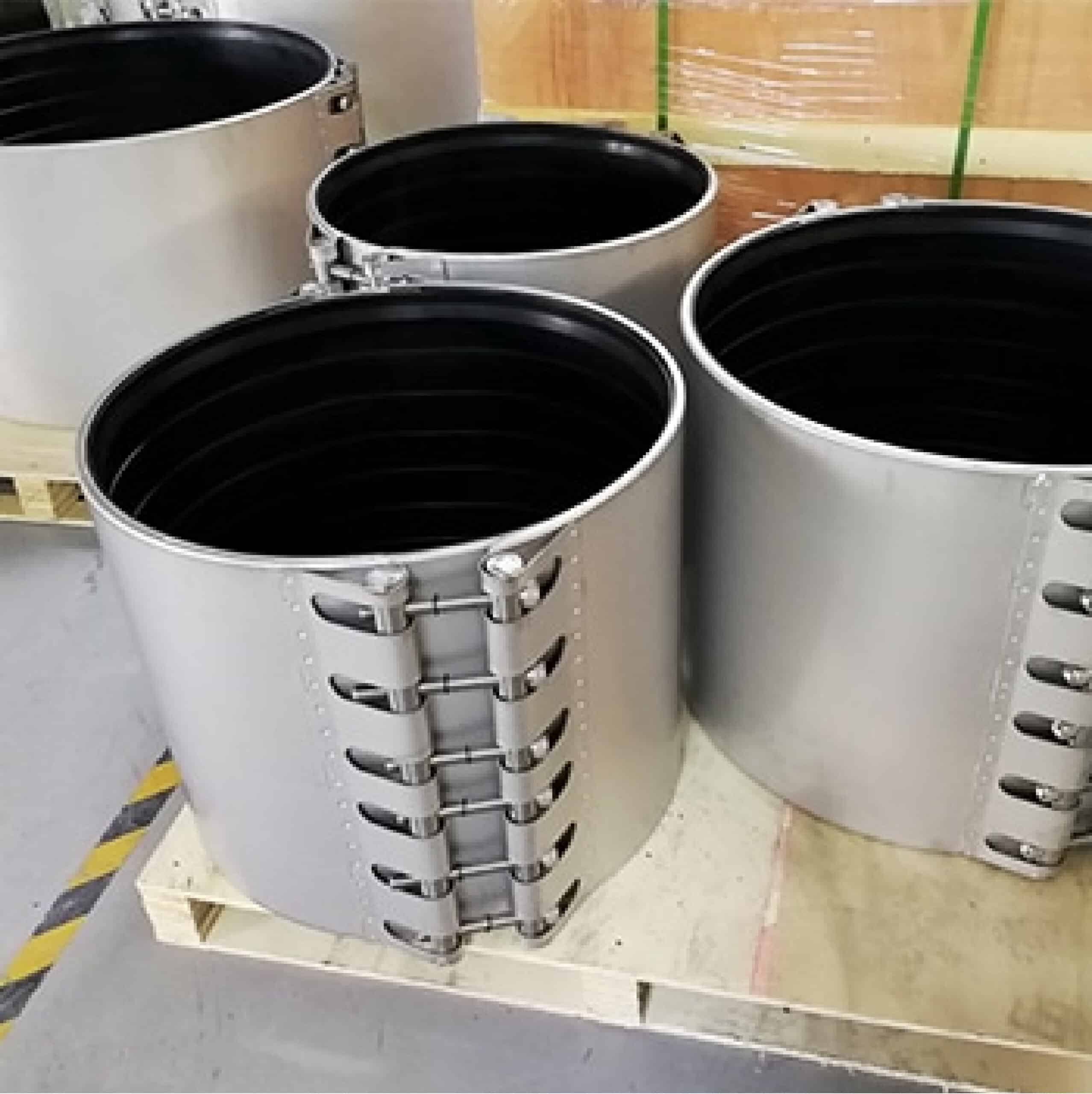

pipe coupler clamp photo in workshop

Specification

  • Wide Range, One Pipe Coupler Clamp Can Used For Different Pipe OD Which Is In Our Designed Range
  • For Size ≤OD200mm, Working Pressure Is PN16,For 219mm≤OD≤377mm ,Working Pressure Is PN10
  • Very Easy Installation
  • Long Service Life



Assembling Drawing

pipe coupler clamp assembling drawing



Drawing

pipe coupler clamp drawing



Material

Sr.No. Name Material Quantity
1 Protection plate Stainless Steel 2
2 Gasket EPDM 1
3 Bolts Stainless Steel N
4 Bolts-on column Stainless Steel 1
5 Pins Stainless Steel 1
6 Nuts-on column Stainless Steel 1
7 Band Stainless Steel 2



Dimension

Pipe Outside Diameter(OD) mm OD Range(mm) Working Pressure bar L1 L2 D Bolts Size Bolts Torque N.m
18 17-19 16 57 - 35 6 10
21.7 21-23 16 57 - 45 6 10
25 24.5-25.5 16 57 - 50 6 10
27.2 36-28 16 57 - 50 6 10
32 31.5-32.5 16 57 - 55 6 10
34 33-35 16 57 - 55 6 10
40 39.5-41.5 16 57 - 55 6 10
42 42-44 16 57 100 65 6 15
44.5 44-45.1 16 57 100 65 6 15
48.6 47-49 16 57 100 70 6 15
54 53.6-54.6 16 57 100 70 8 30
57 56.3-57.7 16 57 100 80 8 30
60.3 59-62 16 80 139 85 8 30
63 62.2-63.9 16 80 139 85 8 30
76.1 76-78 16 80 139 100 8 30
79.9 78.8-80.8 16 80 139 100 8 30
88.9 88-92 16 107 203 110 10 50
108 106-110 16 107 203 130 10 50
110 108.9-111.2 16 107 203 130 10 50
114.3 112-116 16 107 203 135 10 50
118 116.6-119.2 16 107 203 140 10 50
125 123.6-126.5 16 107 203 150 10 50
133 131.5-134.4 16 107 203 160 10 50
140 137-143 16 116 203 165 12 80
159 157-161 16 116 203 185 12 80
165.2 163.3-166.7 16 116 203 190 12 80
168 166-170 16 116 203 195 12 80
170 168.2-171.9 16 116 203 195 12 80
200 198.2-201.5 16 155 255 240 14 100
219 217-221 10 155 255 250 14 100
250 250-254 10 155 255 285 14 100
273 271-275 10 155 255 305 14 100
315 313-317 10 155 255 340 14 100
325 323-327 10 155 255 355 14 100
355.6 354-358 10 155 255 385 14 100
377 375-379 10 155 255 410 14 100



Related products

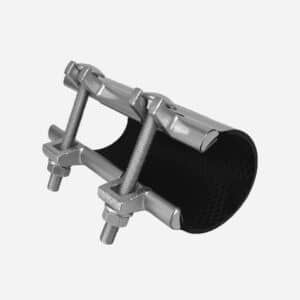

steel repair clamp assembling photo
