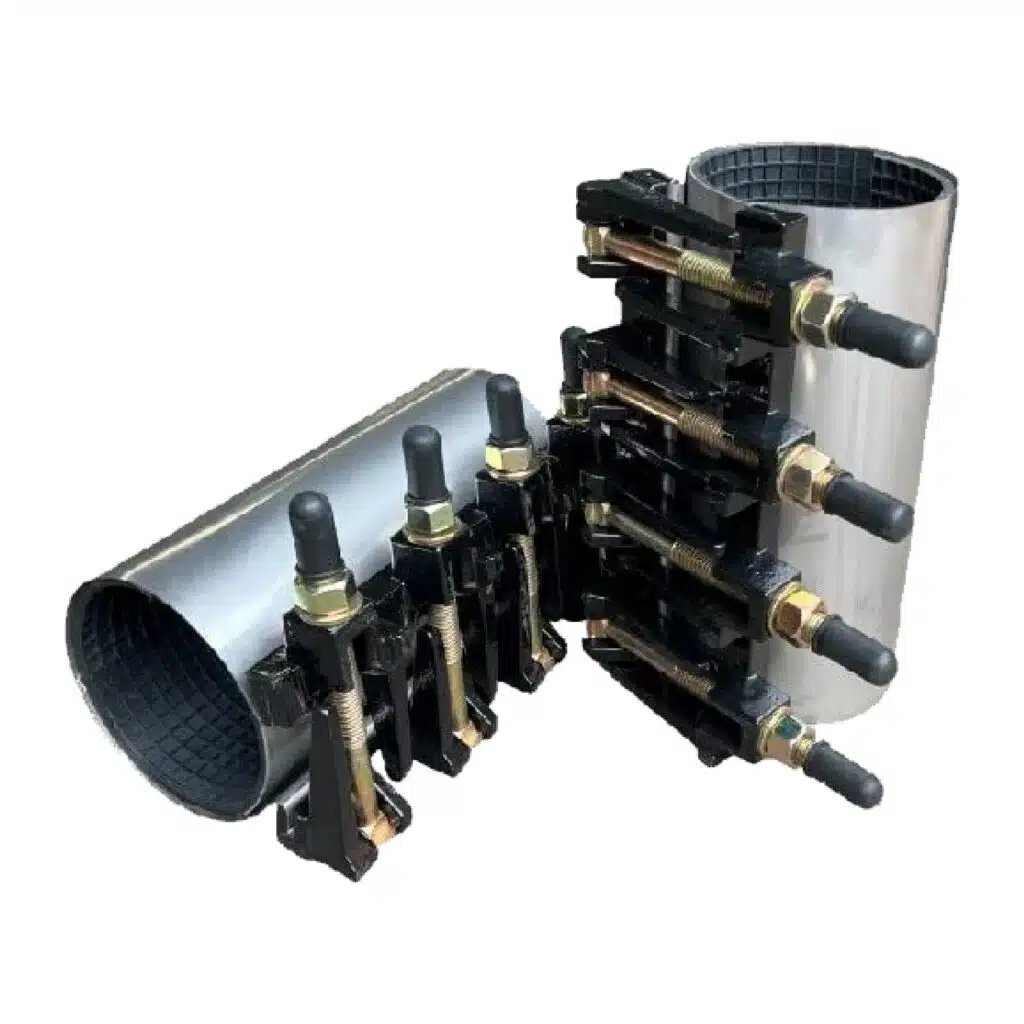

Pipe Leak Repair Clamp
Pipe Leak Repair Clamp Is A Repair Clamp Which Is Used To Repair Pipe Leaking. The Leaking Can Be Caused By Pin Holes, Holes, Crack , Corrosion Etc
Previous image
Next image
Specification
Stainless steel repair clamp with DCI jaw
Repair clamp standard:comply with EN545
Test standard: EN12266-1
Working pressure and Temperature
size DN50 to DN2000 ,working pressure PN16/PN10/PN6/PN4
Temperature from -10℃ to 120℃ for EPDM gasket
Temperature from -10℃ to 82℃ for NBR gasket
Suitable for potable water, neutral liquids and sewage

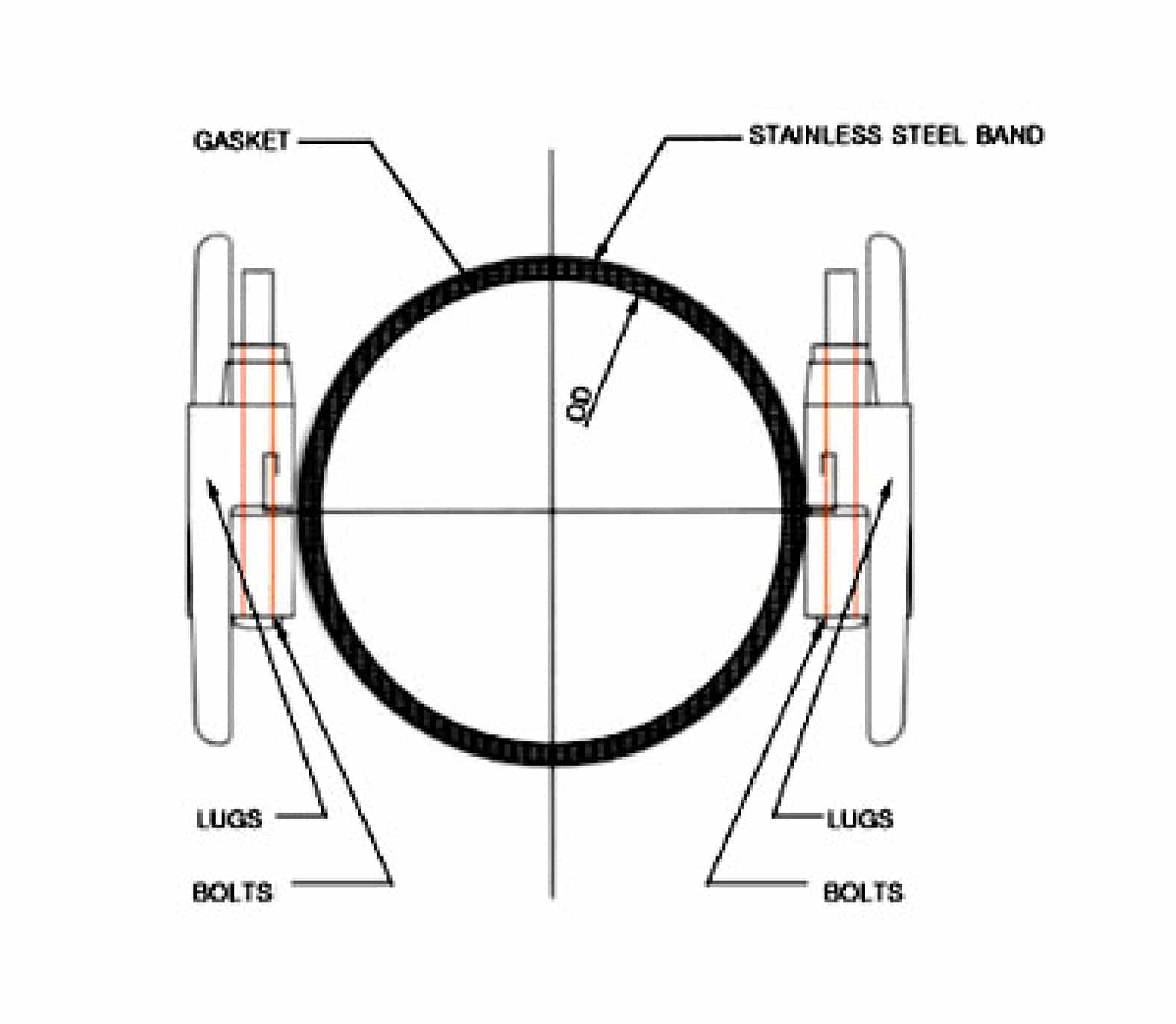

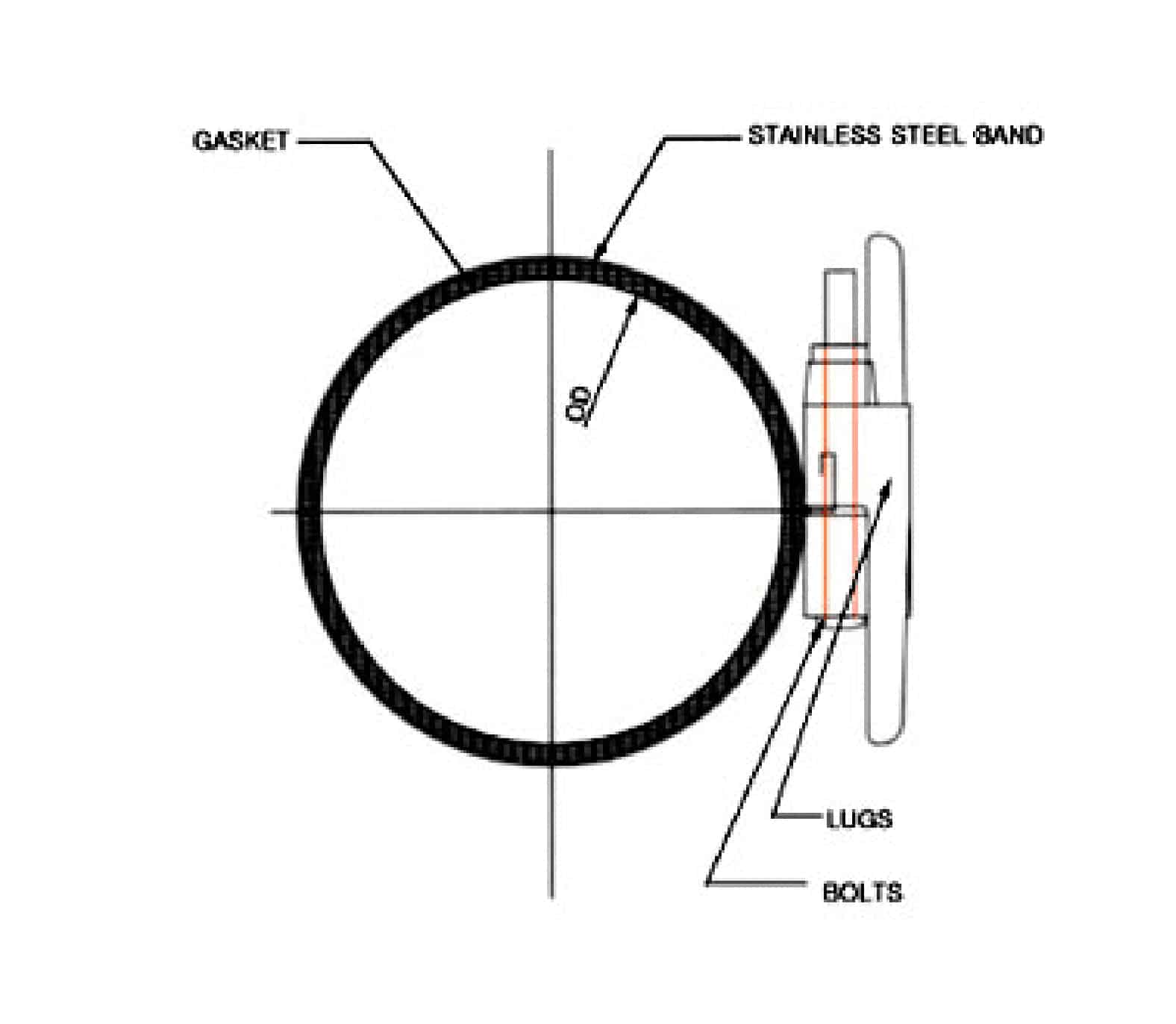

Drawing
Material
| Sr.No. | Name | Material |
|---|---|---|
| 1 | Lugs | Ductile iron |
| 2 | SS band | SS304 |
| 3 | Gasket | EPDM |
| 4 | Bolts and Nuts | CS or SS |
Dimension(unit mm unless specified)
| Size | OD Range | Length | Bolts | Working pressure |
|---|---|---|---|---|
| DN50 | 60-67 | 150/220 | M16x180 | PN10/16 |
| DN80 | 88-98 | 150/200/300 | M16x180 | PN10/16 |
| 95-105 | 150/200/300 | M16x180 | PN10/16 | |
| DN100 | 108-118 | 150/200/300 | M16x180 | PN10 |
| 115-128 | 150/200/300 | M16x180 | PN10 | |
| DN150 | 158-172 | 200/300 | M16x180 | PN10 |
| 168-182 | 200/300 | M16x180 | PN10 | |
| DN200 | 217-229 | 200/300 | M16x180 | PN10 |
| 225-240 | 200/300 | M16x180 | PN10 | |
| DN250 | 243-260 | 200/300/450 | M16x180 | PN6/10 |
| 270-288 | 200/300/450 | M16x180 | PN6/10 | |
| DN300 | 313-336 | 200/300/450 | M16x180 | PN6/10 |
| 340-360 | 200/300/450 | M16x180 | PN6/10 |
