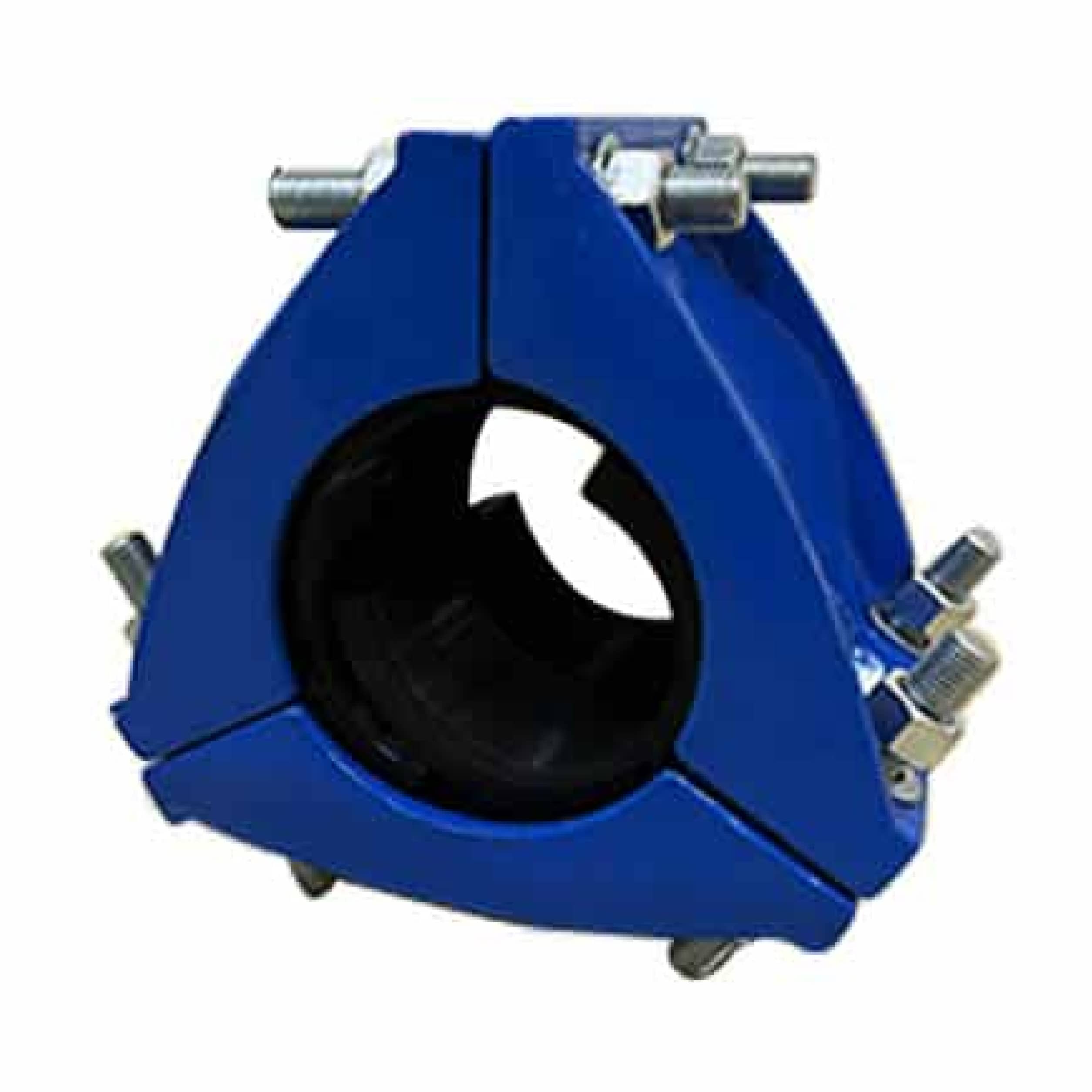

Rubber Clamp for Pipe Leaks
Rubber clamp for pipe leaks is repair clamp with rubber for pipe leaking.this type repair clamp can seal the water by rubber
Specification
ā 3 Pieces design
ā Wide range type which can be used for many different pipes
ā Material is ductile iron with FBE coating, stable quality and long service life than steel repair clamp

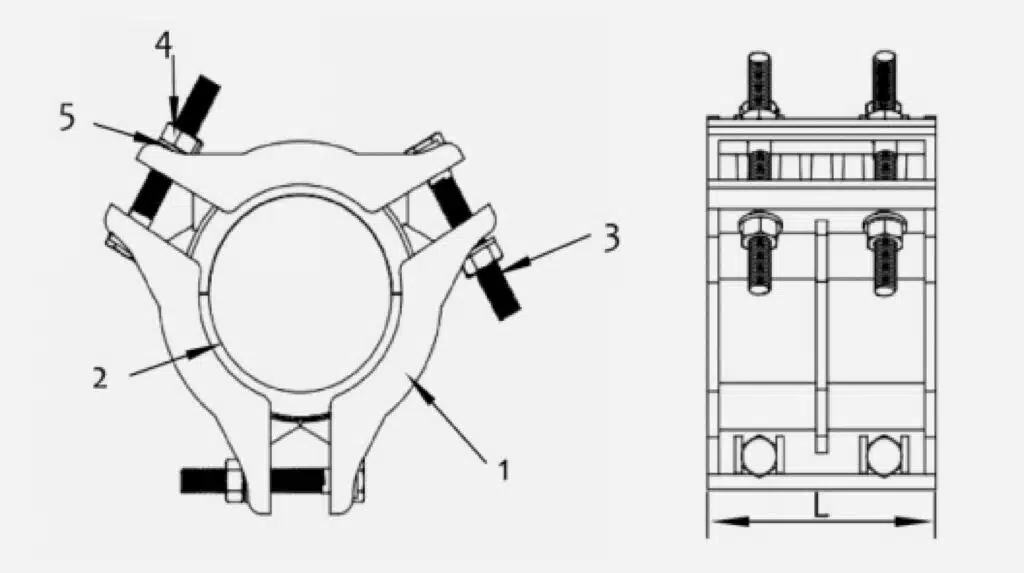

Drawing
Material
| No. | Parts Name | Material |
|---|---|---|
| 1 | Body | Ductile iron |
| 2 | Gasket | EPDM |
| 3 | Bolt | Gal.grade 8.8 carbon steel |
| 4 | Nut | Gal.grade 8.8 carbon steel |
| 5 | Washer | Gal.grade 8.8 carbon steel |
Dimension
| DN | range | L | Bolts Size | Bolts No. | Weight (kg) |
|---|---|---|---|---|---|
| 40 | 53-58 | 120 | M12x80 | 6 | 3.43 |
| 60 | 58-75 | 150 | M12x80 | 6 | 5.39 |
| 80 | 84-109 | 150 | M14x110 | 6 | 8.34 |
| 100 | 108-125 | 150 | M16x120 | 6 | 9.22 |
| 125 | 136-159 | 200 | M16x120 | 6 | 15.28 |
| 150 | 159-184 | 210 | M16x120 | 6 | 16.72 |
| 200 | 211-238 | 210 | M16x120 | 6 | 23.4 |
| 250 | 251-283 | 210 | M20x130 | 6 | 27.78 |
| 300 | 310-340 | 210 | M20x130 | 6 | 35.08 |
