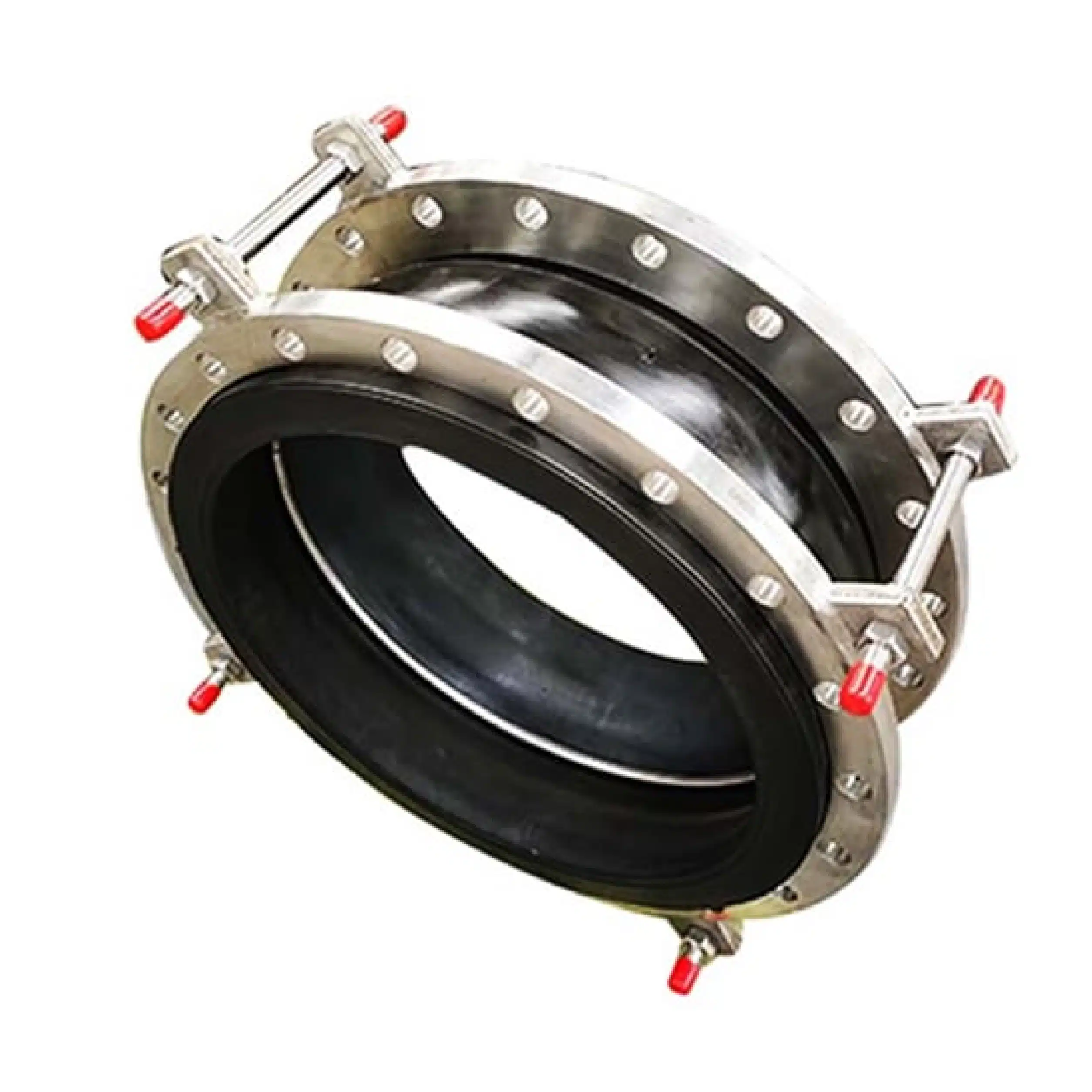

Rubber Joint with Control Rods/Limit Rods

The rubber joint with the control rods/limit rods enables the displacement of the rubber joint to be controlled within a certain

range, preventing the rubber joint from pulling out and at the same time playing a role in force transmission.


Specification

Design

With Limit Rods/Control Rods

Use

When The Pipeline Stretch Is Greater Than A Certain Range, In Order To Ensure The Safety Of The Pipeline, Especially When The Pipeline Has Vibration Or A Certain Inclination

Suitable For The Following Media

Seawater, Fresh Water, Hot And Cold Water, Drinking Water, Domestic Sewage, Crude Oil, Fuel Oil, Lubricating Oil, Refined Oil, Air, Gas, Steam And Granular Powder.



Advantage

1. When the flange of rubber joint is connected with other flange of pumps, valves, joints, etc., the control rods/tie rods of

 rubber joint can transmit the axial forces, then it can work as well as steel flexible joints.


2. The rubber joint limit rods/tie rods is designed to prevent the rubber joint from pulling out.It can make the displacement of

 rubber joints controlled within a certain range, which ensures the smooth operation of rubber joints and pipelines. The anti-

displacement device is a limit device added to the function of ordinary rubber joints to make the pipeline flexible within the

 allowable elasticity range. When the pipeline extension is greater than a certain range, the pipeline connection is restricted to

 ensure pipeline safety, especially when the pipeline has vibration or a certain inclination. When the diameter of the pipe is

 greater than DN200, a rubber joint with limit rods/control rods must be installed. The reason for this is that the larger the

 diameter, the greater the elasticity of the ball. The risk of rubber joint pull-out is greater.




Drawing

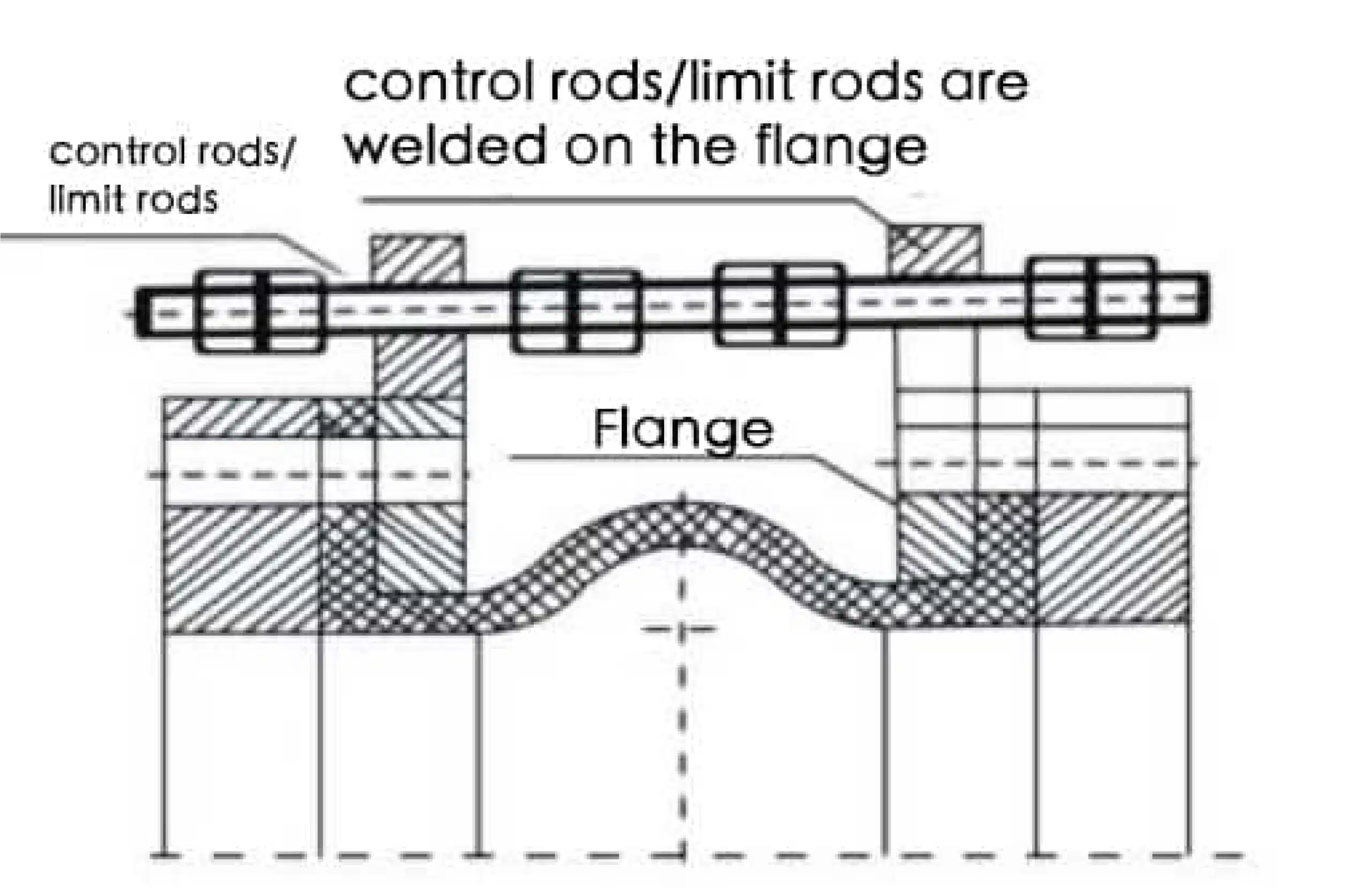

rubber joint with limit rods drawing
