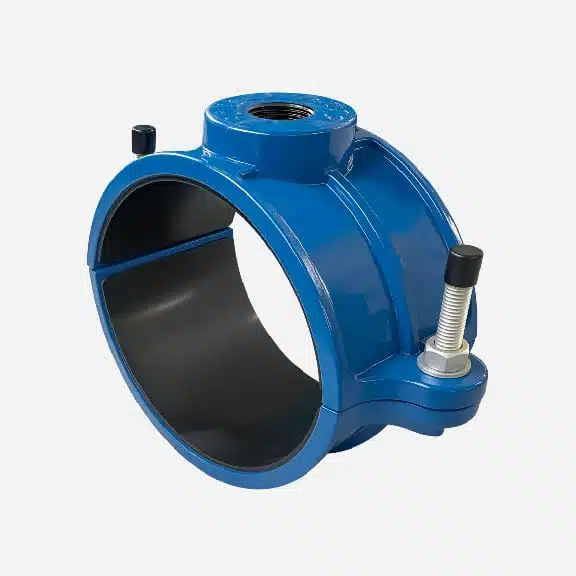

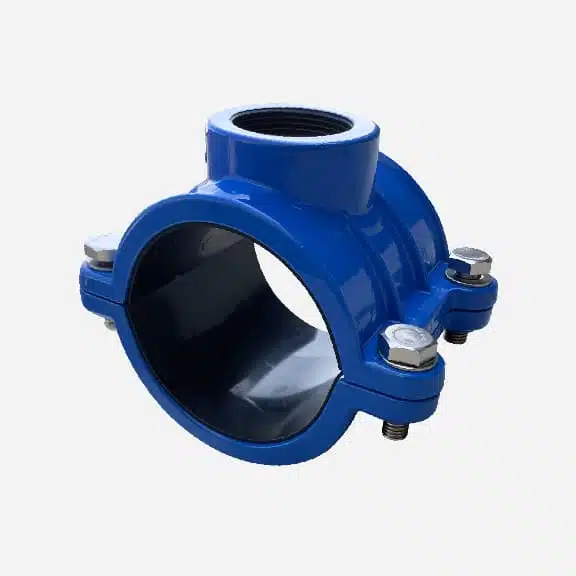

Saddle Tap Clamp for PVC Pipe Installation Instruction
We have clearly marked the applicable outer diameter of the main pipeline and the outlet size on each saddle clamp(as below figure). Before installation, please carefully check these markings to confirm they match the outer diameter of the main pipe and the required outlet size. Additionally, inspect all parts of the saddle clamp to ensure they are intact.
Step 1

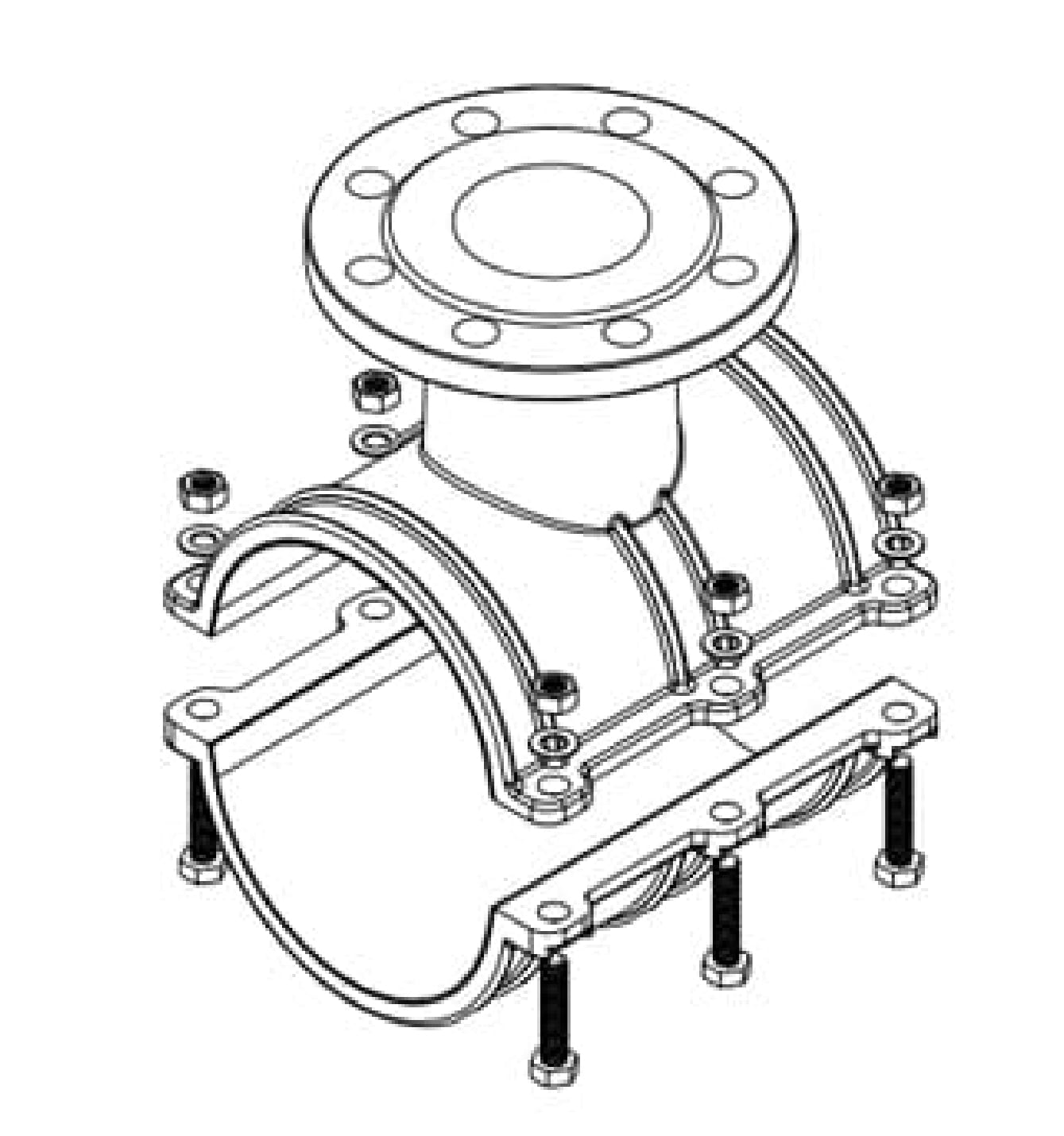

Disassemble all bolts, nuts and washers of the saddle clamp and separate the upper and lower parts as below figure.
Step 2

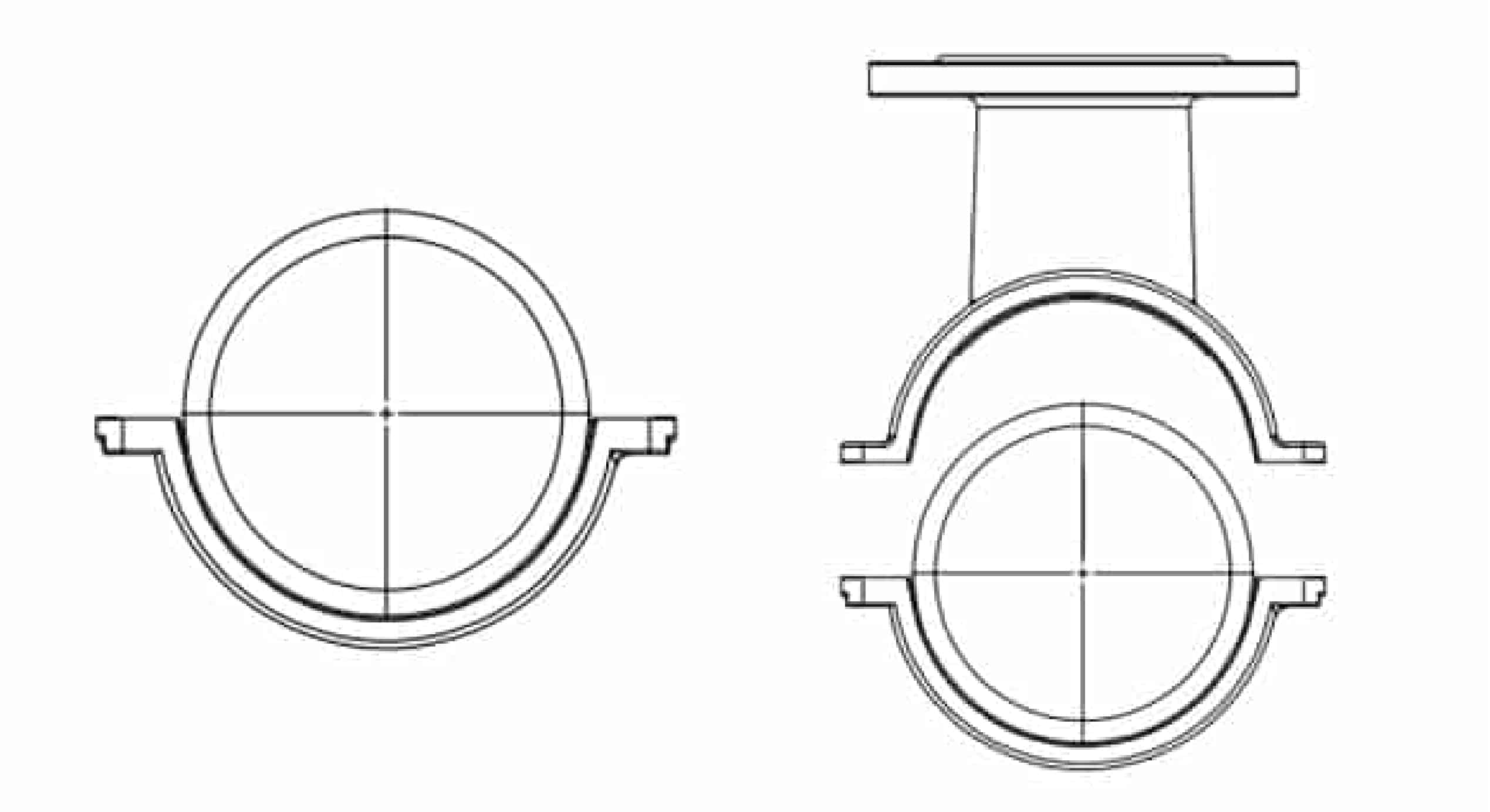

Let the lower part (as below figure)of the saddle clamp body around the pipe, and align the centers of the four bolt holes on the upper and lower parts of the saddle clamp body . Please note that if the position of the flange outlet on the saddle clamp is fixed strictly , firstly you need mark the position on the pipes, then align the center of flange outlet on the upper part of the saddle clamp body with the outlet center on the pipe. Then, determine the position of the lower part of the saddle clamp body according to the bolt hole center of the upper part. Ensure that the centers of the bolt holes on both the upper and lower parts of the saddle clamp body are perfectly aligned.
Step 3

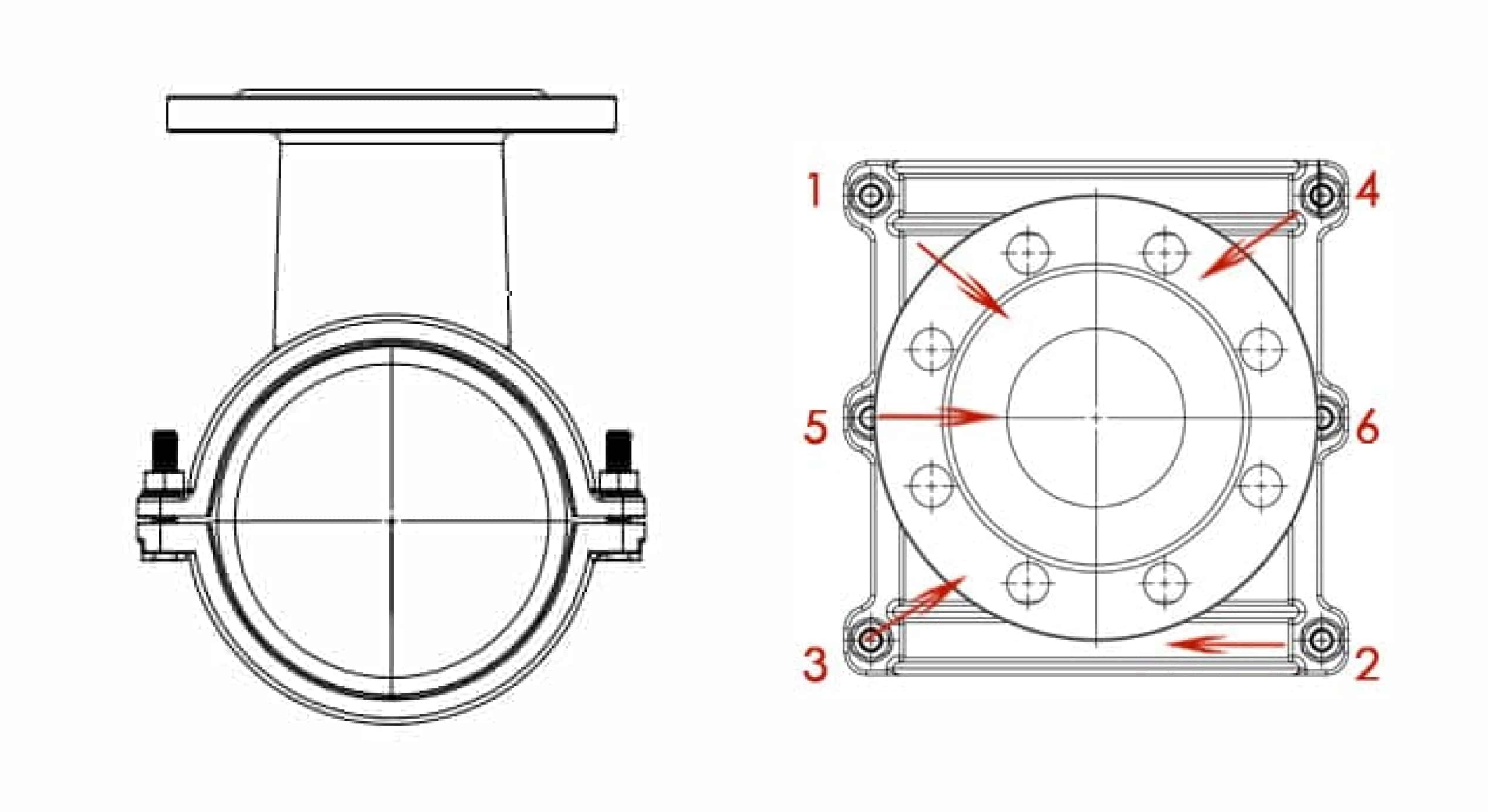

Tighten the bolts in the diagonal sequence of 1→ 2→3→4→5→6 as below figure, using a wrench to gradually and evenly tighten them to the specified torque. Please ensure that the torque applied to all six bolts is the same during each step and that the torque increases gradually from small to large in multiple steps.
Step 4

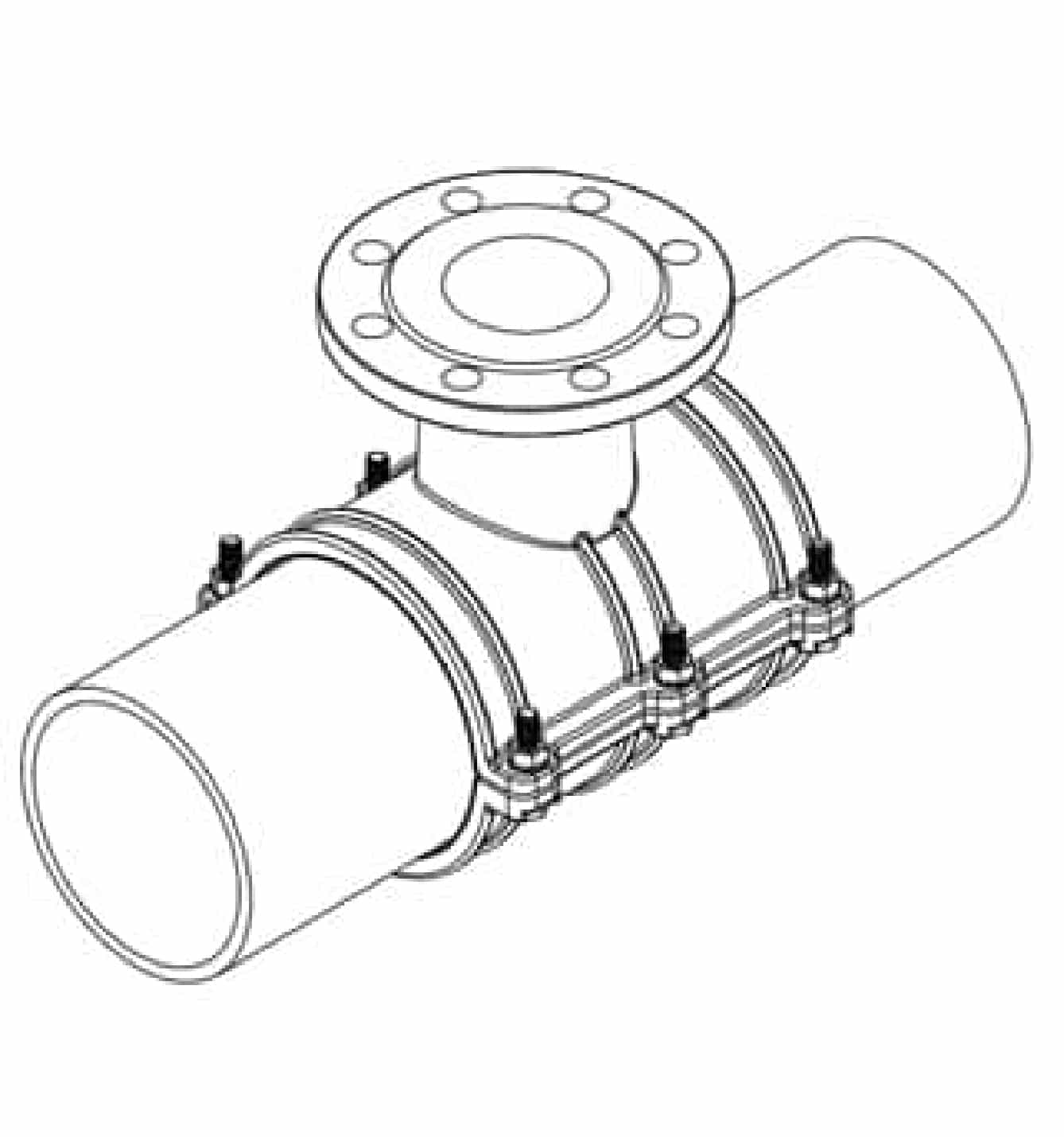

Assembling finished as below photo.
