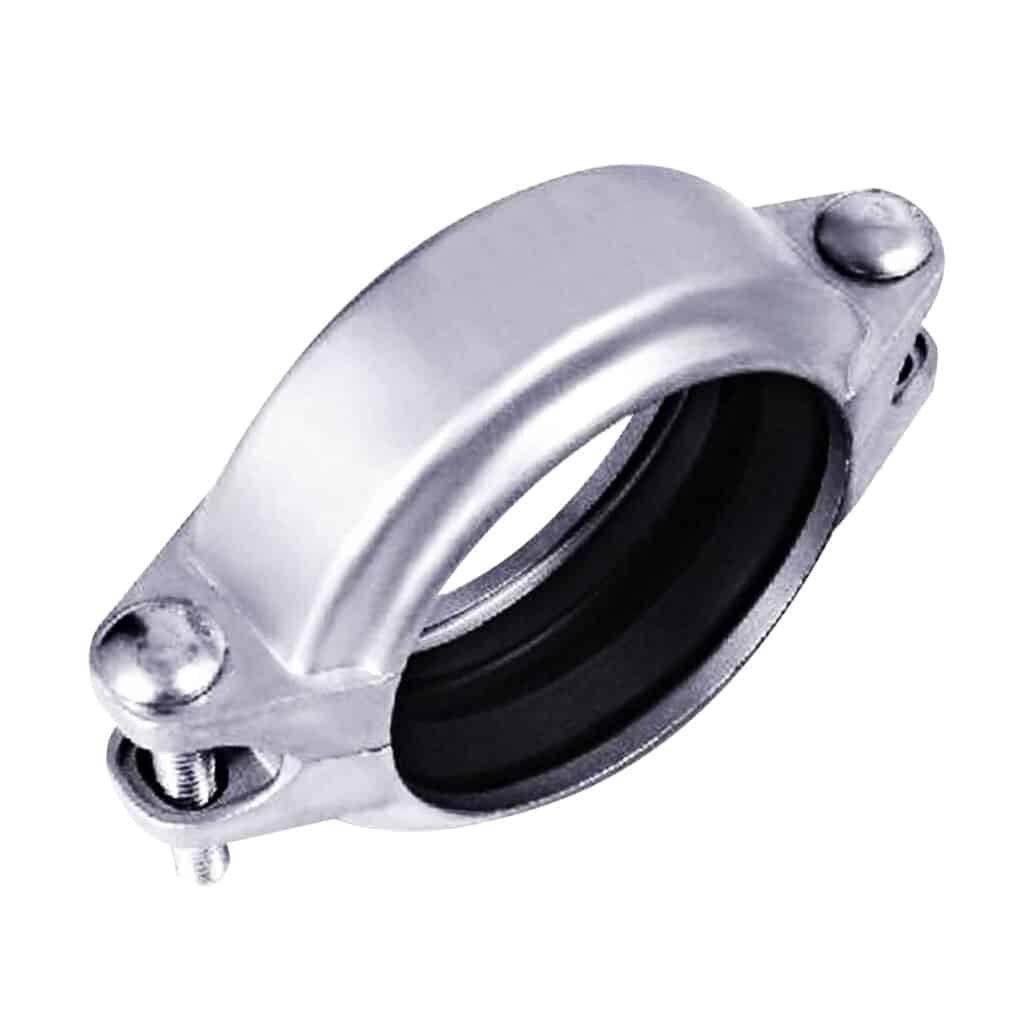

Stainless Steel Low-Pressure Flexible Groove Coupling with rated Working Pressure- 350 psi (25 bar)

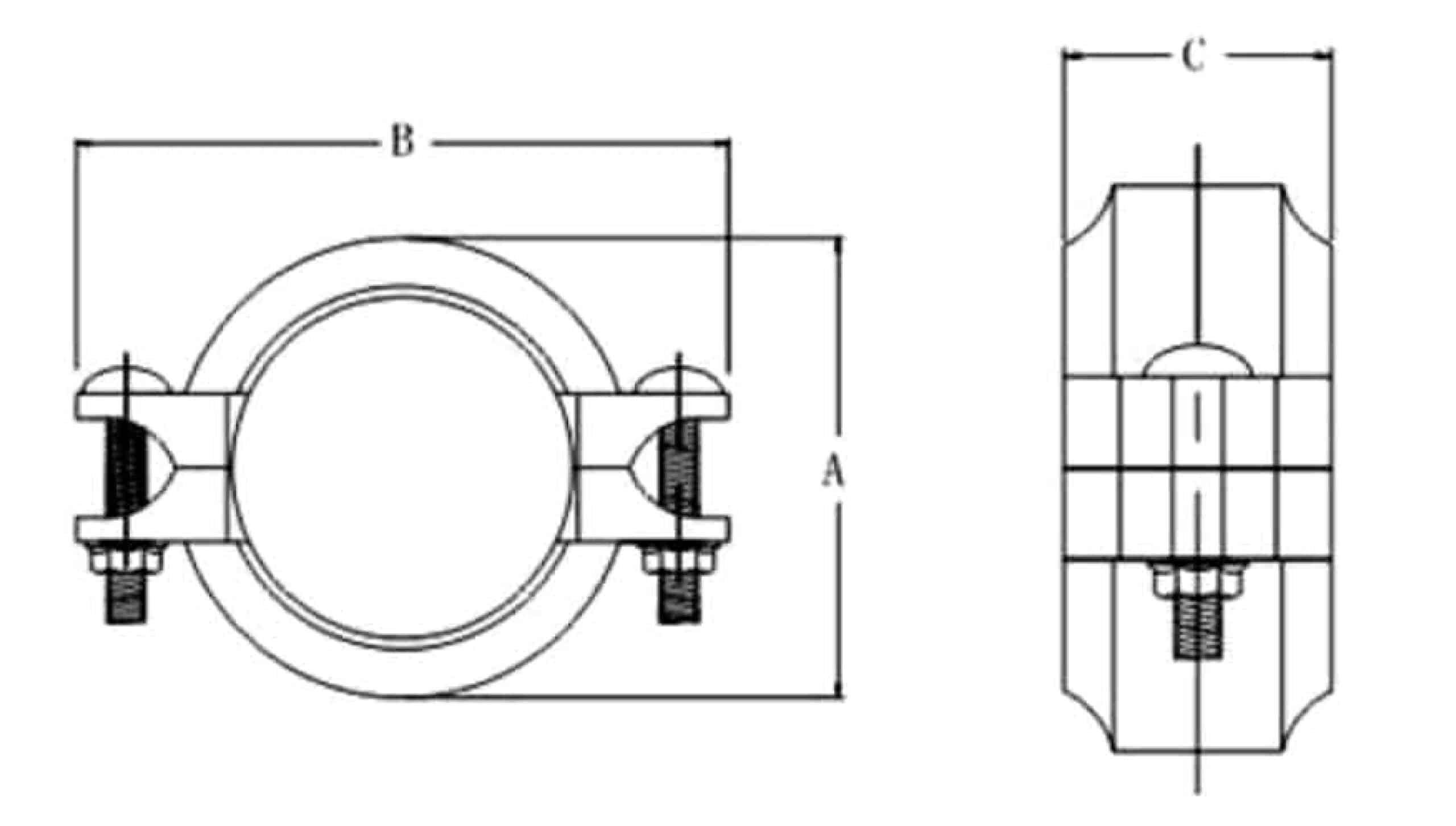

Drawing

Nominal Size(mm)	Pipe OD(mm)	Rated Working Pressure (bar)	PIpe End Gap(mm)	A	B	C	Weight(kgs)
20	28.9	350	0-1.6	47	83	42	0.27
25	32	350	0-1.6	54	89	42	0.31
25	33.7	350	0-1.6	54	89	42	0.31
32	38	350	0-1.6	58	95	42	0.35
32	42.4	350	0-1.6	63	100	43	0.37
40	48.3	350	0-1.6	69	105	44	0.42
50	57	350	0-1.6	78	116	44	0.46
50	60.3	350	0-1.6	79	117	44	0.47
65	73	350	0-1.6	94	133	44	0.55
65	78.1	350	0-1.6	99	137	44	0.59
80	88.9	350	0-1.6	111	151	44	0.73
100	108	350	0-3.2	131	180	48	1.14
100	114.3	350	0-3.2	141	189	48	1，2
125	133	350	0-3.2	158	208	49	1.33
125	139.7	350	0-3.2	166	215	49	1。52
125	141.3	350	0-3.2	166	215	49	2.9
150	159	350	0-3.2	189	239	50	1.83
150	168.3	350	0-3.2	197	248	50	1.88
200	219.1	350	0-3.2	255	315	60	3.58
250	273	350	0-3.2	317	386	60	4.8
300	323.9	350	0-3.2	408	441	65	6.68
