Tapping saddle with flange outlet-double bands or multiple bands installation instruction
We have clearly marked the applicable outer diameter of the main pipeline and the outlet size on each saddle clamp(as below figure). Before installation, please carefully check these markings to confirm they match the outer diameter of the main pipe and the required outlet size. Additionally, inspect all parts of the saddle clamp to ensure they are intact before installation.
Step 1

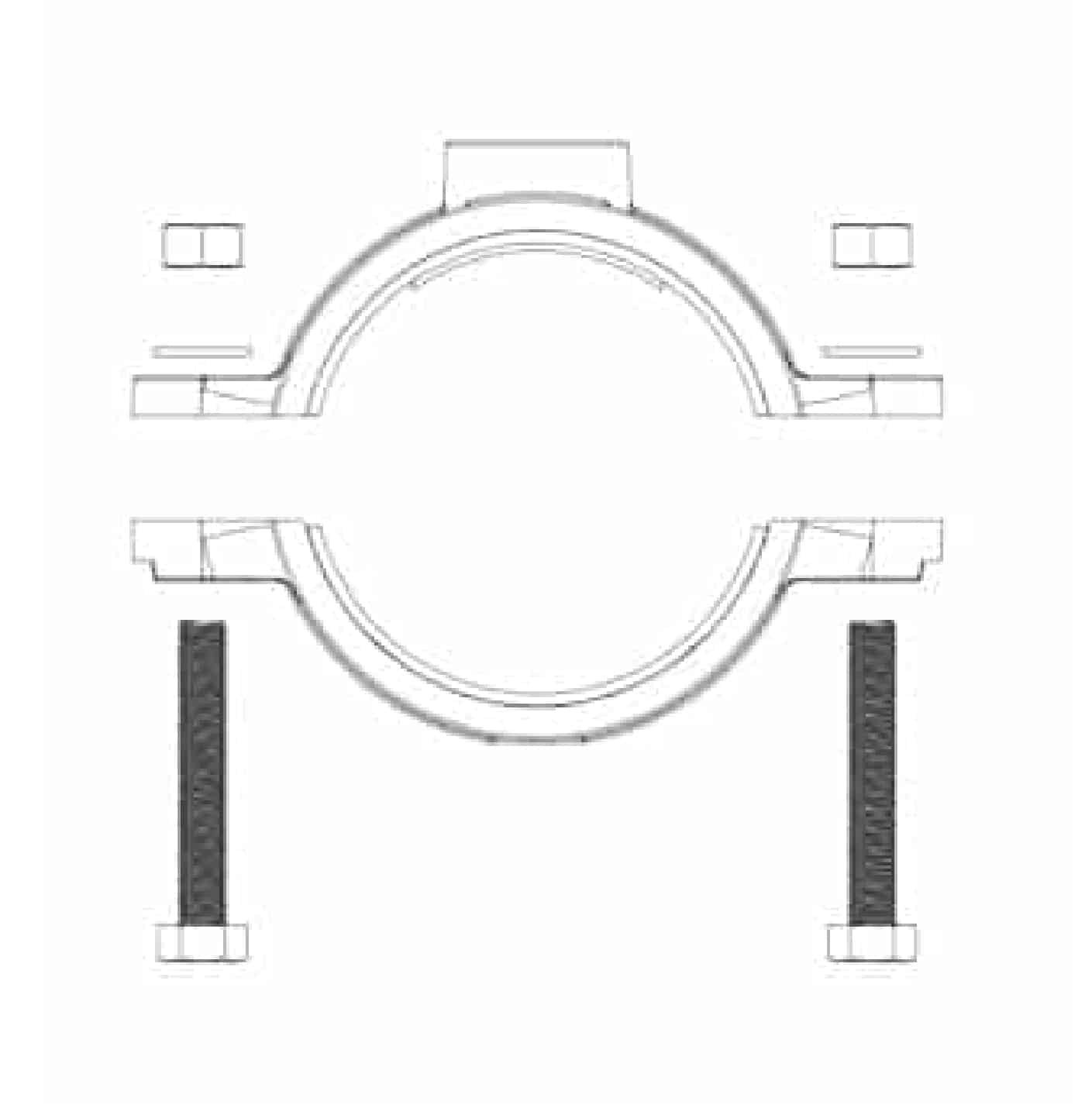

Disassemble the nuts(as below figure 1) ,washers(as below figure 2) and semi-Spherical washer(as below figure 3) at both ends of the steel bands.
Step 2

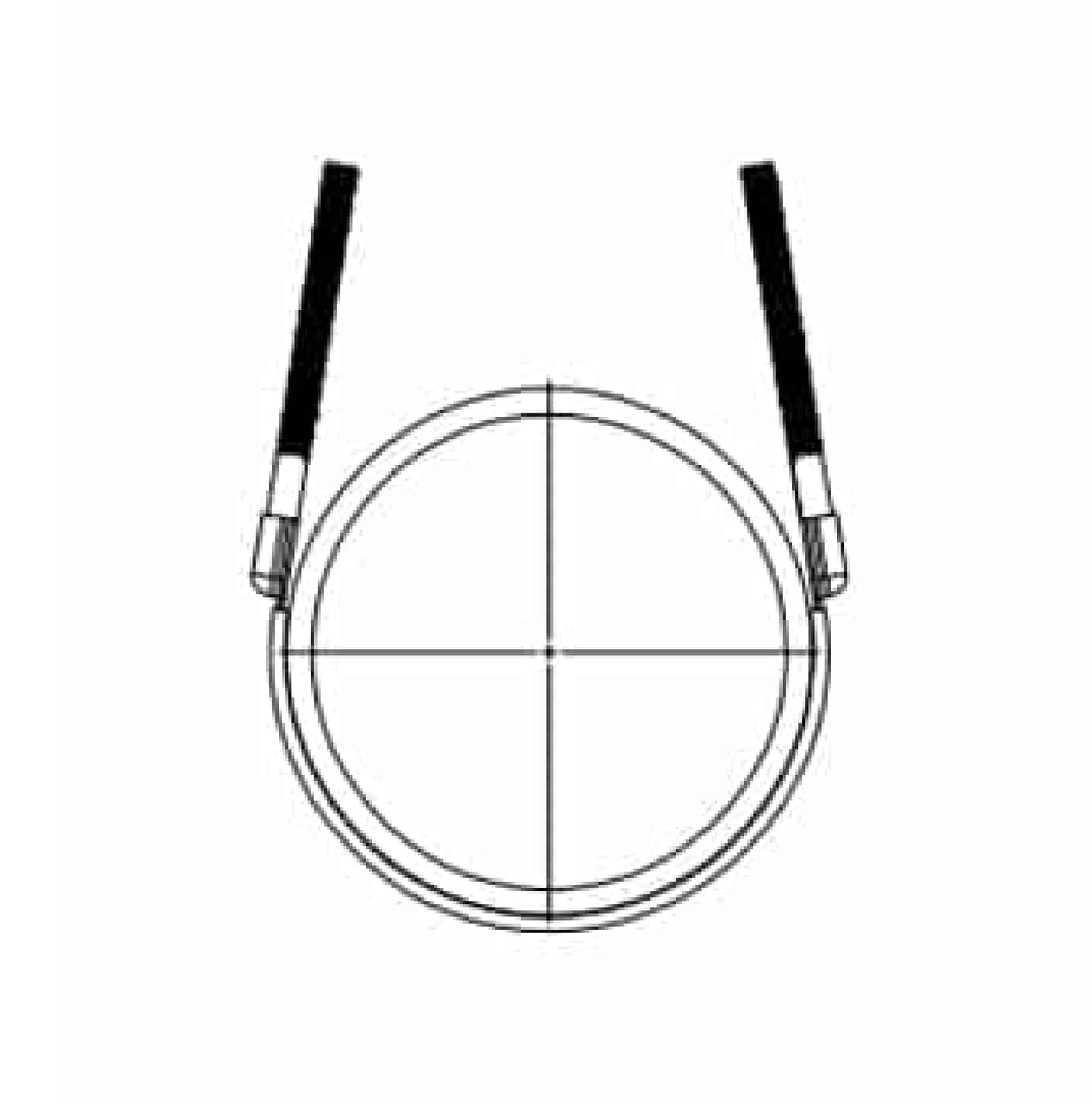

Bend the steel bands so that they matches the curvature of the outer diameter of the pipe to be installed as below figure.
Step 3

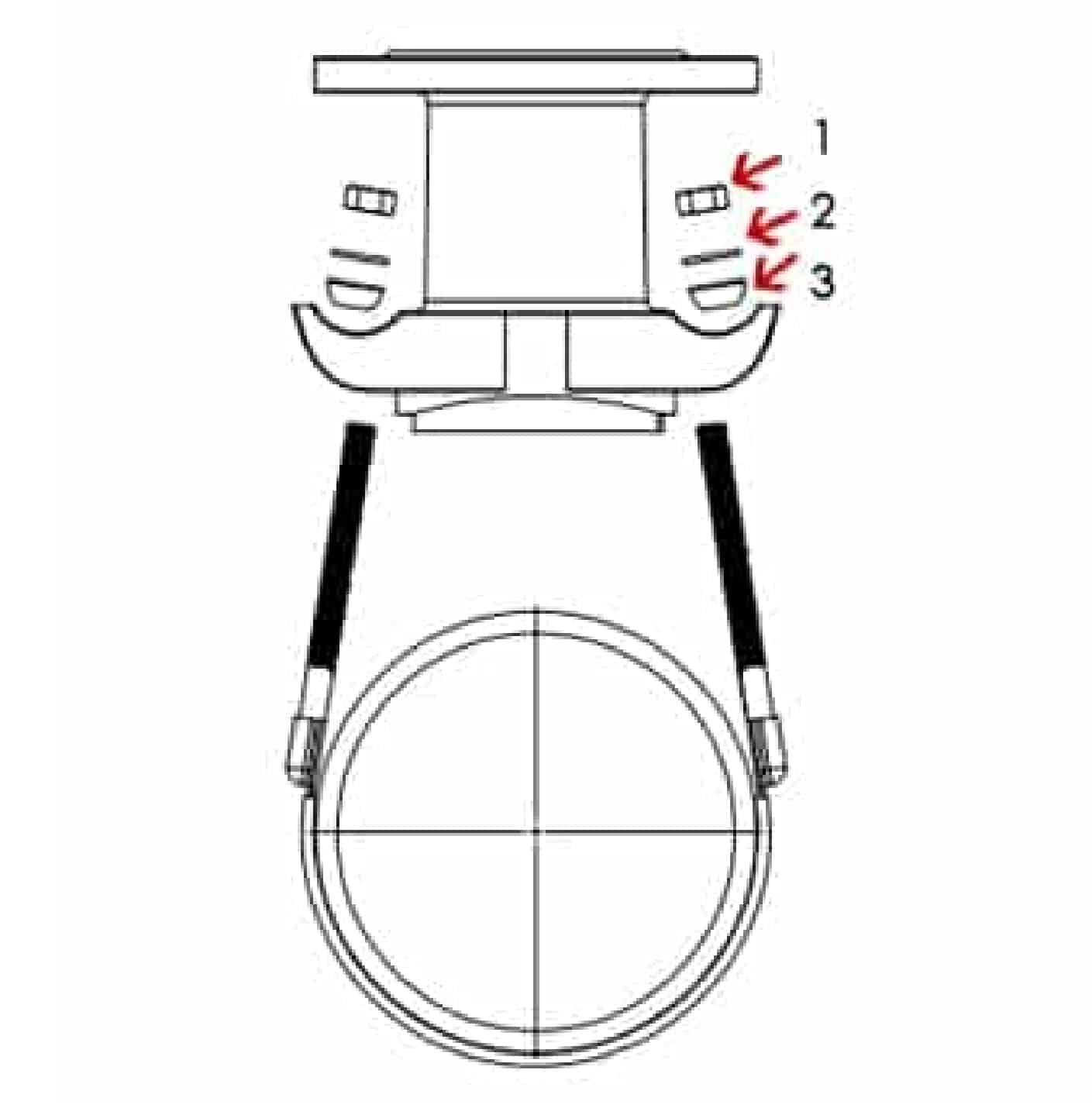

Install ductile iron head onto the bent steel bands (as described in Step 2). Then, sequentially install the semicircular pad (as below Figure3, the washer (as below Figure 2 ), and the nut (as below Figure 1), following the diagram as below.
Step 4

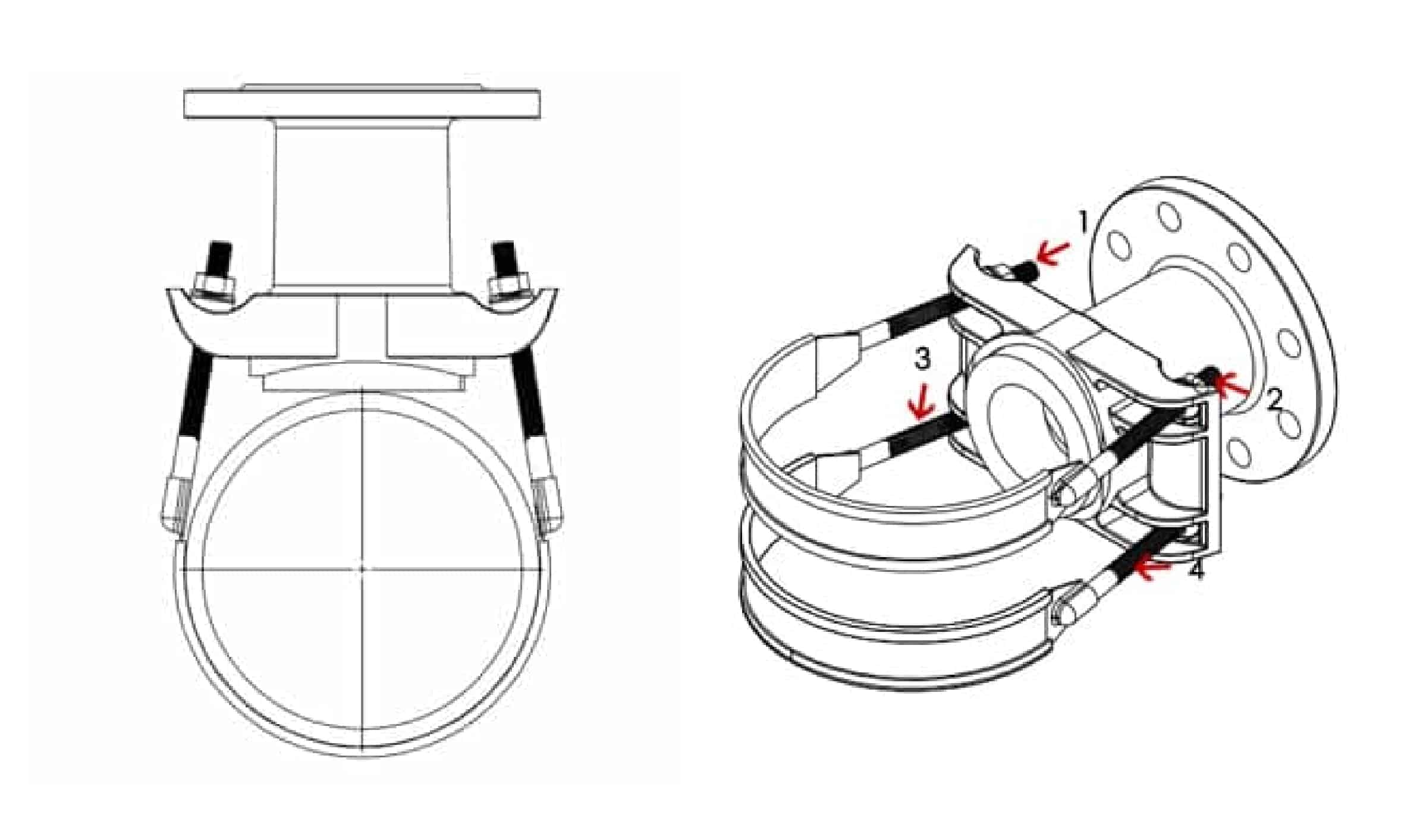

Tighten the four nuts alternately in multiple turns as below figure 1-2-3-4, ensuring equal force for all nuts during each turn. Gradually increase the force from low to high until reaching the required torque.
Step 5

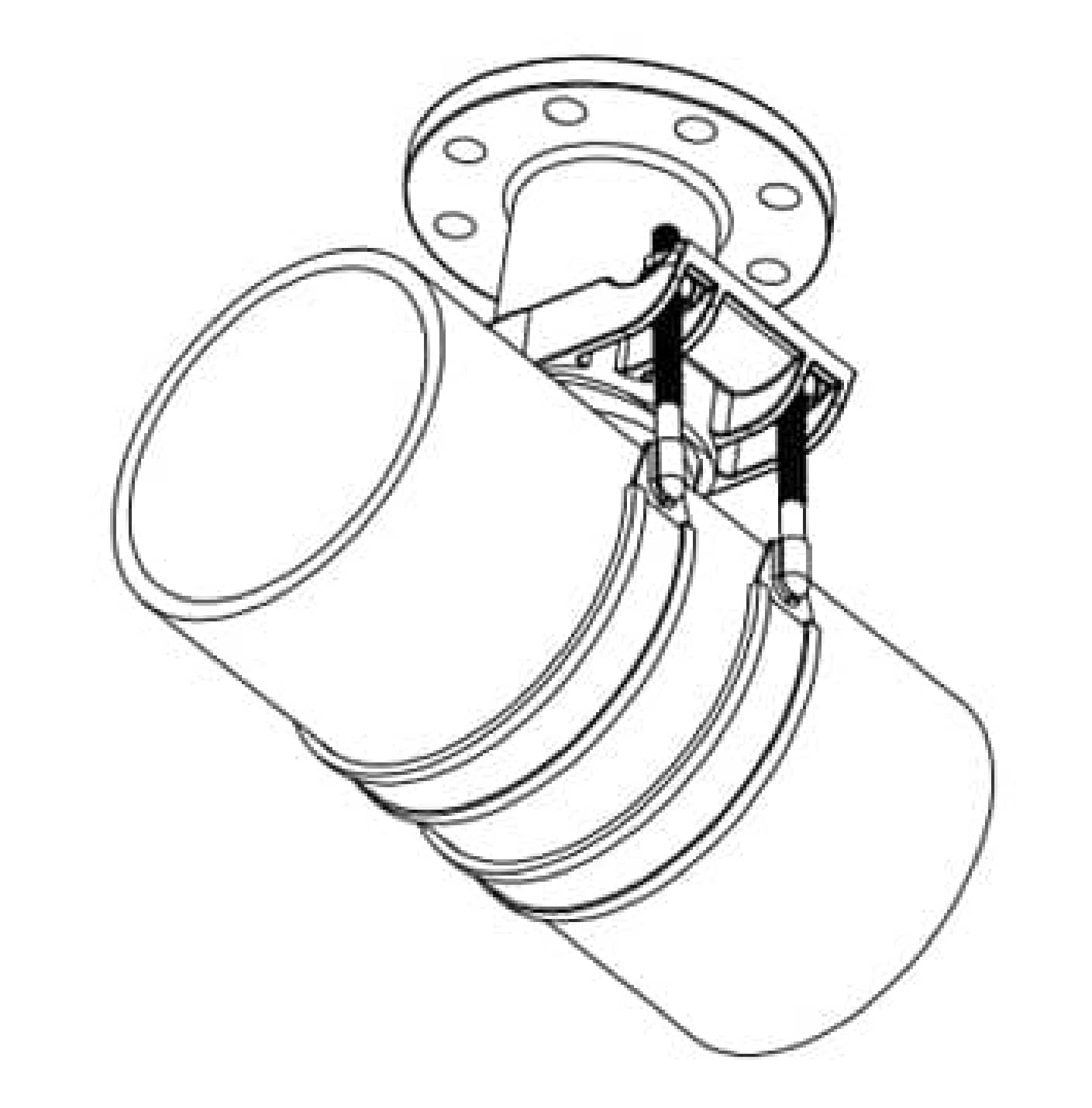

Assembling was finished as below photo.
