Tapping saddle with thread outlet-single strap installation instruction

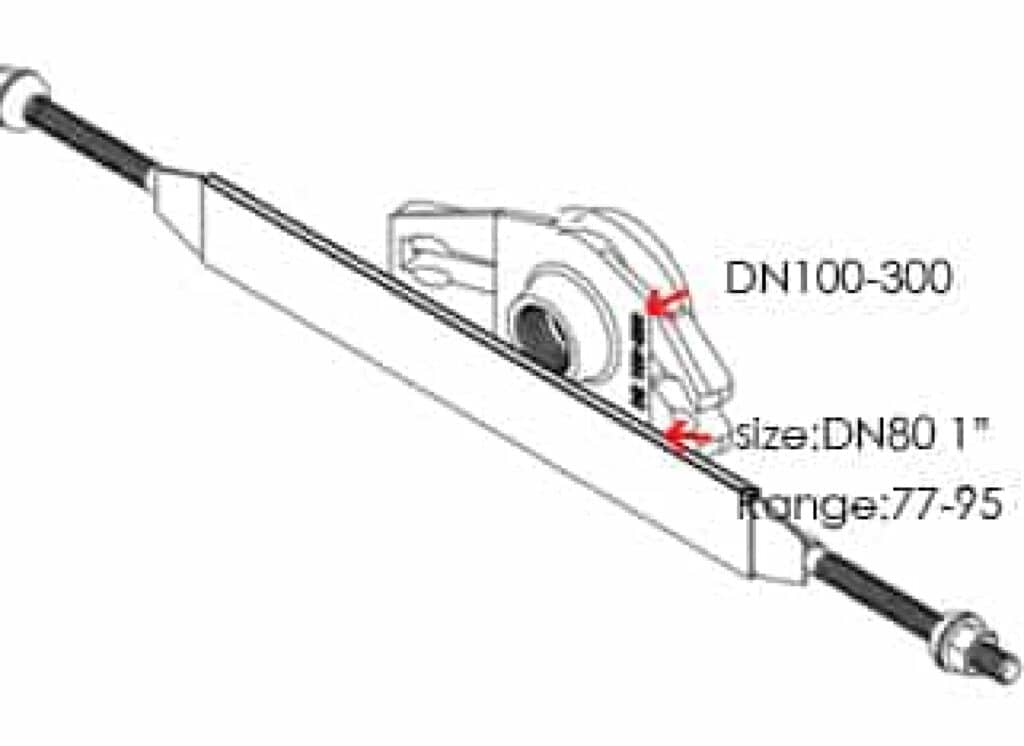

We have clearly marked the applicable outer diameter of the main pipeline and the outlet size on each saddle clamp(as below figure). Before installation, please carefully check these markings to confirm they match the outer diameter of the main pipe and the required outlet size. Additionally, inspect all parts of the saddle clamp to ensure they are intact, especially the threaded parts. If necessary, please indicate whether you need thread protection caps when placing your order to prevent damage to the threads.
Step 1

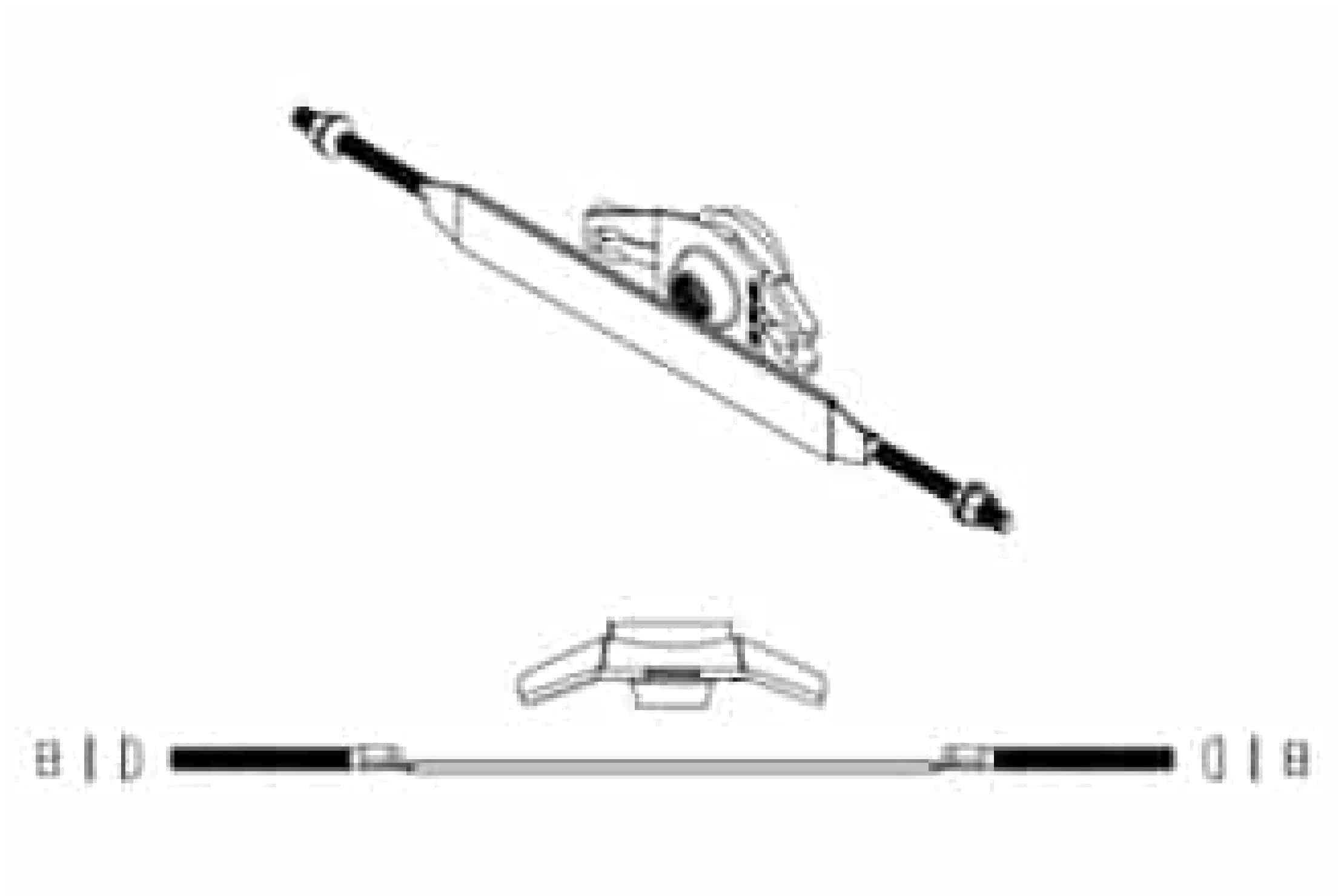

Disassemble the nuts ,washers and semi-Spherical washer at both ends of the steel band.
Step 2

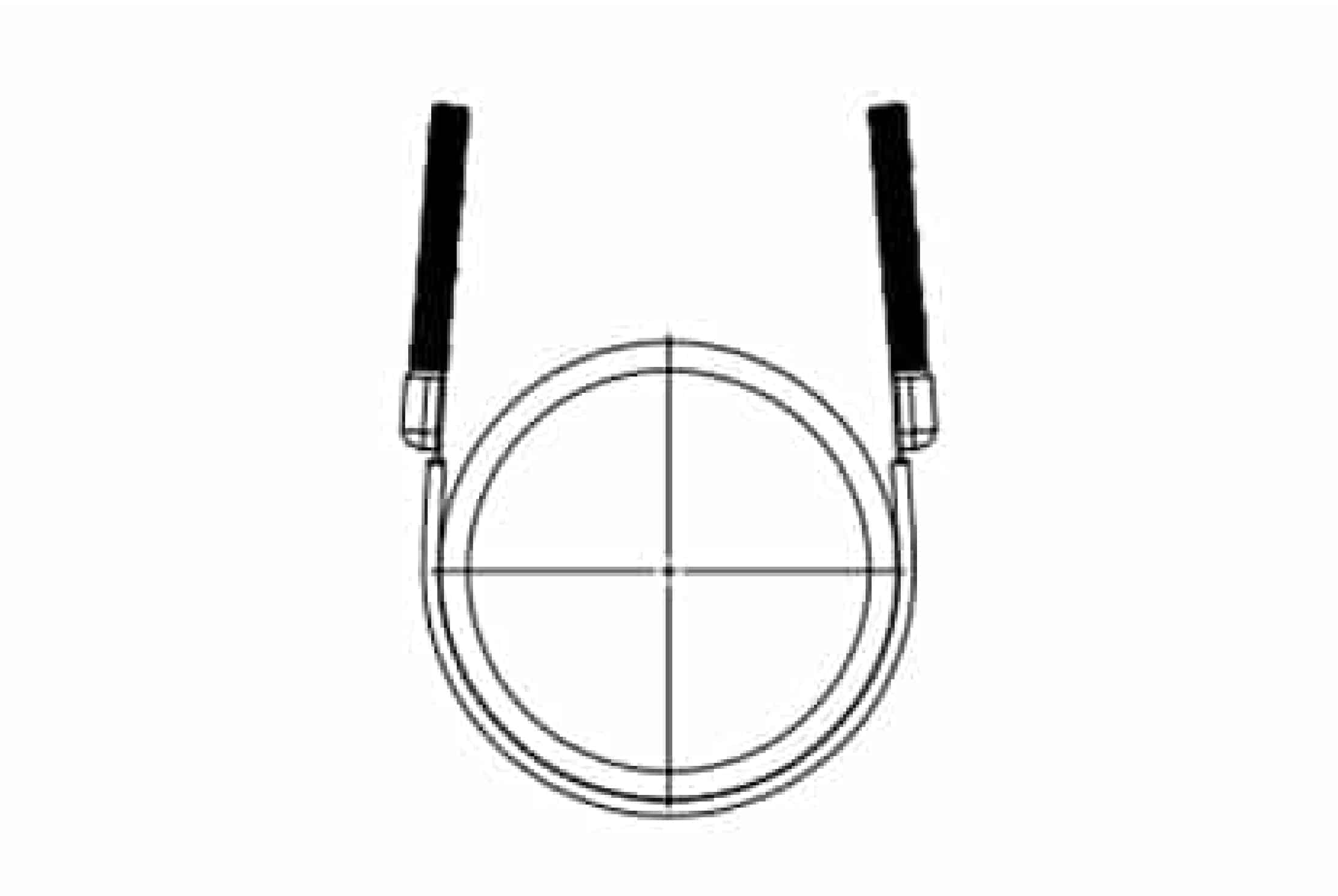

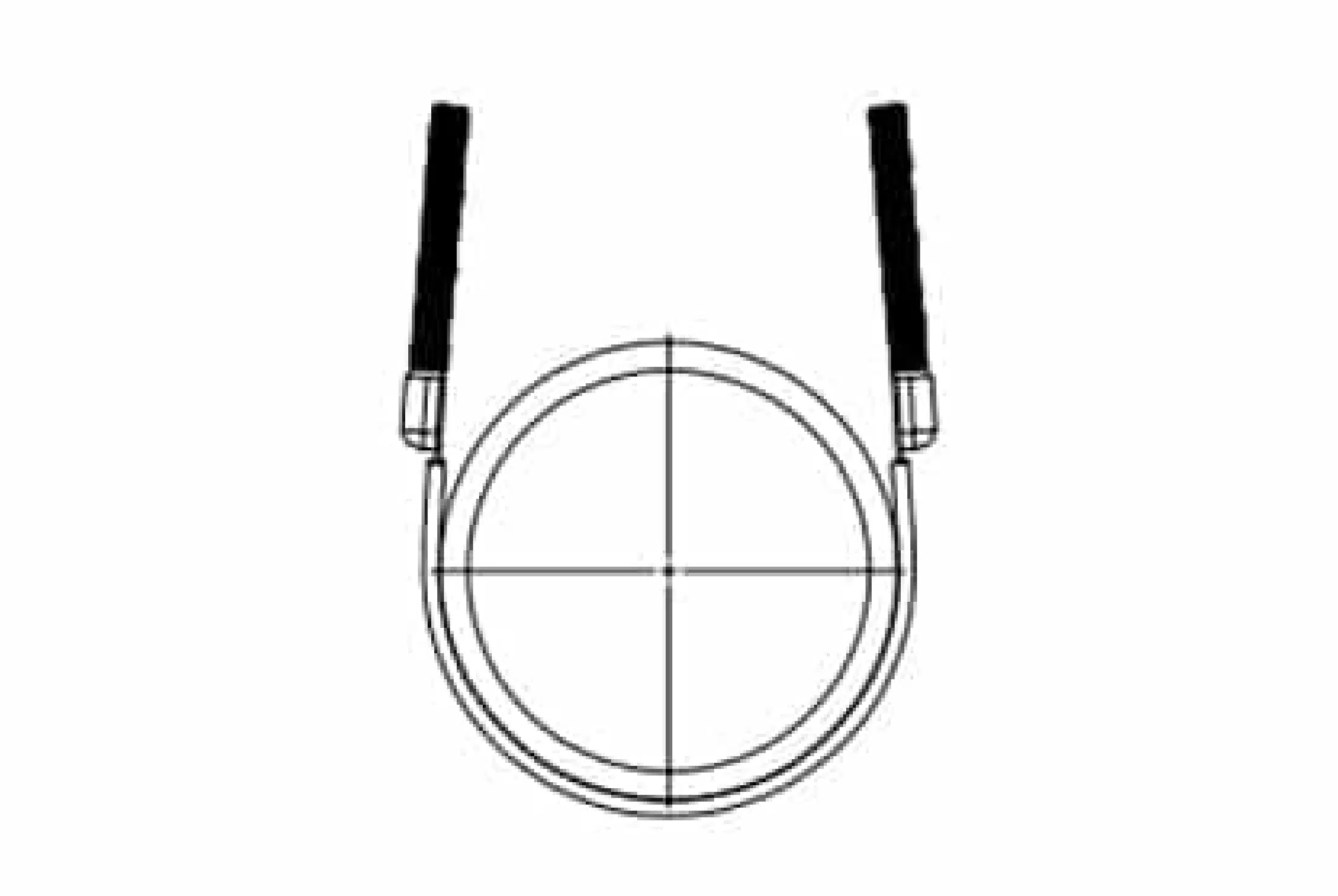

Bend the steel band so that it matches the curvature of the outer diameter of the pipe to be installed as below figure.
Step 3

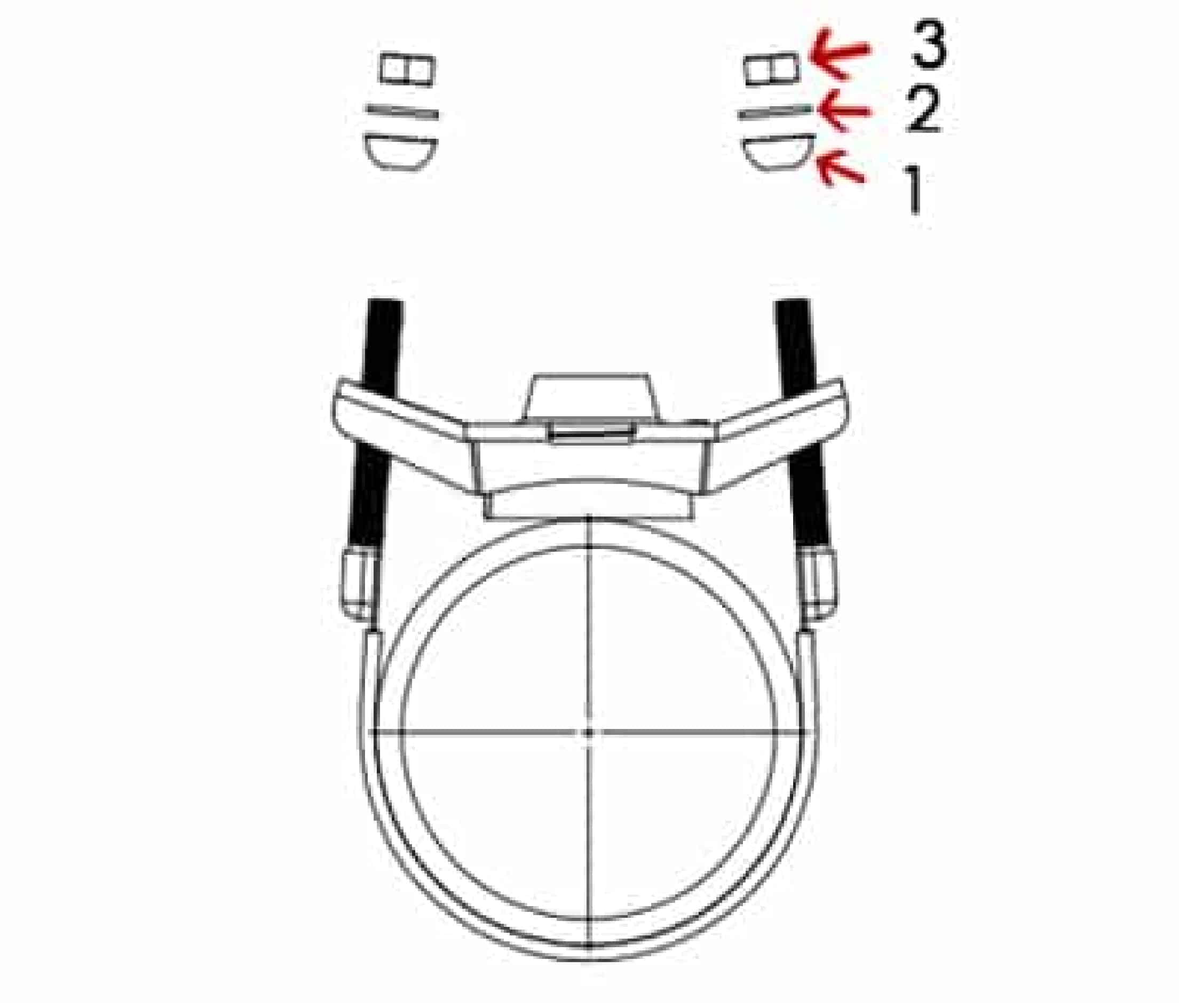

Install ductile iron head onto the bent steel band (as described in Step 2). Then, sequentially install the semicircular pad (as below Figure 1 ), the washer (as below Figure 2 ), and the nut (as below Figure 3), following the diagram as below.
Step 4

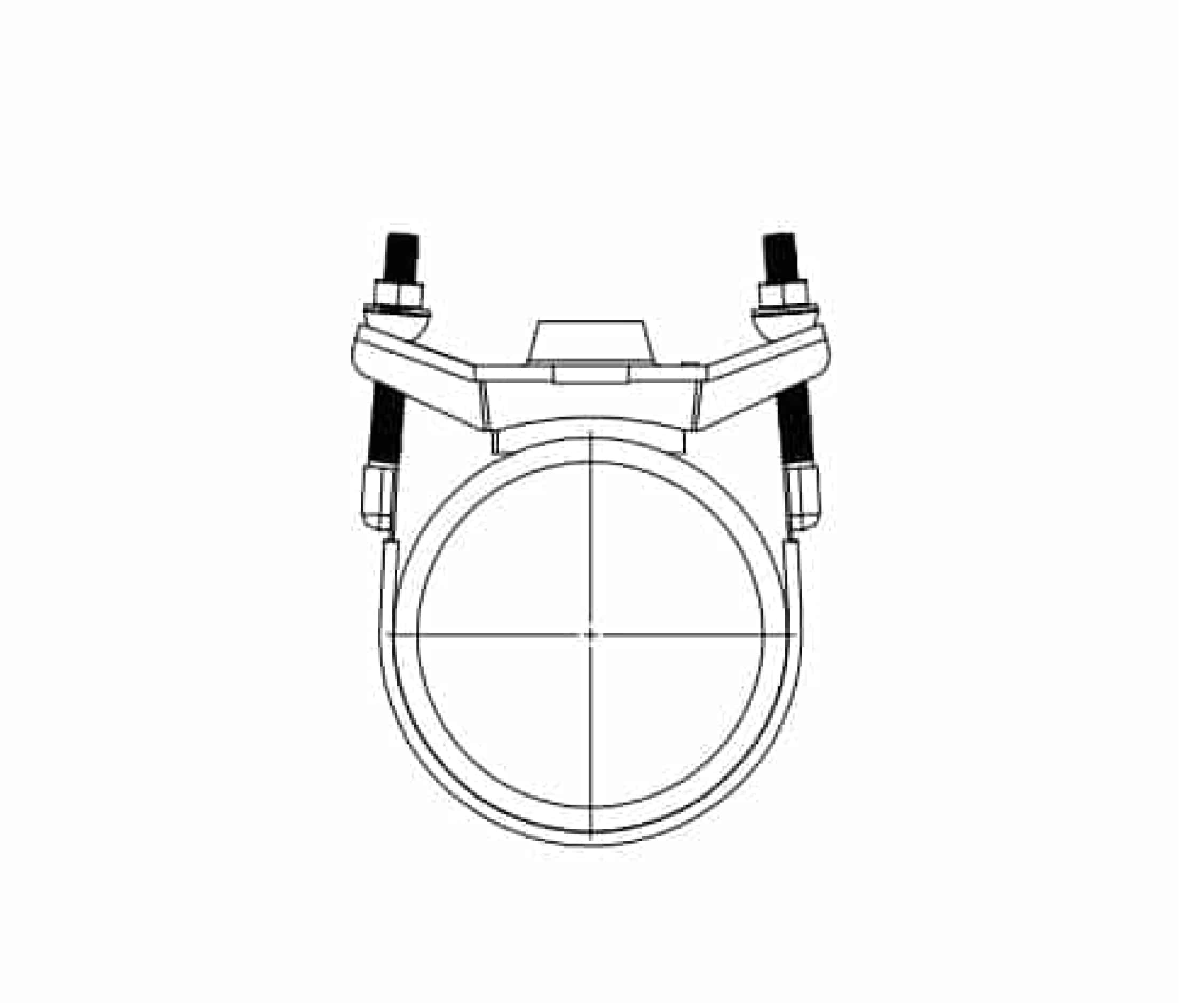

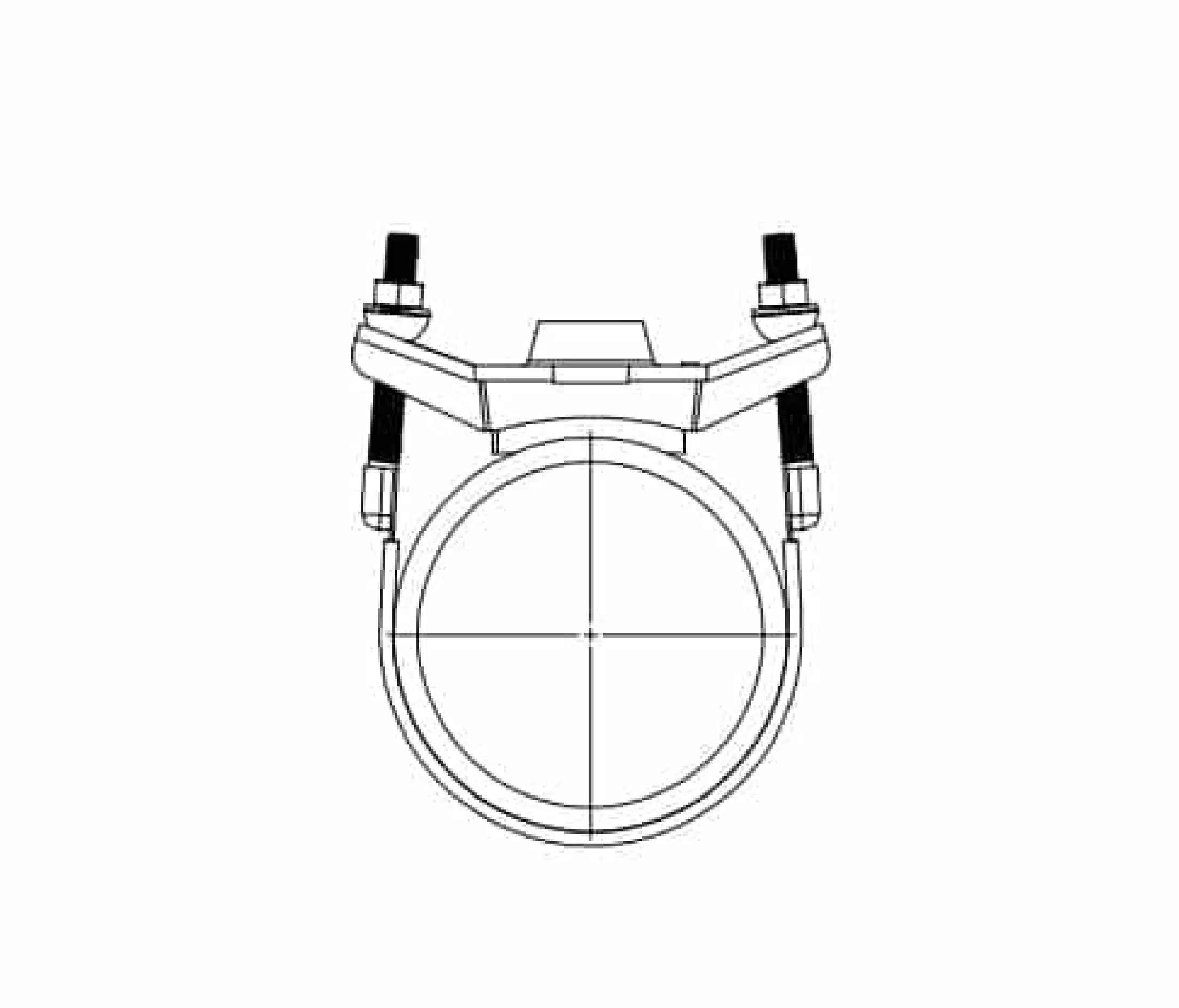

Tighten the two nuts alternately in multiple turns, ensuring equal force on both sides during each turn. Gradually increase the force from low to high until reaching the required torque.
Step 5

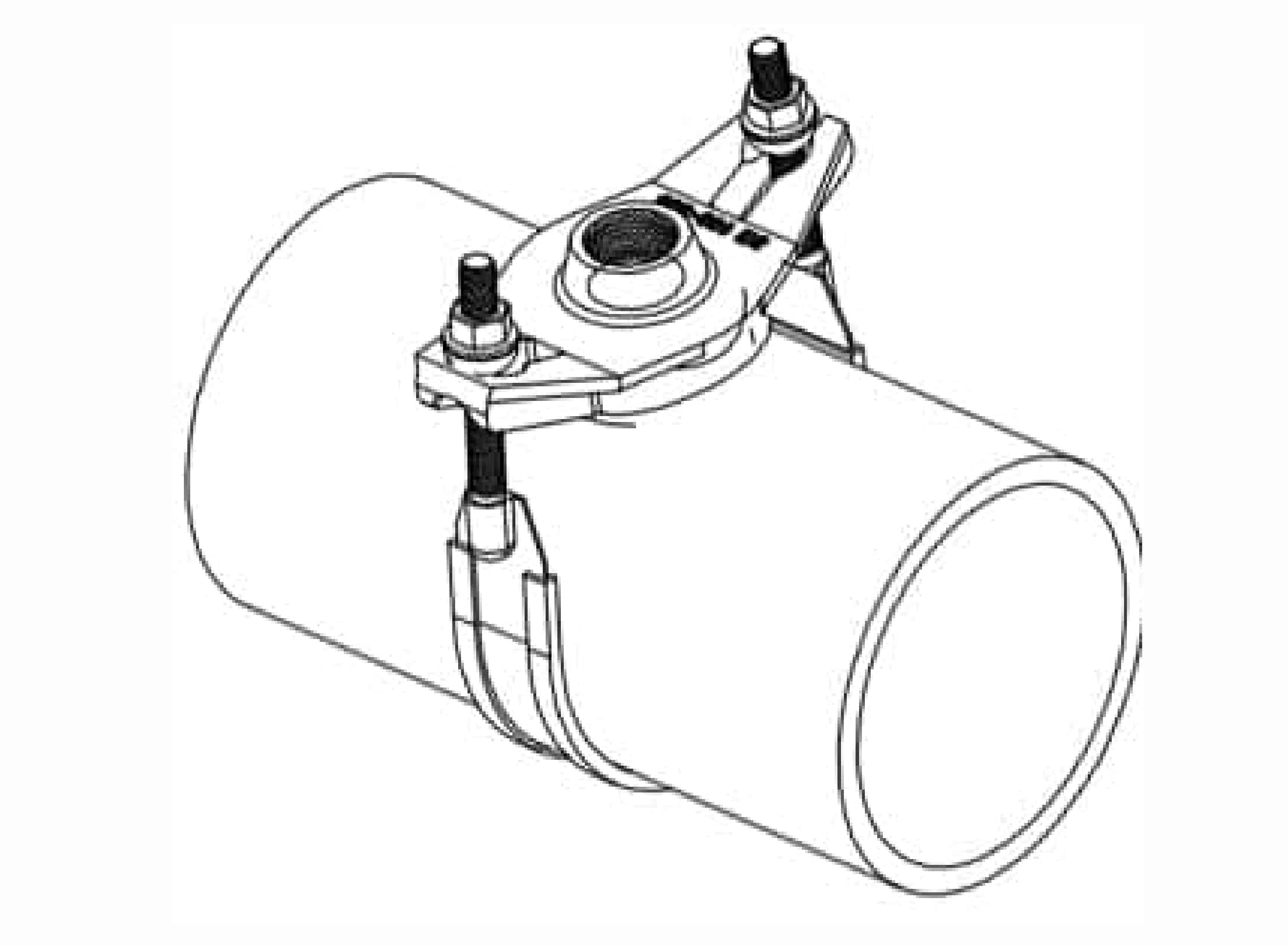

Assembling was finished as below photo.
