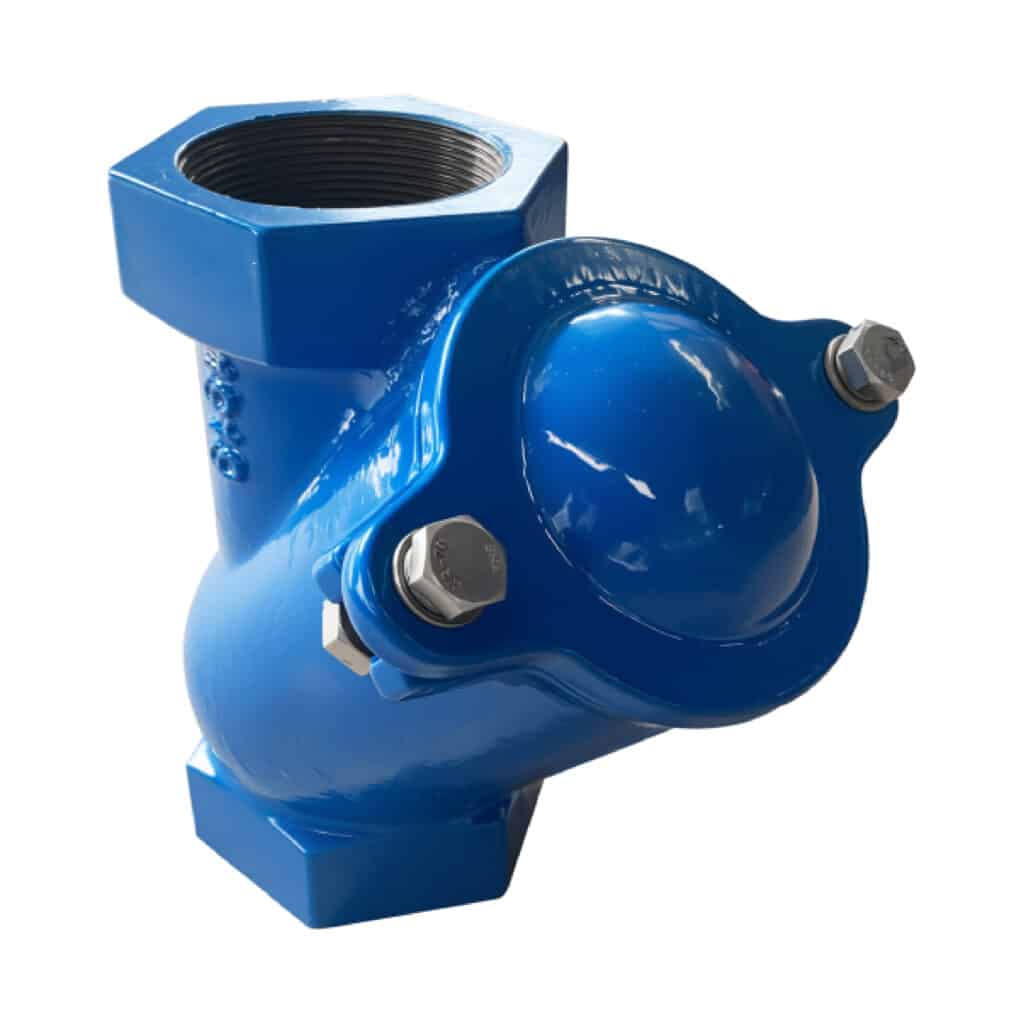

Thread end ball check valve
Feature
● Design Standard: BS EN1074-3/BS EN 12334
● Inspection & testing: BS EN12266-1
● Working Pressure:16bar
● working Temperature: -20℃ to 100℃
Use
● WATER

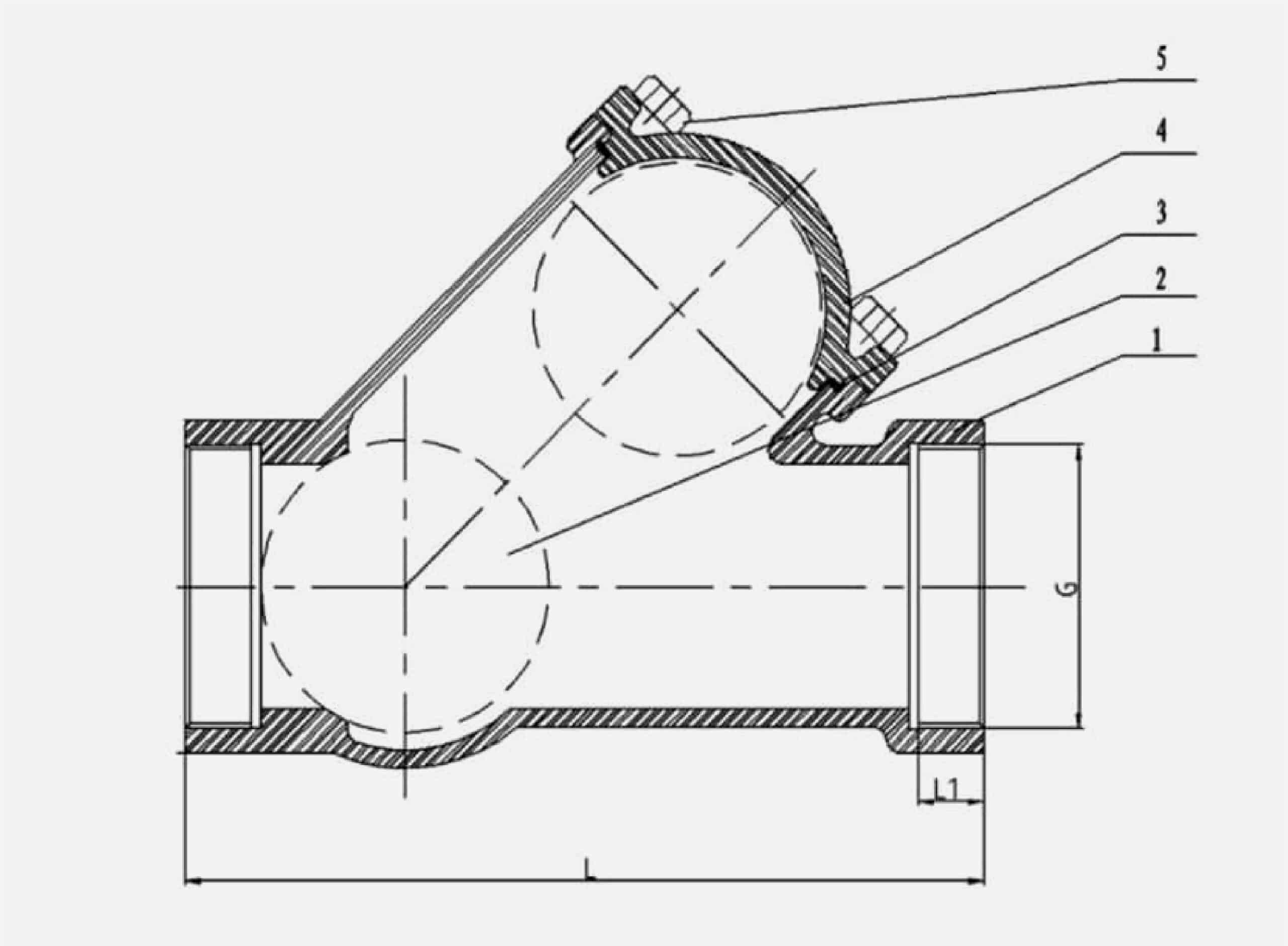

Drawing
Material
| ITEM | Part | Material |
|---|---|---|
| 1 | Body | Ductile lron |
| 2 | Ball | Steel & EPDM |
| 3 | Gasket | NBR/EPDM |
| 4 | Bonnet | Ductile lron |
| 5 | Bolts | Stainless Steel |
Dimension (mm)
| DN | L | G | L1 |
|---|---|---|---|
| 25 | 140 | 1'' | 19.1 |
| 32 | 140 | 1.25'' | 21.4 |
| 40 | 145 | 1.5'' | 21.4 |
| 50 | 170 | 2'' | 25.7 |
| 65 | 210 | 2.5'' | 30.2 |
| 80 | 240 | 3'' | 33.3 |
