Thread Union Rubber Joint

Thread union rubber joint is rubber expansion joint which be connected by thread union, the material of the thread union can be malleable iron (GI),or as per client requirement.

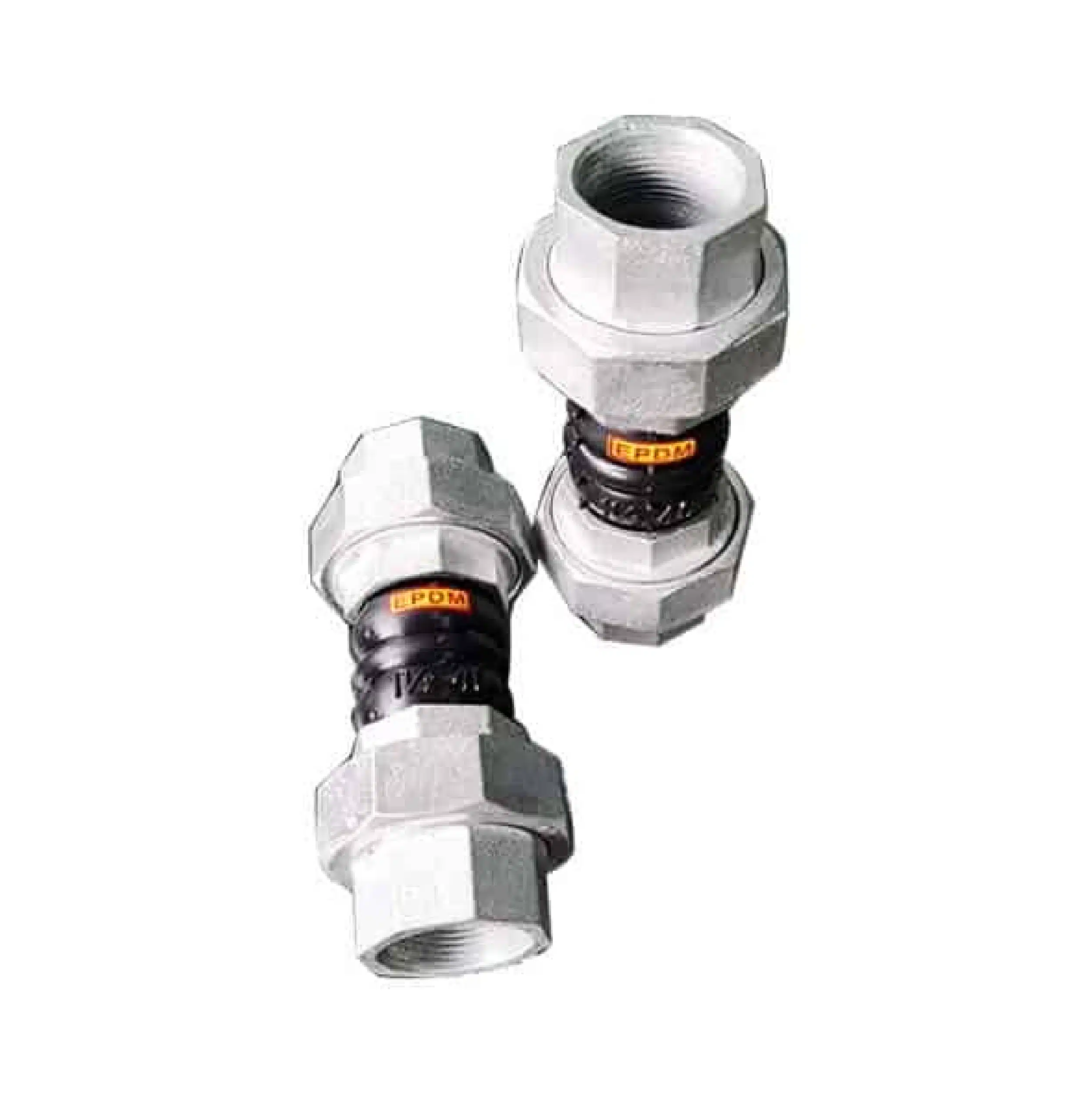

thread union rubber joint

Specification

Working Pressure 1.6Mpa

Bursting pressure 4.8MPa

Deflection angle (a1+a2)45°

Vacuum 53.3Kpa(400mm Hg)

Applicable Temperature normally from -15℃ to 115℃,special requirement also available from -30℃ to 250

Application water, sea water, hot water, air, compressed air, oil ,acid ,alkali etc

Size From 1/2″ to 3″

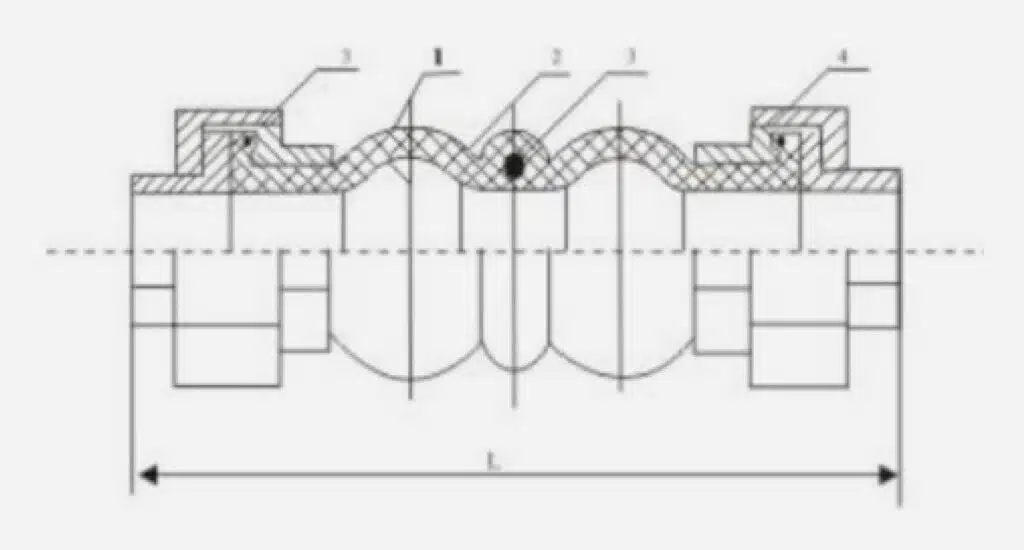

Drawing

thread union rubber joint drawing
  • Material  Threaded Union :Malleable Iron etc; Sphere: NR,NBR,EPDM etc Skeleton:    Nylon cord fabric;Pressurized ring:steel wire

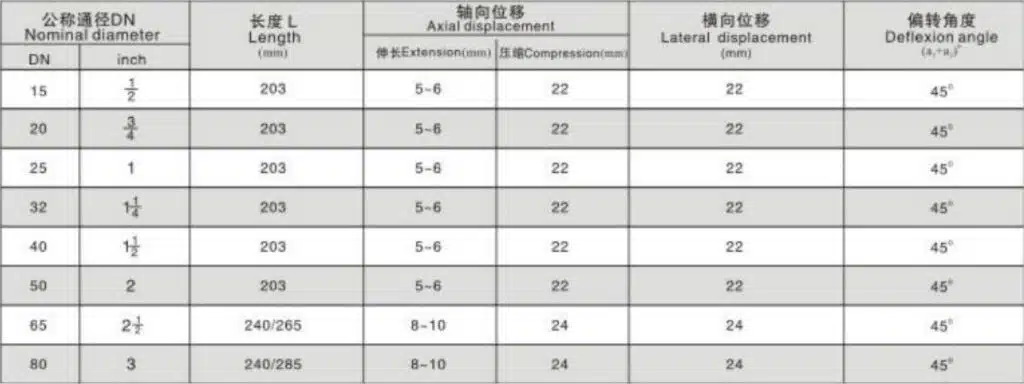

Dimension

thread-union-rubber-expansion-joint-dimension
