Thrust Type Dismantling Joint

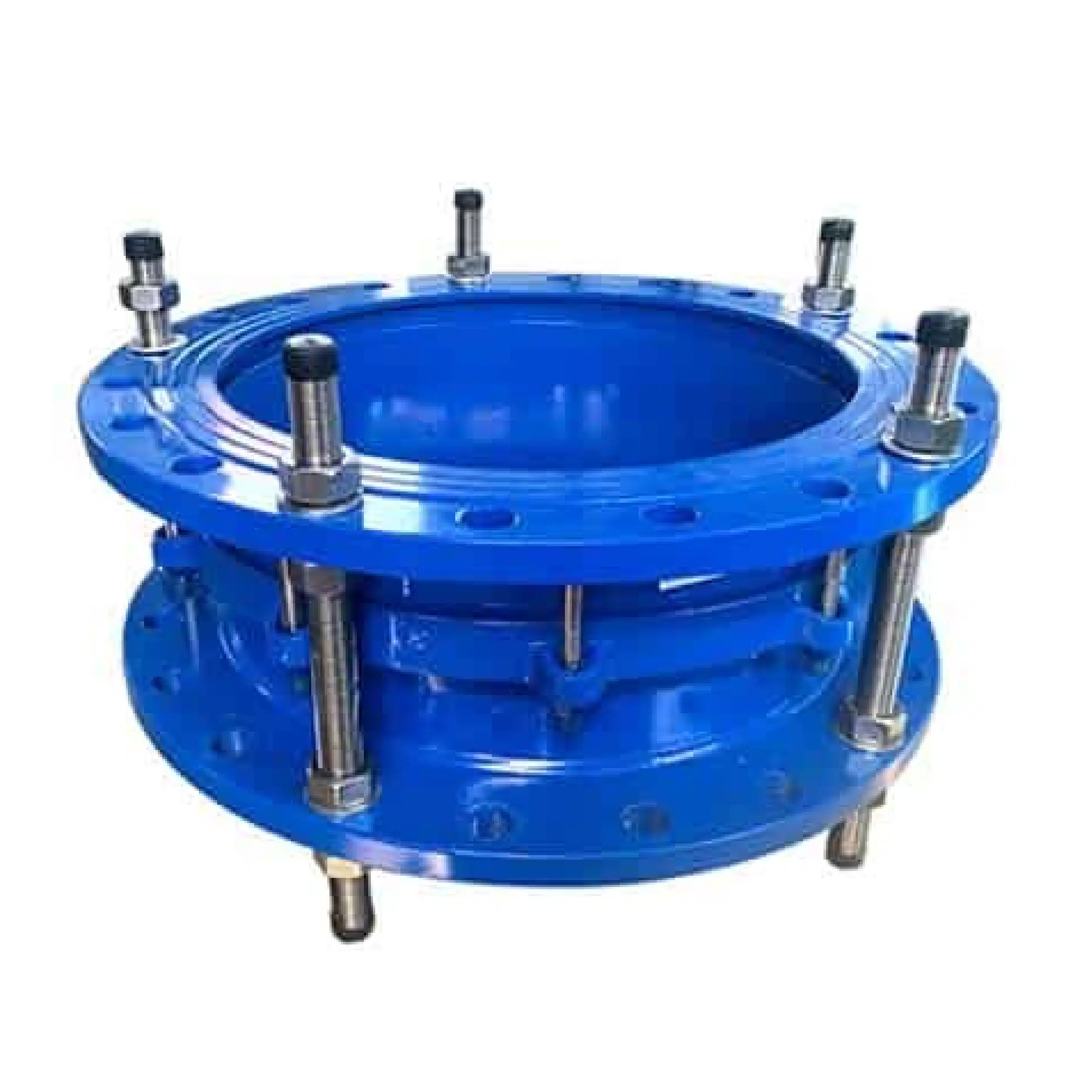

thrust type dismantling joint photo

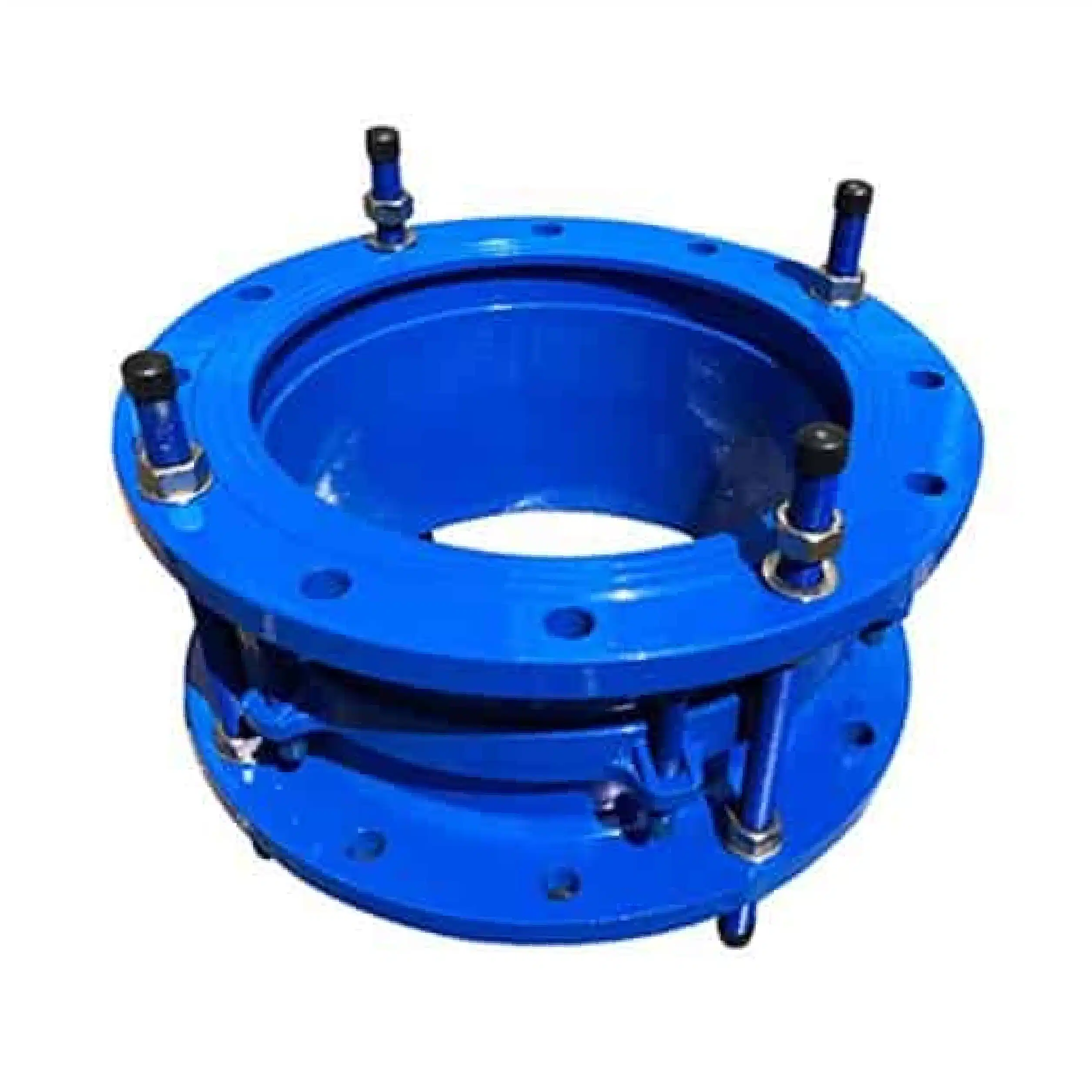

thrust type dismantling joint another photo
Previous image
Next image

Specification

Light Type

Only 25% long bolts(no less than 4 pcs) are needed

Also can work as non thrust dismantling joint if no long tie rods are assembled

Comply with EN545

Flange type:BS EN1092 PN10

AWWA C209/AS/NZS2280 standard dismantling joint also available upon request

Product Video

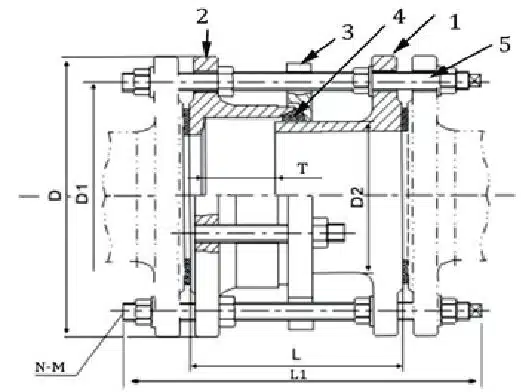

Drawing

Material

Sr.No. Name Material Standard
1 Long body Ductile Iron EN1563
2 Short body Ductile Iron EN1563
3 Retainer Ductile Iron EN1563
4 Gasket EPDM/NBR EN681-1
5 Tie rods CS/SS ISO

Dimension

SIZE PN D L T L1 D1
DN80 PN10/16 200 205 +/-25 340 160
DN100 PN10/16 220 205 +/-25 340 180
DN150 PN10/16 285 205 +/-25 340 240
DN200 PN10 340 215 +/-25 350 295
PN16 340 215 +/-25 350 295
DN250 PN10 400 220 +/-25 370 350
PN16 400 220 +/-25 380 355
DN300 PN10 455 240 +/-25 390 400
PN16 455 240 +/-25 400 410
DN350 PN10 505 240 +/-25 400 460
PN16 520 240 +/-25 410 470
DN400 PN10 565 250 +/-25 420 515
PN16 580 250 +/-25 430 525
DN450 PN10 615 265 +/-25 435 565
PN16 640 265 +/-25 450 585
DN500 PN10 670 275 +/-25 440 620
PN16 715 275 +/-25 460 650
DN600 PN10 780 295 +/-25 460 725
PN16 840 295 +/-25 500 770
DN700 PN10 895 300 +/-25 480 840
PN16 910 300 +/-25 500 840
DN800 PN10 1015 320 +/-25 500 950
PN16 1025 320 +/-25 530 950
DN900 PN10 1115 320 +/-25 500 1050
PN16 1125 320 +/-25 530 1050
DN1000 PN10 1230 330 +/-25 545 1160
PN16 1255 330 +/-25 570 1170
DN1200 PN10 1455 350 +/-25 580 1380
PN16 1485 350 +/-25 620 1390
