Valve Spindle

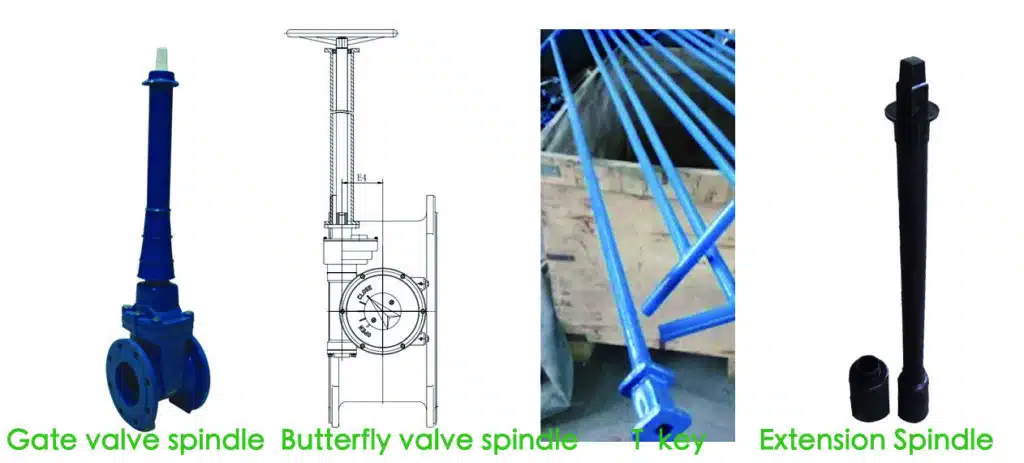

Judberd is chinese manufacturer for various extension spindle, include but not limit to fix length extension spindle, telescopic extension spindle with can adjust self length to suit for different length from the valve top to the operation position,T key which can work as extension spindle and wrench meantime.

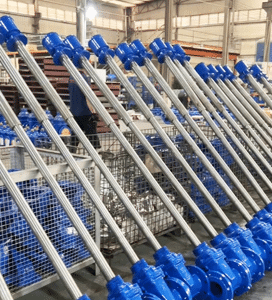

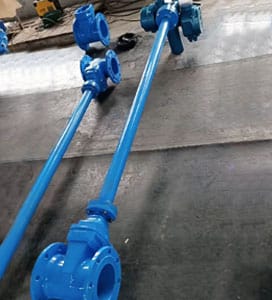

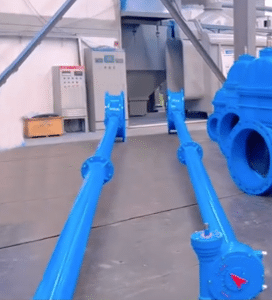

Judberd extension spindle can be used for gate valve, butterfly valve, service valve, ball valve, Underground fire hydrant etc.

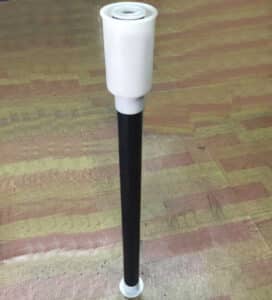

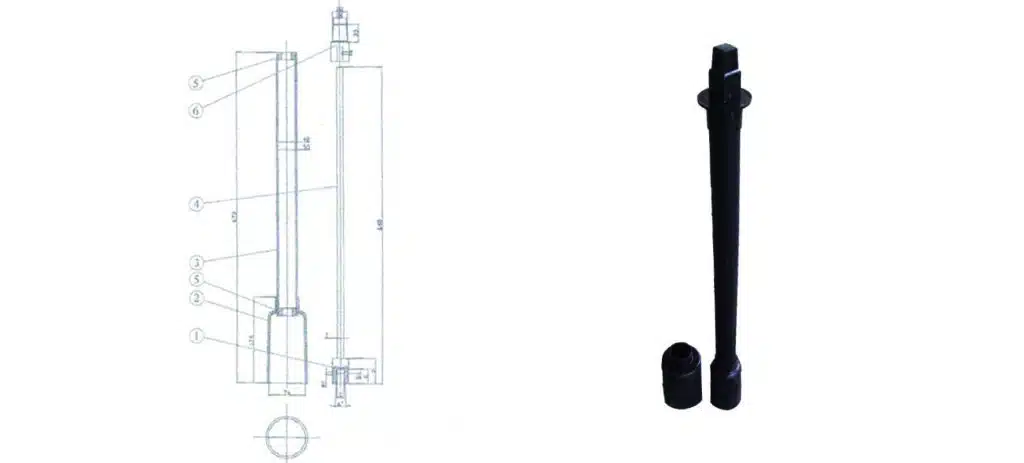

Fix Length Extension Spindle

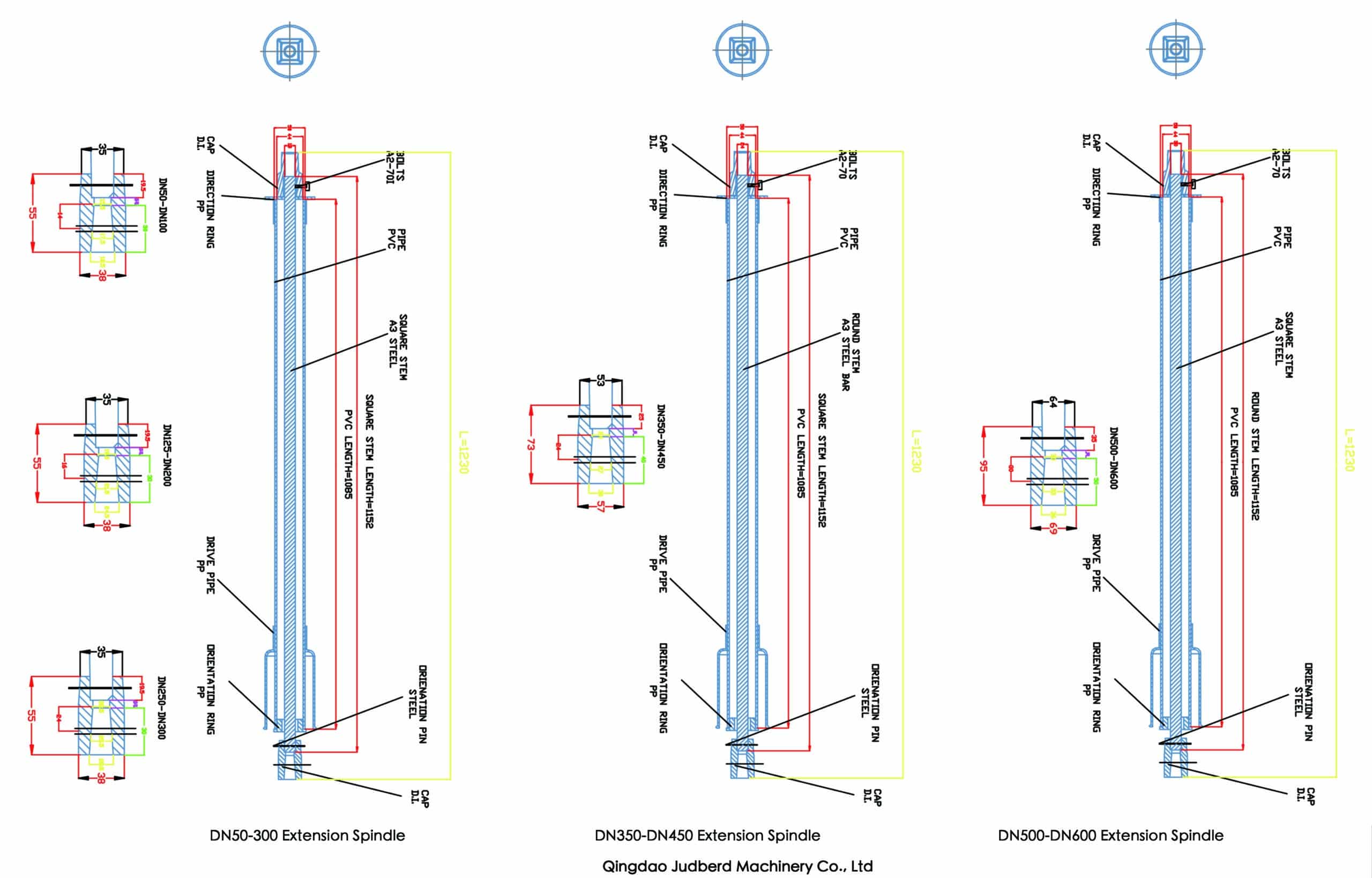

Judberd fix length extension spindle is assembled by the female type adaptor which is fitted to the valve stem, the carbon steel bar, the male type adaptor which connected to the carbon steel bar and will be operated by wrench to open or close the valve, and the PE outer protection sleeve.
1,Female type adaptor material Galvanized ductile iron 2,Cover PE 3,Cover PE 4,Body Carbon Steel 5,Cover PE 6, Male type adaptor material galvanized ductile iron

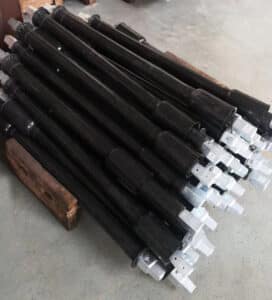

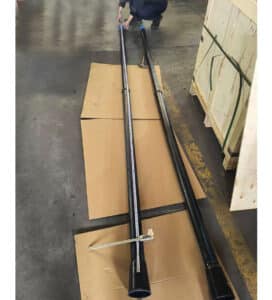

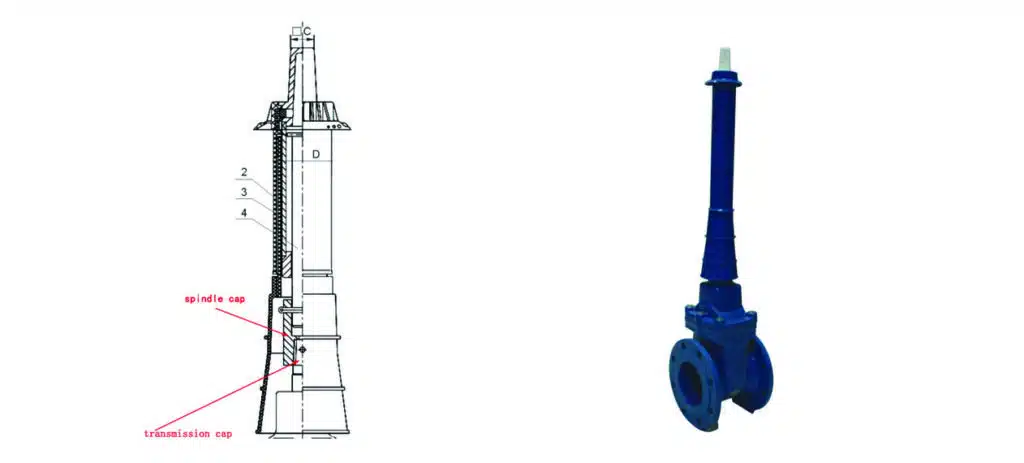

Telescopic Extension Spindle
Judberd telescopic extension spindle can change length by telescopic itself.The total length gap can be 300mm.It is suitable for unstable

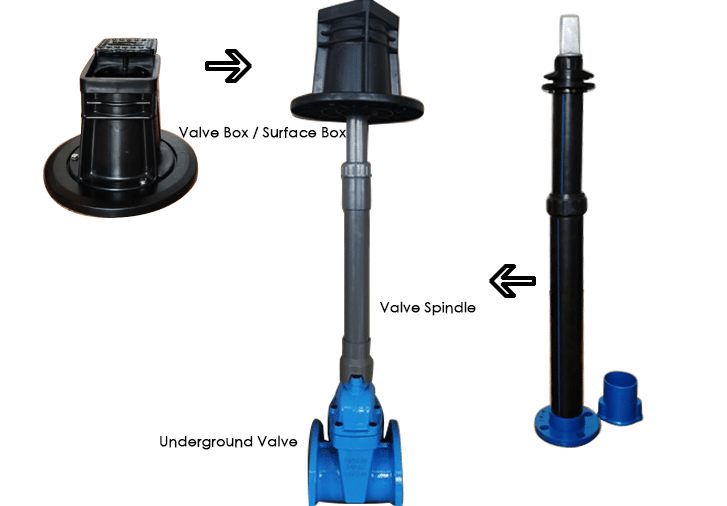

length situation. You can adjust your extension spindle length according to the actual length from the valve stem nut to the opening/closing position.
2, Cover material ABS or PE 3,Connection material WCB 4,Bar material Q235
T key
The T key is a type of T-shaped switch with its built-in extension rod, allowing it to reach underground and engage with the stem cap of the valve for operation. The T key transmits force to the valve’s stem cap through its square design.
