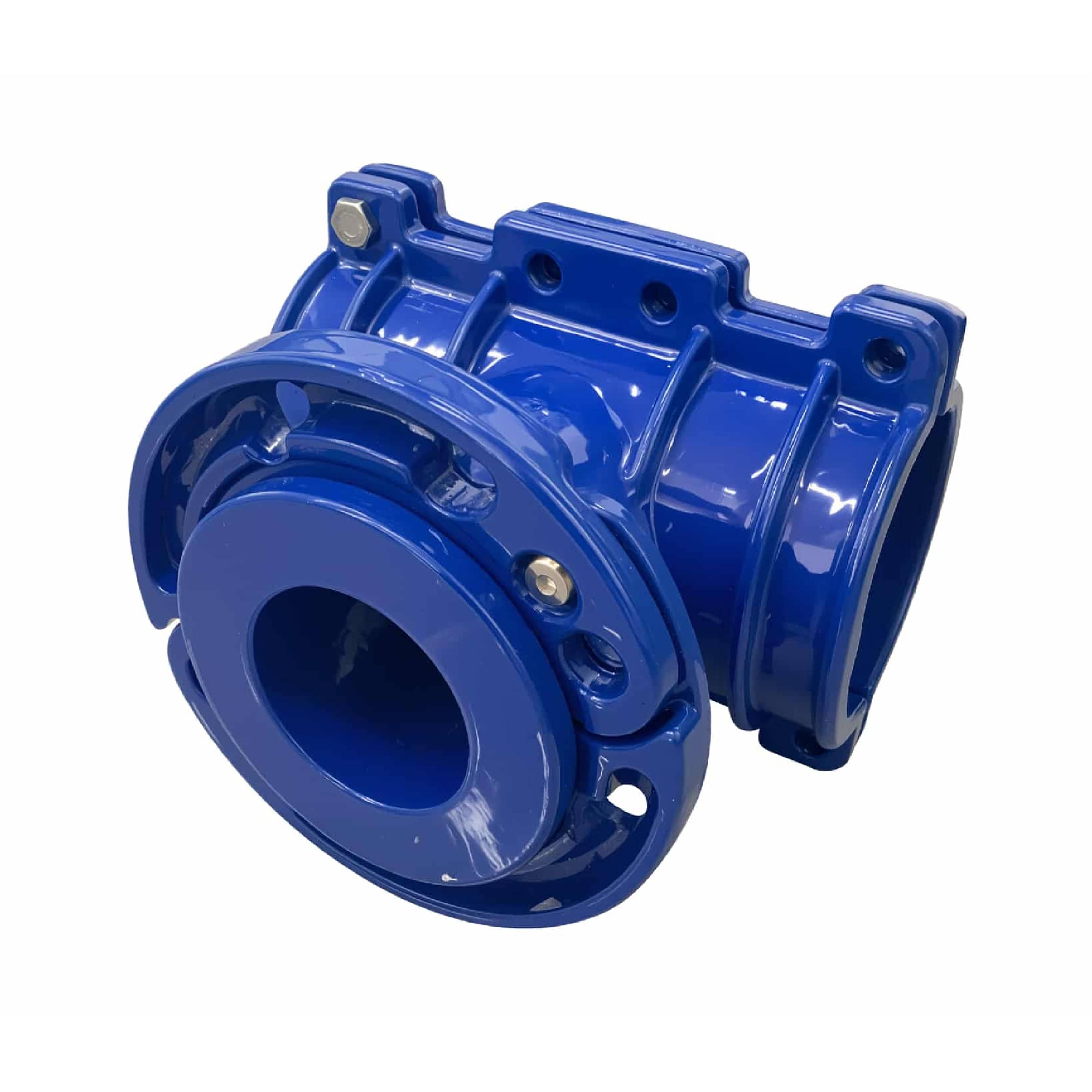

Water Main Tapping Saddle

Water Main Tapping Saddle Is One Saddle Clamp Which Is Assembled On Water Main Pipe To Split Water To Branch Pipe.

saddle clamp for pvc and pe pipe 8 bolts with loose flange outlet

Specification

Saddle Standard:Comply With EN545

With Loose Flange ,Flange Standard:EN1092-2

Coating Standard:EN30677

Test Standard: EN12266-1

Working Pressure And Temperature

Size DN100 To DN400, Working Pressure 20bar, Test Pressure 30bar

Temperature From -10℃ To 120℃ For EPDM Gasket

Temperature From -10℃ To 82℃ For NBR Gasket

Connection For PVC And HDPE Pipe

Suitable For Potable Water, Neutral Liquids And Sewage

WRAS,ACS,DVGW,NSF Approved

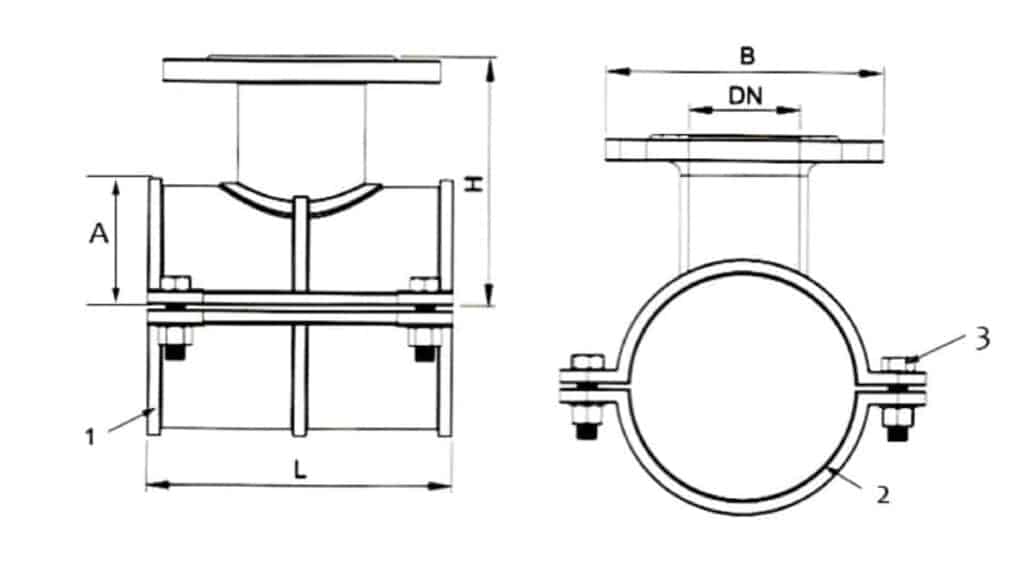

Drawing

water main tapping saddle drawing


Material

No. Parts Name Material
1 Body Ductile iron
2 Gasket EPDM
3 Bolts,nuts and washers Stainelss steel

Bolts Can Be Dacromet Coated Carbon Steel ,Teflon Coated Stainless Steel Material Or Upon Client Request

Surface Can Be Fusion Bonded Epoxy Coating,Nylon 11 Coating Or Upon Client Request


Dimension(unit mm unless specified)

DN PVC/PE pipe OD A B H L Height Weight (kg)
100 110 65.5 200 160 235 225.5 10.7
125 125 73 200 170 235 243 11.2
125 125 73 220 170 235 243 12.3
140 140 81 200 180 235 261 11.9
140 140 81 220 180 235 261 13
150 160 91 200 190 270 281 13.7
150 160 91 220 190 270 281 14.7
200 200 111 200 210 270 321 16.2
200 200 111 220 210 270 321 17.3
250 250 141 200 240 390 381 30.6
250 250 141 220 240 390 381 31.6
300 315 173 200 280 390 453 36.7
300 315 173 220 280 390 453 37.7
400 400 219.5 200 330 390 549.5 53.2
400 400 219.5 220 330 390 549.5 54.2
