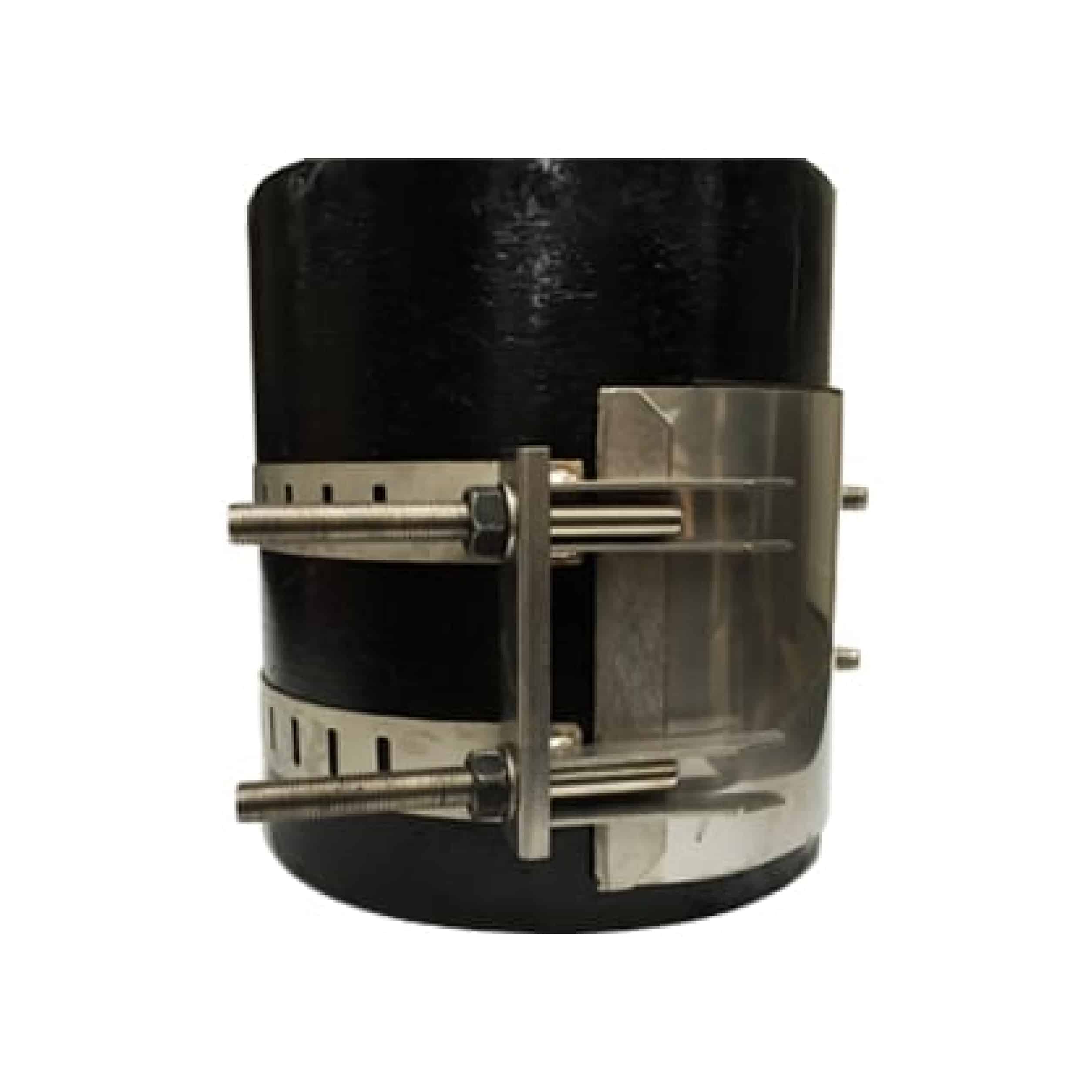

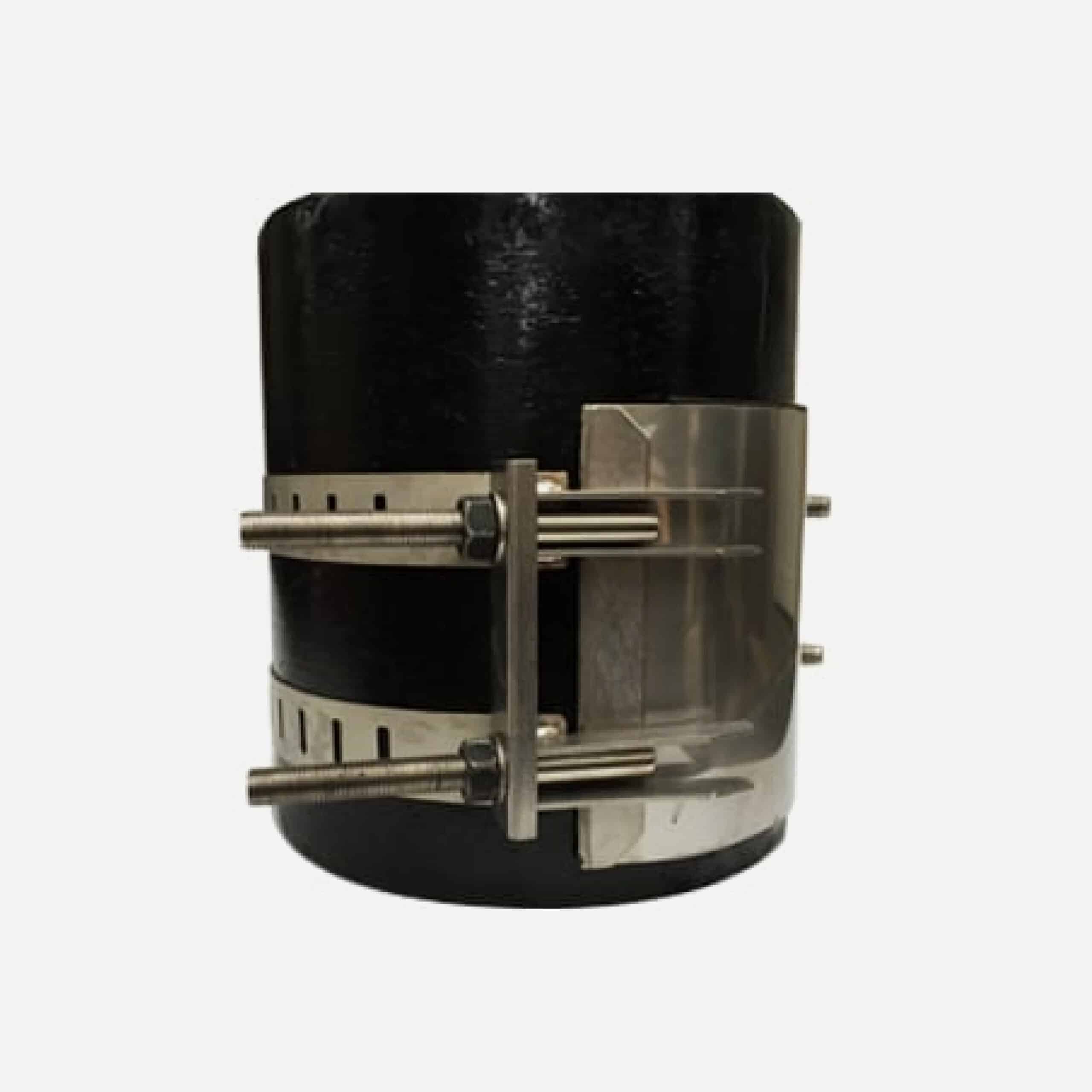

Water Pipe Repair Clamp

Water Pipe Repair Clamp Is Repair Clamp For Water Pipeline.We Have Many Different Design,Below Is The Wide Range Strip Type.

water pipe repair clamp

Specification

Have Big Range Gap Which Can Be Used For Many Different Pipe Size, So No Need Worry Lack Of Some Size In Stock.

Uninstall The Strip, The Other Part Can Work As A Normal Repair Clamp.



Dimension(unit mm)

Pipe Outside Diameter(OD) Range mm Width Effective Repair Range
108-159 200 100*150
159-273 300 210*220
219-377 300 370*200
325-478 400 560*300
426-830 500 1000*400



Installation Instruction

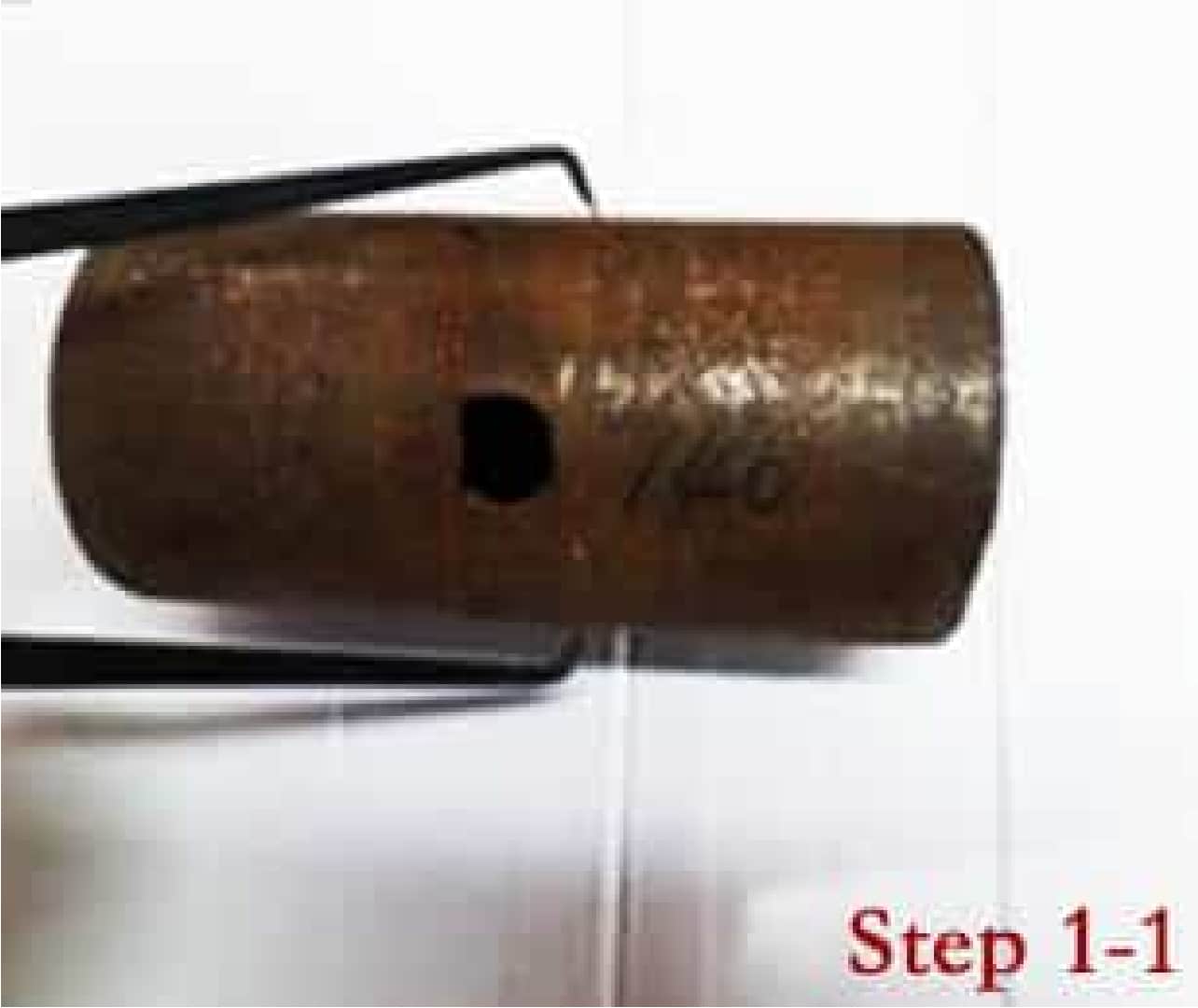

installation instruction for water pipe repair clamp step 1-1
installation instruction for water pipe repair clamp step 1-2

1. Confirm The Outer Diameter Of The Pipe And The Length Of The Leak, And Select The Corresponding Repair Clamp Size.

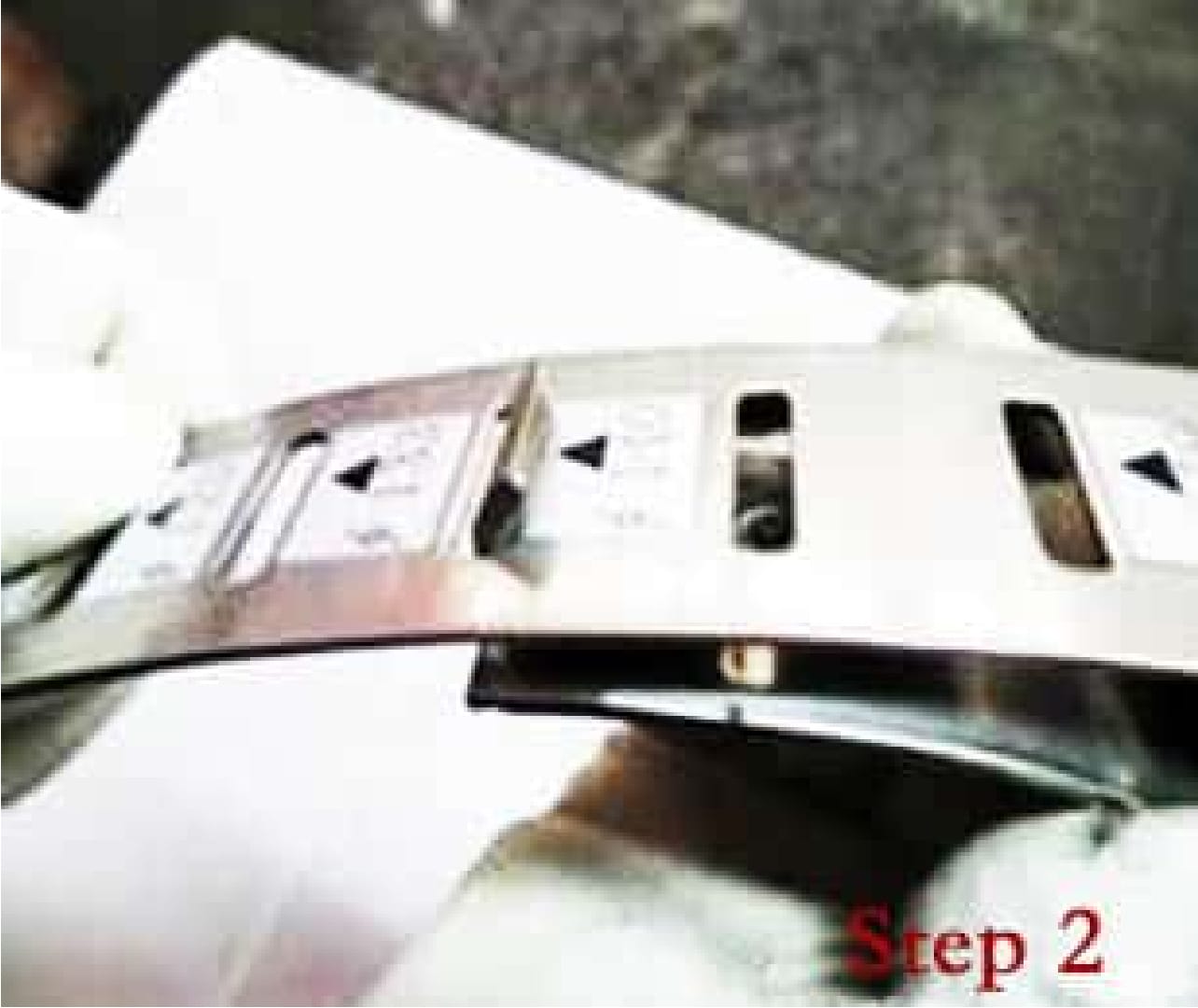

installation instruction for water pipe repair clamp step 2

2. Find The Corresponding Range Of Pipe Diameters On The Product And

Determine The Size Of The Product Calibre

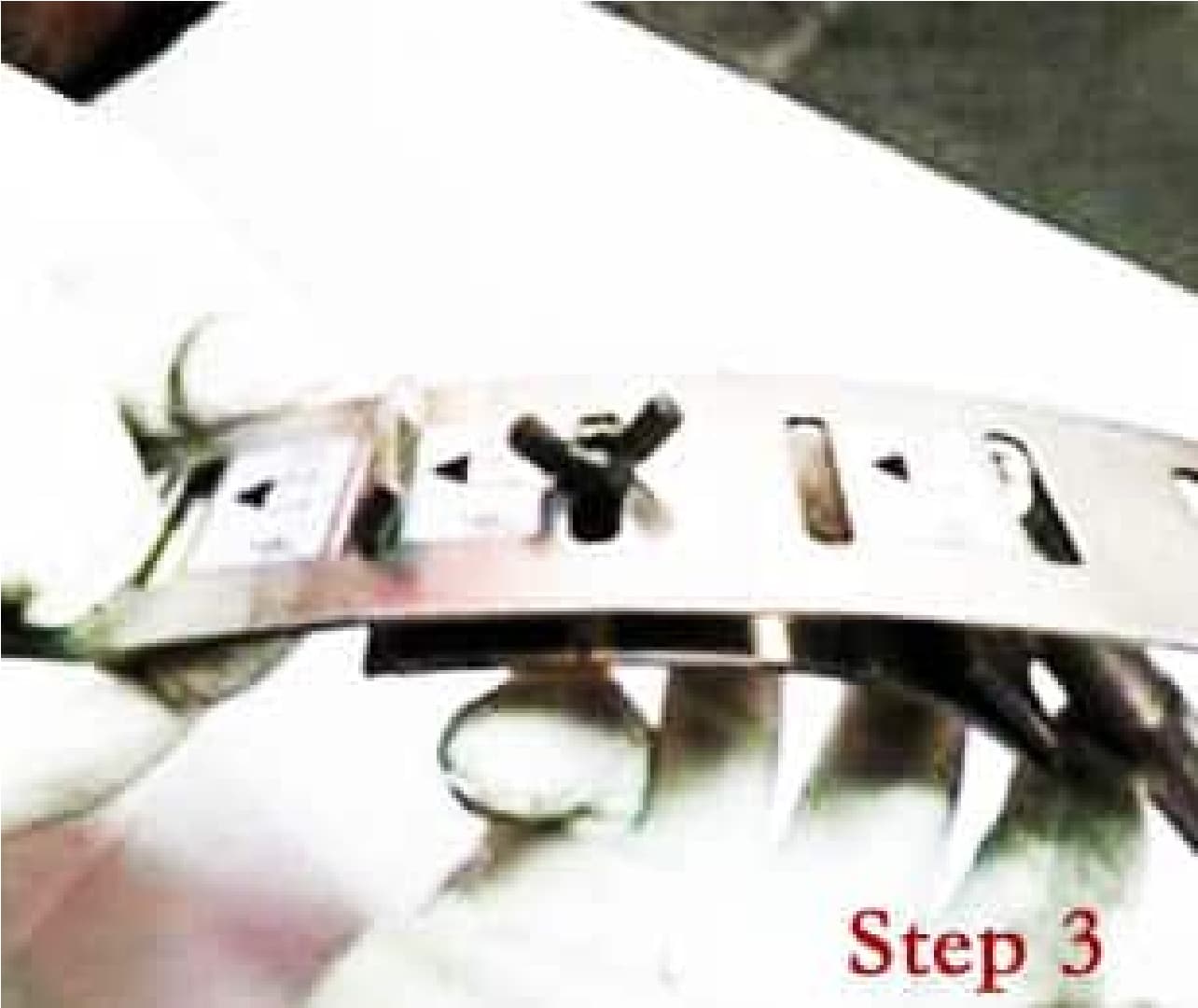

installation instruction for water pipe repair clamp step 3

3. Use The Butterfly Nails To Fix The Clamping Part

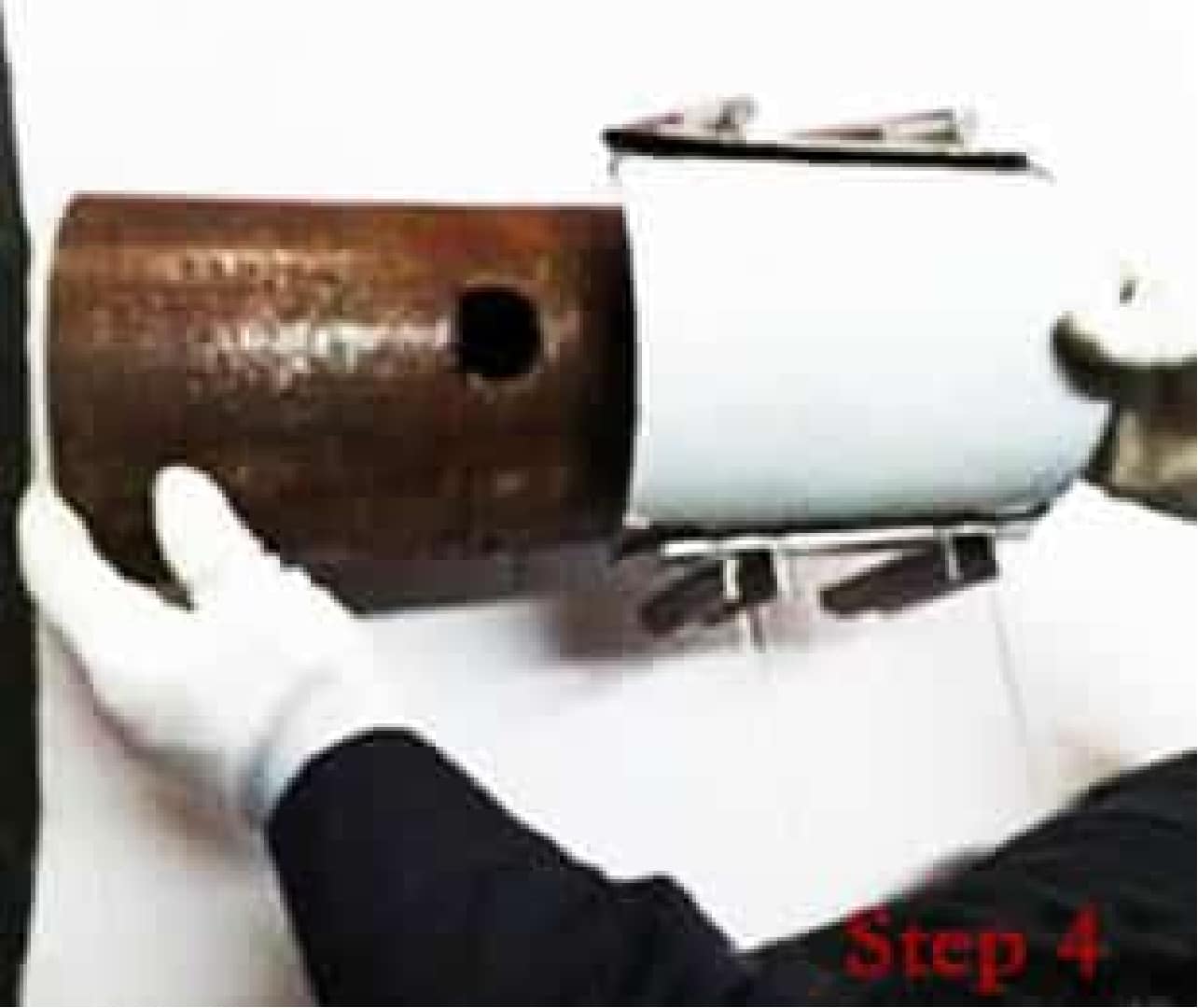

installtion instruction for water pipe repair clamp step 4

4,Place The Stainless Steel Casing Of The Repair Clamp On The Leak Place.

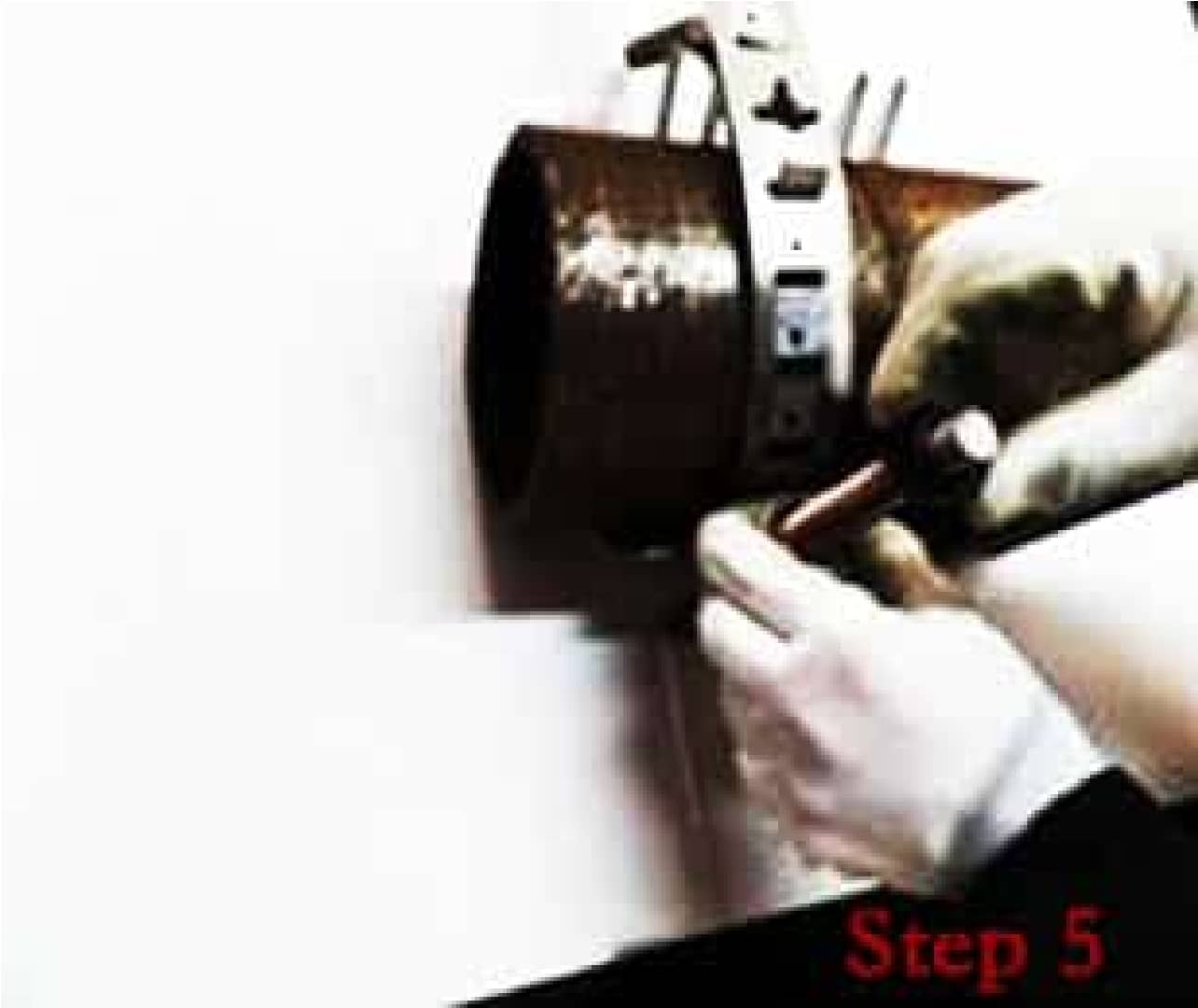

installation instruction for water pipe repair clamp step 5

5,Fix The First Cassette To The Pipe And Manually

Torque The Nut, Taking Care Not To Over-Tighten It And To Ensure That The Distance Between The Bolts On Both Sides Of The Cassette Is Similar.

6,Install The Remaining Straps In The Same Way As In Step 5.

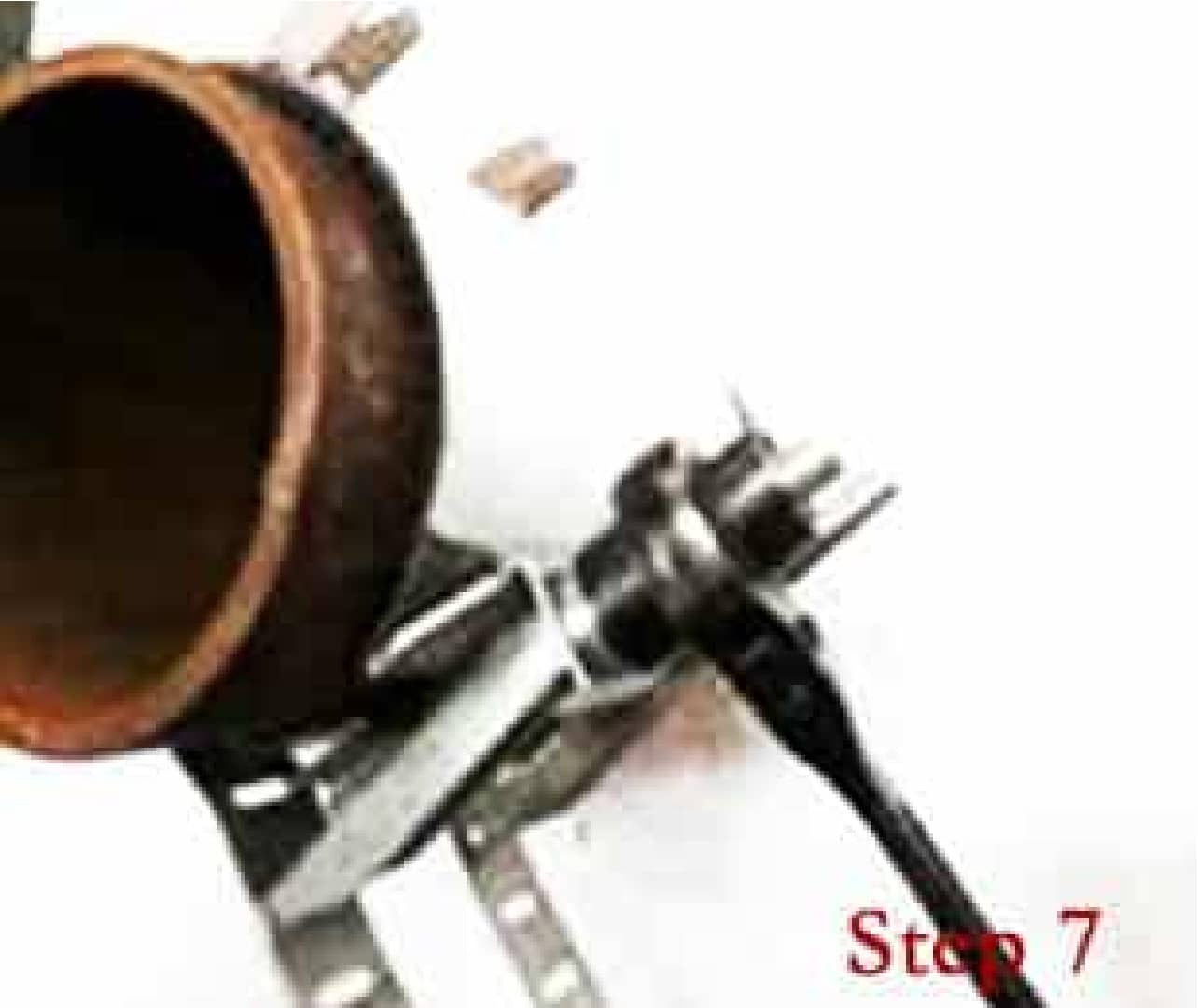

installation instruction for water pipe repair clamp step 7

7,Use A Spanner To Tighten The Nuts Evenly,Installation Completed

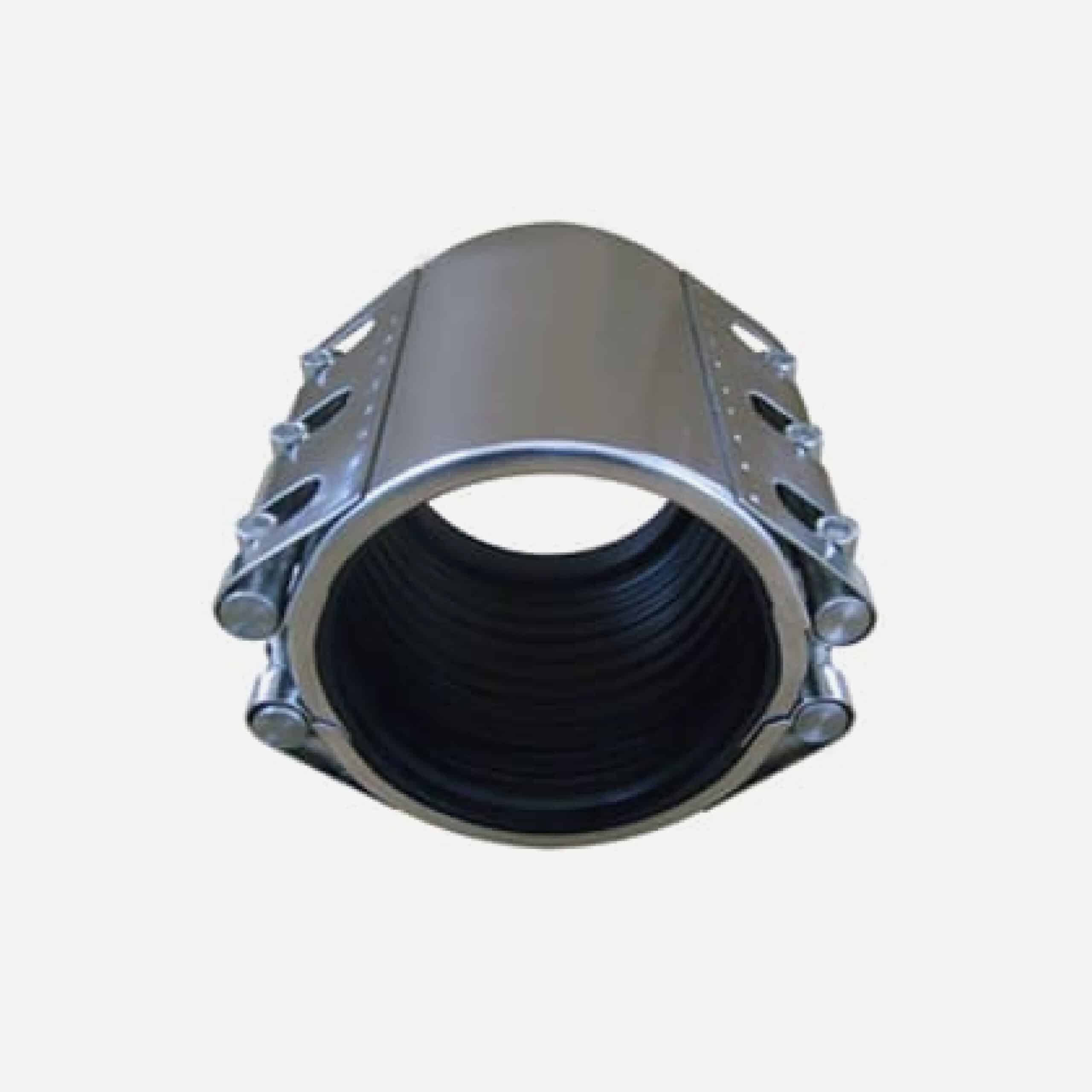

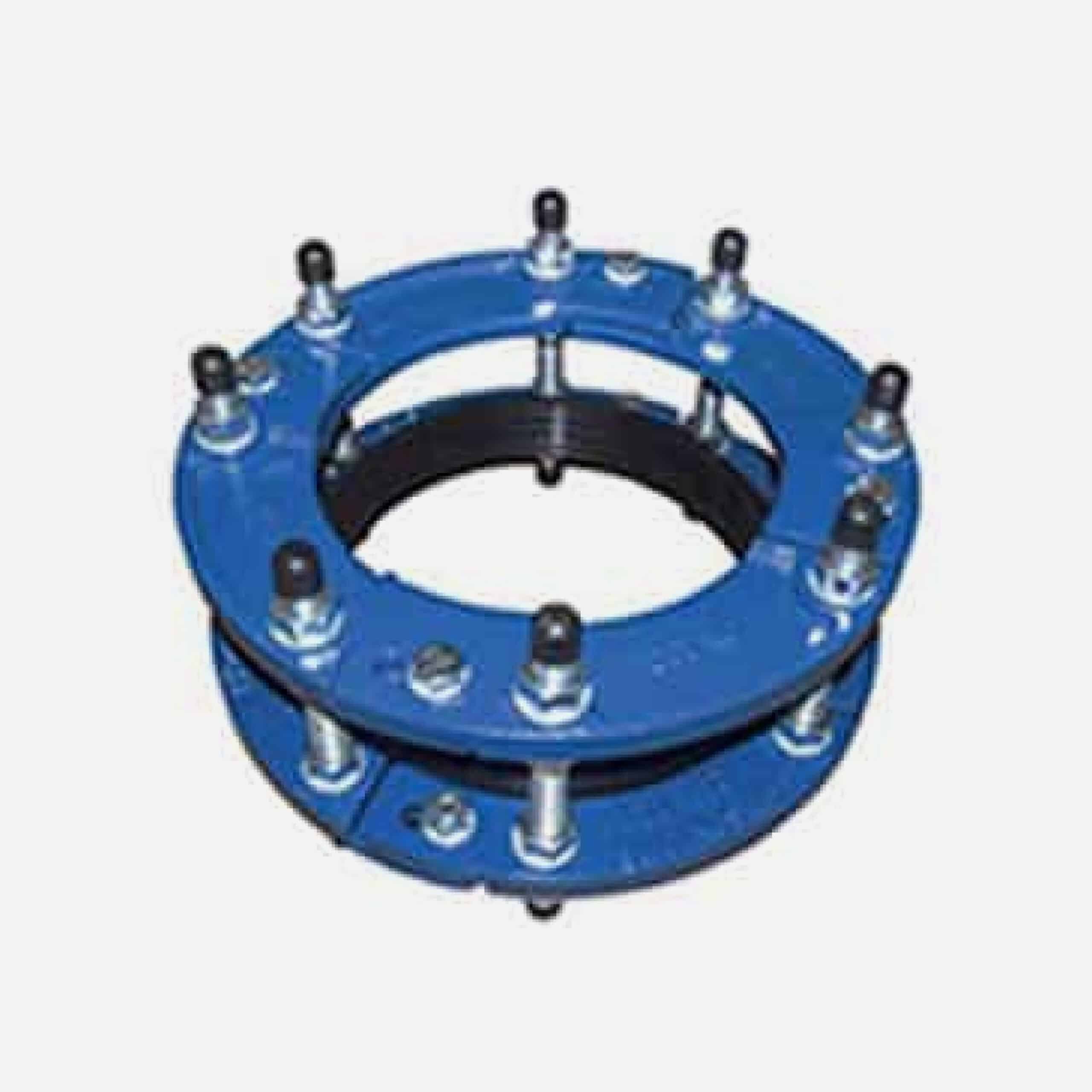

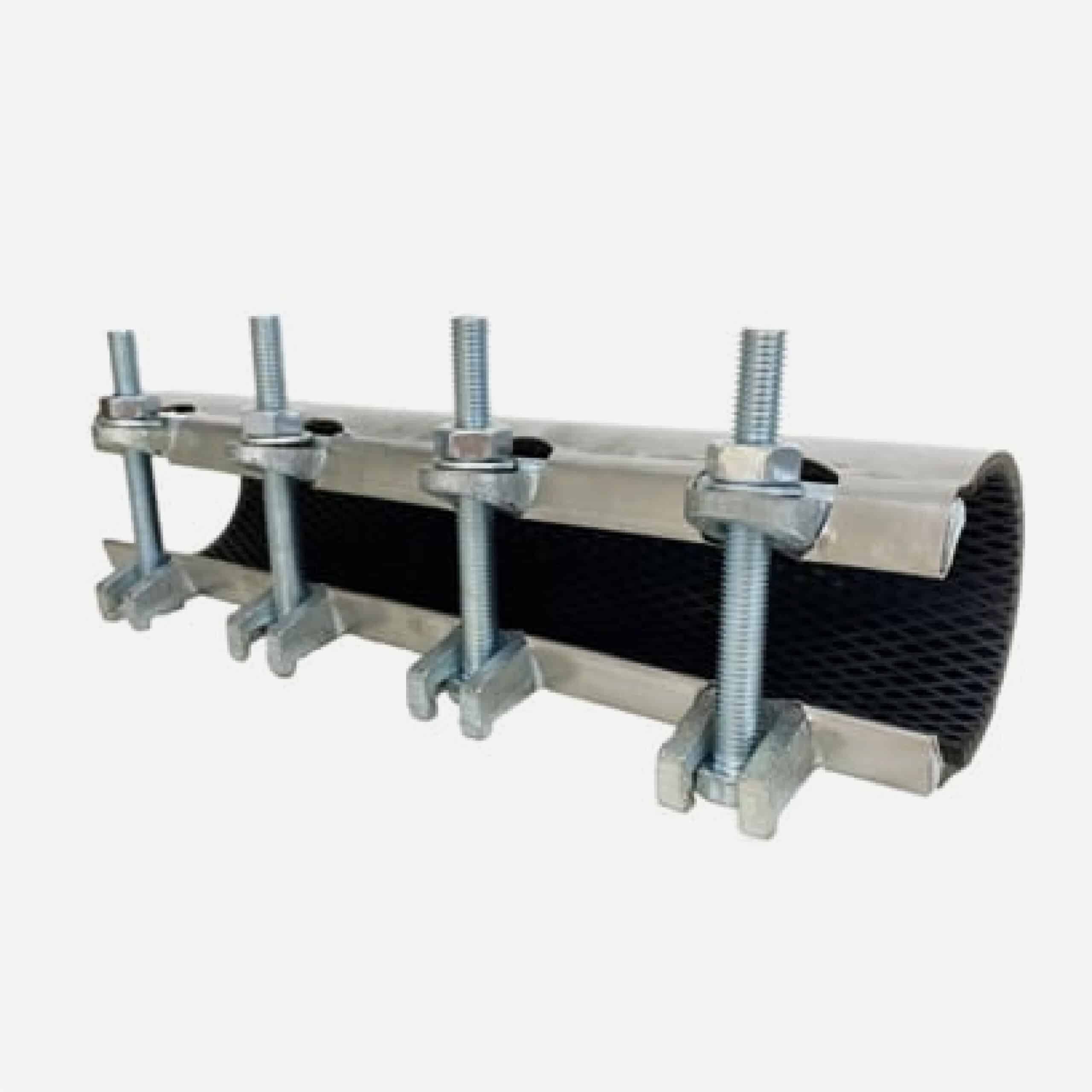

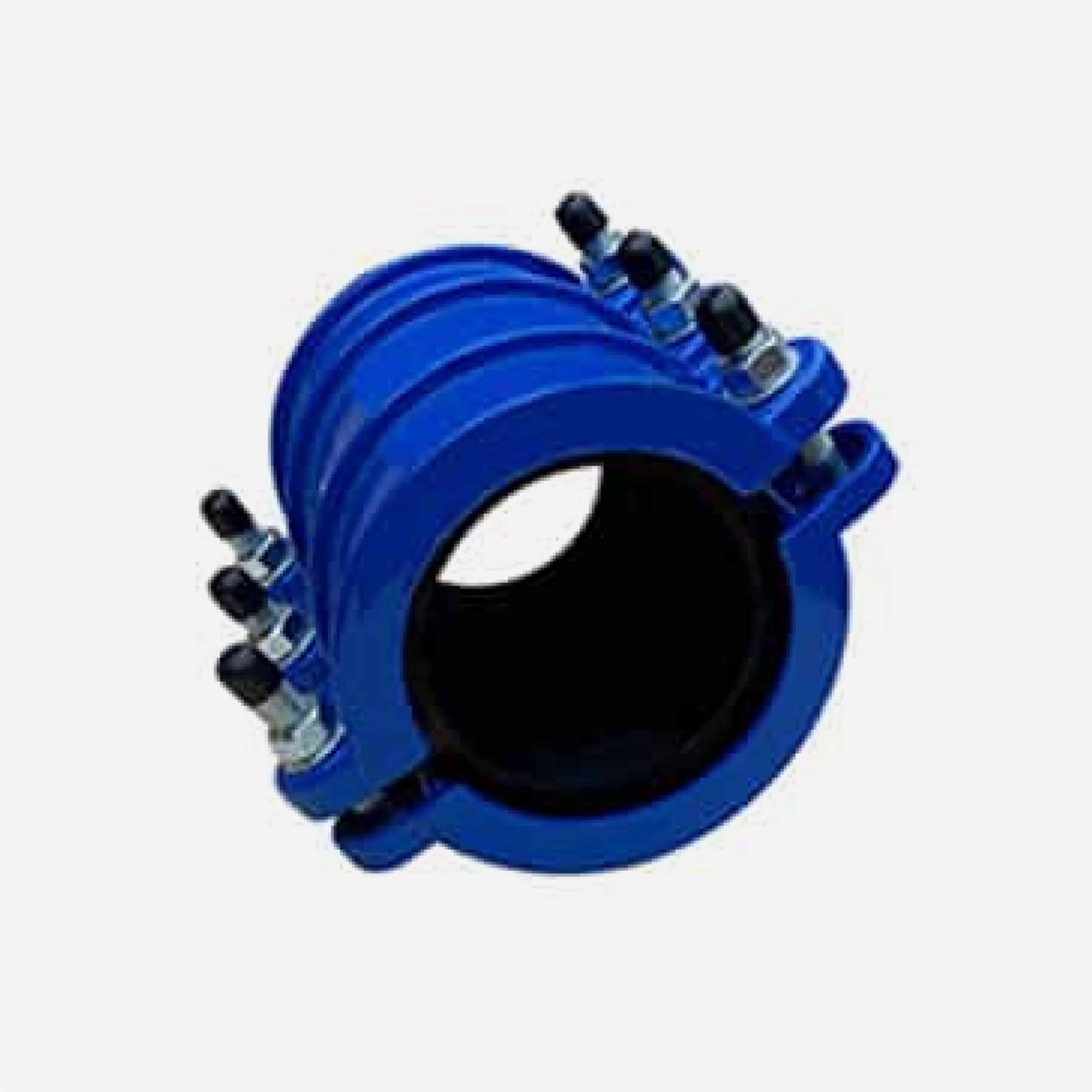

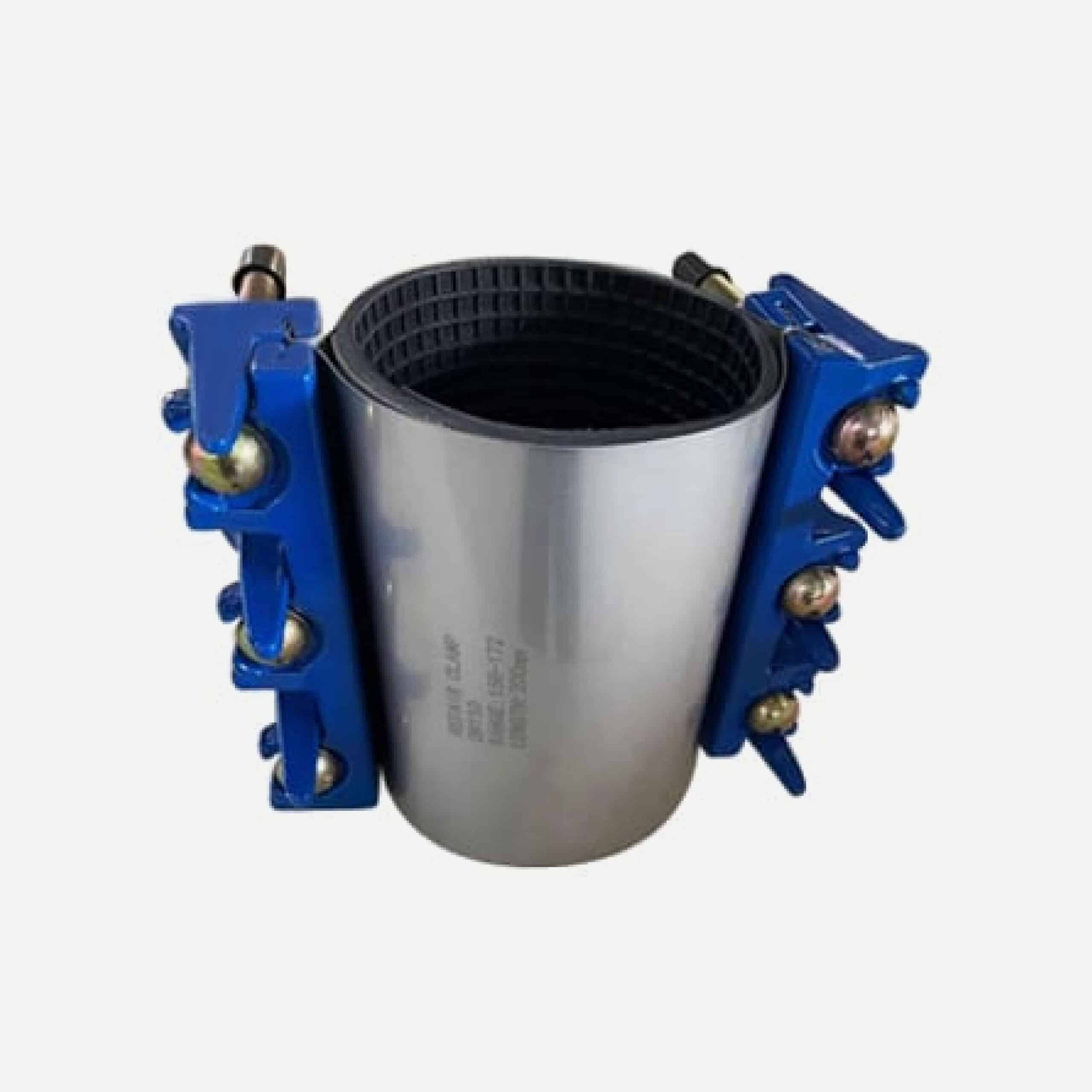

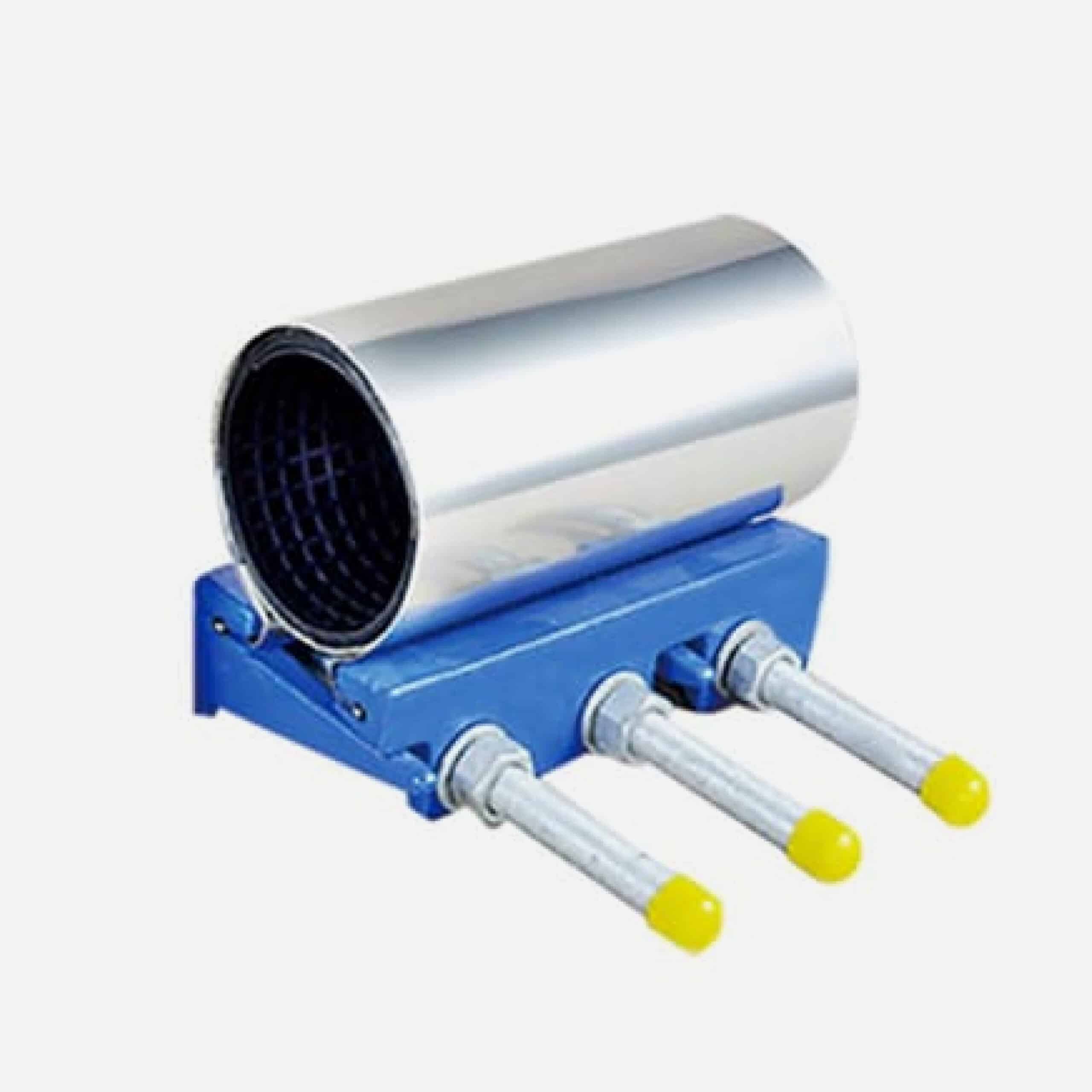

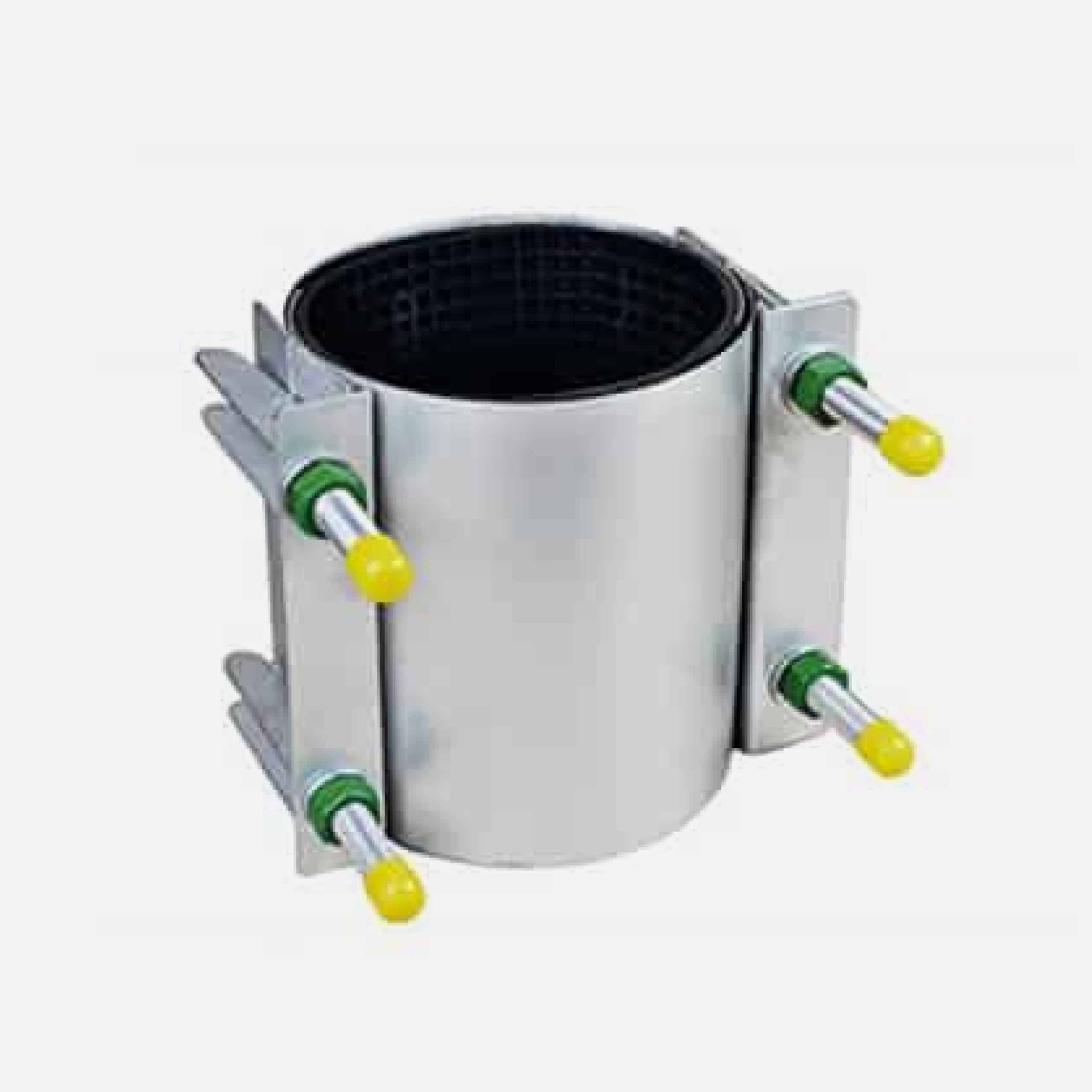

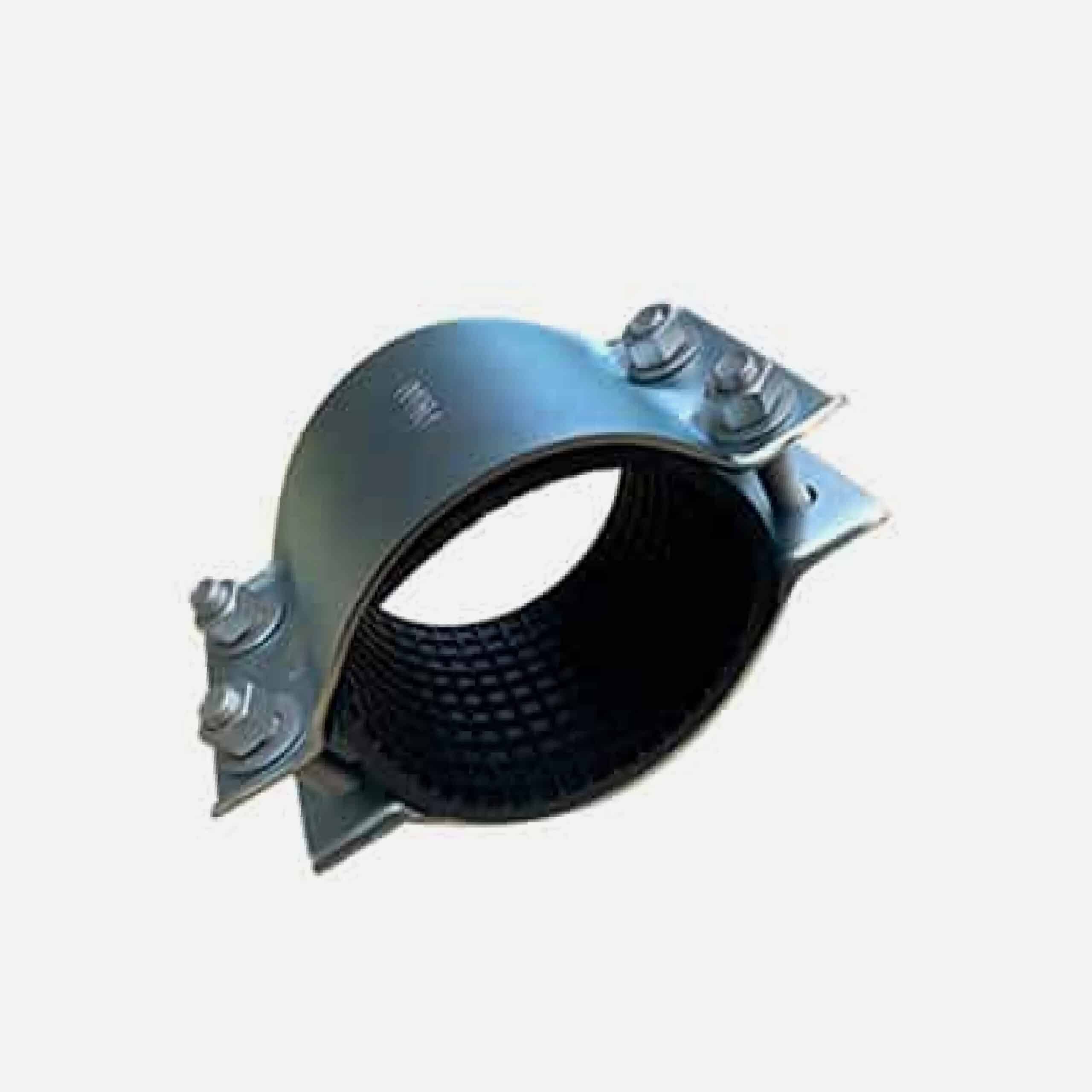

Water pipe repair clamp types

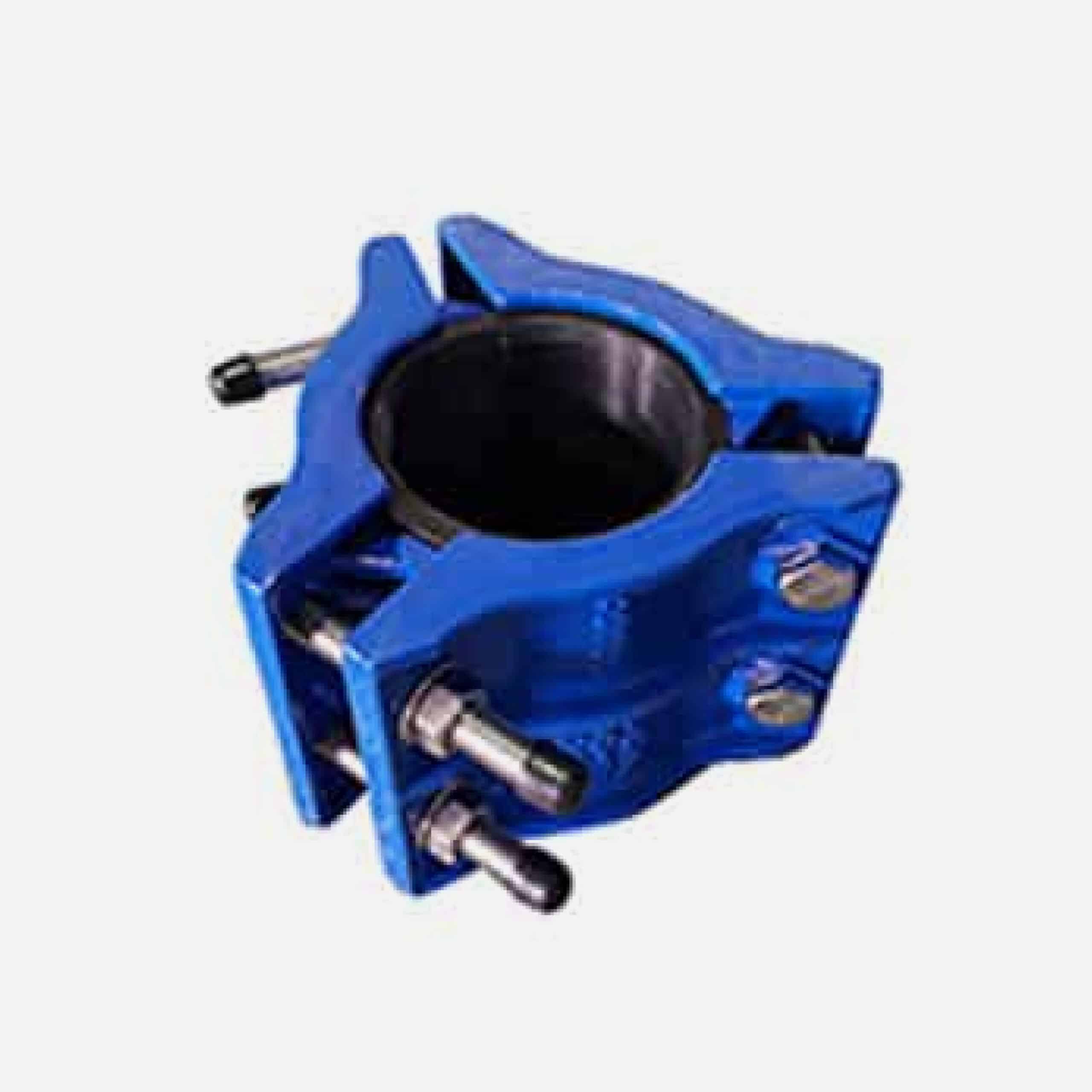

Generally, The Working Pressure Of Water Pipes Is Equal To Or Lower Than PN16 And Most Water Is Non-Corrosive, So Many Of Our Repair Clamps Are Suitable For Water Pipes. For Potable Water, Gaskets With WRAS, ACS, DVGW, NSF Approval Are Available.Below Is Judberd Water Pipes Repair Clamp.
