Aquagrip Flange Adaptor

The Aquagrip flange adaptor also called multigrip restrained flange adaptor or ultra grip flange adaptor, is a self-anchoring flange adaptor with a locking block at the socket end and is available in a wide range of sizes to allow the connection of different pipes. The flange adaptor has the advantage that the restrained flange adaptor can grip the pipe and prevent it from leaking due to deformation, while the universal flange adaptor can be used to connect a wide range of different pipes and thus reduce stock.

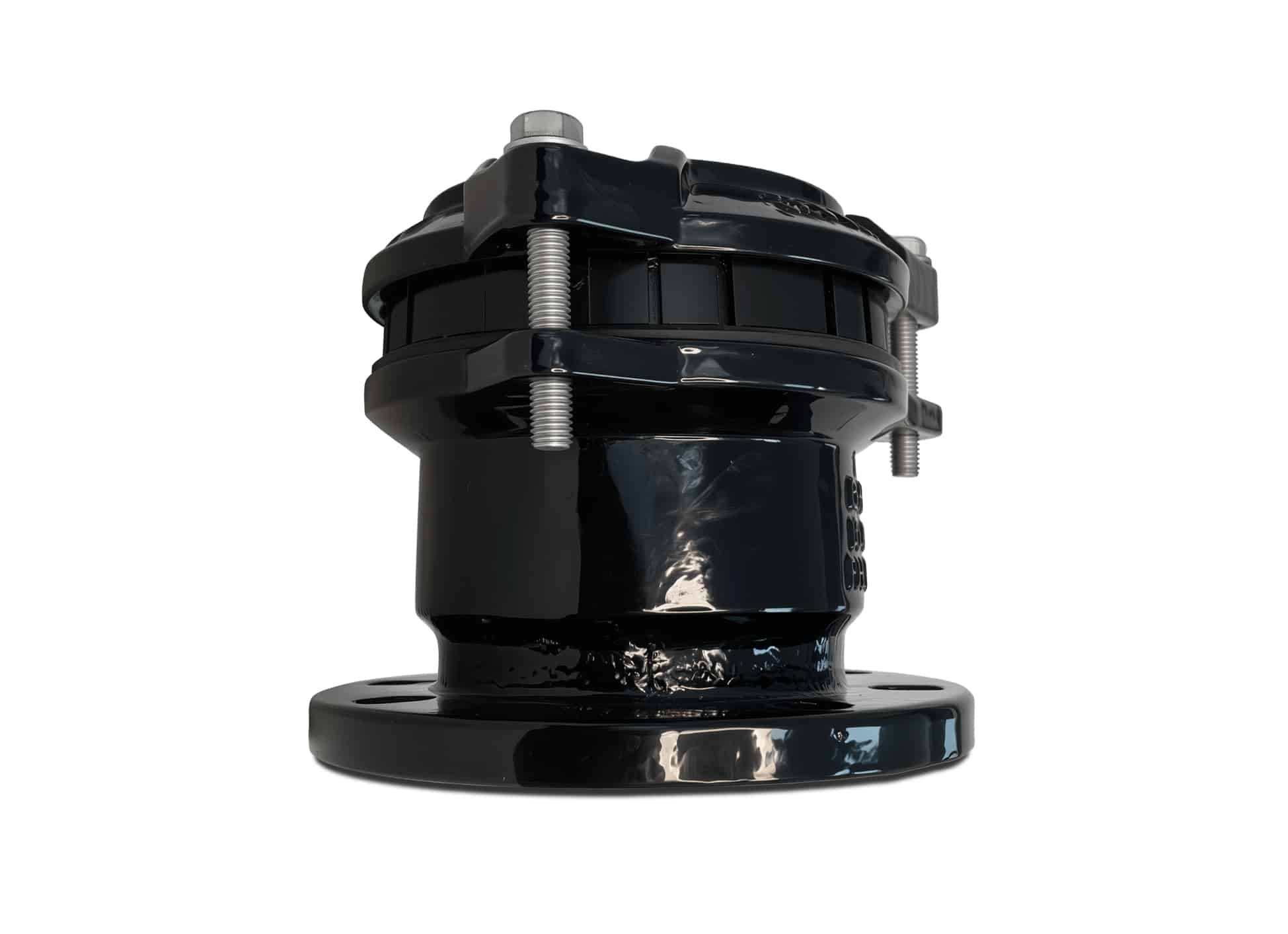

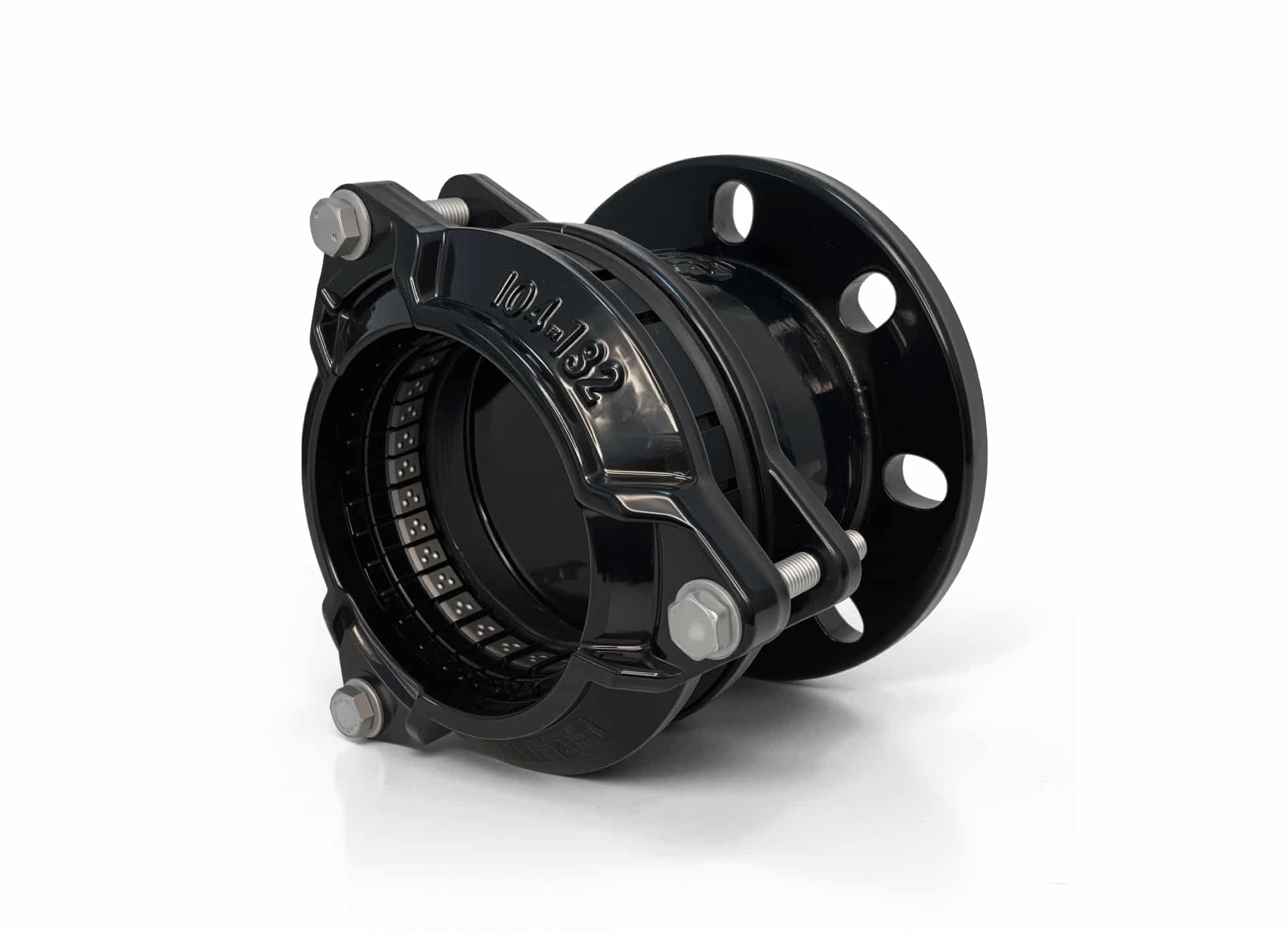

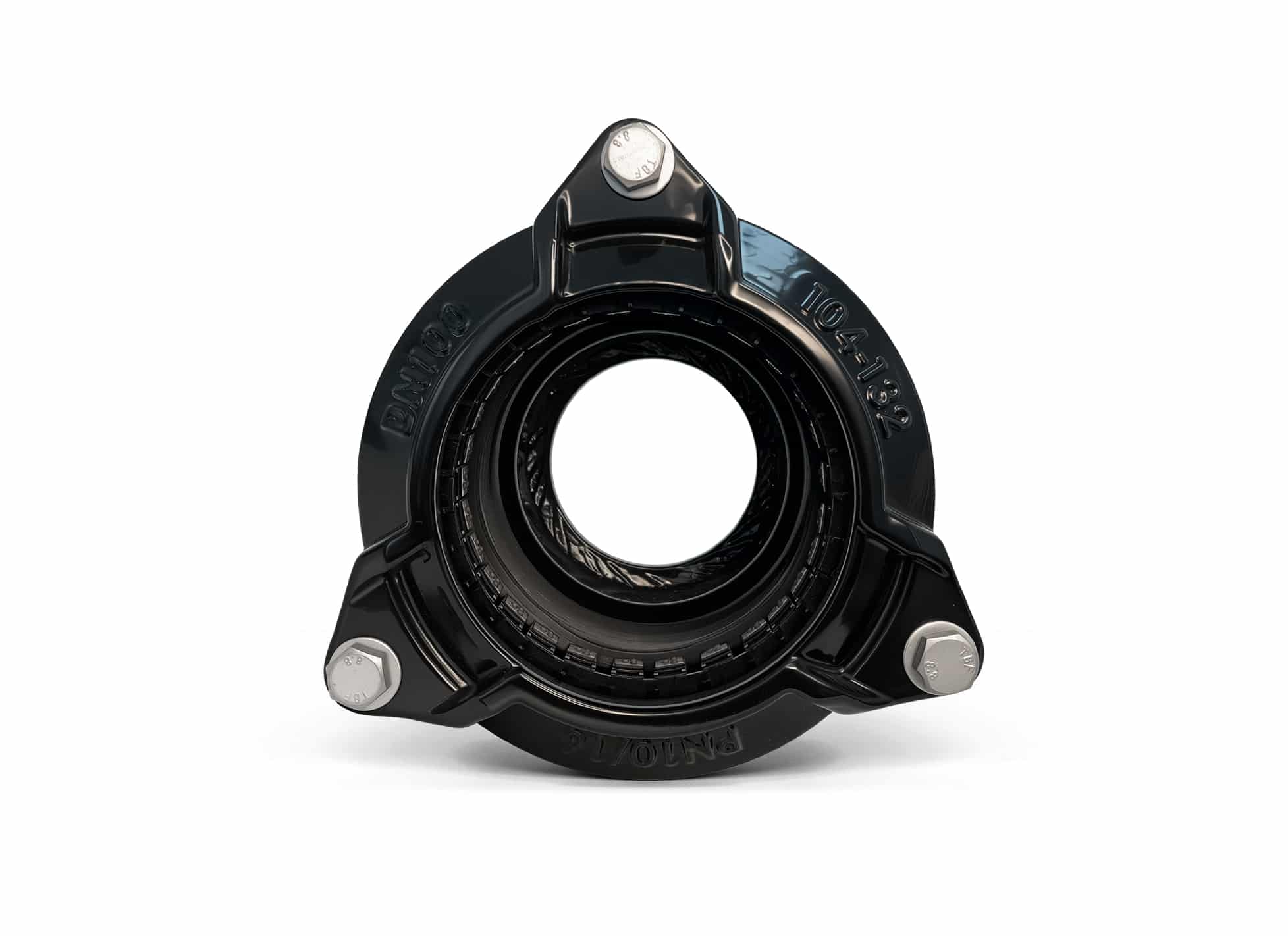

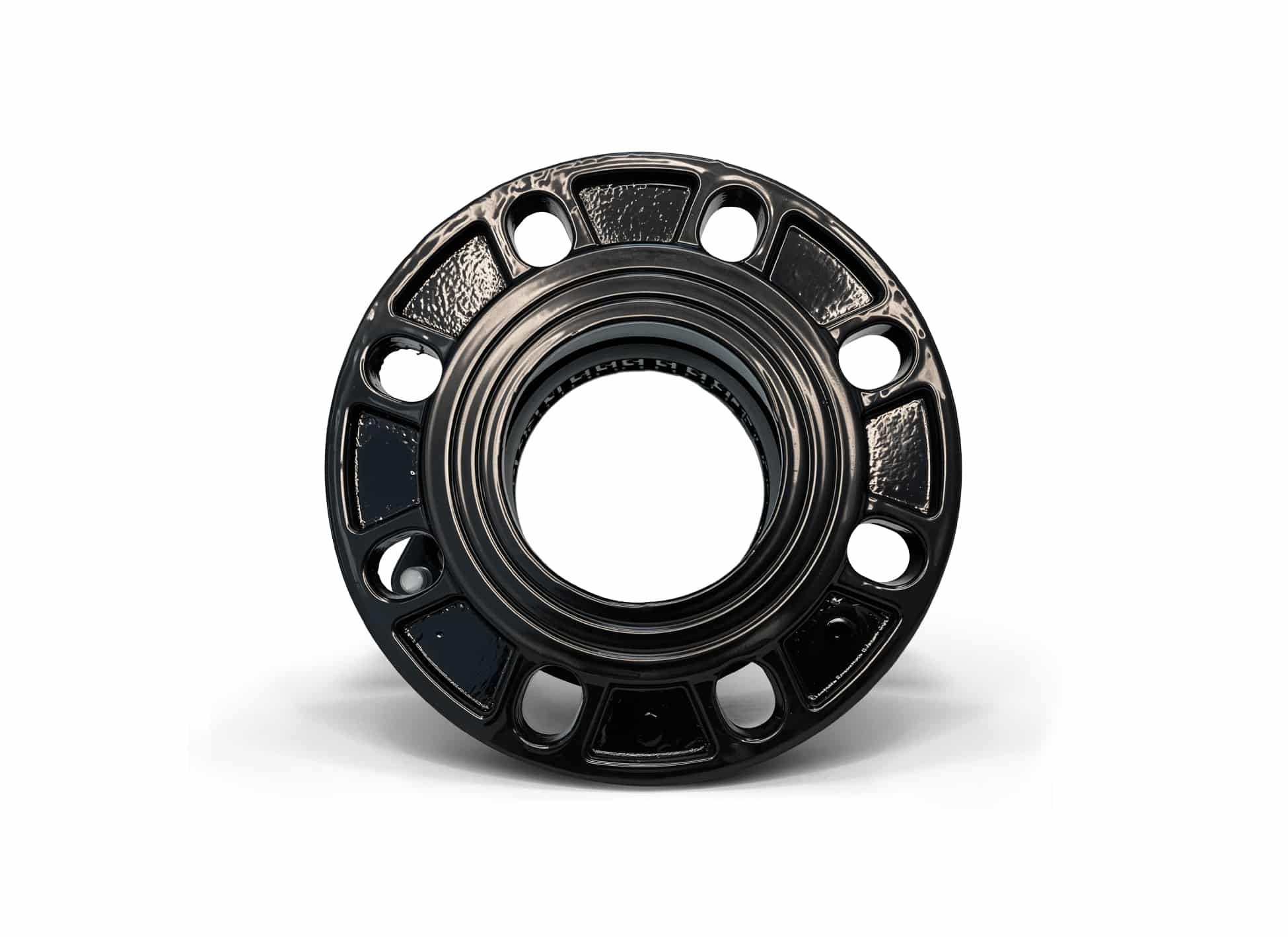

Previous image

Next image

Specification

Aquagrip flange adaptor standard:comply with EN545

Connection for pipes in material ductile iron, steel, PVC, PE, Stainless steel etc

Mechanical locking by means of metal inserts in order to avoid pipe’s axial movement

working pressure PN10/16

Flange drilling hole available for EN1092-2 PN10/16 , ASME B16.5 class150 and AS4087

Maximum temperature -10℃ to ＋70℃

suitable for potable water,neutral liquids and sewage

WRAS,ACS,DVGW,NSF approved

Coating standard EN30677/EN14901

Test standard EN12266-1

Wide tolerance range

Corrosion resistant construction

Total angular deflection of ±4°

Flange drilling with BS4505，EN1092-2 or ANSI Standard

GD8.8, stainless steel bolts nuts and washers

various coating

Seal:NBR etc

Precaution

Aquagrip flange adaptor can’t accommodate for AC(Asbestos cement) pipe and GRP pipe.Because AC pipe surface is too rough ,the griper of aquagrip flange adaptor can’t work properly.GRP pipe is very smooth, can’t offer enough friction for the griper.

Marking and traceability

Note

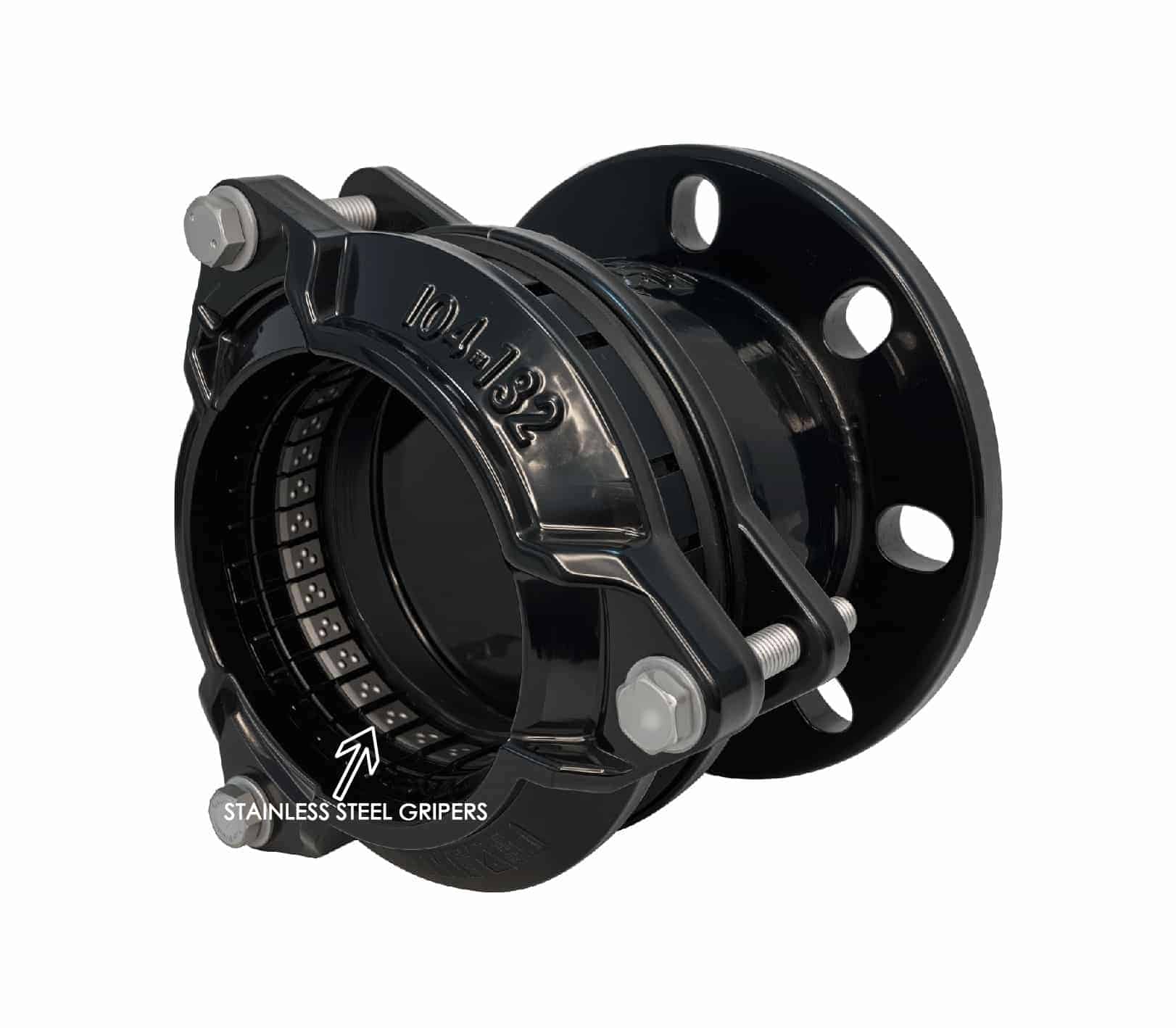

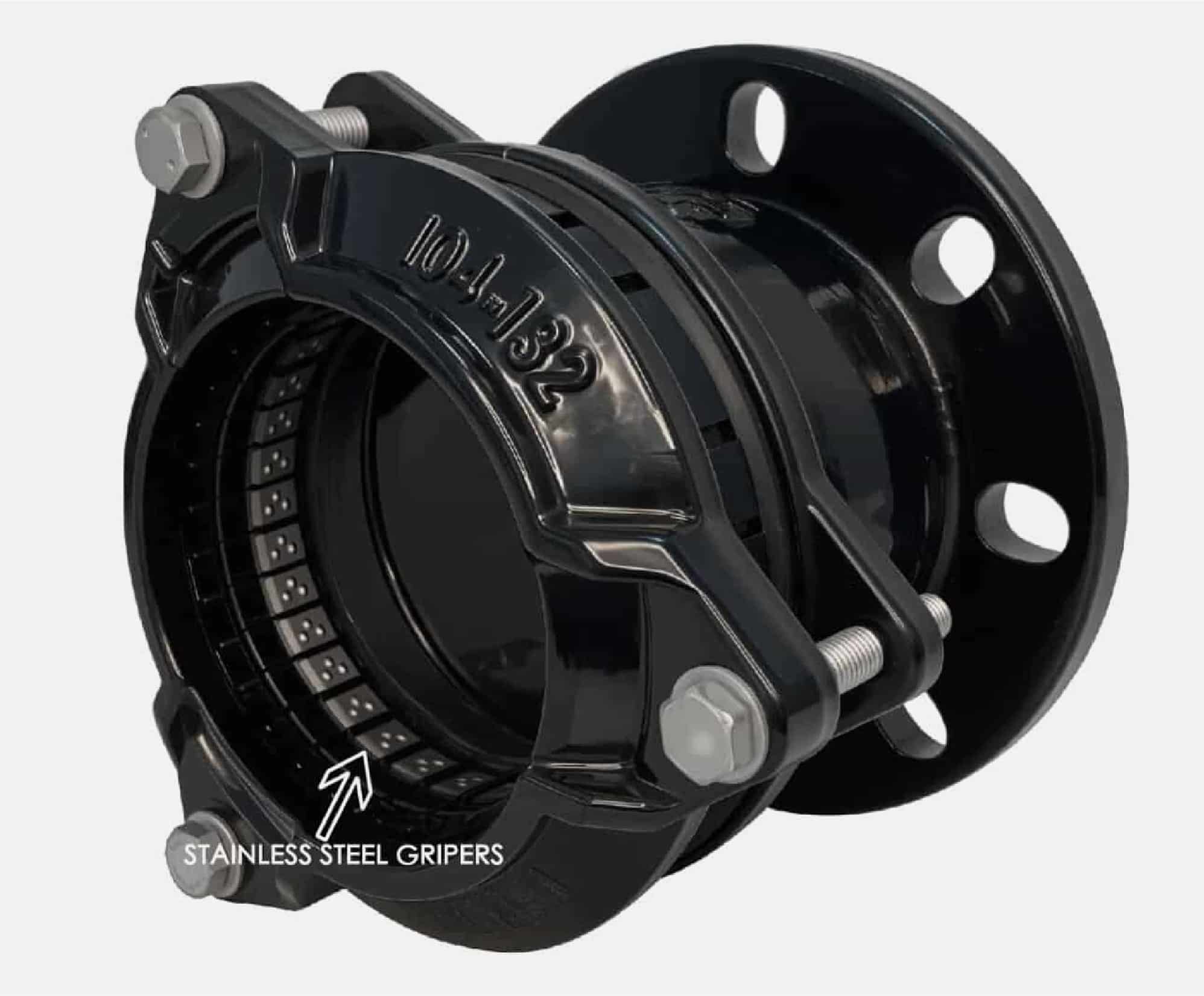

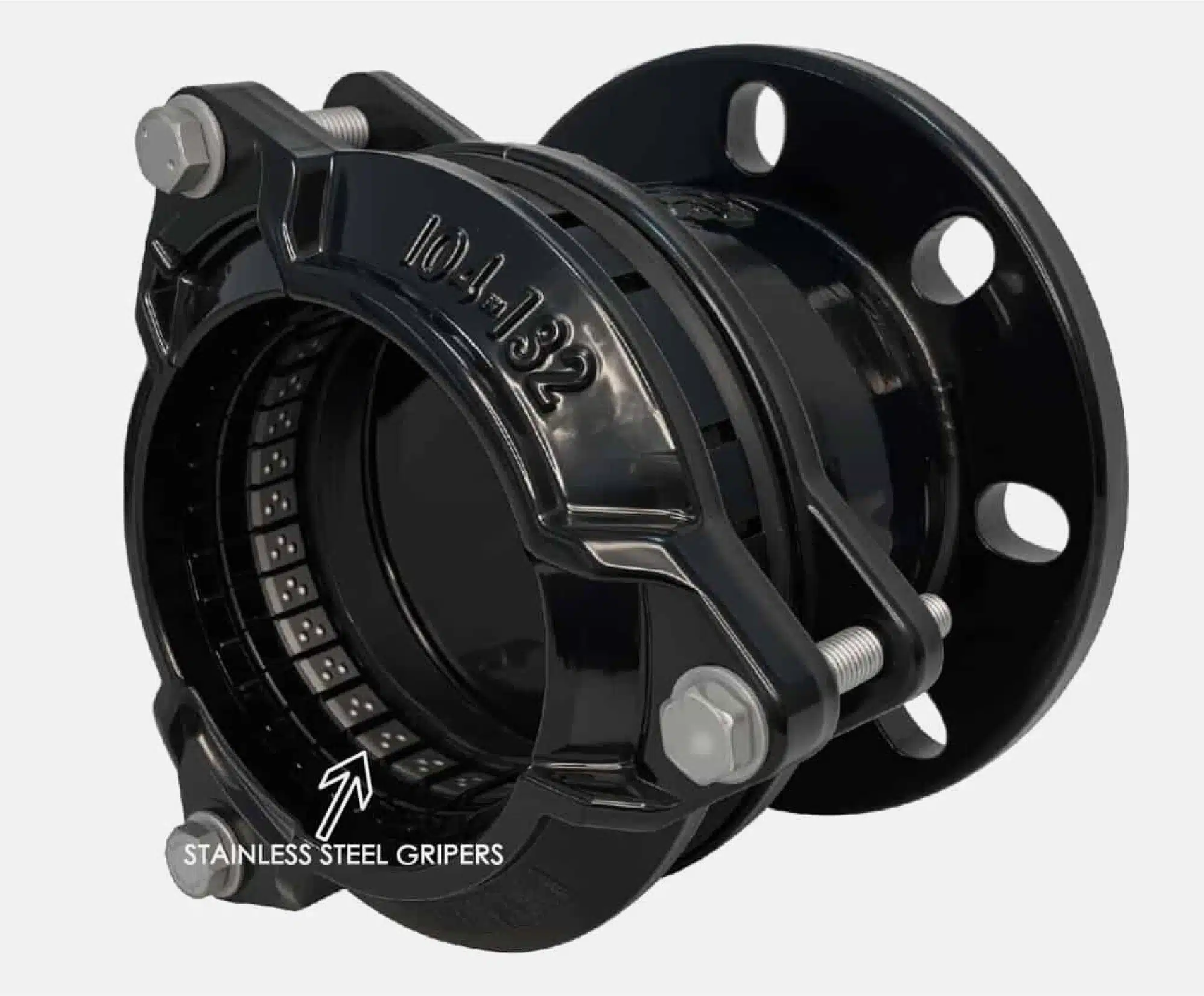

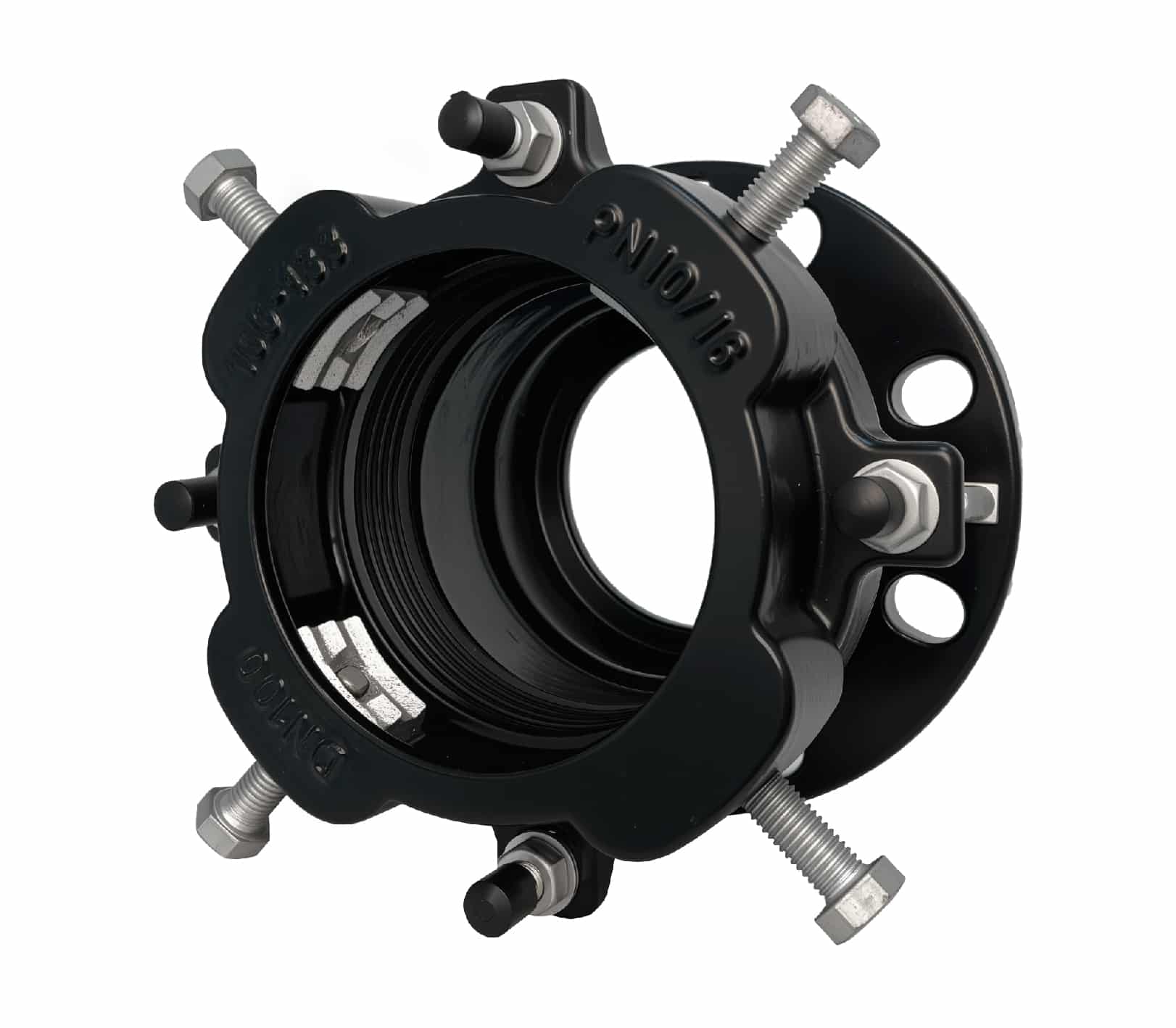

The stainless steel gripper is specially designed for HDPE pipes. When connecting to other types of pipes, the stainless steel gripper should be removed to avoid affecting the sealing.

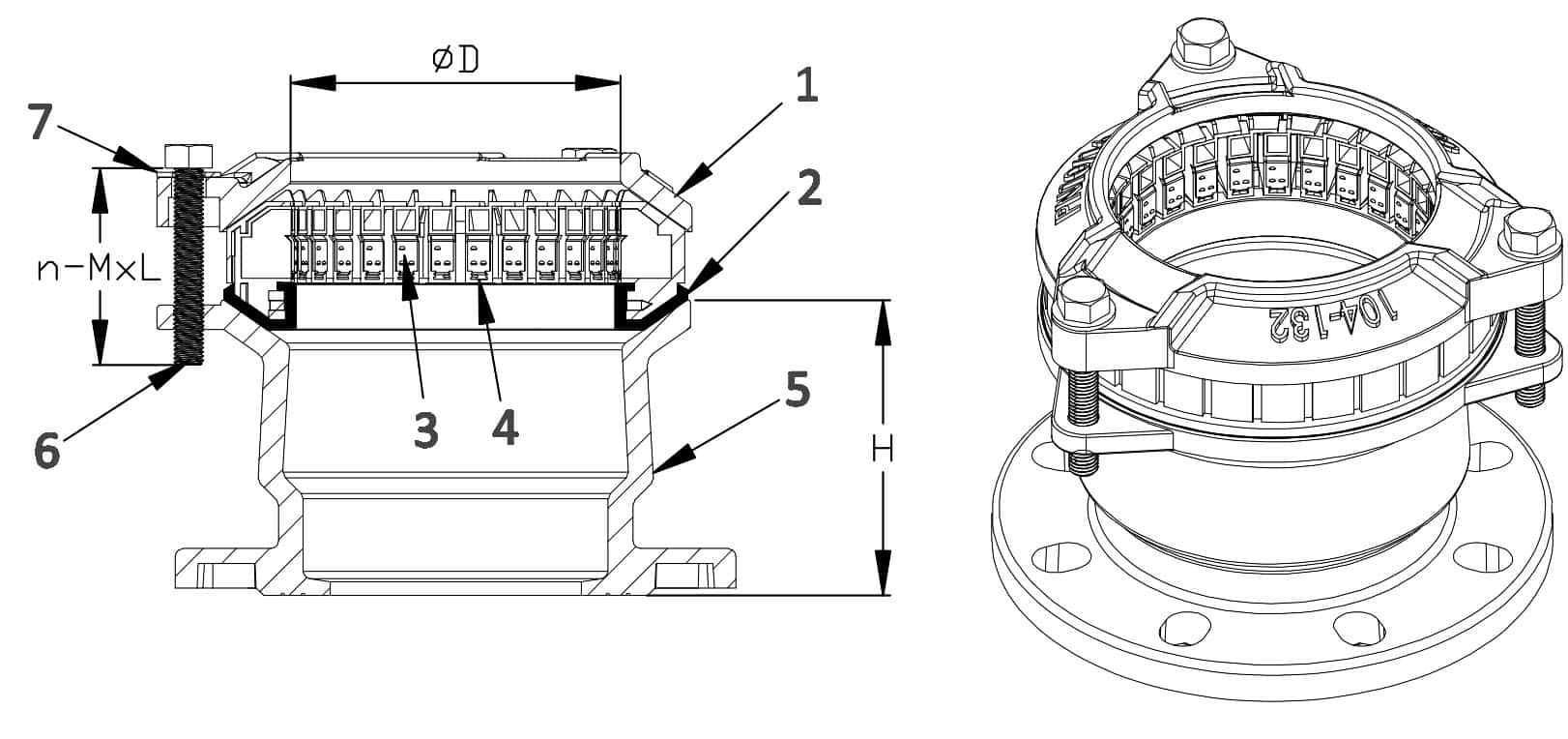

Drawing

Material

Item No.	Parts	Material
1	End Rings	Ductile Iron EN GJS450-10 according to EN1563
2	Gasket	EPDM Compound Grade E to BS EN 681-1 /Nitrile Compound to Grade G BS EN 682, Type G
3	Gripper	SS304
4	Retractable Ring	POM(polyvinylchlorid)
5	Flange Body	Ductile Iron EN GJS450-10 according to EN1563
6	Bolts	Grade 8.8 carbon steel or Stainless Steel
7	Washer	Grade 8.8 carbon steel or Stainless Steel
8	Coating	Rilsan Nylon 11 or FBE coating(Adhesion is not less than 12N/mm2)

Dimension（unit:mm）

DN	PN	RANGE	∮D	H	n-MxL
50	PN10/16	46-71	73	120	3-M12x80
60/65	PN10/16	63-90	92	120	3-M12x80
80	PN10/16	84-105	107	120	3-M12x80
100	PN10/16	104-132	134	120	3-M12x80
125	PN10/16	132-155	157.5	130	3-M14x80
150	PN10/16	154-192	194.5	130	3-M14x100
200	PN10/16	192-232	235	150	4-M14x100
250	PN10/16	267-310	313	150	4-M14x110
300	PN10/16	315-356	359	160	6-M14x110
350	PN10/16	352-393	396	160	6-M14x110
400	PN10/16	392-433	436	170	8-M14x110
450	PN10/16	450-482	485	170	8-M16x120
500	PN10/16	500-532	535	180	8-M16x120
600	PN10/16	605-637	640	180	8-M16x120

Installation Manual

This product is suitable for use with steel pipes, cast iron pipes, PE pipes, PVC pipes, and asbestos-cement pipes.

Step 1

Start by cleaning the pipe surface from sand and dirt.

Step 2

Then, measure the outside diameter of the pipe and choose the right aquagrip flange adaptor which designed range included the pipe outside diameter

Step 3

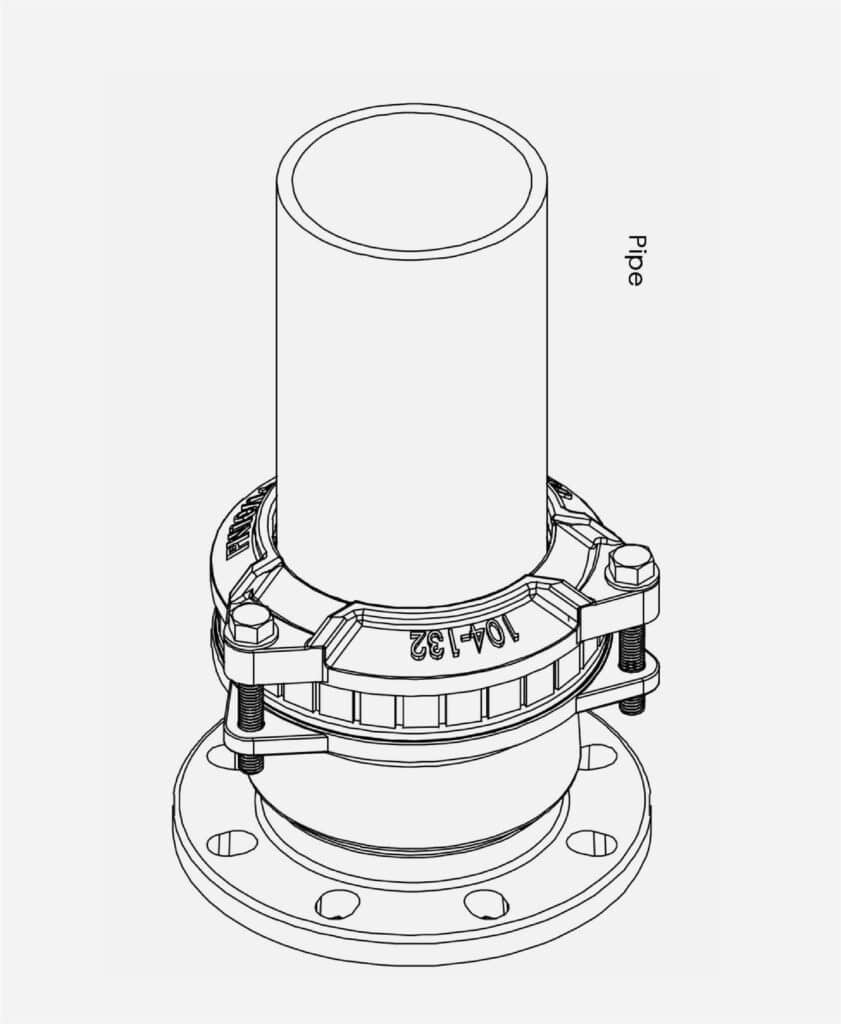

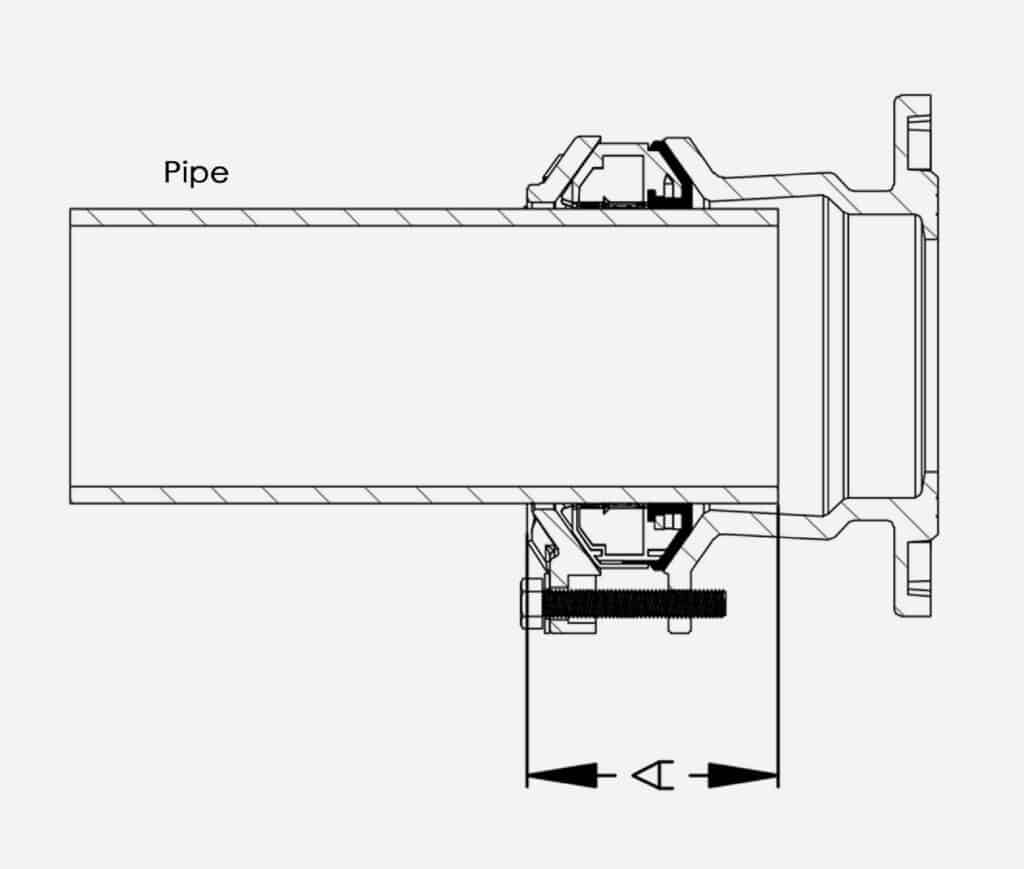

Loosen the aquagrip flange adptor bolts and insert the pipe.Please note there should be proper gap between the pipe end and flange sealing surface of aquagrip flange adaptor.

Step 4

Symmetrically and repeatedly tighten the bolts . Note: Do not tighten a single bolt all at once.

Step 5

Wait for approximately 30 minutes (to release the bolt’s initial tension and pipe stress), then repeat step 4 and tighten the bolts again.

Step 6

Perform a pressure test run, with the maximum pressure meeting 1.5 times the nominal pressure (1.5*PN). If there is any leakage or seepage, close the pressure, and repeat steps 4-6 as needed.
