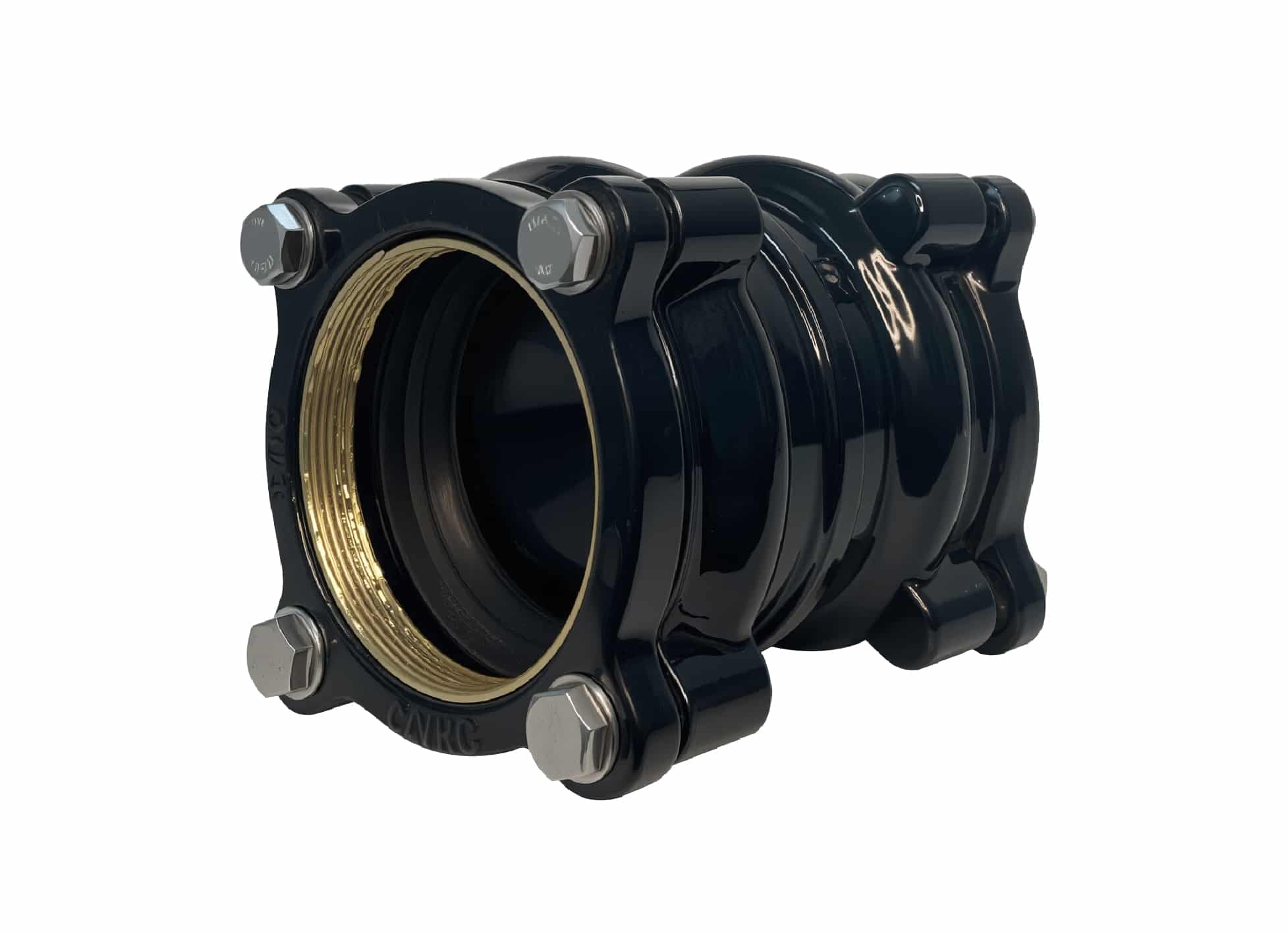

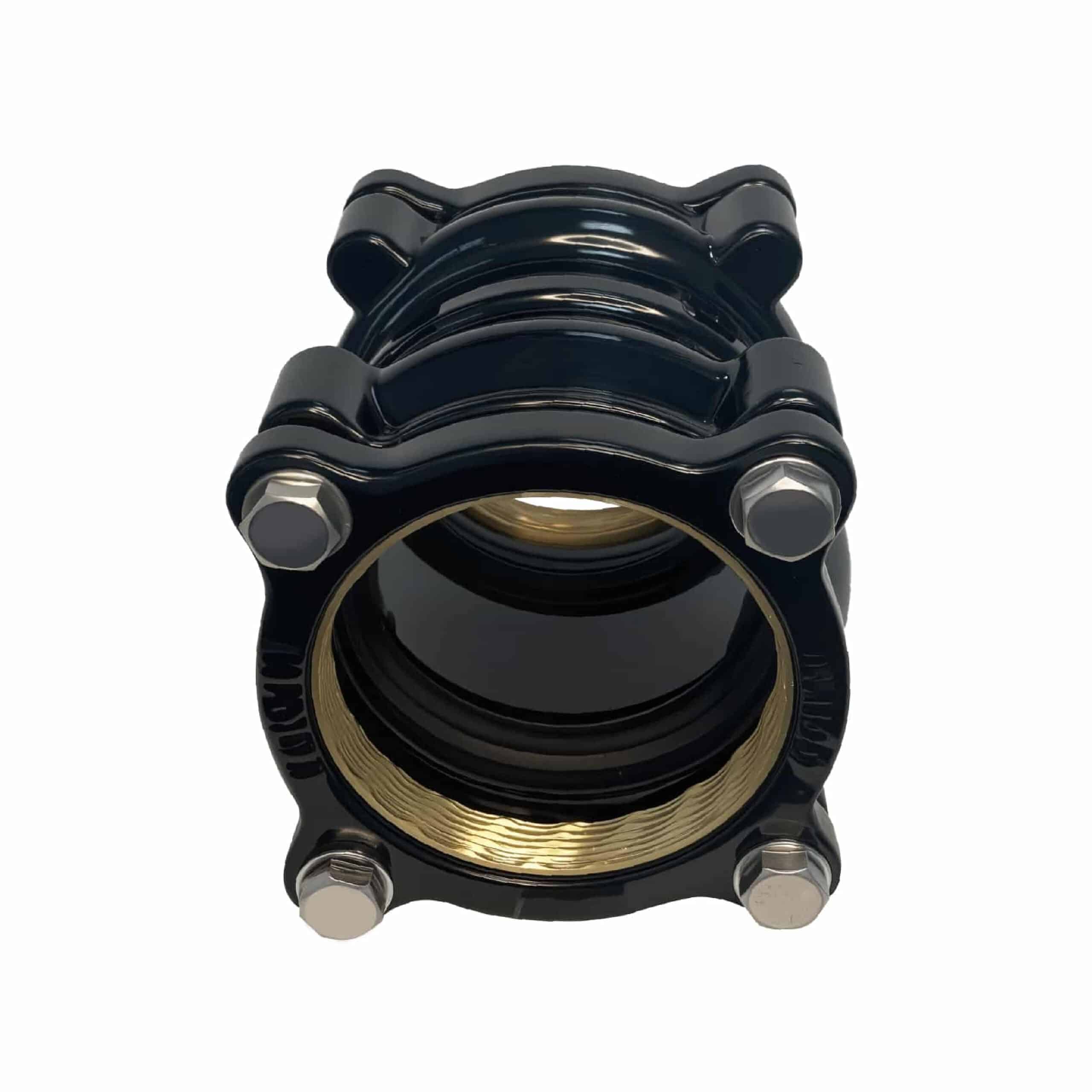

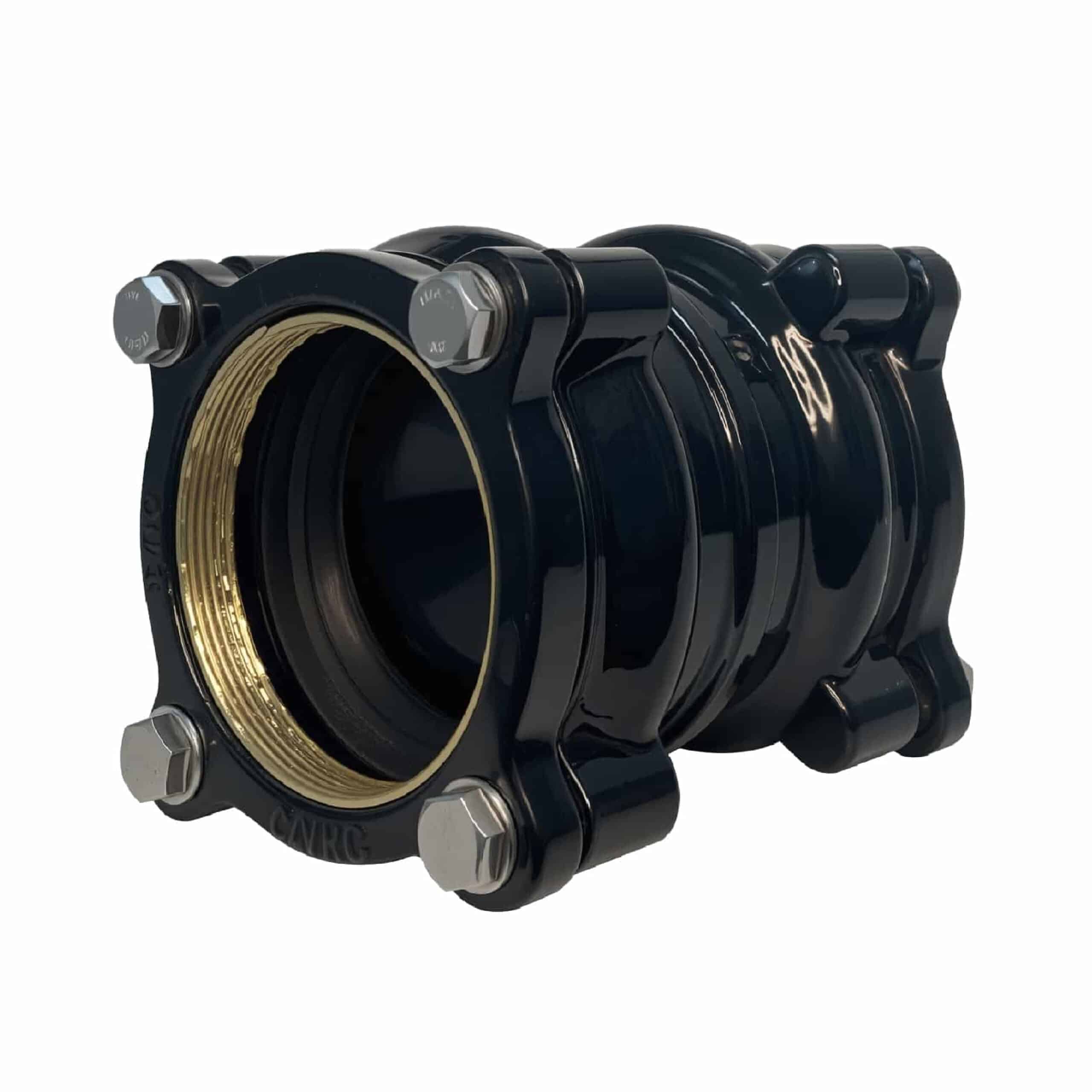

Restrained Coupling for HDPE Pipe

Restrained coupling is a pipe coupling with restrained ring , wedge etc to grip HDPE pipe to avoid pipe movement because of deformation. The restrained coupling is particularly suitable for applications where there is a risk of pipe movement due to pipe deformation, ground settlement, thermal expansion and contraction, water hammer, etc.

restrained coupling for HDPE​

Specification

Restrained coupling standard:comply with EN545

Coating standard:EN14901

Test standard: EN12266-1

Working pressure and Temperature

size DN50 to DN300,Working pressure PN10/PN16

Temperature from -10℃ to 120℃ for EPDM gasket

Temperature from -10℃ to 82℃ for NBR gasket

Use

Connection for HDPE pipe

Suitable for potable water, neutral liquids and sewage

WRAS,ACS,DVGW,NSF approved
