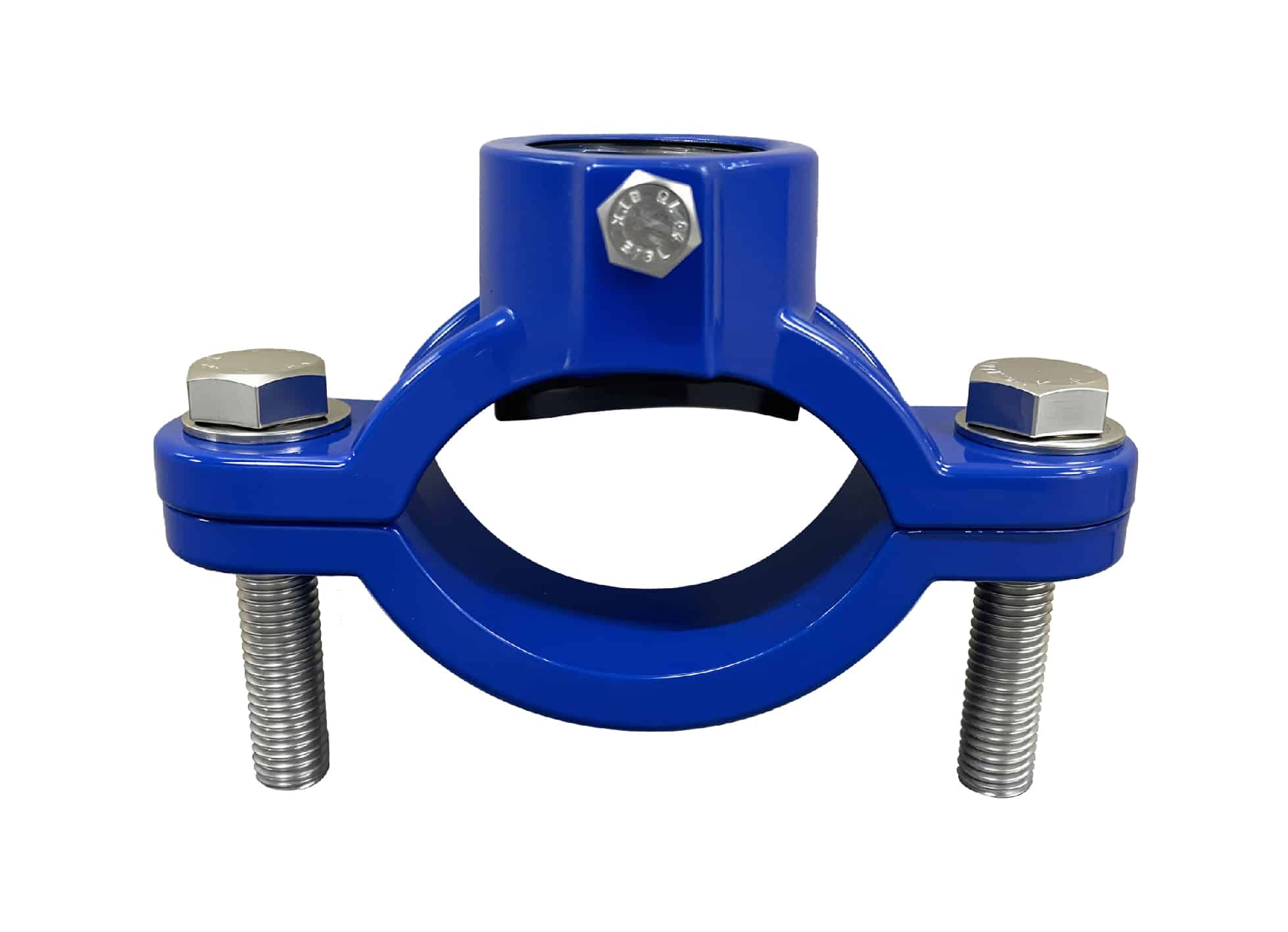

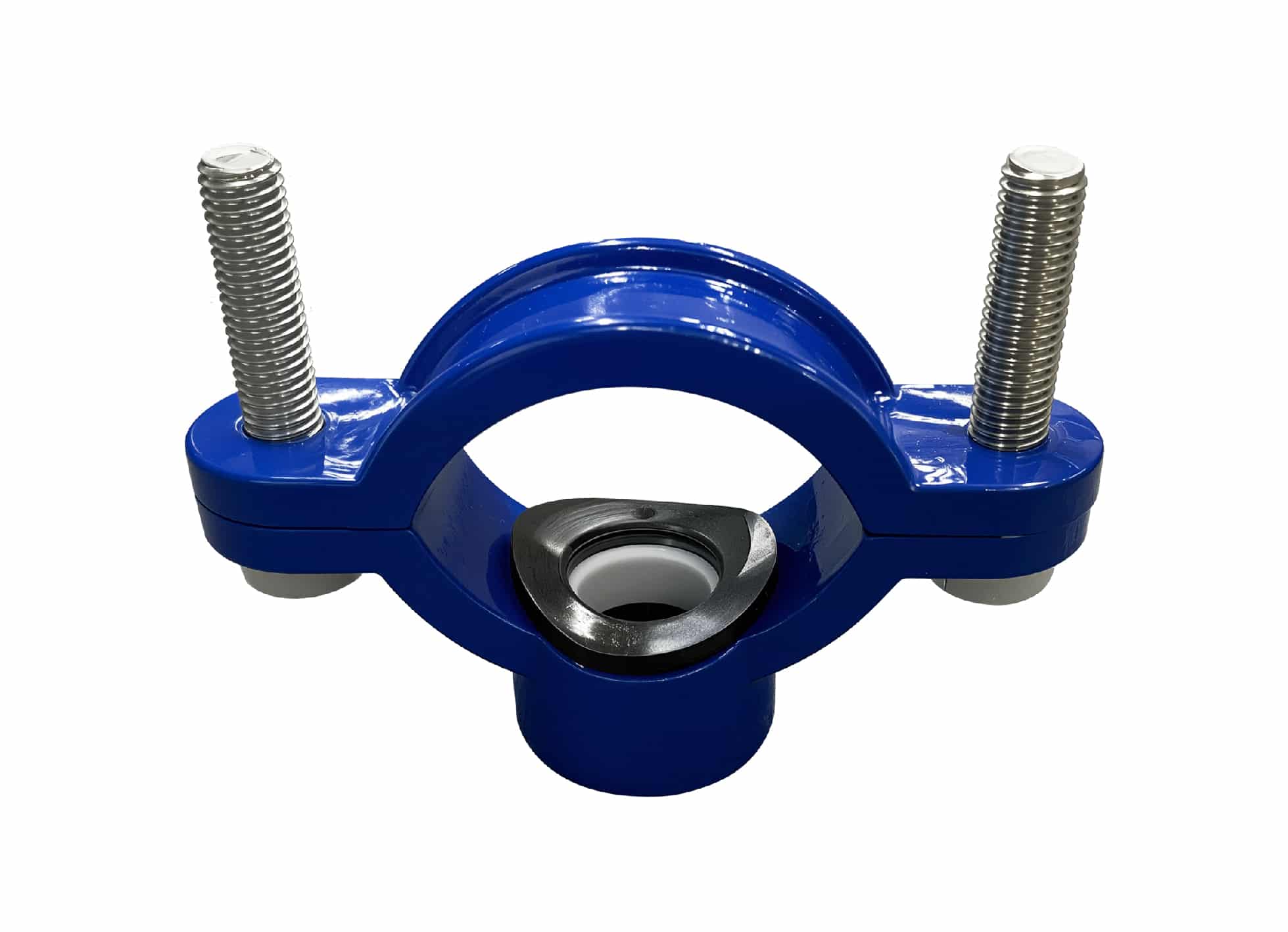

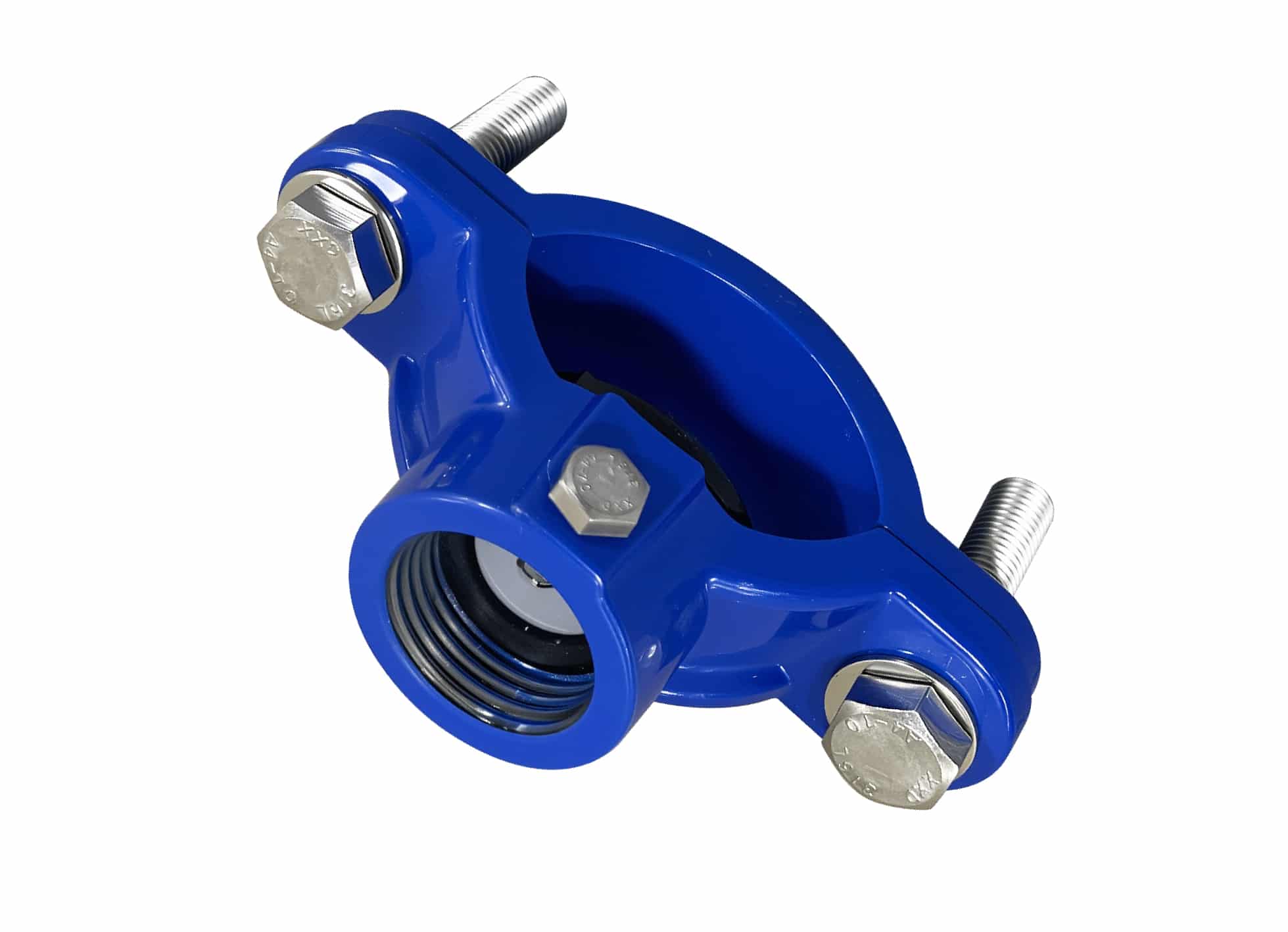

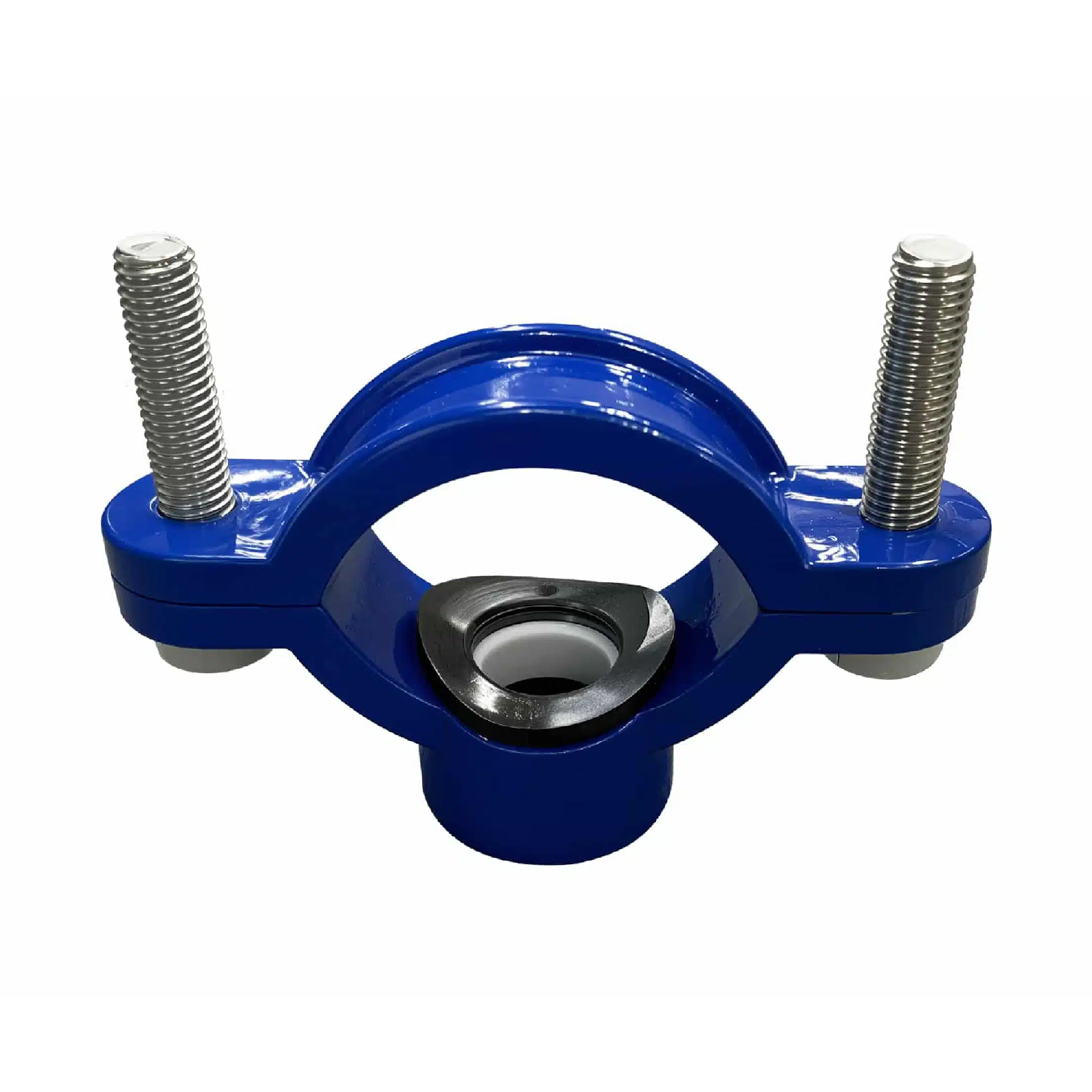

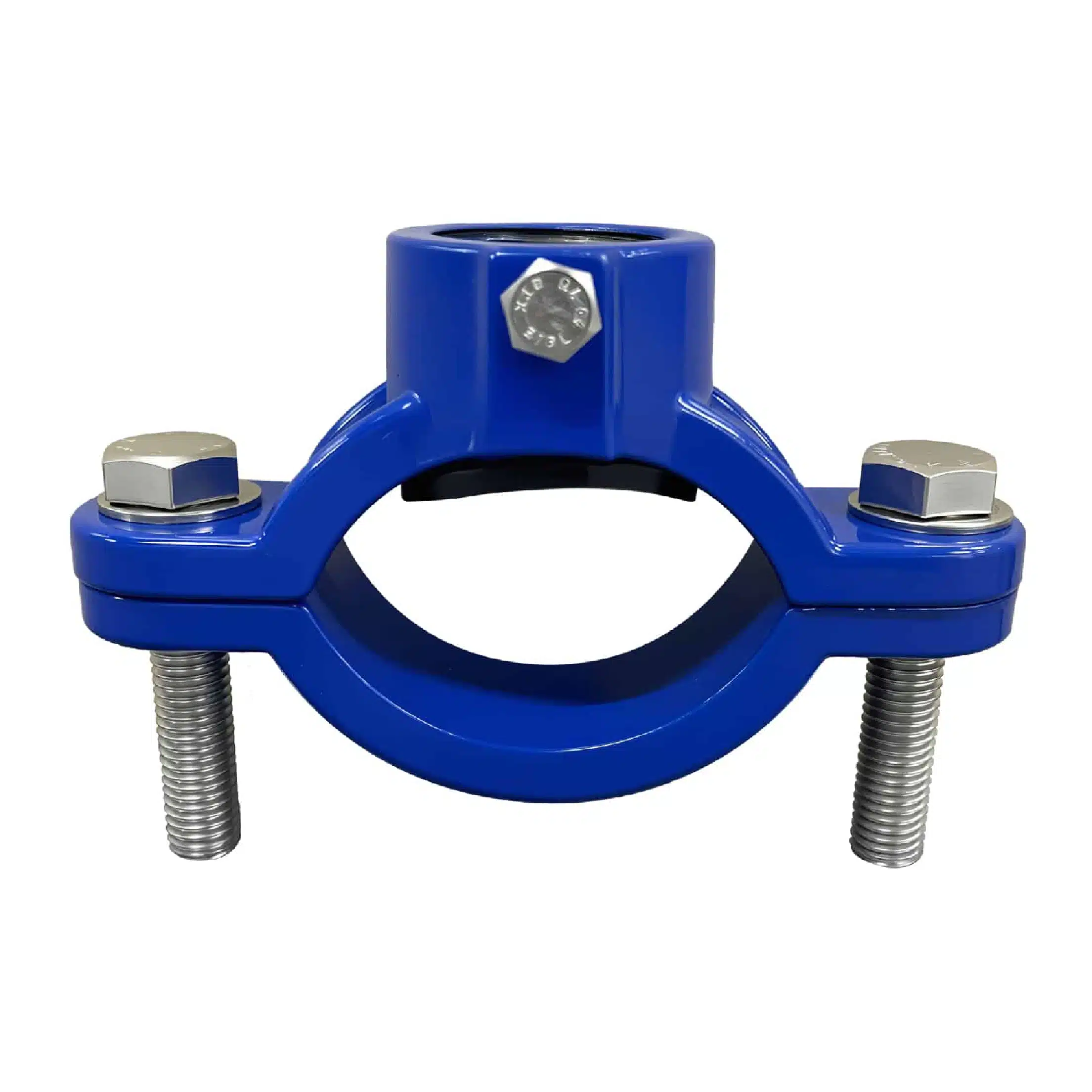

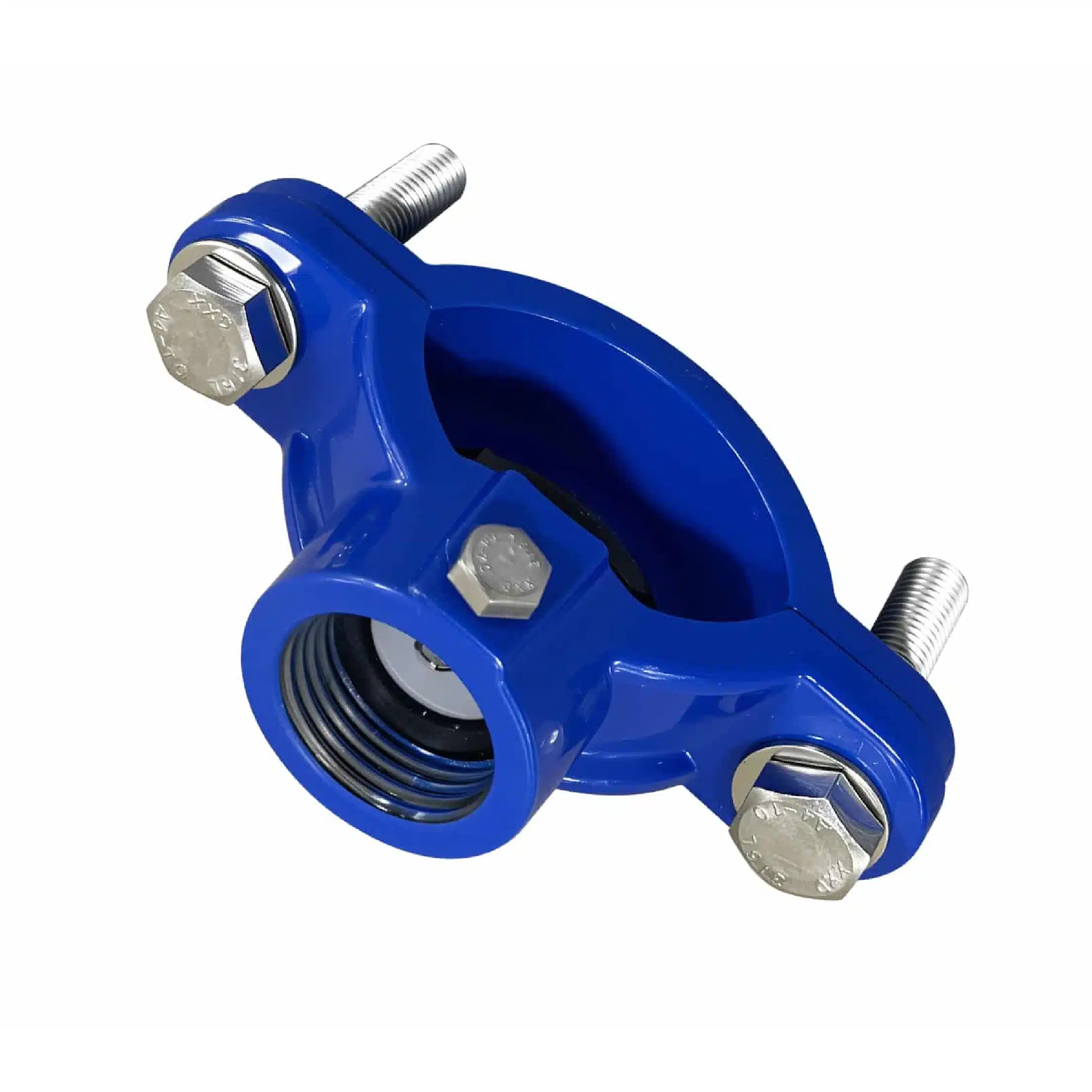

Metal Saddle Clamp for Water Line
Metal Saddle Clamp For Water Line Is Metal Material Saddle Clamp Which Is Used On Water Line To Spilt Water From Main Pipe To Branch Pipe, Metal Material Can Be Grey Cast Iron ,Ductile Iron, Brass Or Stainless Steel.Outlet Can Be Thread Or Flange Connection.
Specification
Saddle For AC Pipe With Metric Thread
Saddle Standard:Comply With EN545
Coating Standard:EN30677
Test Standard: EN12266-1
Working Pressure And Temperature
Size DN60 To DN300,Working Pressure PN10/PN16
Temperature From -10℃ To 120℃ For EPDM Gasket
Temperature From -10℃ To 82℃ For NBR Gasket
Connection For AC Pipe
With Metric Thread M40 And M55 Outlet
Suitable For Potable Water, Neutral Liquids And Sewage
WRAS,ACS,DVGW,NSF Approved
Product video
Drawing
Material
| Sr.No. | Name | Material | Specification |
|---|---|---|---|
| 1&2 | Body | Ductile iron | EN GJS450-10 |
| 3&5 | Bolts | Carbon Steel or Stainless Steel | ISO898-1 |
| 4 | Washer | Carbon Steel or Stainless Steel | ISO898-1 |
| 6 | Gasket | EPDM | EN681-1 |
| 7 | Support | Plastic |
Bolts can be Dacromet coated carbon steel ,stainless steel material or upon client request
Surface can be Fusion Bonded Epoxy coating,nylon 11 coating or upon client request
Dimension(unit mm unless specified)
| AC pipe DN | G | H1 | H2 | R |
|---|---|---|---|---|
| DN60 | M40 | 14 | 56 | 43 |
| DN60 | M55 | 19 | 61 | 43 |
| DN80 | M40 | 14 | 67 | 54 |
| DN80 | M55 | 19 | 72 | 54 |
| DN100 | M40 | 14 | 79 | 66 |
| DN100 | M55 | 19 | 84 | 66 |
| DN125 | M40 | 14 | 92 | 79 |
| DN125 | M55 | 19 | 97 | 79 |
| DN150 | M40 | 14 | 107 | 94 |
| DN150 | M55 | 19 | 112 | 94 |
| DN200 | M40 | 14 | 138 | 125 |
| DN200 | M55 | 19 | 143 | 125 |
| DN250 | M40 | 14 | 164 | 151 |
| DN250 | M55 | 19 | 169 | 151 |
| DN300 | M40 | 14 | 193.5 | 180.5 |
| DN300 | M55 | 19 | 193.5 | 180.5 |
