Pipe Saddle Clamp

A pipe saddle clamp is a device used to connect a branch pipe to a main pipeline, typically without needing to cut or weld the main pipe. It consists of a saddle-like component that wraps around the main pipe and is secured in place with bolts.

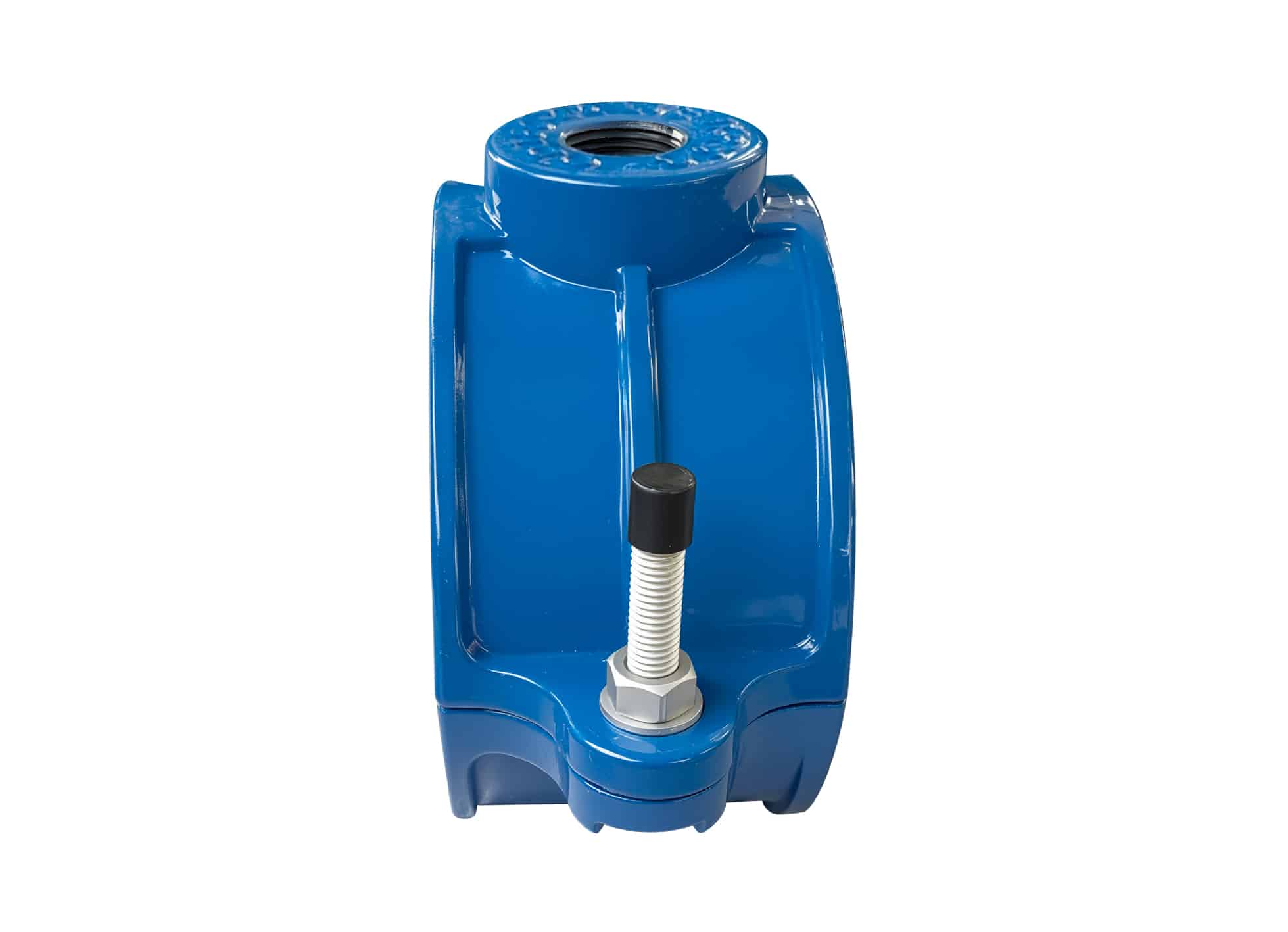

Cast Iron Saddle Clamp for HDPE pipe and PVC pipe ,with BSP, NPT, CC etc thread outlet 1

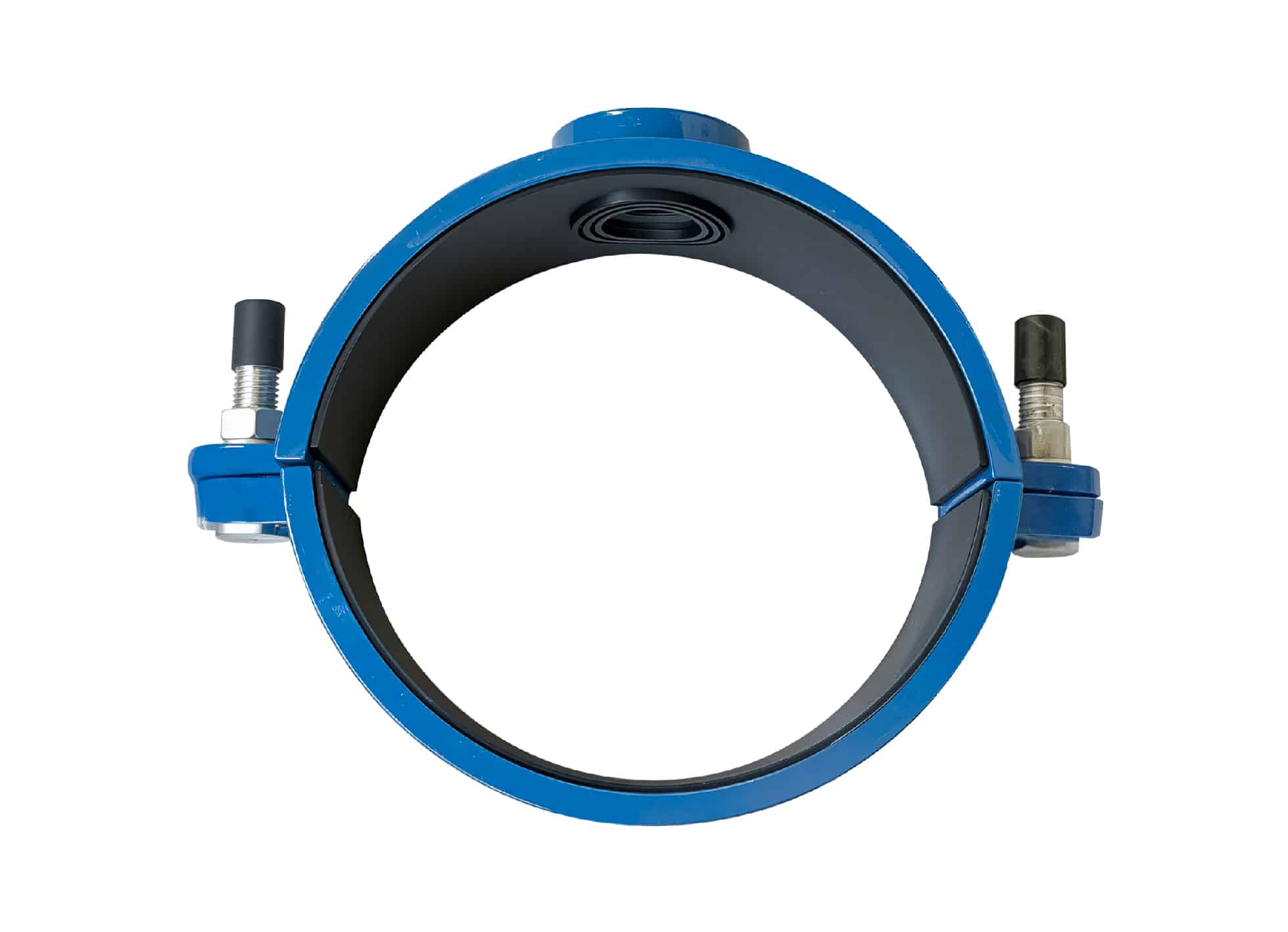

Cast Iron Saddle Clamp for HDPE pipe and PVC pipe ,with BSP, NPT, CC etc thread outlet 2

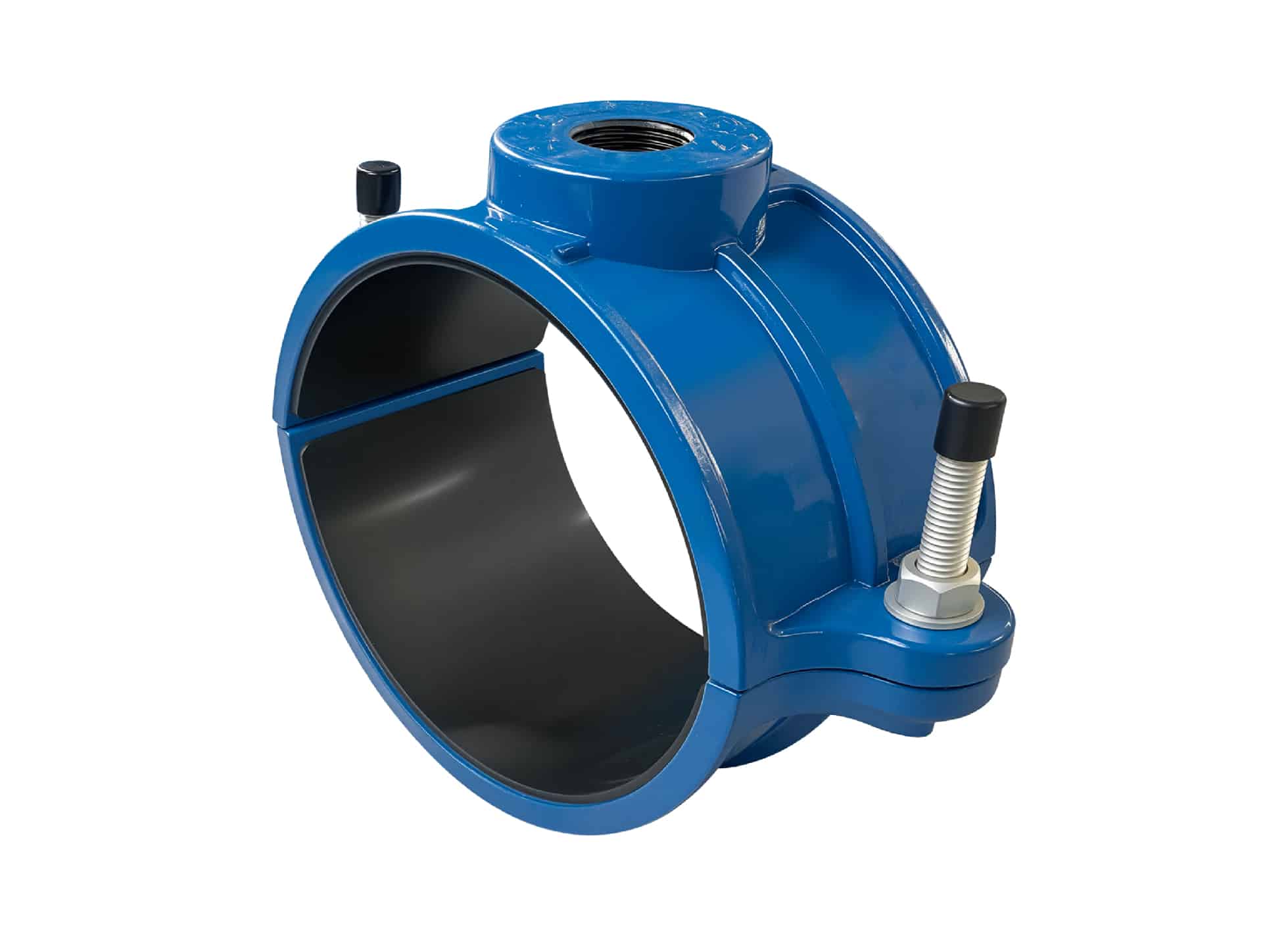

Cast Iron Saddle Clamp for HDPE pipe and PVC pipe ,with BSP, NPT, CC etc thread outlet 3
Previous image
Next image

Specification

Saddle standard:comply with EN545

Coating standard:EN30677

Test standard: EN12266-1

Working pressure and Temperature

size OD50 to OD400,Working pressure PN10/PN16

Temperature from -10℃ to 120℃ for EPDM gasket

Temperature from -10℃ to 82℃ for NBR gasket

Connection for PVC and HDPE pipe

With BSP, NPT, CC etc thread outlet

Suitable for potable water ,neutral liquids and sewage

WRAS,ACS,DVGW,NSF approved

Documents

Material and Drawing

Catalogue

Installation Instruction

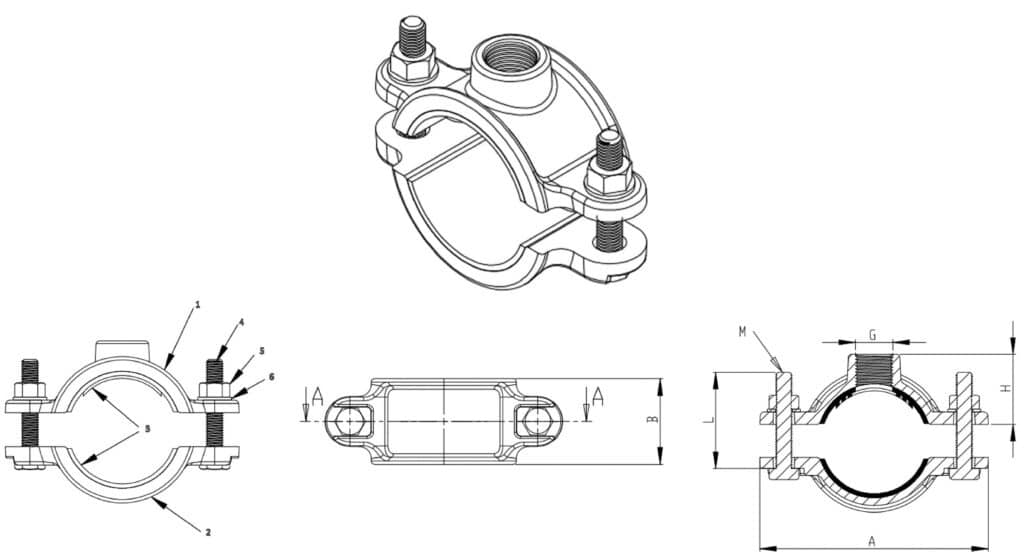

Drawing

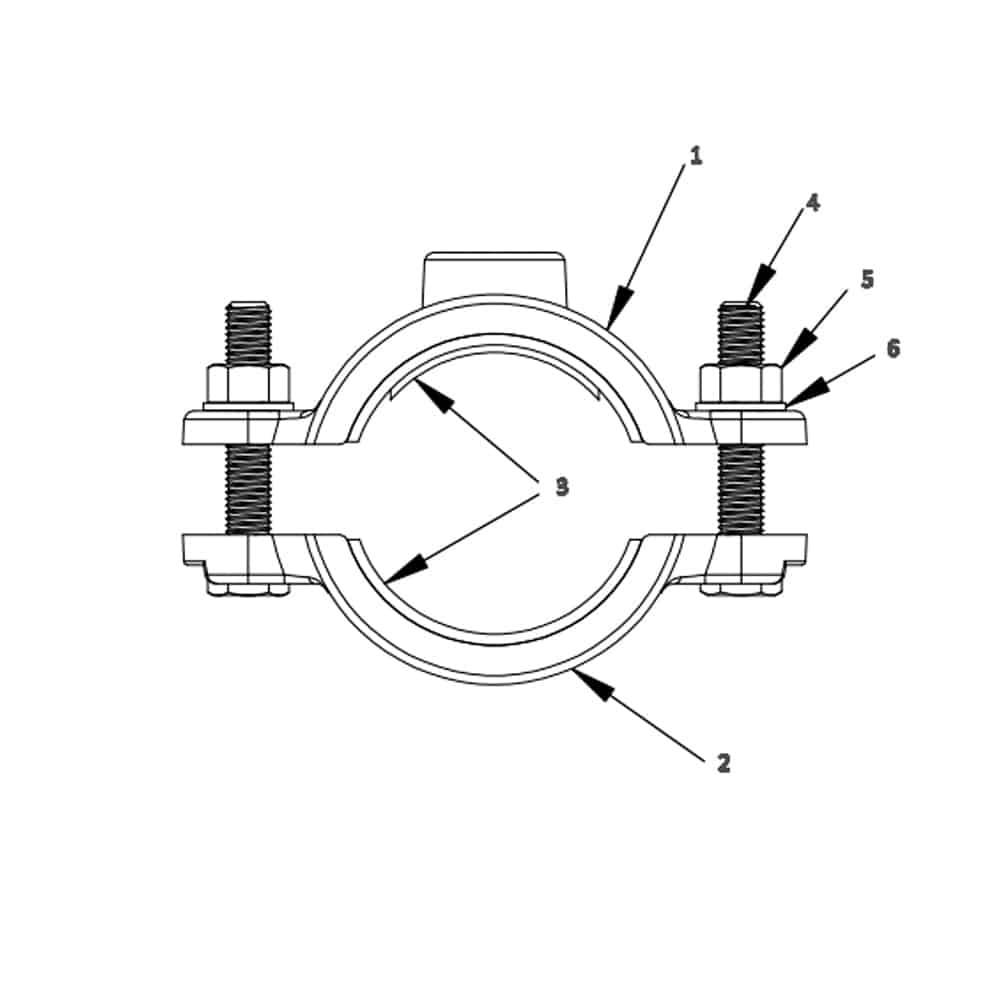

pipe saddle clamp drawing side view

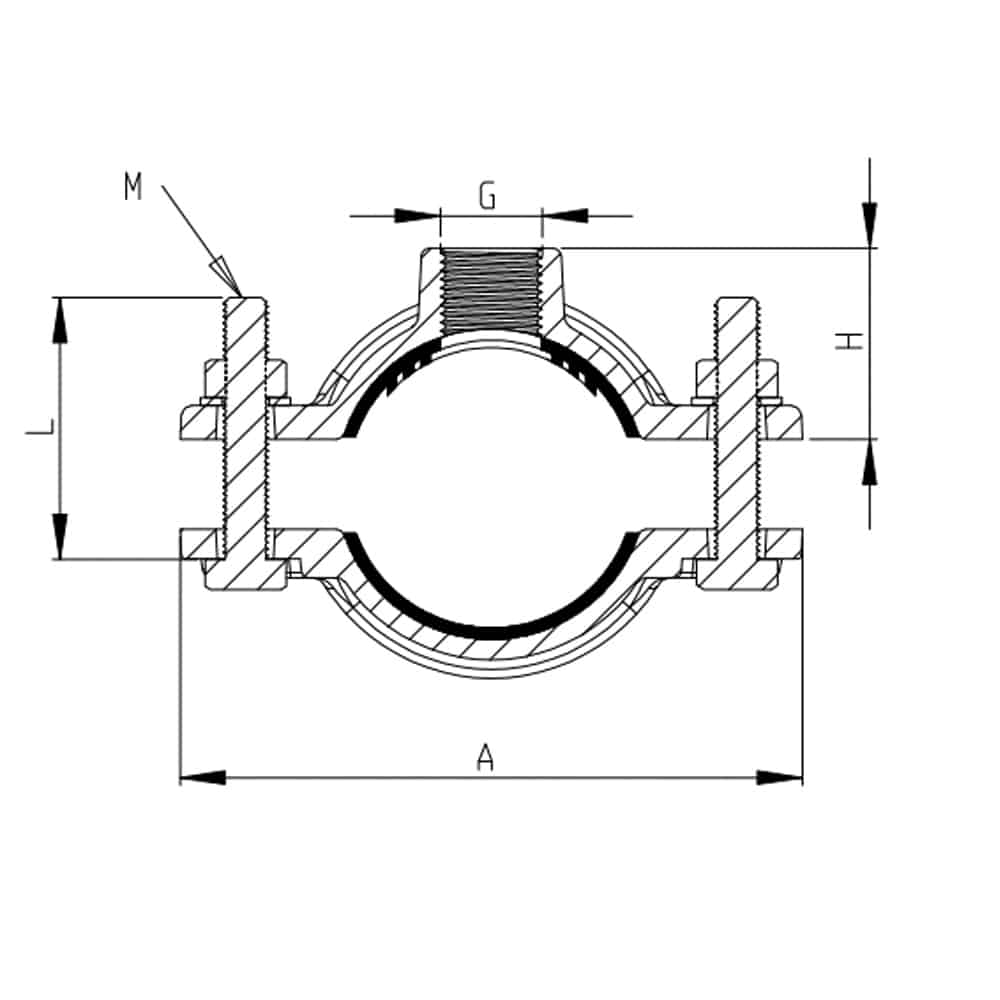

pipe saddle clamp drawing Cutaway view

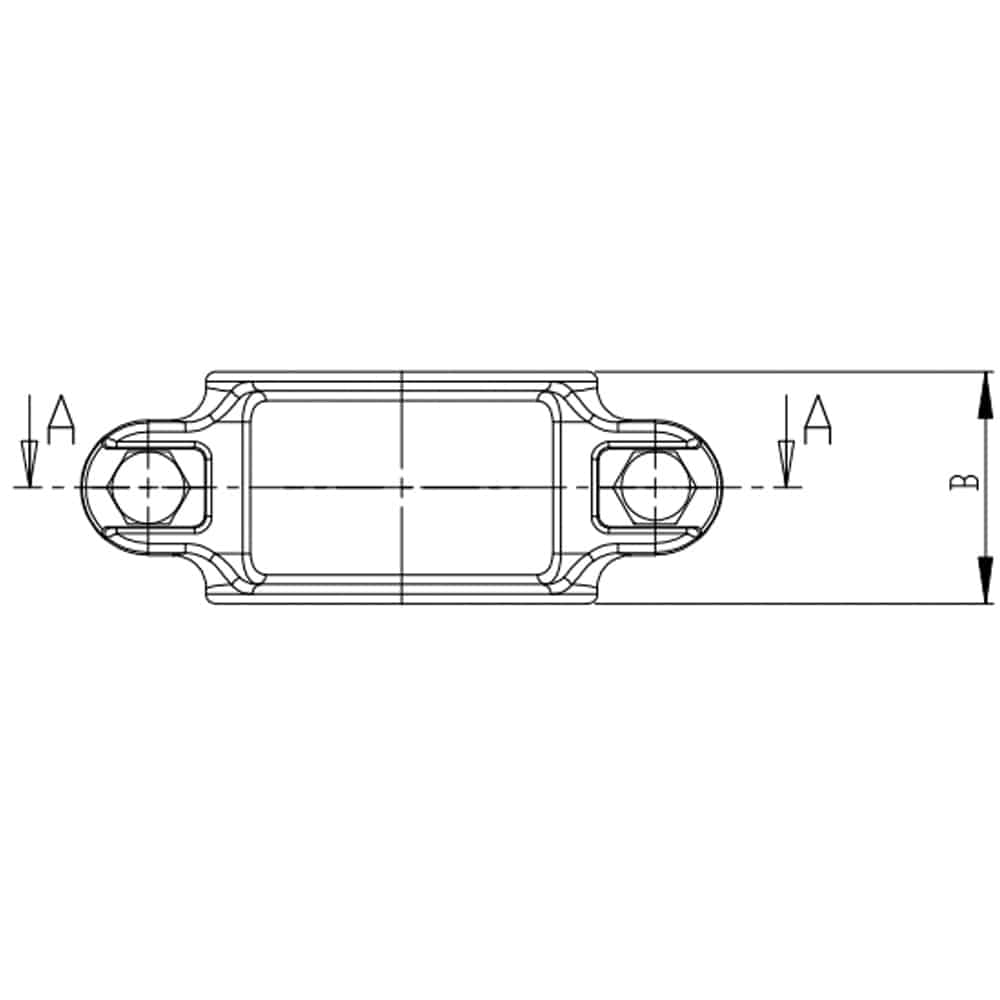

pipe saddle clamp drawing bottom view


Material

Sr.No. Name Material Specification
1&2 Body Ductile iron EN GJS450-10
3 Gasket EPDM EN681-1
4 Bolts Dacromet coated carbon steel ISO898-1
5 Nuts Dacromet coated carbon steel ISO898-1
6 Washer Dacromet coated carbon steel EN681-1


Dimension

Unit（mm unless specified)

HDPE or PVC pipe Nominal OD B BOLTS H Tap Size, Inch
Size X Length No. Hole Diameter, mm
DN90 80 M12 X 75 2 15 58 ½”, ¾”, 1”
DN110 80 M12 X 75 2 15 68 ½”, ¾”, 1”
DN160 100 M12 X 75 2 15 95 ½”, ¾”, 1”
DN180 100 M12 X 75 2 15 105 ½”, ¾”, 1”
DN200 100 M16 X 75 2 19 115 ½”, ¾”, 1”
DN225 100 M16 X 75 2 19 129 ½”, ¾”, 1”
DN250 100 M16 X 75 2 19 140 ½”, ¾”, 1”
DN280 100 M16 X 75 2 19 155 ½”, ¾”, 1”
DN315 100 M16 X 75 2 19 175 ½”, ¾”, 1”
DN355 100 M16 X 75 2 19 195 ½”, ¾”, 1”

Other pipe OD and tap size is also available upon request
