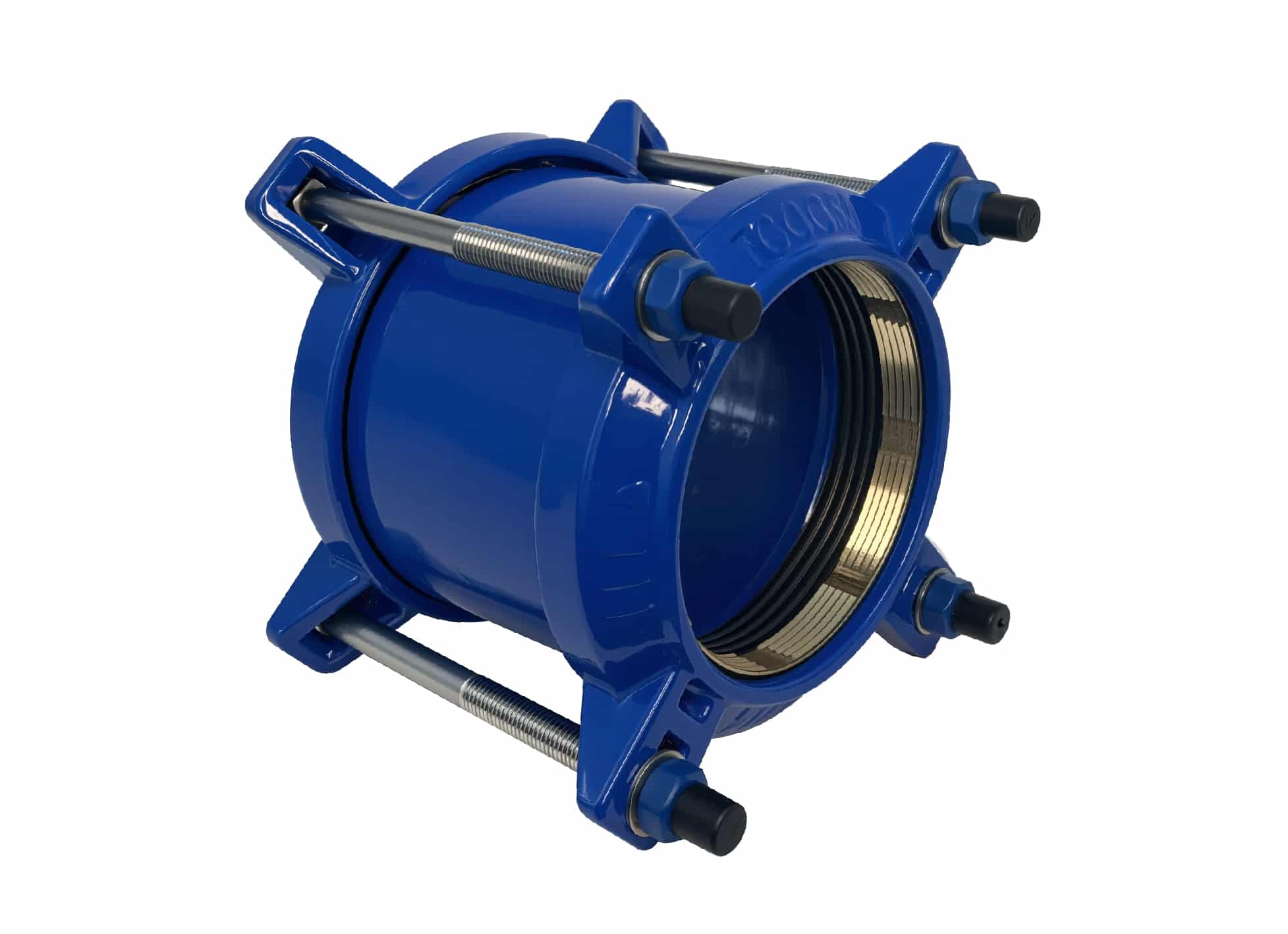

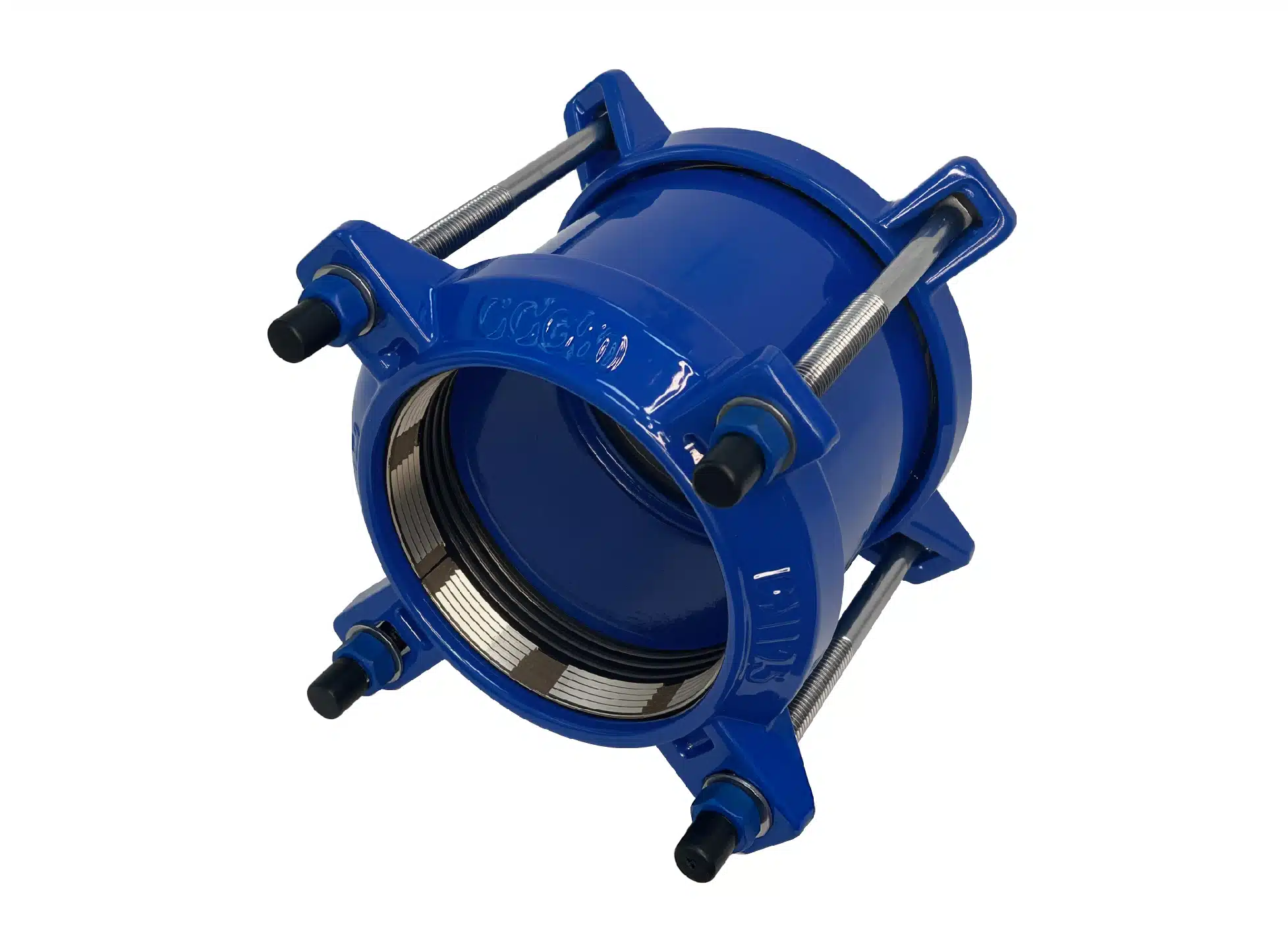

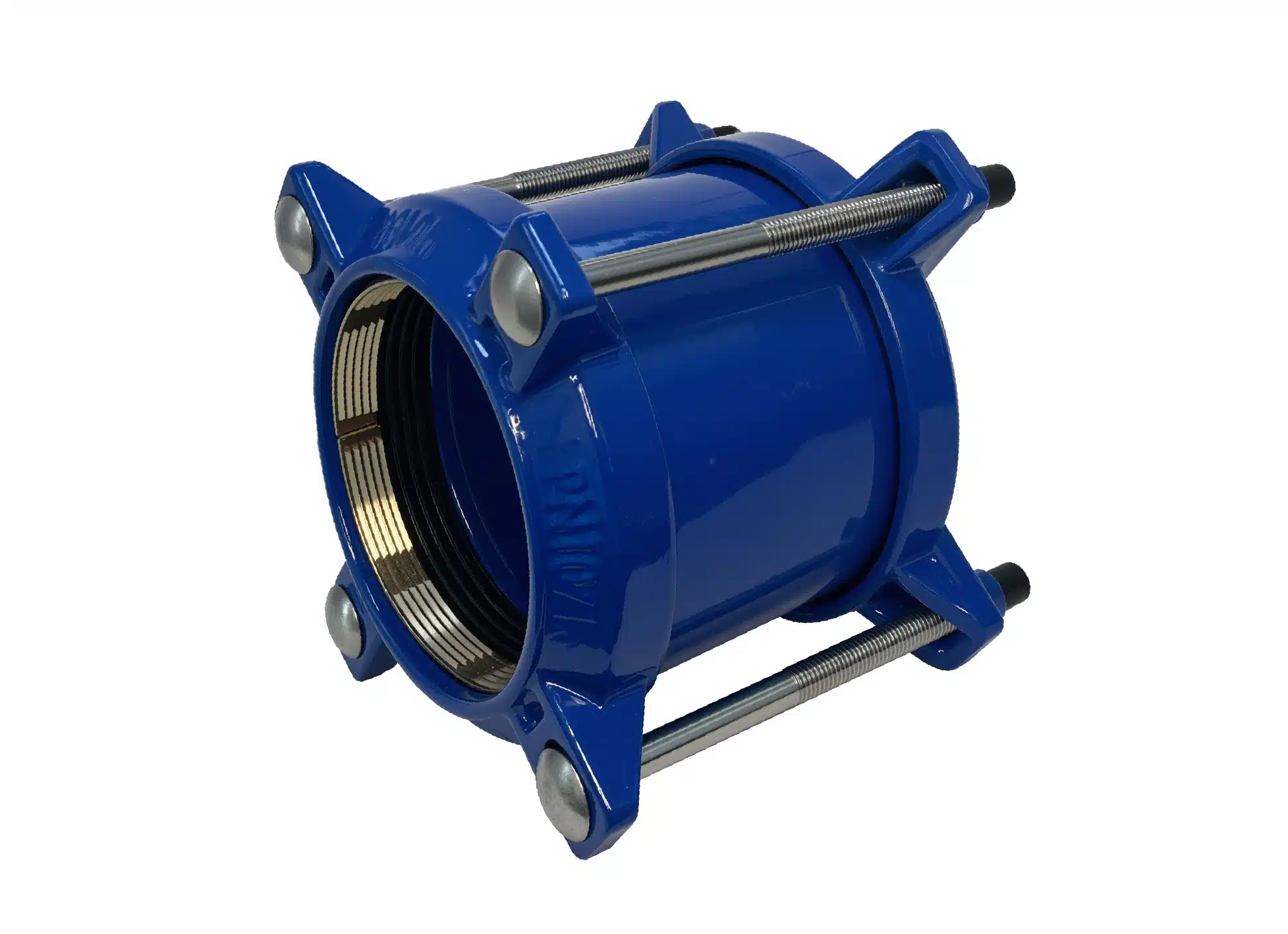

A restrained coupling adaptor is a device designed to provide additional tension and pressure support in pipe connections to ensure the connection remains safe and secure under high pressure and tension. Here’s how it works:

Basic Structure and Components
Body:

Main part used to wrap and connect pipes.
Typically made of high-strength materials such as cast iron, ductile iron, or stainless steel for structural strength and corrosion resistance.
Gasket:

Located between the pipe and the body to provide a seal and prevent leaks.
Typically made of rubber or other elastic material to ensure a tight seal.
Bolts and Nuts:

Used to secure the body to the pipe and provide mechanical strength.
Typically made of high-strength alloy steel or stainless steel to ensure stability under high pressure.
Restraint Mechanism:

Includes a restraining ring, locking wedge, or other restraint to prevent pipe movement under pressure and tension.
Typically used in conjunction with bolts to provide additional mechanical lock.
Operation
Pipe Preparation and Installation:

Clean and prepare the pipe ends to ensure no dirt or debris.
Place the coupling adaptor on the pipe connection and ensure it’s in the right position.
Compression and Sealing:

Secure the coupling adaptor to the pipe with bolts and nuts.
As the bolts are tightened, the gasket is compressed, filling the gap between the pipe and the coupling adaptor to create a seal and prevent fluid leaks.
Operation of the Restraint Mechanism:

As the bolts are further tightened, the restraint mechanism (such as a restraining ring or locking wedge) comes into play.
These devices mechanically lock the pipe in place inside the coupling adaptor to prevent axial movement under internal pressure and external tension.
This mechanical lock depends not only on friction but also on physical limits to ensure the connection remains stable even under high pressure.
Adapting to Pipe Movement and Stress
Thermal Expansion and Contraction:
In a pipeline system, temperature changes can cause pipes to expand and contract due to heat. The design of a restrained coupling adaptor allows it to provide the necessary flexibility and strength under these conditions to prevent connection failure due to thermal stress.
Ground Settlement and Vibration:
When a pipeline system is installed below ground, it may encounter ground settlement and mechanical vibration. A restrained coupling adaptor can absorb and mitigate these external stresses to protect the integrity of the pipe connection.
