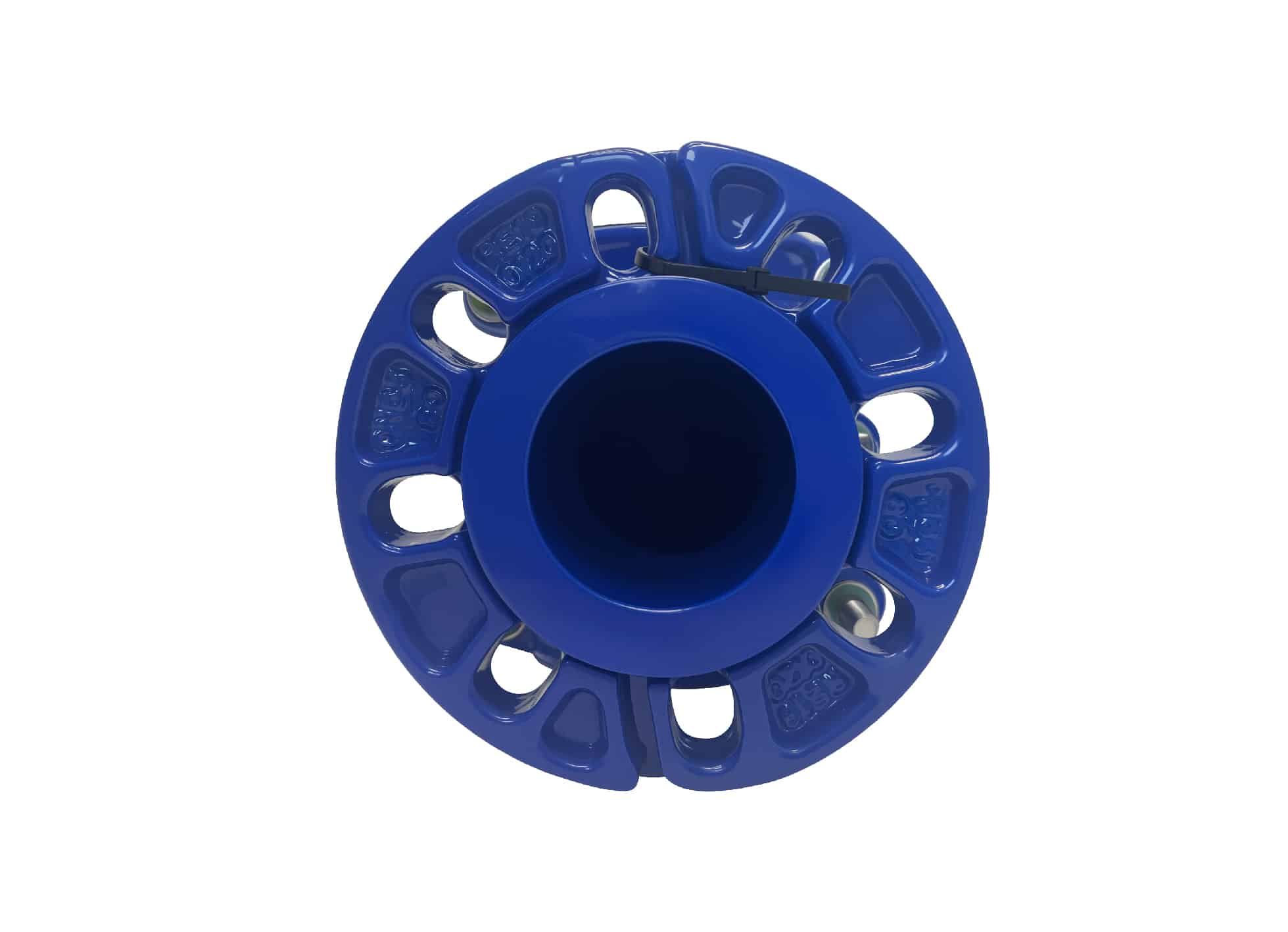

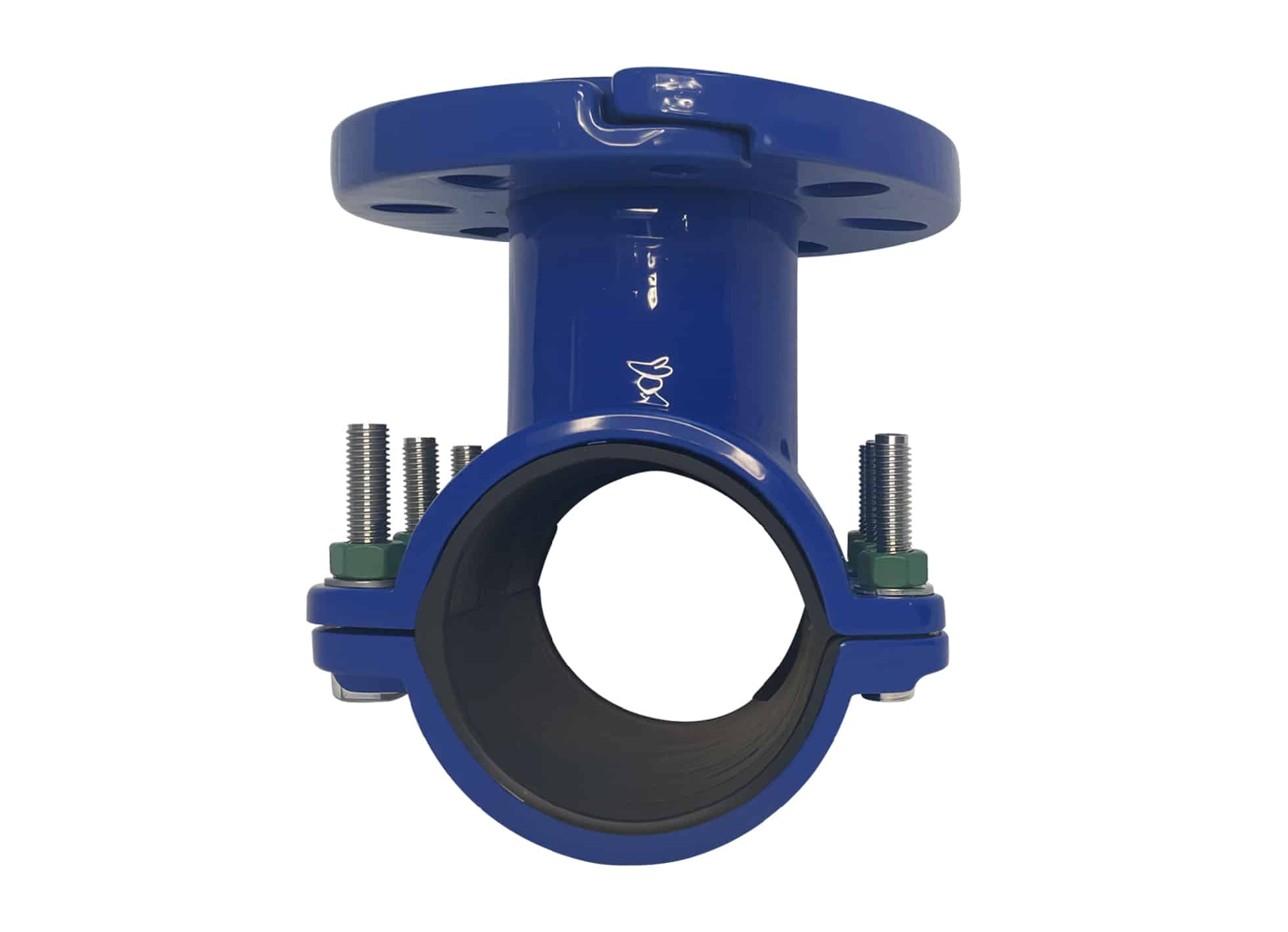

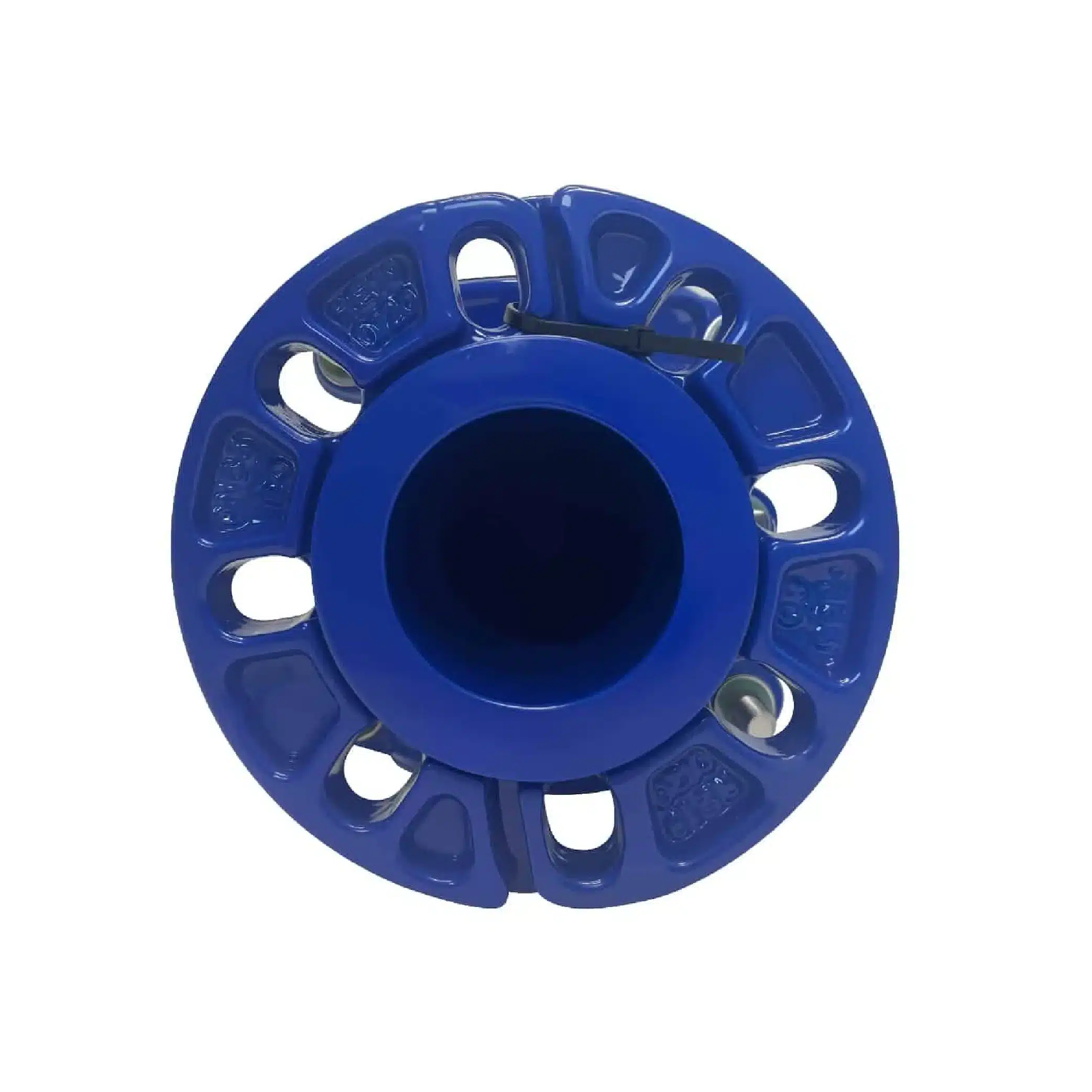

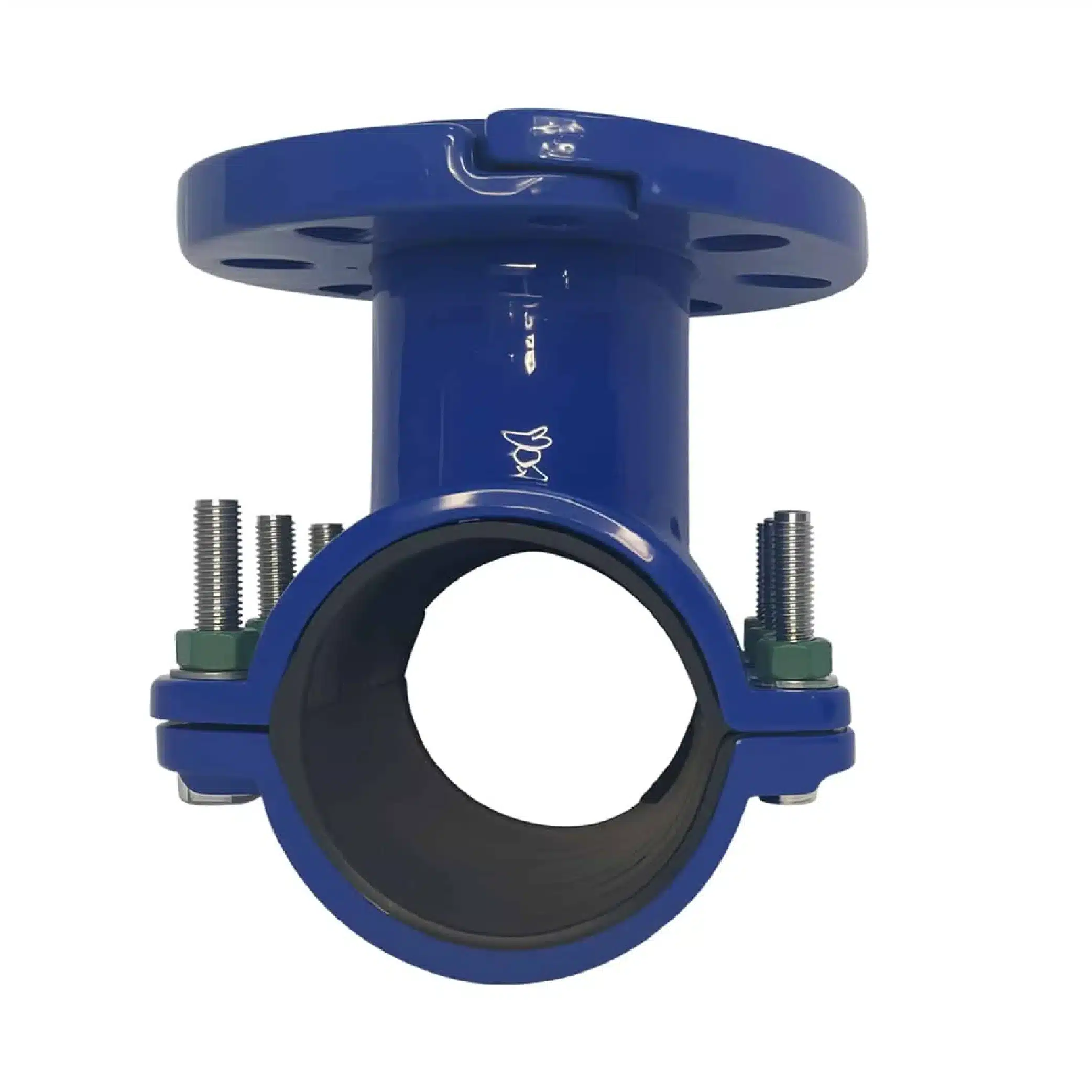

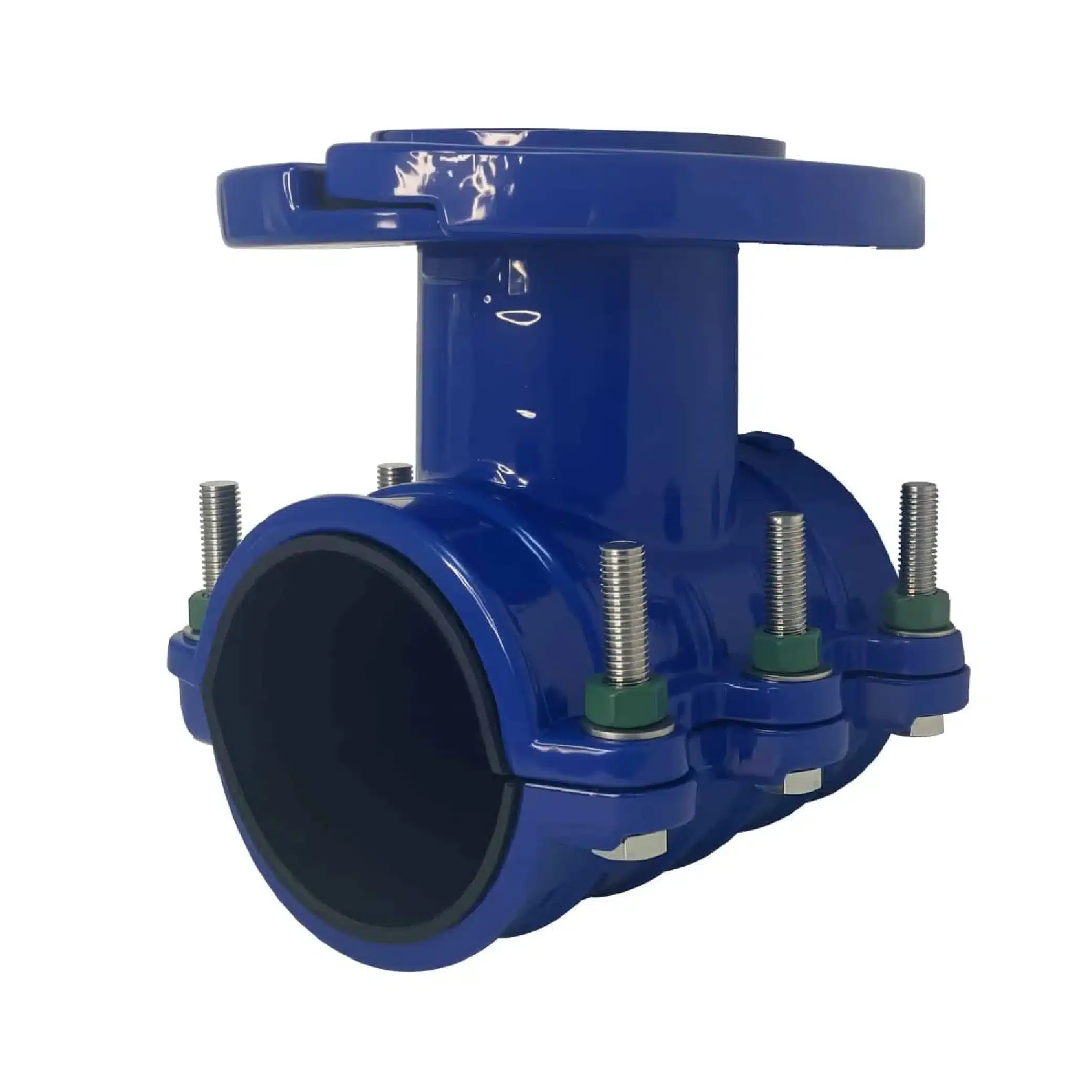

Saddle Fittings
Saddle Fittings Are A Pipe Fitting Which Is Used To Split Water From The Main Pipe To Branch Pipe, It Is Widely Used In Municipalities.
Previous image
Next image
Specification
Drilling Without Pressure
Saddle Standard:Comply With EN545
With Loose Flange ,Flange Standard:EN1092-2
Coating Standard:EN30677
Test Standard: EN12266-1
Working Pressure And Temperature
Size DE63 To DE 400,Working Pressure PN10 Or PN16
Temperature From -10℃ To 120℃ For EPDM Gasket
Temperature From -10℃ To 82℃ For NBR Gasket
Connection For PVC And HDPE Pipe
Suitable For Portable Water ,Neutral Liquids And Sewage
WRAS ,ACS,DVGW,NSF Approved
Drawing
Material
| No. | Parts Name | Material | Standard |
|---|---|---|---|
| 1&5 | Body | Ductile iron | EN1563 |
| 2 | Protection gasket | EPDM | EN681-1 |
| 3 | Bolts,Nuts and washers | Stainelss steel or Carbon Steel | ISO898-1 |
| 4 | Sealing gasket | EPDM | EN681-1 |
| 6 | Loose flange | Ductile iron | EN1563 |
Dimension(unit mm)
| PVC/PE pipe OD | Flange Size | L1 | L2 | L3 |
|---|---|---|---|---|
| 90 | 50 | 145 | 180 | 201 |
| 90 | 80 | 145 | 180 | 201 |
| 110 | 50 | 145 | 200 | 211 |
| 110 | 65 | 165 | 200 | 231 |
| 110 | 80 | 170 | 200 | 236 |
| 125 | 50 | 160 | 200 | 233 |
| 125 | 65 | 160 | 200 | 233 |
| 125 | 80 | 170 | 200 | 243 |
| 125 | 100 | 170 | 200 | 243 |
| 140 | 50 | 160 | 200 | 241 |
| 140 | 65 | 160 | 200 | 241 |
| 140 | 80 | 170 | 200 | 251 |
| 160 | 50 | 170 | 250 | 261 |
| 160 | 65 | 190 | 250 | 281 |
| 160 | 80 | 200 | 250 | 291 |
| 160 | 100 | 205 | 250 | 296 |
| 180 | 80 | 225 | 250 | 326 |
| 180 | 100 | 230 | 250 | 331 |
| 180 | 150 | 240 | 250 | 341 |
| 200 | 50 | 195 | 250 | 306 |
| 200 | 65 | 215 | 250 | 326 |
| 200 | 80 | 225 | 250 | 336 |
| 200 | 100 | 230 | 250 | 341 |
| 200 | 150 | 240 | 250 | 351 |
| 225 | 80 | 225 | 250 | 348 |
| 225 | 100 | 230 | 250 | 353 |
| 250 | 50 | 240 | 300 | 376 |
| 250 | 80 | 250 | 300 | 386 |
| 250 | 100 | 255 | 300 | 391 |
| 250 | 150 | 265 | 300 | 401 |
| 315 | 50 | 280 | 300 | 448 |
| 315 | 80 | 295 | 300 | 463 |
| 315 | 100 | 300 | 300 | 468 |
| 315 | 150 | 310 | 300 | 478 |
