Scour Tee
The scour tee is usually used in conjunction with a Scour Valve, which is installed at a lower level than the pipeline, and when the scour valve is opened, it flushes sediment and debris from the bottom of the pipeline, thus emptying the pipeline. normally we need to open the scour valve when we need to repair or change the pipeline parts.The branch of scour tee is not at the same level as the centre of the pipeline, but lower, usually the lowest level of the branch is flush with the lowest level of the pipeline. This facilitates the discharge of debris.

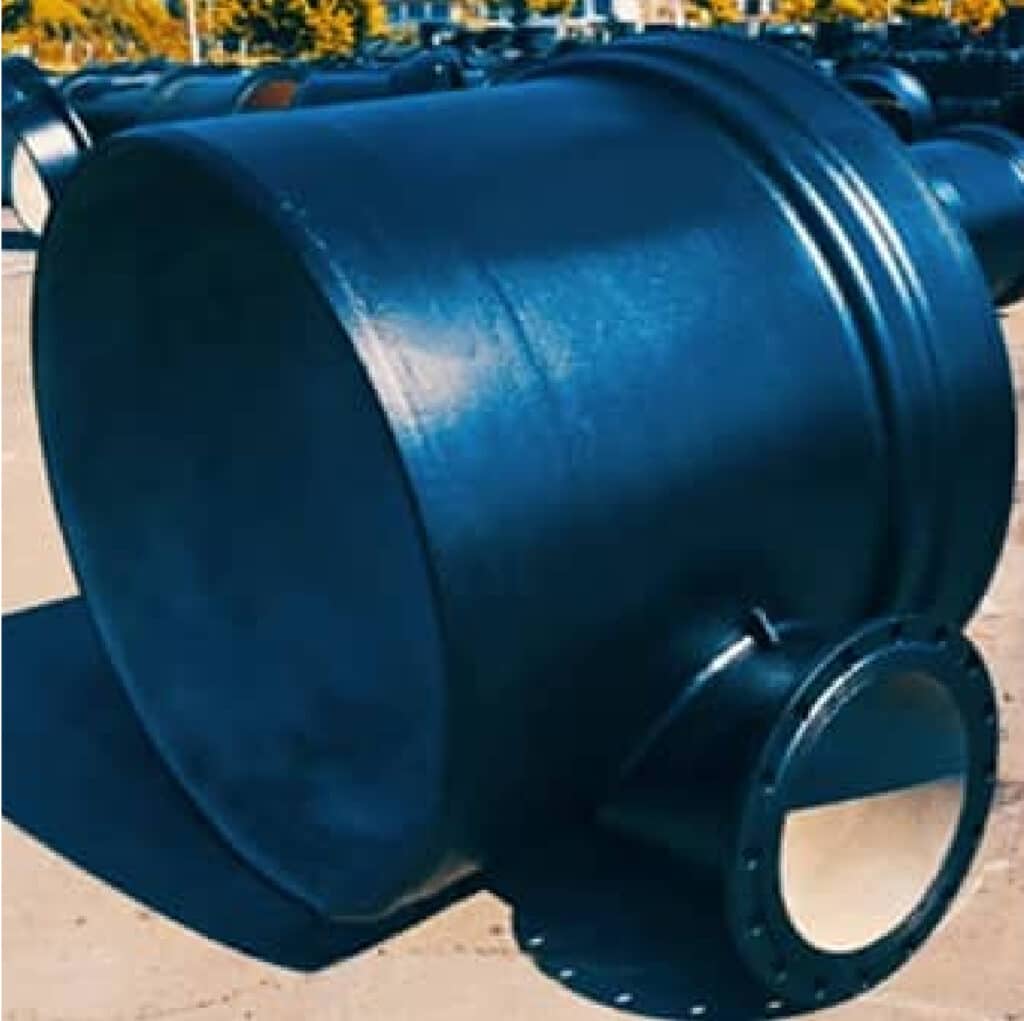

Double Socket with Flange Outlet
Scour Tee

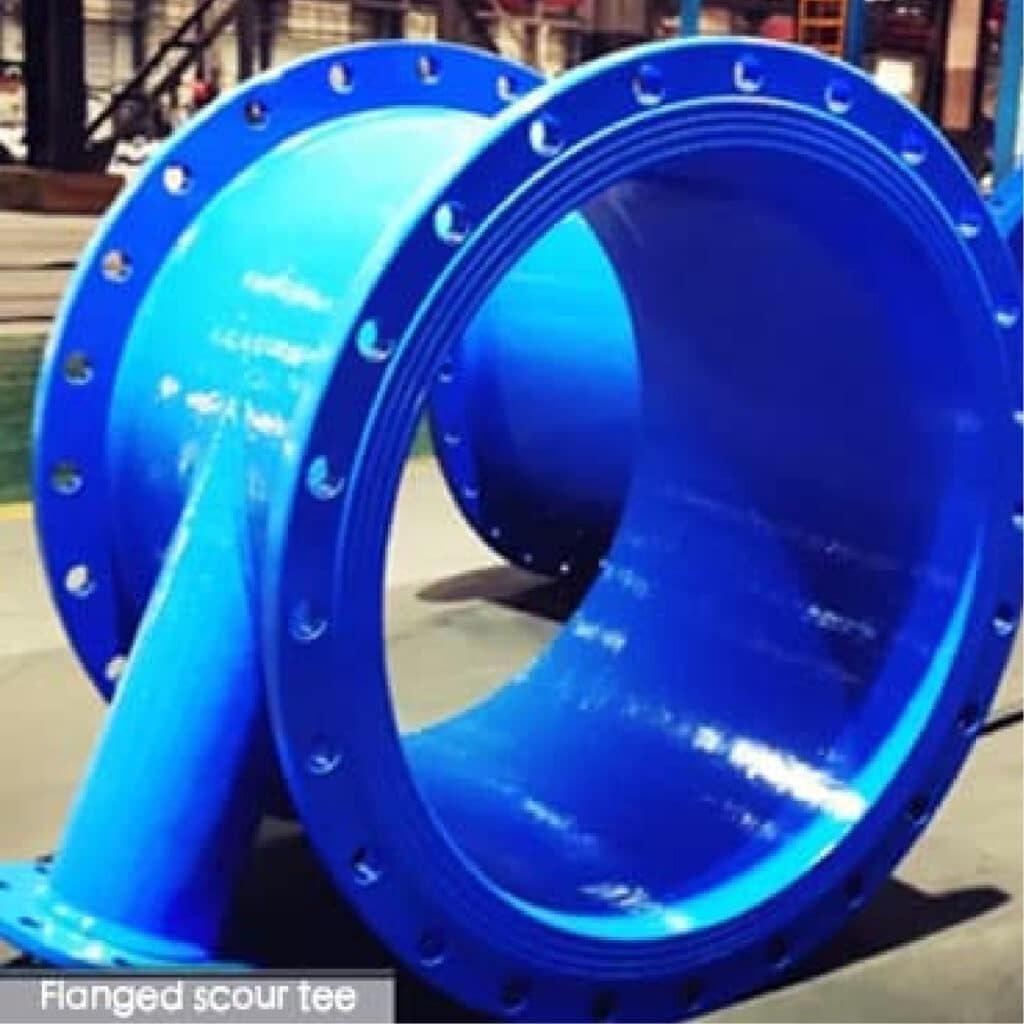

All Flanged
Scour tee

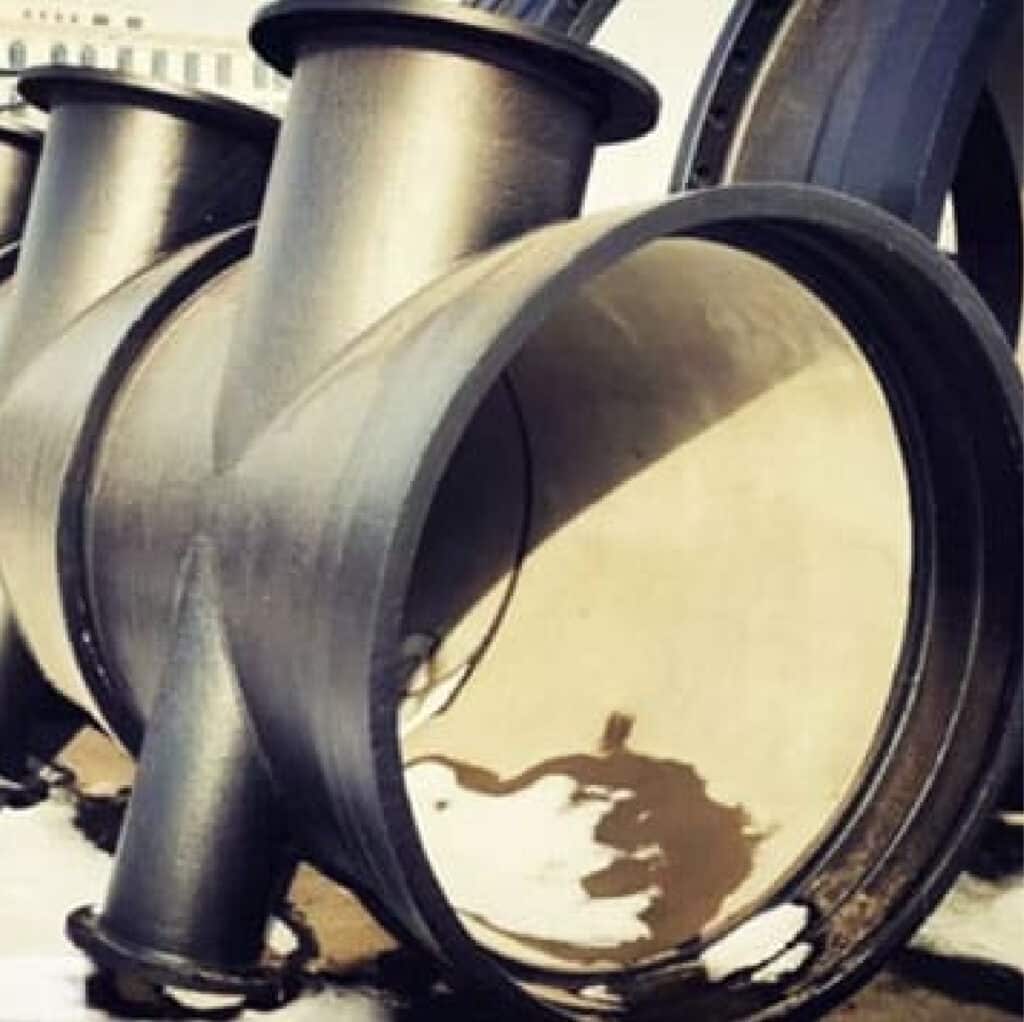

Double Socket with Double Flange Outlet
Scour tee

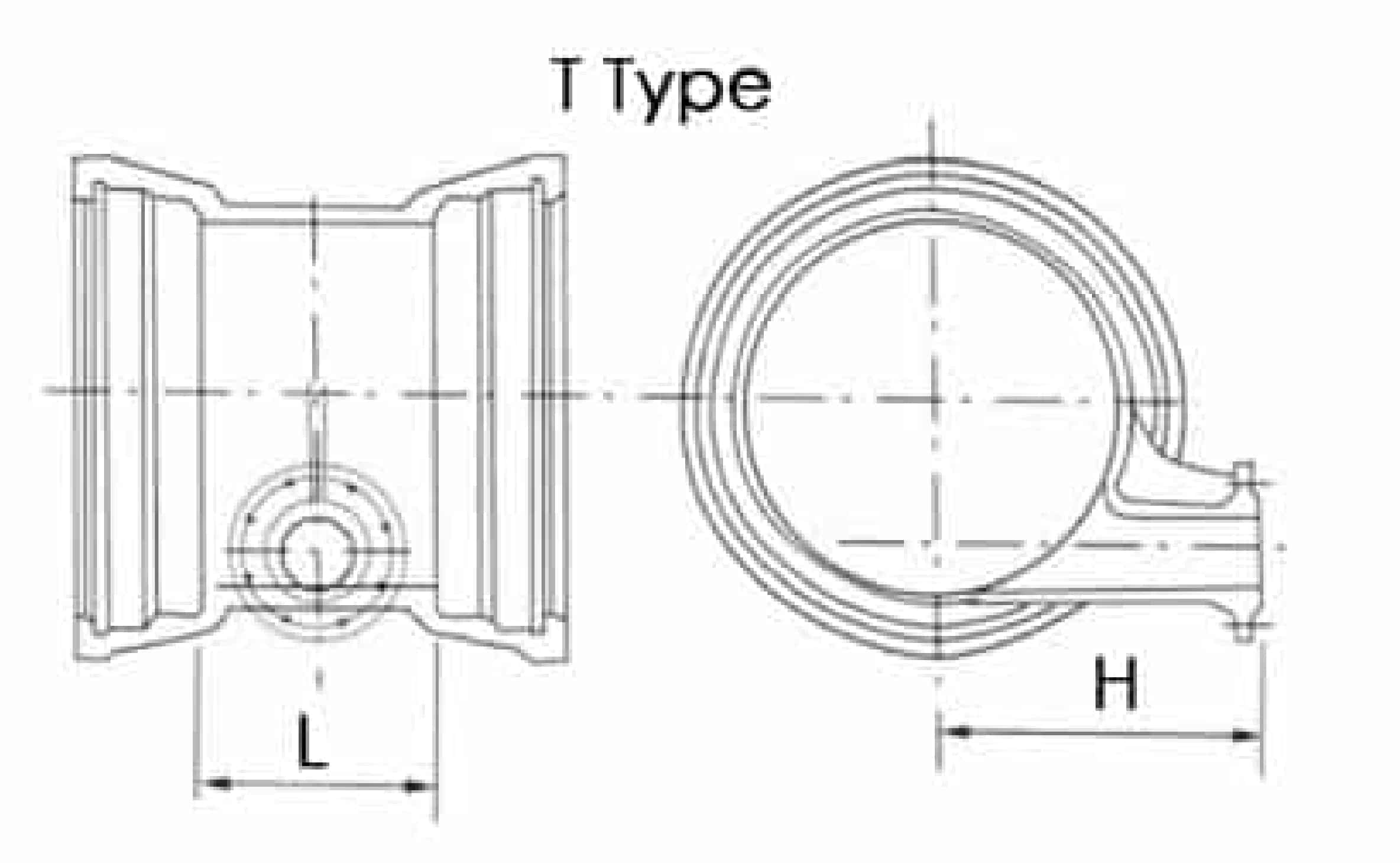

Scour Tee Drawing
Take double socket tee with flange branch type as example
Dimension
You can find sour tee dimension on page 11 in our Ductile Iron Pipe Fitting catalog as below
Technical information
Scour tee also called level invert tee, it can be double socket with flange branch tee or All Flange Tee, scour tee is named from the function of the tee
Sour tee if one of ductile iron pipe fitting, if you need to know more about judberd ductile iron pipe fitting, please read technical information on our ductile iron pipe fitting page as below
