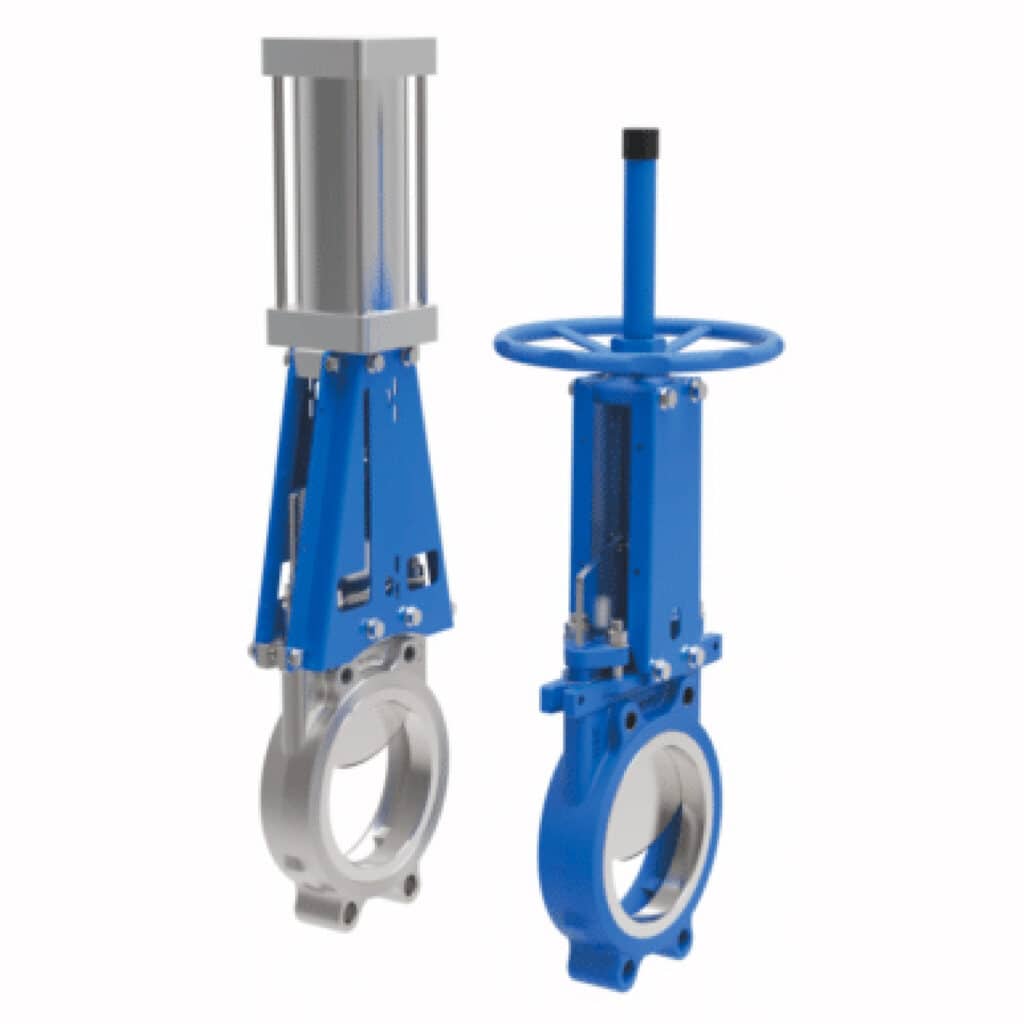

Unidirectional Sealing Thick Valve Seat Knife Gate Valve
Feature
● Working Pressure
DN50-DN100 16bar
DN125-DN200 10bar
DN250-DN400 7bar
● Connection Wafer,Lug
● Design Standard MSS SP-81
● Flange Drilling EN1092 PN10,PNI6,ANSIB 16.47/B16.5 150lb,JIS 10K, Table D/E
● Face to Face MSS SP-81
● Testing standard API-598
● Operation Manual ,electric actuator,Pneumatic actuator , hydraulic , sprocket ,elector-hydraulic
● Body material Carbon steel or ductile iron
● Disc material Stainless steel
● Sealing material NBR,EPDM,PTFE,FKM,Graphite,Metal
● Application Coal in power plant ,slag discharge ,sewage treatment ,food ,paper making.medicine ,petroleum and chemical industry ,water ,oil ,steam ,connection for cutting grout ,goldpowder ,ores ,slag ,coal ,pulp ,wood pulp ,tailings ,fibers ,dust ,chemicals ,sewage treatment,sedimentation tanks ,asphalt ,bunker export ,fruit juices ,cereals ,slaughter plant waste and othermedia ,especially used for mining in electricity plant
