Unidirectional Slag Discharge Knife Gate Valve

● Back to all knife gate valve

Feature

● Working Pressure
DN150-DN200 10bar
DN250-DN400 7bar
DN450-DN550 5bar
DN600-DN700 3bar

● Connection Flange

● Designstandard MSS SP-81

● Flange Drilling EN1092 PN10,PN16,ANSIB 16.47/B16.5 150lb,JIs 10K,Table D/E

● Face to Face MSS SP-81

● Testing Standard APl-598

● Operation Manual, electric actuator,Pneumatic actuator, hydraulic ,sprocket ,elector-hydraulicBody material Carbon steel or ductile iron

● Disc material Stainless steel

● Sealing material NBR,EPDM,PTFE,FKM,Graphite,Metal
Application Dust, solid particles ,coal ,oil ,chemical and so on ,slag ,cinder, dislagging recommend

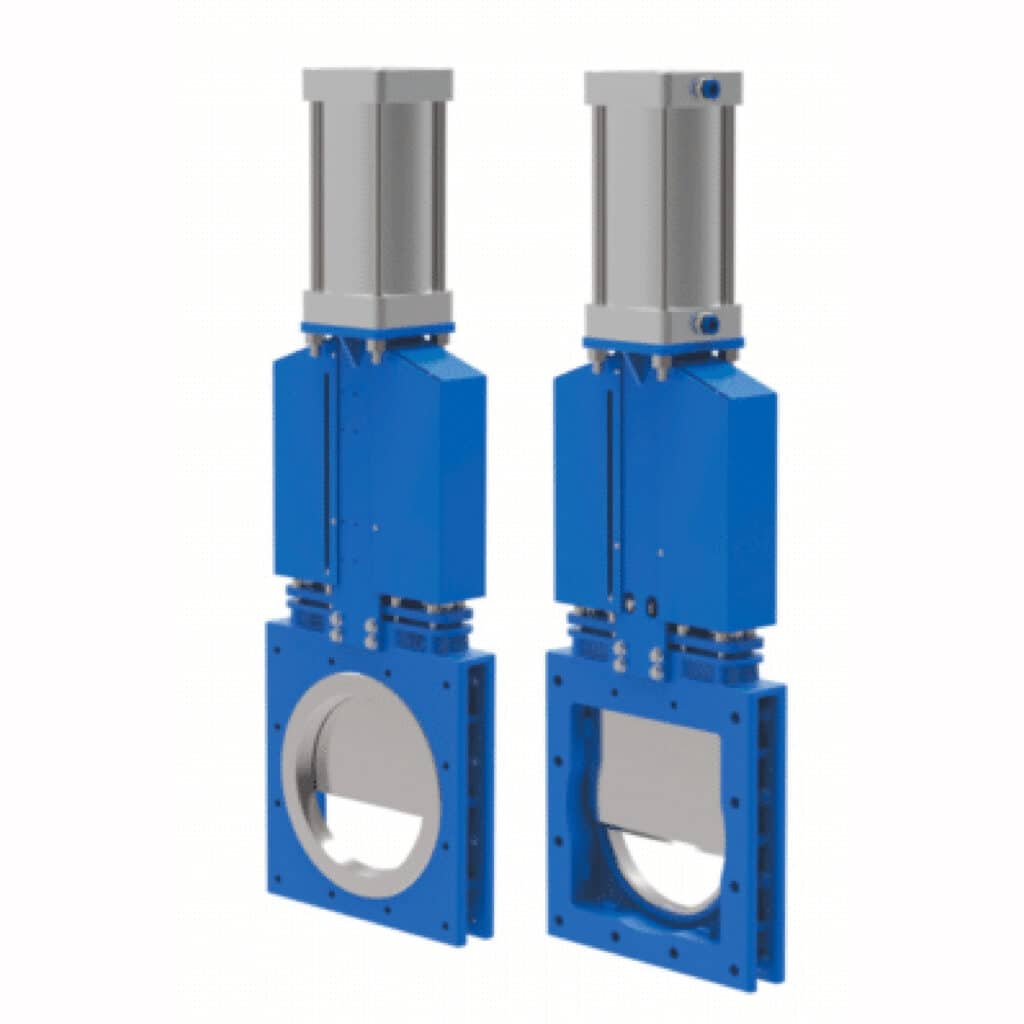

Unidirectional Slag Discharge Knife Gate Valve

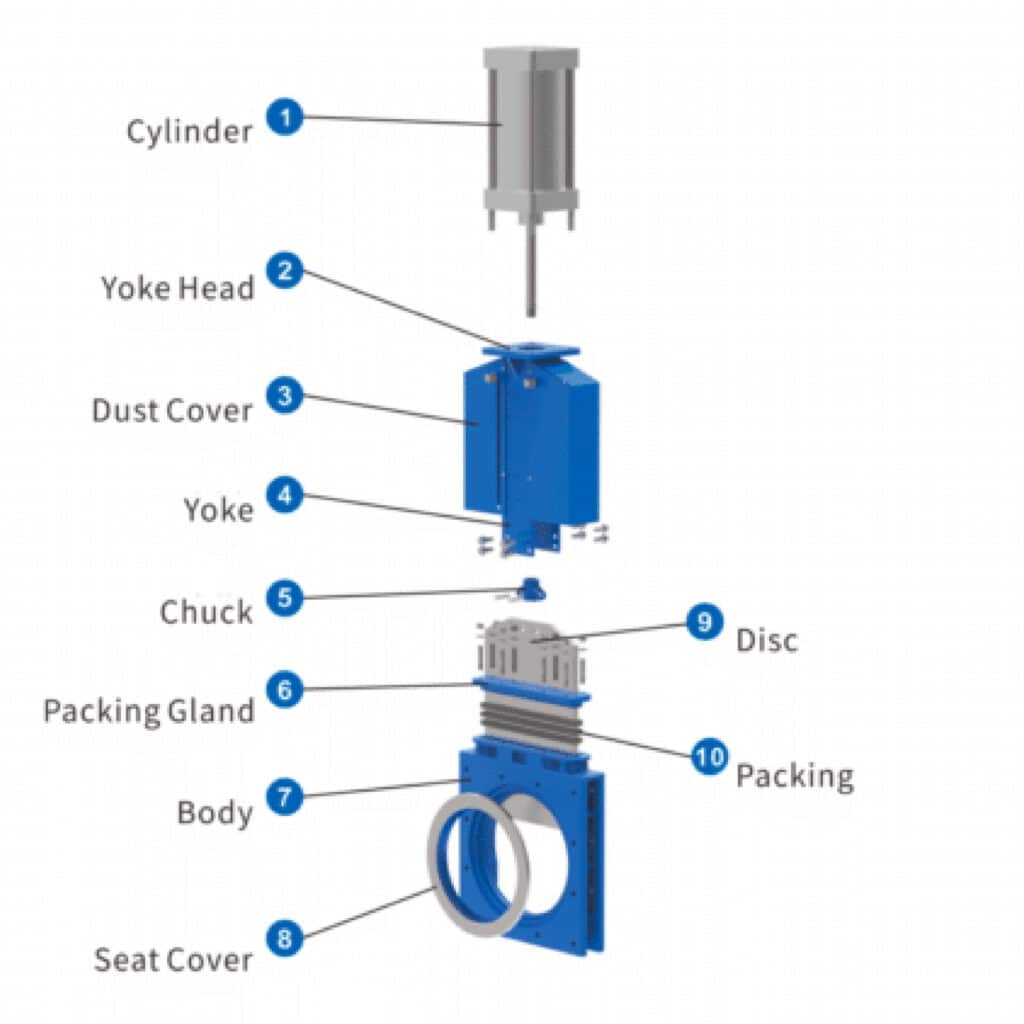

Unidirectional Slag Discharge Knife Gate Valve 2

Related products

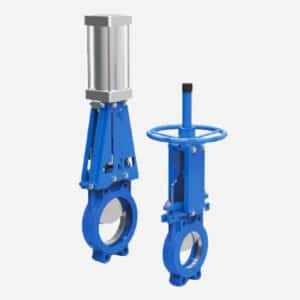

Unidirectional Sealing Thin Valve Seat Bonnetless Knife Gate Valve

Unidirectional Sealing Thin Valve Seat Bonnetless Knife Gate Valve

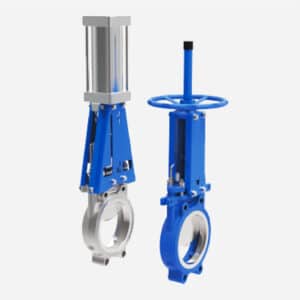

Unidirectional Sealing Thick Valve Seat Knife Gate Valve

Unidirectional Sealing Thick Valve Se

Unidirectional seal NRS enclosed knife gate valve

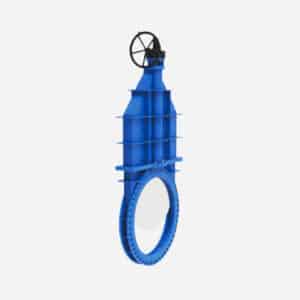

Unidirectional seal NRS bonneted knife gate valve

Unidirectional High-Pressure Knife Gate Valve with No Middle Filling, Fully Closed

Unidirectional High-Pressure Knife Gate Valve with No Middle Filling, Fully Closed

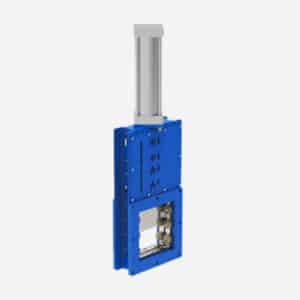

Unidirectional sealing full enclosed square knife gate valve
