Service Saddle

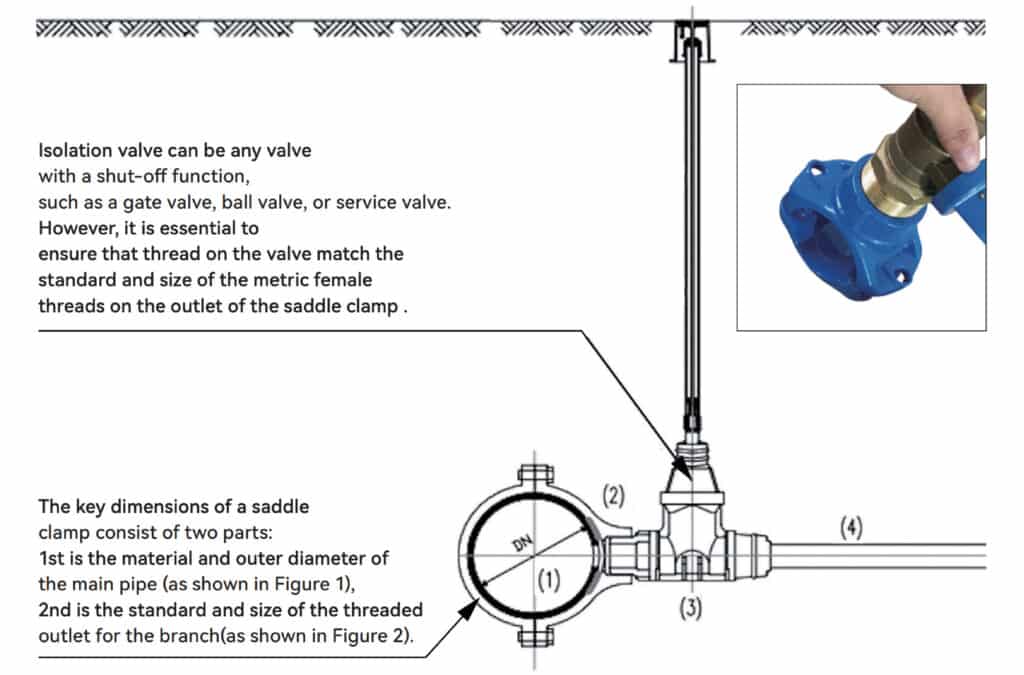

A service saddle is a crucial component in water distribution systems, designed to facilitate the branching of water from a main pipeline to a branch pipeline. This setup is commonly used to supply water from municipal pipes to household or commercial pipes. The service saddle is typically installed on the main pipeline and allows for a smaller branch pipe to be connected securely and efficiently.

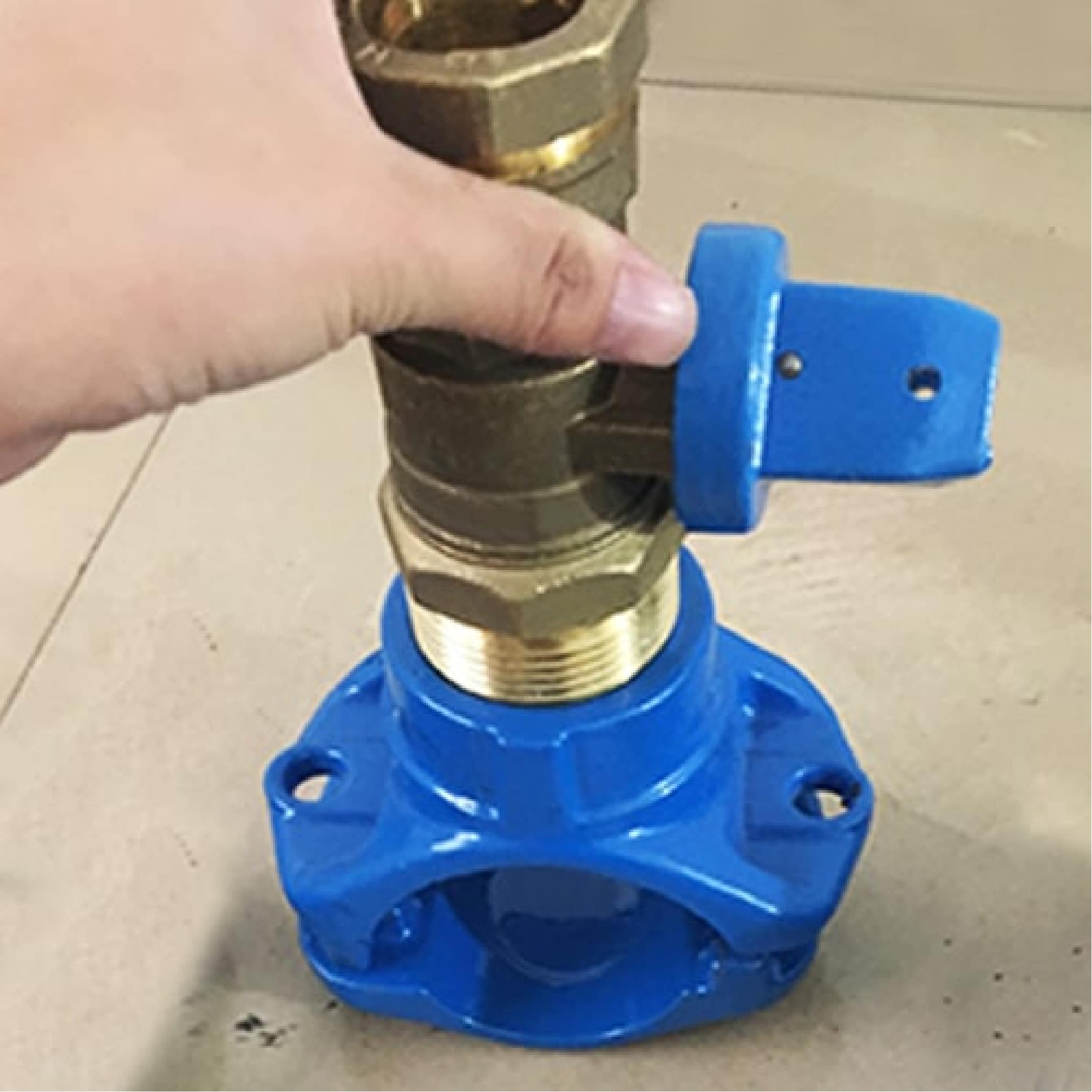

 Normally The service saddle is usually connected with a service valve. This valve plays a critical role in controlling the water flow from the main pipeline to the branch pipeline. By opening or closing the valve, the water supply to the household or commercial pipes can be regulated, making it easy to perform maintenance, repairs, or adjustments to the water distribution system.

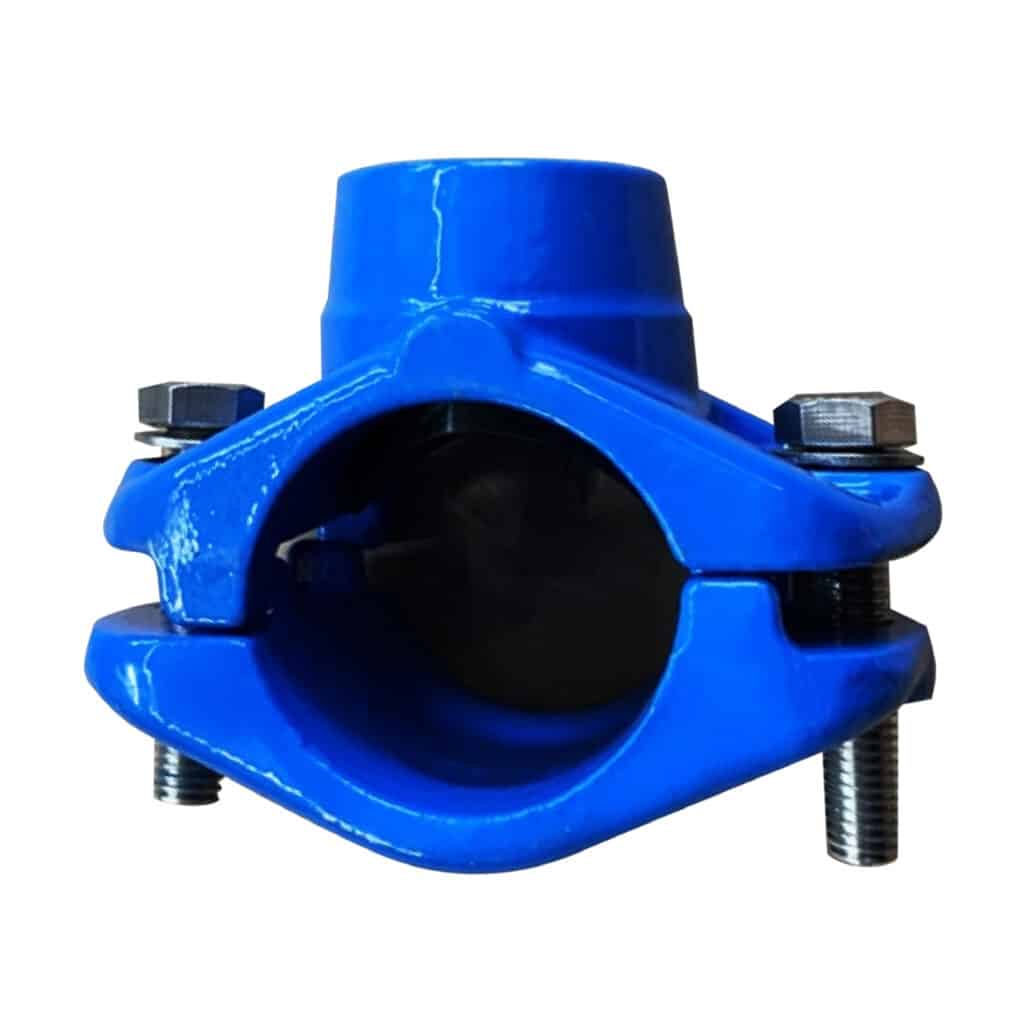

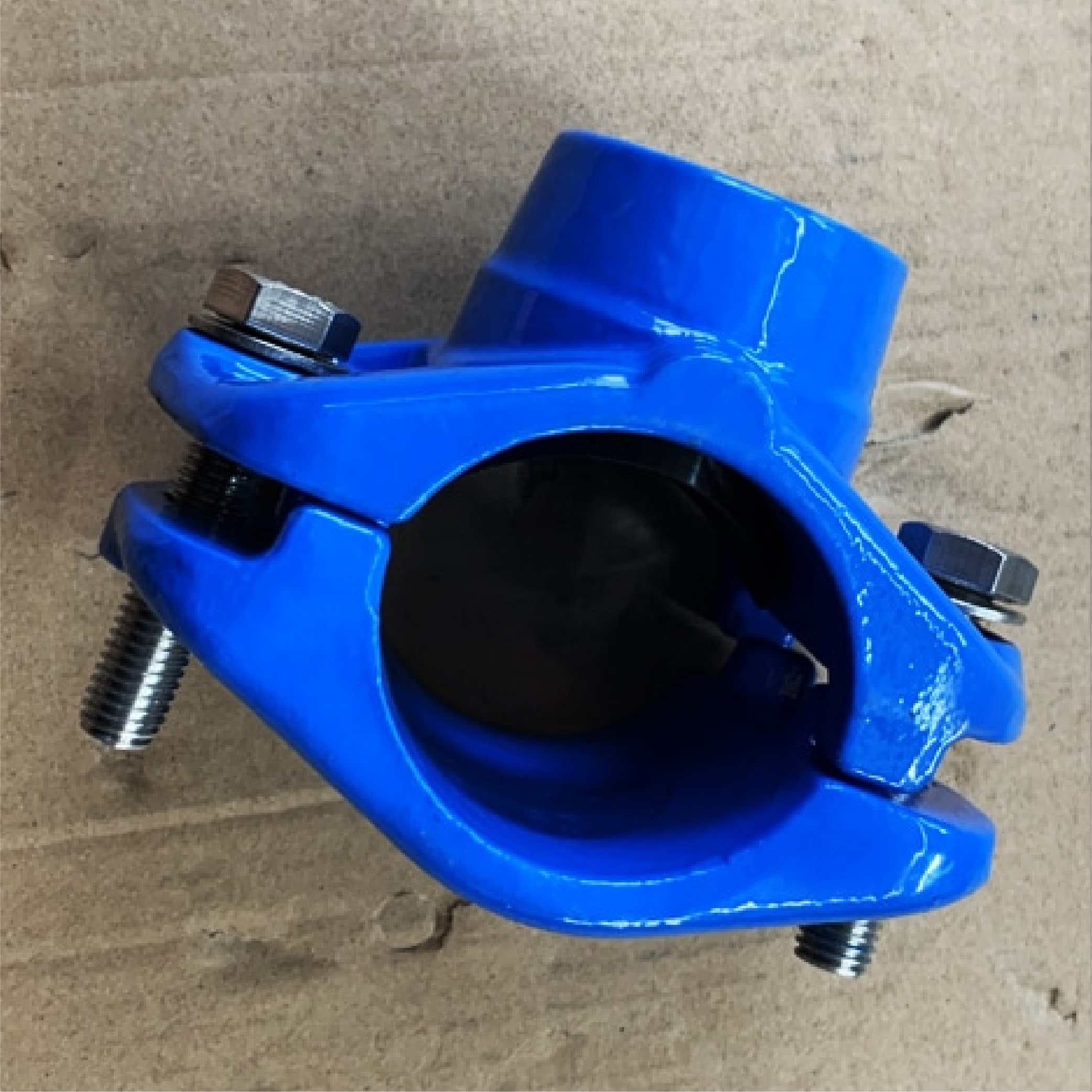

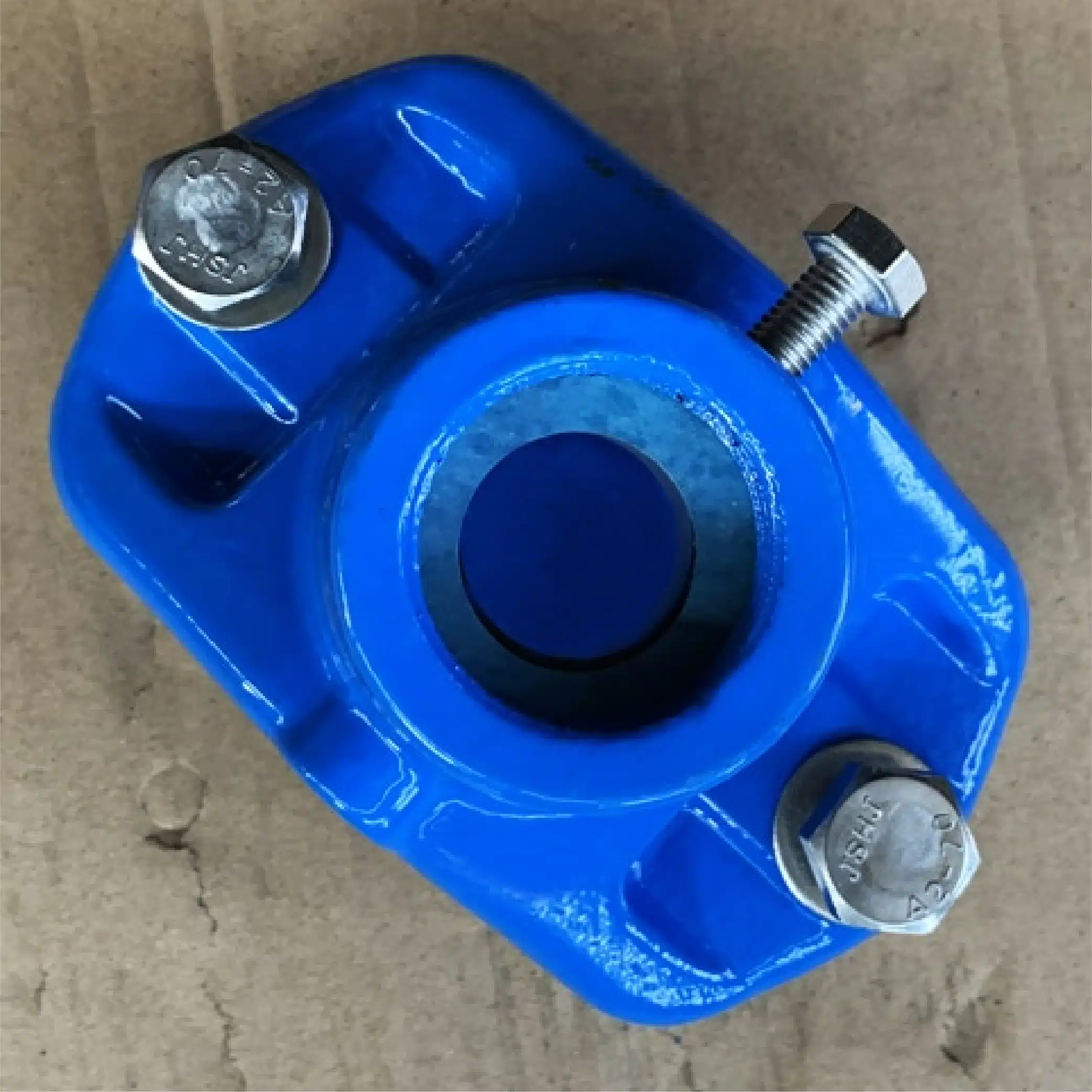

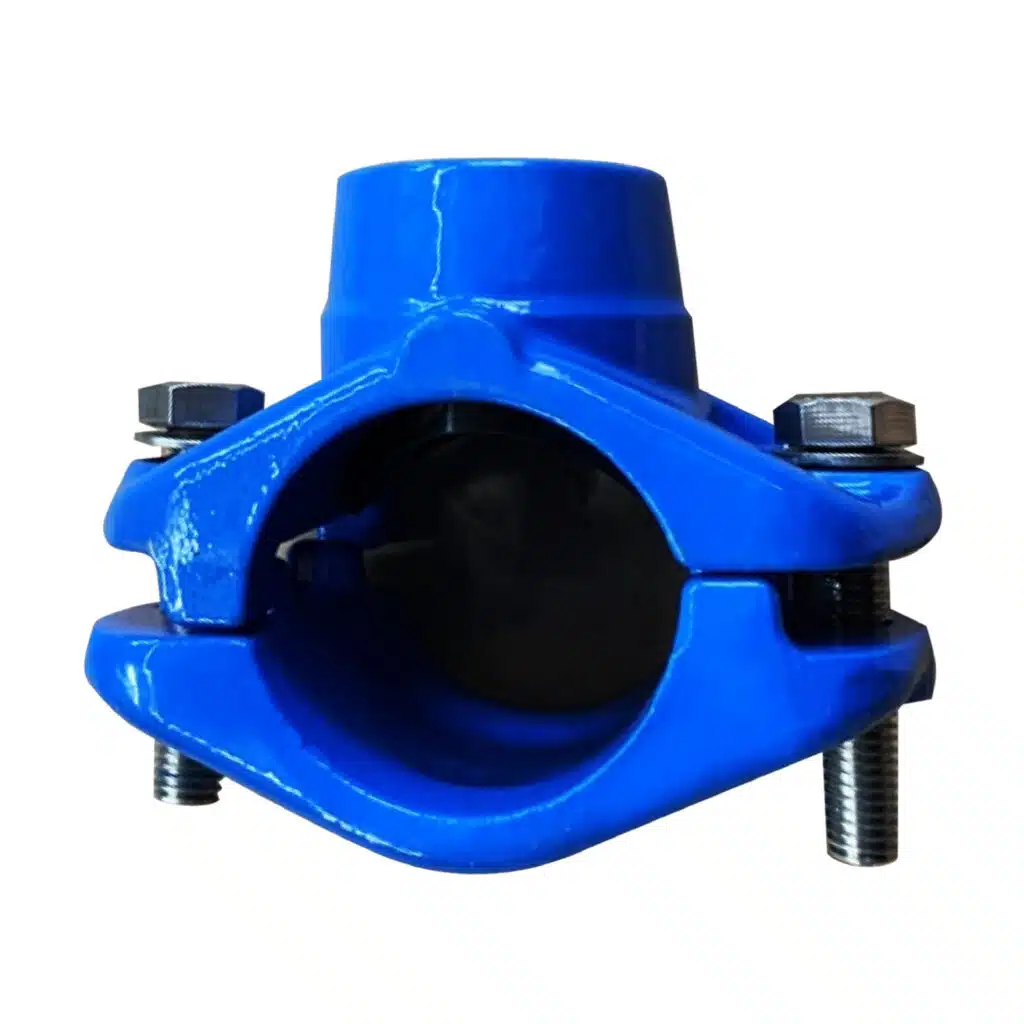

cast iron service saddle

Specification

Saddle Standard:Comply With EN545

Coating Standard:EN30677

Test Standard: EN12266-1

Working Pressure And Temperature

Size OD50 To OD315,Working Pressure PN10/PN16

Temperature From -10℃ To 120℃ For EPDM Gasket

Temperature From -10℃ To 82℃ For NBR Gasket

Connection For PVC Or PE Pipe

Suitable For Potable Water, Neutral Liquids And Sewage

WRAS,ACS,NSF,DVGW Approved


Cast iron service saddle video


Drawing

Cast Iron Service Saddle assembly drawing
Cast Iron Service Saddle section A-A drawing
Cast Iron Service Saddle top view


Material

Sr.No. Name Material Specification
1&2 Body Ductile iron EN GJS450-10
3&5 Bolts Carbon Steel or Stainless Steel ISO898-1
6 Gasket EPDM EN681-1
7 Support Plastic


Dimension(unit mm)

PVC/PE pipe OD G H1 H2 R
50 M40 14 55 26
63 M40 14 61.5 32.5
63 M55 19 66.5 32.5
75 M40 14 67.5 38.5
75 M55 19 72.5 38.5
90 M40 14 75 46
90 M55 19 80 46
110 M40 14 85 56
110 M55 19 90 56
125 M40 14 92.5 63.5
125 M55 19 97.5 63.5
140 M40 14 100 71
140 M55 19 105 71
160 M40 14 110 81
160 M55 19 115 81
200 M40 14 130 101
200 M55 19 135 101
225 M40 14 142 114
225 M55 19 147 114
250 M40 14 154.5 126.5
250 M55 19 159.5 126.5
315 M40 14 187 159
315 M55 19 192 159
