DI Saddle Clamp for PVC and HDPE pipe

● Back to all saddle clamp

Specification

● Saddle for PVC and PE pipe with metric thread

● Saddle standard: comply with EN545

● Coating standard: en30677

● Test standard: en12266-1

● Working pressure and temperature
Size OD50 to OD315, working pressure PN10/PN16
Temperature from -10℃ to 120℃ for EPDM gasket
Temperature from -10℃ to 82℃ for NBR gasket

● Connection for PVC and HDPE pipe
With metric thread M40 and M55 outlet

● Suitable for potable water, neutral liquids and sewage

● WRAS, ACS, DVGW, NSF approved

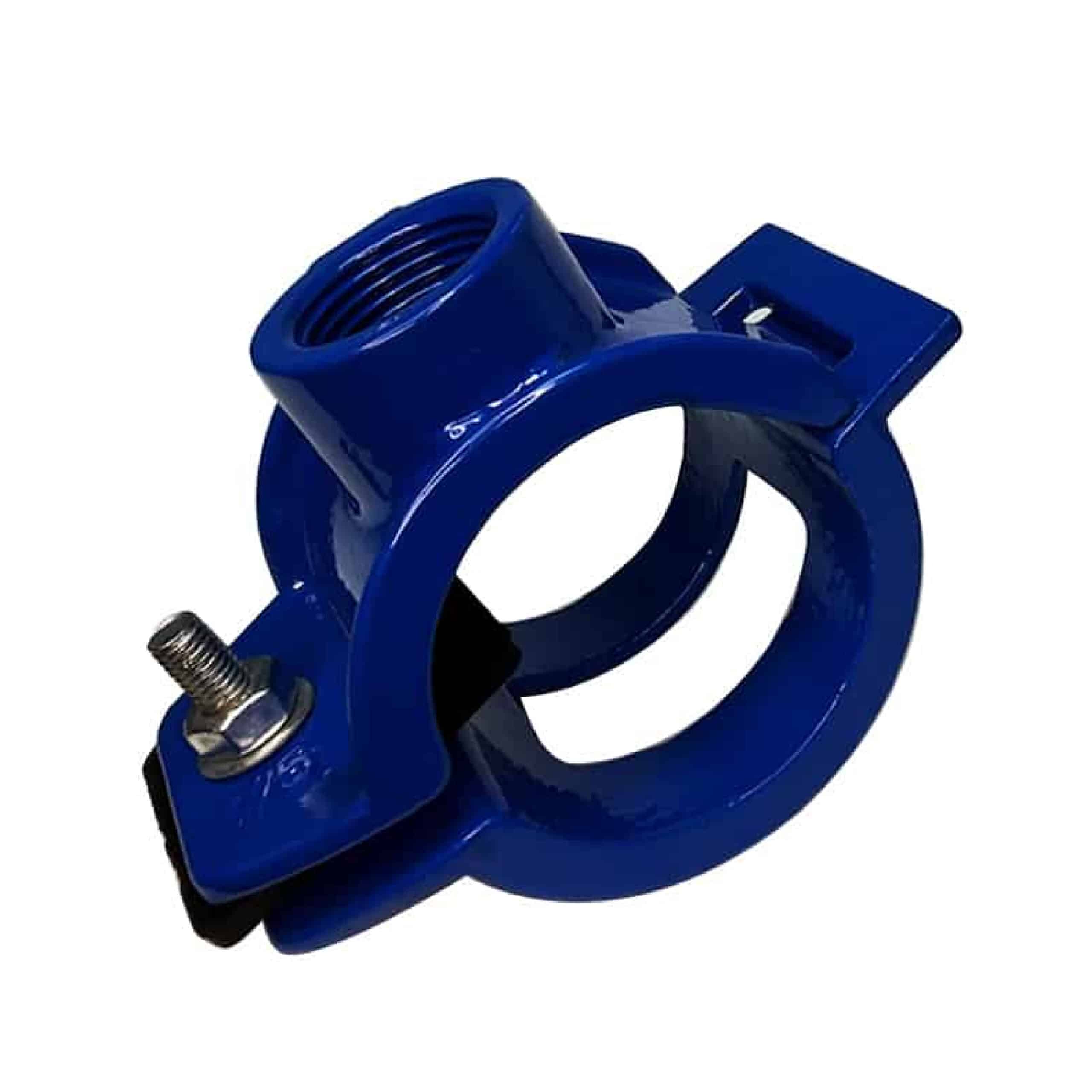

DI Saddle Clamp for PVC and HDPE pipe photo

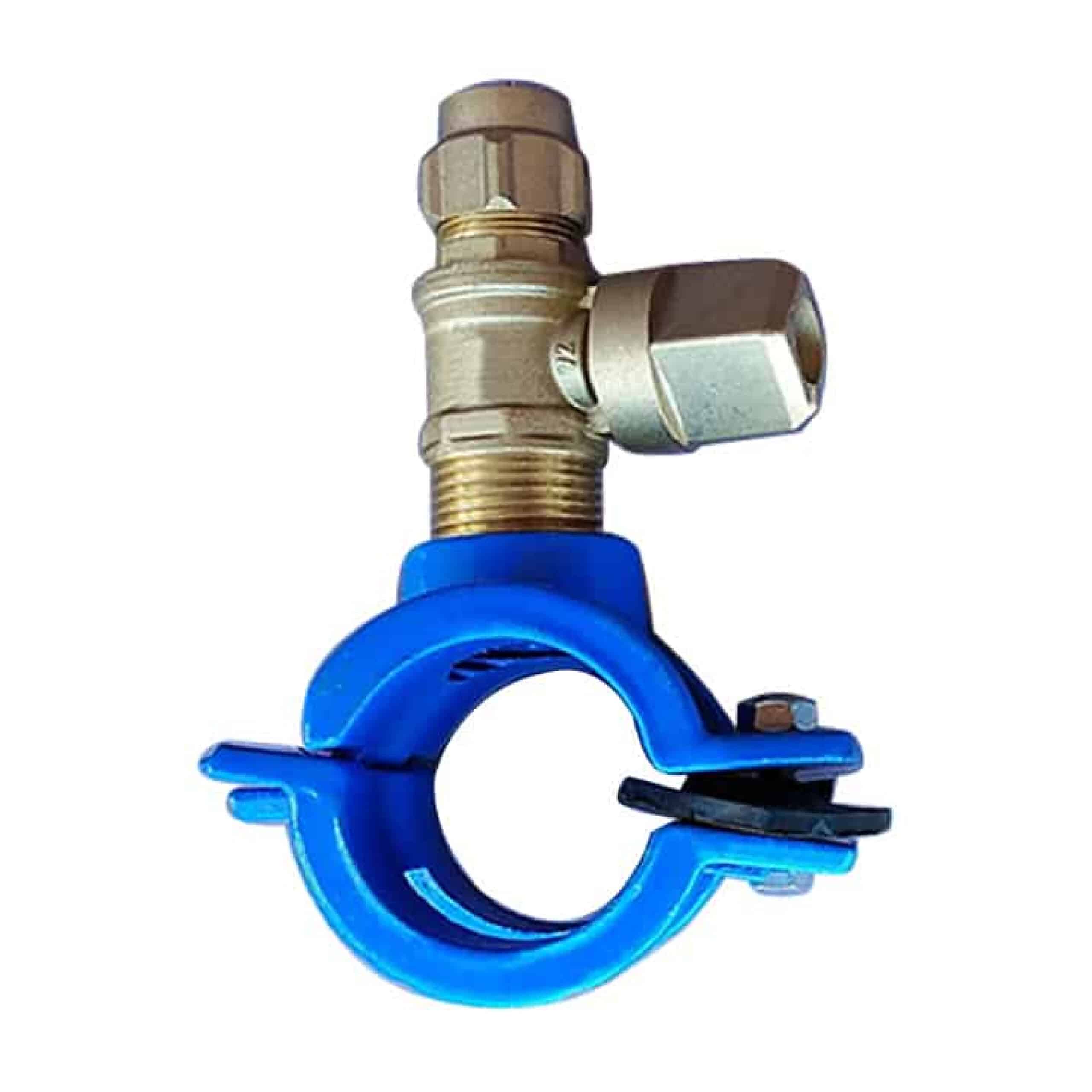

pipe saddle fitting
Previous image
Next image
MATERIAL AND DRAWING
CATALOGUE
INSTALLATION INSTRUCTION
