Quick Flange Adaptor for PVC Pipe
Quick flange adaptor is one type flange adaptor which is used to connect PVC pipes to flanges of other pipeline parts.It is simple design and can be installed quickly compare to other type flange adaptor for PVC pipe.So it is called quick flange adaptor for PVC pipe.

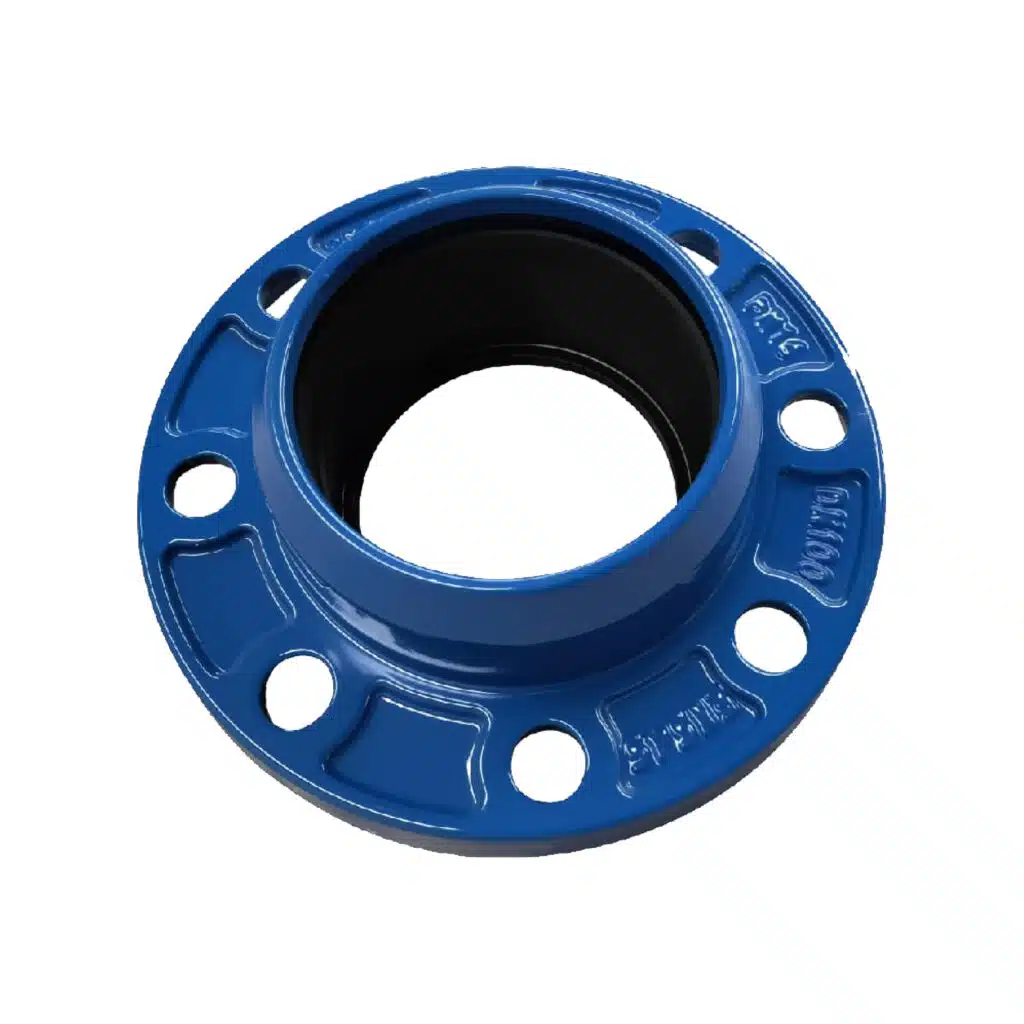

Quick flange adaptor for PVC pipe
Specification
Quick flange adaptor standard:comply with EN545
Coating standard:EN30677
Test standard: EN12266-1
Working pressure and Temperature
size DN40 to DN400,Working pressure PN10/PN16
Temperature from -10℃ to 120℃ for EPDM gasket
Temperature from -10℃ to 82℃ for NBR gasket
Connection for PVC pipe
Suitable for potable water,neutral liquids and sewage
WRAS,ACS,DVGW approved

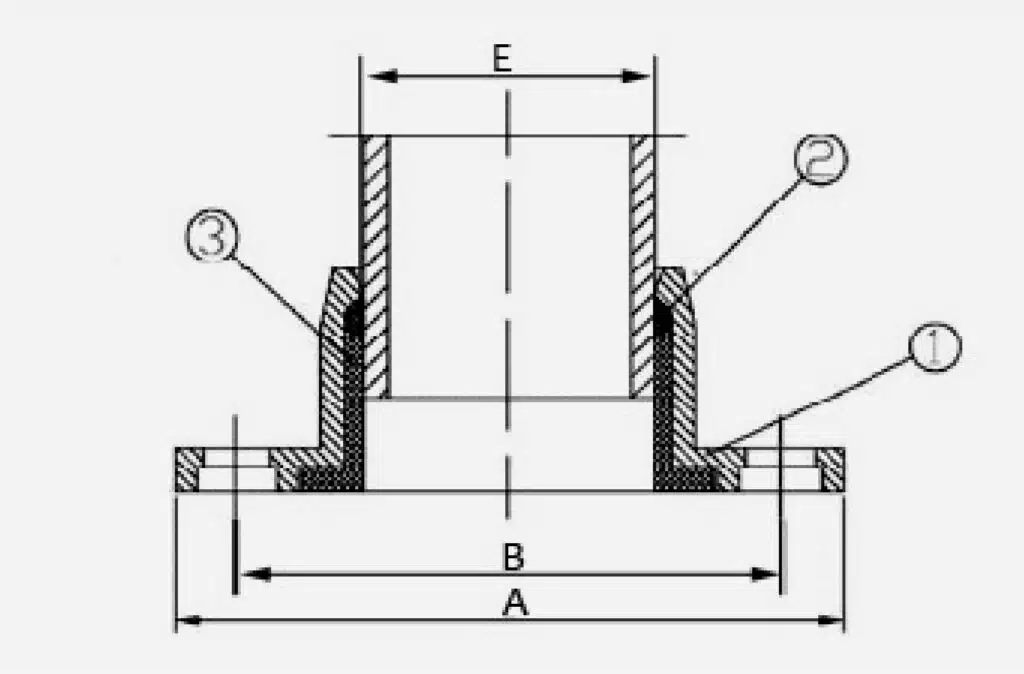

Drawing
Material specification
| Sr.No. | Name | Material |
|---|---|---|
| 1 | Flange body | ductile iron |
| 3 | Gasket | EPDM |
Options:
FBE coating and Nylon 11 coating is available
Dimension(unit:mm)
| SIZE | Pipe OD | A | B | E |
|---|---|---|---|---|
| DN40 | 50 | 166 | 118 | 55 |
| DN50/65 | 63 | 184 | 156 | 68 |
| DN60/65 | 63 | 184 | 156 | 68 |
| DN60/DN65 | 75 | 185 | 139 | 80 |
| DN80 | 75 | 201 | 161 | 80 |
| DN80 | 90 | 196 | 151 | 96 |
| DN100 | 110 | 220 | 181 | 113 |
| DN125 | 125 | 254 | 211 | 131 |
| DN125 | 140 | 254 | 212 | 140 |
| DN150 | 160 | 283 | 244 | 165 |
| DN200 | 200 | 338 | 297 | 206 |
| DN200 | 225 | 338 | 299 | 231 |
| DN250 | 250 | 402 | 360 | 257 |
| DN300 | 315 | 454 | 412 | 321 |
| DN400 | 400 | 570 | 529 | 410 |
